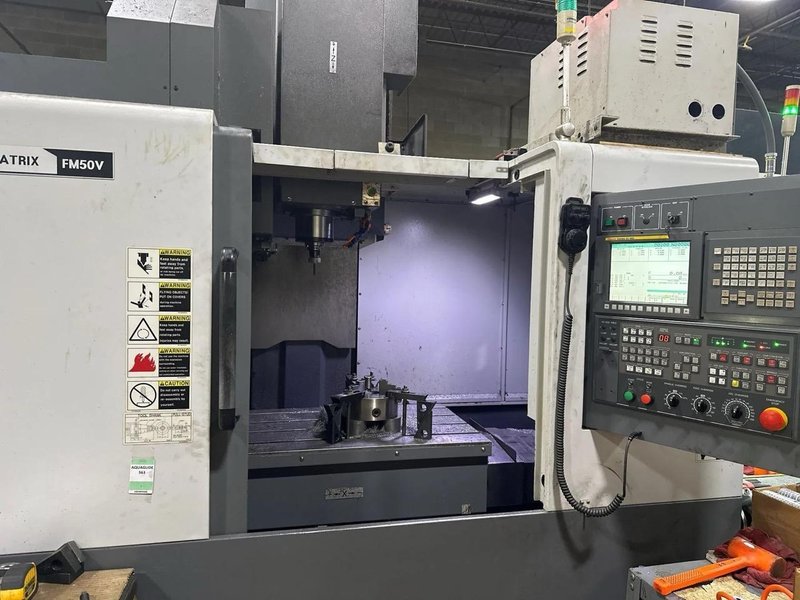

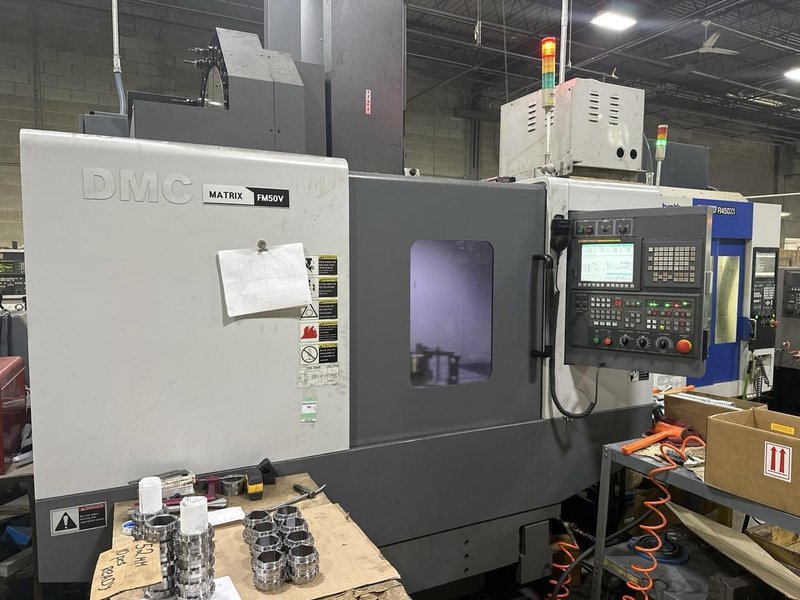

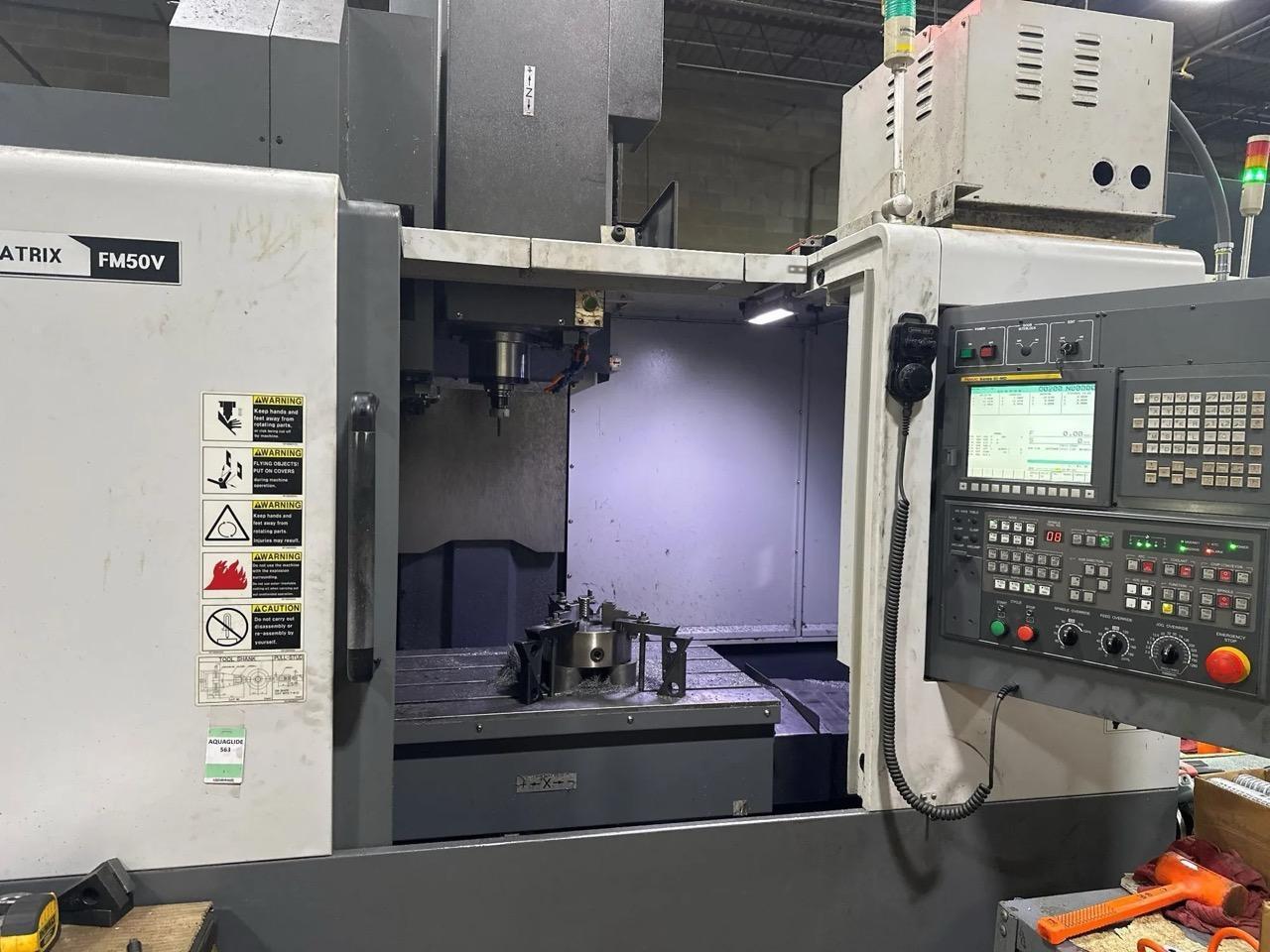

DMC Matrix FM50V VMC, 2012 – Fanuc Oi-MD Control, Chip Conveyor
Brand
Category
Model
Matrix FM50V
Stock #
263488
Year
2012
Condition
Not specified
Location
Not specified
|
X-Axis Travel: 31.49″
Y-Axis Travel: 20.47″
Z-Axis Travel: 20.08″
Power: 30 HP
Spindle Speed: 15,000 RPM
Tool Change: 30 Side Mount ATC
Spindle Taper: CAT-40
Table Size: 37.4″ x 21.65″
Maximum Table Load: 1,323 LBS
Rapid Traverse Rate (x & y): 2362 IPM
Rapid Traverse Rate (z): 1417 IPM
Change Time Chip to Chip: 4.3 Sec
Change Time Tool to Tool: 1.8 Sec
Approximate Weight: 14,500 LBS

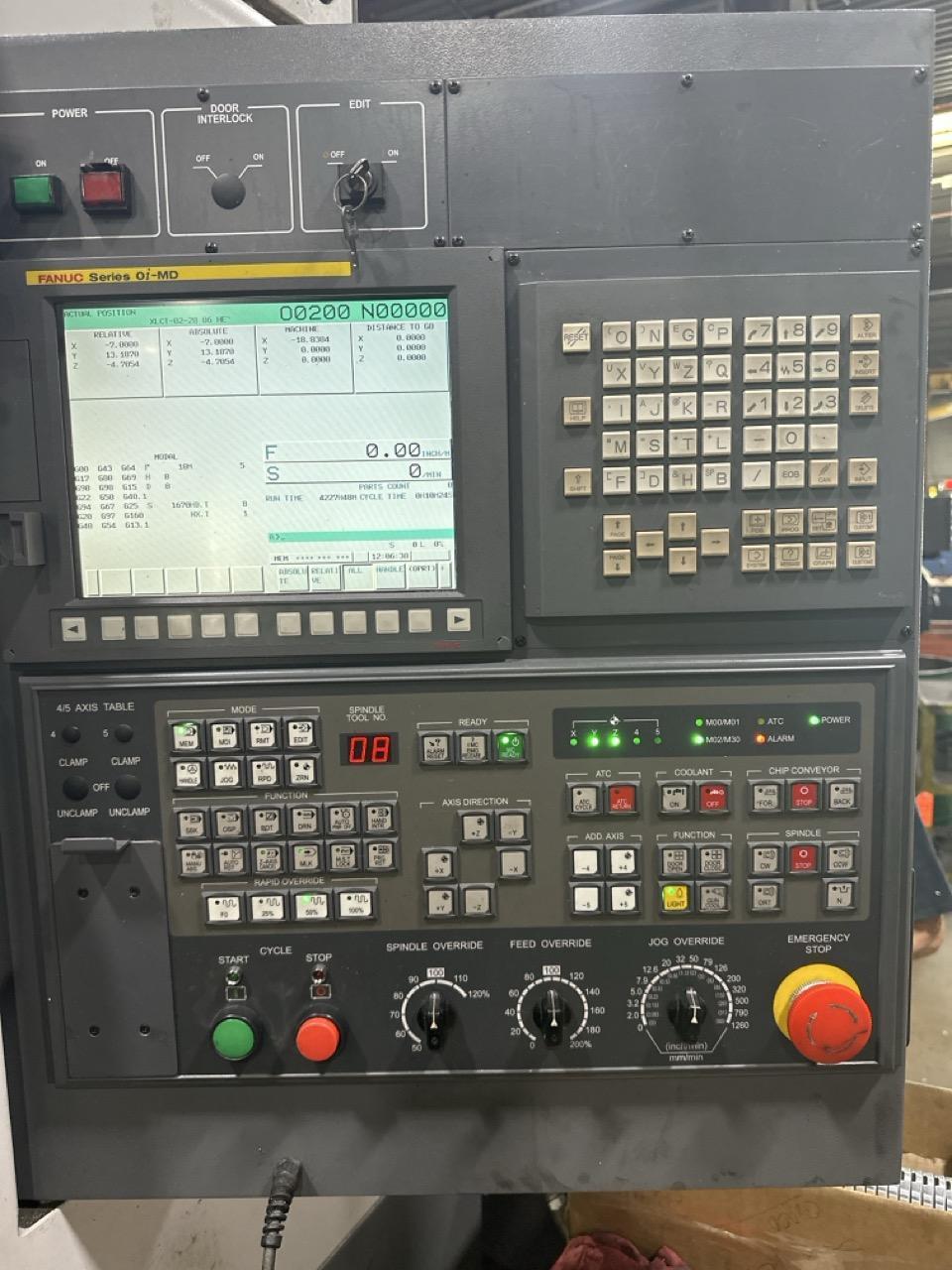

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fanuc Oi-MD CNC Control Portable MPG Chip Conveyor All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
