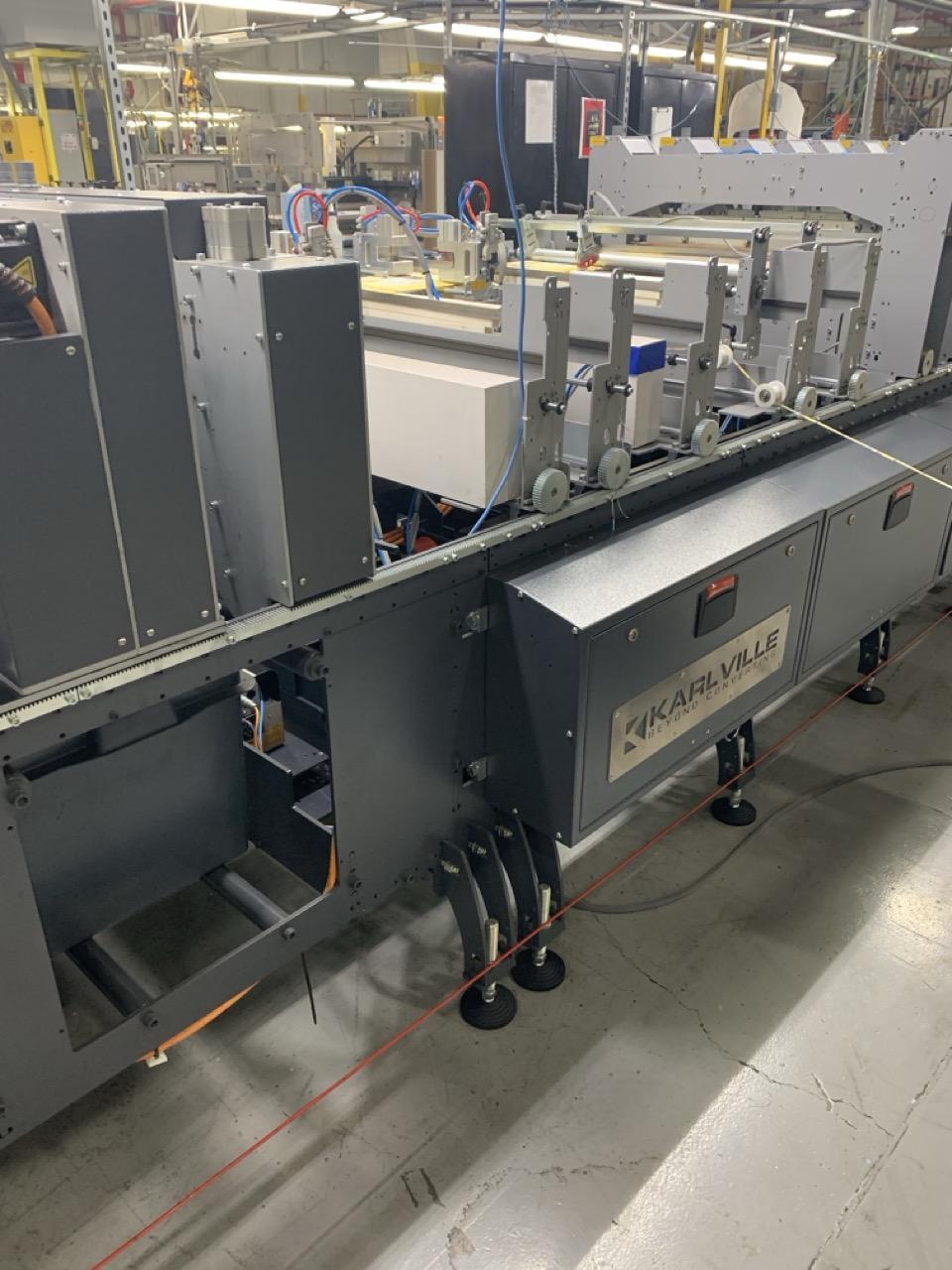

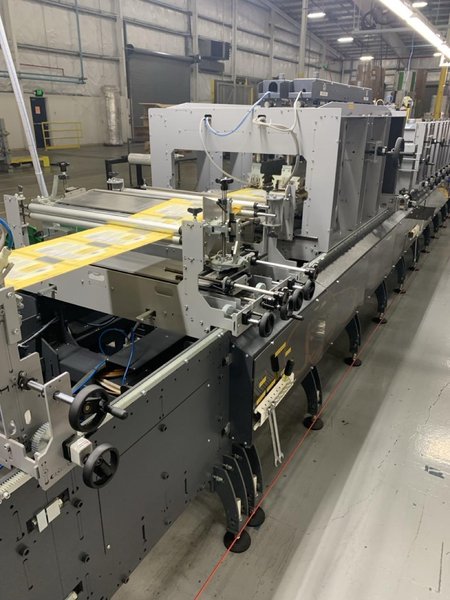

Karlville Swiss KS-HSUP-600 Pouch Making Machine, 2022

Maximum Mechanical Speed: Up to 200 CPM (cycles per minute) Estimated Production Speed: Average 150 CPM Maximum Material Width: 57.1″ Maximum Material Roll Diameter: 31.5″ Material Core I.D.: 3″ Material Types: PET, ALU, Paper Laminated with PP or PE, MONO Material, Recyclable and Compostable Films Material Thickness Range: 55μ – 200μ Hours: Approx. 3172

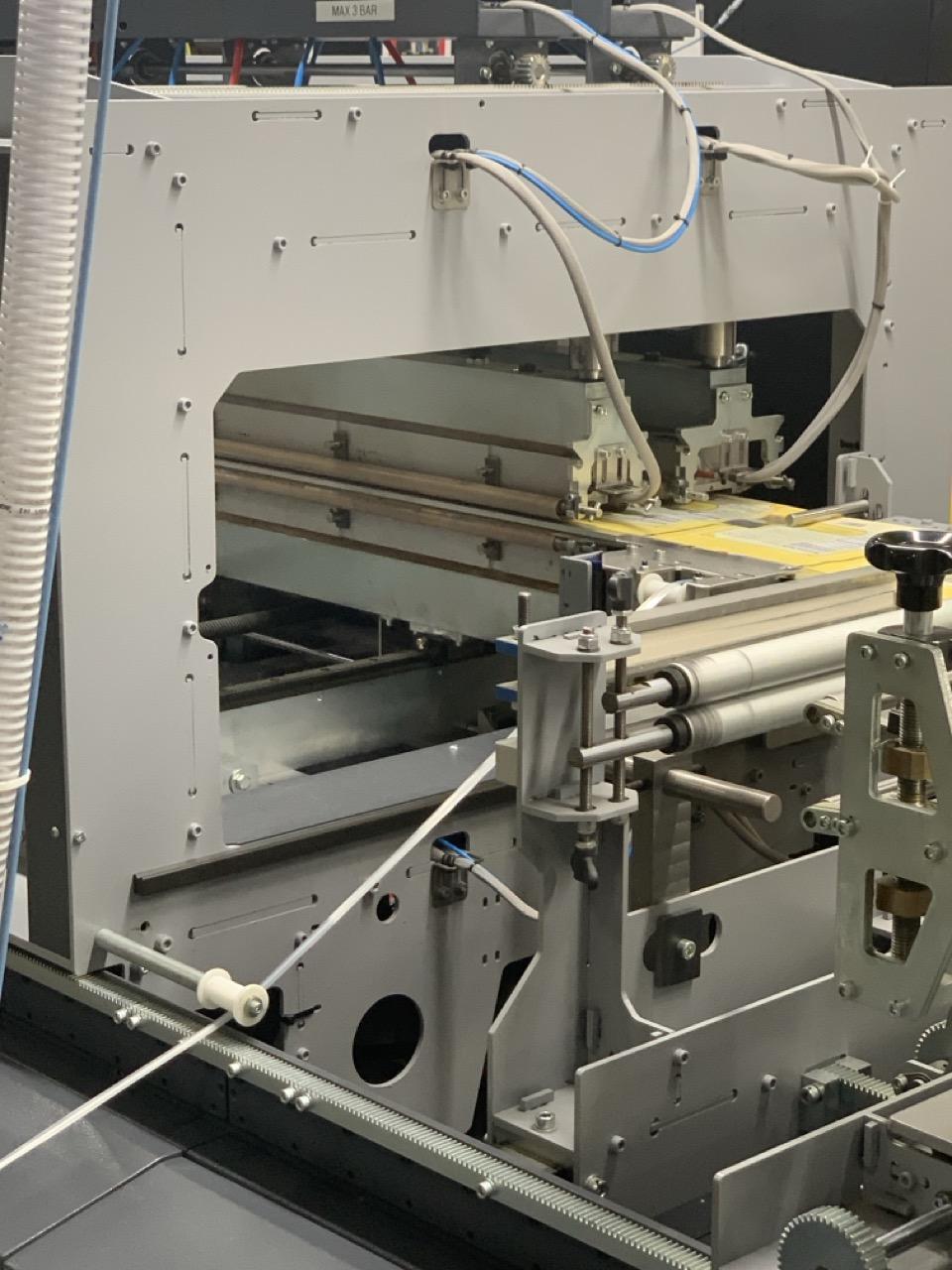

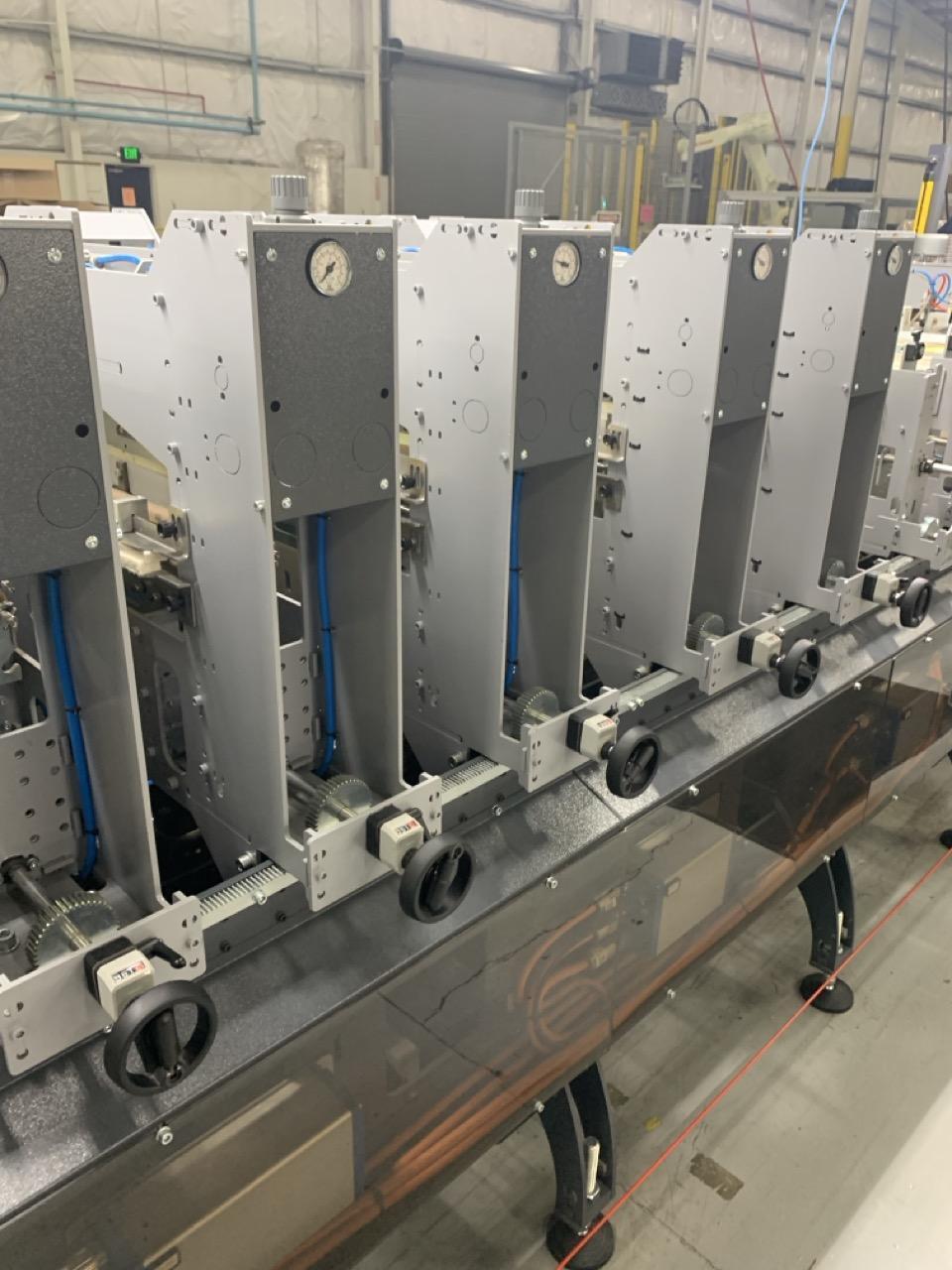

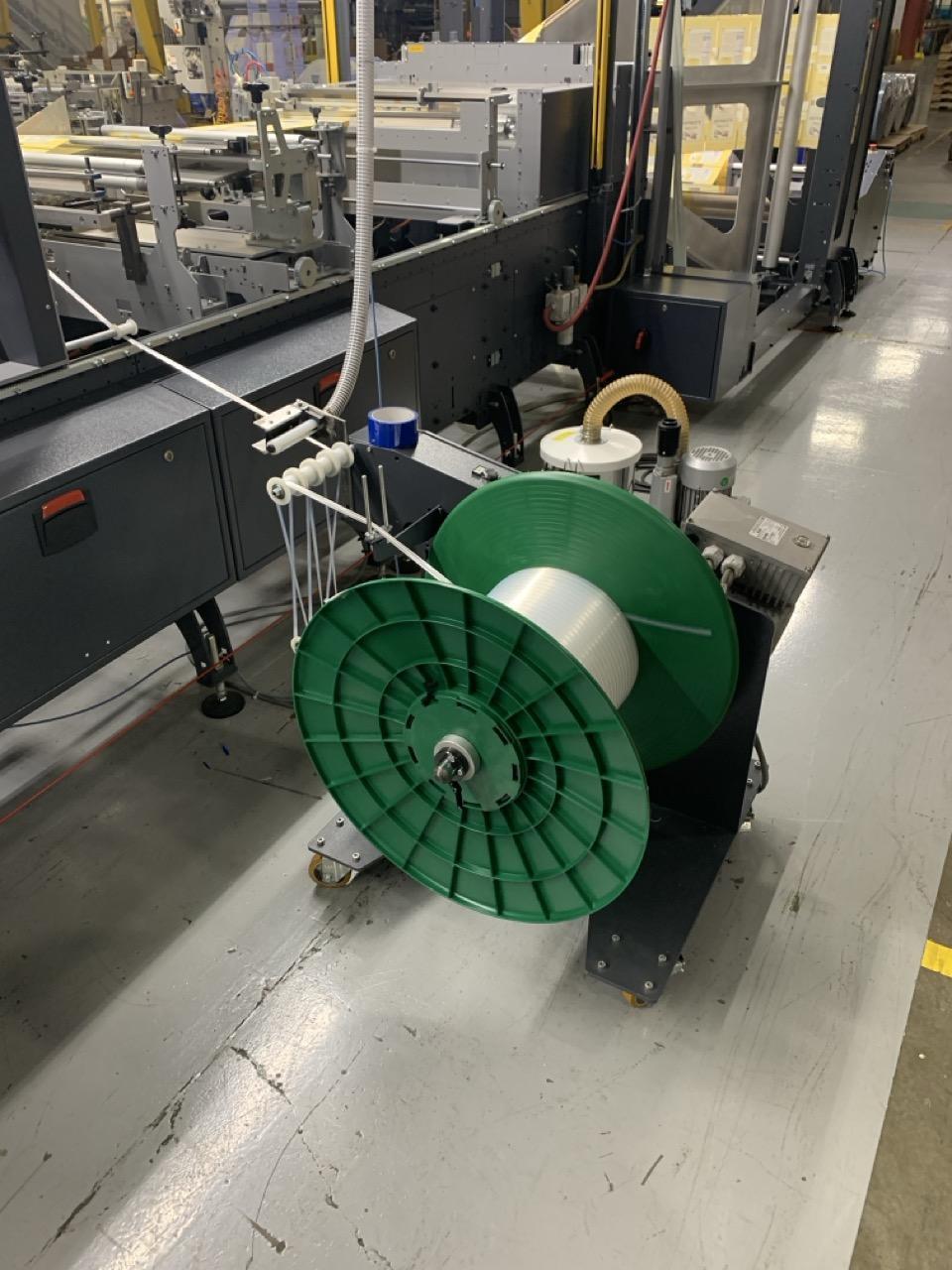

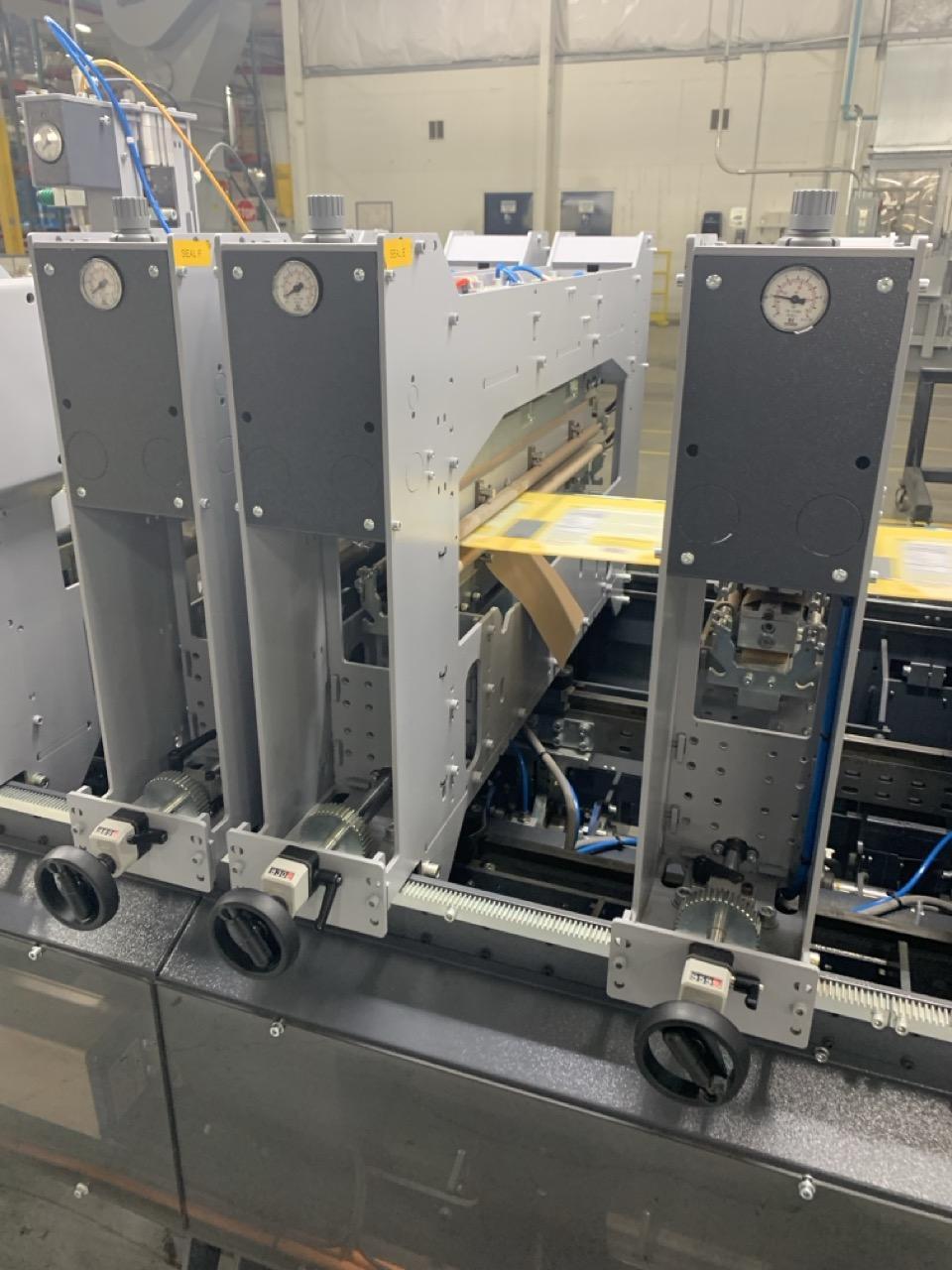

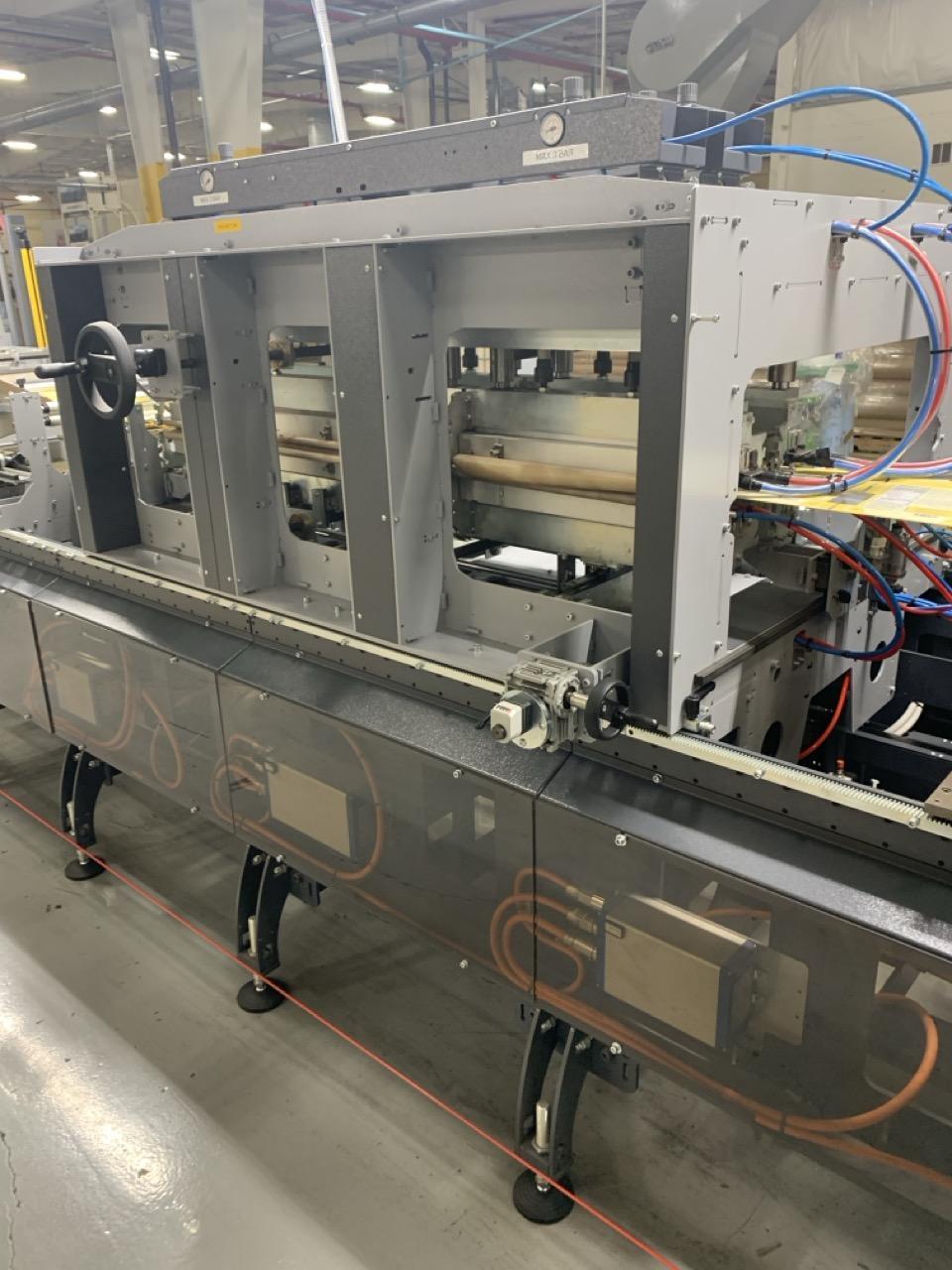

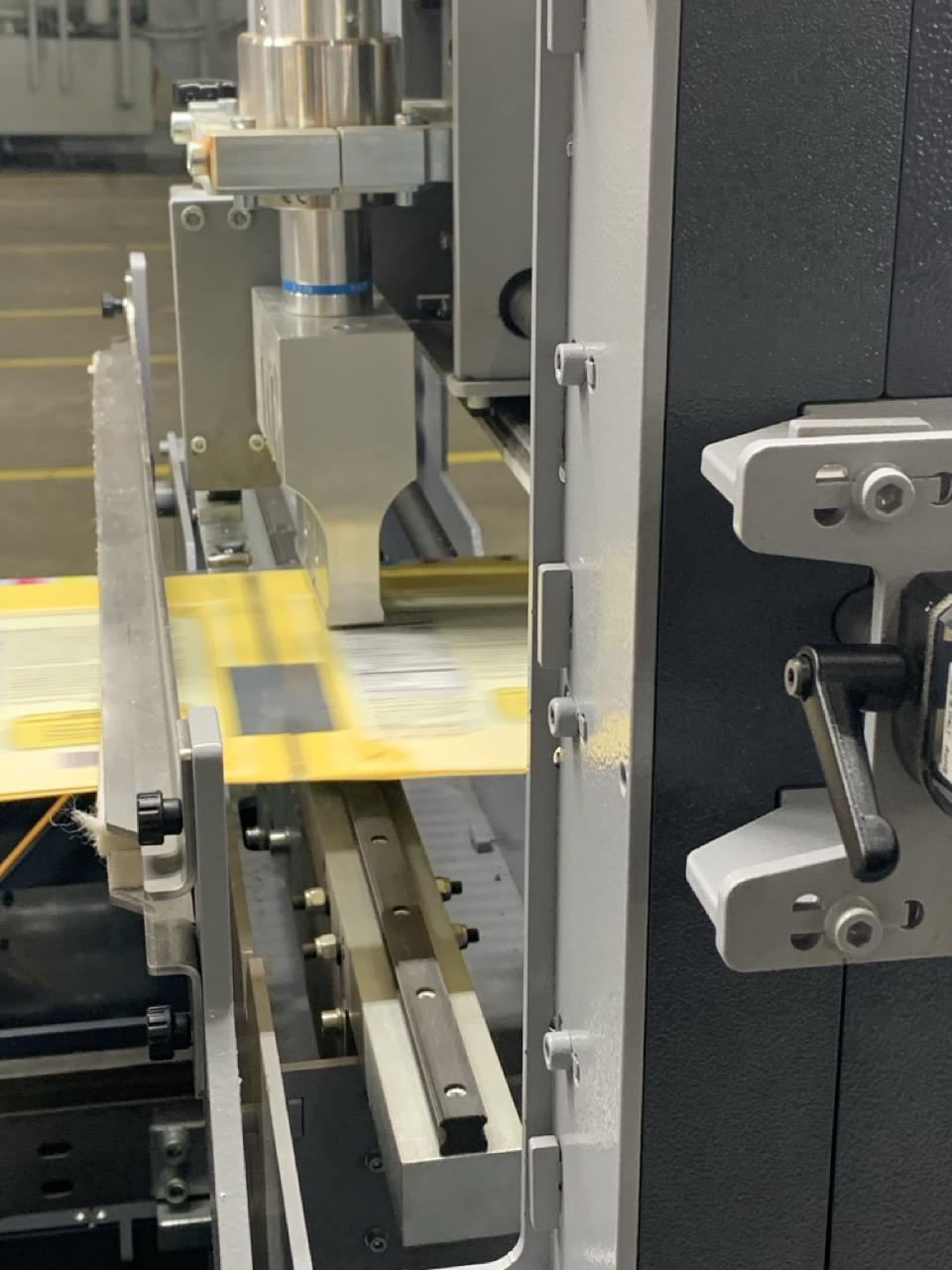

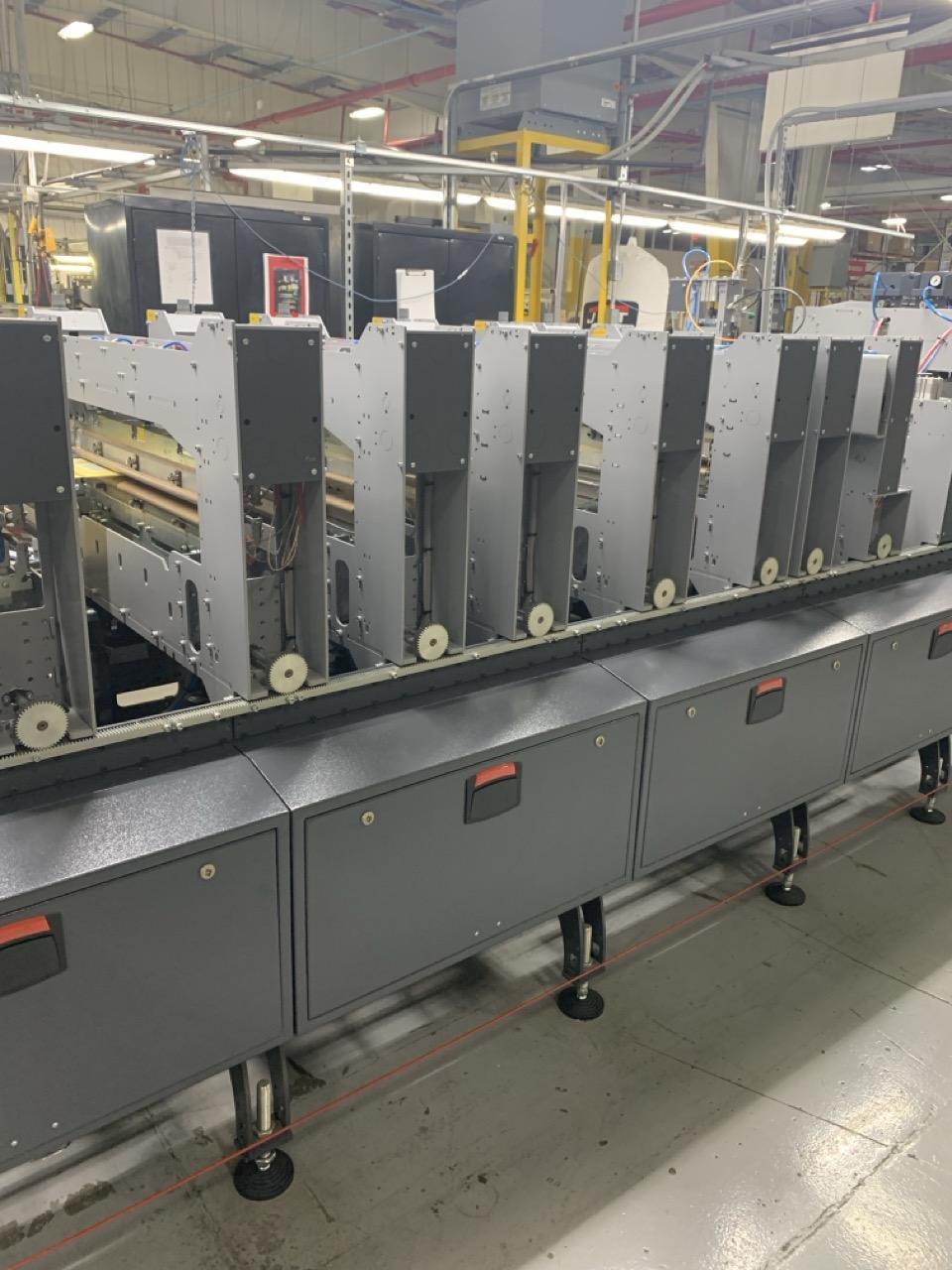

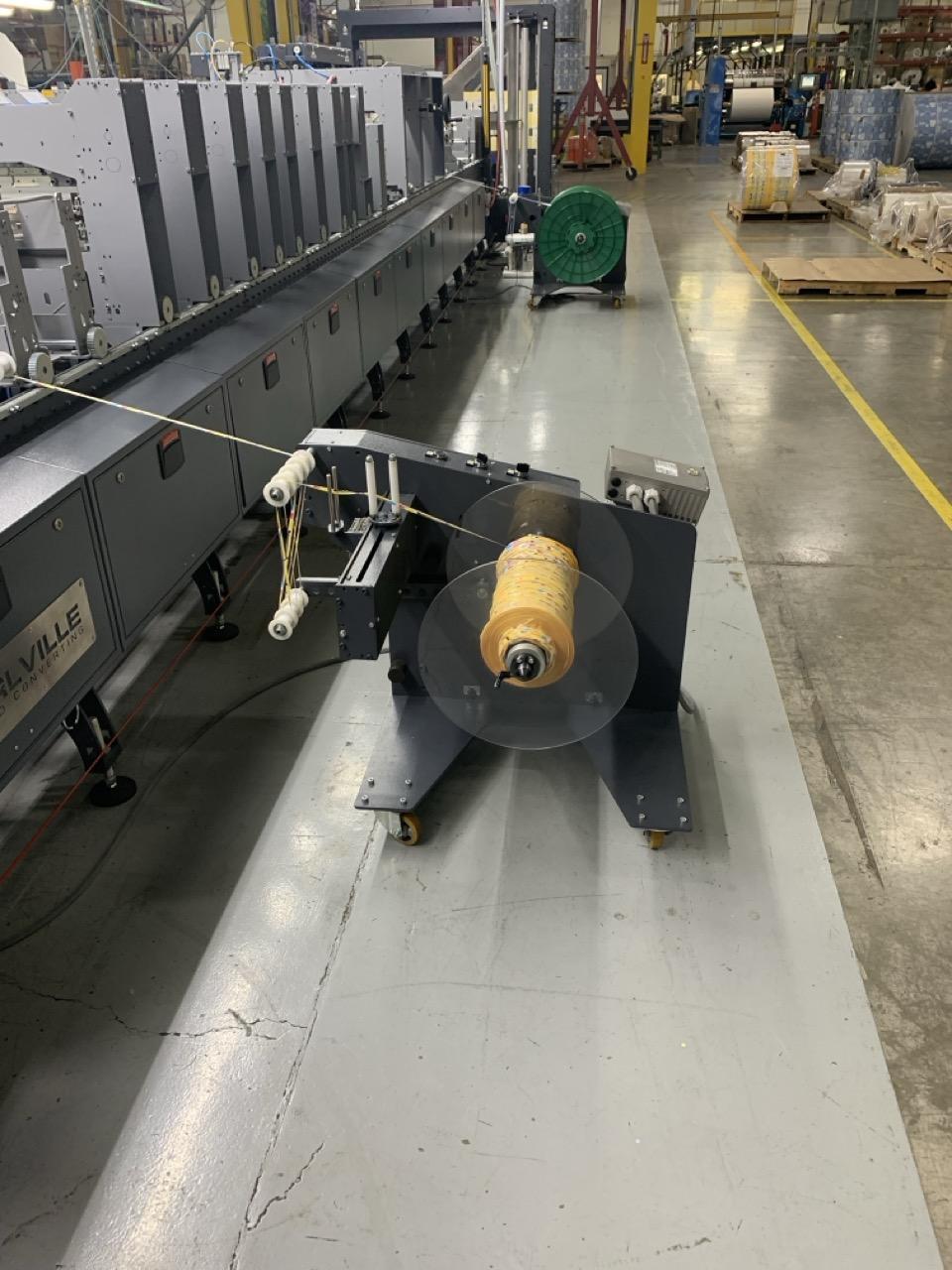

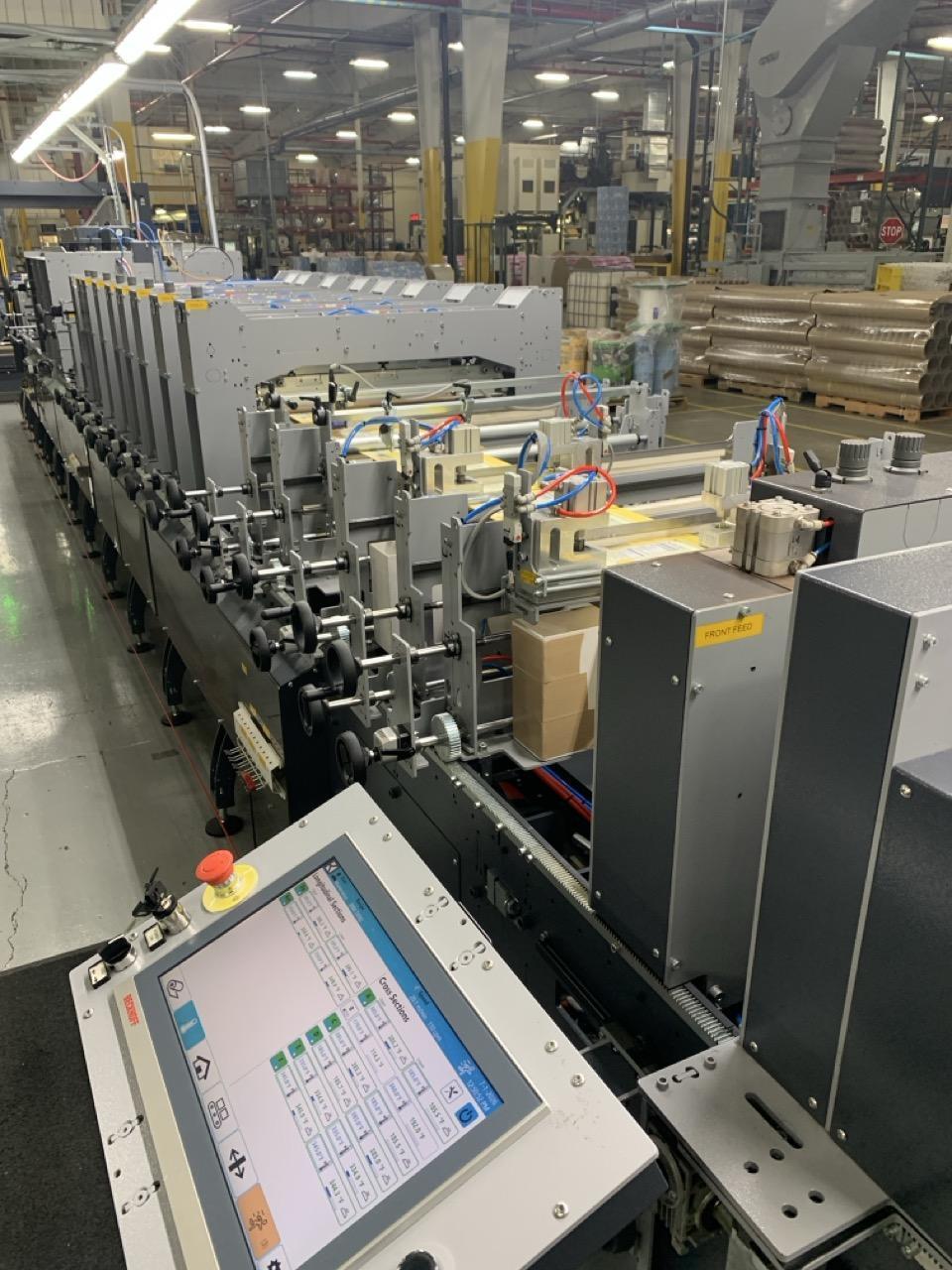

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Unwind Section (Inline Unwinder) – Feeding and Film Tension Control – Tack Hole Punching for Folded Gusset – Bottom Gusseting Device – Longitudinal Station, Independently Servo Driven – Stand-alone Motorized Zipper Unwinder Complete with Dancer – Central Feeding System – Servo Motorization for Cross Section, Integrated in Machine Frames – Gusset Tack Sealing and Ultrasonic 20Khz Zipper Crush Station – Cross/Side Sealing Stations – Cross/Side Cooling Stations – Eye Mark Reading Station – Longitudinal Cutting Station – Stand-alone Motorized Trim Rewinder Complete with Dancer – Complete Standard Punching Station – Front Feeding System – Flying Knife Station with Single Cut & Double Cut – Double Exit Conveyor – BECKHOFF Touch Panel 15” and PLC Control System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
