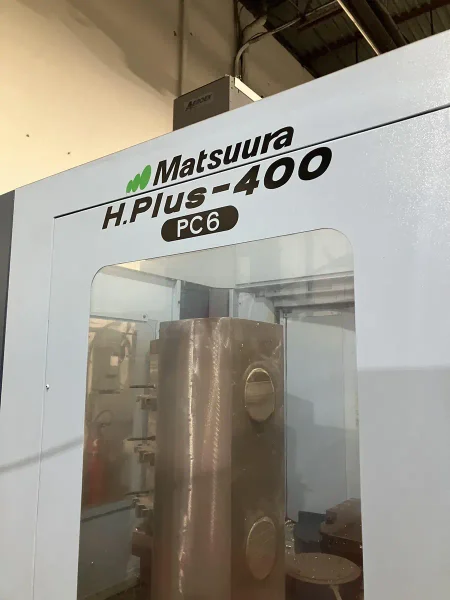

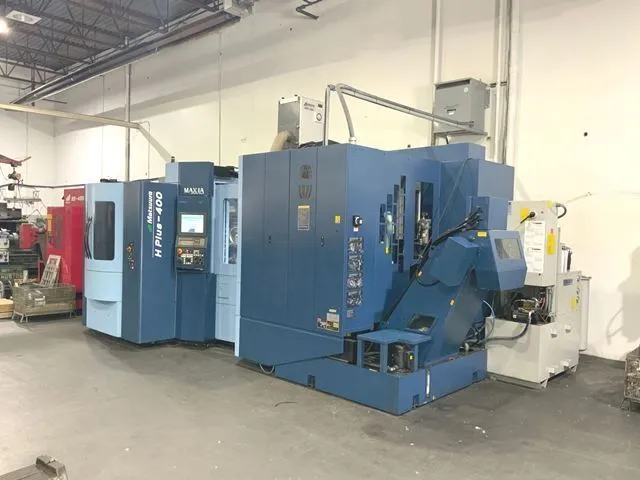

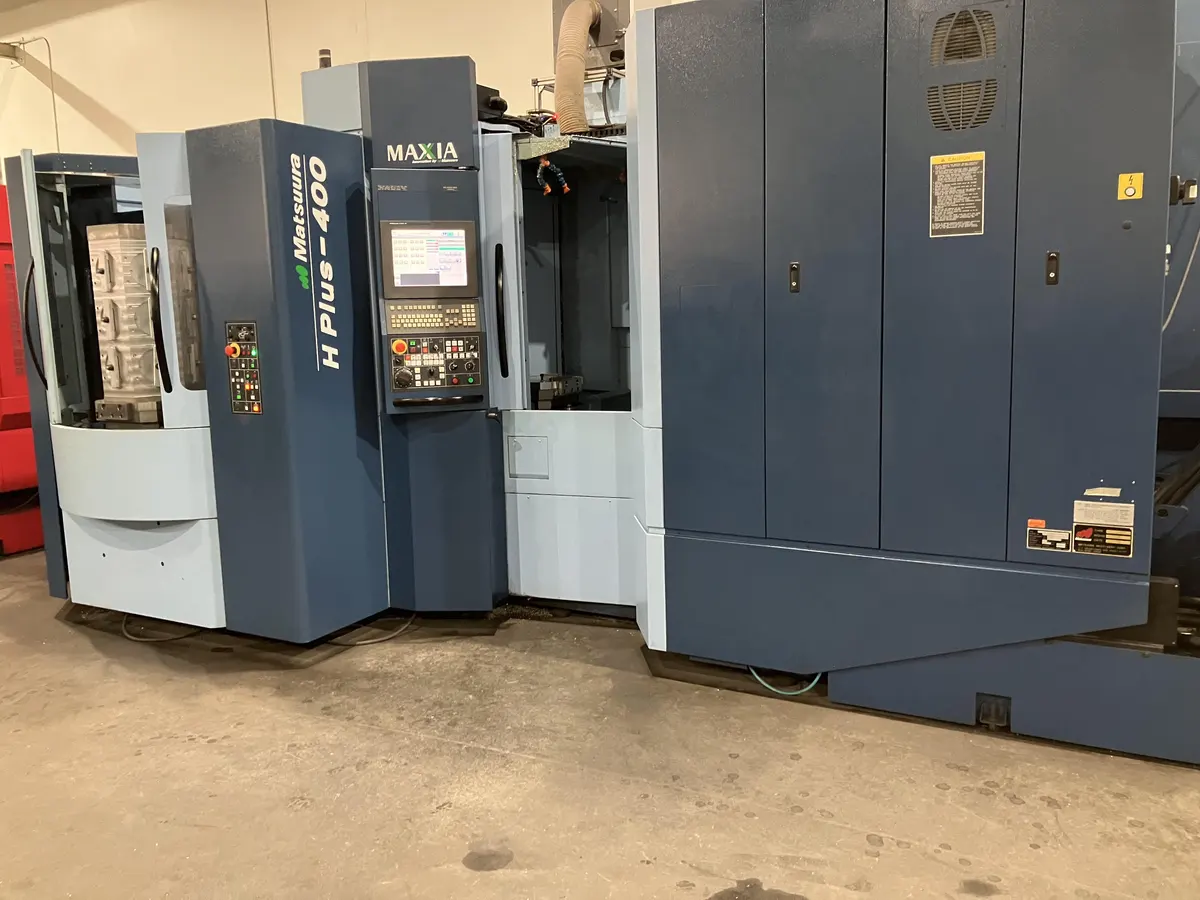

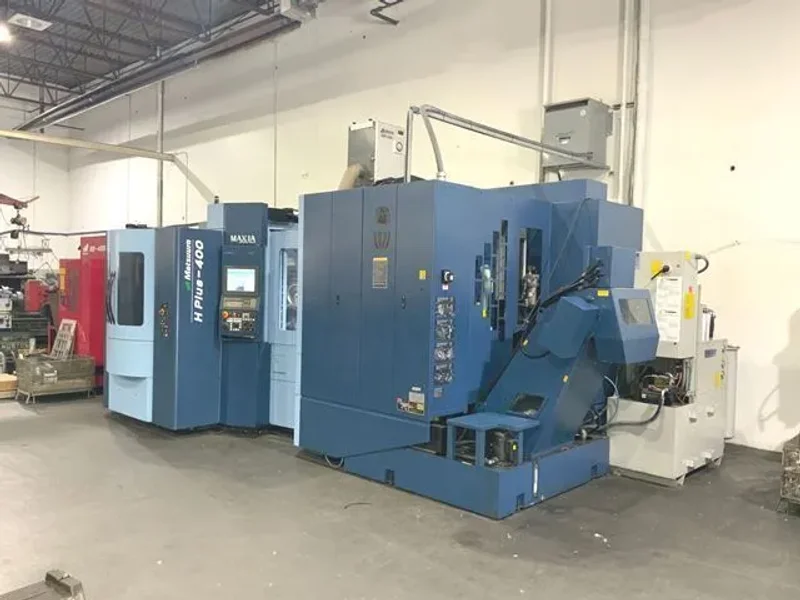

2015 Matsuura H-Plus 400 Horizontal Machining Center with 6-Pallet Pool

Matsuura H-Plus 400 PC6
Horizontal Machining Center with 6-Pallet Pool
Year: New 2015 / Installed 2016

================================================

CAPACITY

- Pallet Size: 400 mm (16 in), 6 pallets
- X-Axis (Cross Travel): 22 in
- Y-Axis (Vertical Travel): 22 in
- Z-Axis (Longitudinal Travel): 22 in
- Spindle Speed: 20,000 RPM
- Spindle Drive: 40 HP
- Spindle Taper: CAT 40

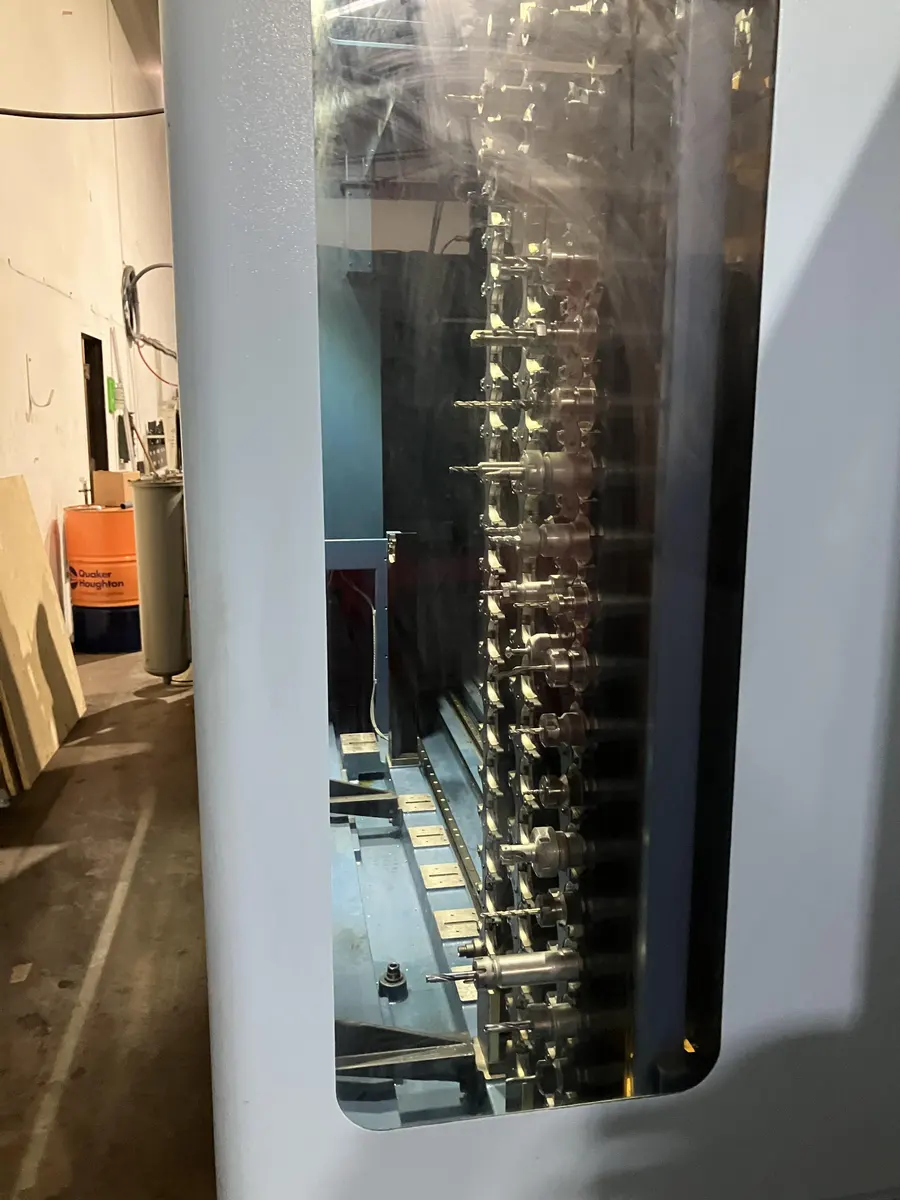

- Tool Changer: 120-Position ATC (expandable to 360)

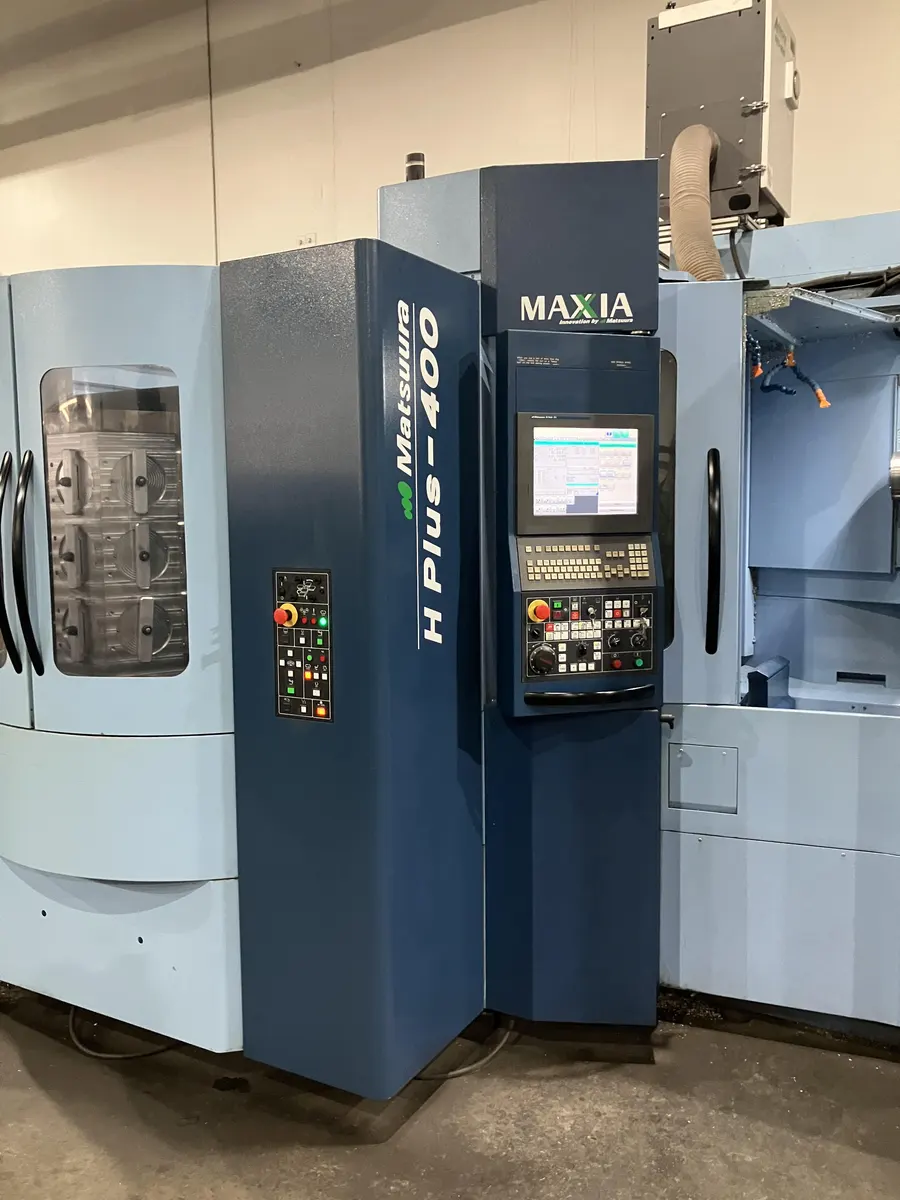

- CNC Control: Fanuc G-Tec 31i

================================================

EQUIPPED WITH

- 230V 3-Phase 60Hz Electrics
- High-Pressure Through-Spindle Coolant

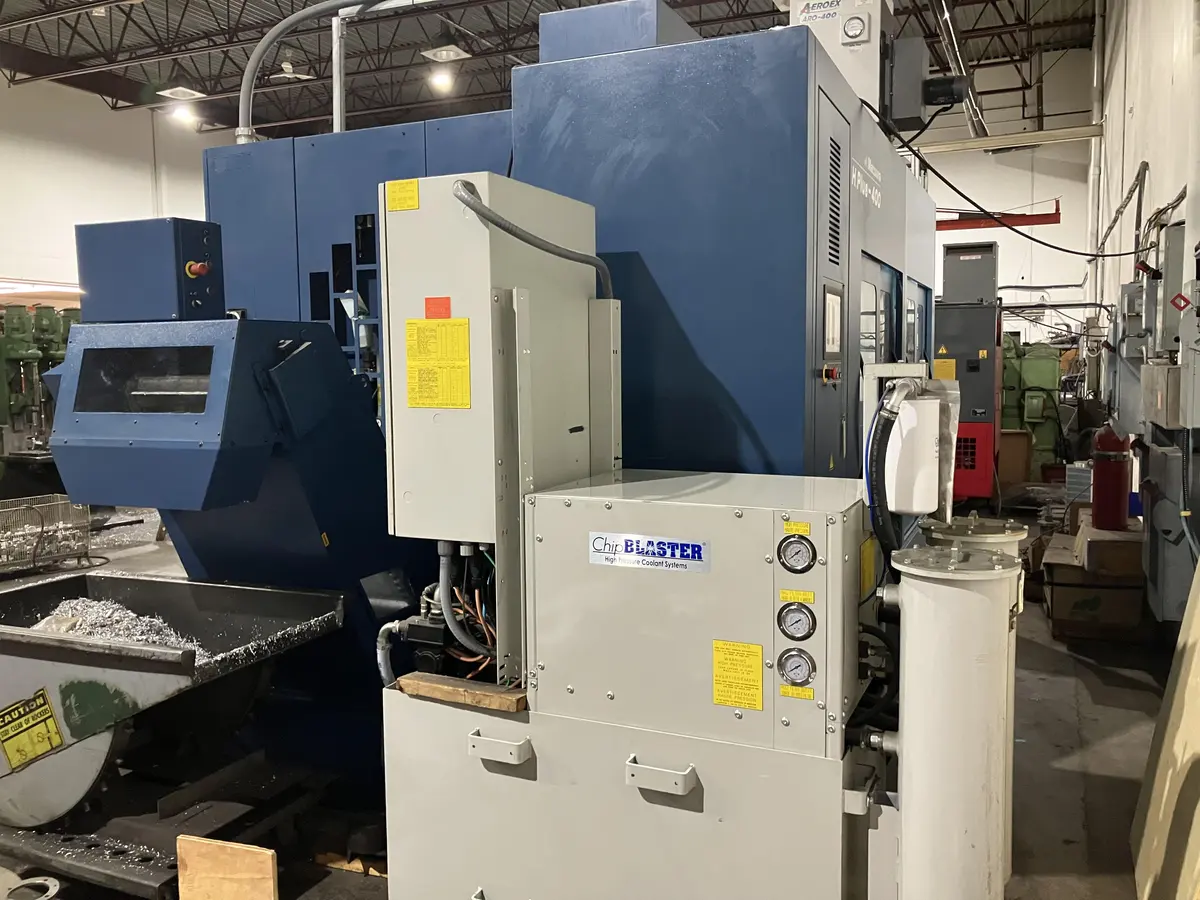

- Chip Blaster Unit with Canister Filters
- Drum-Type Filter
- Chip Conveyor
- Pop-Up Tool Laser
- Renishaw Tool Probe

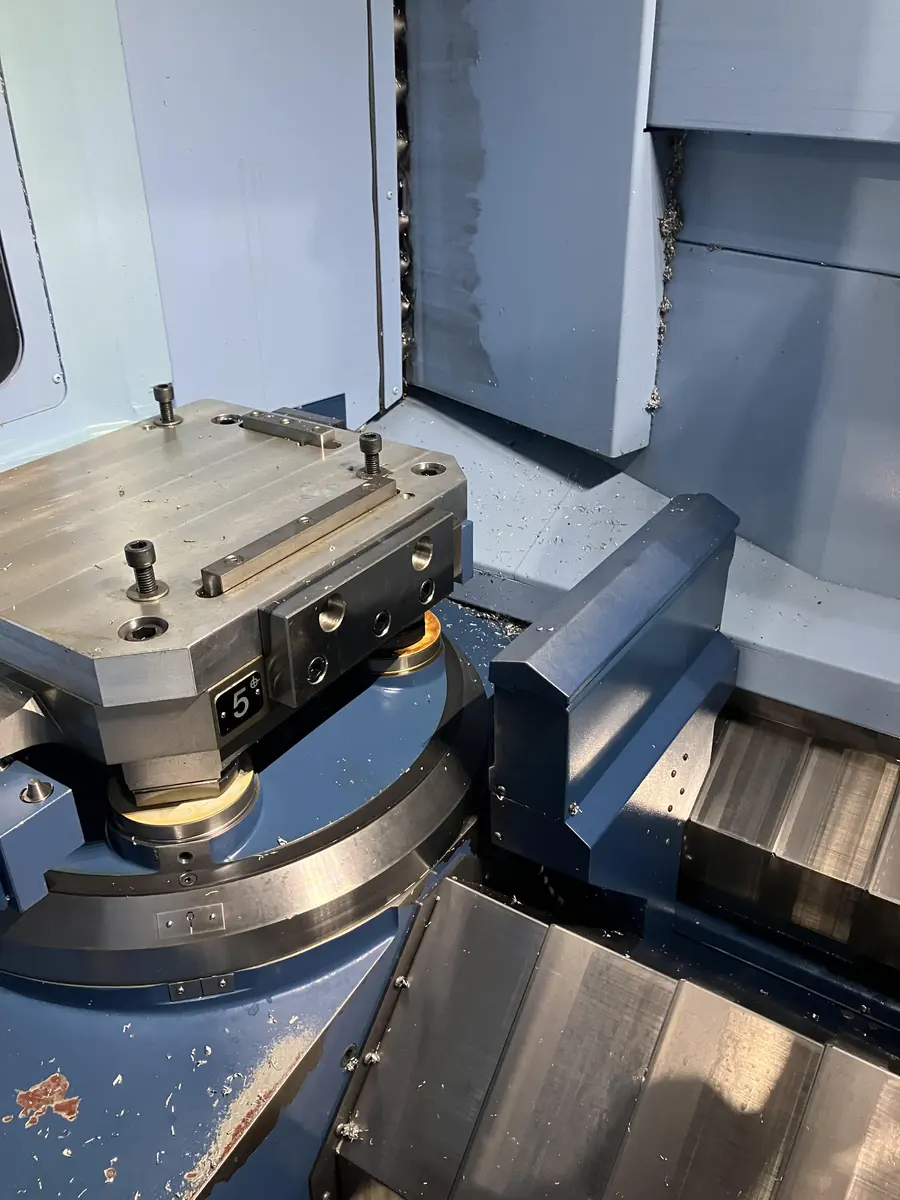

- Full 4th Axis Pallet Rotation (milling with pallet)
- Direct Drive Pallet Rotation
- Tombstone Fixtures
- Top-Mounted Mist Collector
- Tool Changer Expandable to 360 ATC
- Configured for Lights-Out Operation
