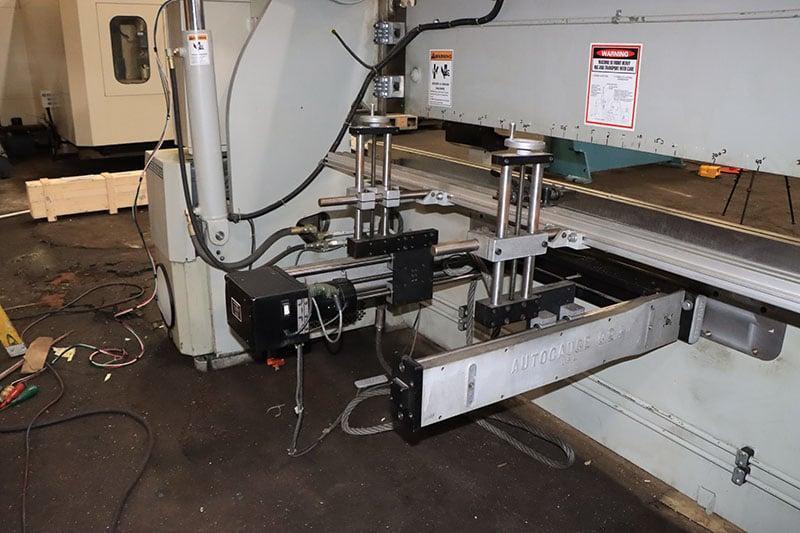

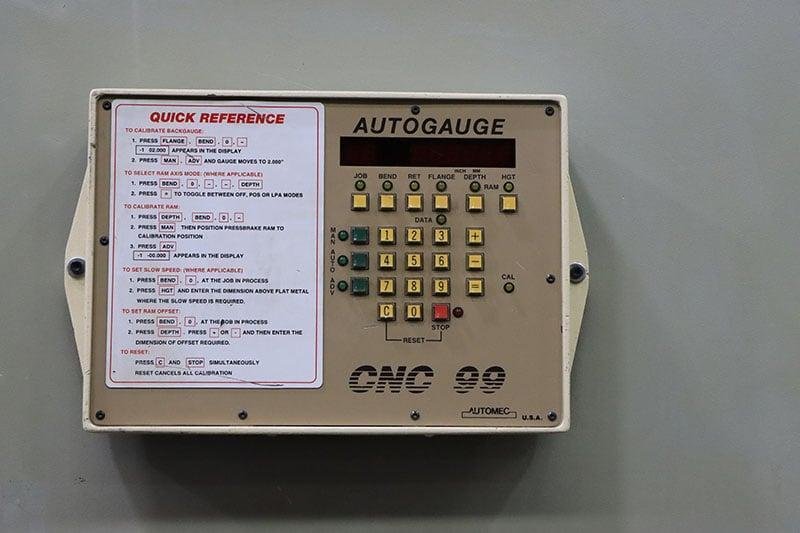

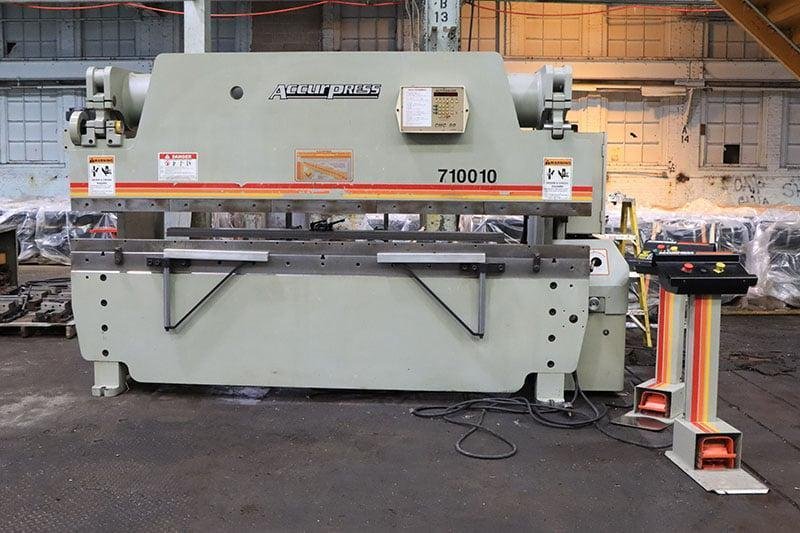

100 Ton X 10’ Hydraulic Press Brake with Automec CNC 99 Back Gauge, ETS 200 Pedestal Mounted Controller of Dual Palm Button or Foot Pedal Operation, Full Length Die Rail, Manual R - Axis, 2 - Front Arm Swing out Supports and Flush Floor Mount Design.

GENERAL SPECIFICATIONS
Overall Length:                        10’
Distance Between Housings:                8’ 4”
Bending Capacity Mild Steel:                8’ X 3/16”
Bend Height:                            34”
Bend Width:                            6”
Stroke:                            8”
Open Height:                            14”
Closed Height:                        6”
Throat Depth:                        10”
Fast Approach:                        115 IPM
Slow Bend:                            24 IPM
Fast Return:                            260 IPM
Approx Weight:                        14,000 Lbs
Motor:                                10 HP
Dimensions:                            136” X 47” 84” H


INCLUDES: Automec CNC 99 Back Gauge, ETS 200 Pedestal Mounted Controller of Dual Palm Button or Foot Pedal Operation, Full Length Die Rail, Manual R - Axis, 2 - Front Arm Swing out Supports and Flush Floor Mount Design.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
