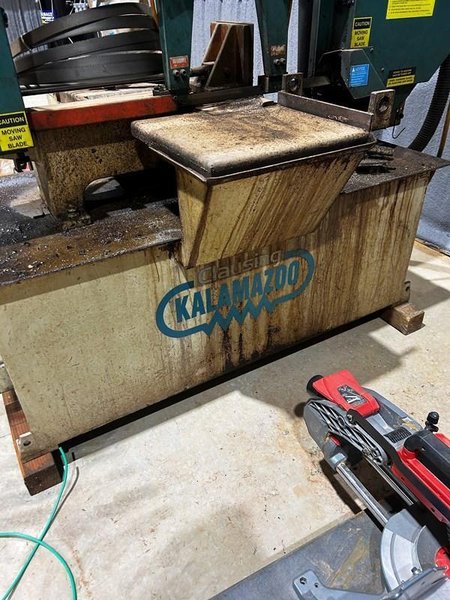

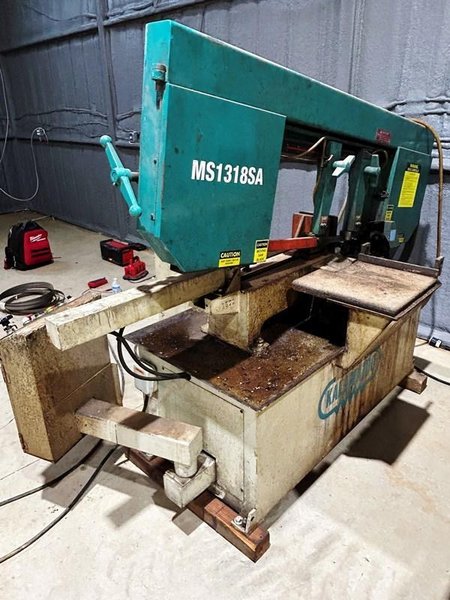

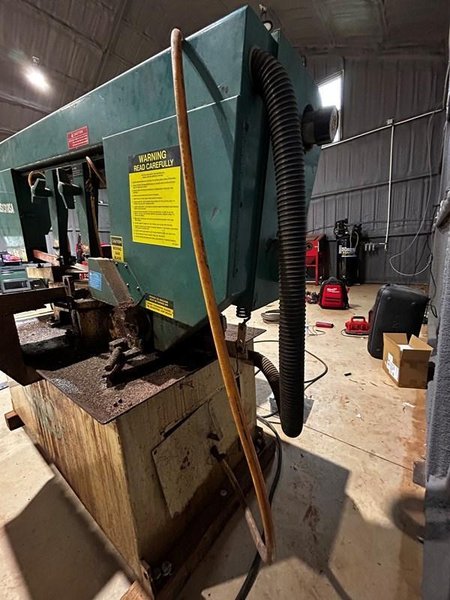

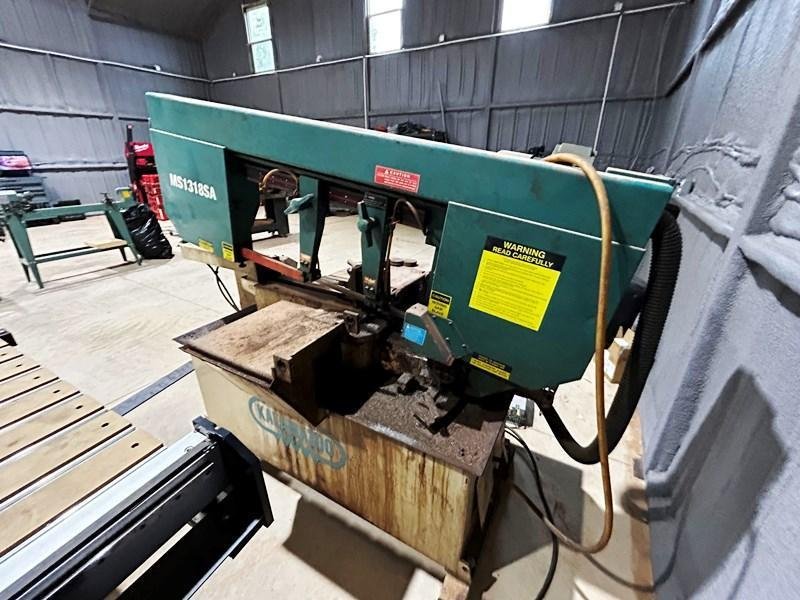

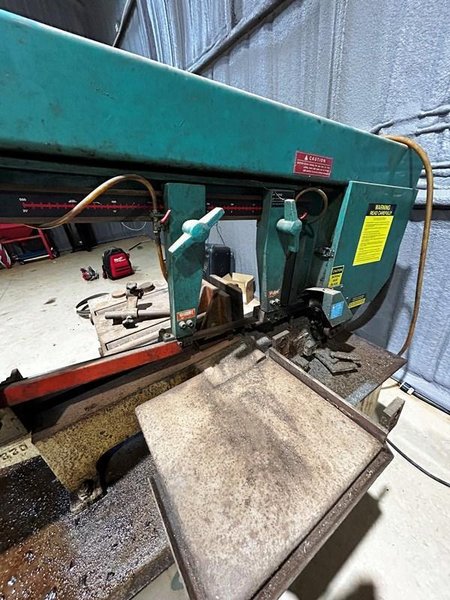

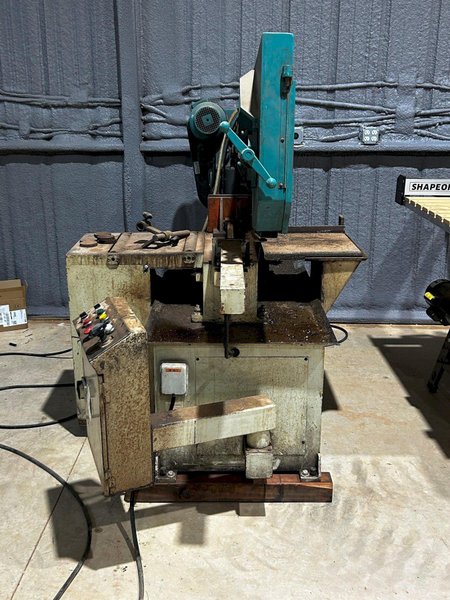

18.5" X 10.6" CLAUSING KALAMAZOO MS1318SA MITERING HORIZONTAL BAND SAW

18.5" X 10.6" CLAUSING KALAMAZOO MS1318SA MITERING HORIZONTAL BAND SAW

Name: 18.5" X 10.6" CLAUSING KALAMAZOO MS1318SA MITERING HORIZONTAL BAND SAW
Brand: CLAUSING KALAMAZOO
SKU: 30291
Availability: InStock

Brand

CLAUSING KALAMAZOO

Location

Oklahoma

REQUEST FINANCING

Specifications
Files & Videos

18.5" X 10.6" CLAUSING KALAMAZOO MS1318SA MITERING HORIZONTAL BAND SAW

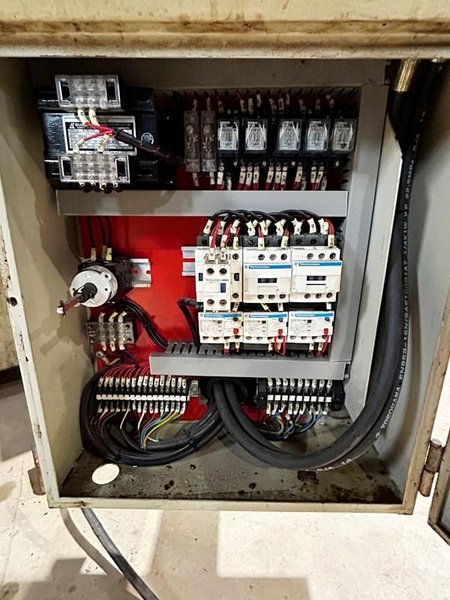

Motor Driven with 3 HP, 3-Phase, 60 Cycle, AC Motor & Controls

DESCRIPTION
Clausing Kalamazoo 13″ Semi-Automatic Swivel Head Mitering Horizontal Band Saw, MS1318SA
Advanced hydraulic system provides dependable power for powered clamping and raising the saw head at the end of the cut
Full stroke machine vise for tight clamping of any material from operator’s panel
Operator’s panel pivots allowing operator to control the saw from the rear of the machine

EQUIPPED WITH: Coolant

SPECIFICATIONS:

Capacity Rectangles @ 60 Degrees 18.5" x 10.6"

Capacity Rectangles @ 60 Degrees 8.7" X .8.7"
Capacity Rectangles @ 45 Degrees 10.5" X 10.5

Capacity Round @ 90 Degrees 13"
Capacity Round @ 45 Degrees 11.8"
Capacity Round @ 60 Degrees 8.7"
Capacity Squares @ 90 Degrees 10.6"
Capacity Squares @ 60 Degrees 10.5"
Capacity Squares @ 45 Degrees 8.7"
Blade Speeds 98 to 328 FPM
Head Miters 0 to 60 Degrees
Vises 7-1/2" x 6-1/2"
Blade Dimension 13.7" X 1" X .035"
Approximate Dimensions 75" x 34" x 55.5" H
Approximate Weight 1,500 Lbs.
