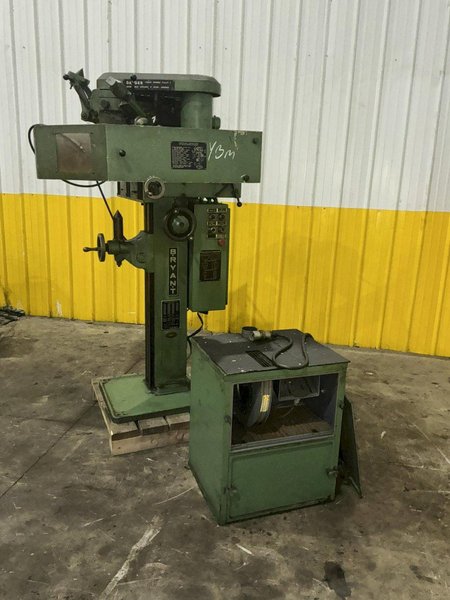

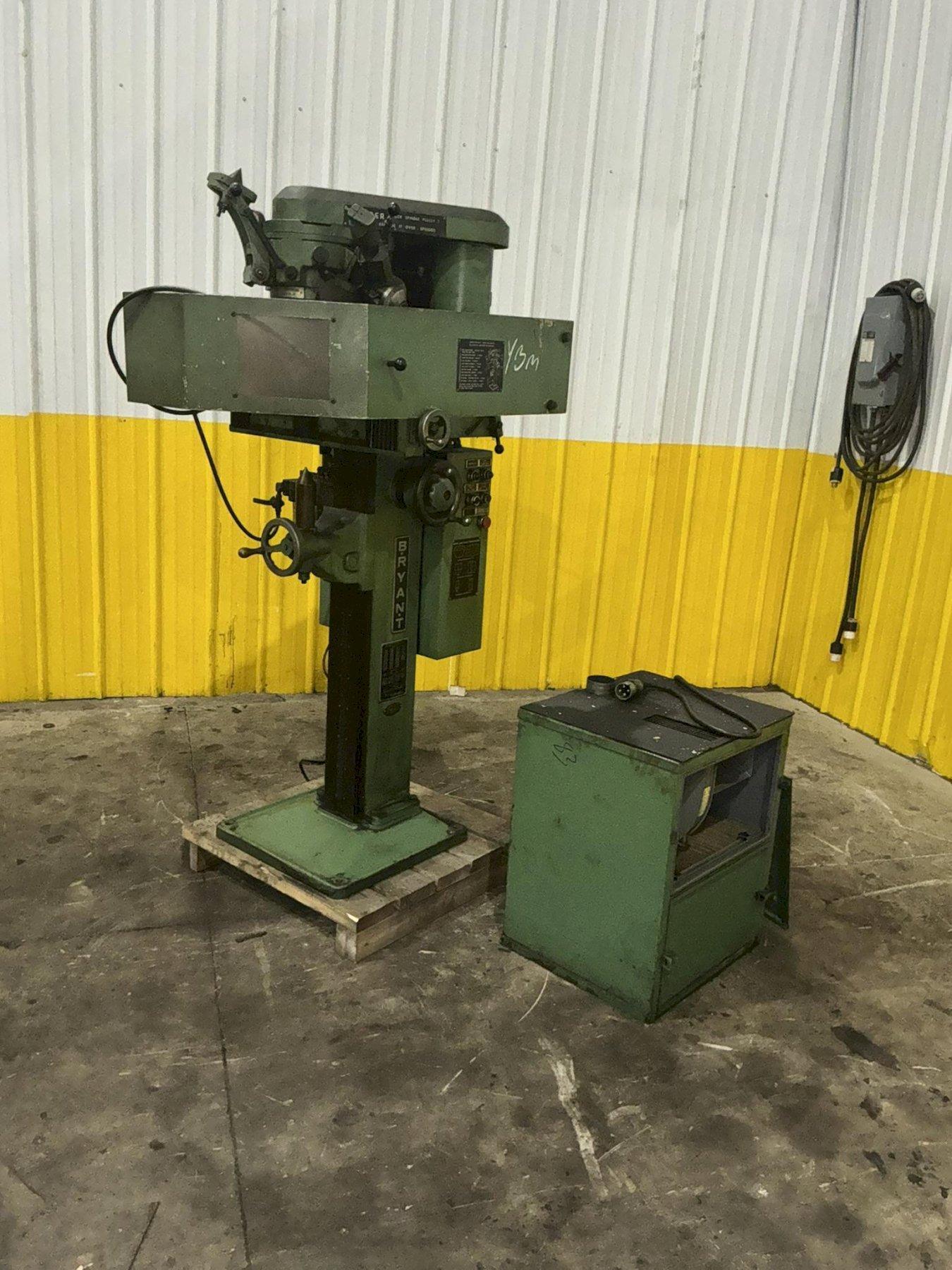

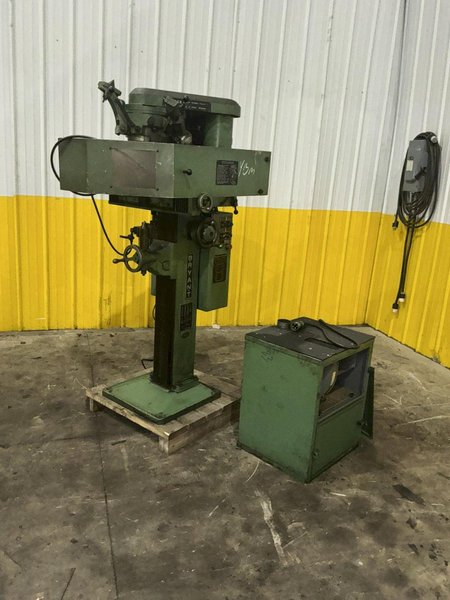

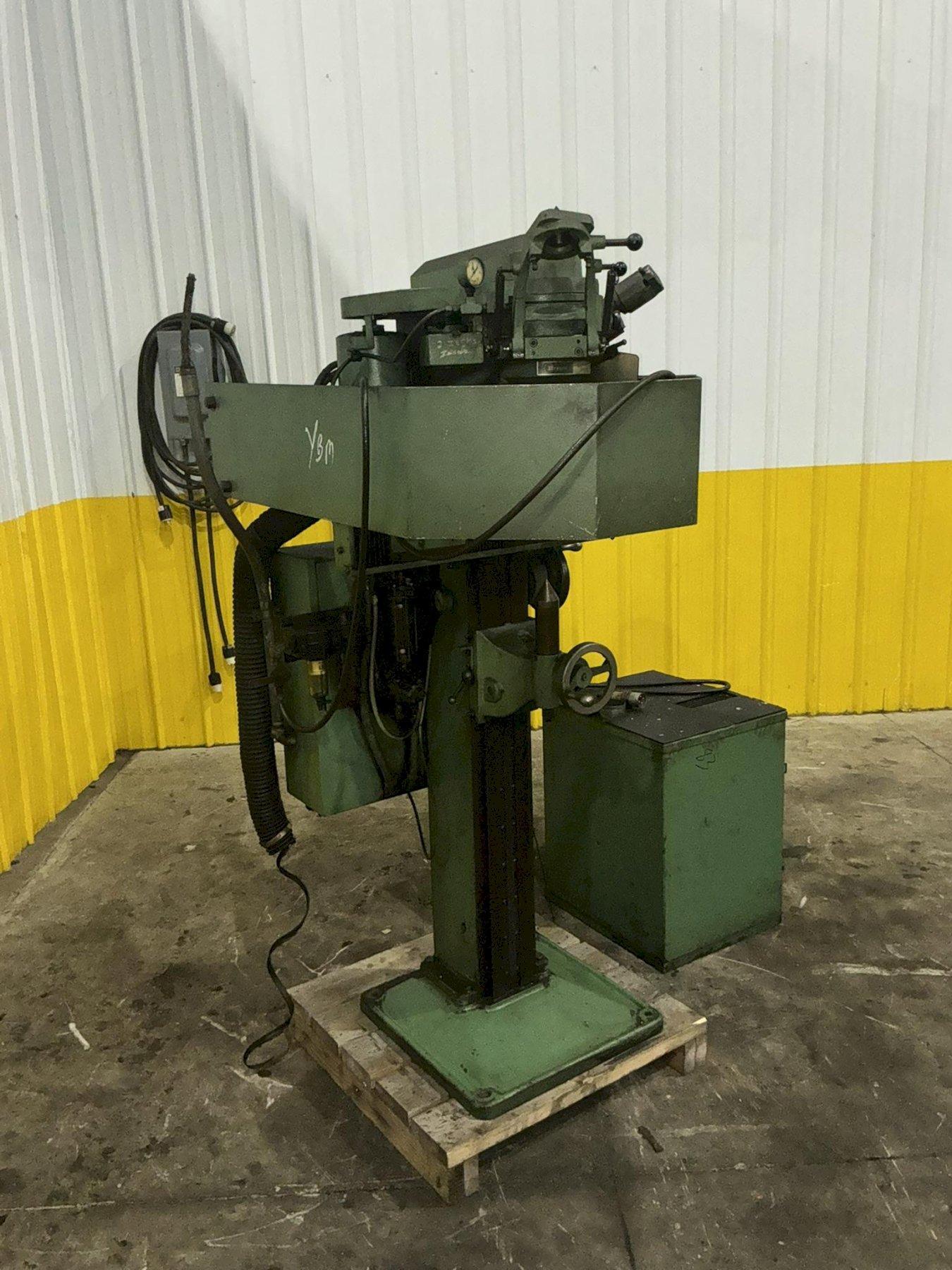

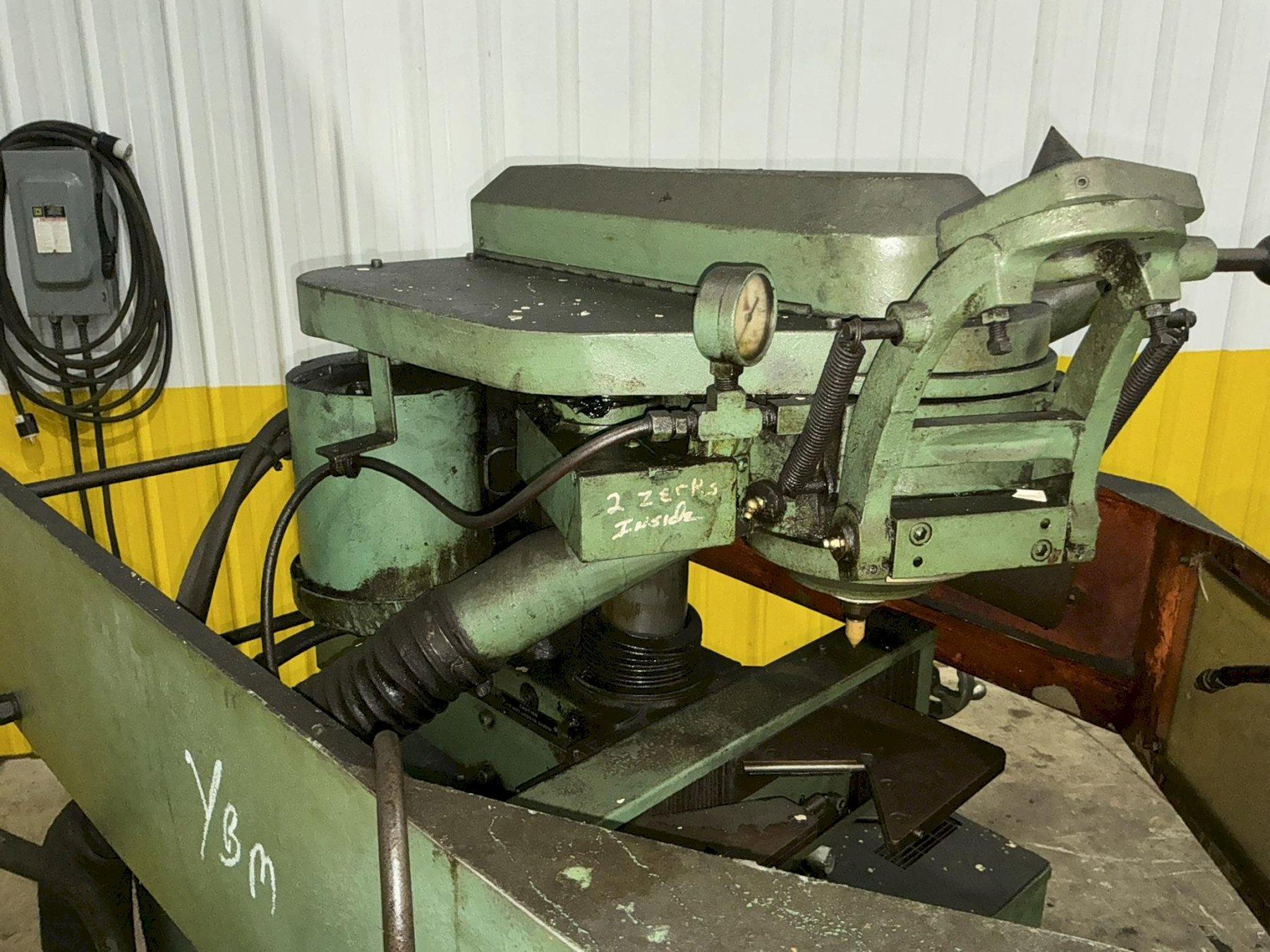

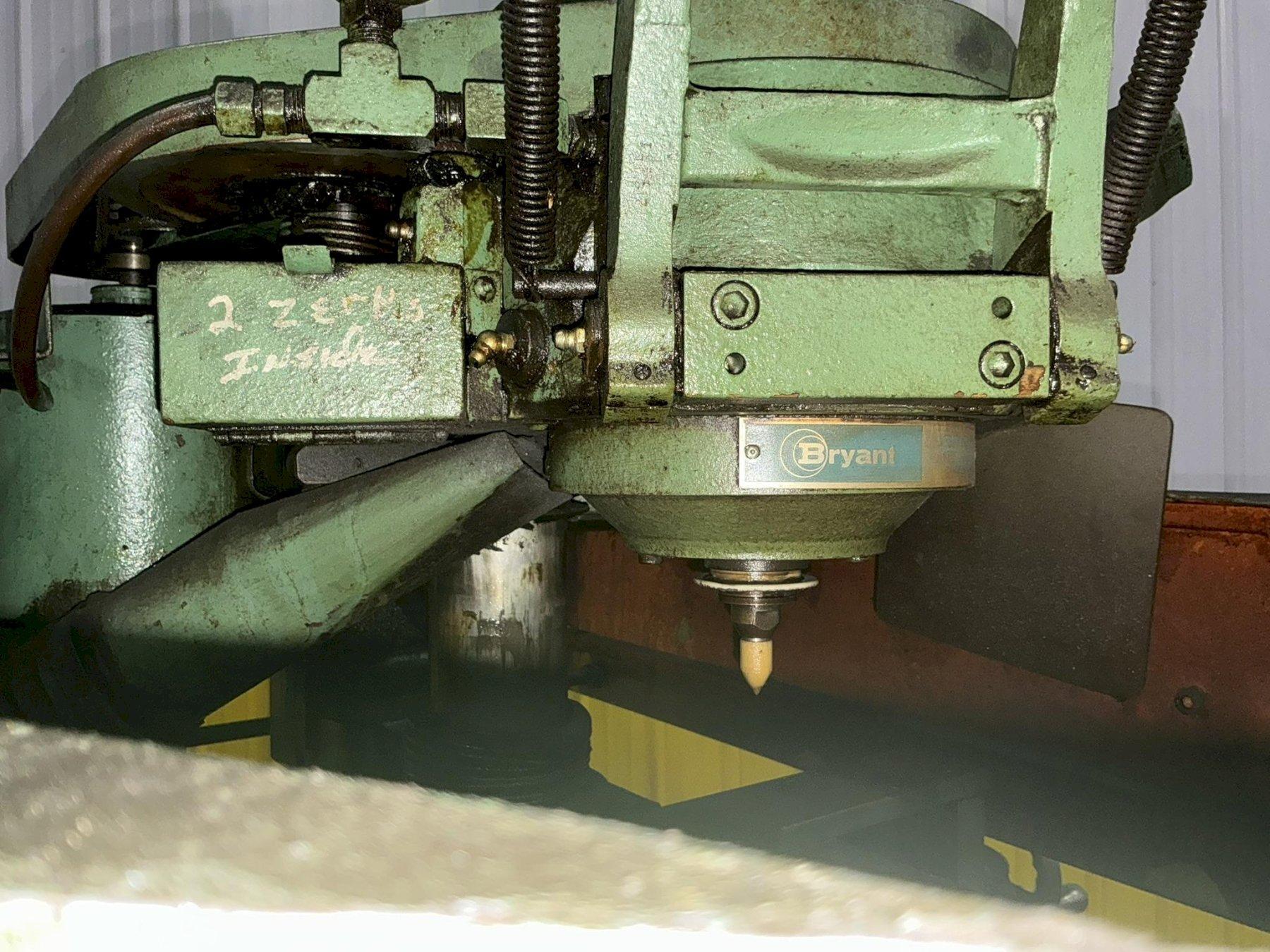

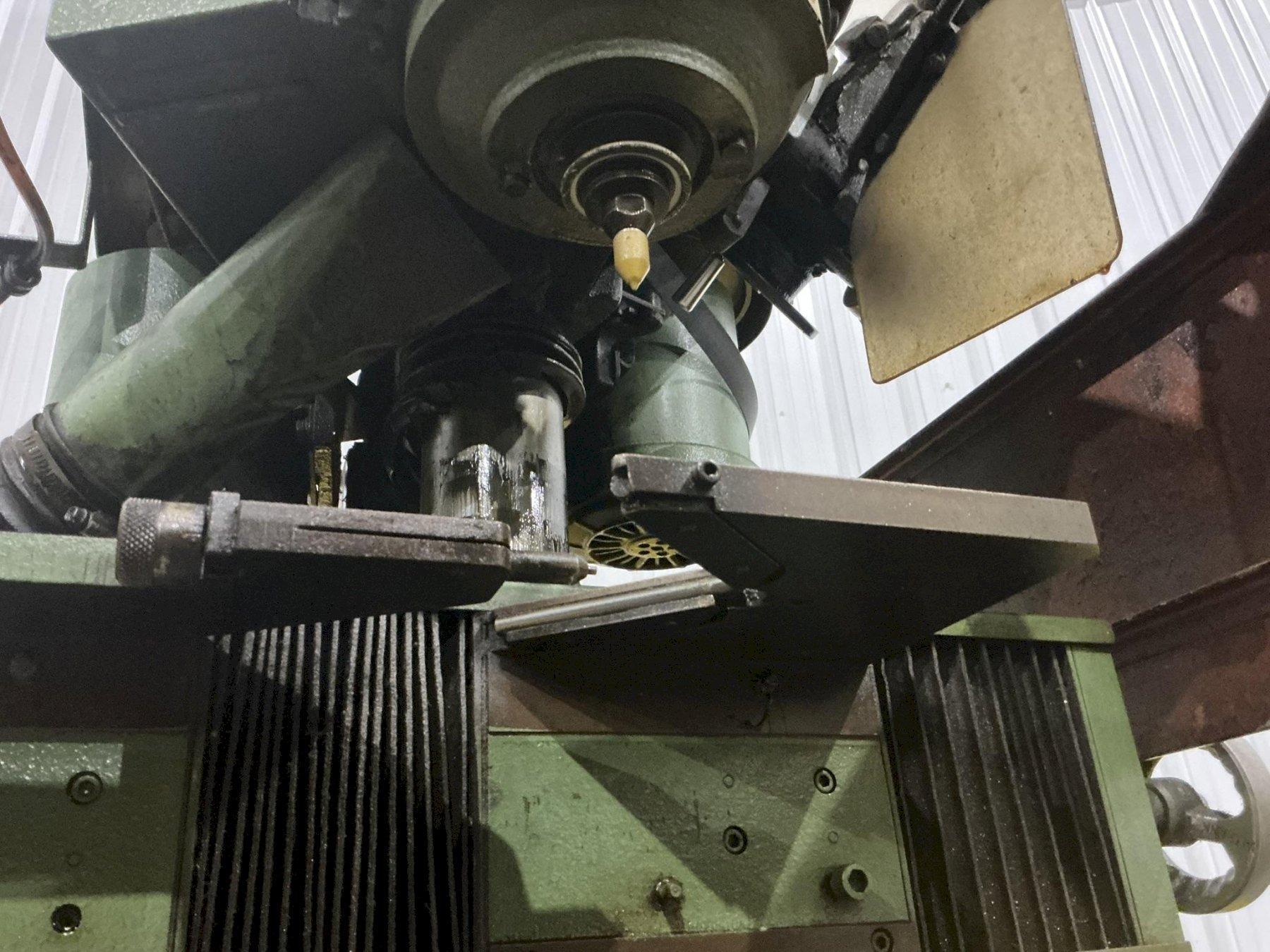

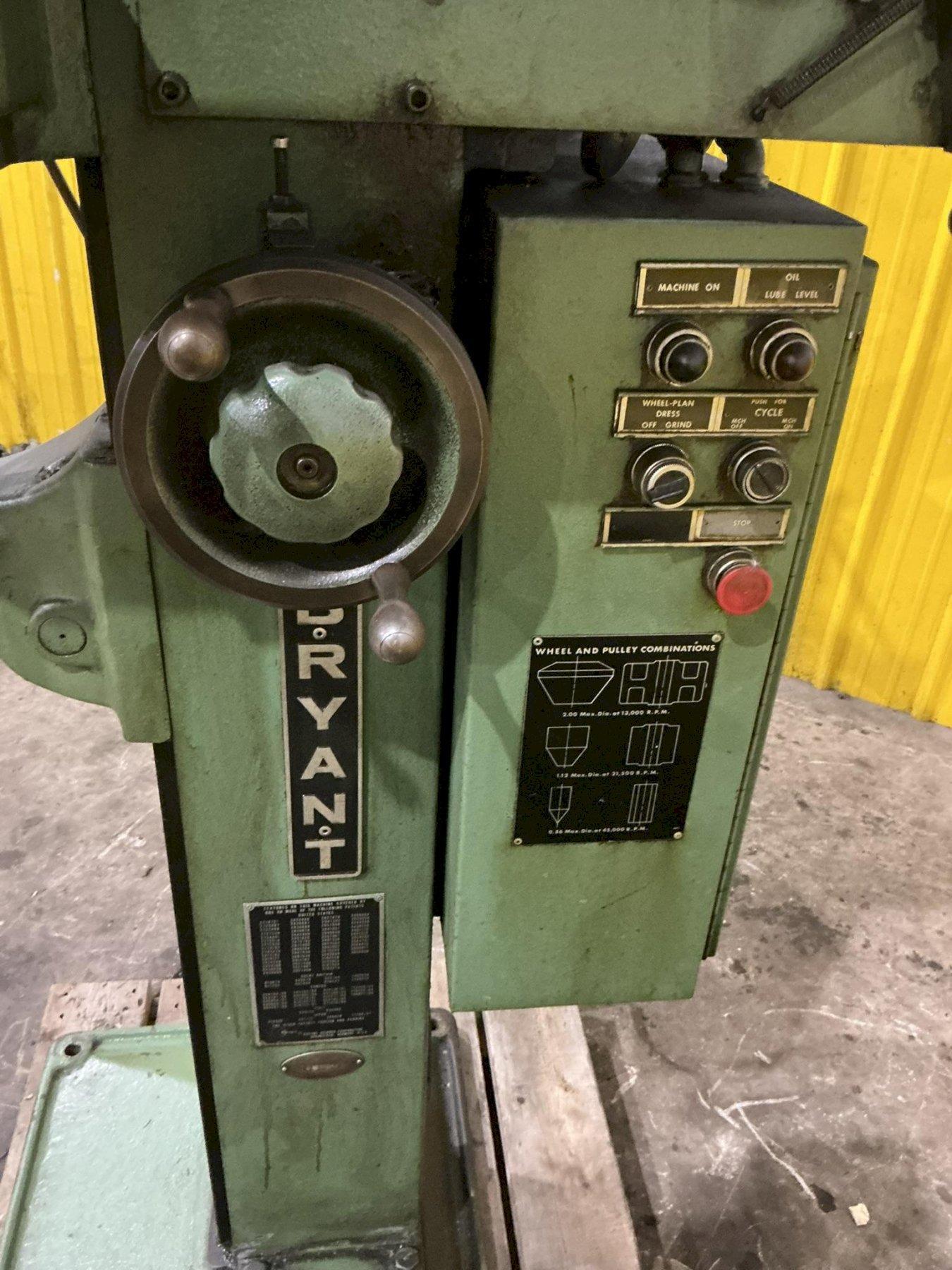

6" X 42" BRYANT MODEL #500 SUPER-PRECISION CENTER HOLE GRINDER: YOBRO #25283

6" X 42" BRYANT MODEL #500 SUPER-PRECISION CENTER HOLE GRINDER: YOBRO #25283

Name: 6" X 42" BRYANT MODEL #500 SUPER-PRECISION CENTER HOLE GRINDER: YOBRO #25283
Brand: BRYANT
SKU: 25283
Availability: InStock

Brand

BRYANT

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Dimensions	44" L-R X 42" F-B X 75" H
Weight	1250 pounds

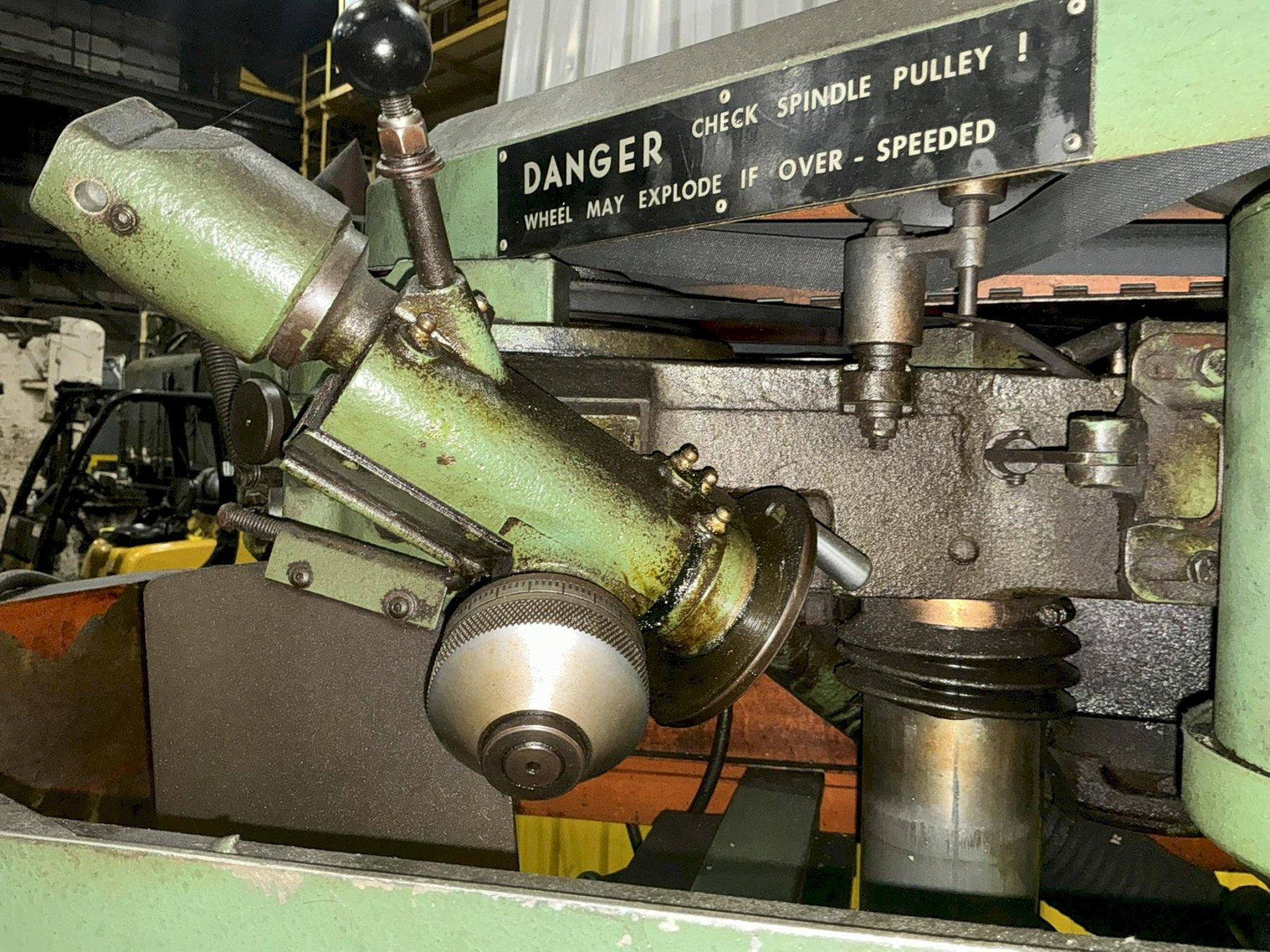

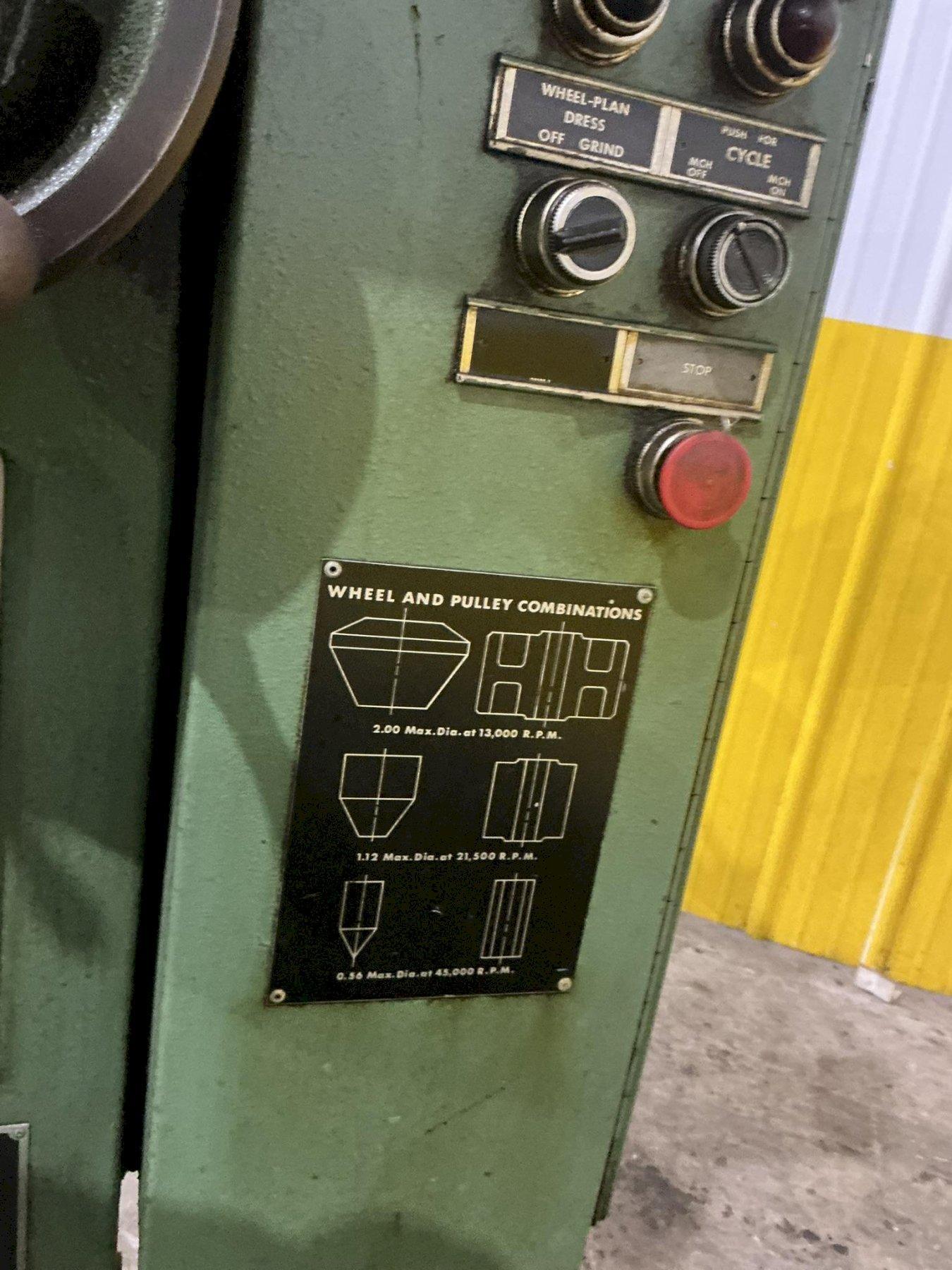

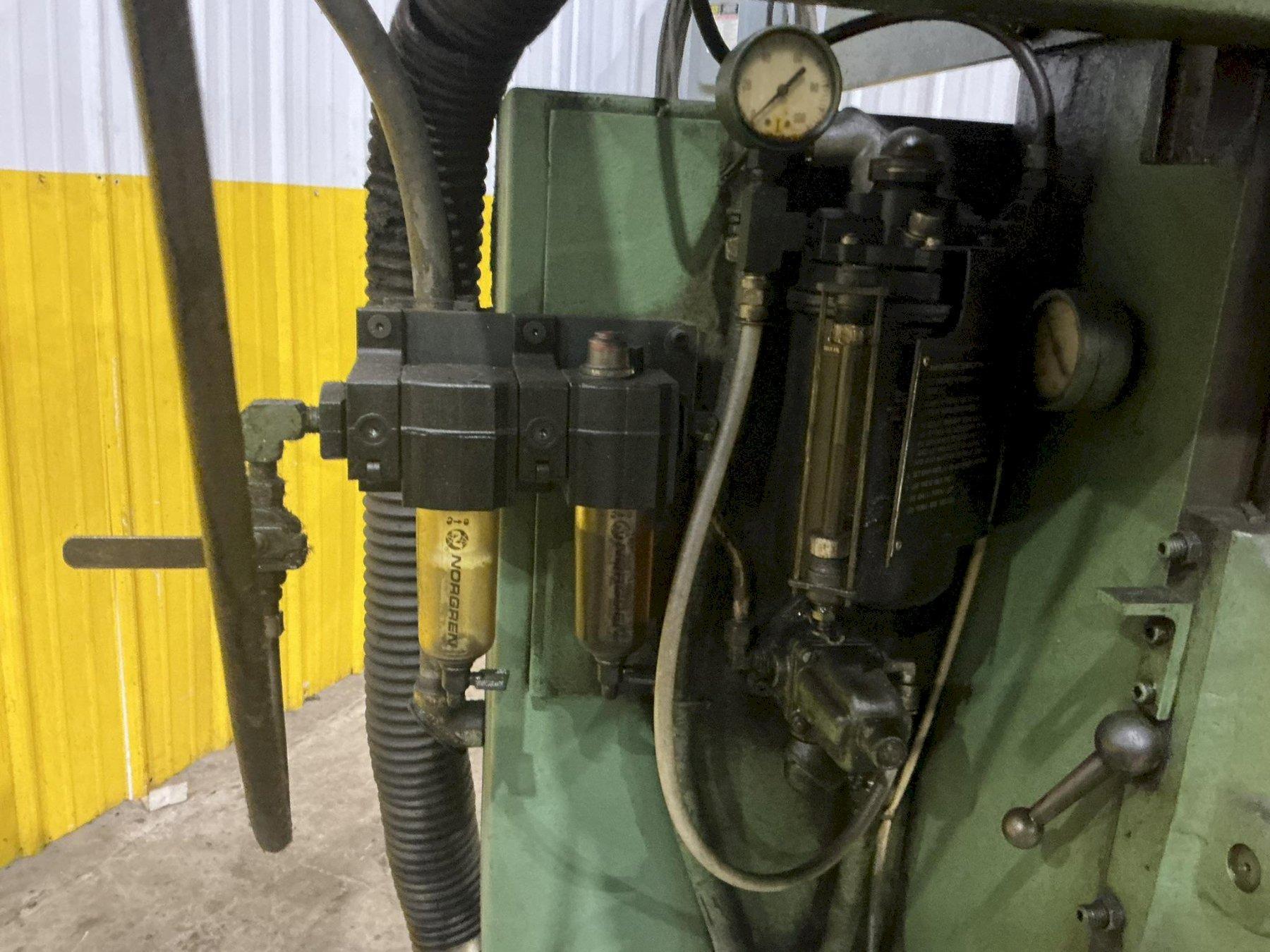

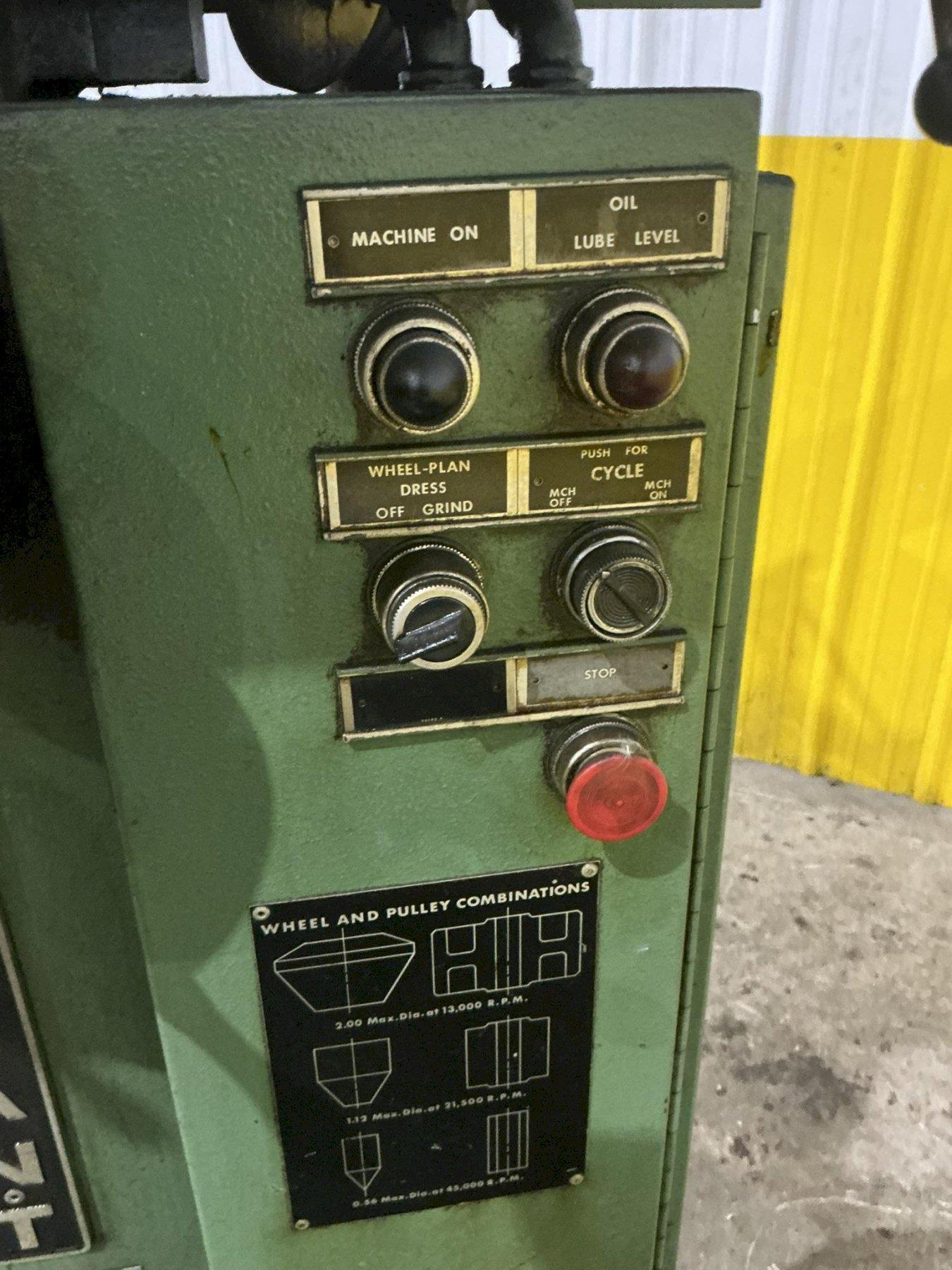

MODEL: ...................................... 500 WORKPIECE LENGTH CAPACITY ................... 2" TO 42" CLEARANCE TAILSTOCK CENTER TO COLUMN .................. 6.2" VISE CAPACITY W/STANDARD JAWS ............... 0.060" TO 6" CONE ANGLE OF CENTER HOLES GROUND ........... 60 DEGREES MAX CENTER HOLE GROUND (LARGE END) .............. 2" MIN CENTER HOLE GROUND (LARGE END) .............. 0.050" GRINDING SPINDLE SPEEDS (W/PULLEY CHANGE): .. 13,000 / 21,500 / 45,000 RPM PLANETARY DRIVE SPEED ....................... 400 RPM ANGULAR GRINDING STROKE ..................... 0.005" TO .100" EQUIPPED WITH: ADJUSTABLE VISE ASSEMBLY PIVOTING TOP CENTER BIJUR SPRAYMIST LUBRICATION WORK GUARD CONE DRESSING ATTACHMENT WITH DIAMOND SPINDLE MOTOR AND CONTROLS ............... 1/2 HP PLANETARY DRIVE MOTOR AND CONTROLS ....... 1/4 HP WORK DRIVE MOTOR AND CONTROLS ............ 1/2 HP 60 DEGREE CENTERS ........................ UP TO 2" DIAMETER CAN BE GROUND IN WORKPARTS ...... UP TO 6" & 2" TO 42" LONG OPERATION OF THE BRYANT IS UNIQUE. INSTEAD OF UTILIZING PLUNGE GRINDING, WITH IT'S INHERENT FAULTS, IT "GE& NERATES" TO PRODUCE FINE FINISHES & PRECISION TOLERANCES SIMILAR TO THOSE OBTAINED ON AN INTERNAL GRINDER. PRODUCES GEOMETRICALLY CORRECT CENTER HOLES - A VITAL REQUIREMENT FOR PRECISION O.D. GRINDING. IT IS IDEAL FOR RECENTERING DISTORTED CENTERS IN MACHINE SPINDLES, ARBORS, CENTER-CONTROLLED CHECKING DEVICES & FOR OTHER SALVAGE WORK. IT MINIMIZES STOCK REMOVAL & GREATLY IMPROVES WORK QUALITY & ACCURACY.
