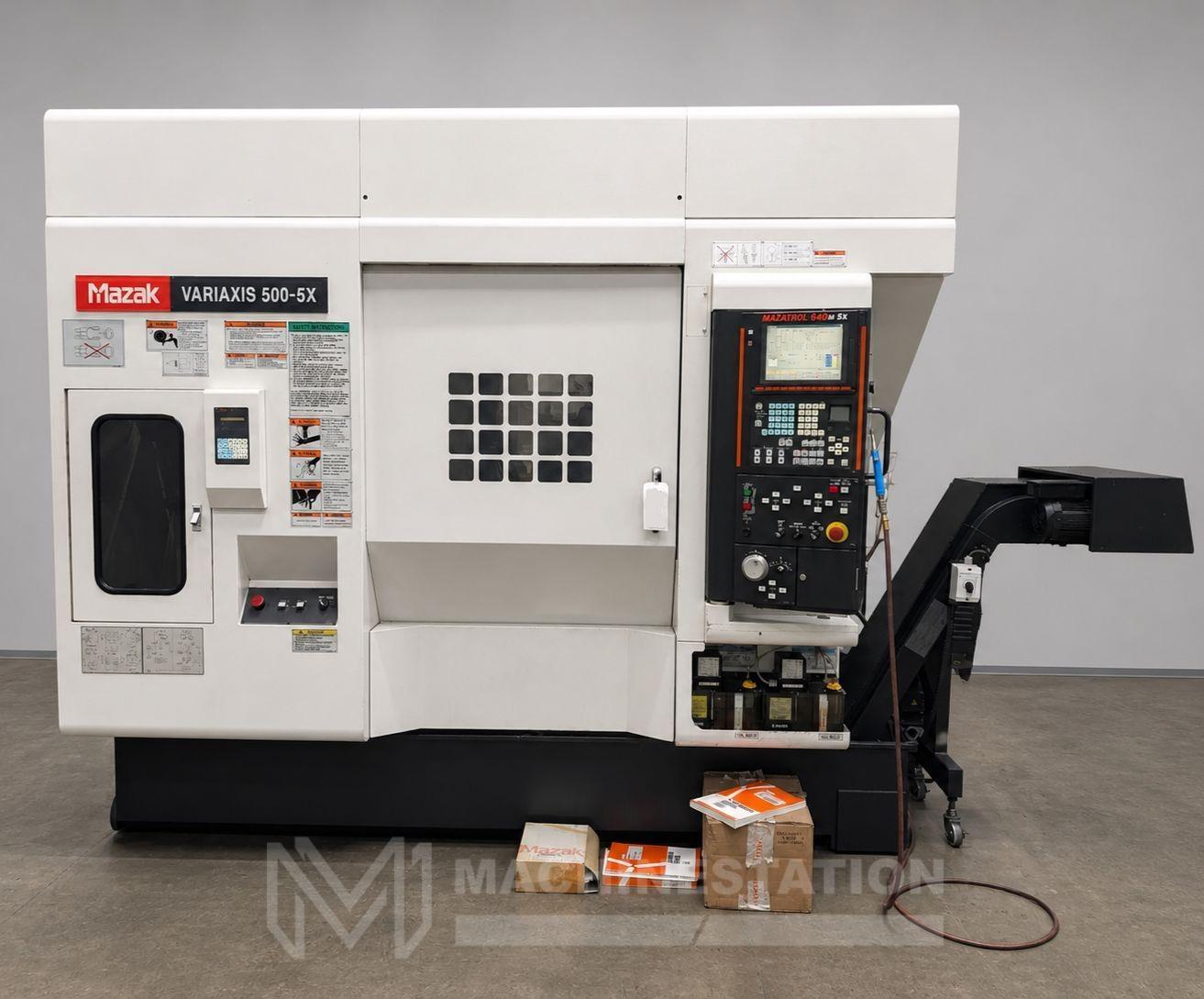

Mazak Variaxis 500-5X 5 Axis CNC Vertical Machining Center – 12,000 RPM Mill

Mazak Variaxis 500-5X 5 Axis CNC Vertical Machining Center – 12,000 RPM Mill

Name: Mazak Variaxis 500-5X 5 Axis CNC Vertical Machining Center – 12,000 RPM Mill
Brand: Unknown
SKU: 113620
Availability: InStock

Brand

Not specified

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	113620
Make:	Mazak
Model No.:	Variaxis 500-5X
Year of Manufacture:	2005
Condition:	Used – Good

Equipped With:
Mazatrol 640M 5X CNC Control
Simultaneous 5 Axis Cutting
19.68 x 15.72” Programmable Swiveling Trunnion Table
12,000 RPM High Precision Spindle
40 Station Automation Tool Changer
PCMCIA Card Slot
Helical Interpolation
Spindle Chiller
Spindle Orientation
Rigid Tapping
Absolute Incremental Programming
Coolant System
Chip Conveyor
Transformer
Books & Manuals

Travels:
X Axis: 20.07″
Y Axis: 20.07″
Z Axis: 18.11″
A Axis: – 120° + 30° ( 150° Table Tilt )
C Axis: 360° ( Table Rotate ) Min. Increment: 0.001°

Trunnion Table:
Length: 19.68″
Width: 15.74″
Max Workpiece Diameter: 19.68″
Max Workpiece Height: 15.94″
Max Weight on Table: 661 lbs

Spindle:
Taper Size: CAT-40
Max. Speed: 12,000 RPM
Power: 30 HP

Feed rates:
Rapid X, Y & Z : 1969 Inch Per Minute
Cutting Feedrate: 1574 Inch Per Minute

Tool changer:
Capacity: 40 Station
Taper: CAT-40
Max Tool Size: 3.14″ – 4.92″
Max Tool Length: 11.81″
Max Tool Weight: 17.63 lbs.
Tool Change Time: 4.5 Second

General:
Air Required: 100 psi, 4 scfm
Power: 55.8kva / 230v-460v / 3-Phase
Shipping Dimension: 110″ X 114″ x 110″ High Approx.
Weight: 16,535 lbs Approx.
