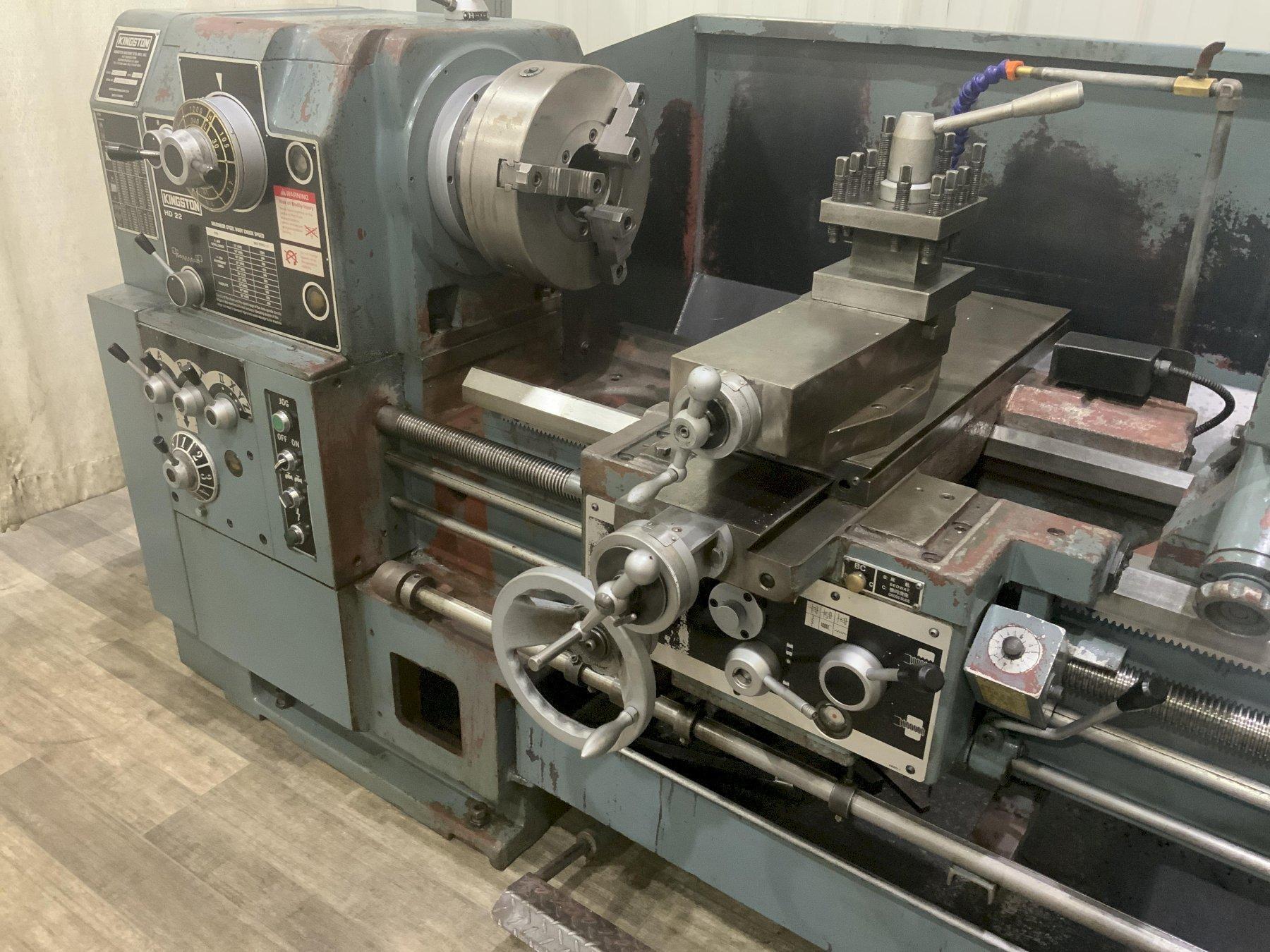

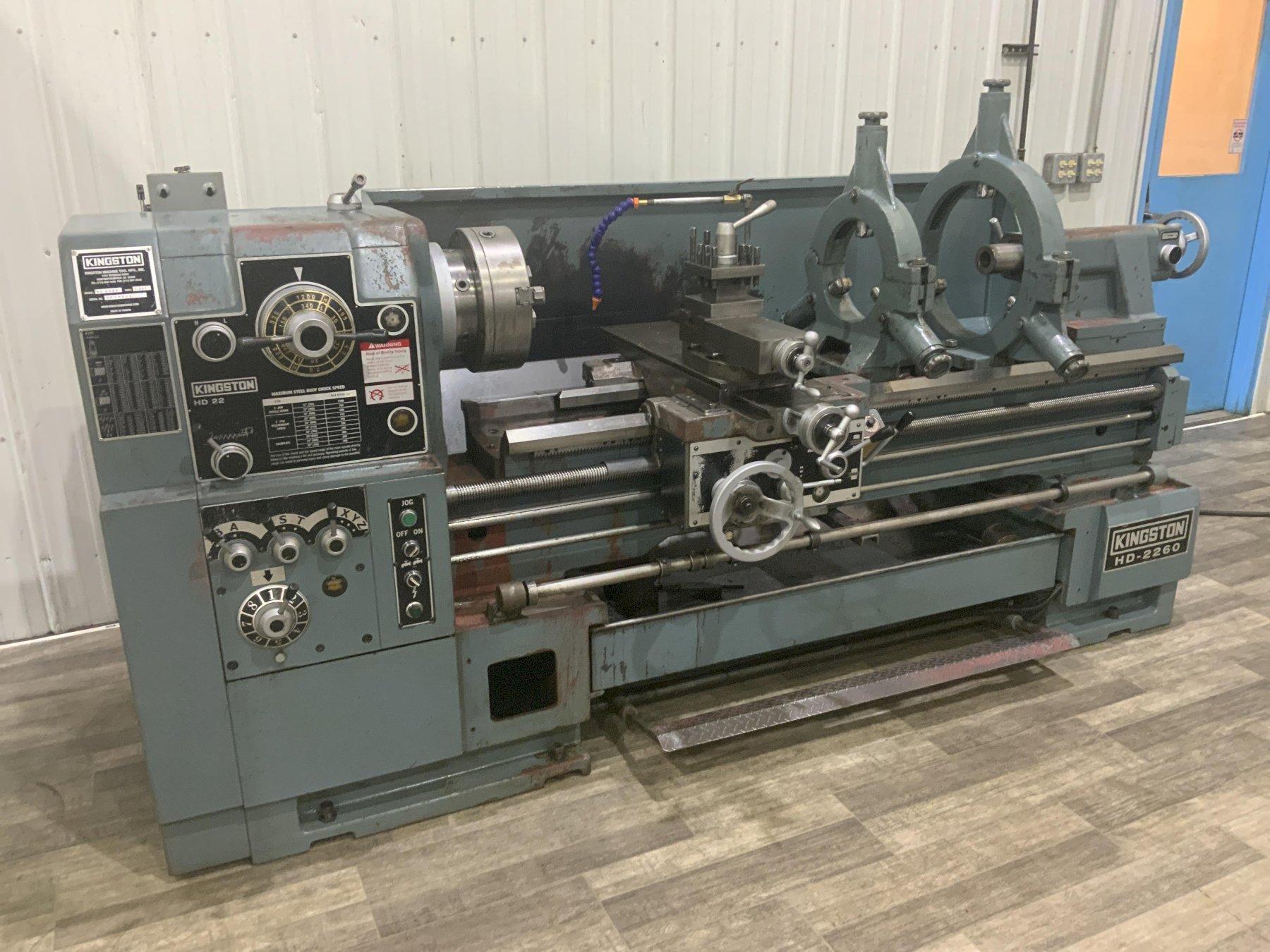

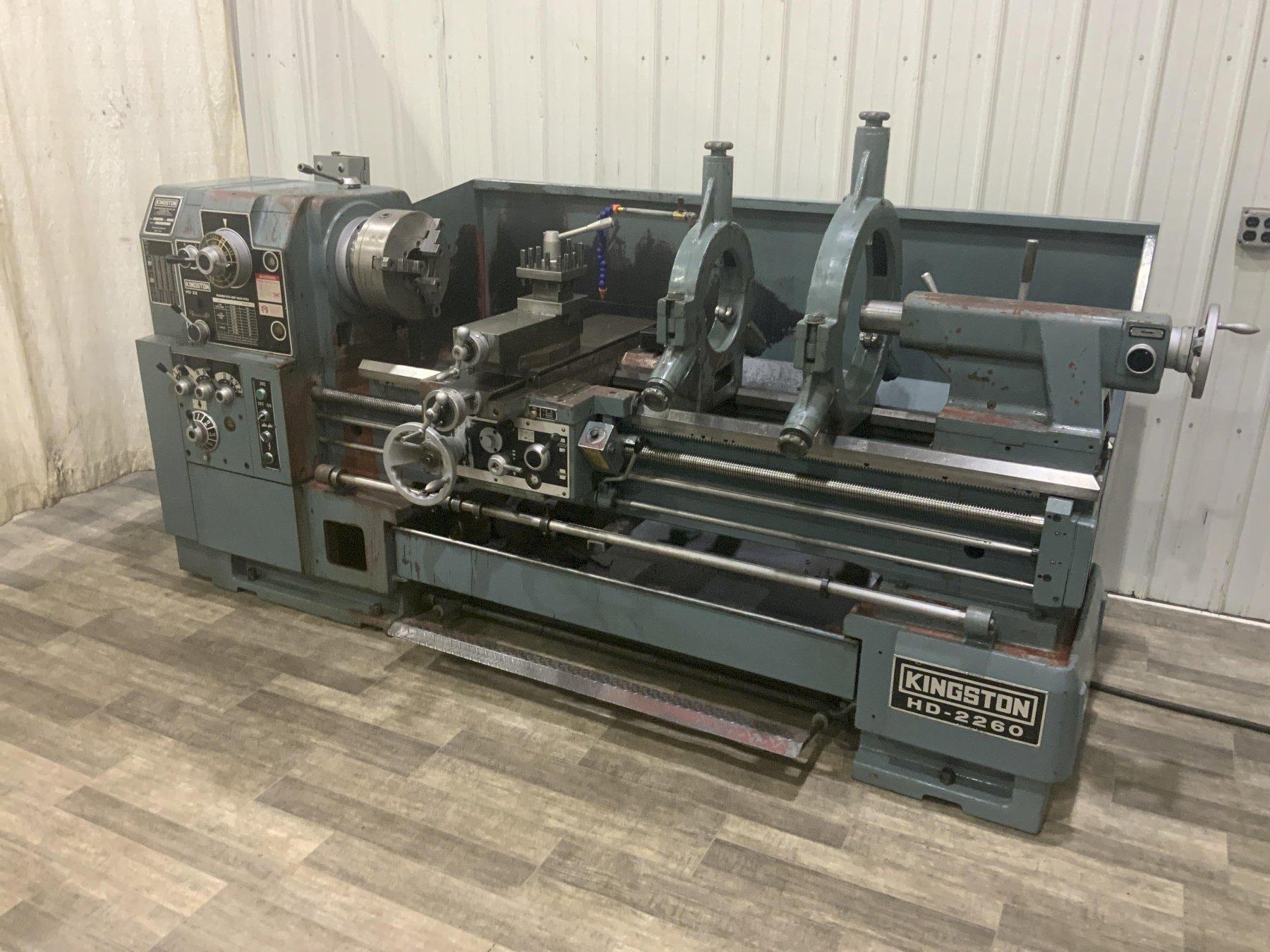

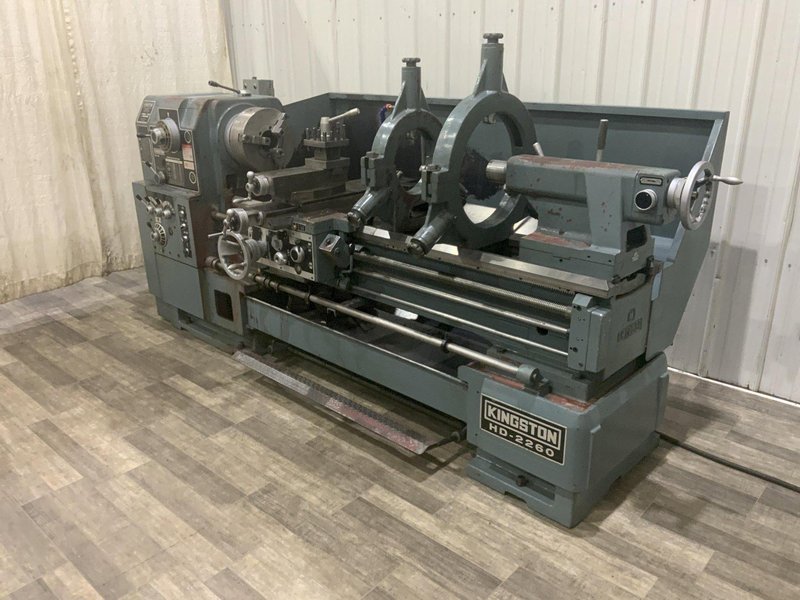

22" X 60" KINGSTON HORIZONTAL GAP BED ENGINE LATHE: STOCK #81158
Brand
Category
Type
Model
HD-2260
Stock #
81158
Year
Not specified
Condition
Used
Location
Not specified
|

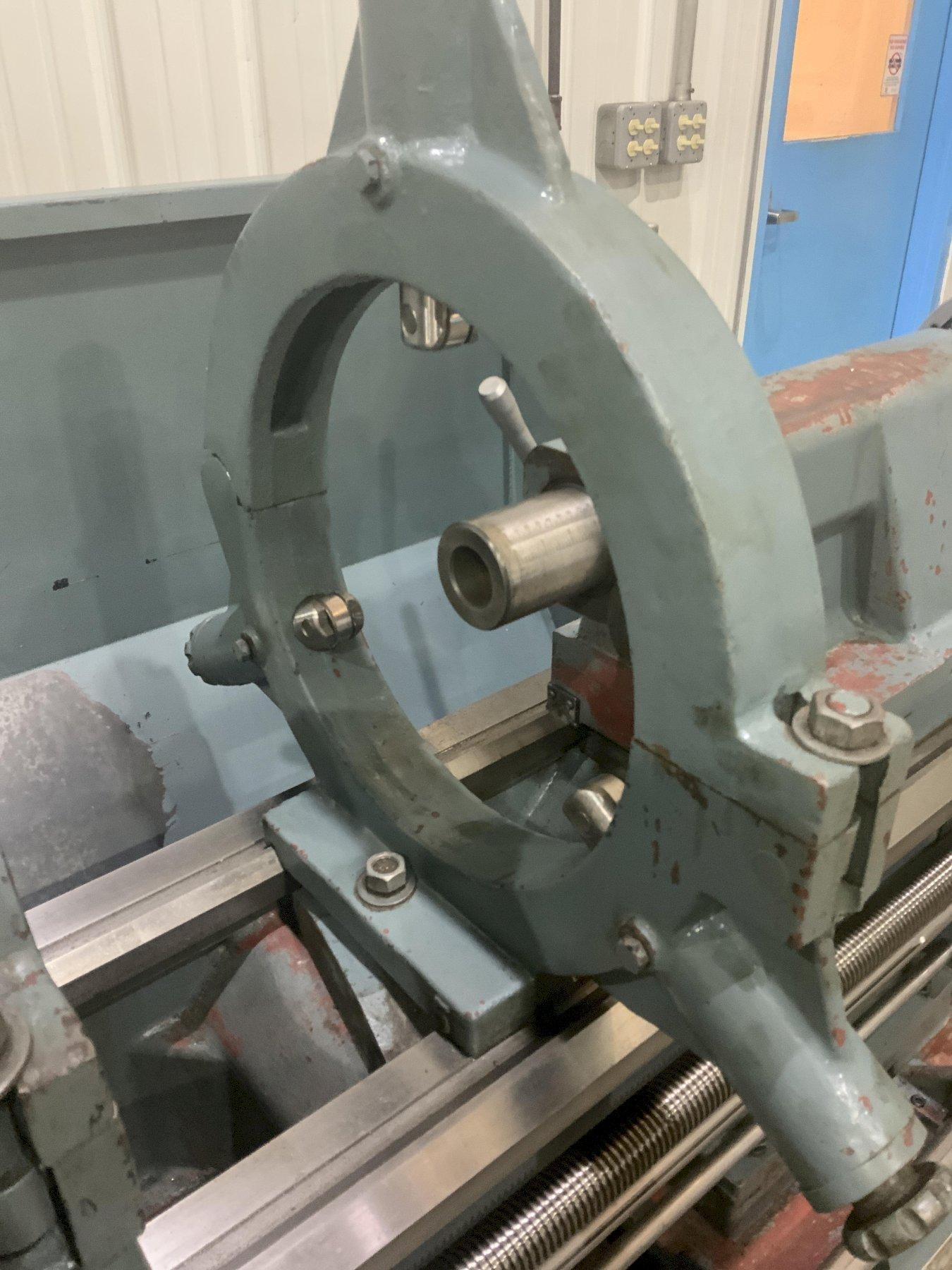

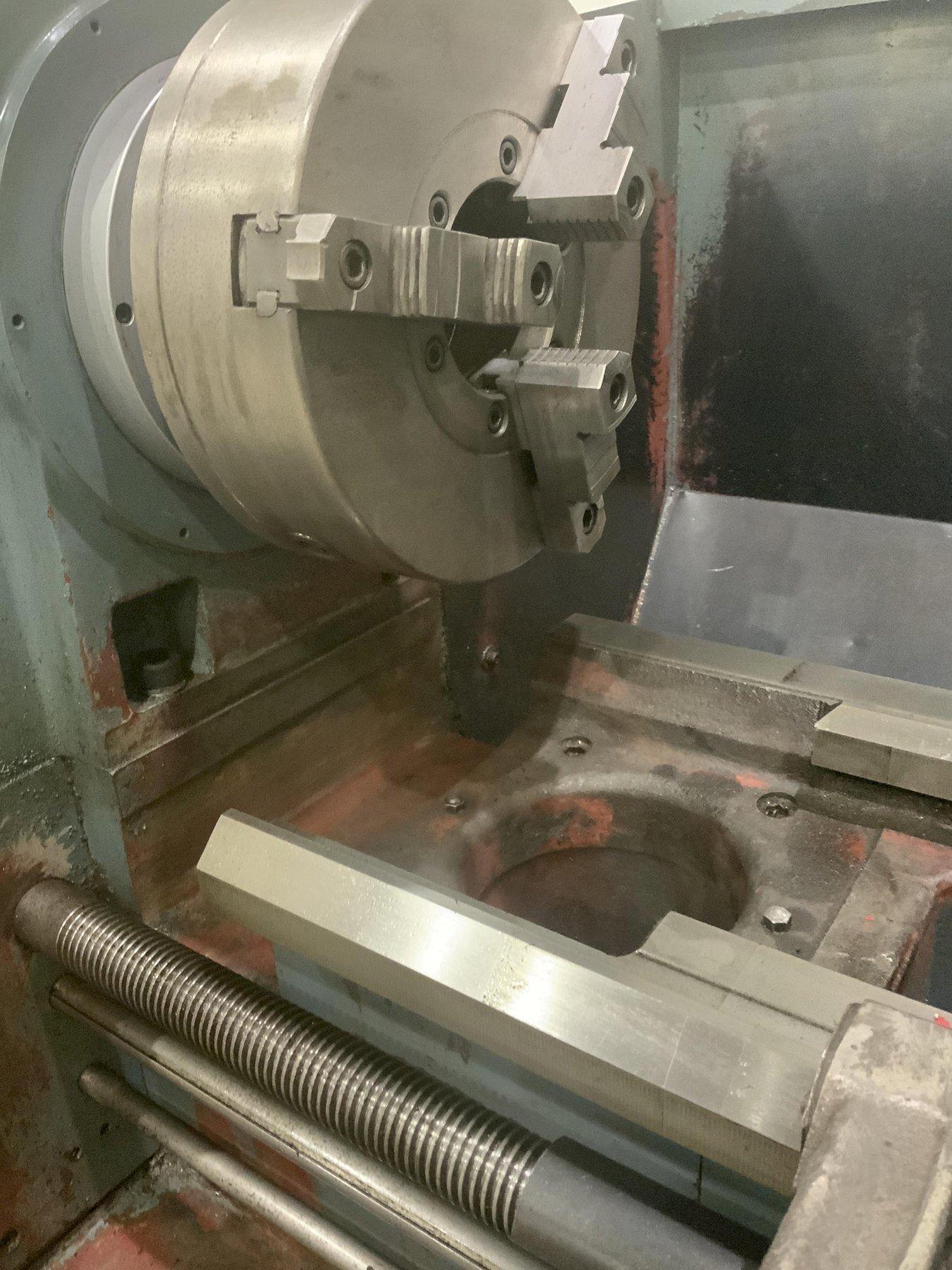

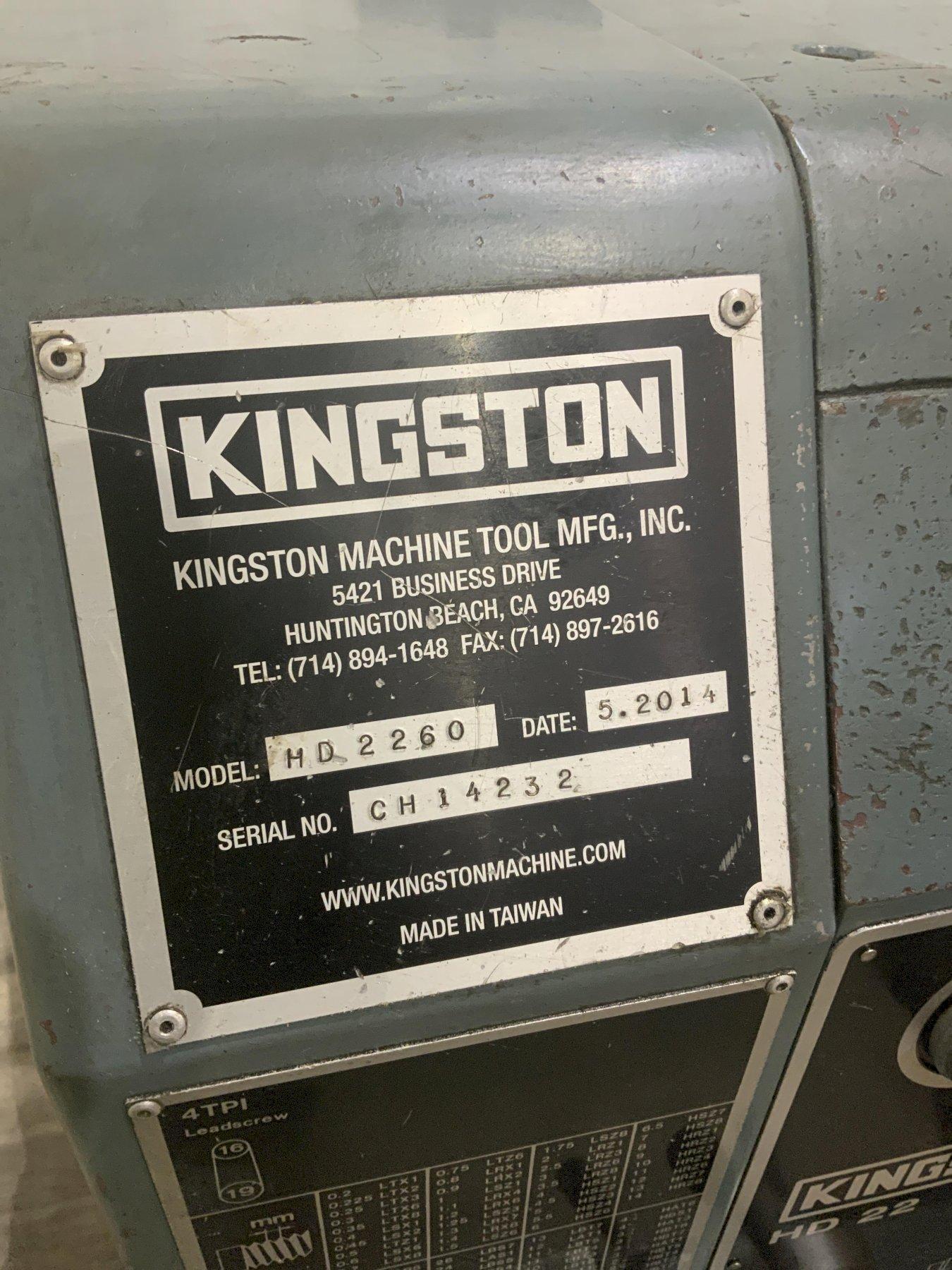

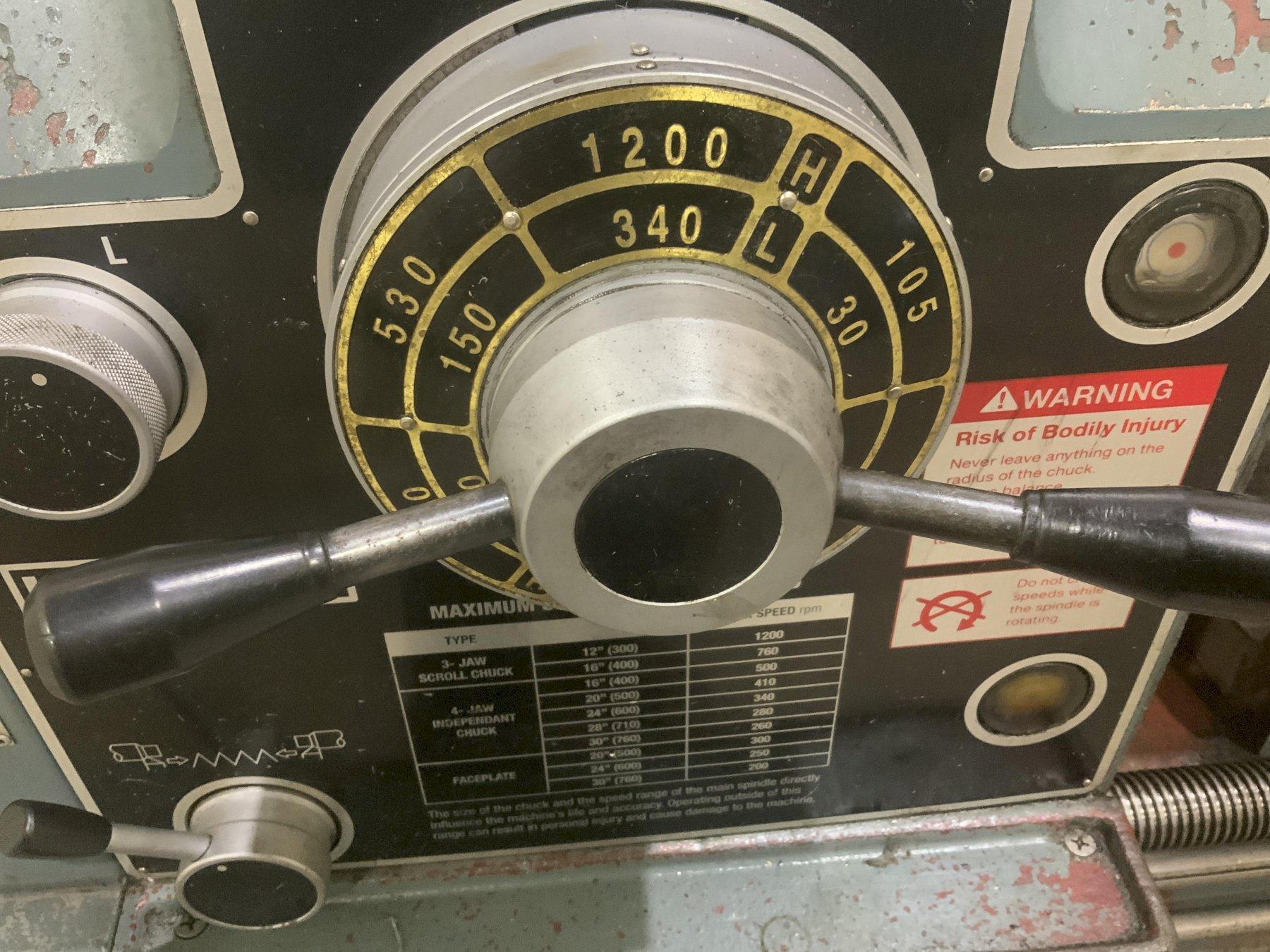

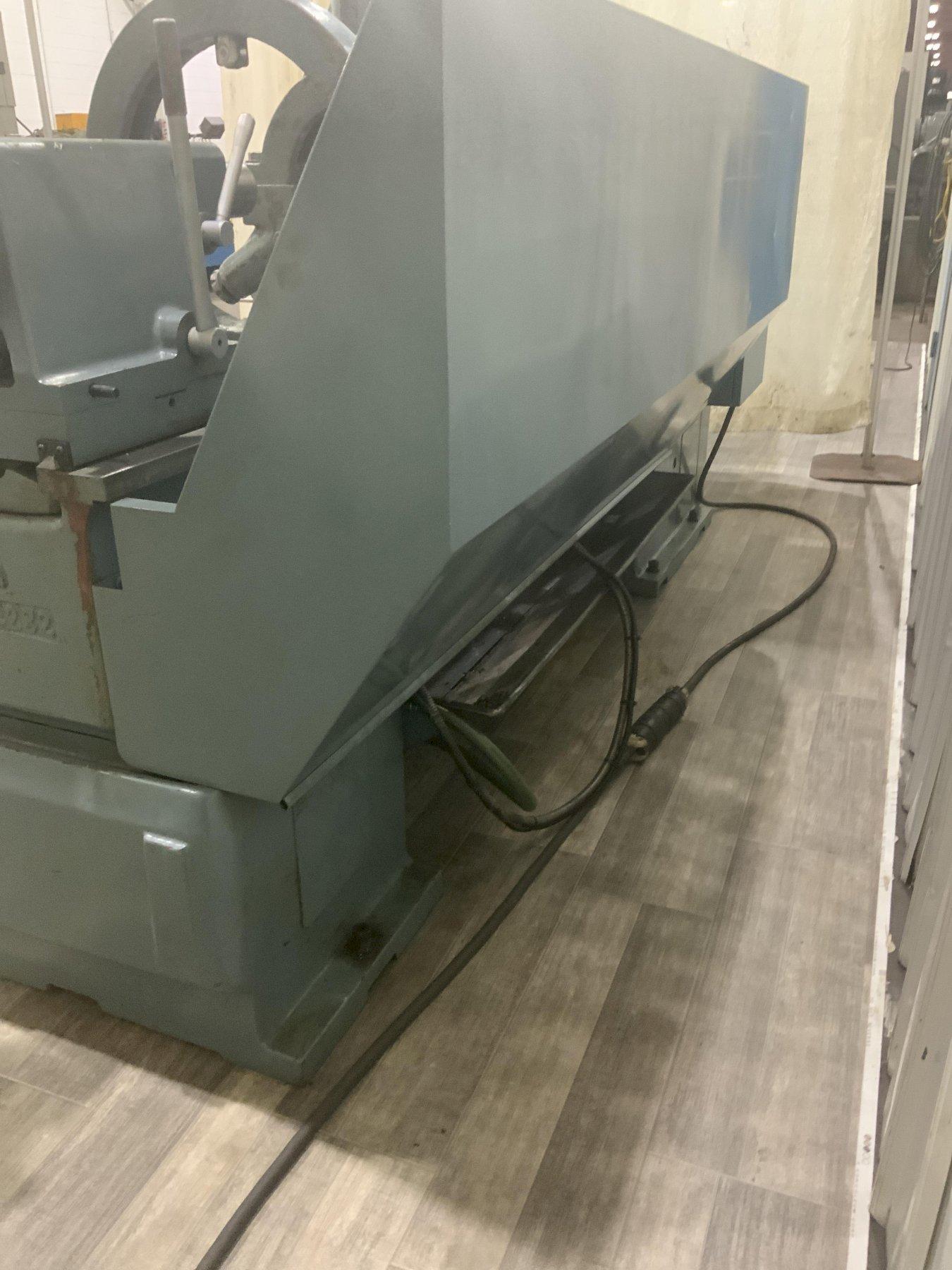

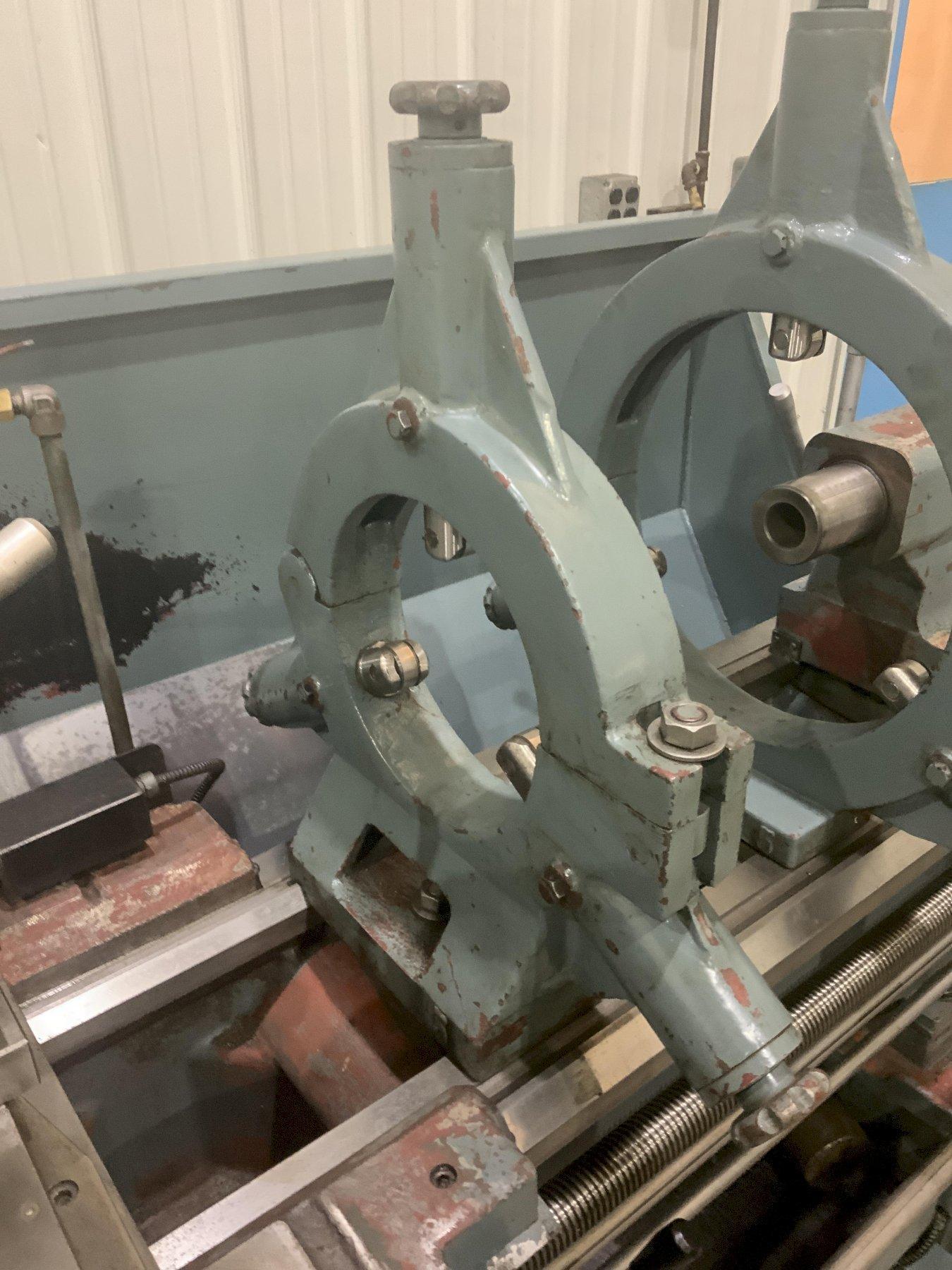

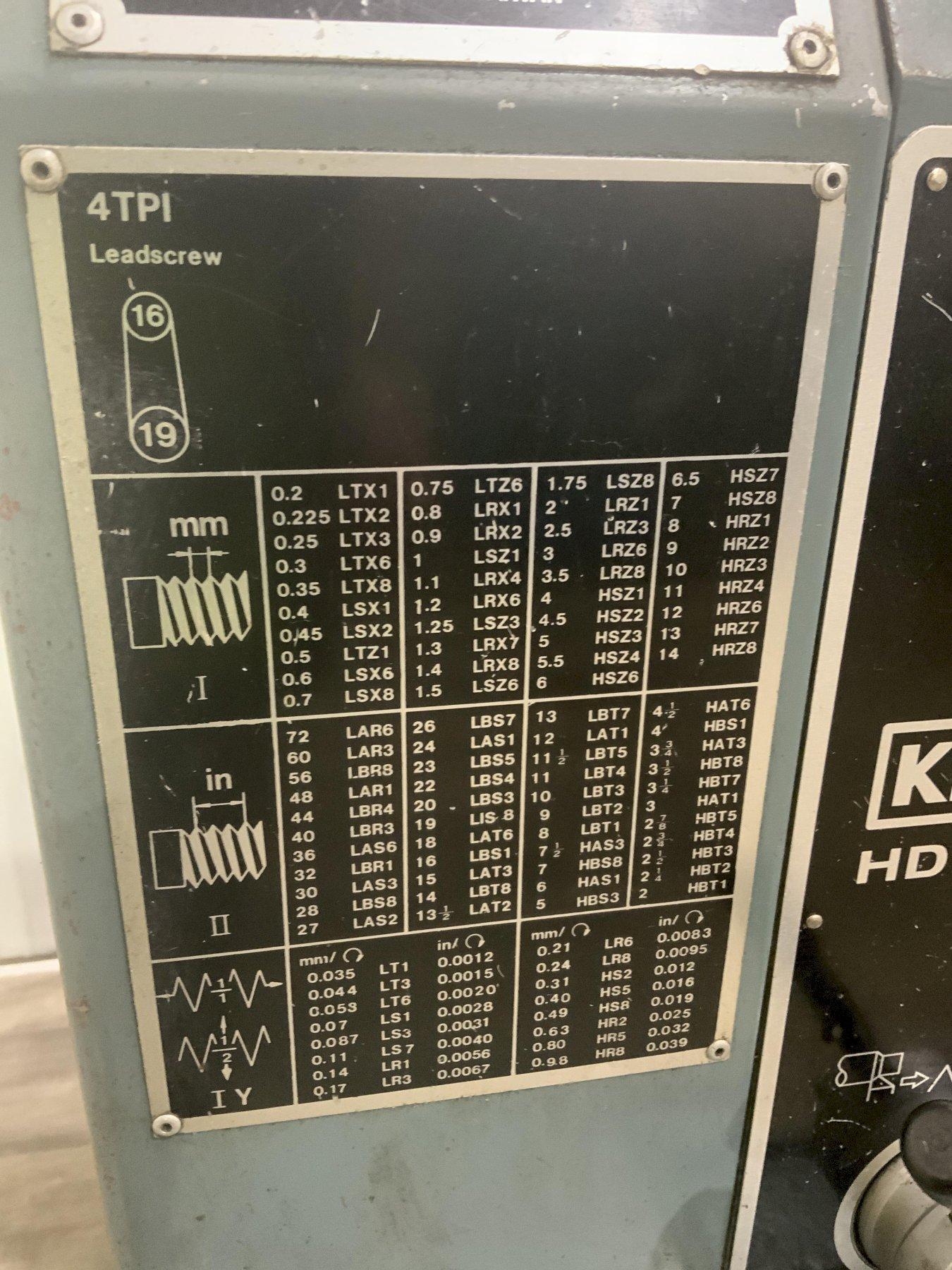

SERIAL ....................... CH14232 MODEL ........................ HD-2260 YEAR NEW ..................... 2014 SWING OVER BED ............... 22" SWING OVER CROSS SLIDE ....... 13" SWING IN GAP ................. 31.3" LENGTH OF GAP ................ 10.6" DISTANCE BETWEEN CENTERS ..... 60" SPINDLE SPEEDS ............... (12) 13 TO 1200 RPM SPINDLE BORE DIAMETER ........ 4-1/8" CHUCK ........................ 12" 3-JAW FEEDS (INCH) ................. 0.0012 TO 0.039 IPR THREADS (INCH) ............... 2 TO 72 TPI COMPOUND TRAVEL .............. 9.5" STEADY REST, ROLLER TYPE ..... 2 THREAD DIAL .................. YES FOOT BRAKE ................... YES COOLANT WITH CHIP PANS ....... YES MAIN DRIVE ................... 10 HORSEPOWER |
