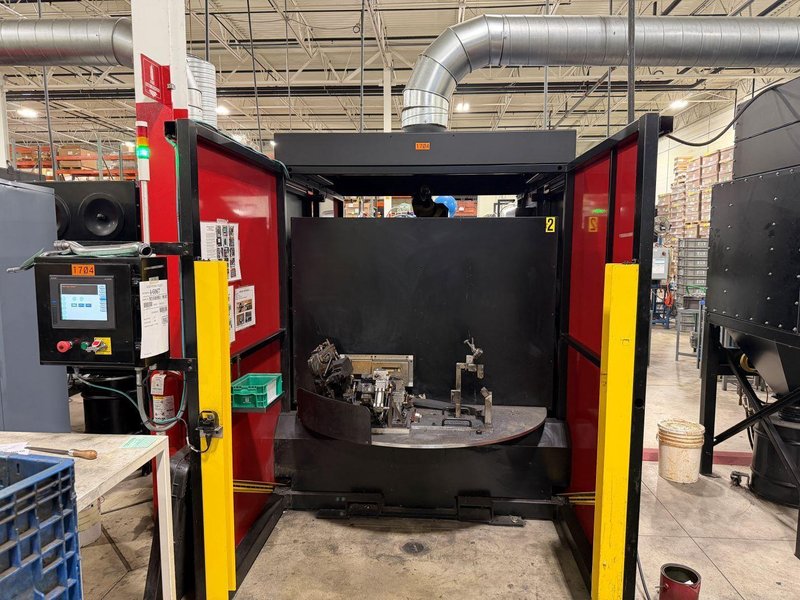

Lincoln Electric System 20 Weld Cell, 2020- Fanuc Arc Mate 100iD Robot

Robot Model: Fanuc Arc Mate 100iD equipped with a Teach Pendant and Arc Tool welding software Reach: 1420mm (56″) Repeatability: +/- 0.02mm Payload Capacity: 12 kg Input Power: 460V, 3-phase, 60Hz, 30A fused @ 20A Positioner: Fast Index, Fanuc Servo driven, 58″ diameter Turn-Table style with a 250kg payload per side Sweep Diameter: 1500mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Welding Equipment Power Source: Lincoln Electric Power Wave 450R Wire Feeder: Lincoln Electric Autodrive 4R220 Feeder Wire Capacities: Solid wire (0.023″-1/16″) and Cored wire (0.035″-5/64″) Wire Speed Range: 30-1200 inches per minute (0.8-30.5 m/min) Torch: Magnum Pro Robotic 550 AC Torch (550A air-cooled MIG/MAG) with HexConnect™ Gun Bushing Maintenance Station: Lincoln Electric Power Ream II with a 5/8″ reamer bit, anti-spatter fluid spray unit, and pneumatic wire clipper

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Software Packages Communication: Ethernet/IP Scanner Software (Allen Bradley protocol compatible) Safety: DCS Position & Speed Check and DCS Safety PMC Software (no external sensors required) Utilities: Arc Weld Utility Package including Constant Path, Lincoln Weld Equipment Library, and Lincoln America Package (Checkpoint monitoring) Operational Tools: TorchGuard (Collision Guard, Payload ID, and Torchmate TCP re-calibration), Panel Wizard for custom screens, and Jog Re-track and Return

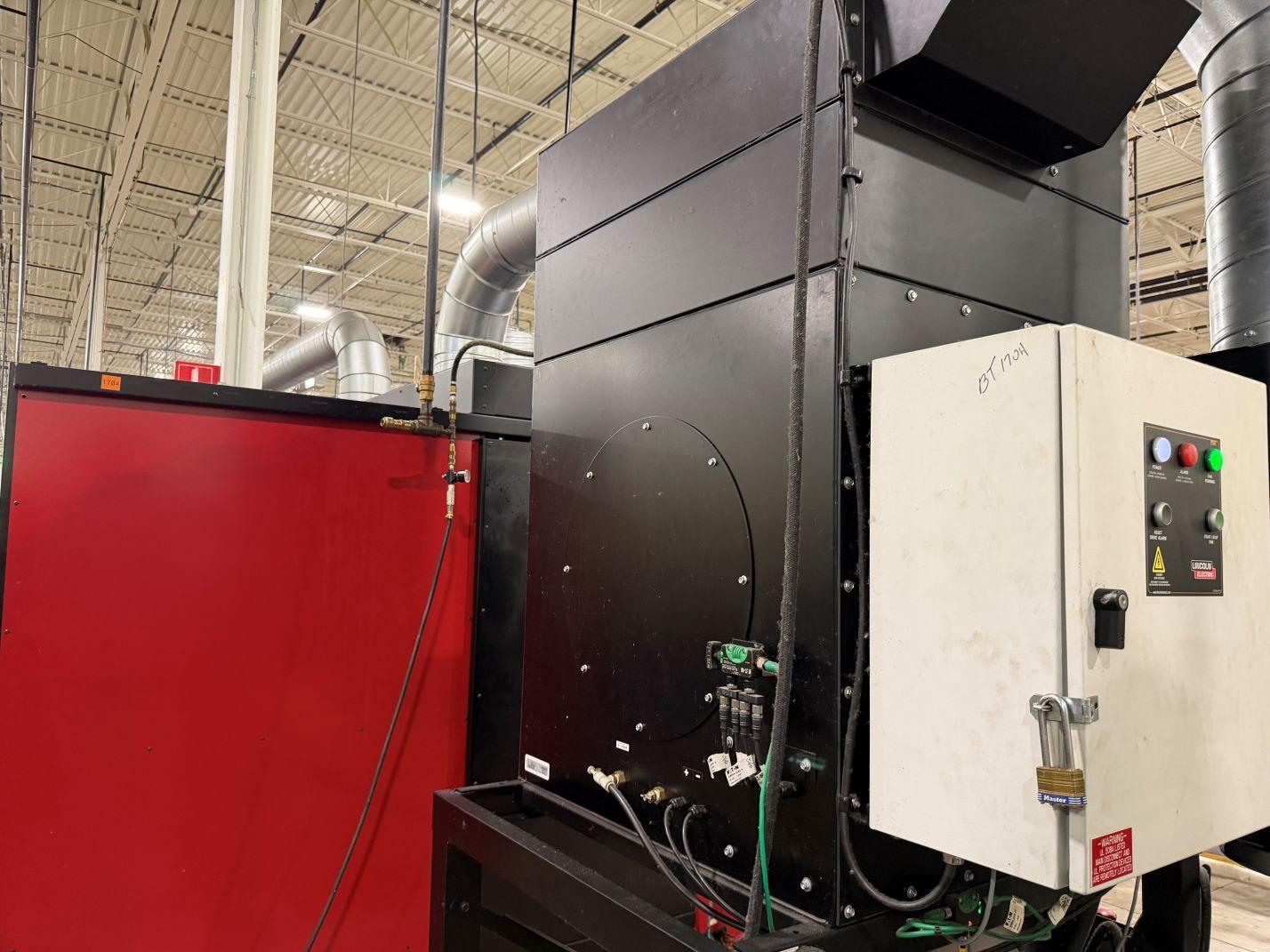

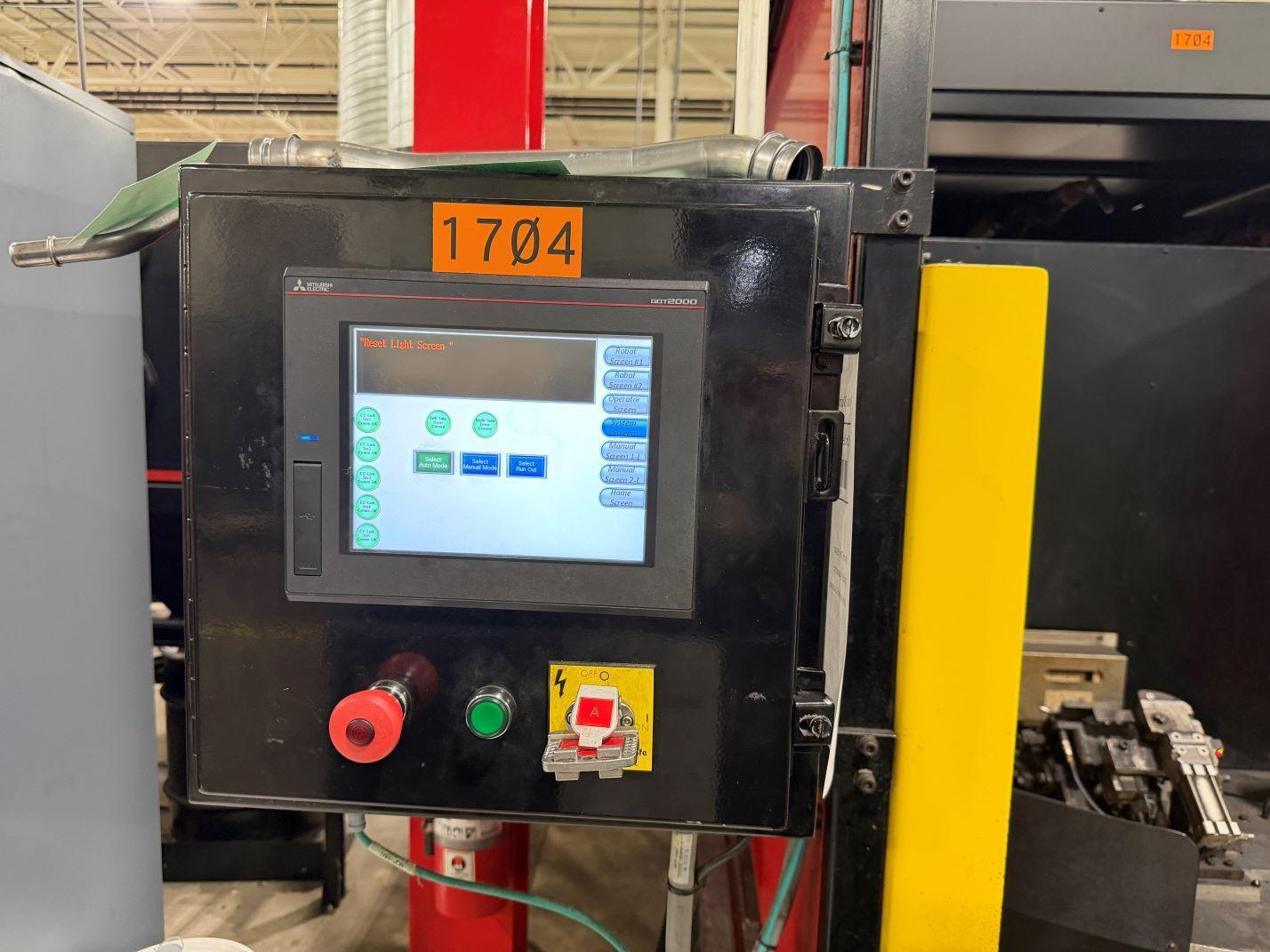

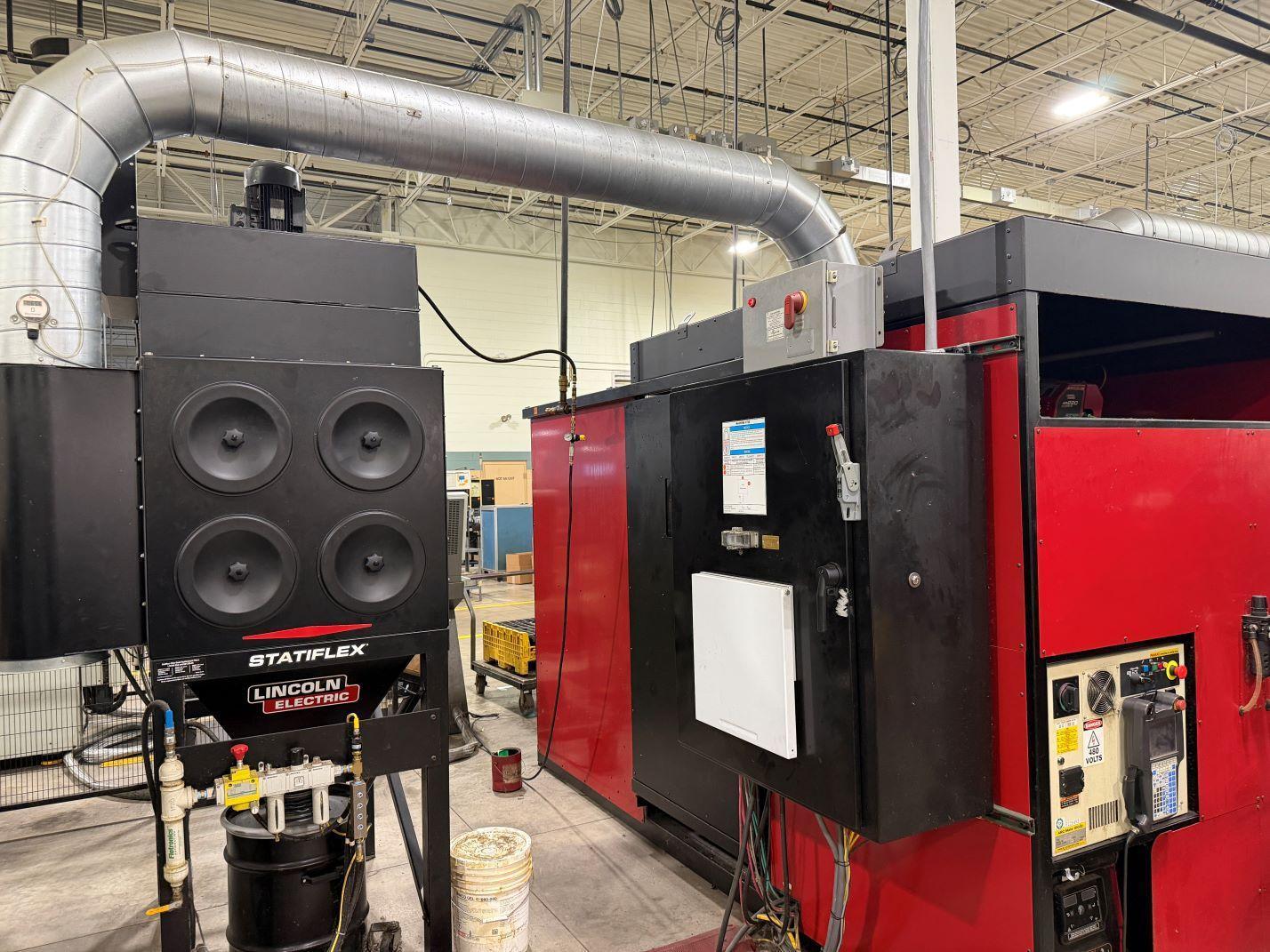

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control & Facility Requirements Control System: Mitsubishi PLC and Mitsubishi HMI Pneumatics: Package includes FRL, pressure sensor, and safety valve Fume Extraction: Modular Fume Hood with floor-mounted Fan & Filter unit and VFD Controller Environmental: Integrated Light Kit for work cell illumination Flooring: Installation requires professional civil engineering review due to variable site conditions

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
