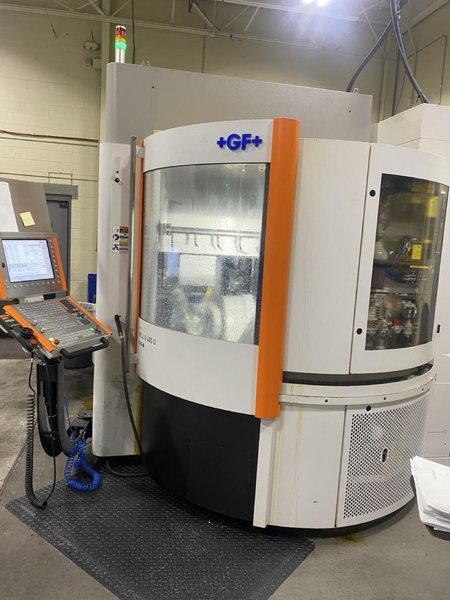

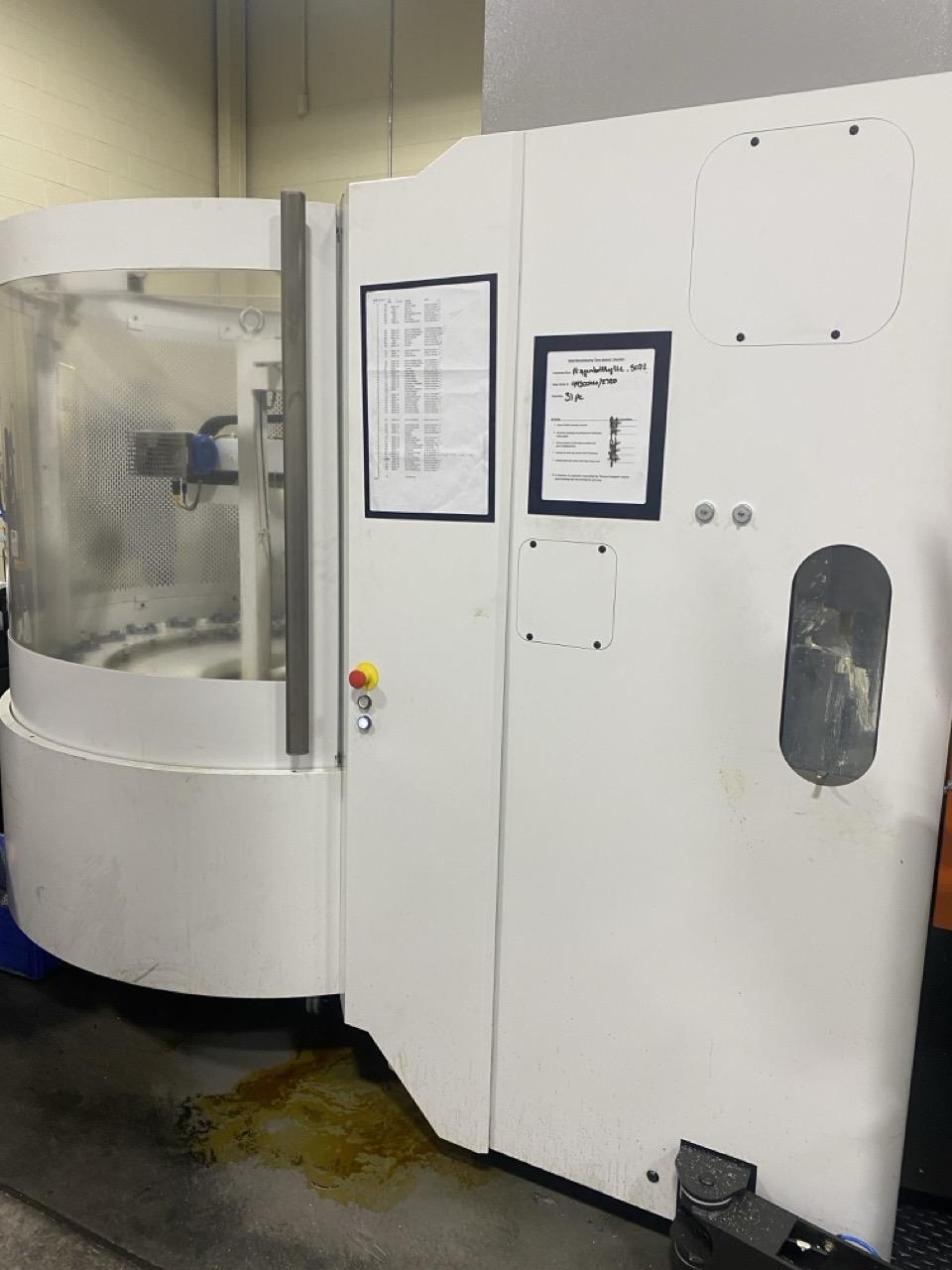

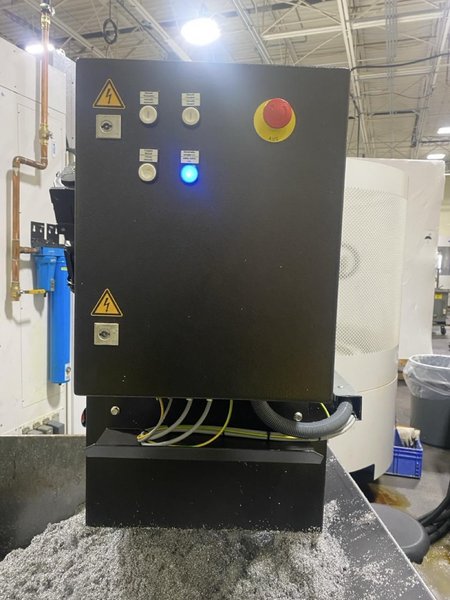

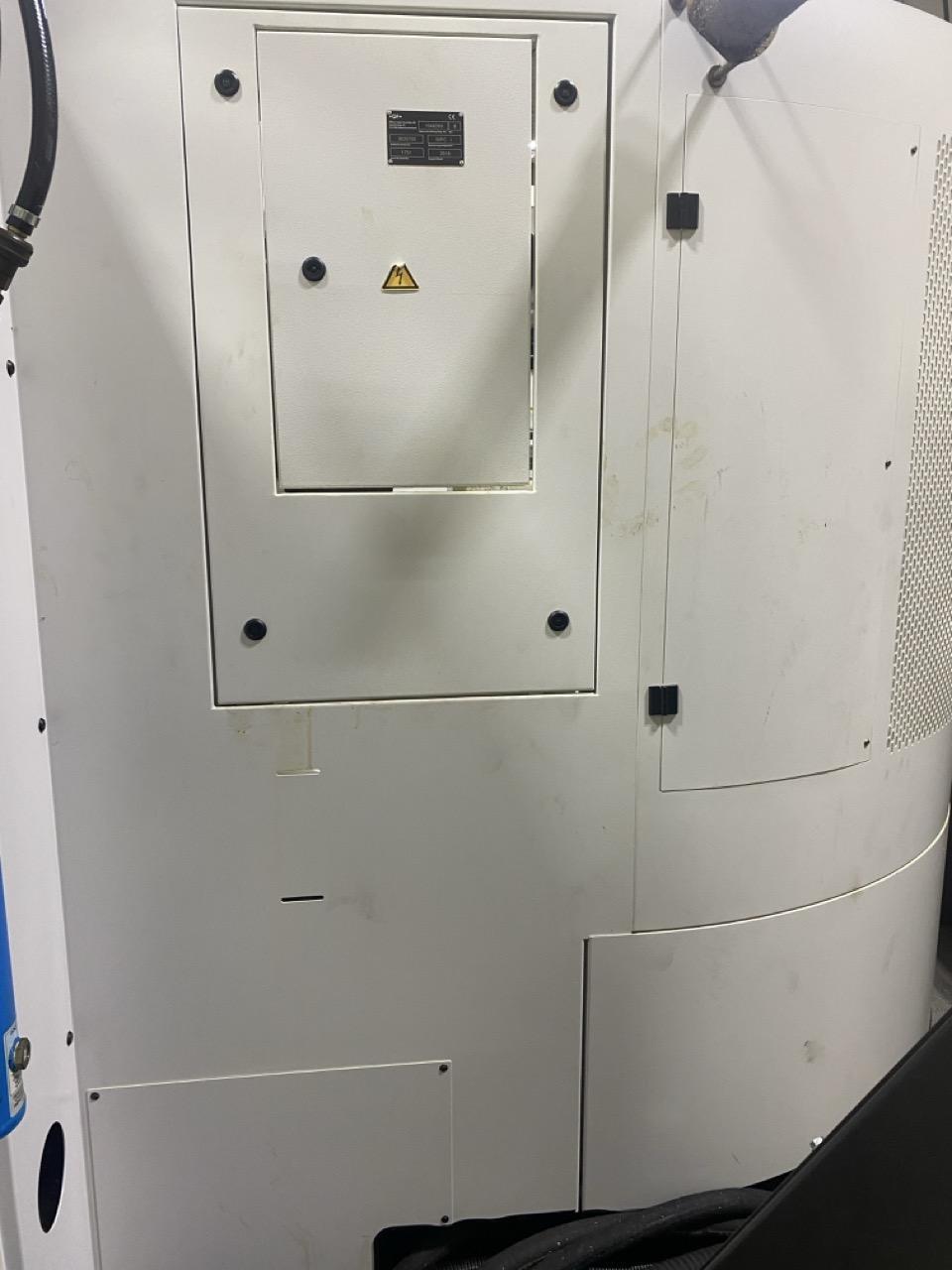

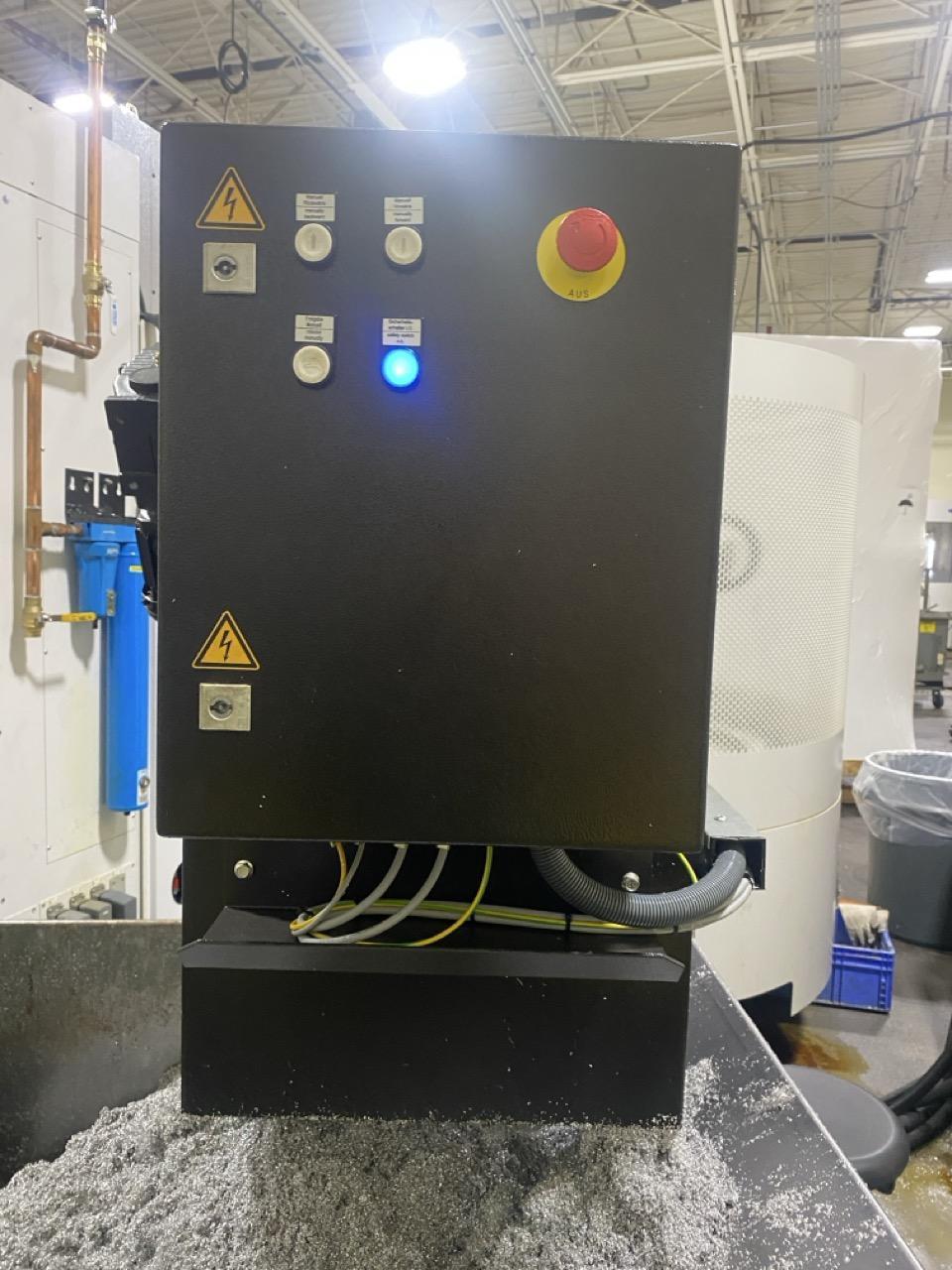

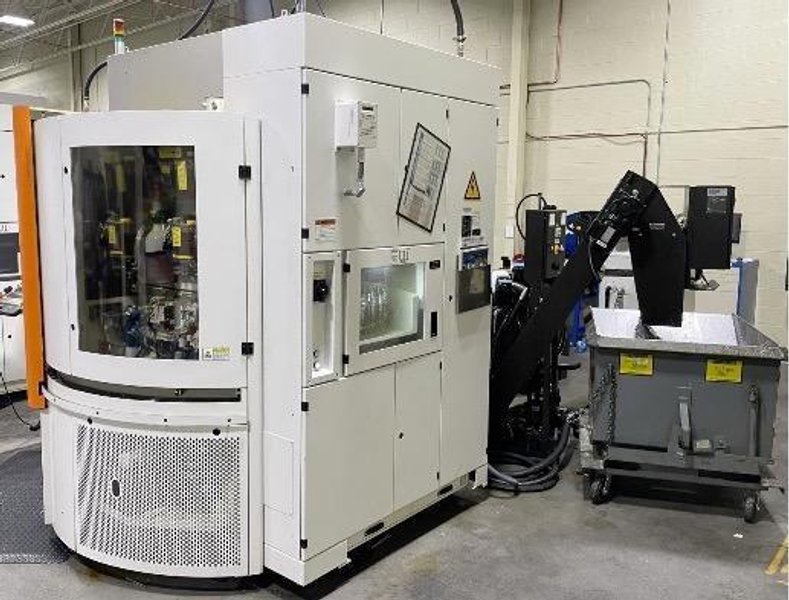

GF Mikron MILL X 400U Ultra-High Speed 5-Axis CNC Machining Center, 2018 – 42,000 RPM, 68 ATC

2018 GF Mikron MILL X 400U ultra-high-speed 5-axis vertical machining center built for precision mold, die, aerospace, medical, graphite/electrode, and high-speed hard milling applications.

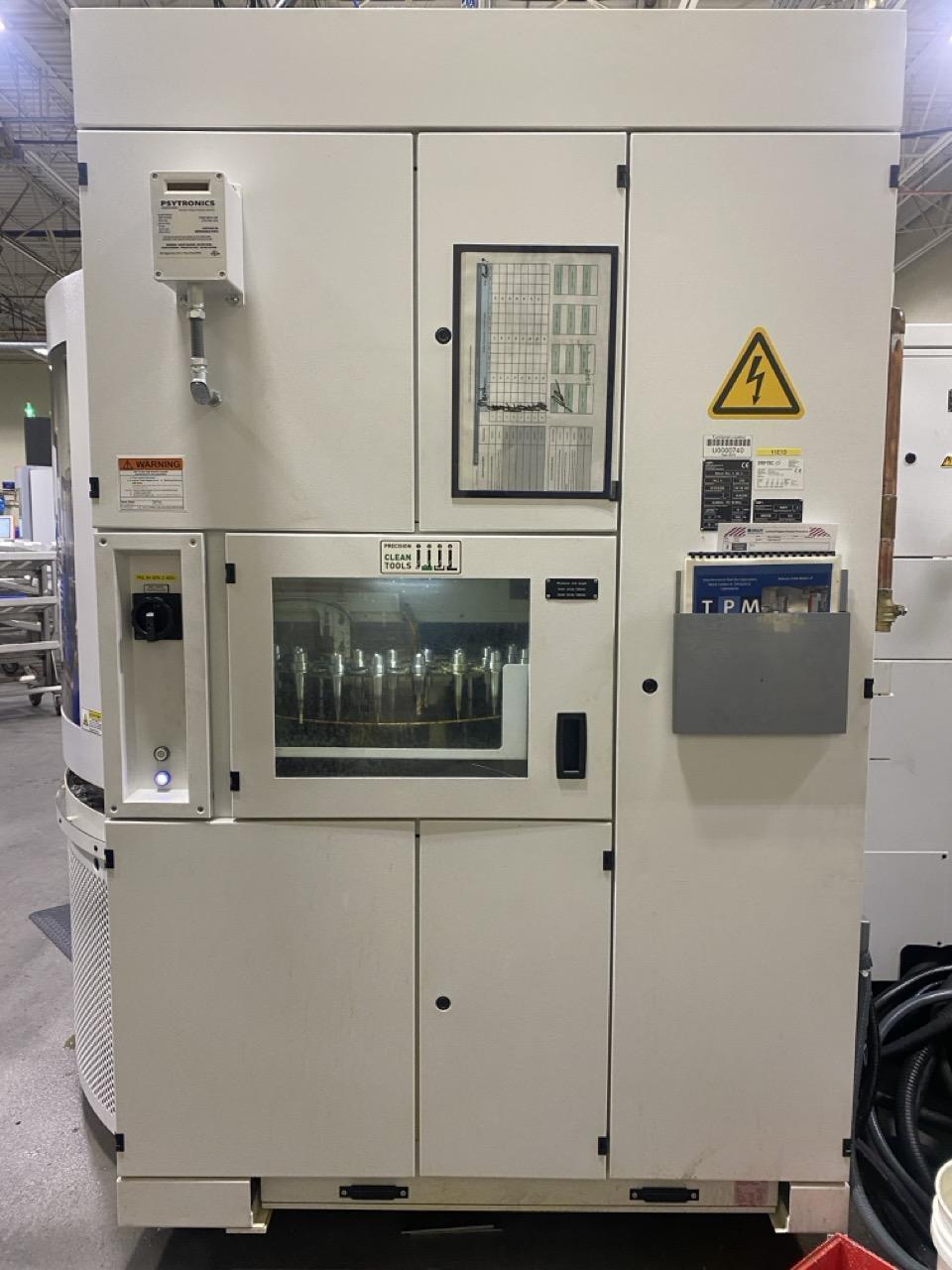

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,X Axis – 19.68” Y Axis – 9.45” Z Axis – 14.17” Swiveling axis +110/-110 degrees Rotary axis n x 360 Rapid traverse (X/Y/Z) 100 m/min (3,937 ipm) Rapid traverse (swivel) 165 rpm Rapid traverse (rotary) 250 rpm Working Spindle speed 42,000 rpm Working Spindle taper HSK-E40 Tool Changer 68 ATC Working Spindle power 13.5 kW Working Spindle torque 8.8 Nm Machine weight 15,432 lbs

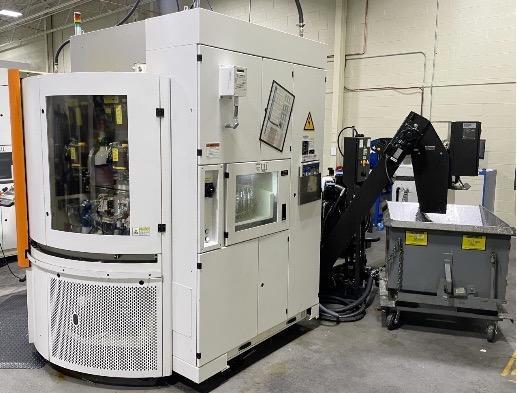

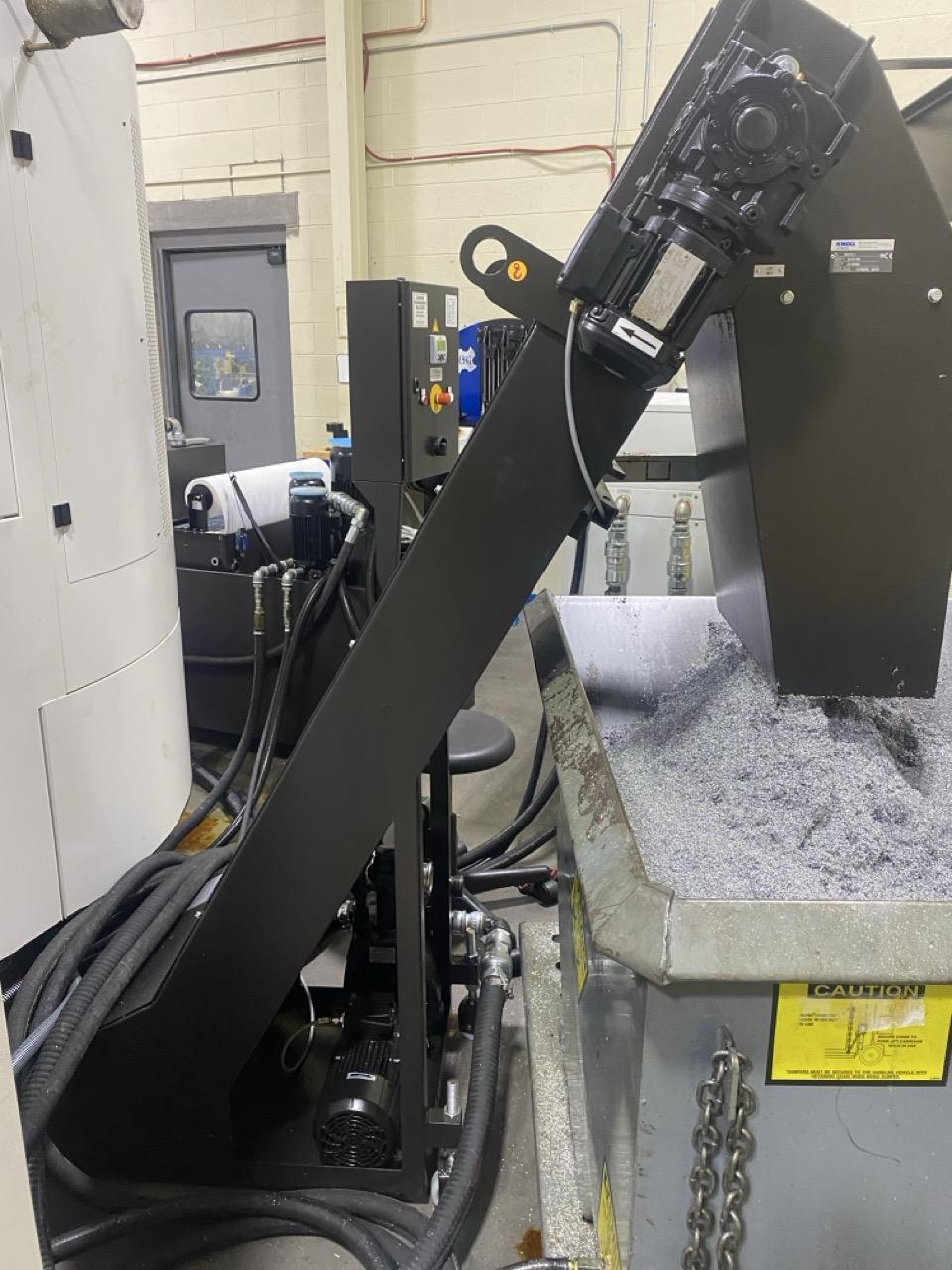

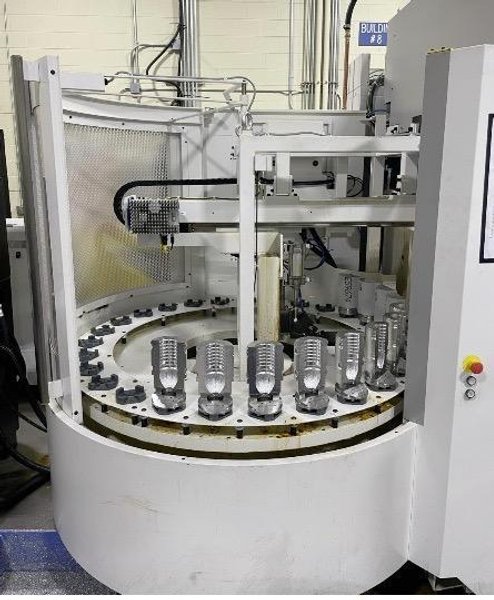

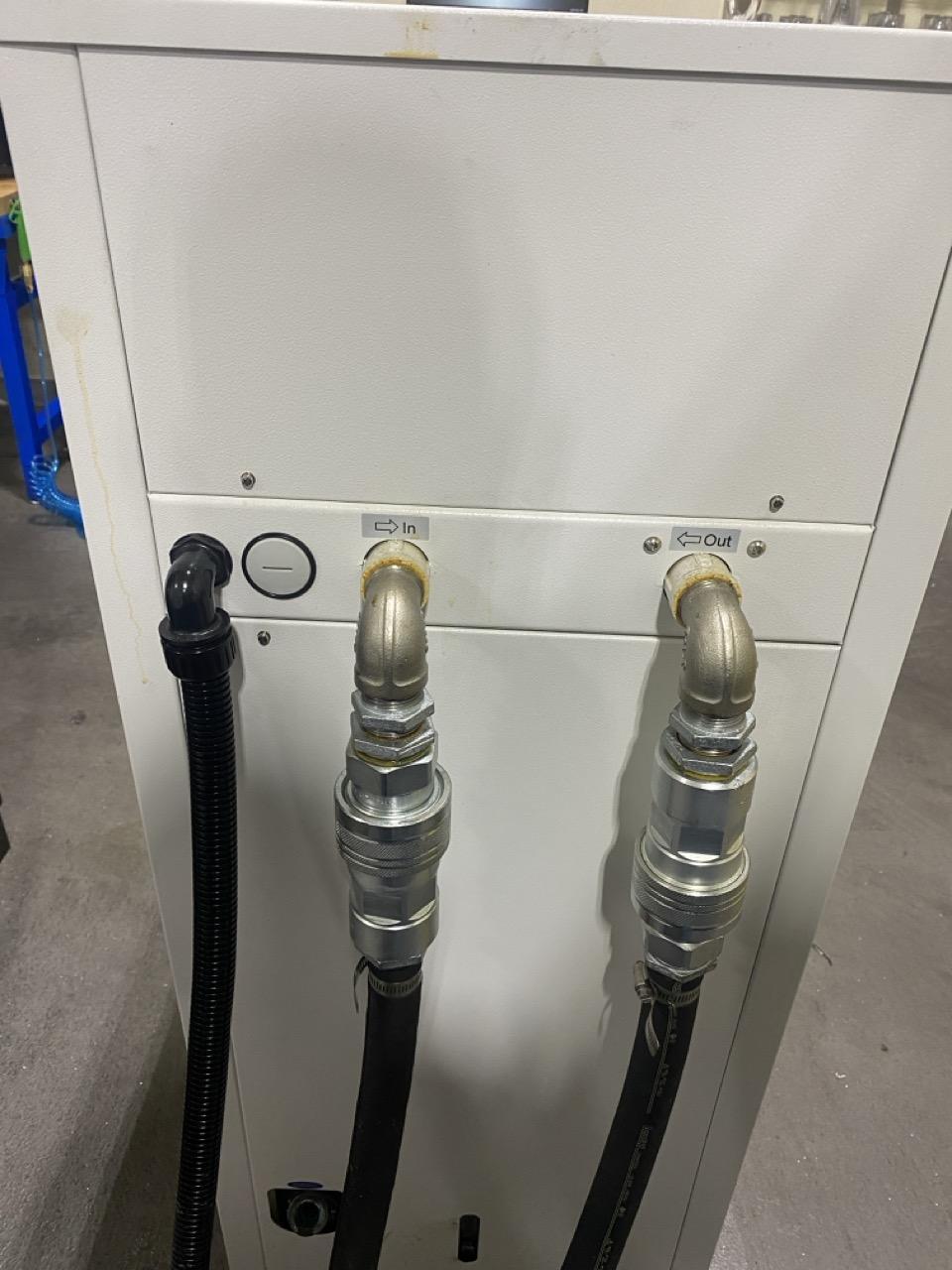

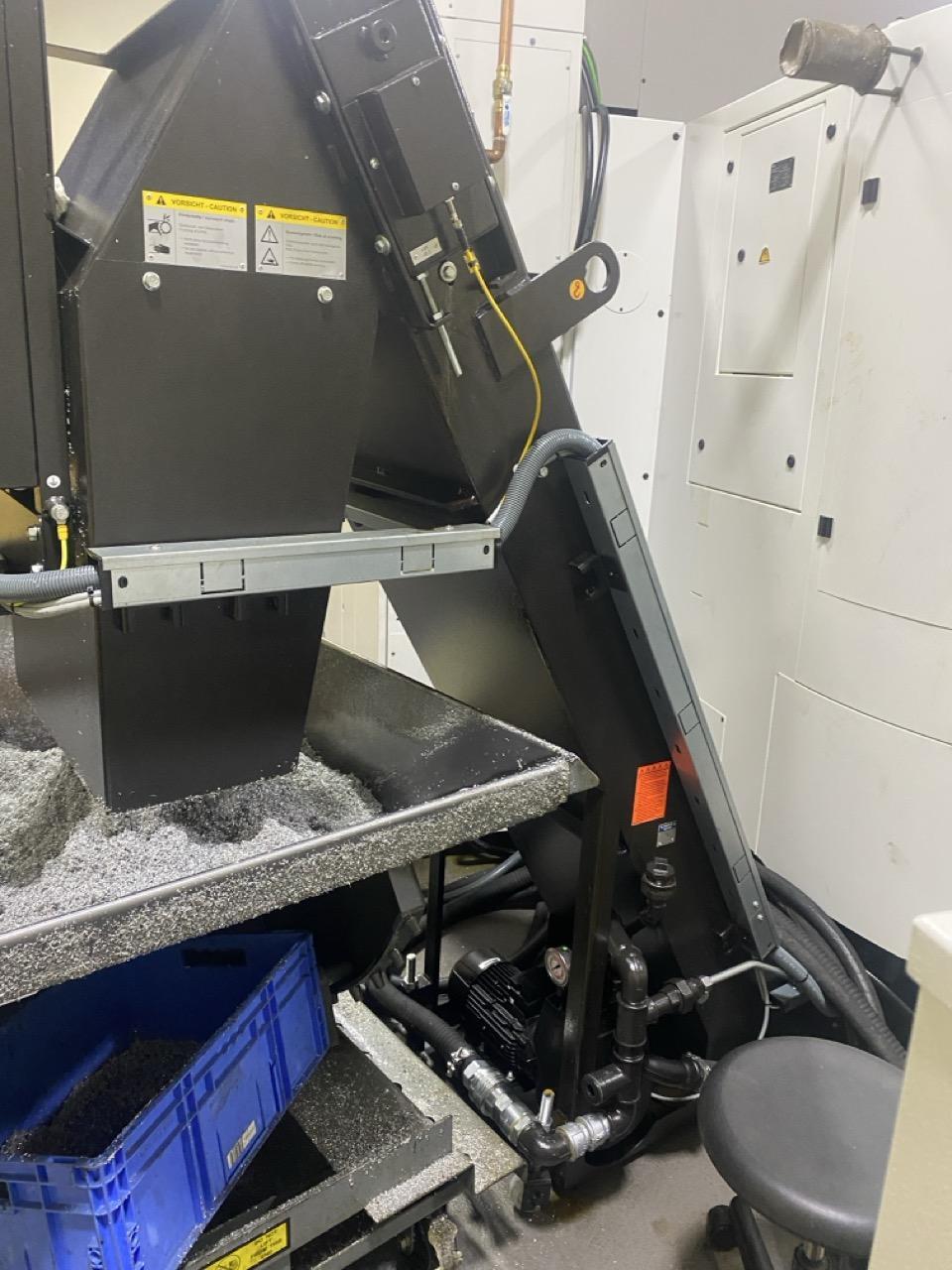

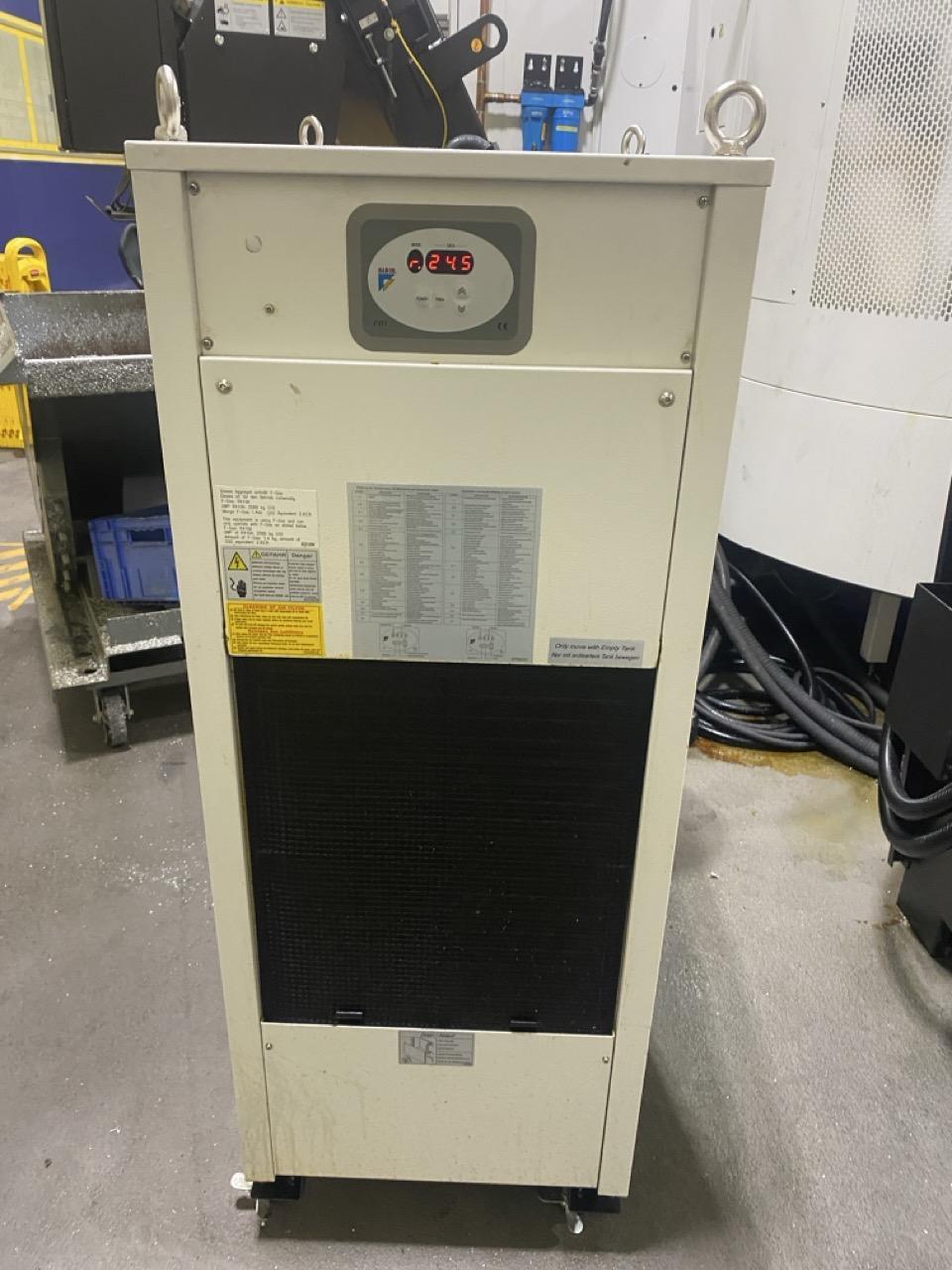

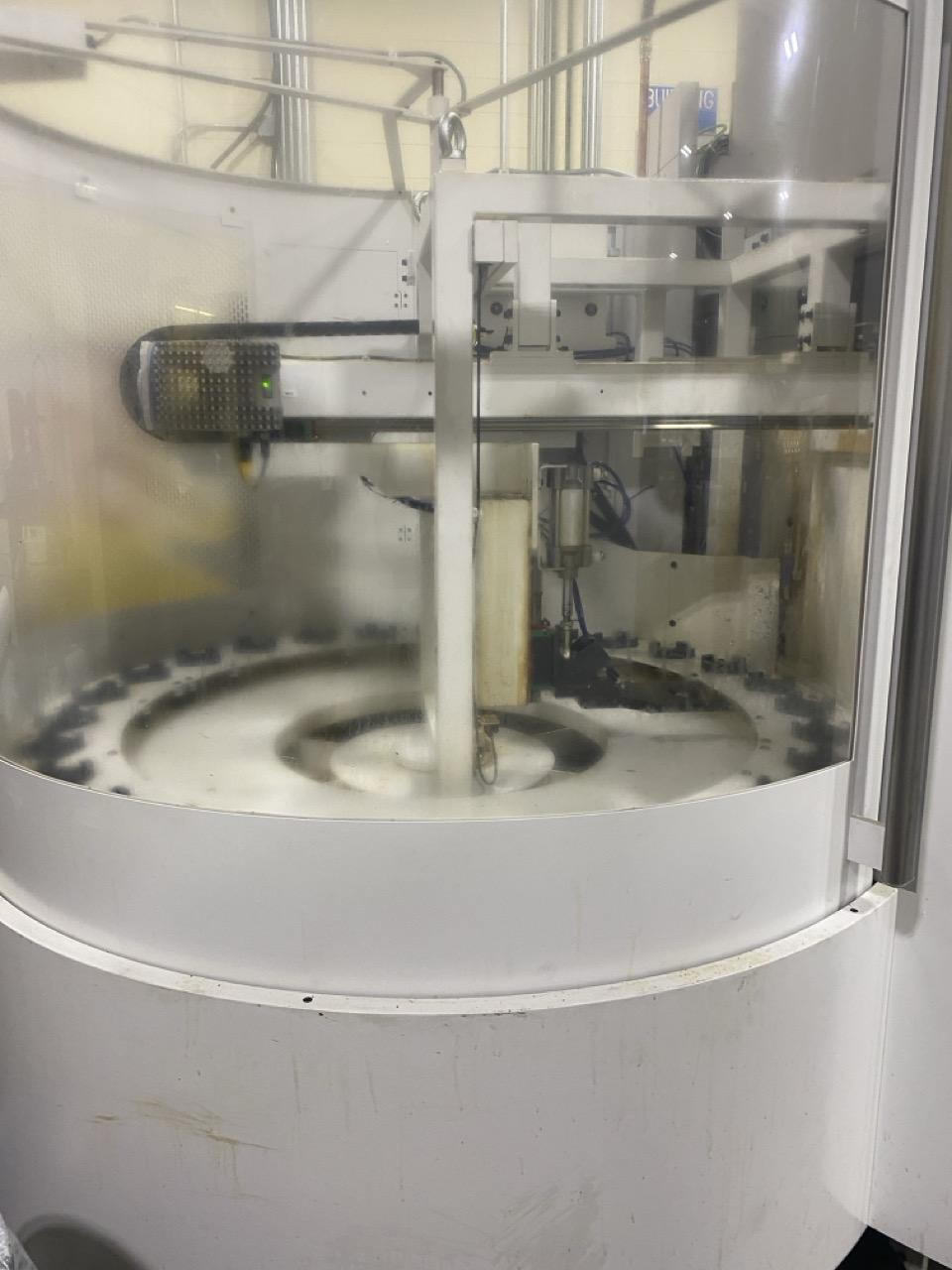

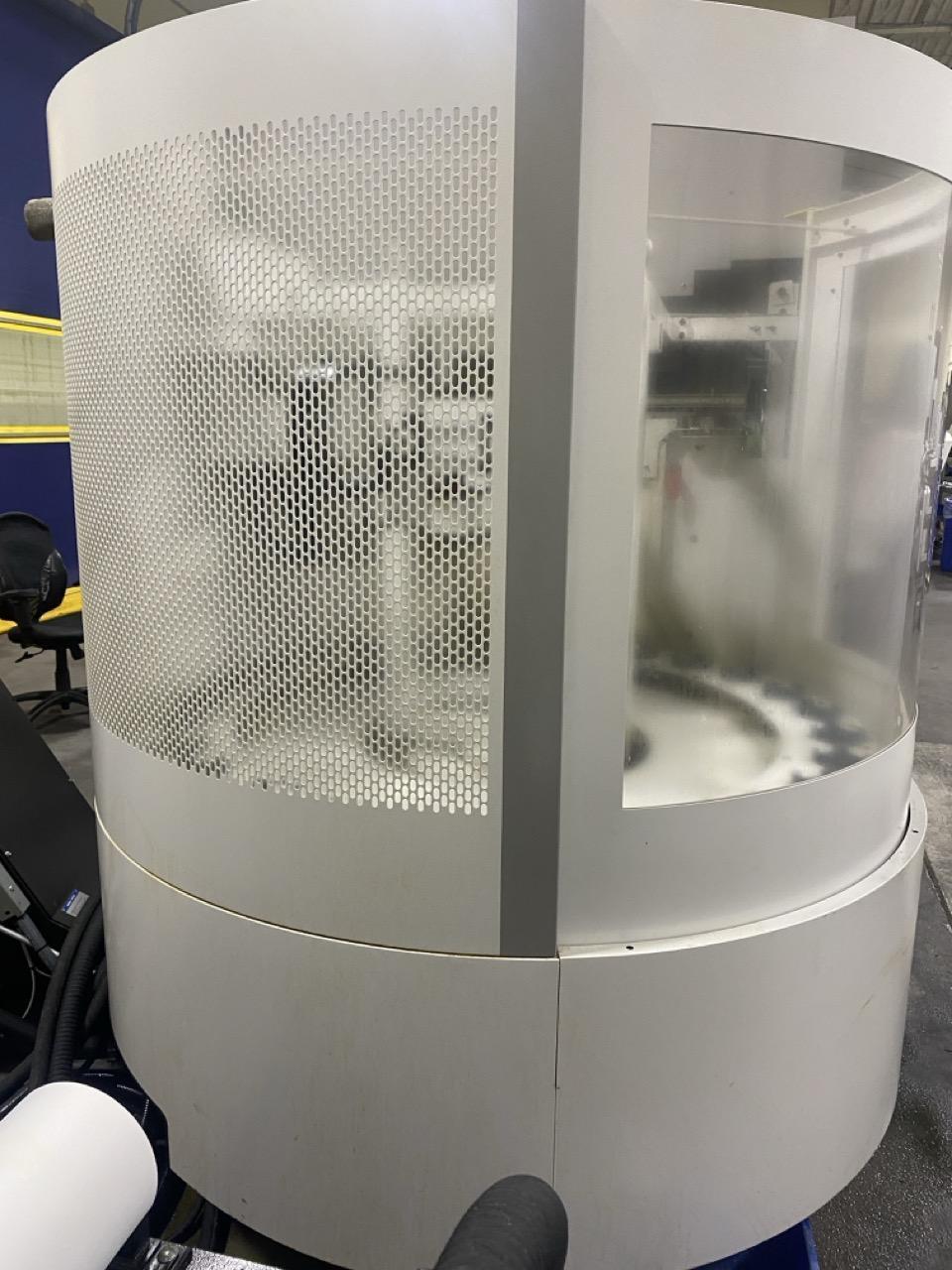

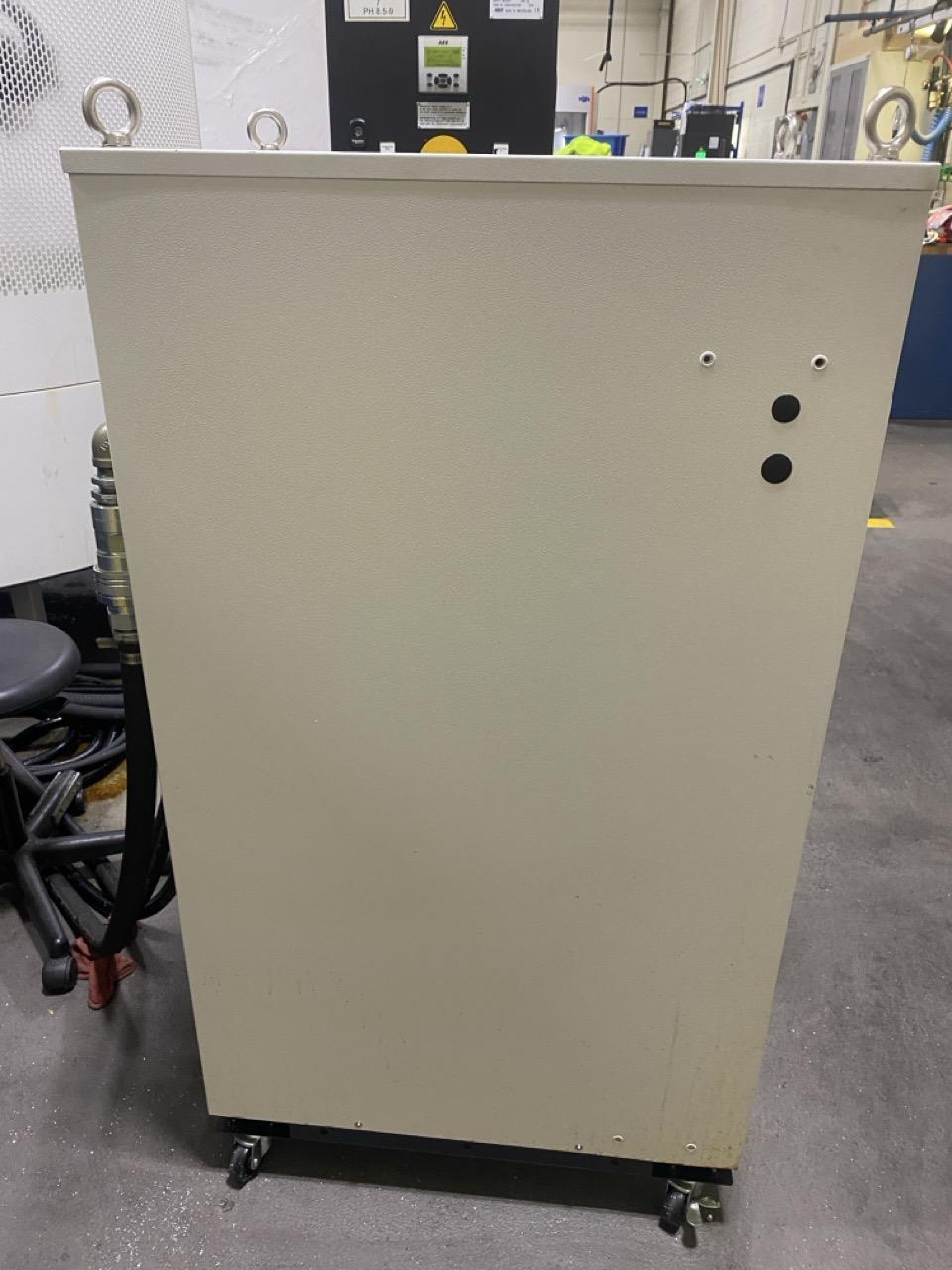

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Heidenhain ITNC 530 HSCI CNC Control Pallet Magazine 27 Macro Rotary Tilt Table Macro Magnum Knoll Scraper Conveyor With Filter System Coolant Thru Spindle Spindle Chiller Spindle Nose Wash Down Quick Coupling Lines Production Monitoring Software Extended Accuracy 5-Axis Wash Down System Tool/Part Probe Oil Skimmer Oil Spray Unit Mist Collector Chip Auger Inside machine Conversational Programming APS Advanced Process System ITC Intelligent Thermal Control 5-Axis PFP Power Fail Protection OSS Operator Support System Spindle Hours – 10,820

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
