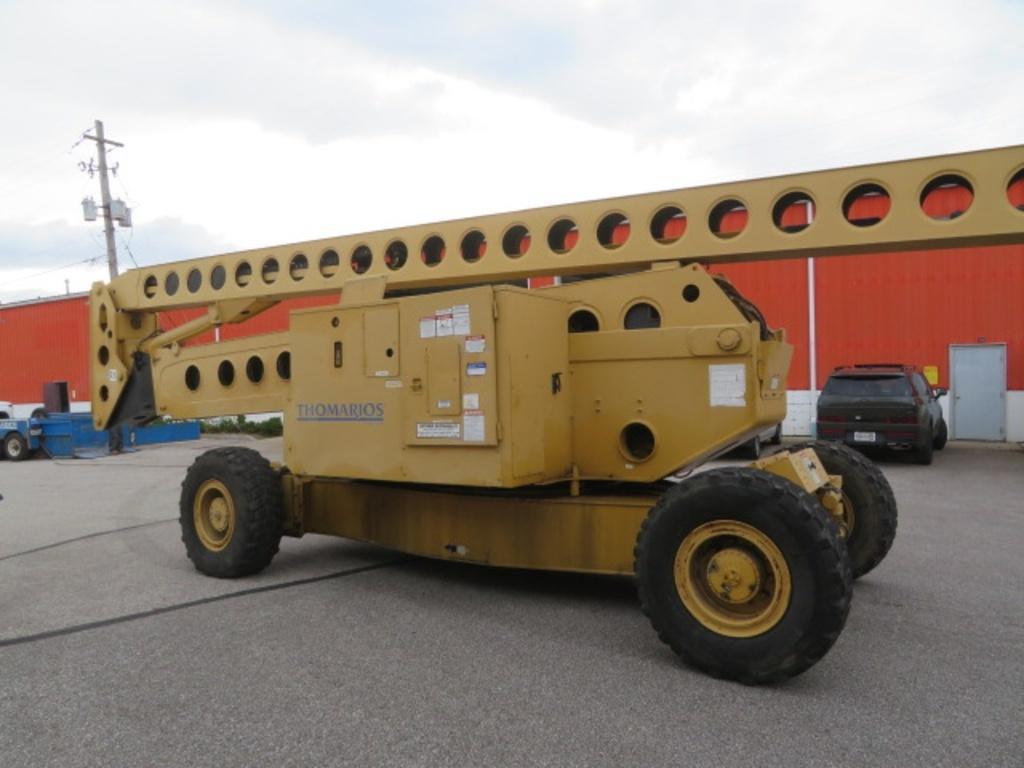

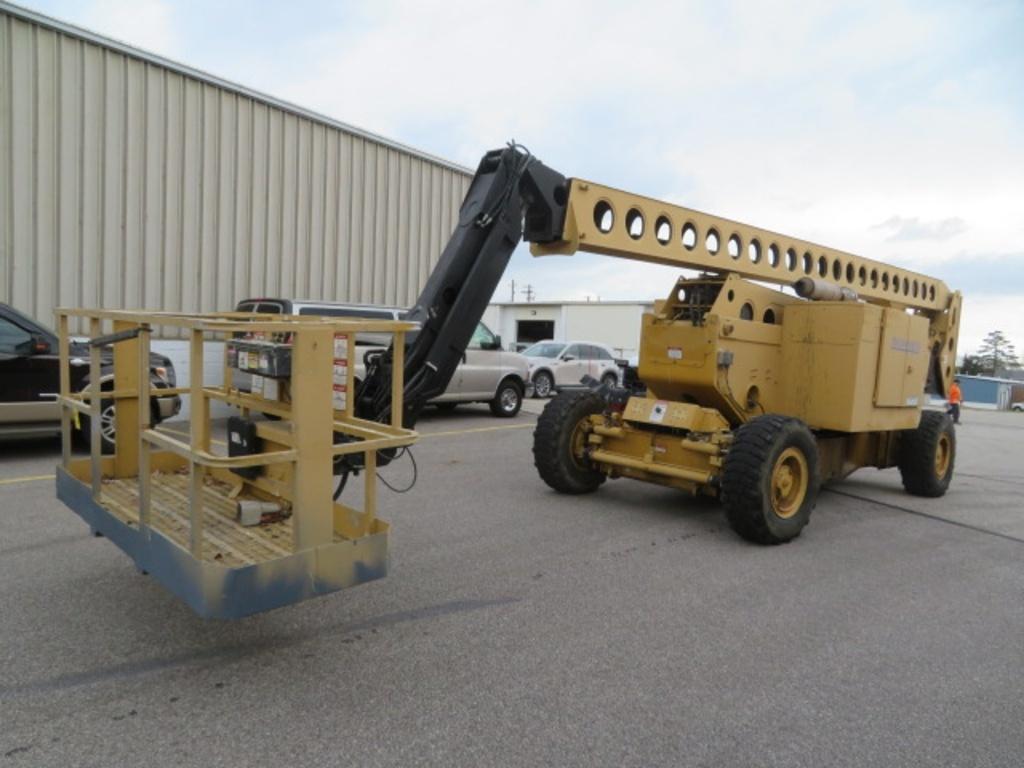

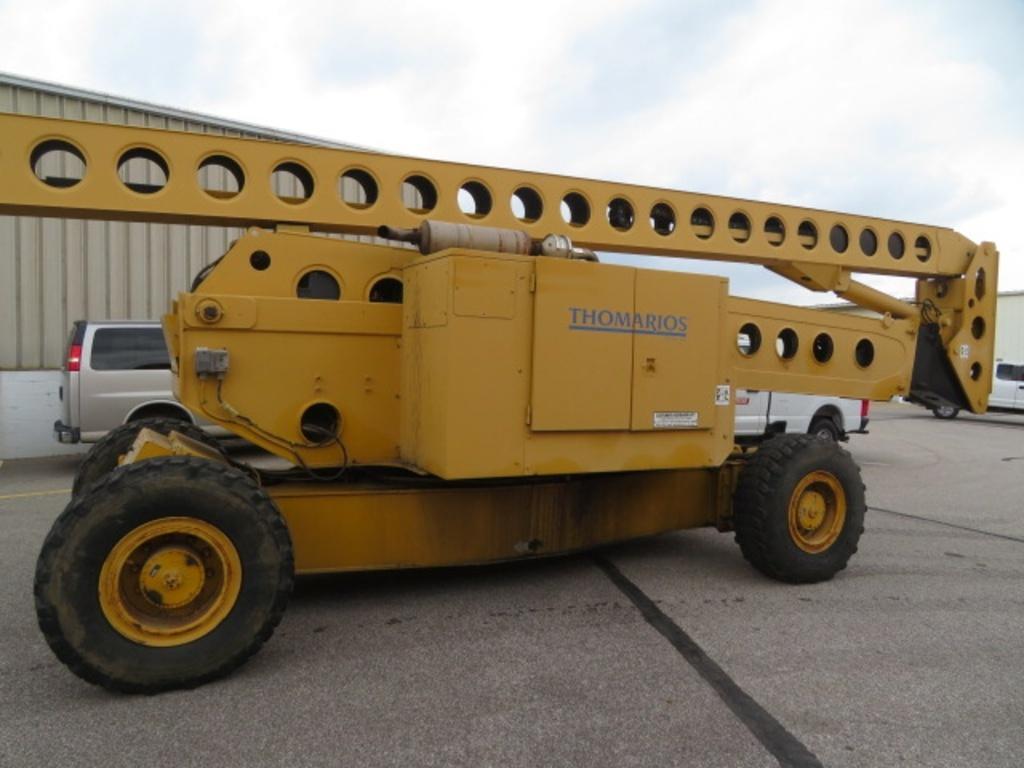

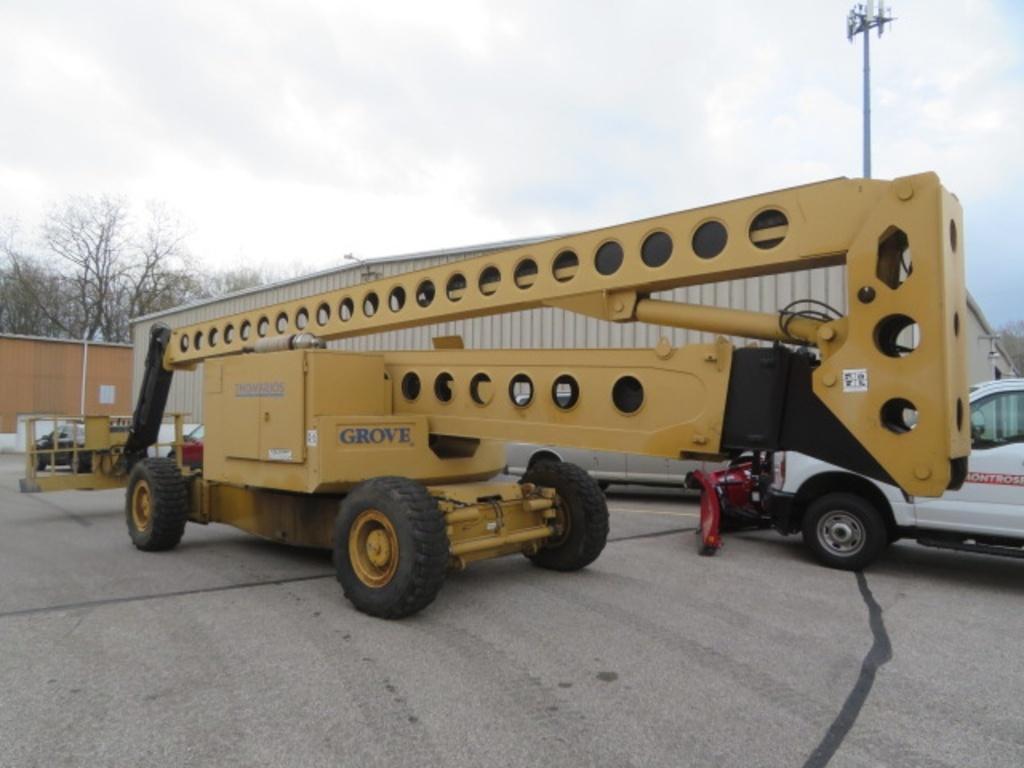

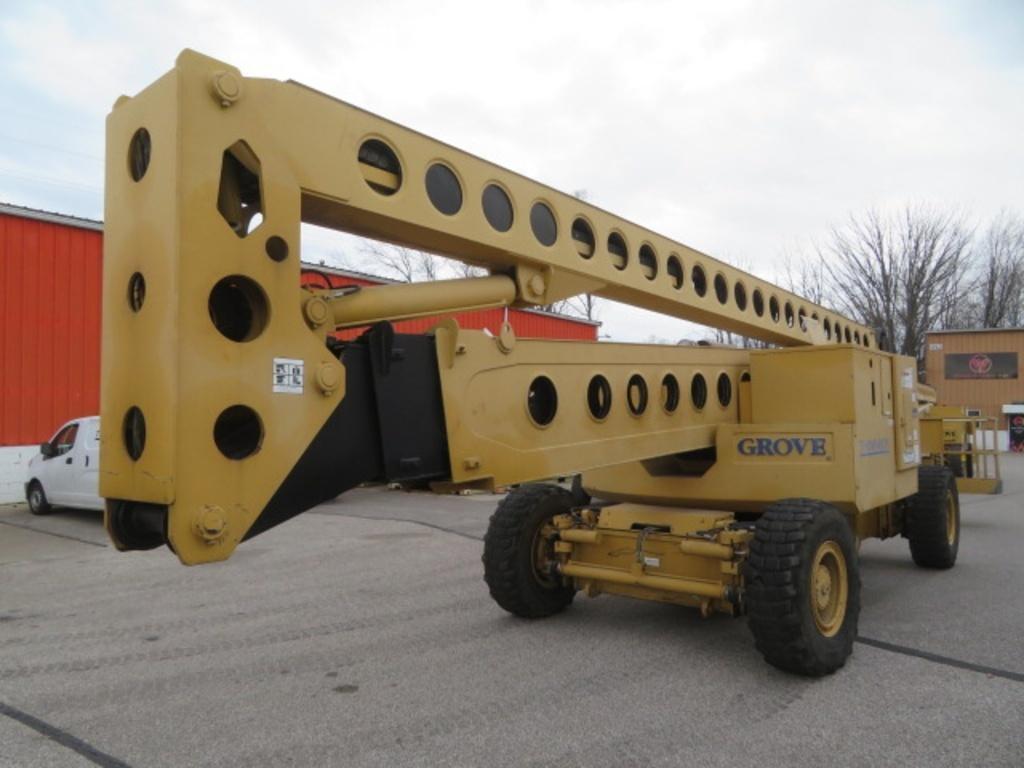

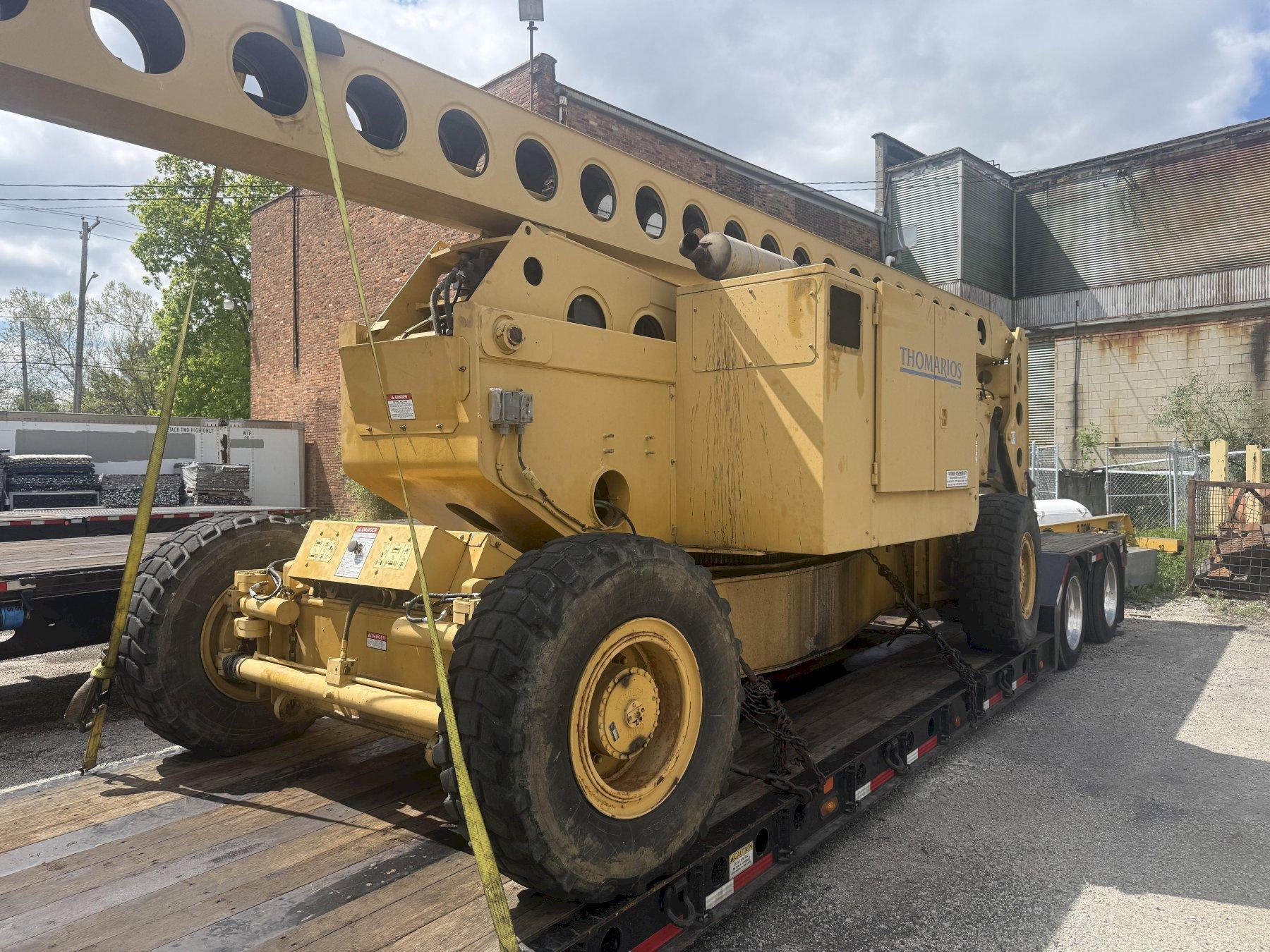

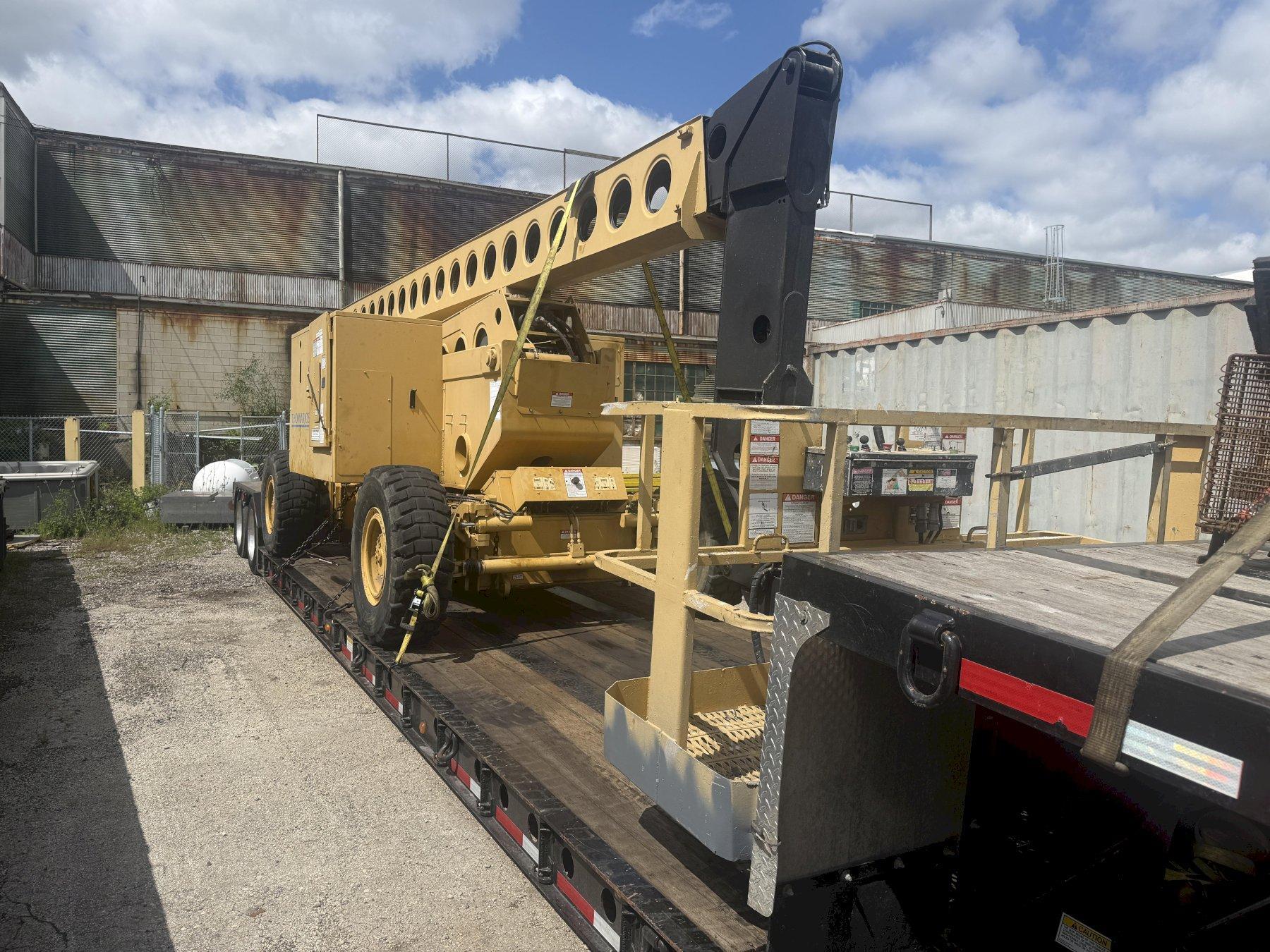

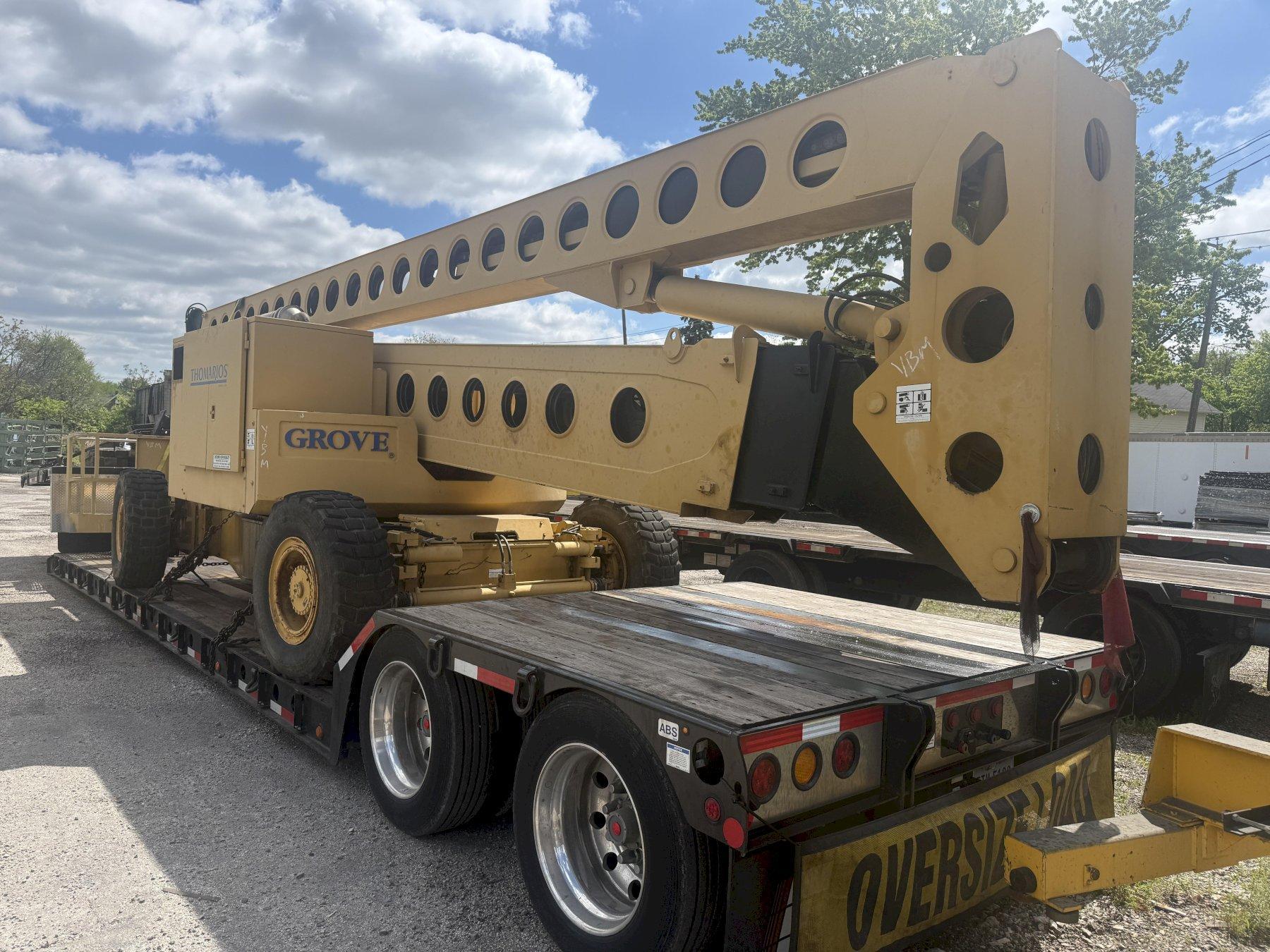

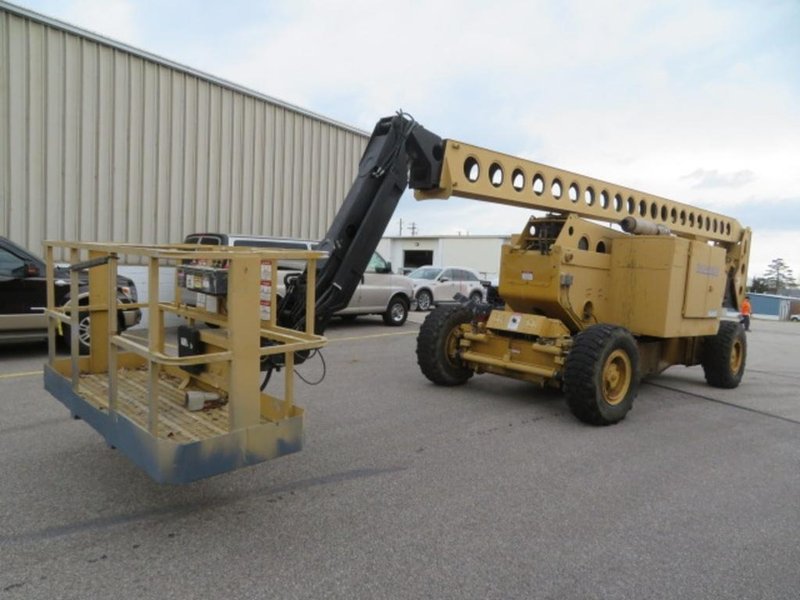

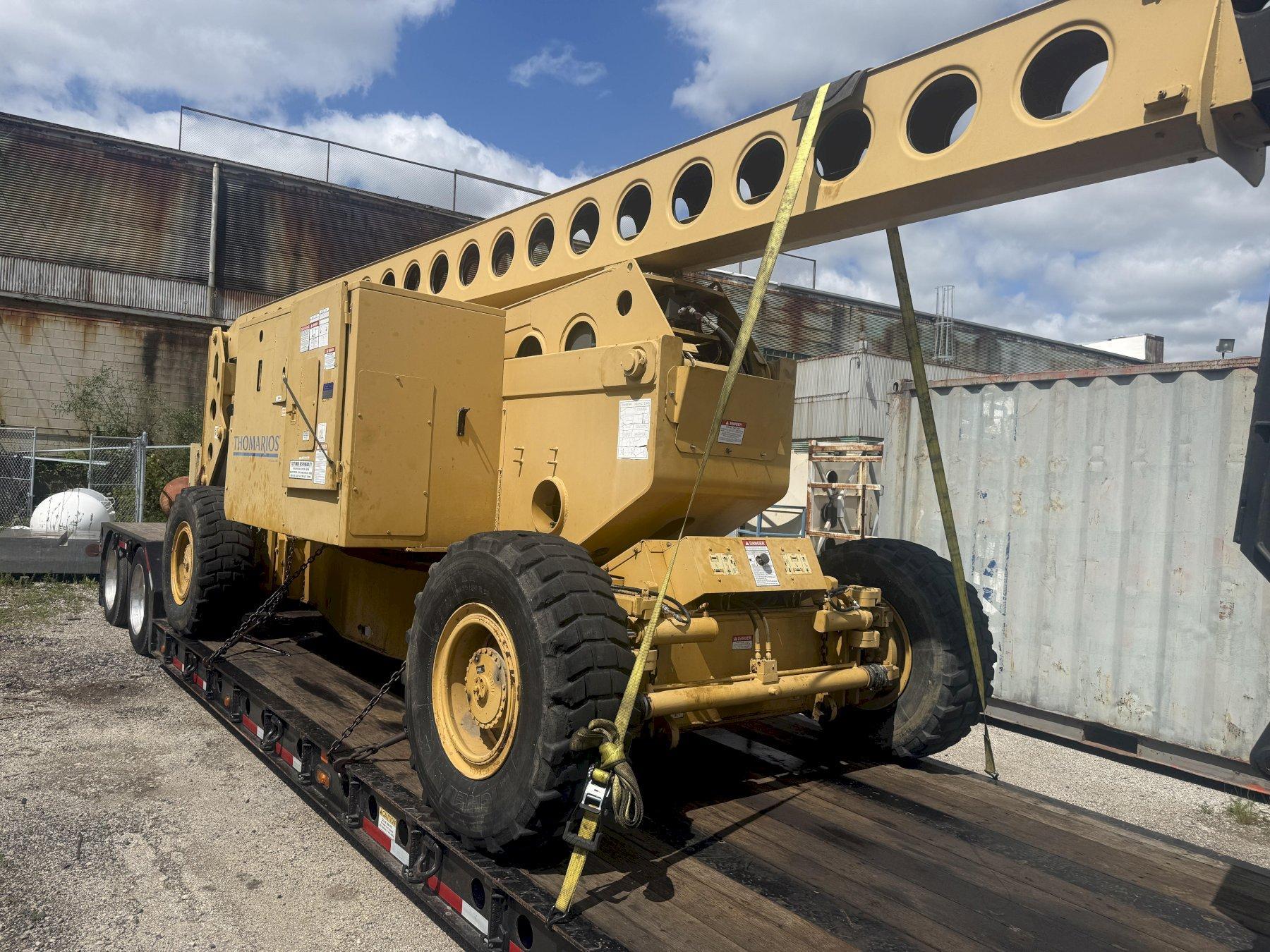

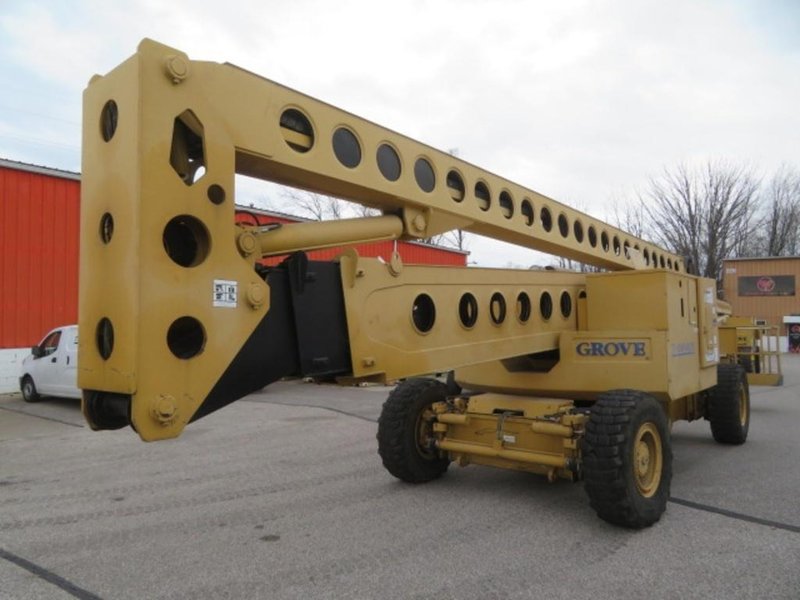

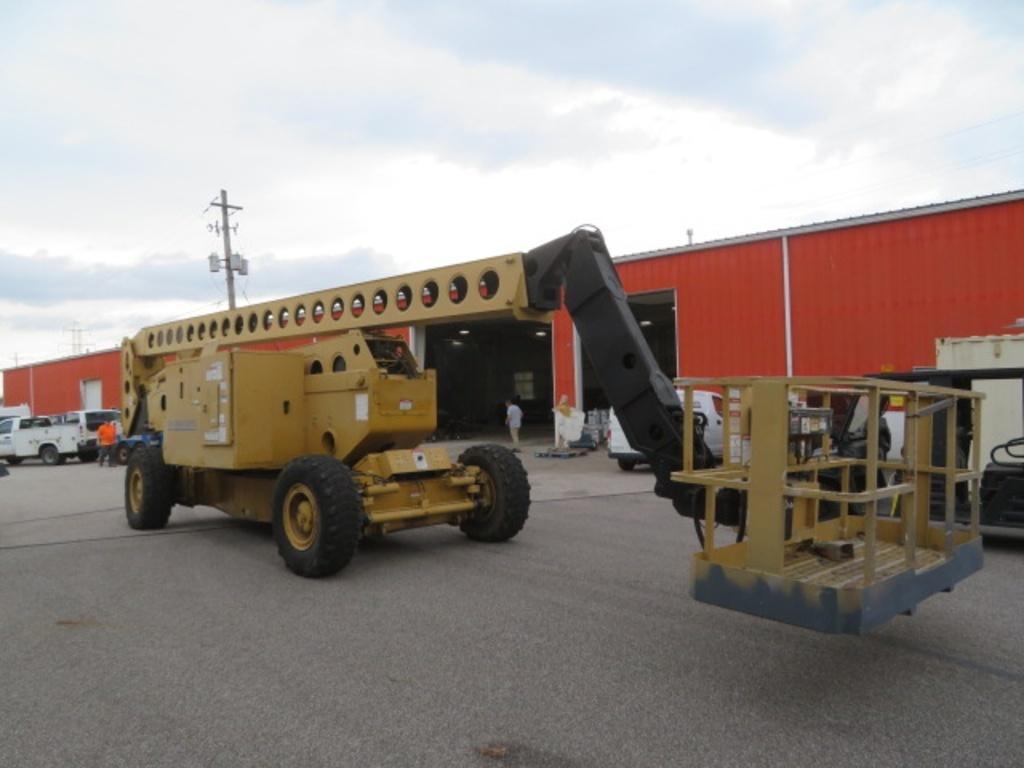

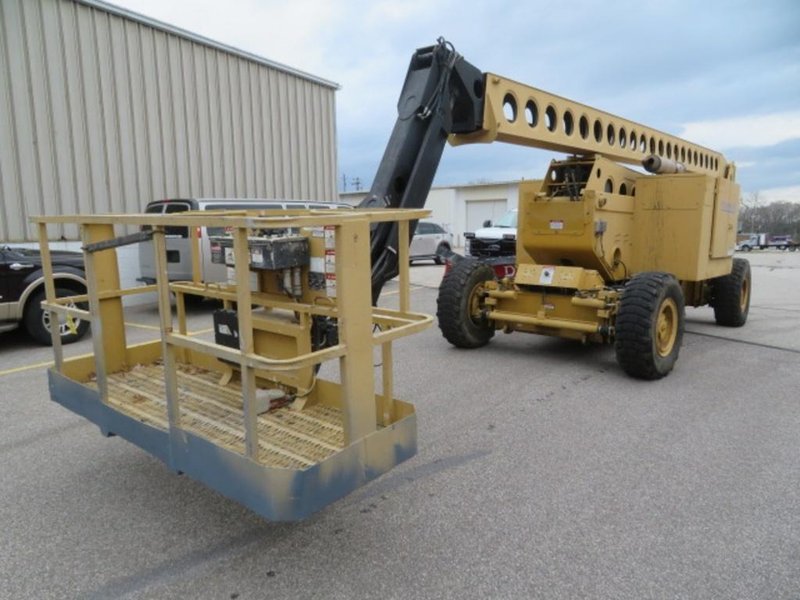

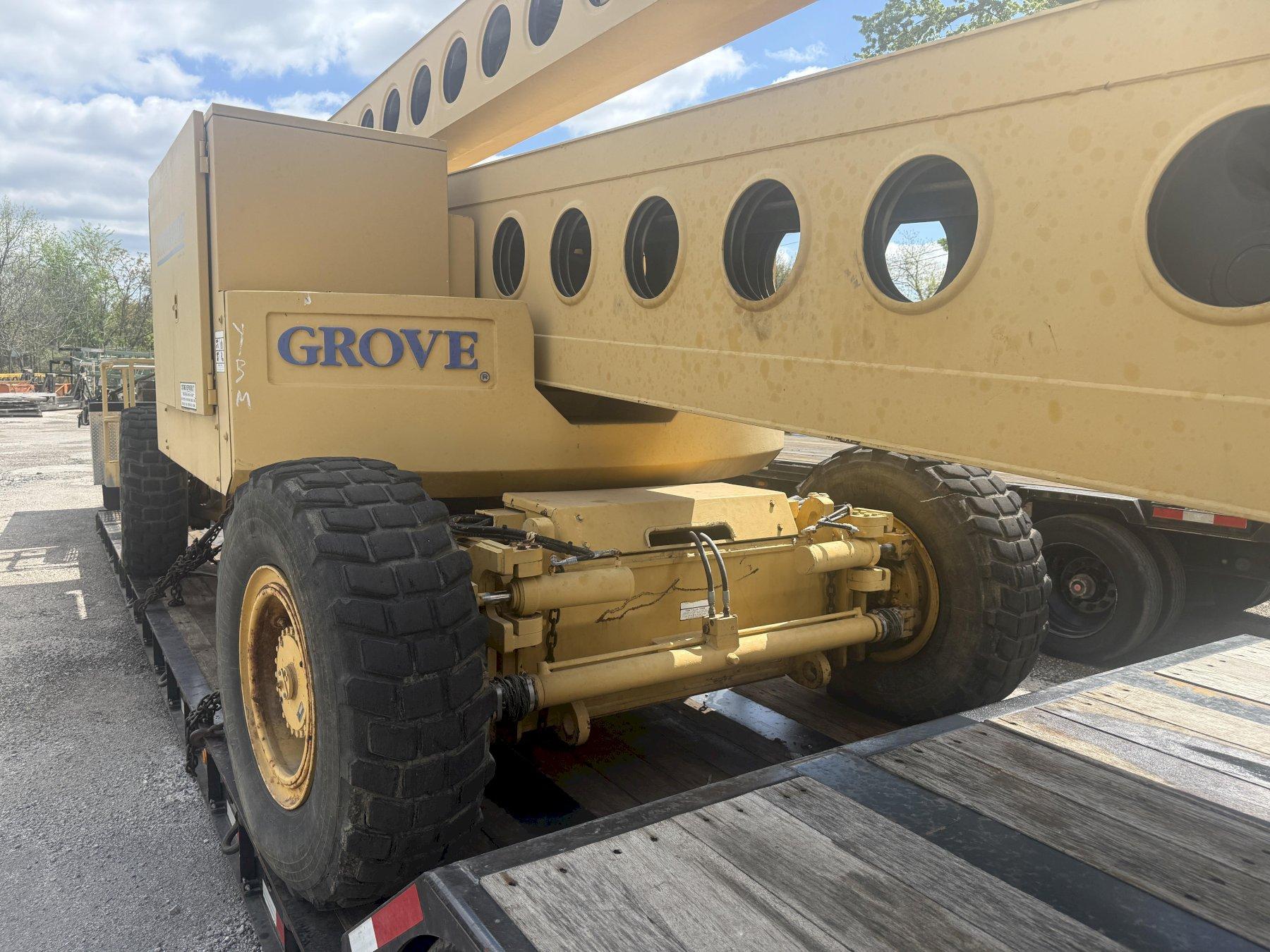

125' GROVE MODEL AMZ-131XT DIESEL POWERED OFF-ROAD MANLIFT: YOBRO #25206

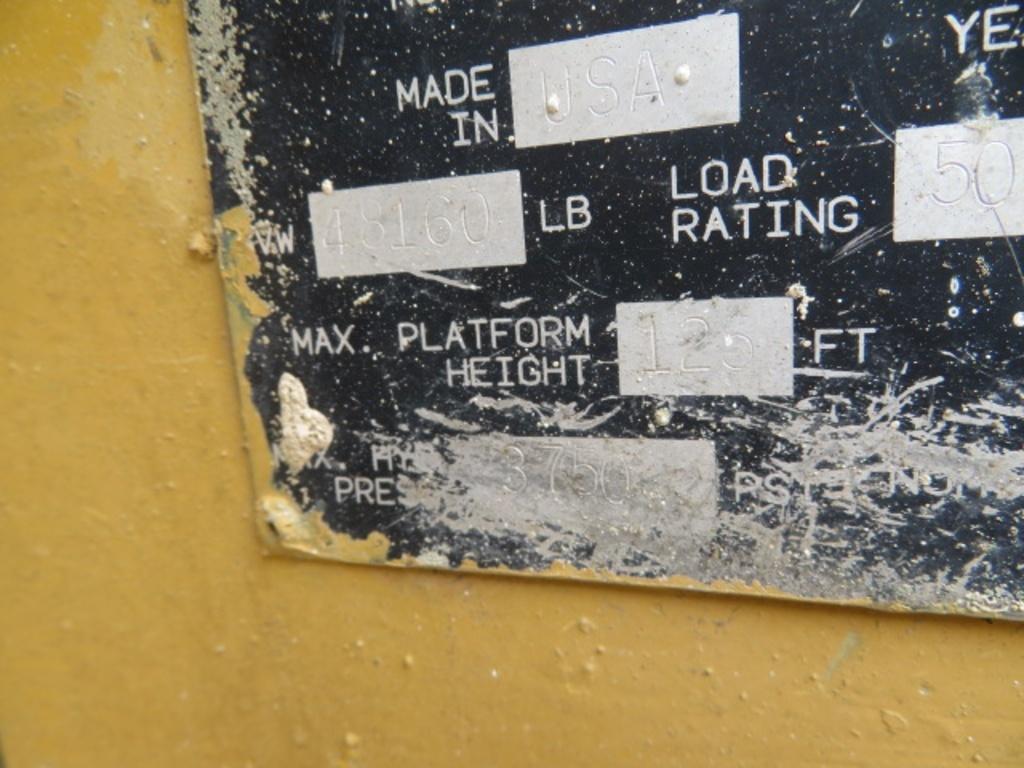

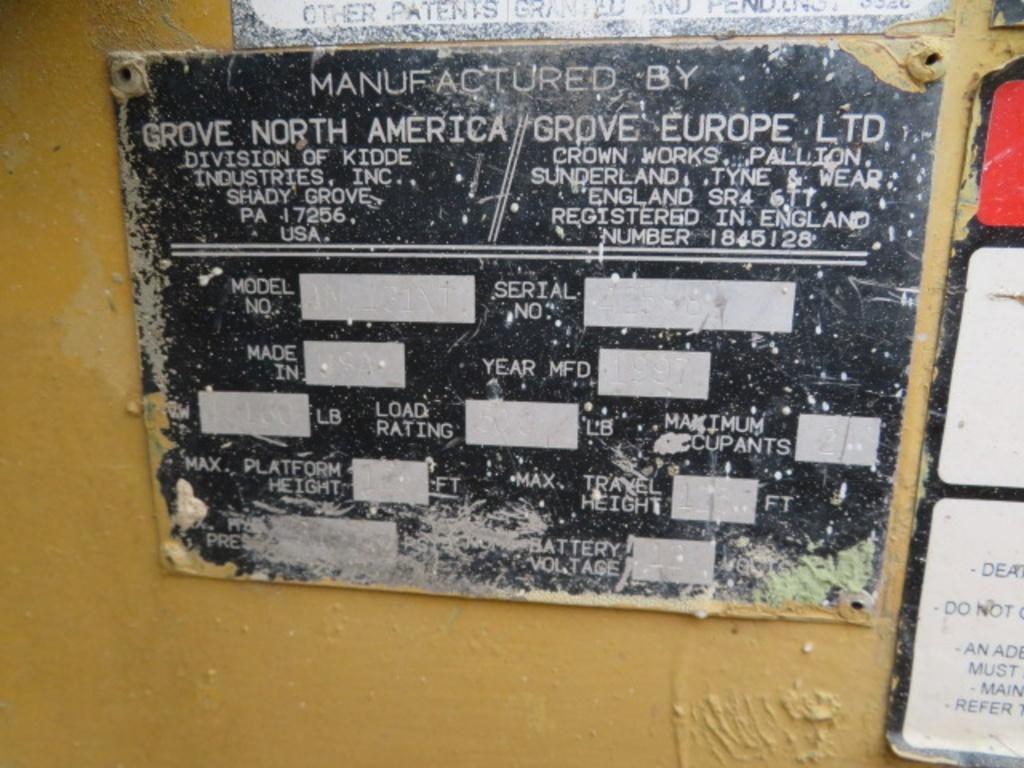

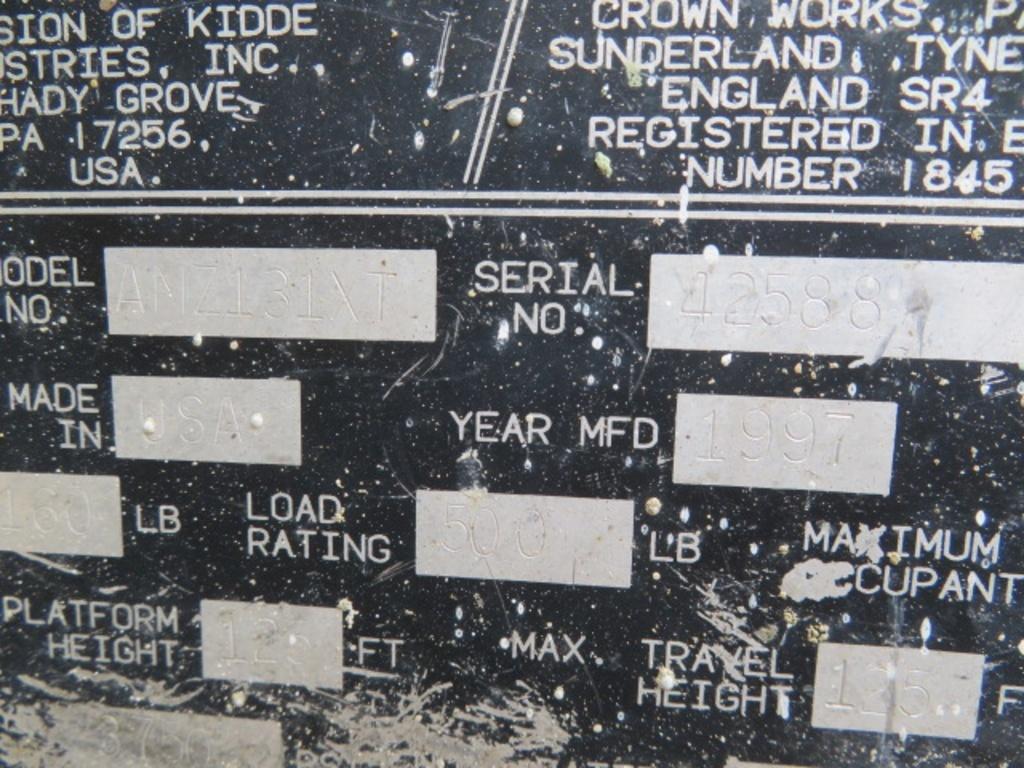

SERIAL 42588
NEW 1997

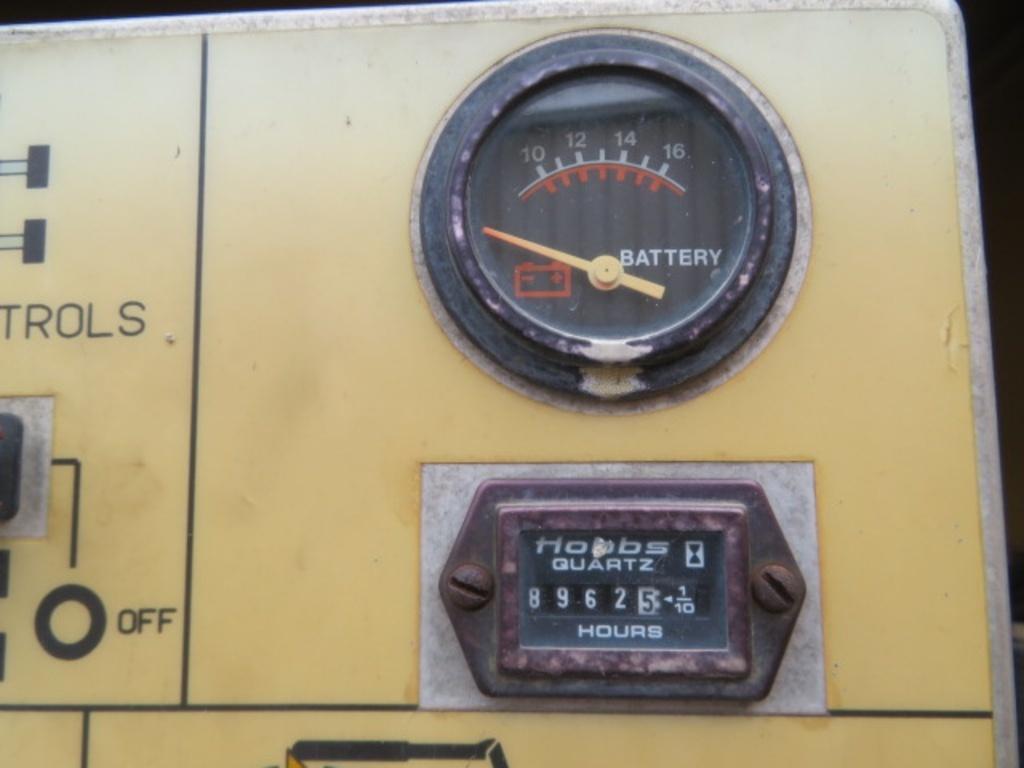

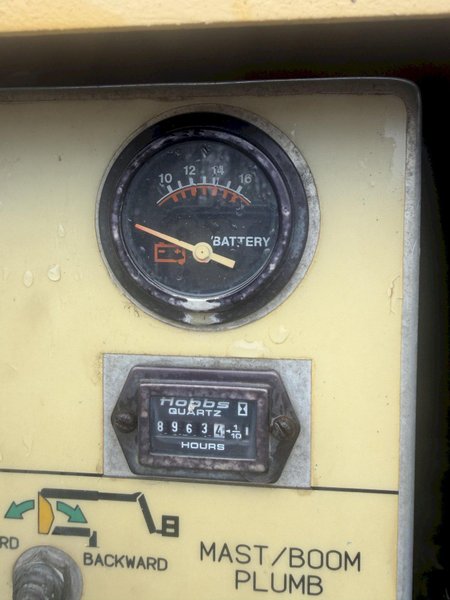

HOURS 8,963

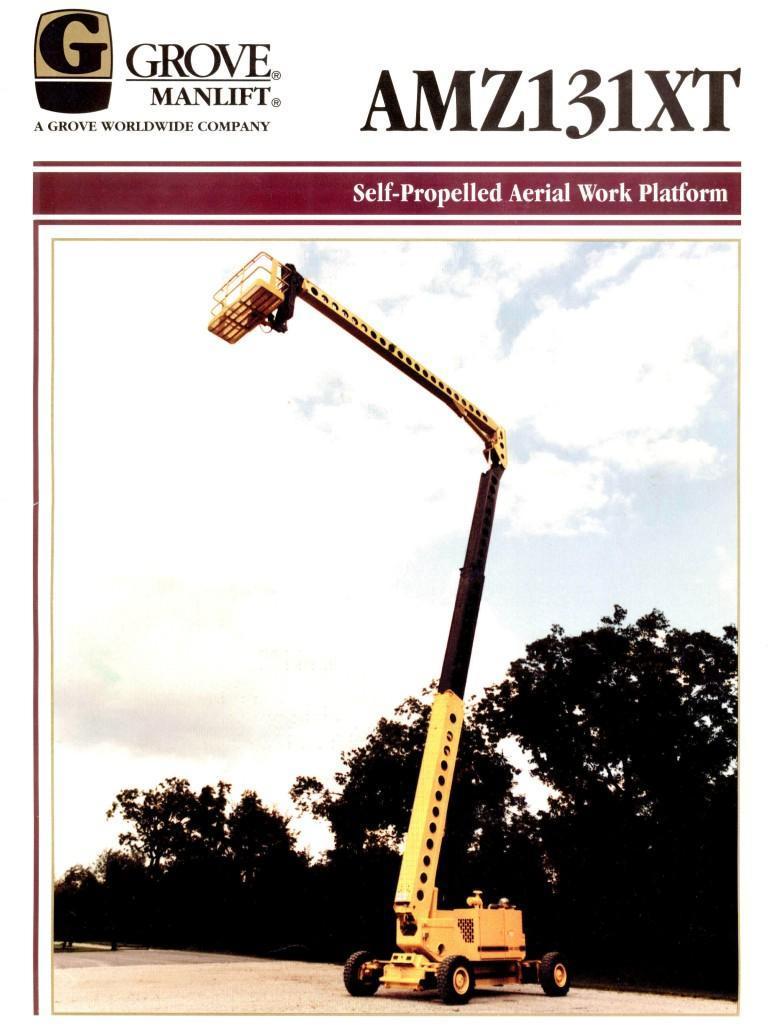

MODEL AMZ131XT

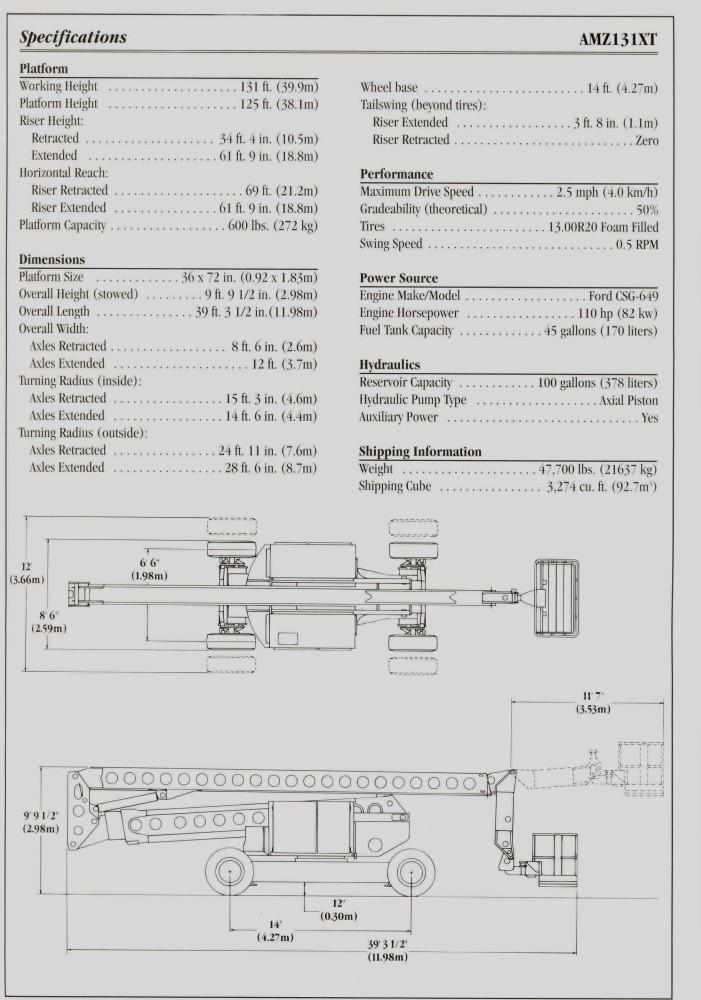

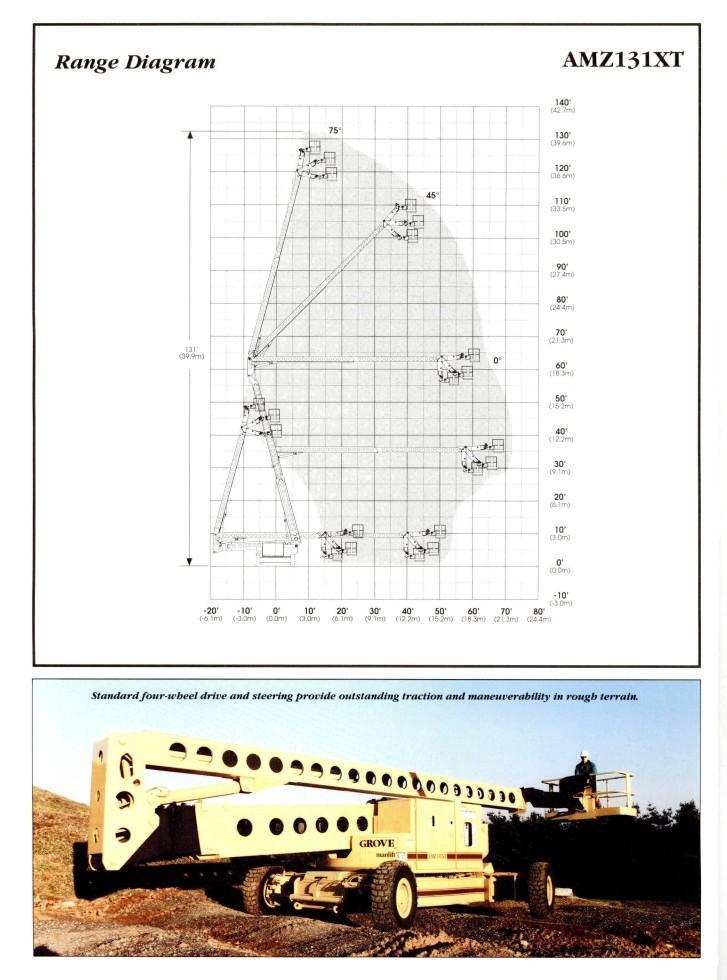

• Working Height: 131 ft (39.9 m).
• Platform Height: 125 ft (38.1 m).
• Horizontal Reach: 69 ft 8 in (21.2 m).
• Up and Over Height: 61 ft 9 in (18.8 m).
• Platform Capacity: 600 lbs (272 kg).

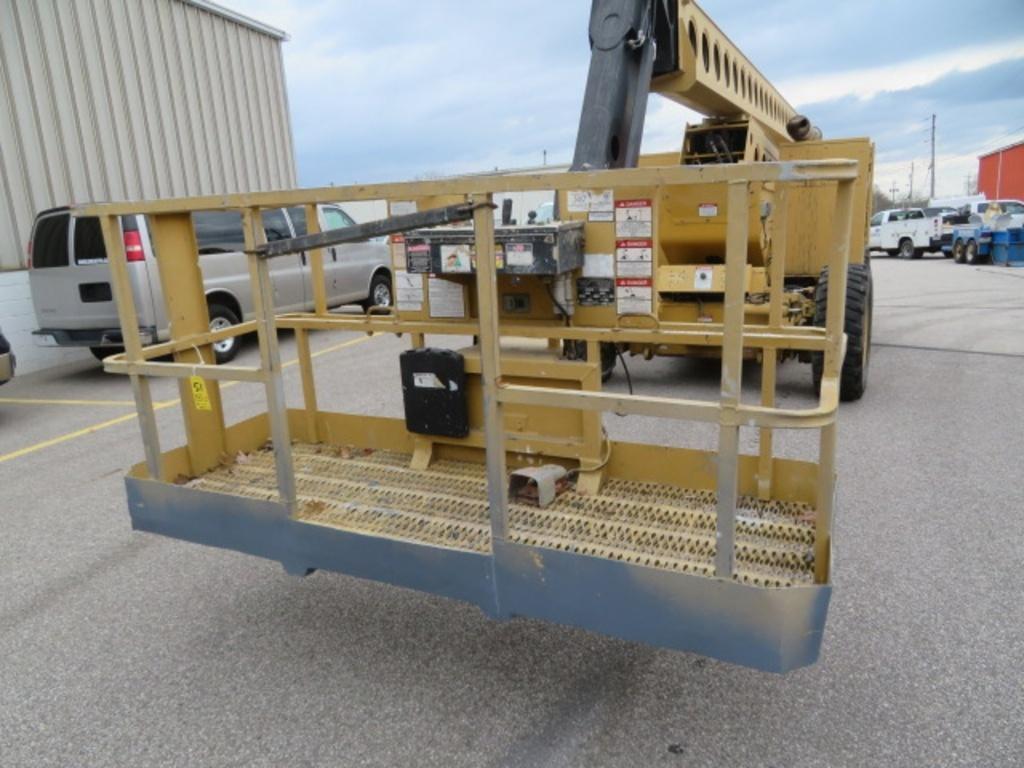

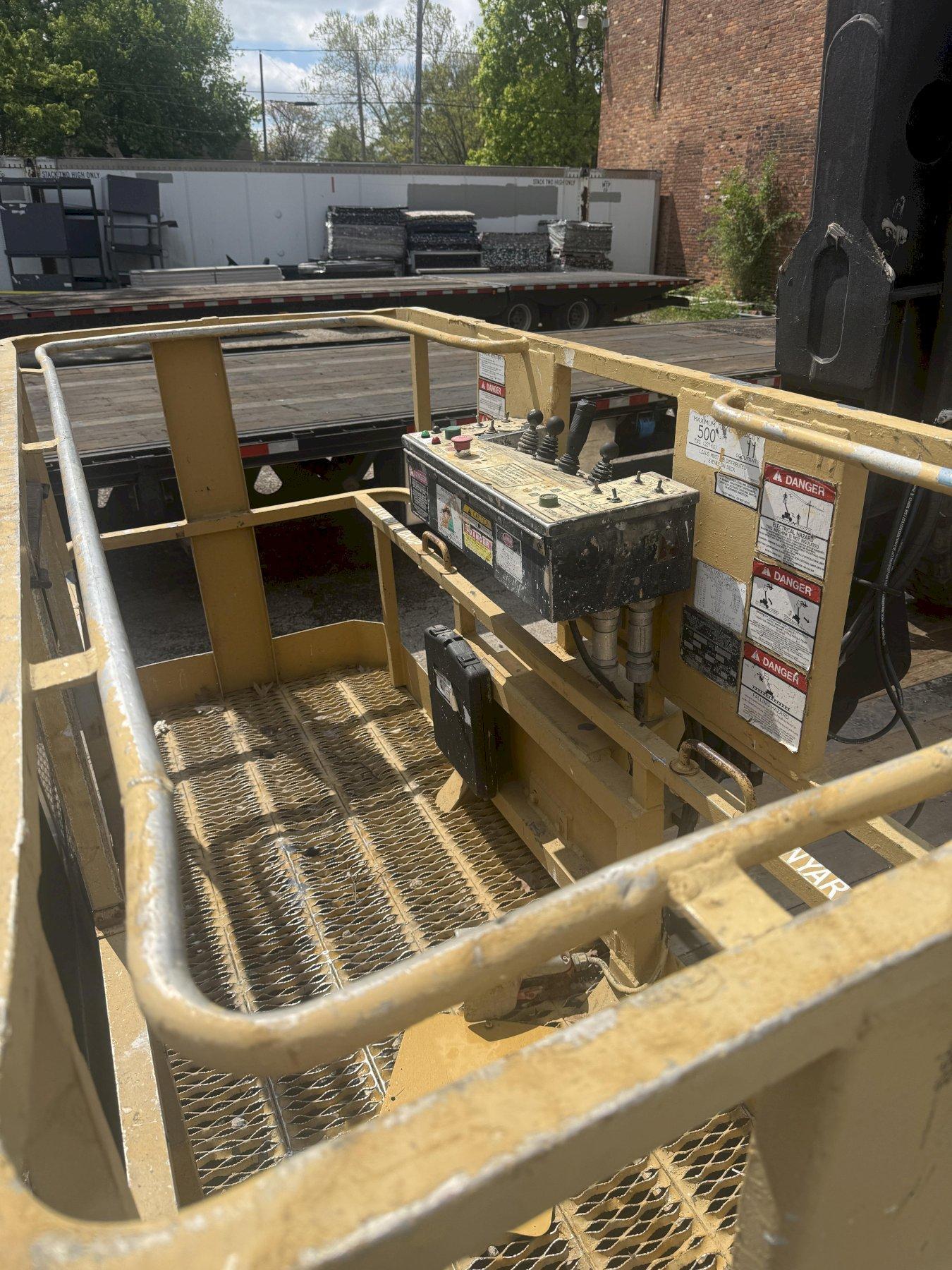

• Platform Size: Standard 36 in x 72 in (0.91 m x 1.83 m); 96-inch options available.

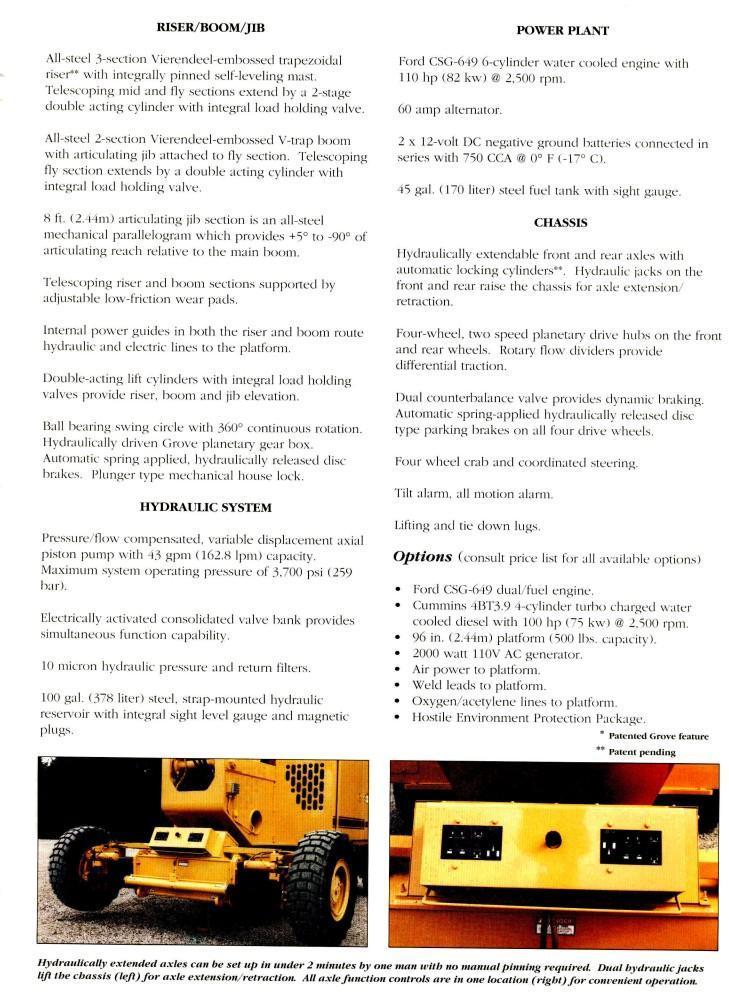

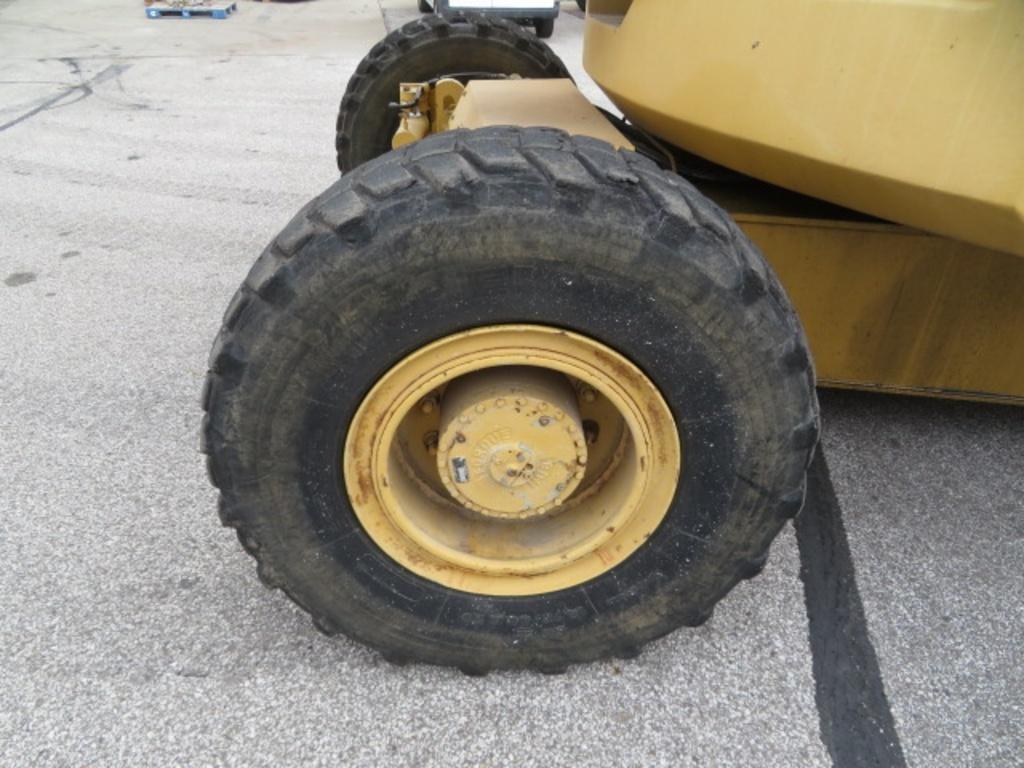

• Drive System: Standard four-wheel drive (4WD) with two-speed planetary drive hubs.
• Steering: Four-wheel coordinated and crab steering for tight maneuverability.

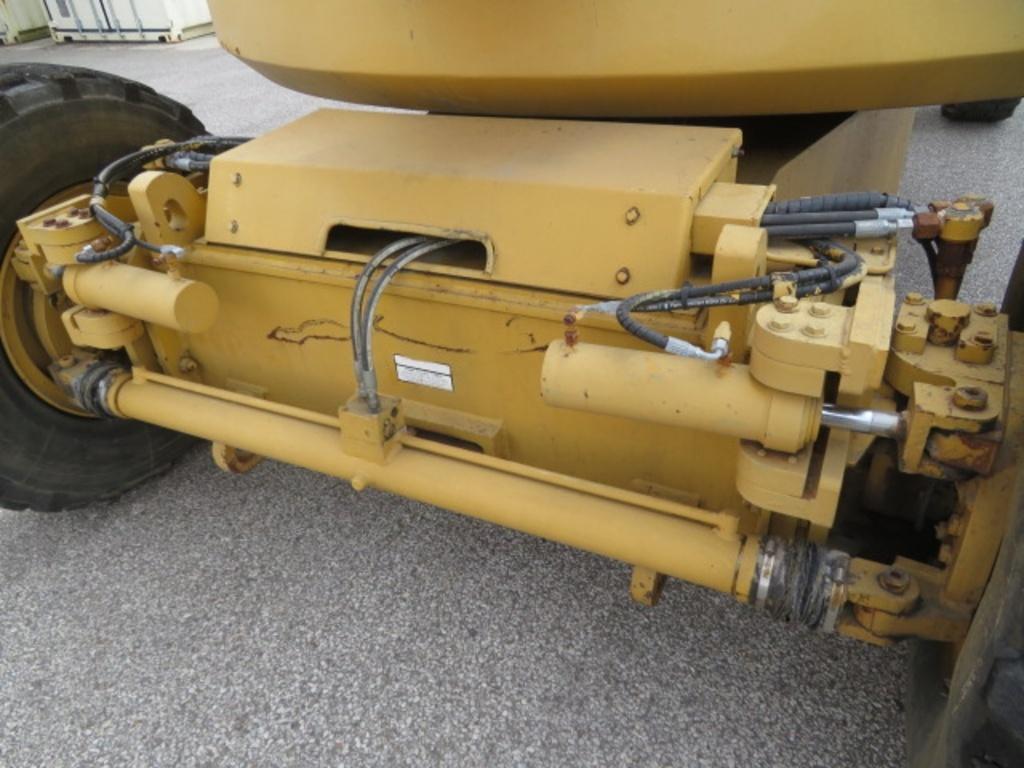

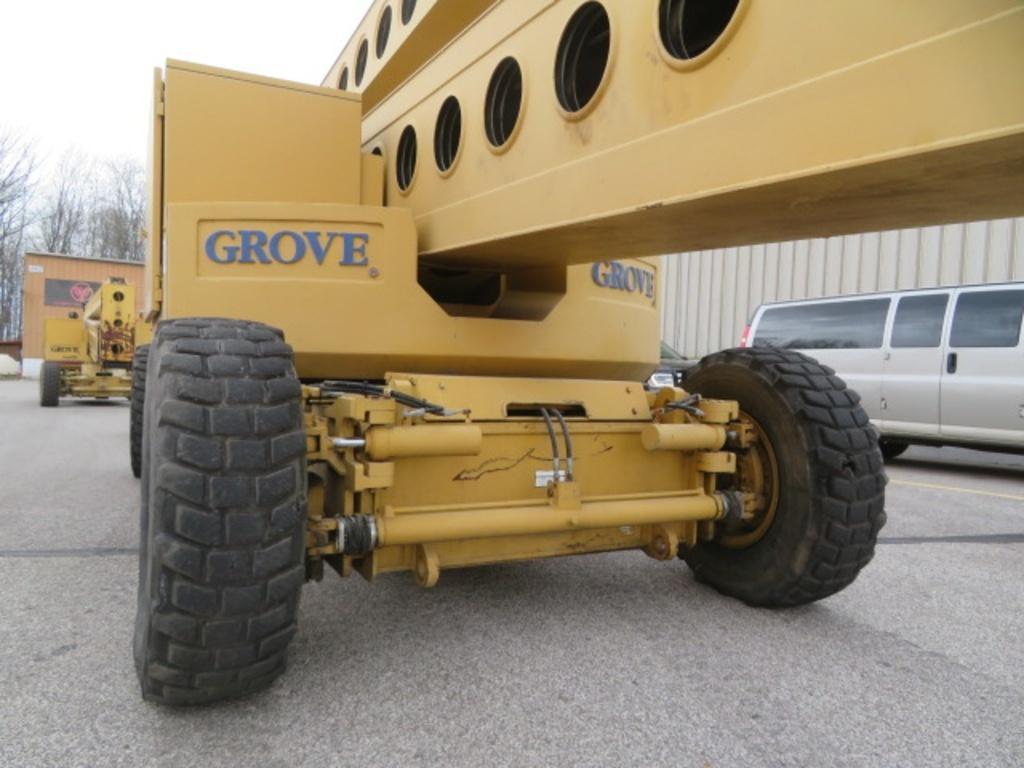

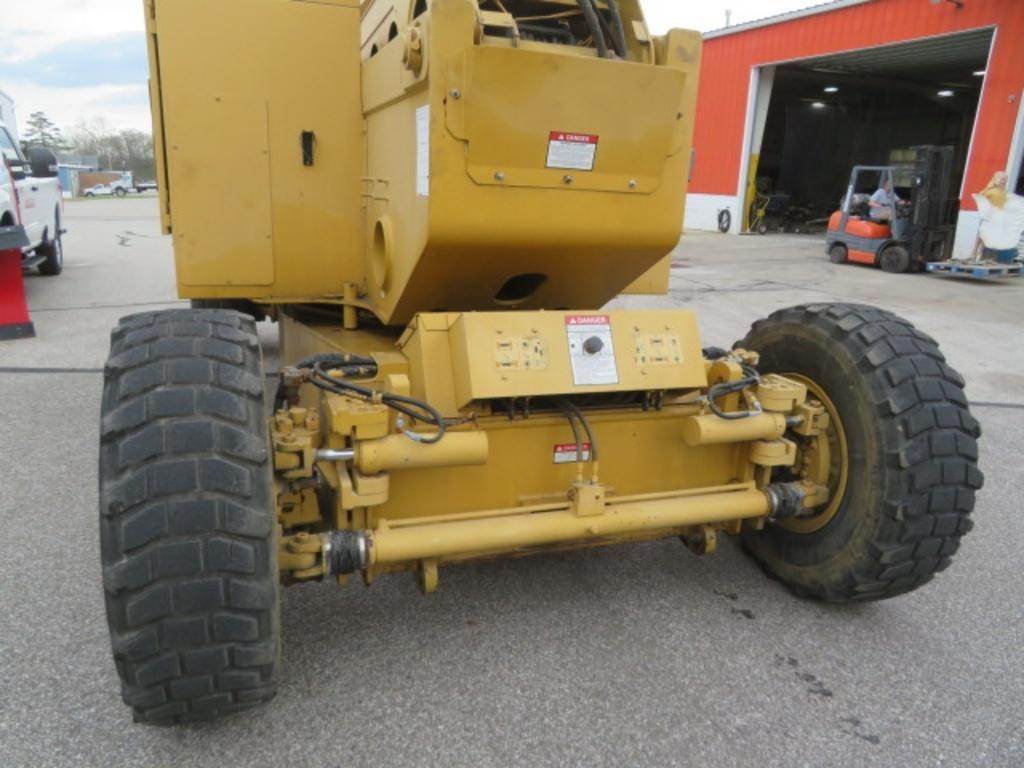

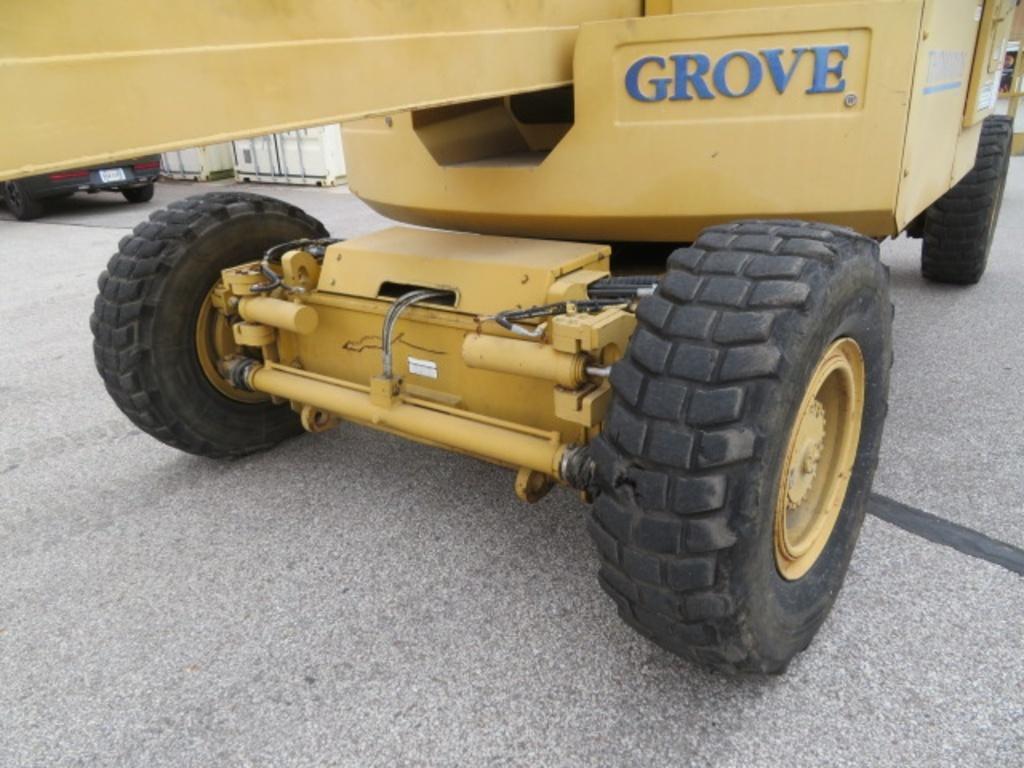

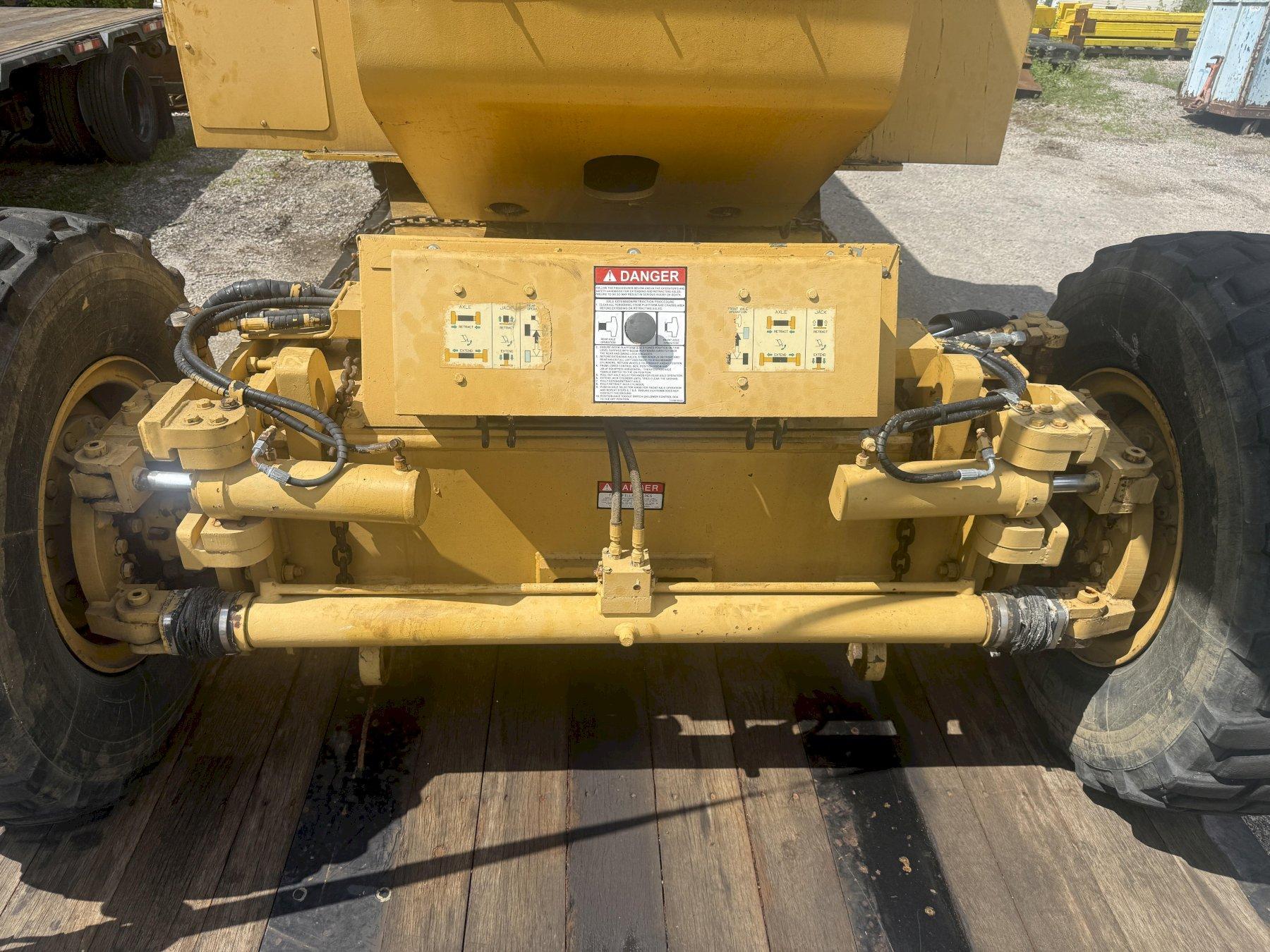

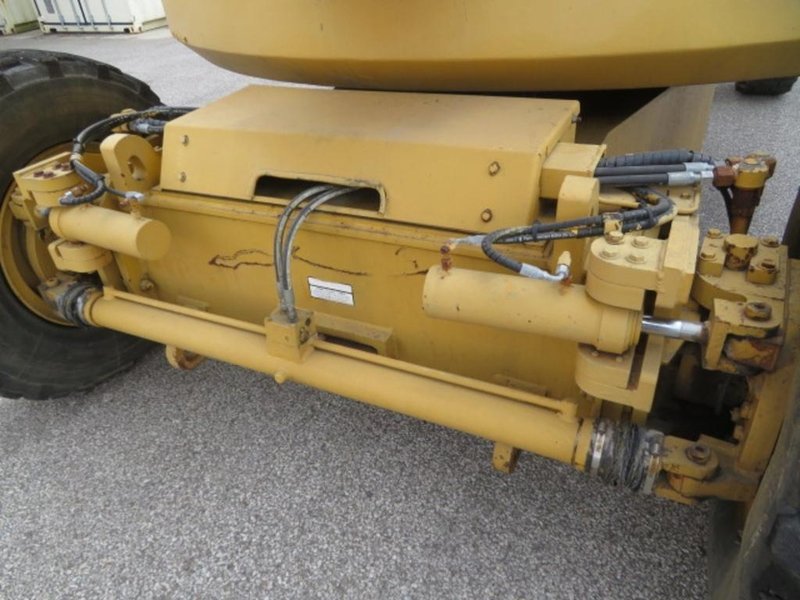

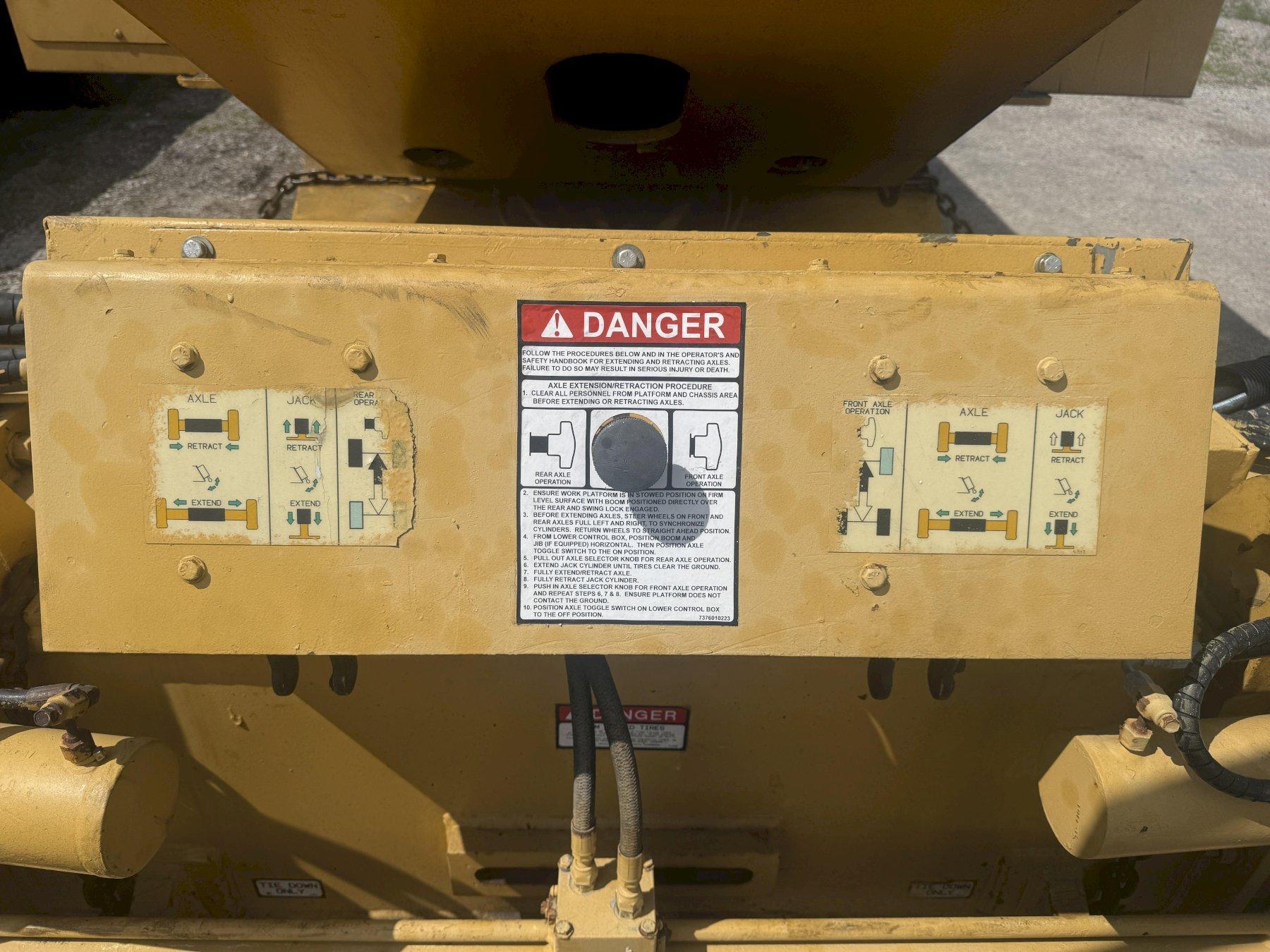

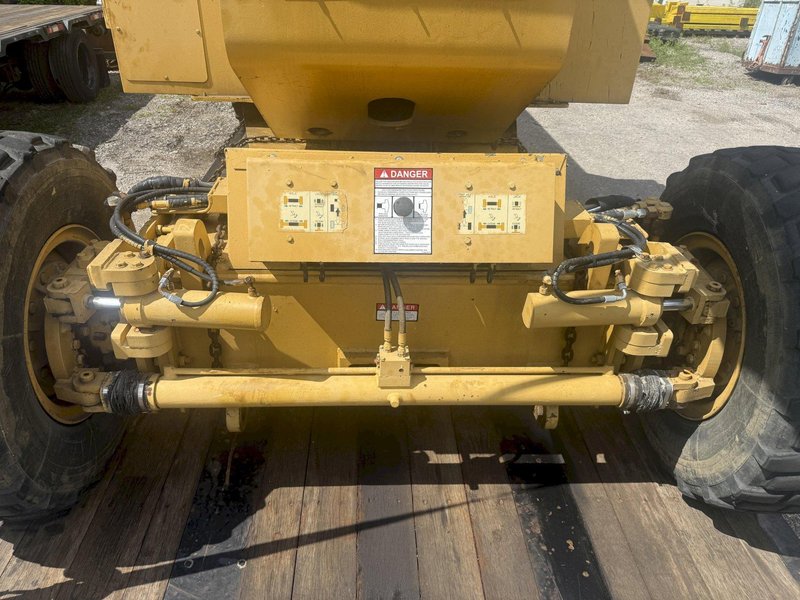

• Axles: Hydraulically extendable front and rear axles with automatic locking cylinders for stability during operation.
• Drive Speed: 2.5 mph (4.0 km/h) when stowed.
• Gradeability: 50% theoretical.
• Weight: Approximately 47,900 lbs (21,727 kg).

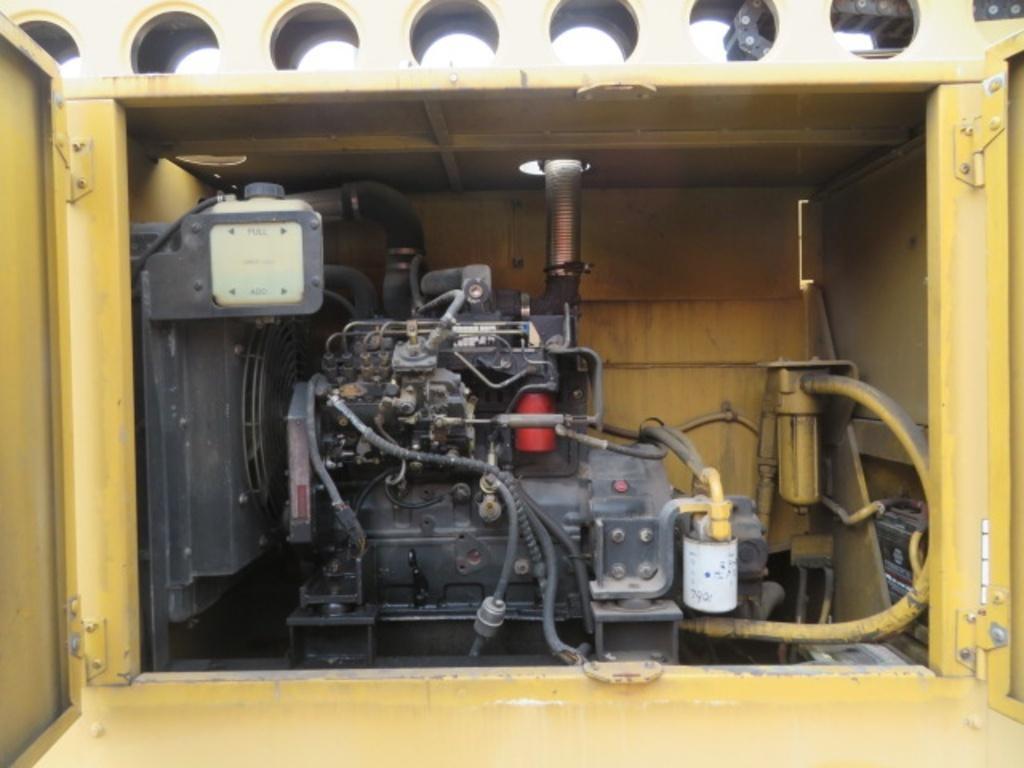

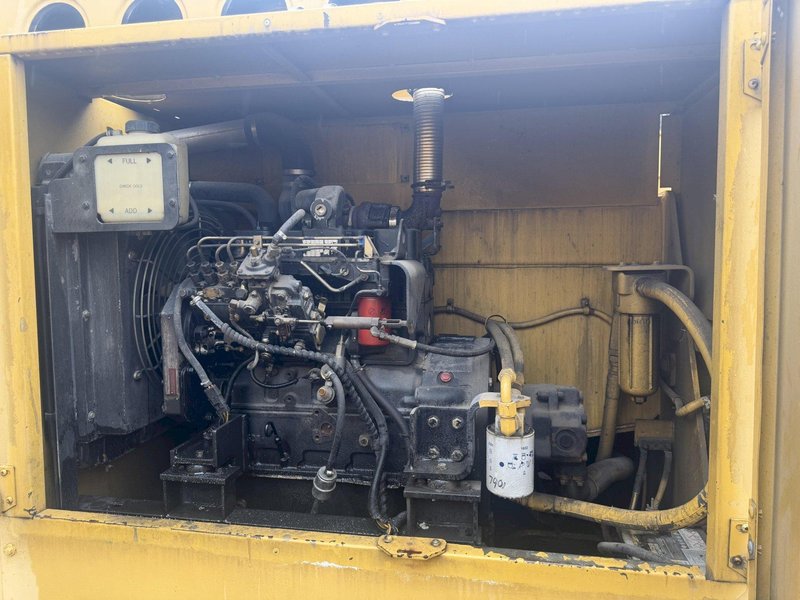

• Standard Engine: Cummins 4BT3.9 4-cylinder turbocharged diesel, providing 100 hp (75 kw) at 2,500 rpm.
• Optional Engine: Ford CSG-649 6-cylinder water-cooled engine with 110 hp (82 kw).
• Fuel Capacity: 45 gallons (170 liters).
• Hydraulic System: Axial piston pump with a maximum operating pressure of 3,700 psi (259 bar) and a 100–102 gallon reservoir.

• Length: 39 ft 3.5 in (11.98 m).
• Width: 8 ft 6 in (2.6 m) with axles retracted; 13 ft (3.96 m) with axles extended.
• Height: 9 ft 9.5 in (2.98 m).
