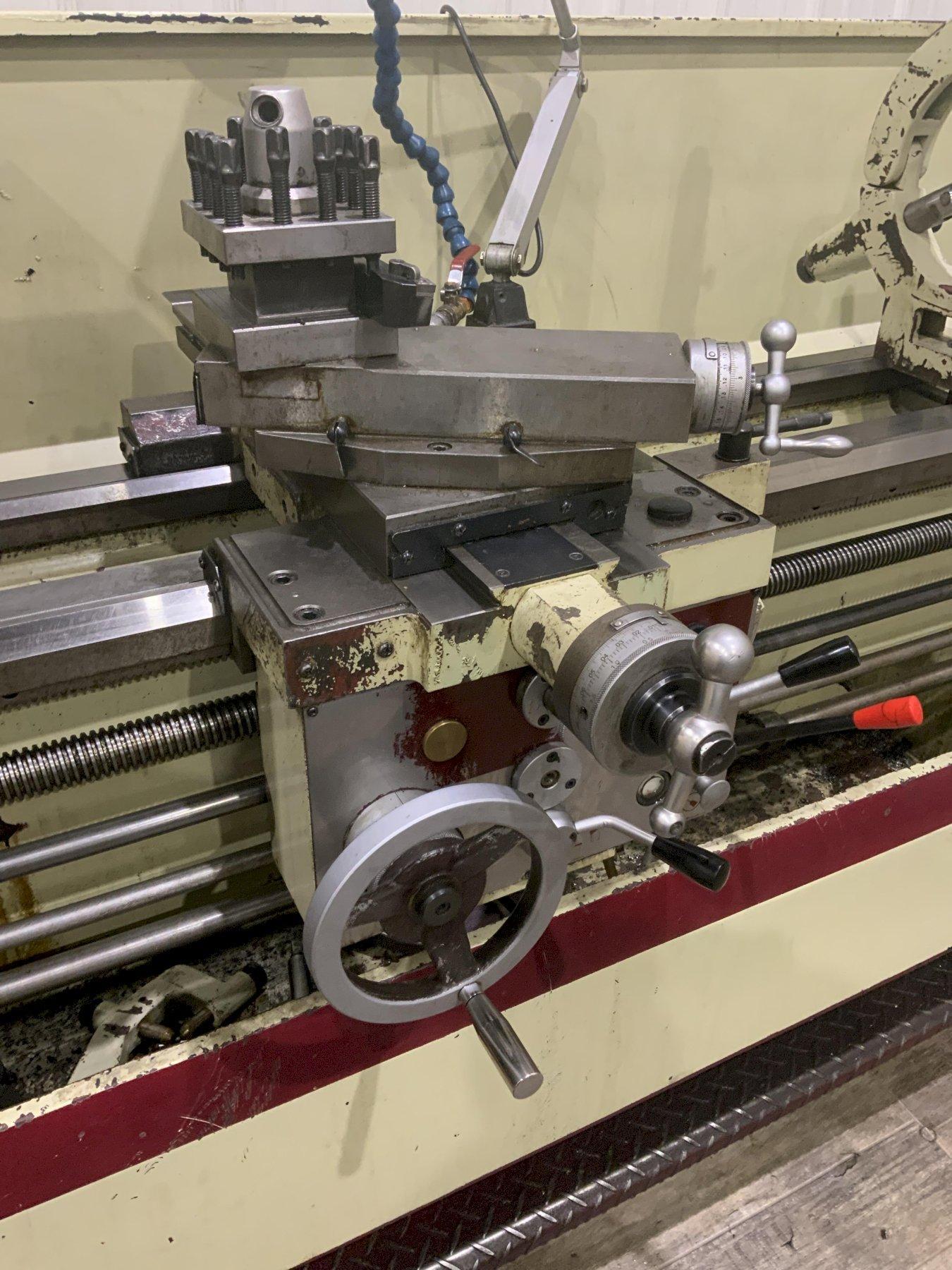

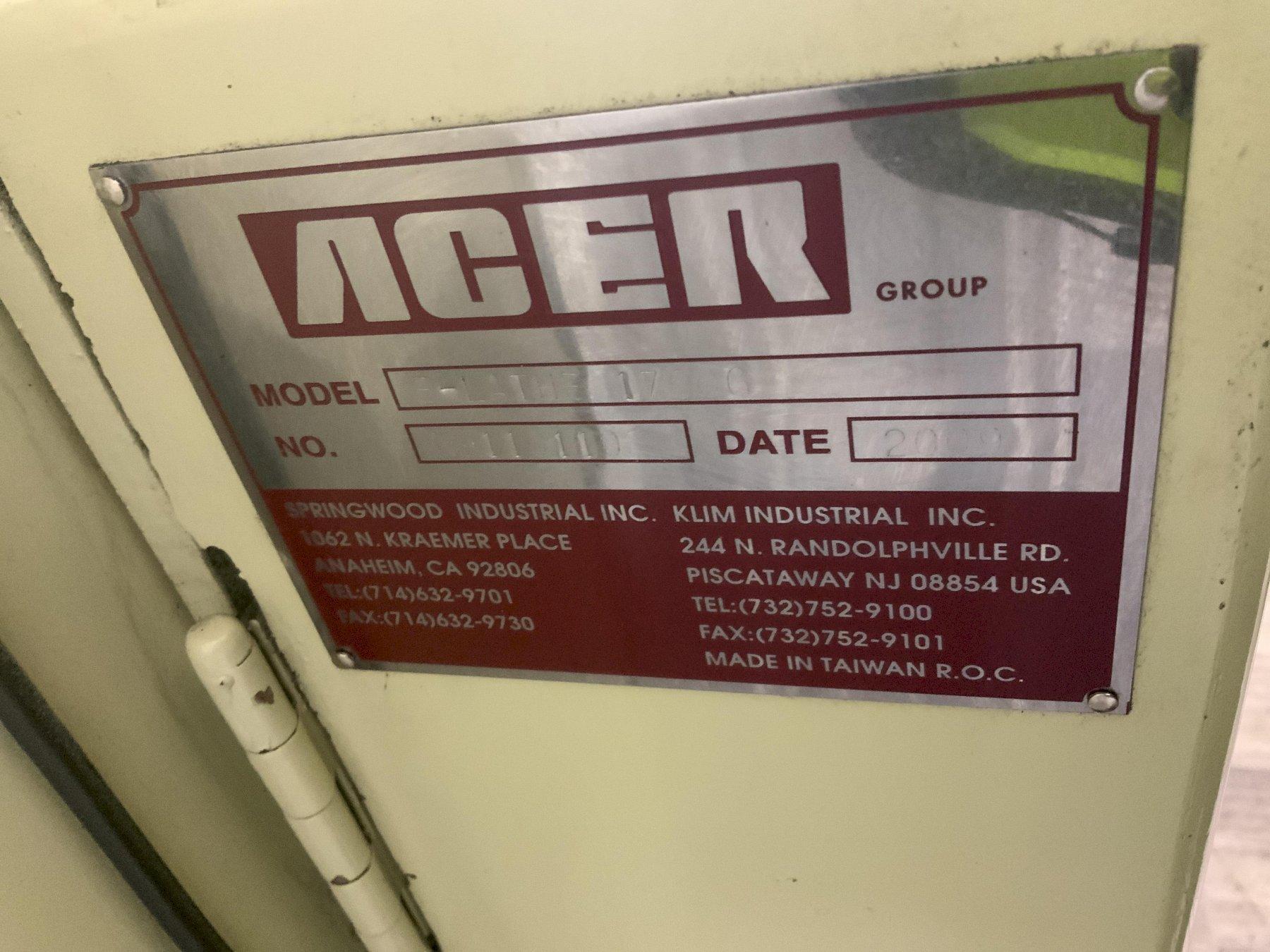

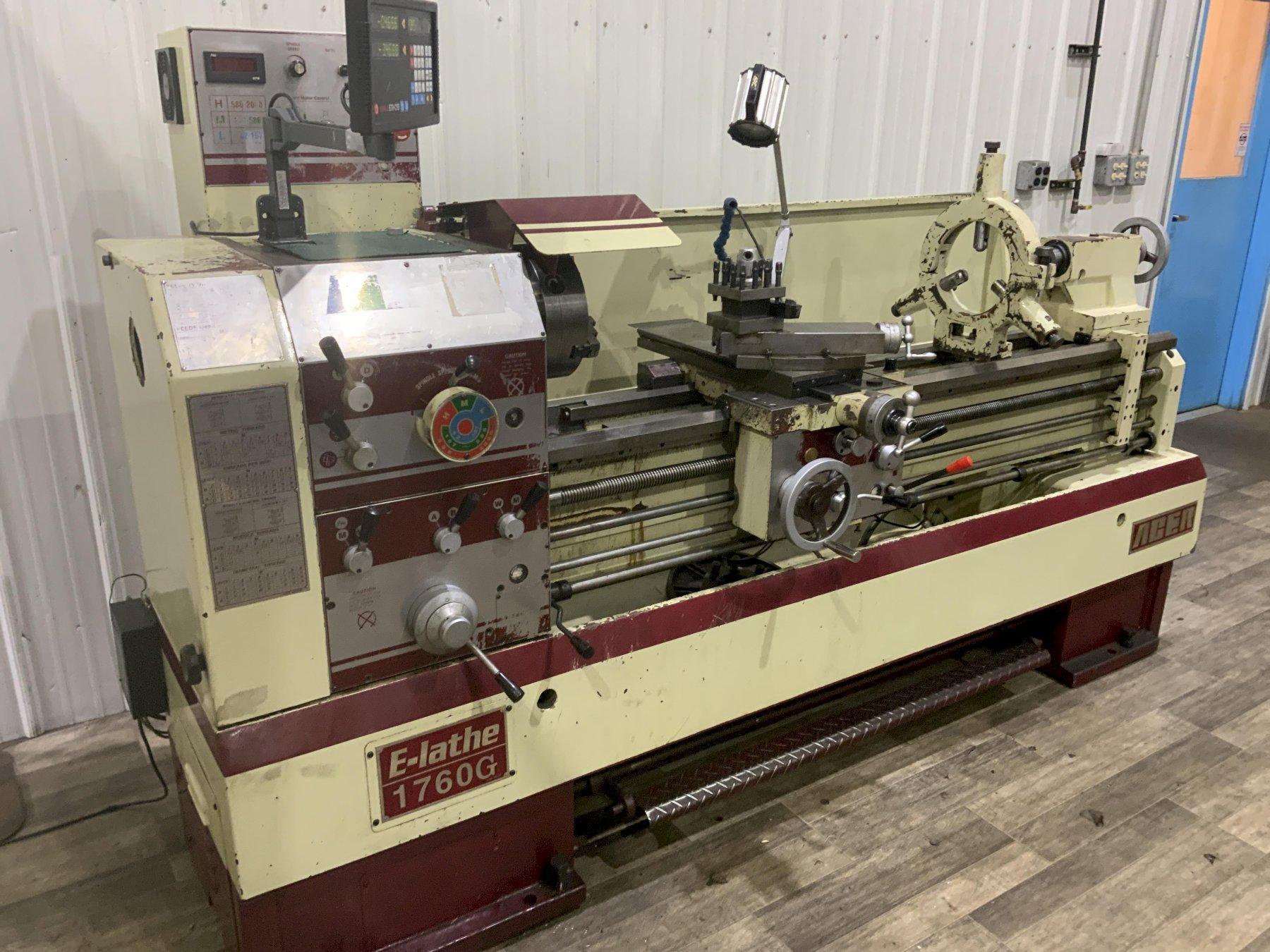

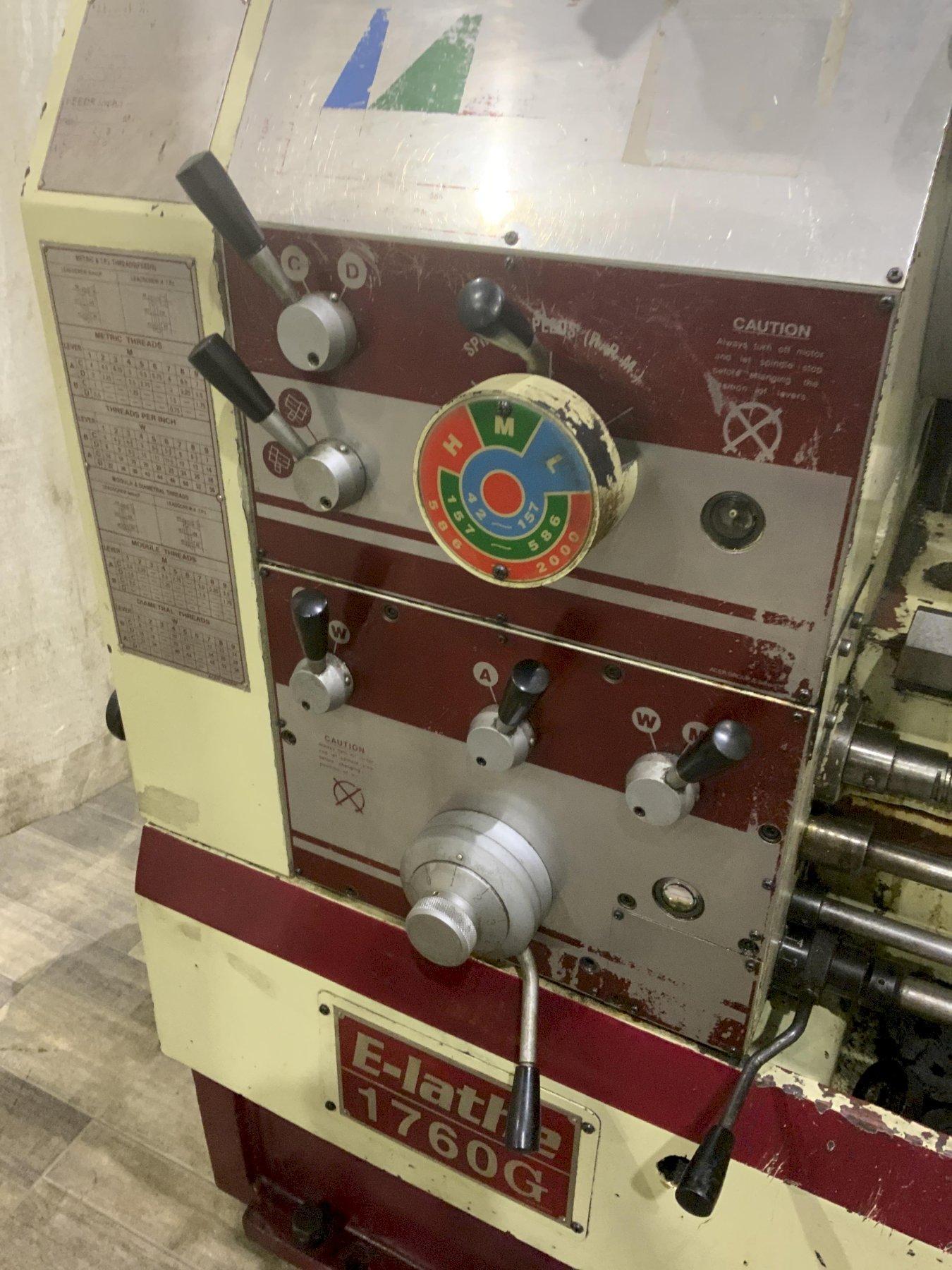

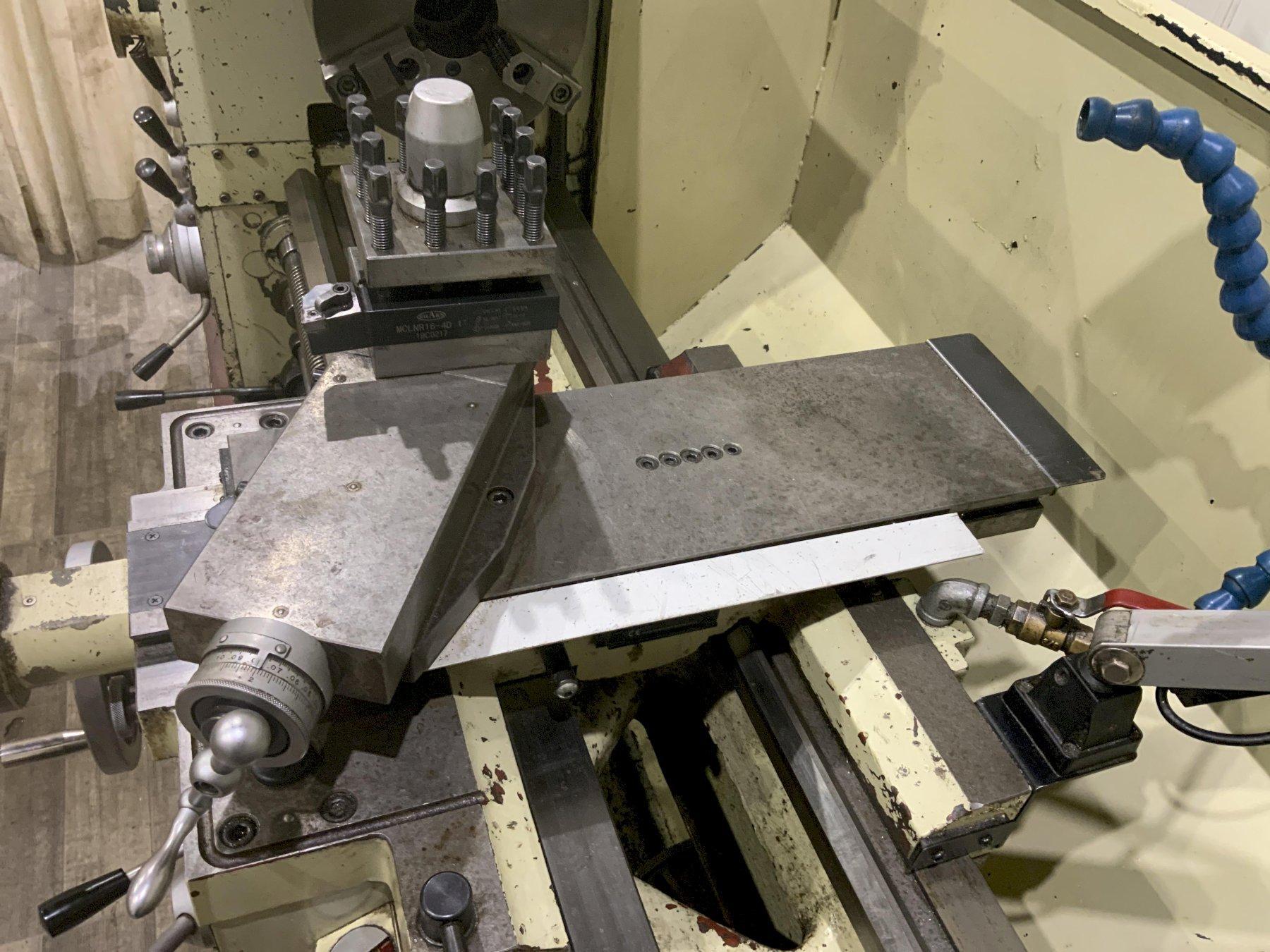

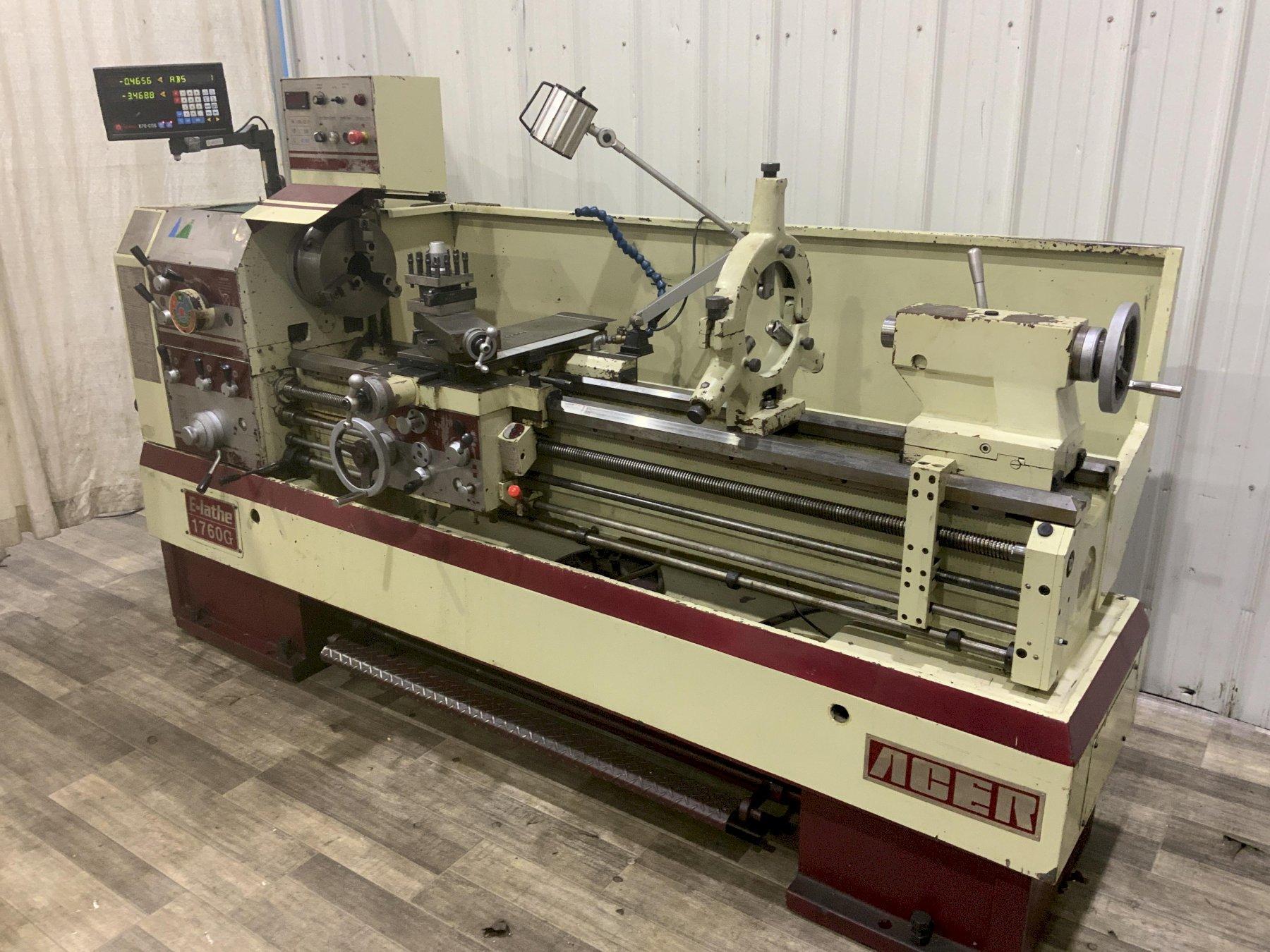

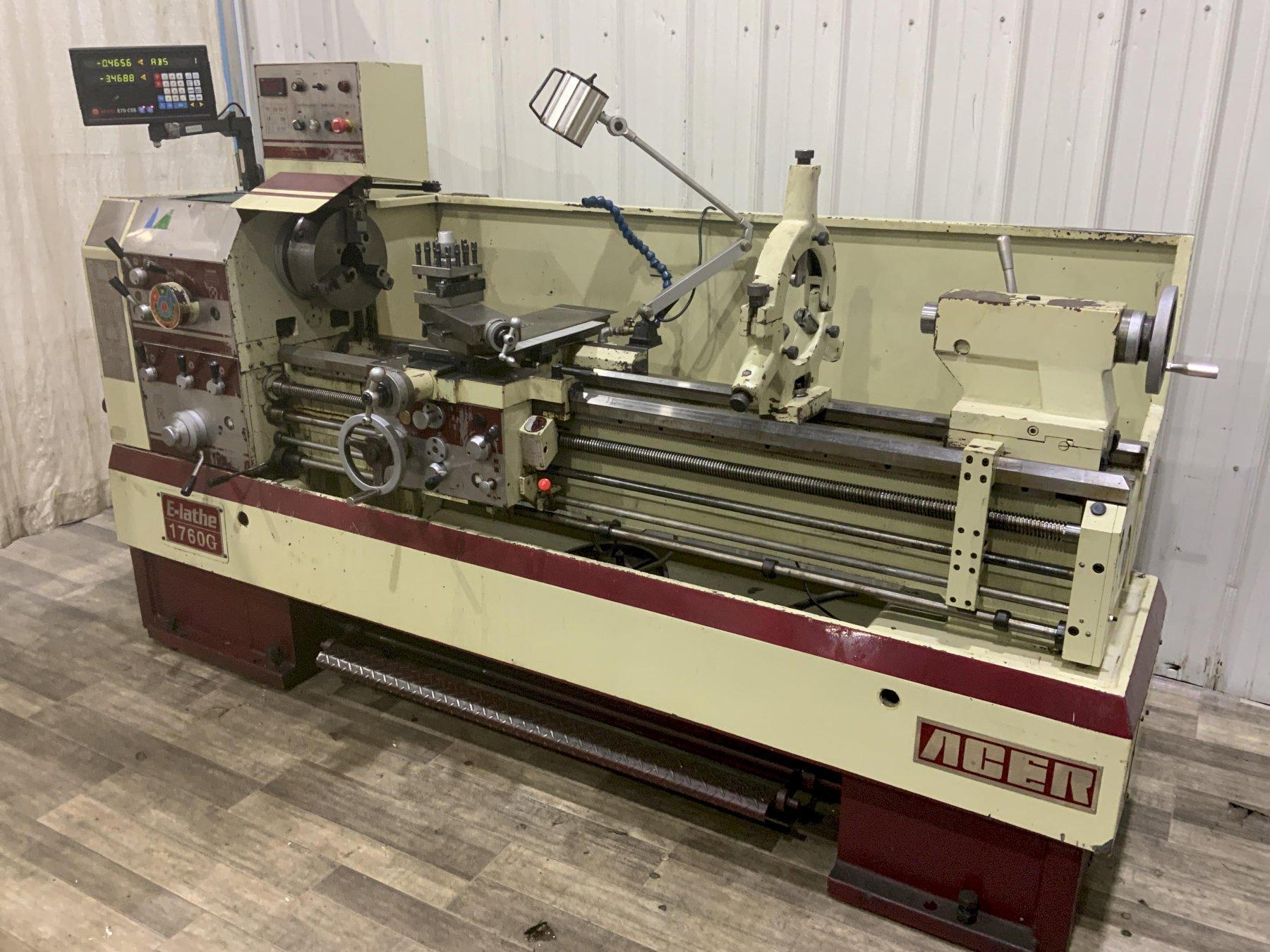

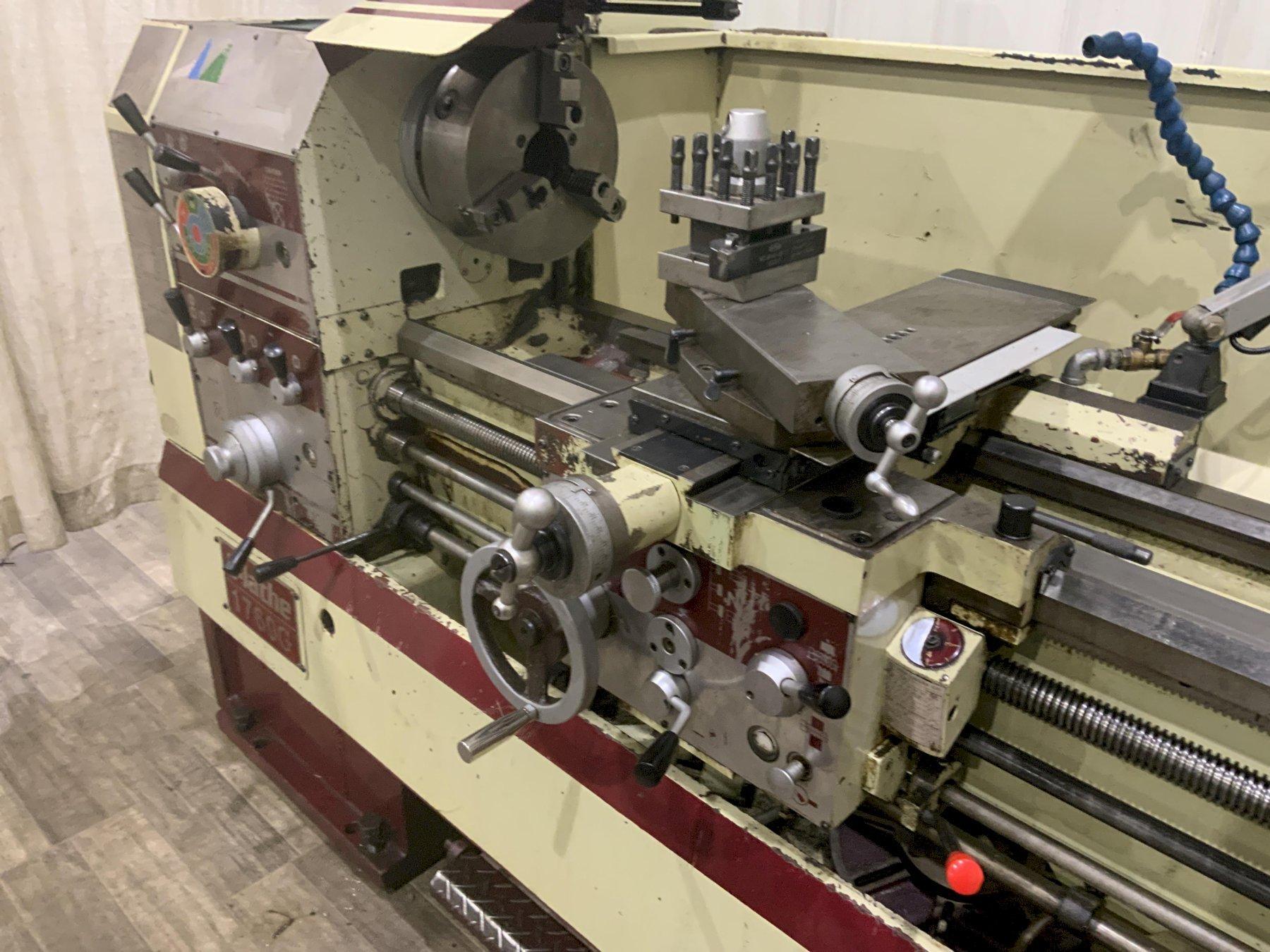

17" X 60" ACER MODEL 1760G GEARED HEAD ENGINE LATHE: STOCK #81131

SERIAL ..................................... 49110110

MODEL ...................................... E-LATHE1760G

YEAR NEW ................................... 2009

SWING OVER WAYS ............................ 17"

SWING OVER CROSS SLIDE ..................... 9-5/8"

DISTANCE BETWEEN CENTERS ................... 60"

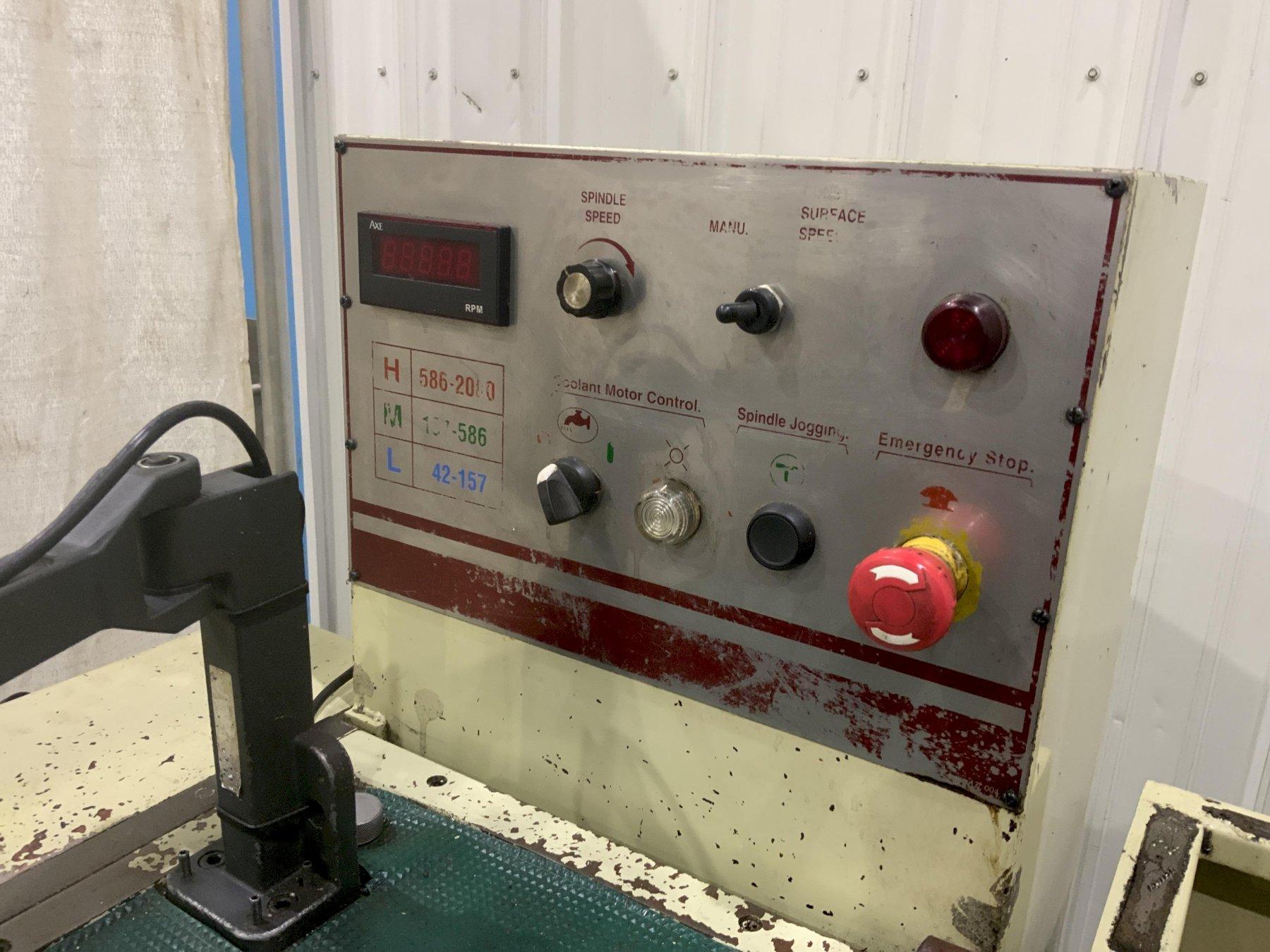

VARIABLE SPINDLE SPEEDS .................... 42 TO 2000 RPM

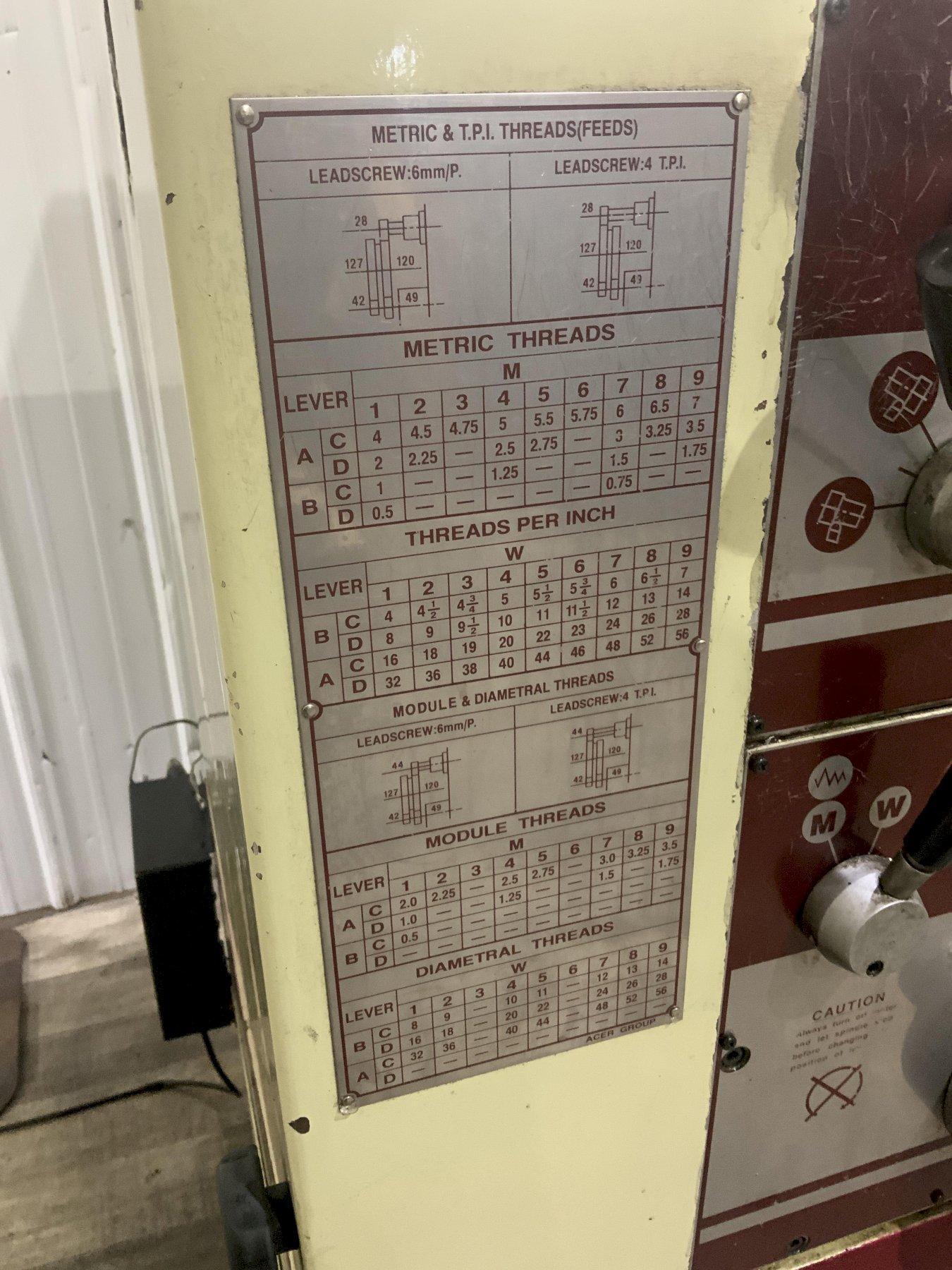

THREADS (INCH) ............................. 8 TO 56 TPI

THREADS (METRIC) ........................... 0.5 TO 7 MM

FEEDS (INCH) ............................... .0026 TO 0.0368 IPR

CROSS FEEDS ................................ 0.001 TO 0.014 IPR

SPINDLE BORE DIAMETER ...................... 2-1/4"

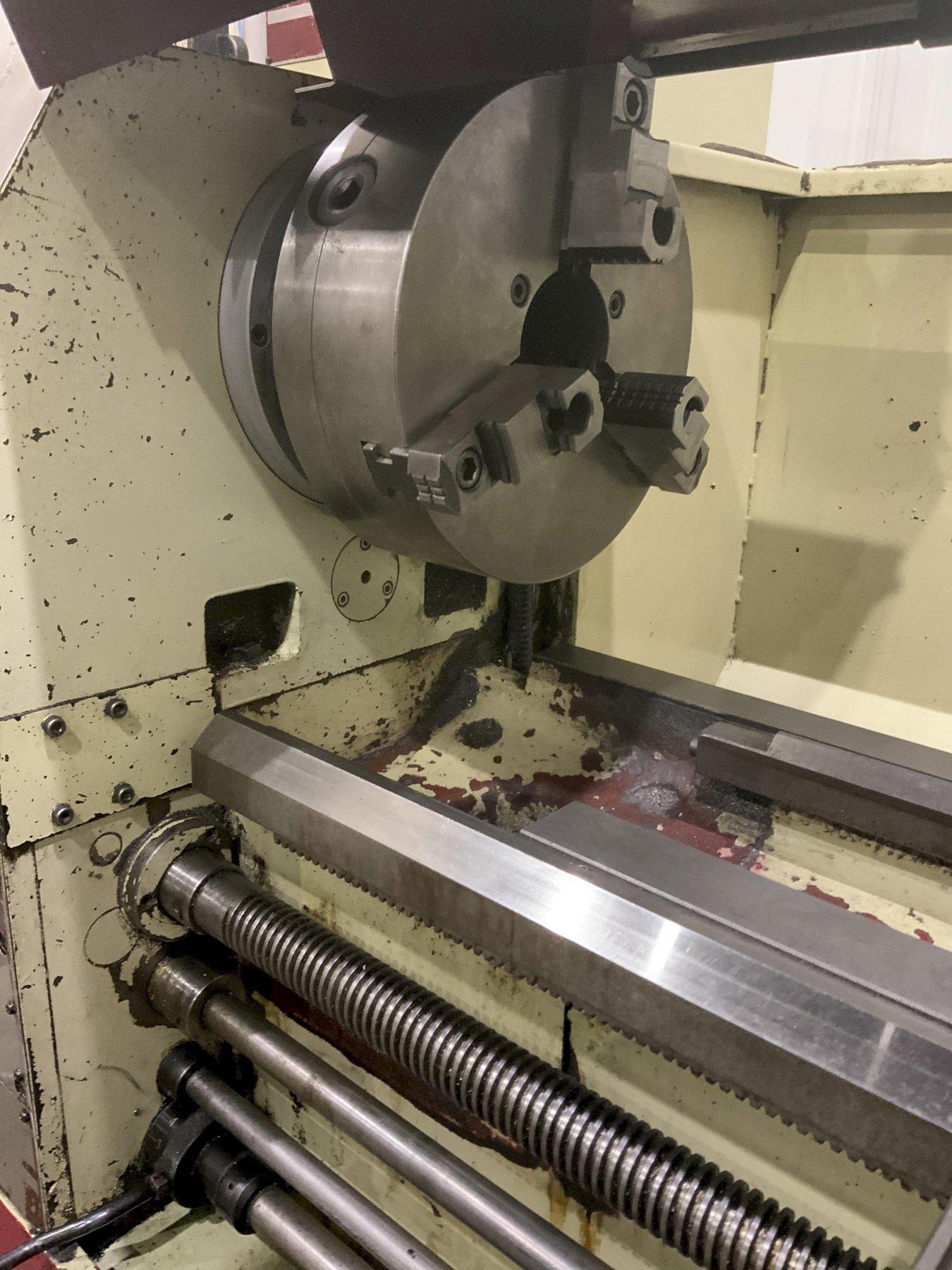

CHUCK ...................................... 10" 3-JAW

THREAD DIAL ................................ YES

SWIVEL COMPOUND ............................ YES

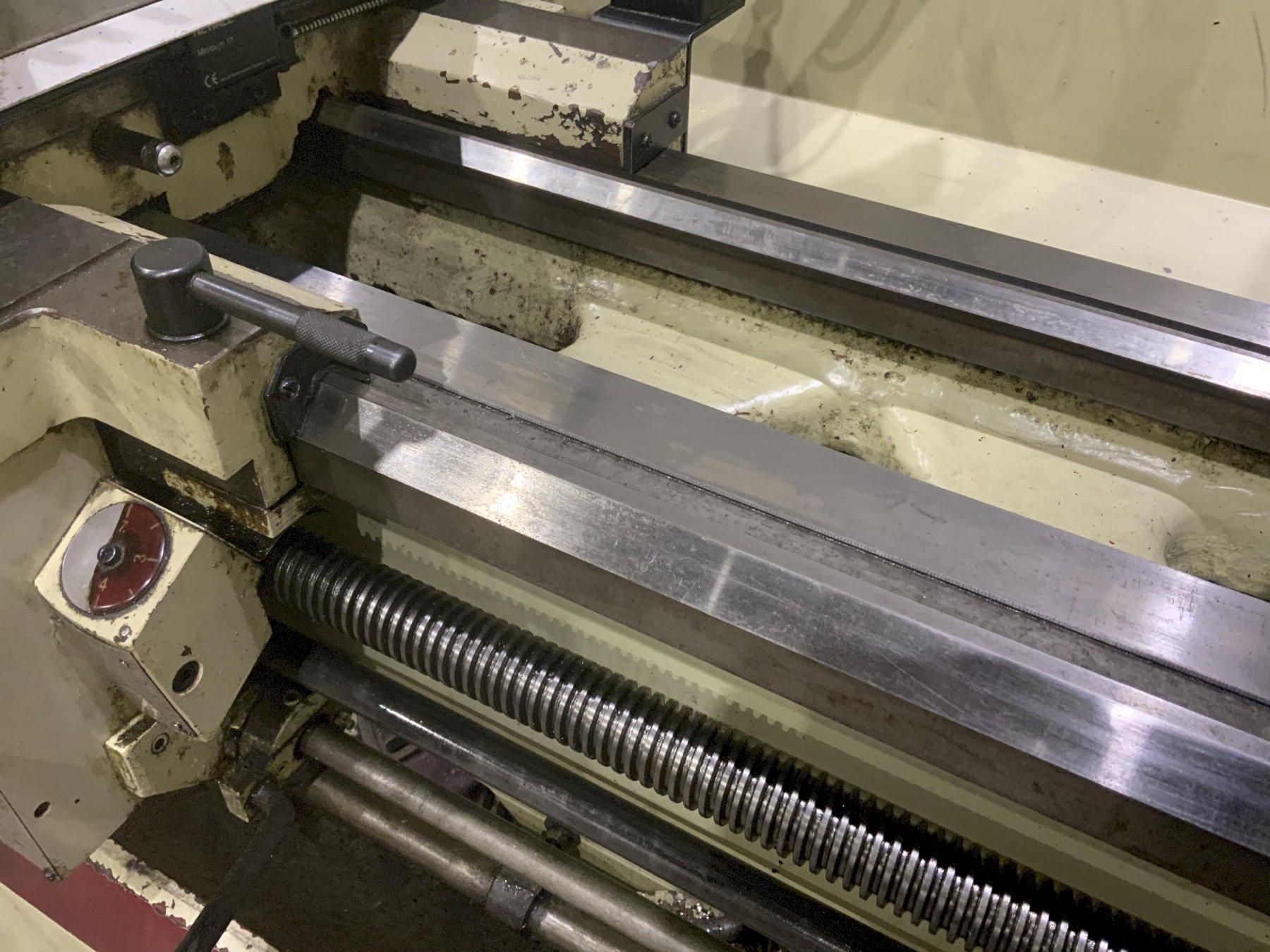

HARDENED WAYS .............................. YES

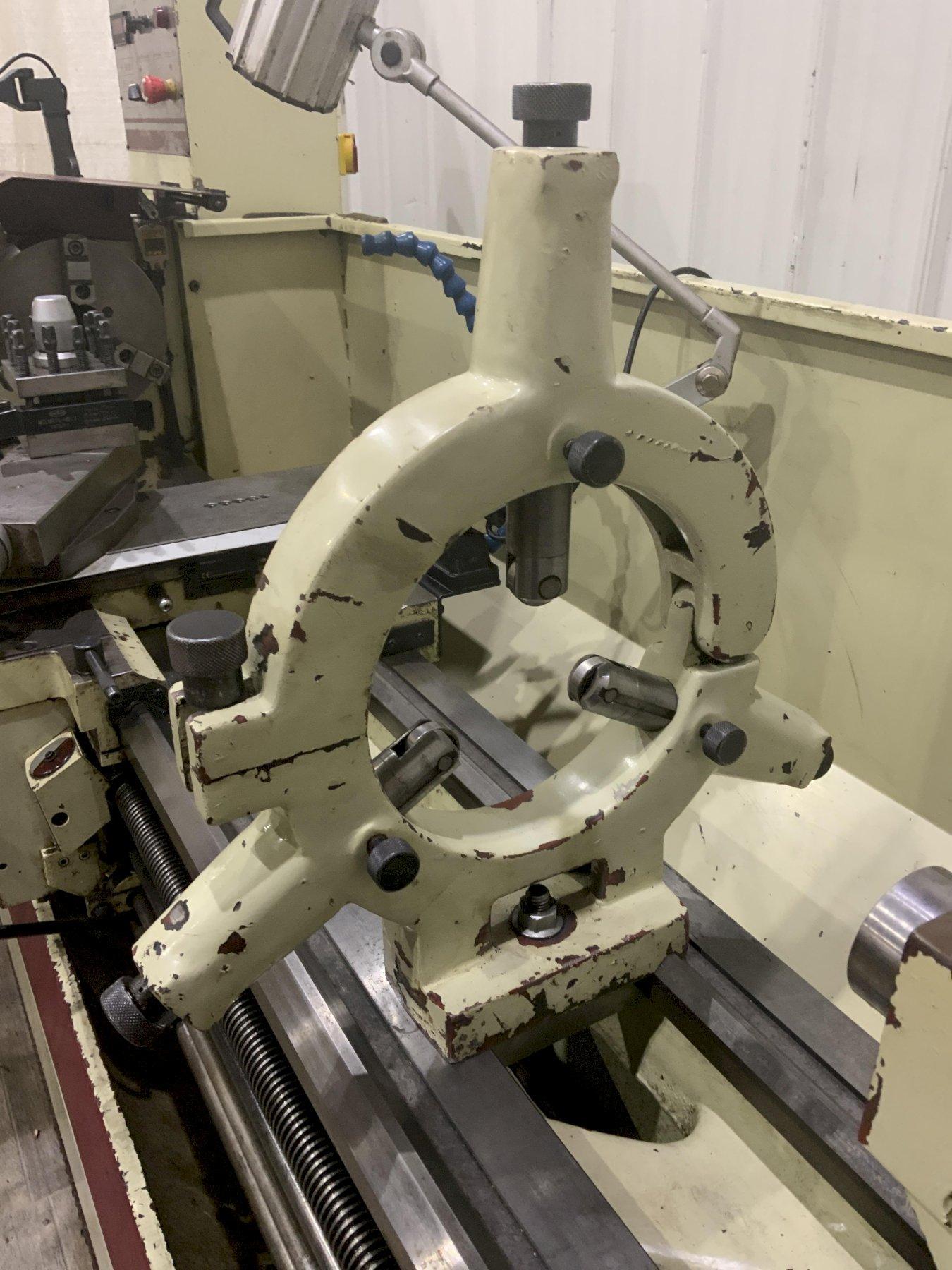

3-POINT ROLLER STEADY REST ................. YES

FOLLOW REST ................................ YES

COOLANT WITH CHIP PANS ..................... YES

2-AXIS DIGITAL READOUT ..................... E70-CSS

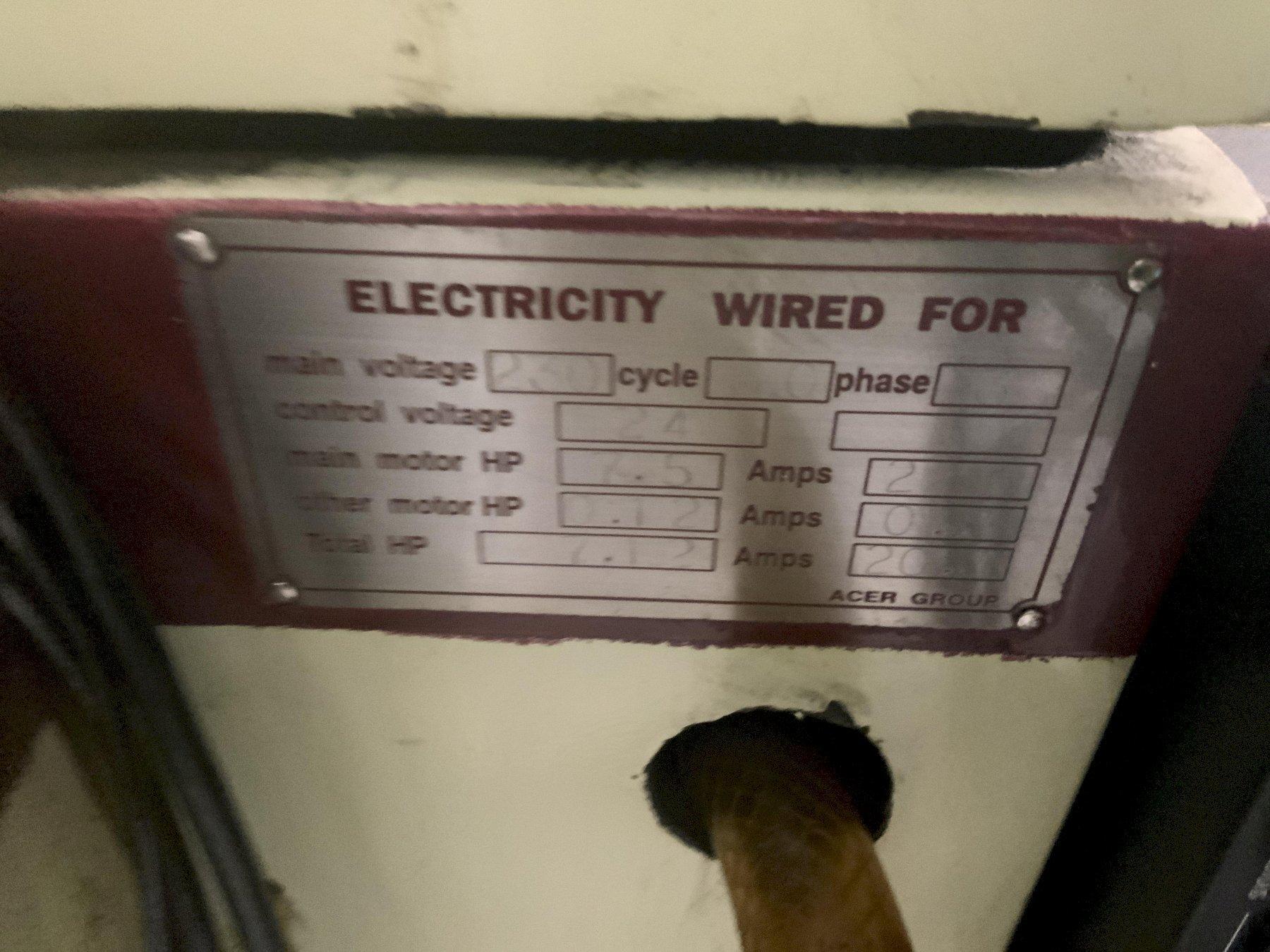

MOTOR ...................................... 7-1/2 HORSEPOWER
