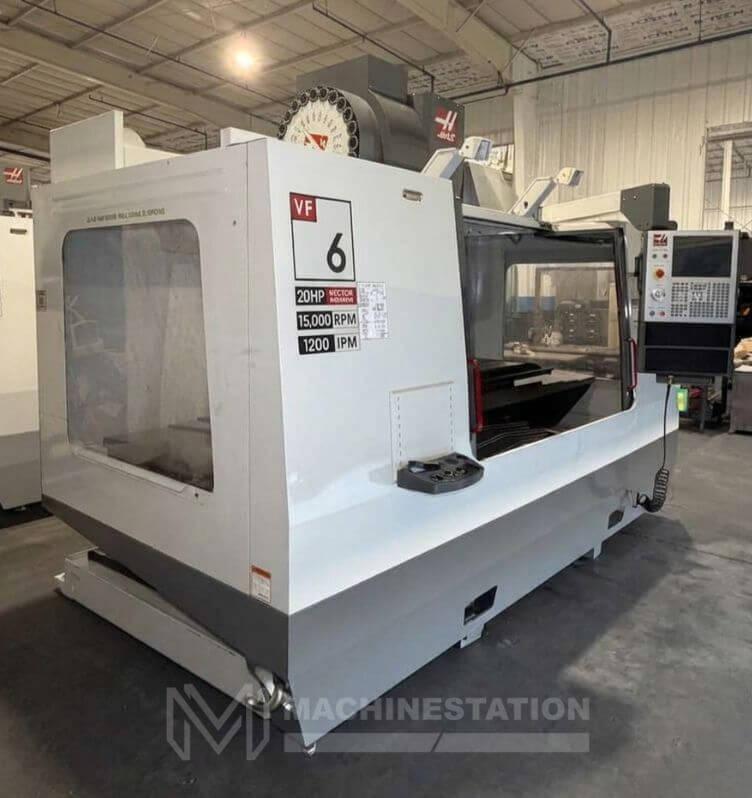

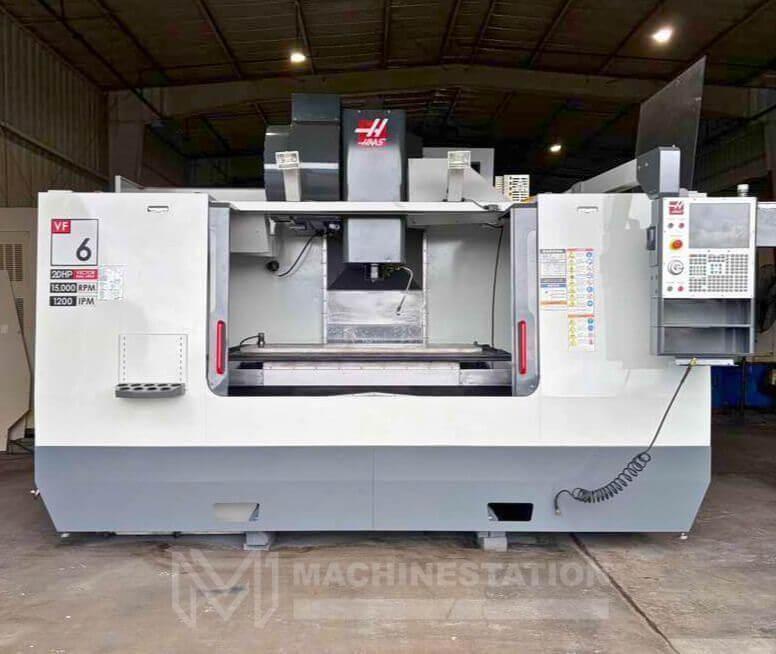

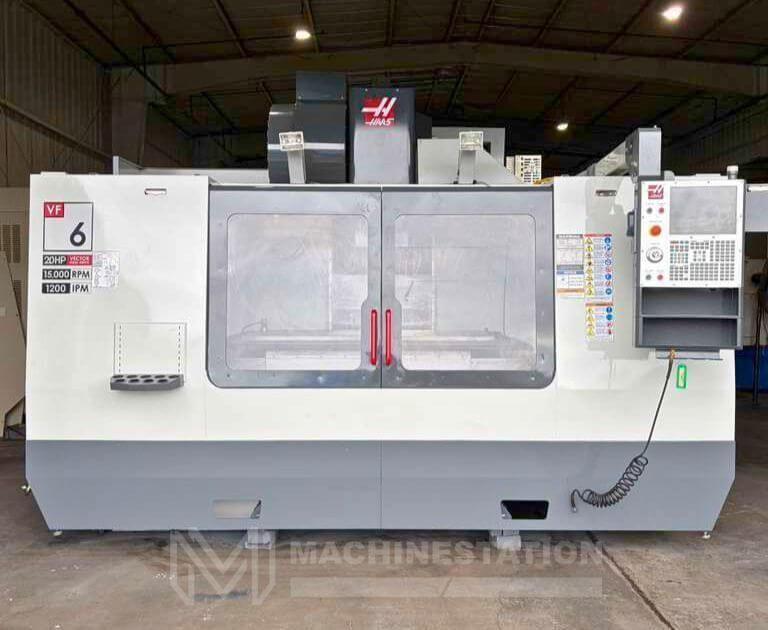

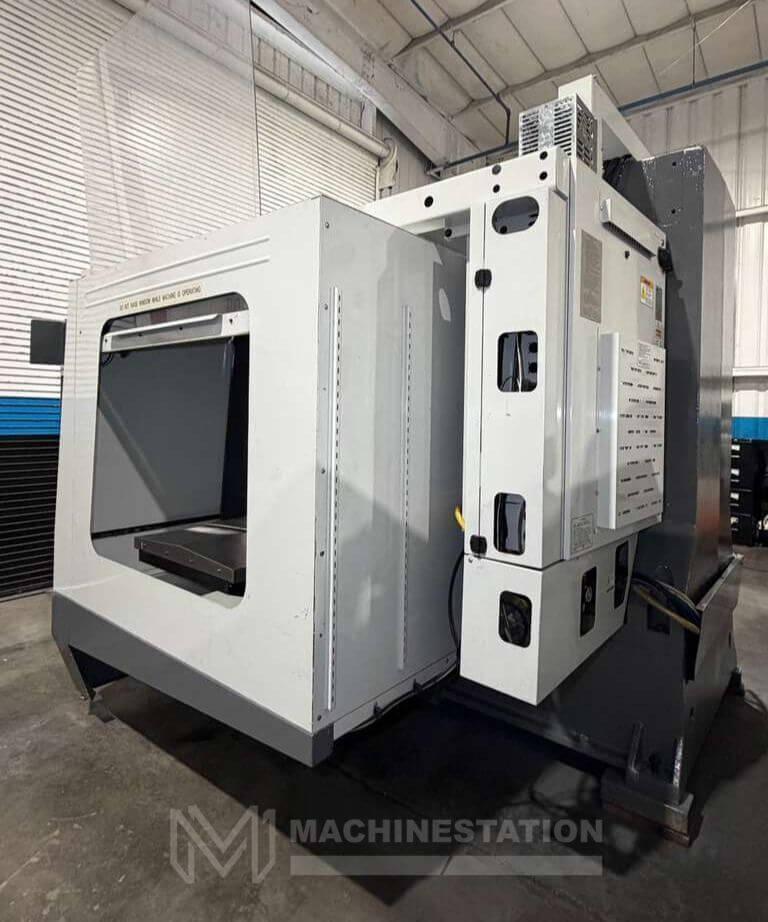

Haas VF-6D/40 CNC Vertical Machining Center – 15,000 RPM, 4th & 5th Axis Ready Mill

Haas VF-6D/40 CNC Vertical Machining Center – 15,000 RPM, 4th & 5th Axis Ready Mill

Name: Haas VF-6D/40 CNC Vertical Machining Center – 15,000 RPM, 4th & 5th Axis Ready Mill
Brand: Unknown
SKU: 113528
Availability: InStock

Brand

Not specified

Location

California

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

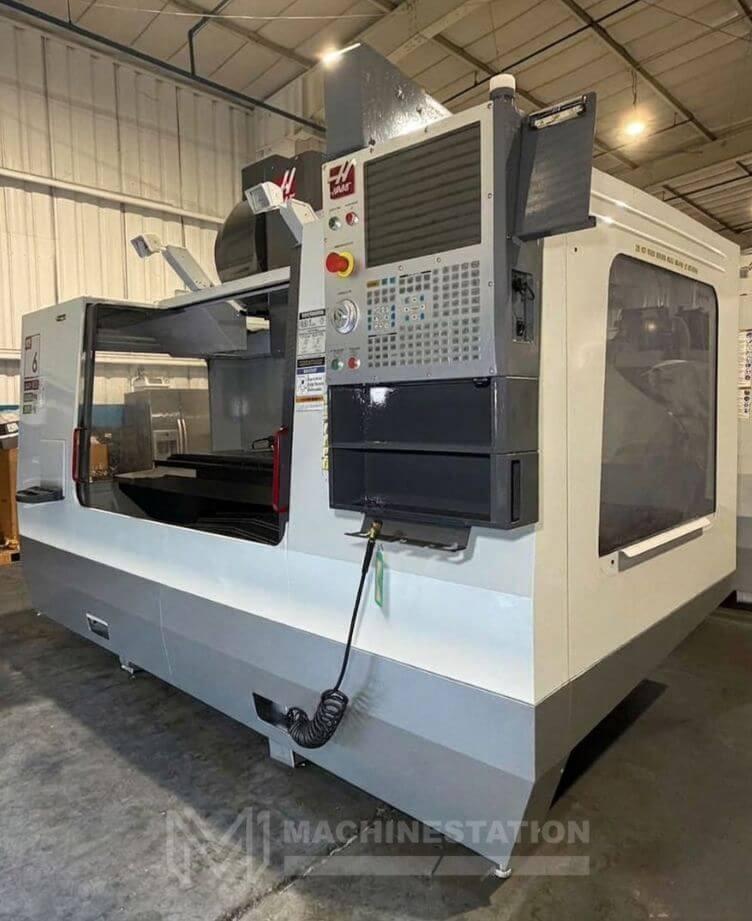

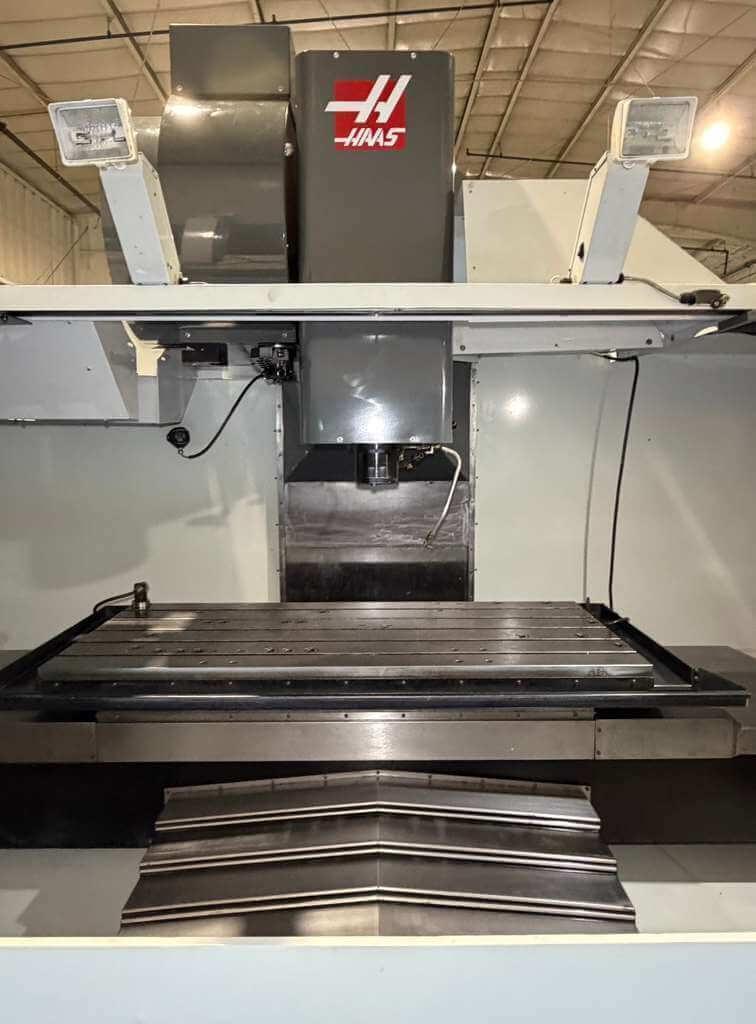

Make:	Haas

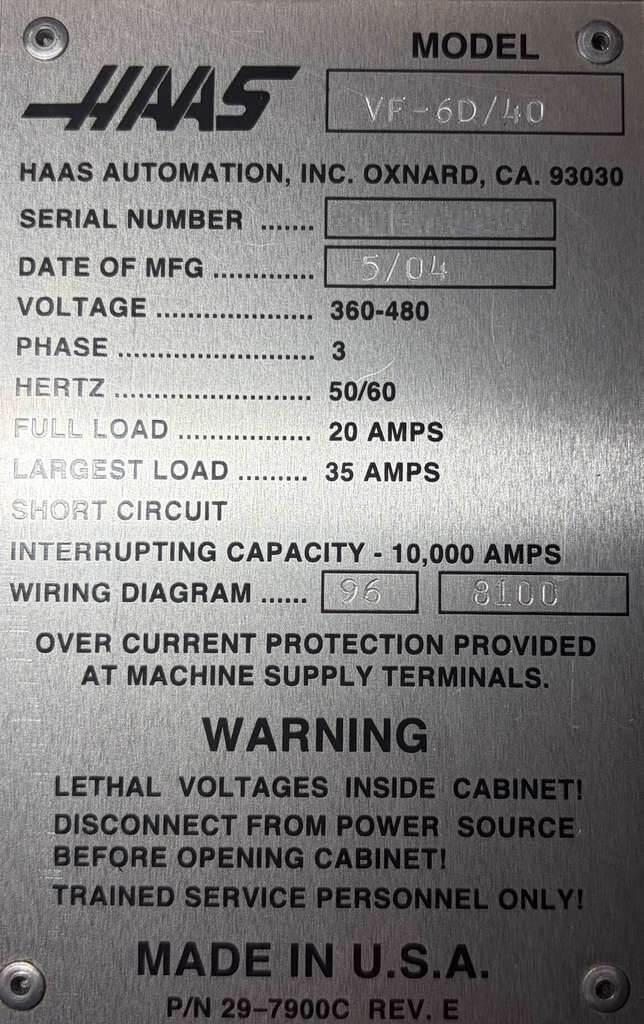

Model:	VF6D/40
Year:	2004
Condition:	Used – Good

Features:

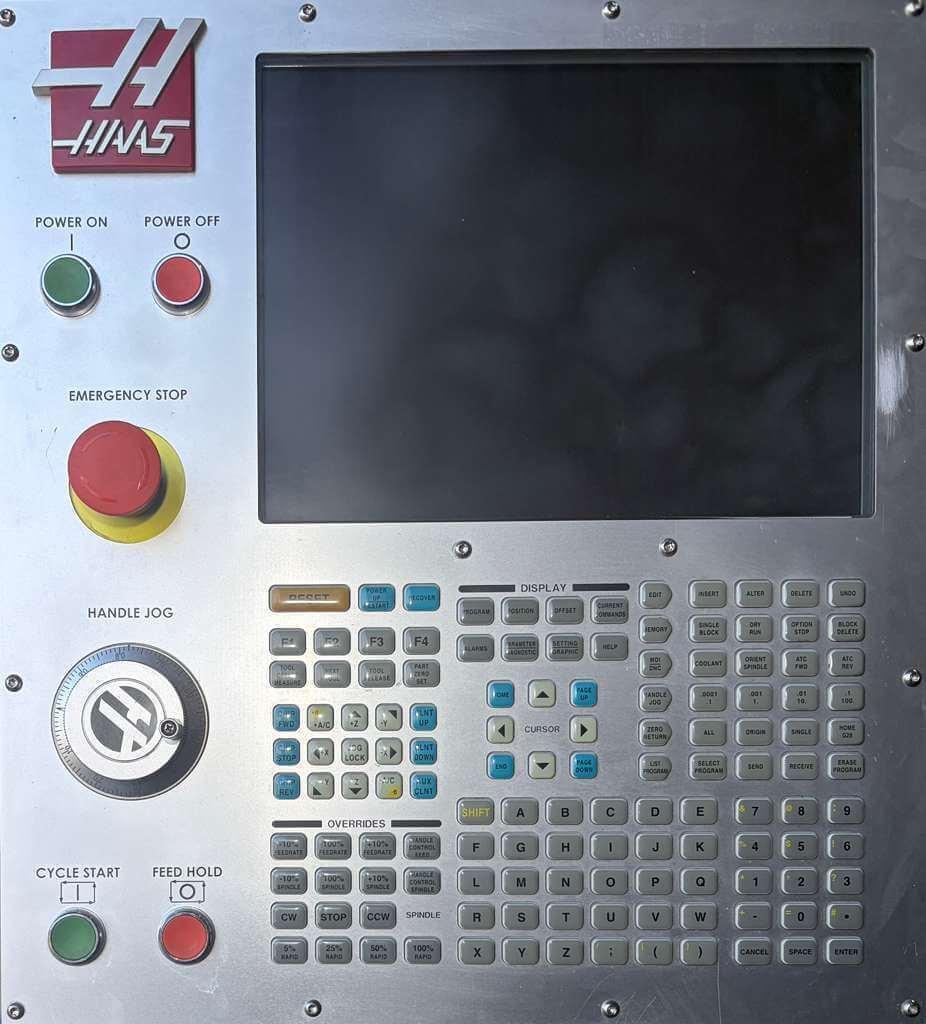

Haas CNC Control (Upgraded Haas Next Generation Control)
15,000 RPM High Speed Spindle
4th Axis Drive and Wiring
5th Axis Drive and Wiring
1200 IPM Rapid Traverse Rate
High Speed Machining
Renishaw Receiver Installed
Tool Presetter
24 Station Automatic Tool Changer

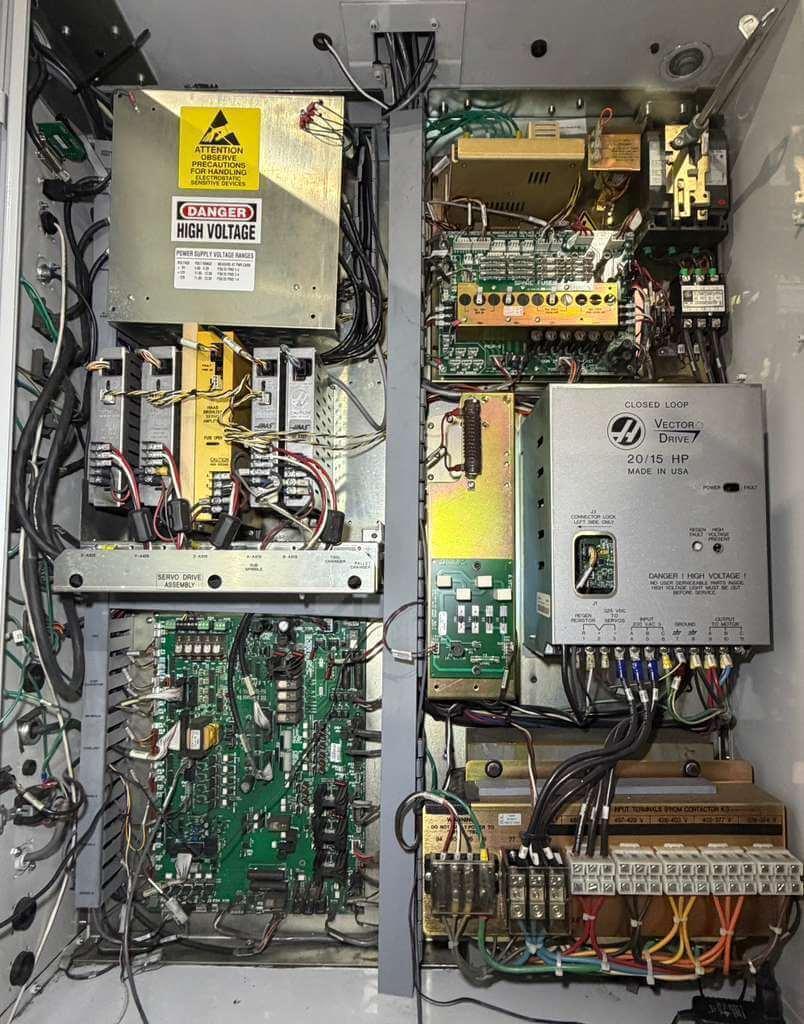

20 HP Vector Dual Drive
Rigid Tapping
16MB Extended Memory
Floppy Drive
Coolant System
Chip Auger

Travels:
X Axis: 64″
Y Axis: 32″
Z Axis: 30″
Rapid Traverse Rates: 1200 IPM
Spindle Nose to Table (Min.–Max.): 4″ – 34″

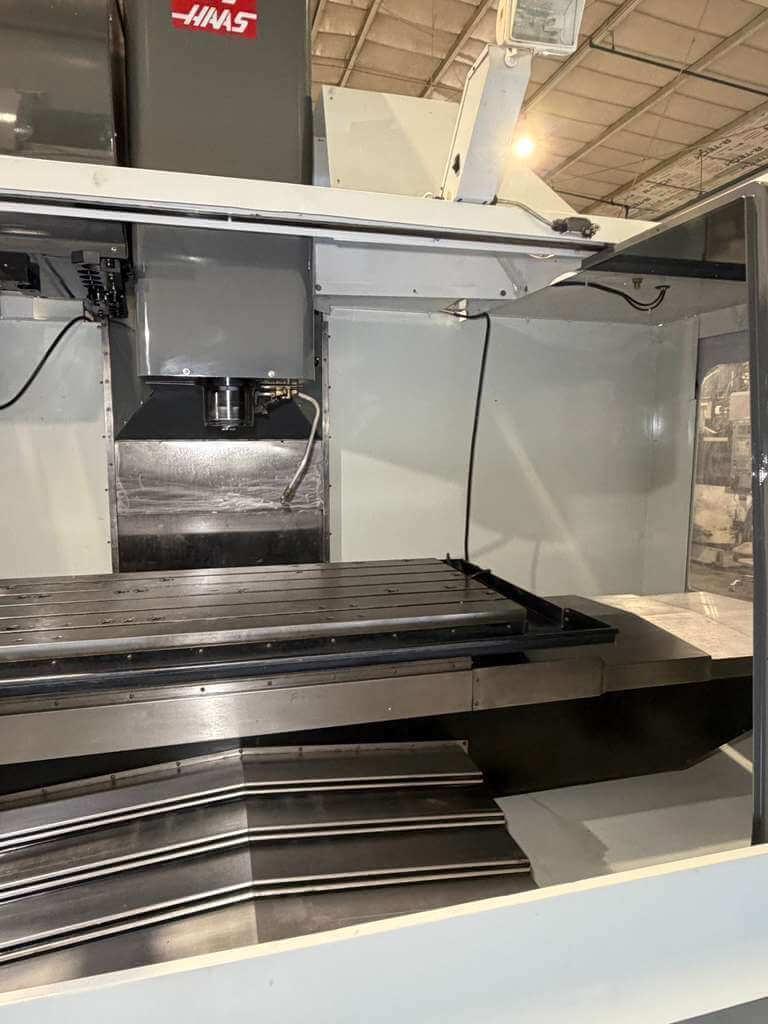

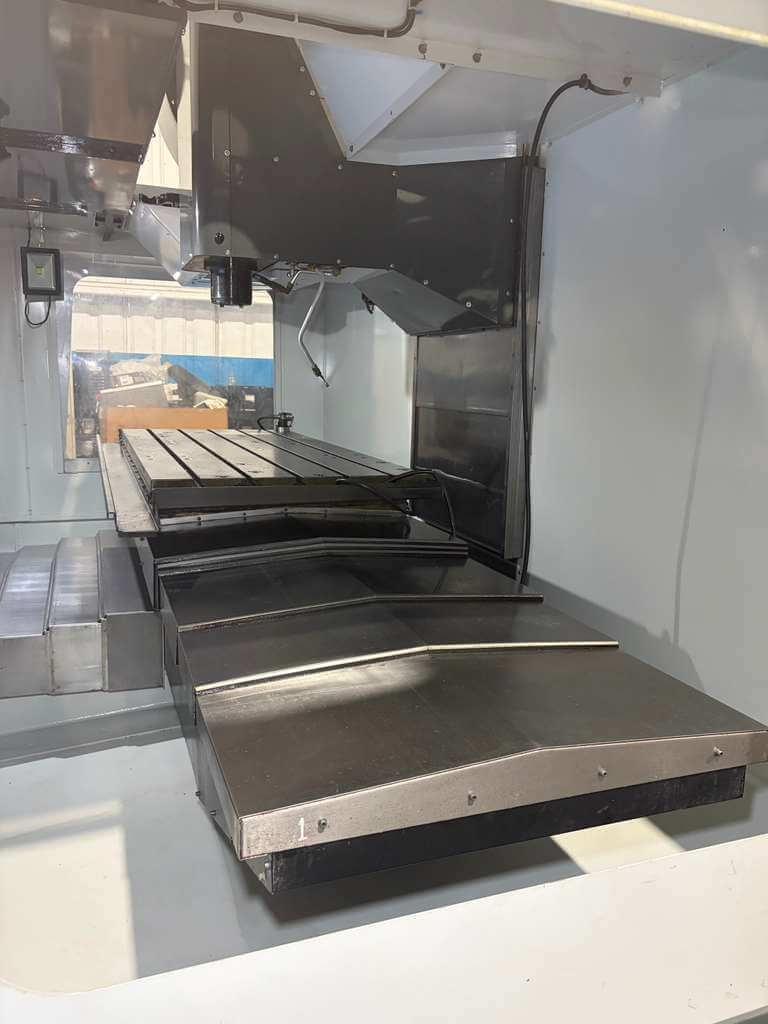

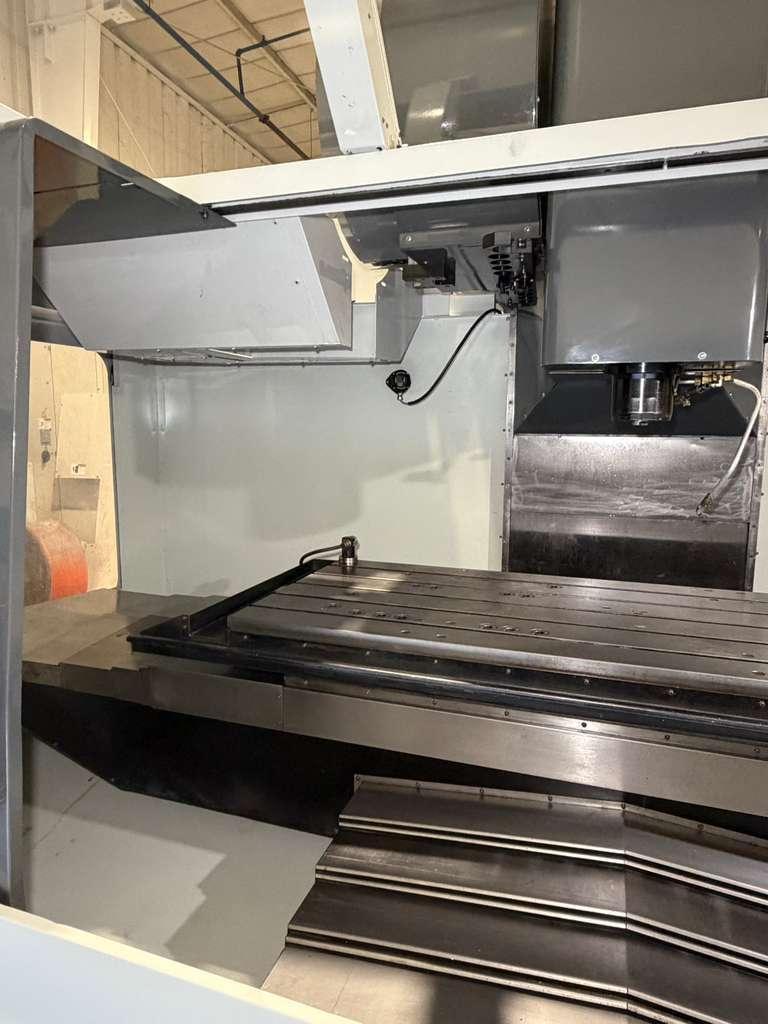

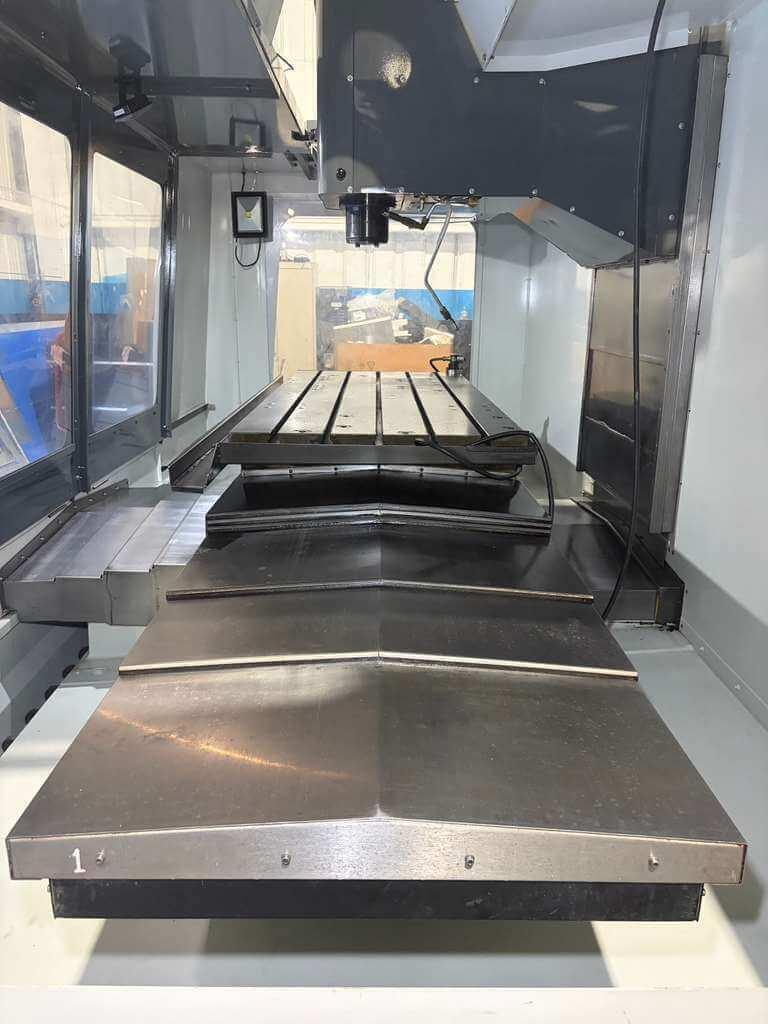

Table:
Length: 64″
Width: 28″
Number of Standard T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4,000 lbs

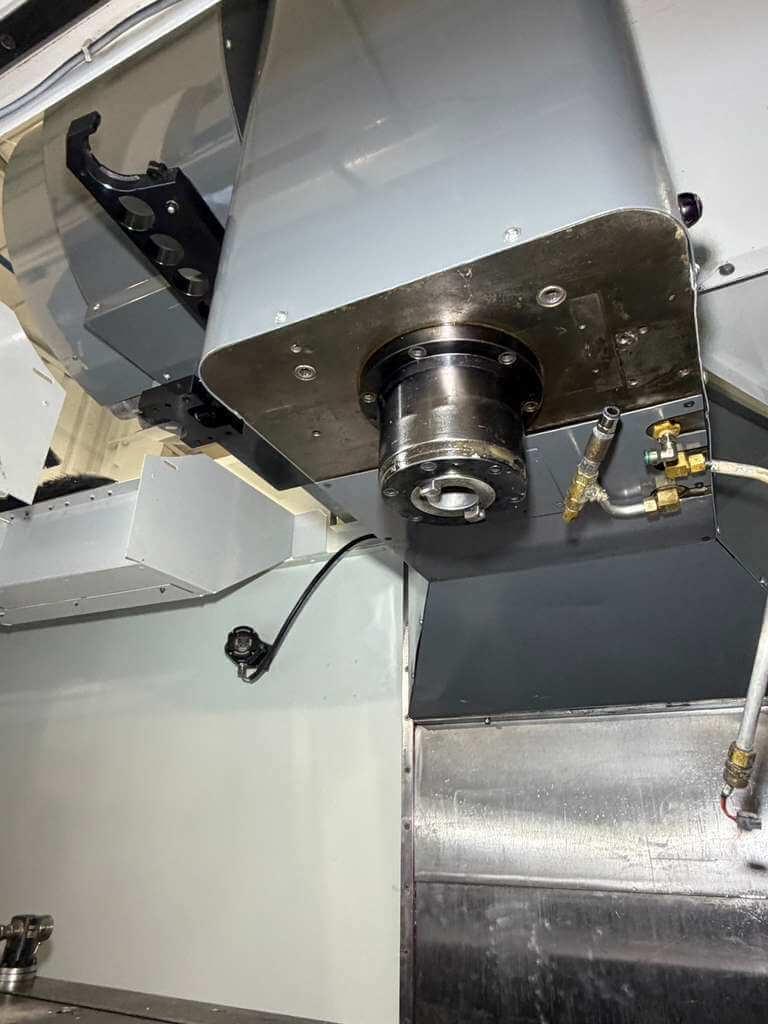

Spindle:
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 20 HP
Vector Drive Max Torque: 90 ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (Adjacent Empty): 5″
Max Tool Length: 16″
Tool Change Time: 3.6 Seconds
