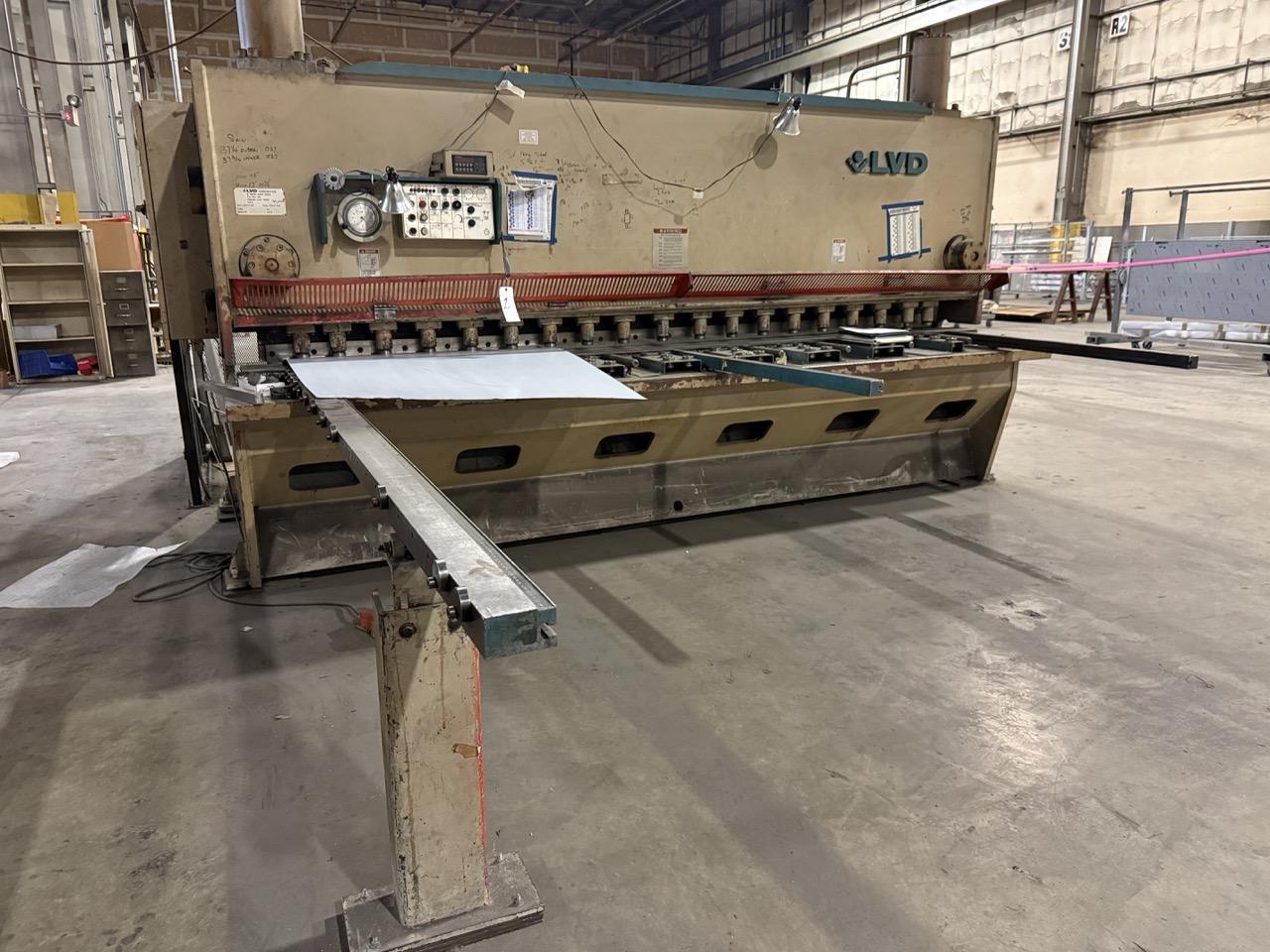

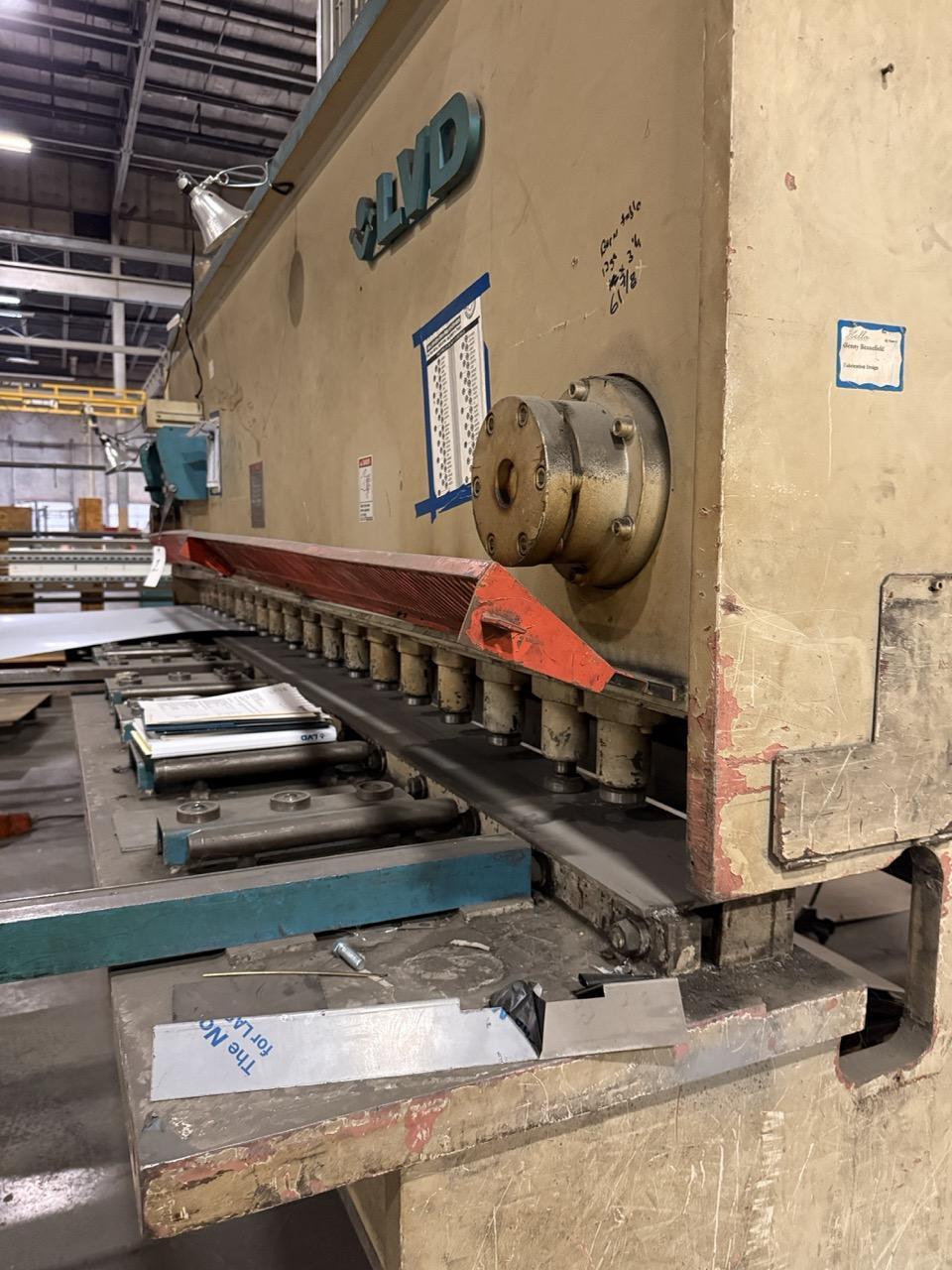

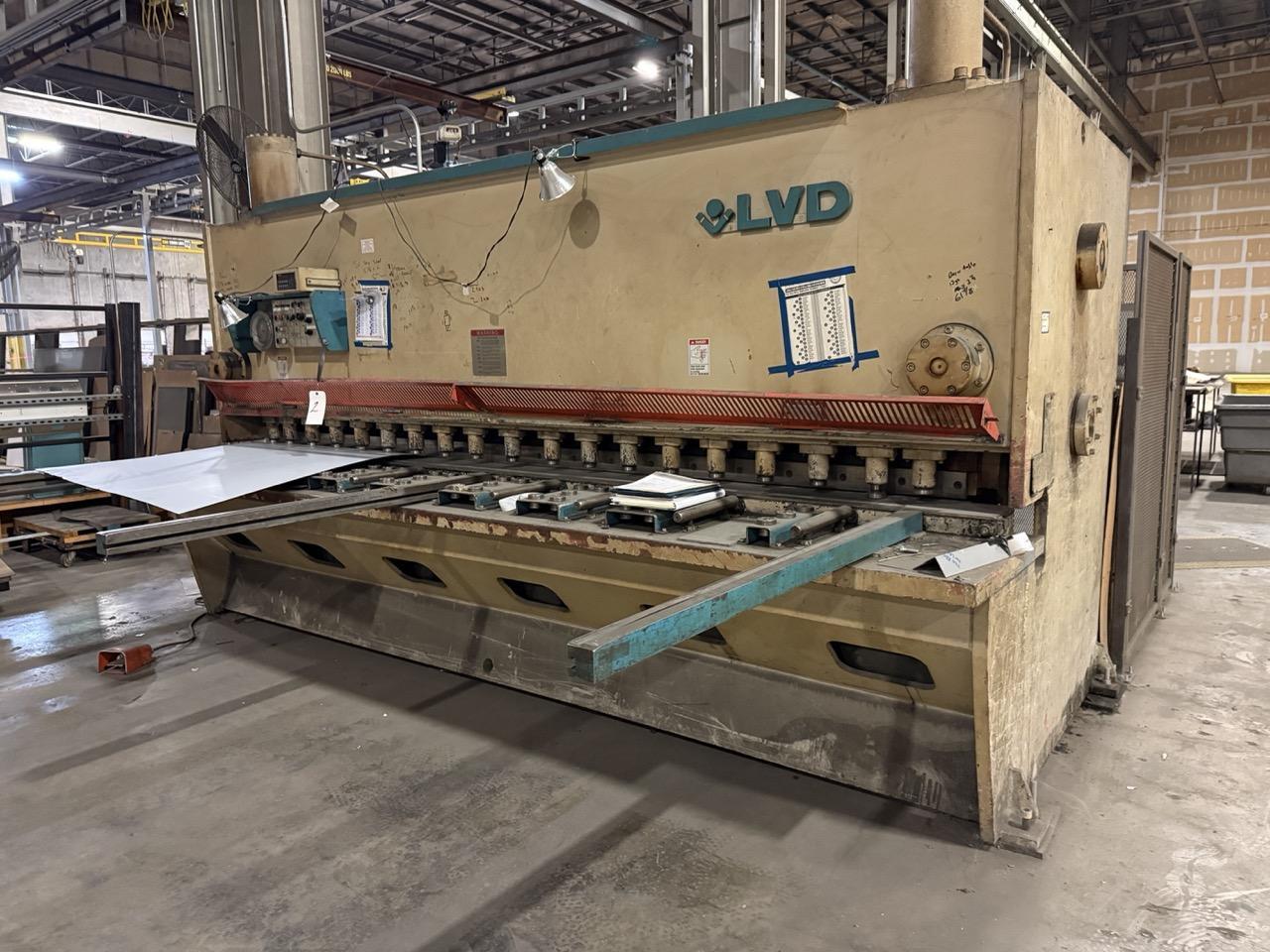

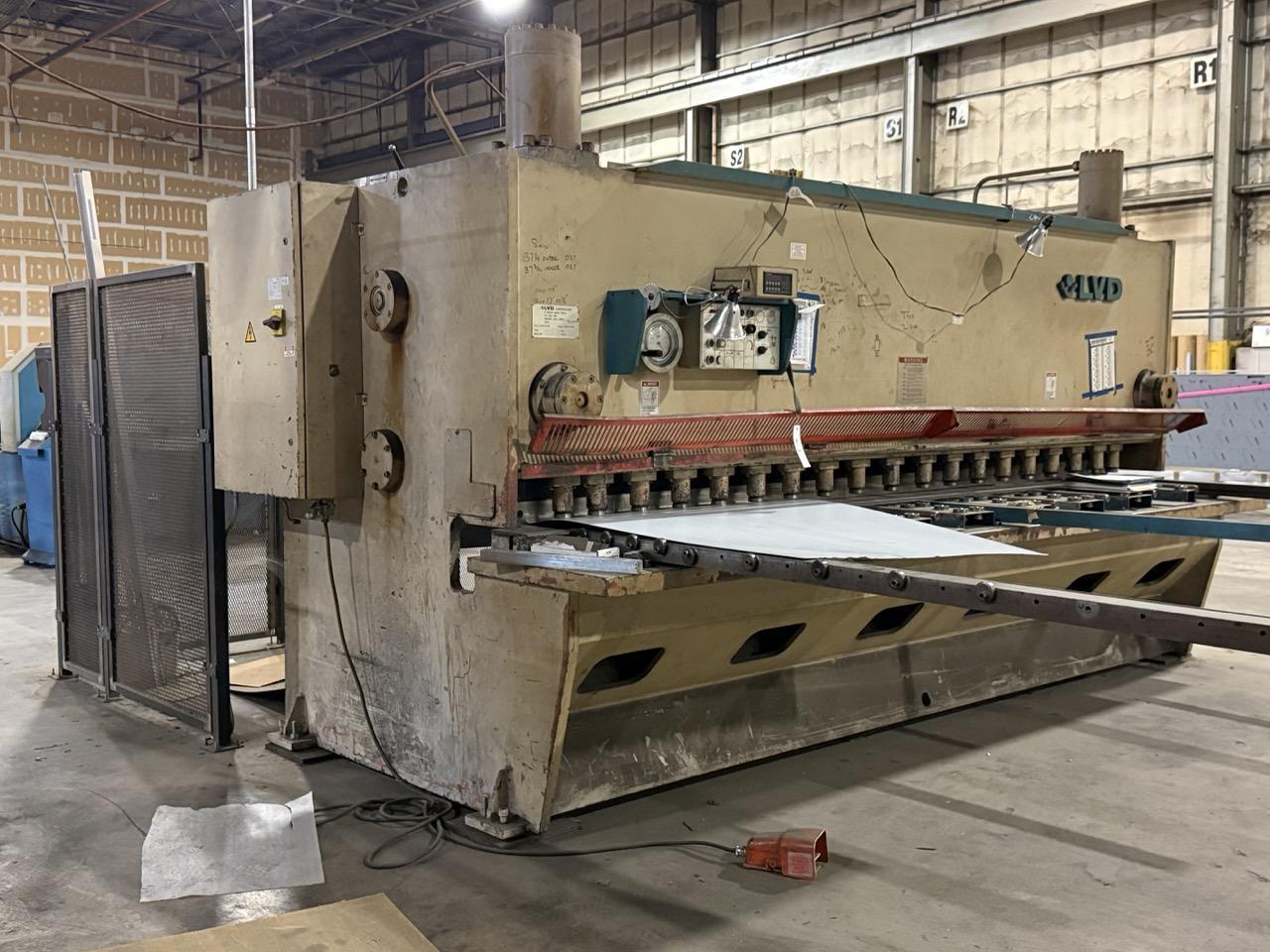

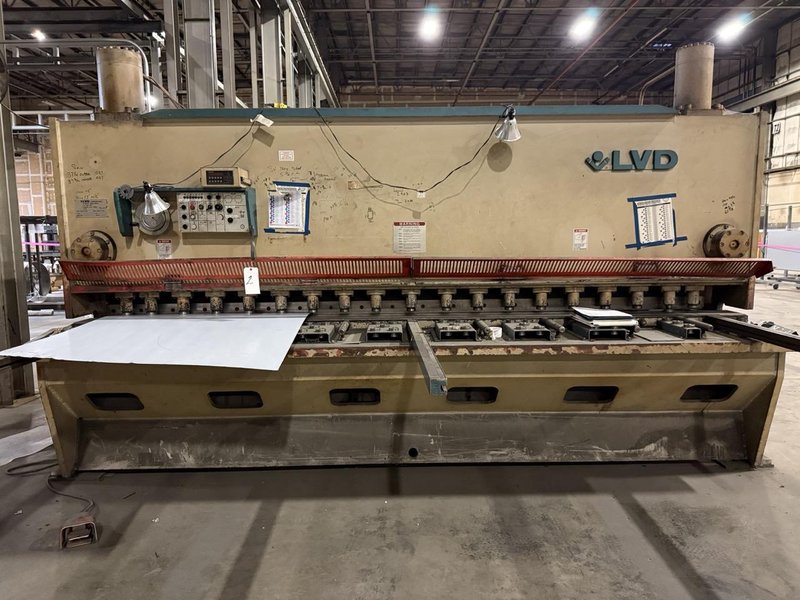

12’ X 1/2” LVD 12-OH-50, Hydraulic Shear
Brand
Category
Type
Model
12-OH-50
Stock #
557916
Year
1990
Condition
Not specified
Location
Not specified
|
Specifications:
Max. Capacity: 1/2″ Mild Steel, 60,000 Psi
Length Of Cut: 146″
Distance Between Housings: 152″
Depth Of Gap: 4″
Rake Angle Adjustment Min./Max. Degree: 0.5/3.2
Blade Clearance Adjustment Min./Max. Inch: 0.002/0.050
Strokes/Min Min./Max.: 10/33
Noise Level: 70db
Power – 3ph 230v, 25hp, 55A
Capacity Of Hydraulic Oil Reservoir: 65 Gallons
Foundation Requirements: Flush-Floor
Thickness Of Side Housings: 1.50″
Working Height: 36″
Machine Length: 180″
Machine Width: 80″
Machine Height: 96″
Approximate Shipping Weight: 26,700 Lbs

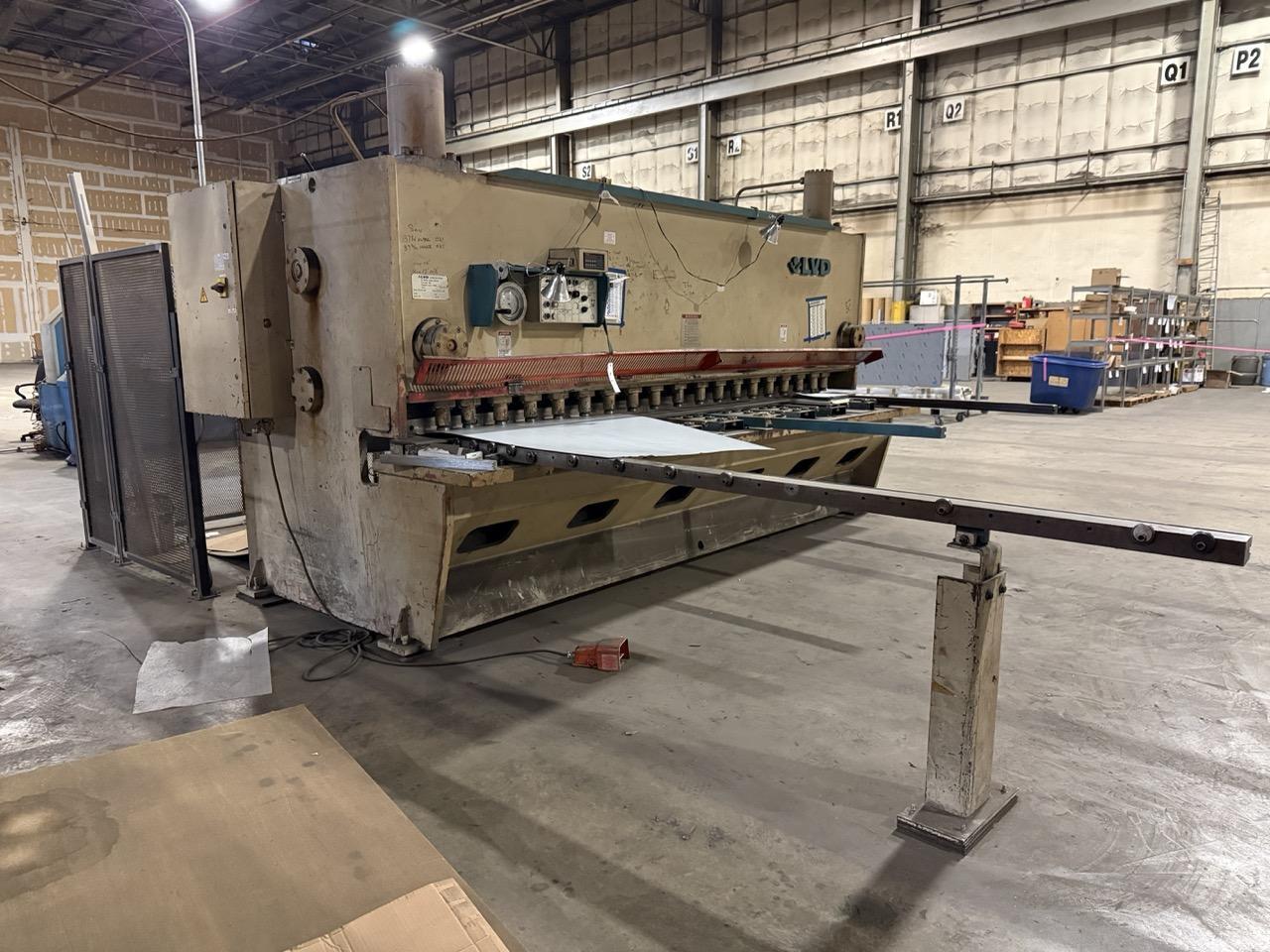

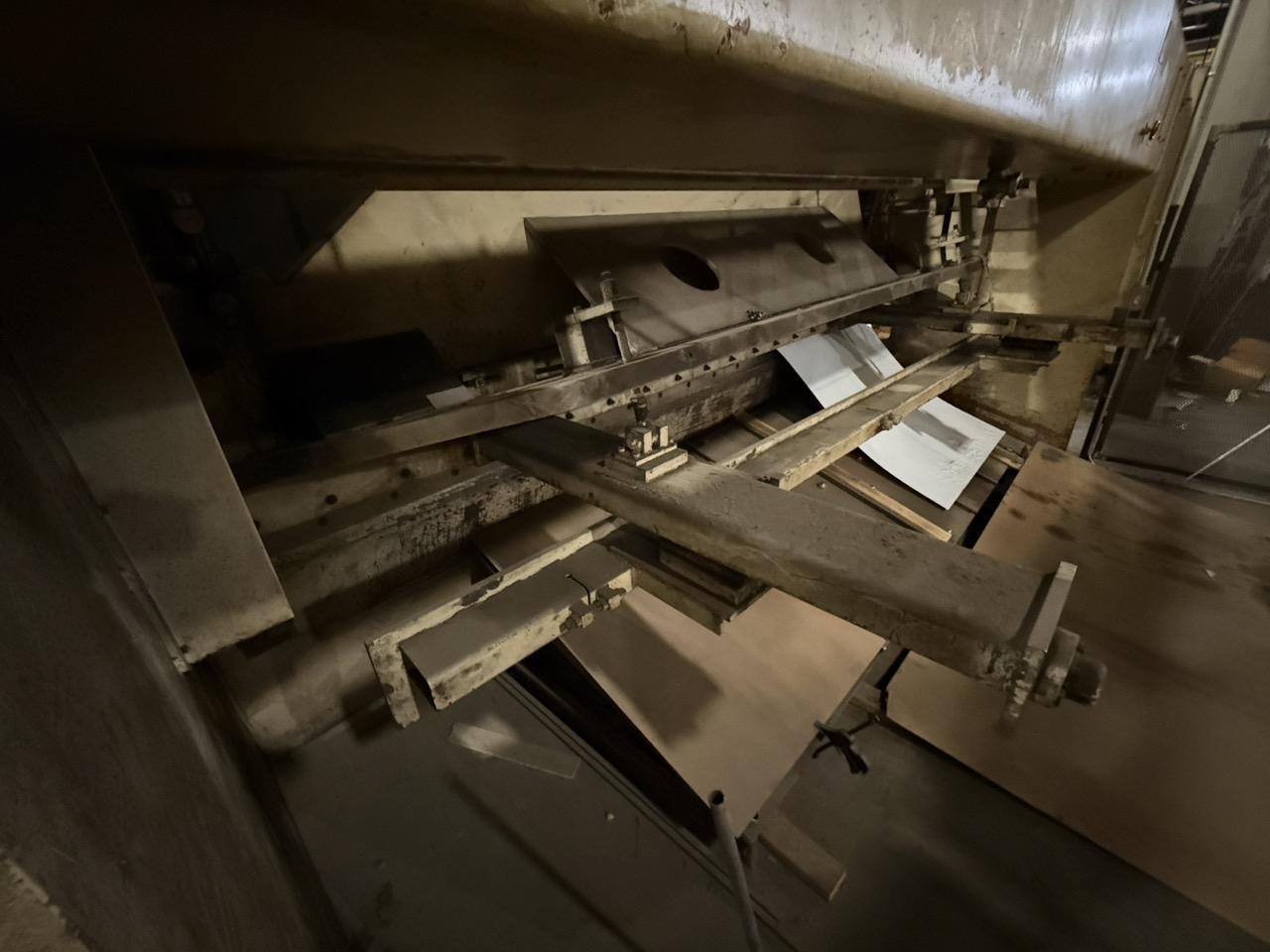

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Squaring arm & sheet supports powered back gauge Adjustable blade gap Variable rake angle All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
