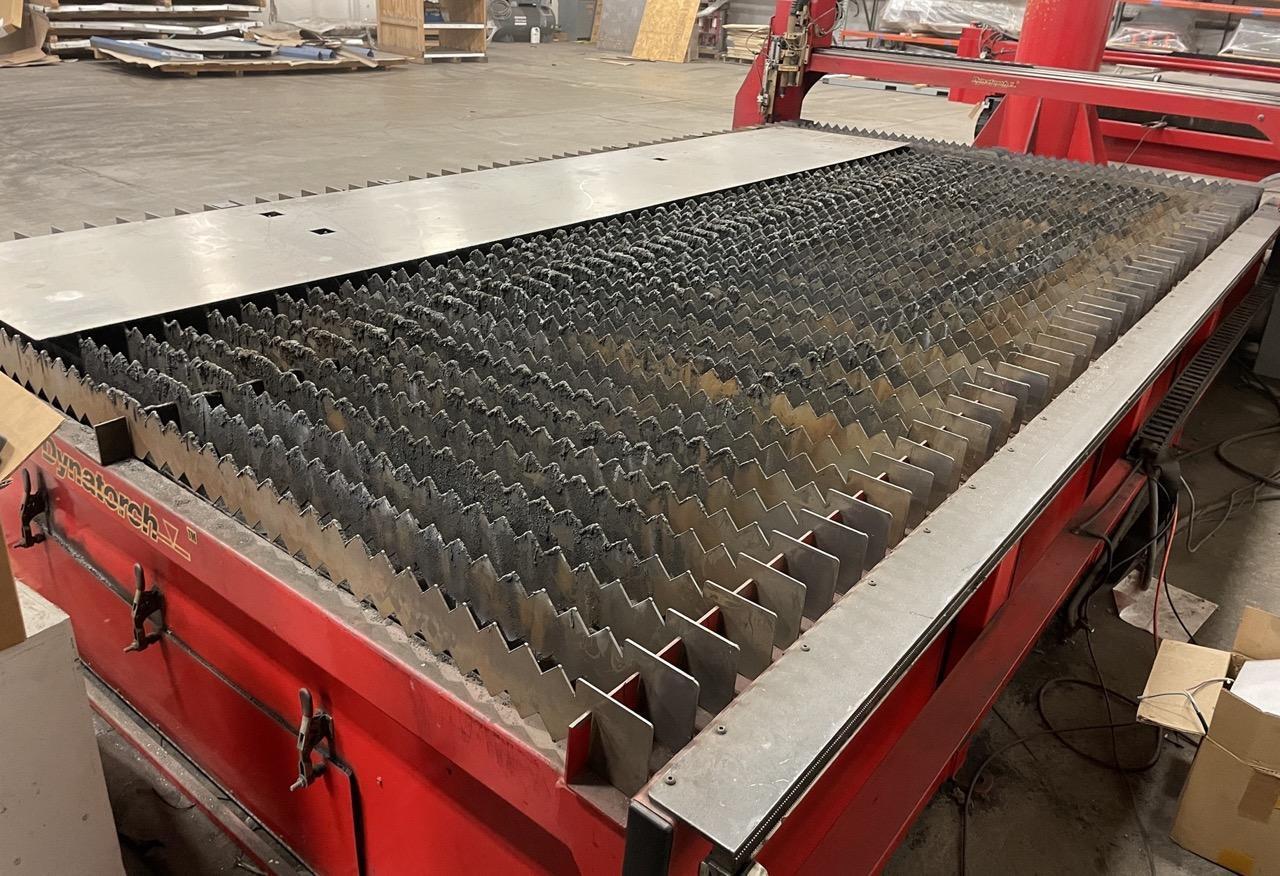

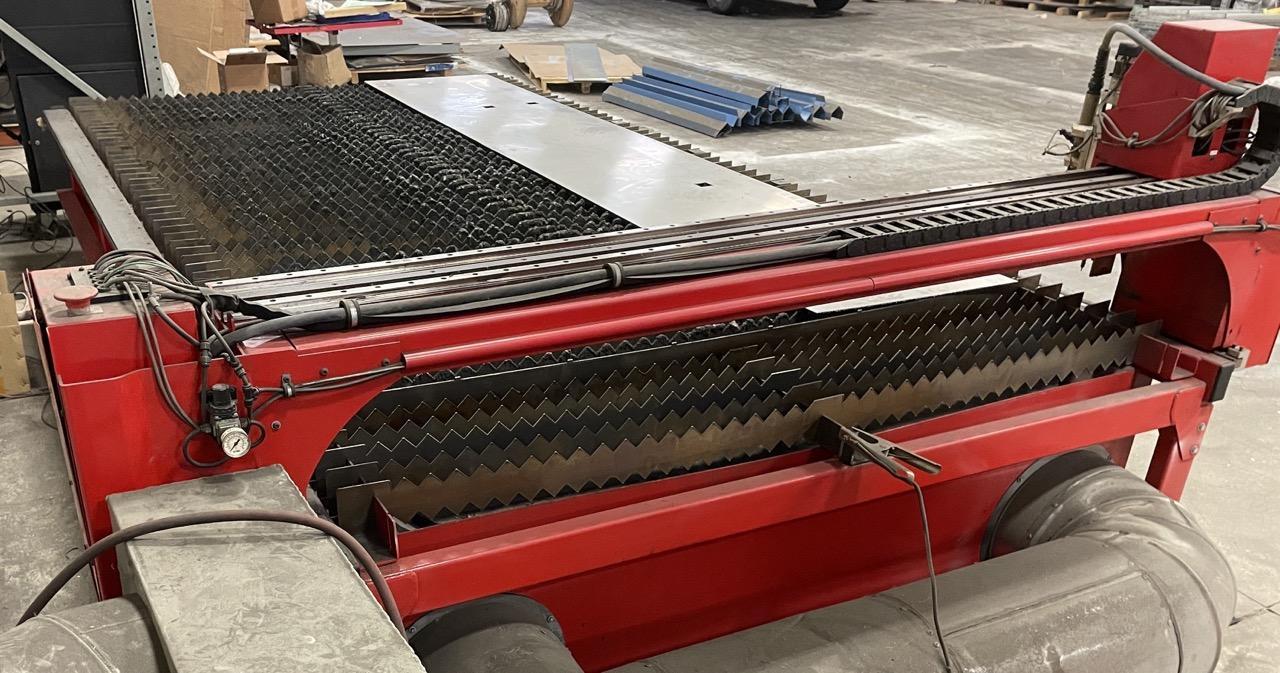

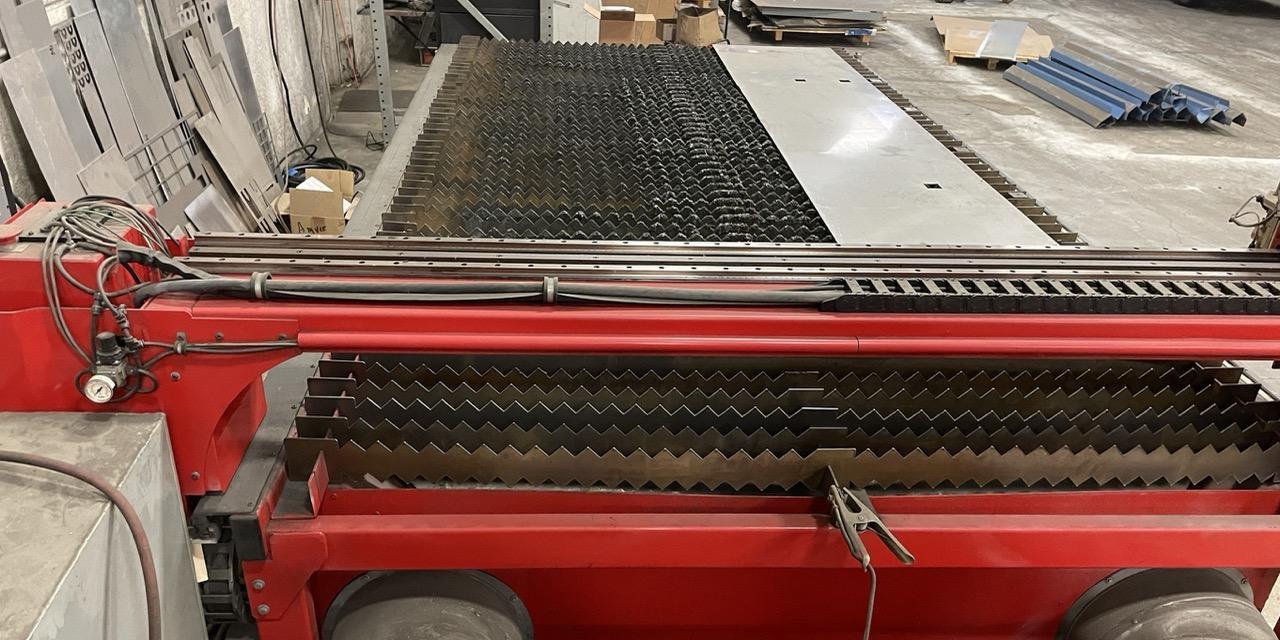

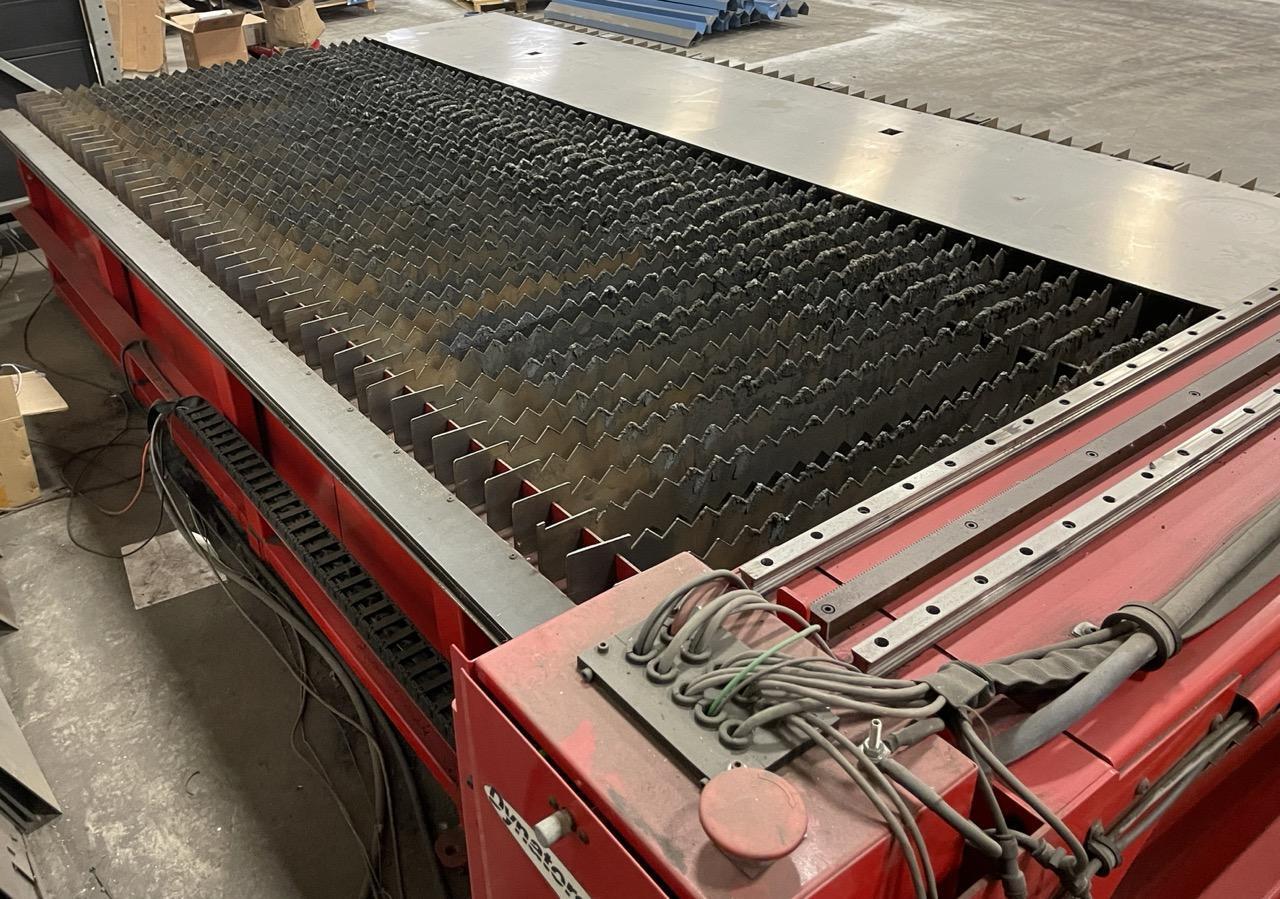

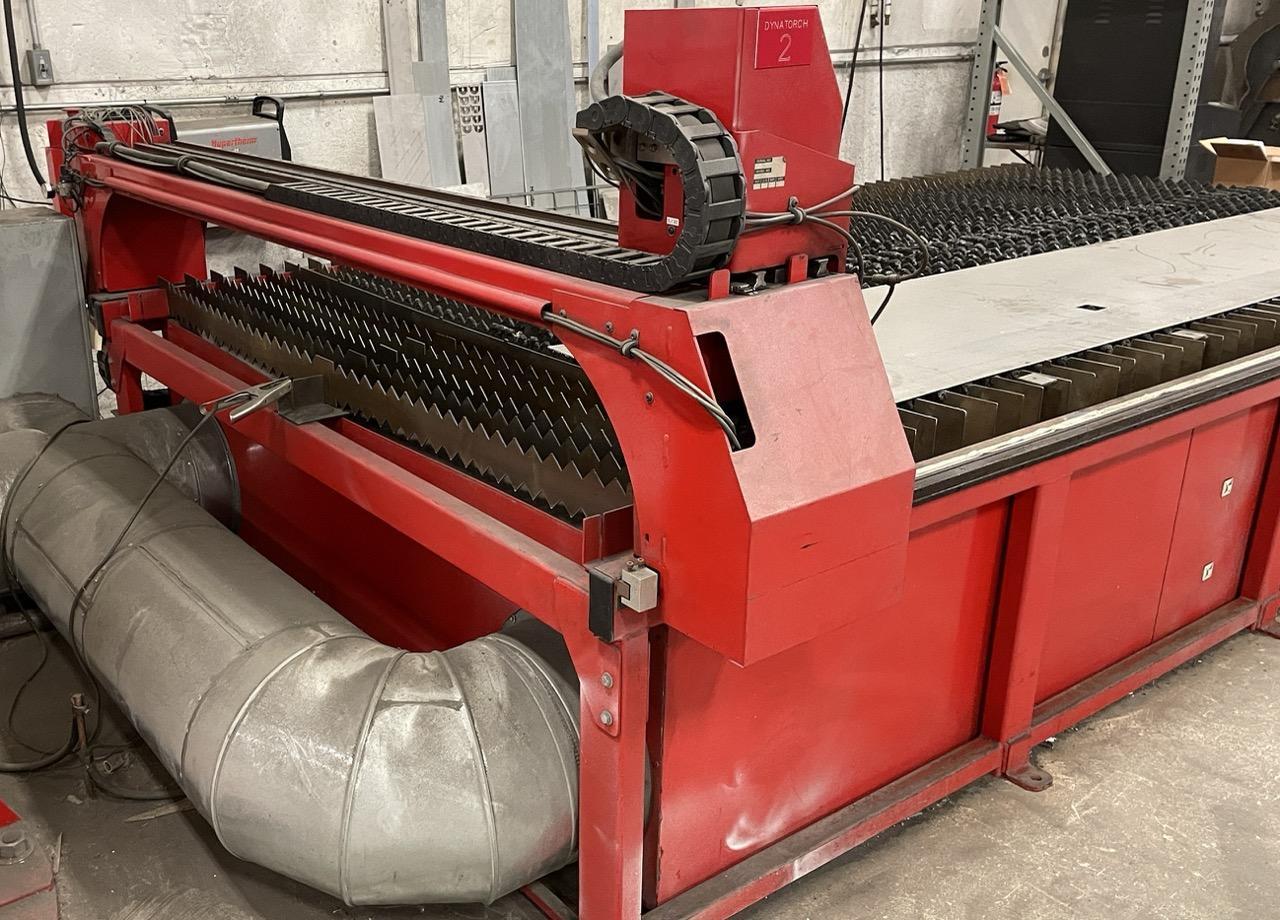

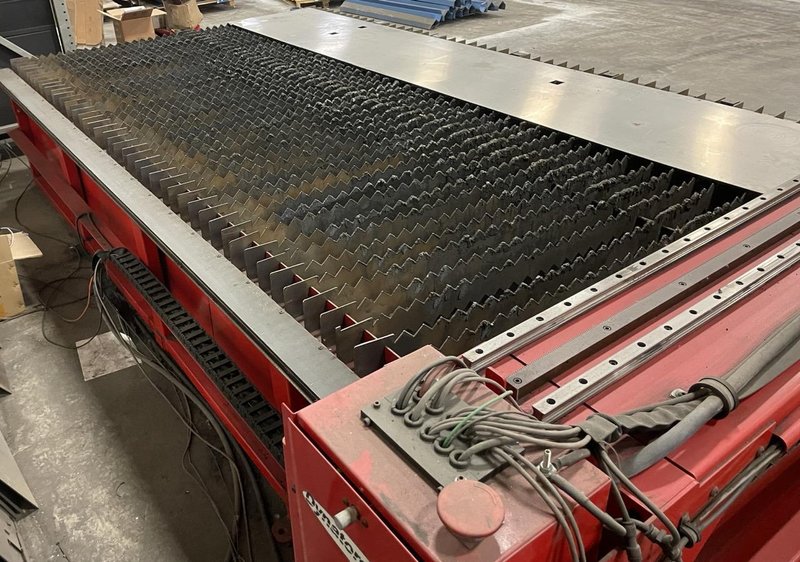

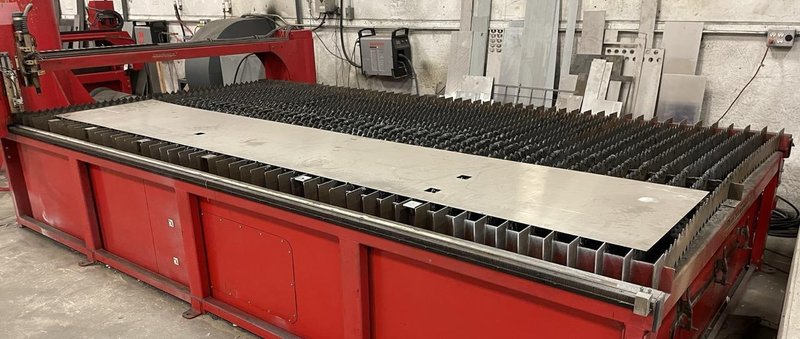

5′ x 10′ DynaTorch XLS Plasma Cutting Table, 2015 – 65 Amp Hypertherm Powermax 65

Cutting Area: 5′ x 10′ Table Type: Downdraft Table Machine Type: CNC Plasma Cutting Table Plasma Power Source: Hypertherm Powermax65 Plasma Amperage: 65 Amp Recommended Cut Capacity: 3/4″ Severance Capacity: 1-1/4″ Pierce Capacity: 5/8″ Cutting Speed: Up To 20 IPM At 3/4″ Output Current: 20–65 Amp Input Voltage: 200–600V Phase: Single Or Three Phase Duty Cycle: 50% At 65 Amp Gas Requirement: Clean Dry Air Or Nitrogen Air Consumption: 6.7 SCFM At 85 PSI Drive System: CNC Servo Driven Gantry Torch Height Control: Automatic THC Control Type: PC Based CNC Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hypertherm Powermax65 Plasma Power Supply CNC Control System Automatic Torch Height Control Downdraft Cutting Table Gantry Drive System Plasma Torch And Leads Air Filtration System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
