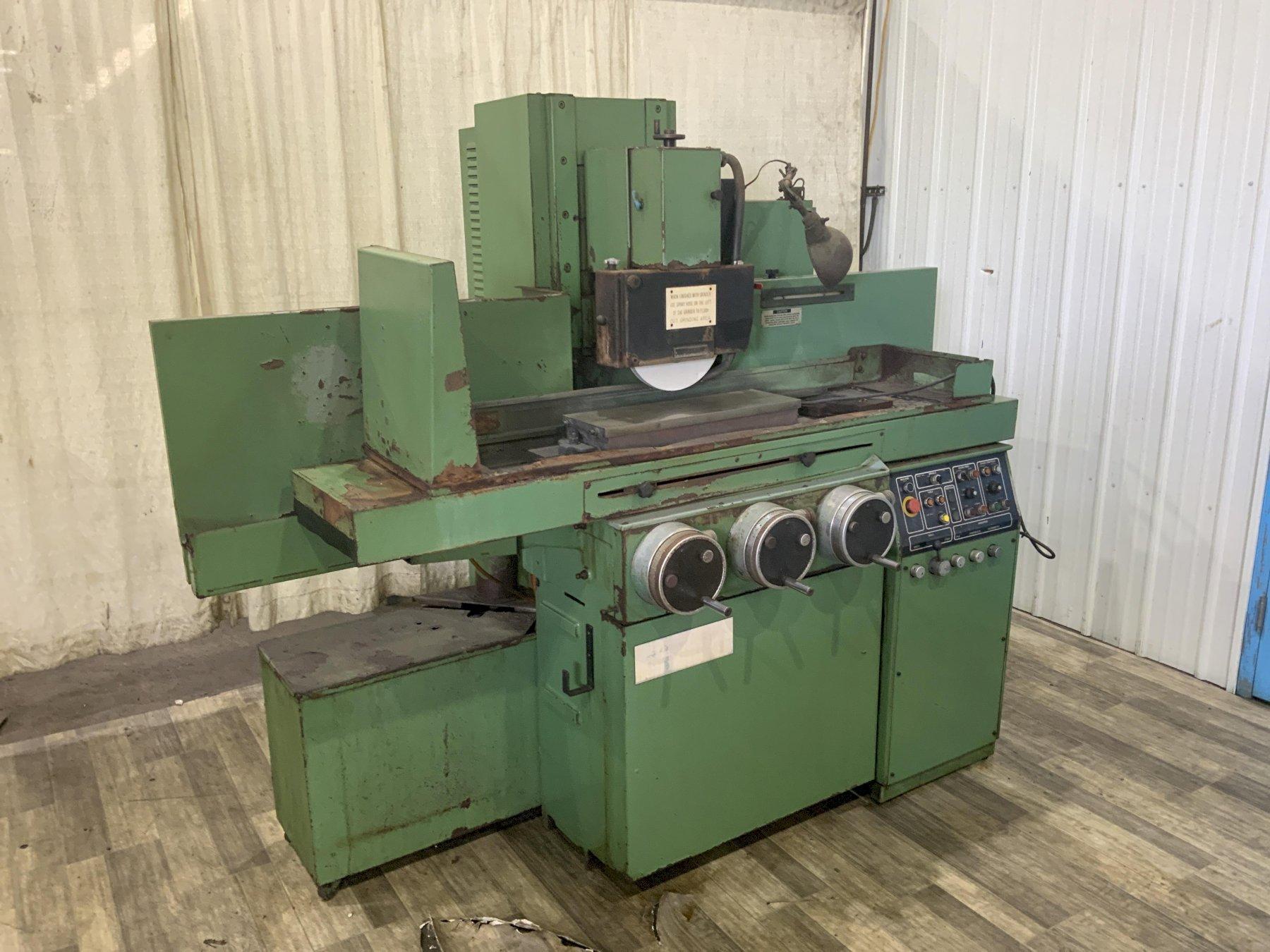

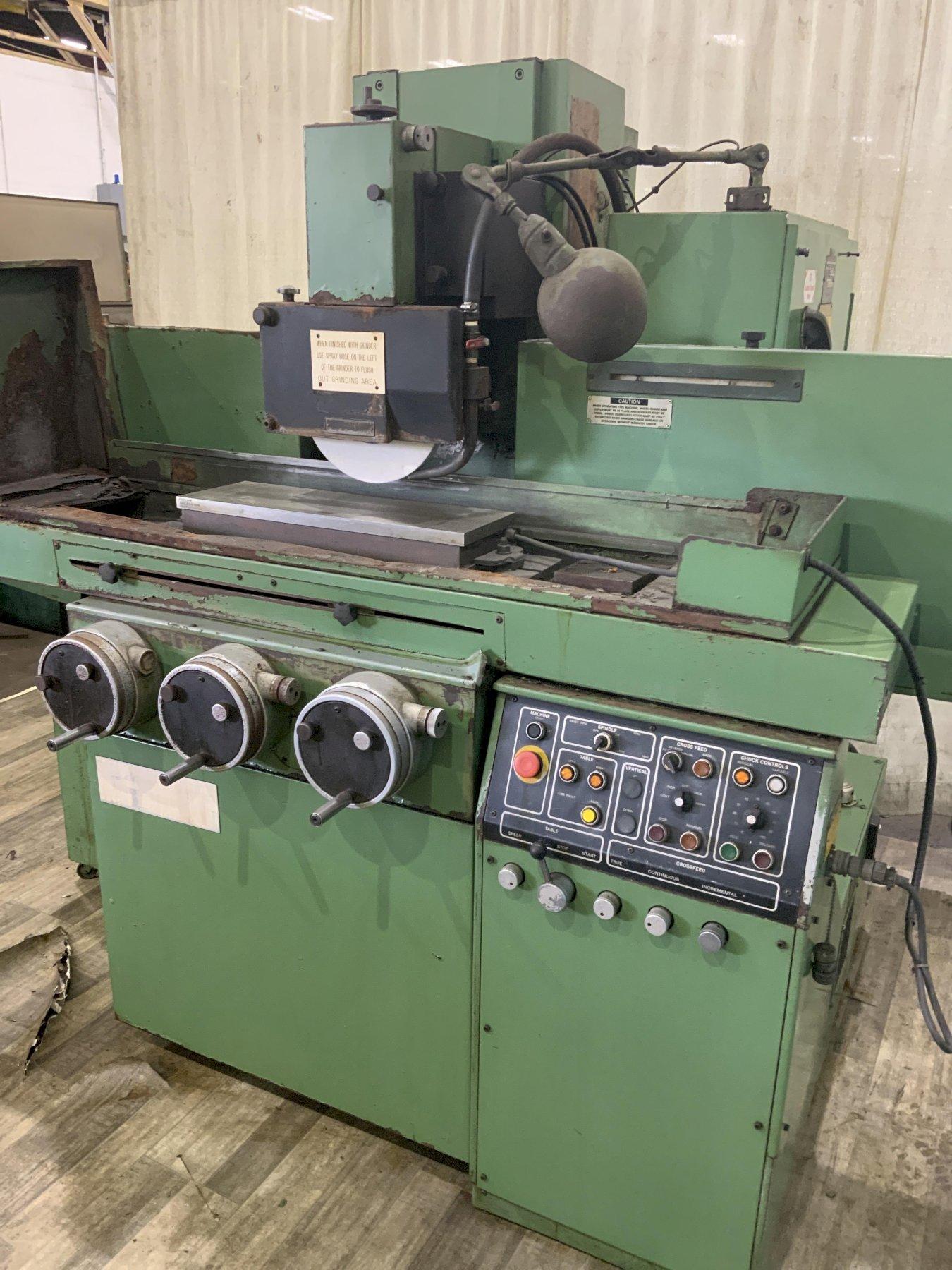

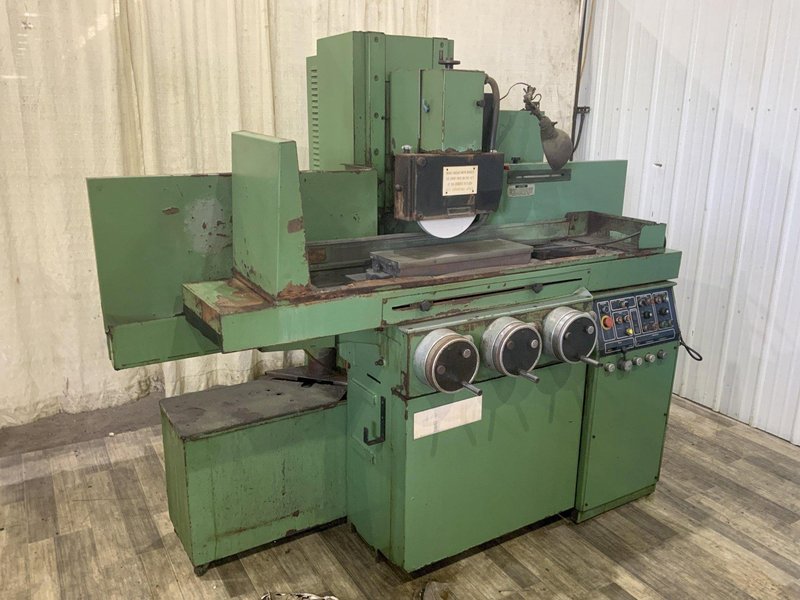

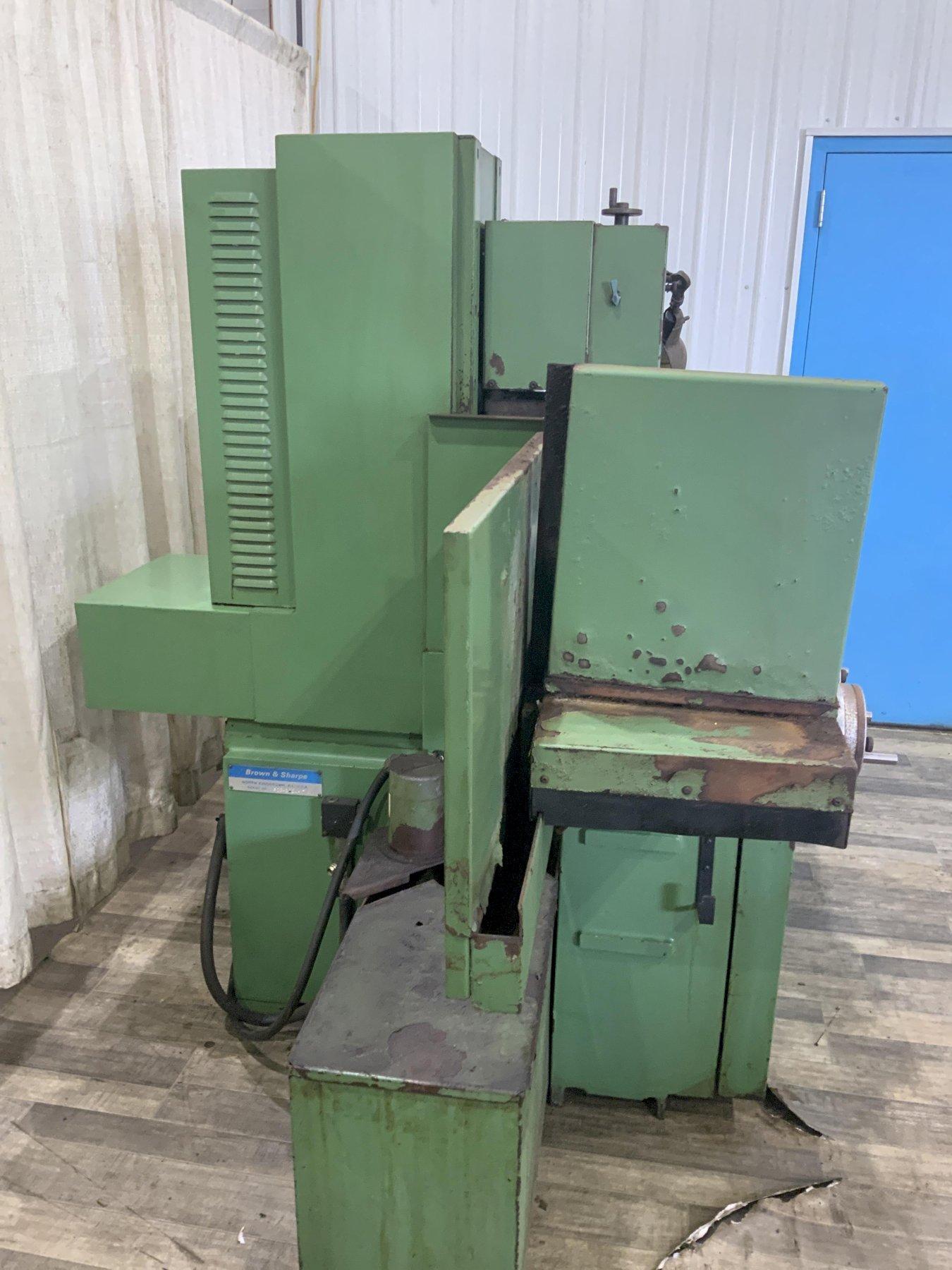

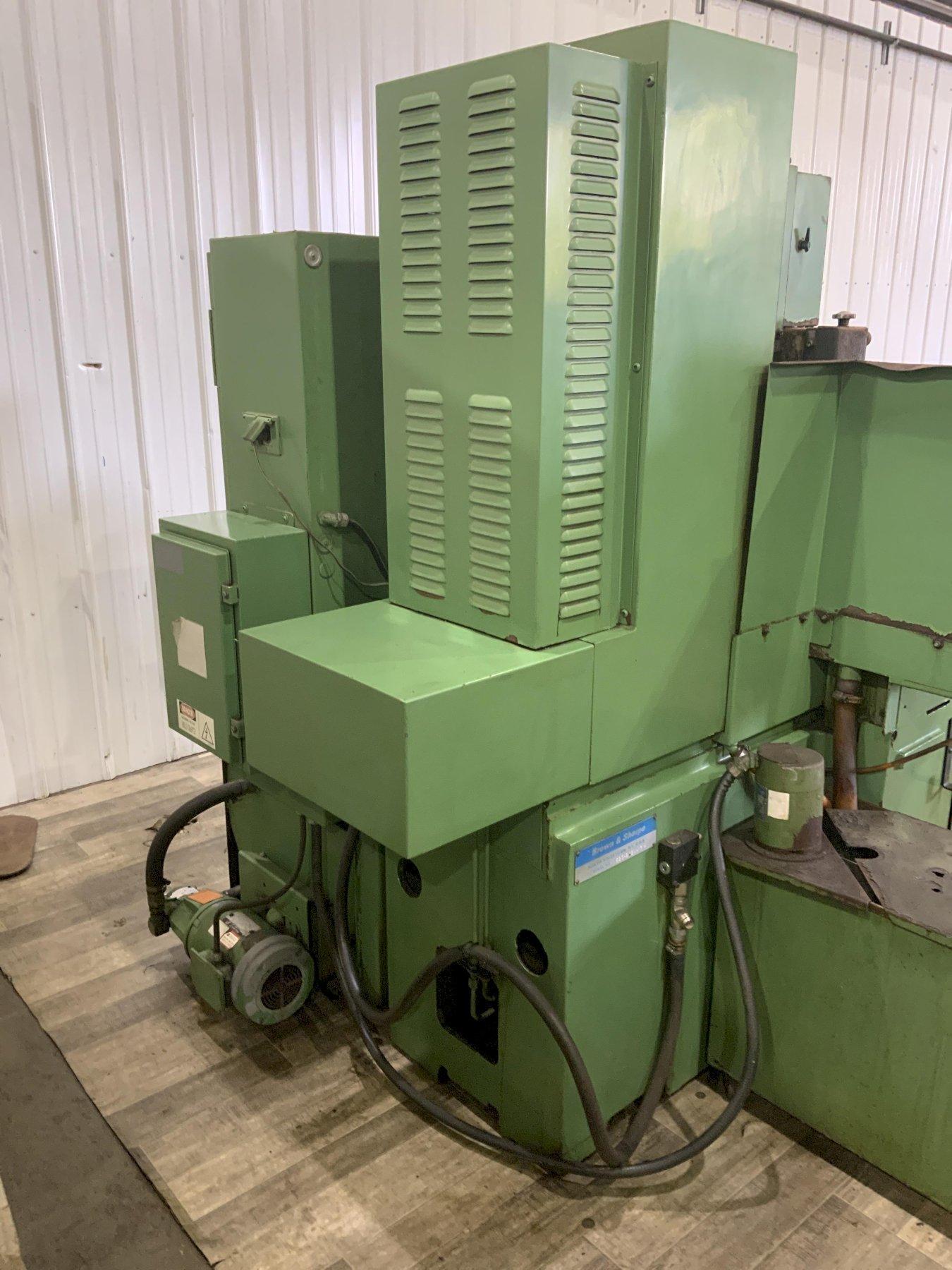

8" X 24" BROWN & SHARPE HORZIONTAL SURFACE GRINDER: STOCK #81112

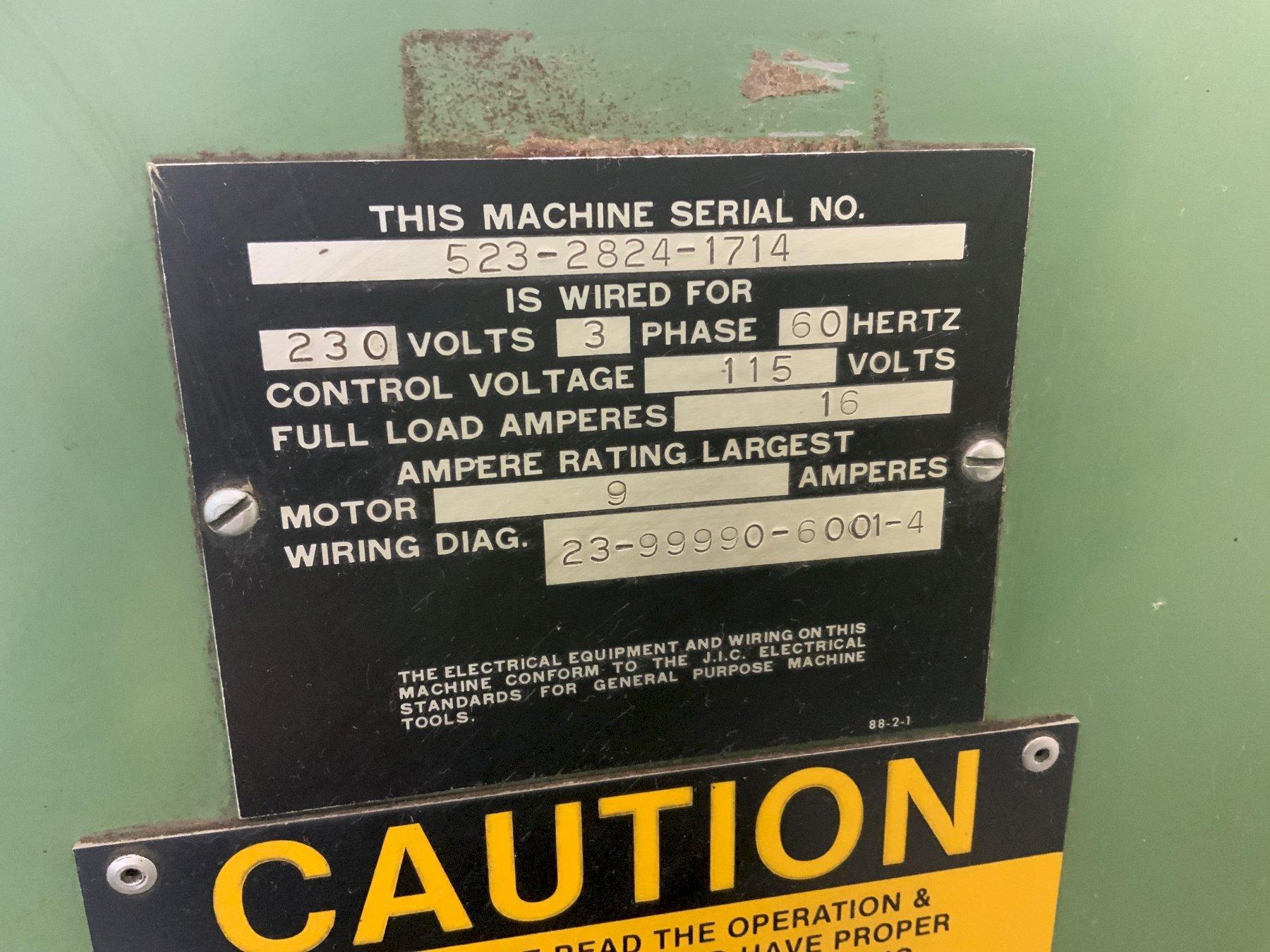

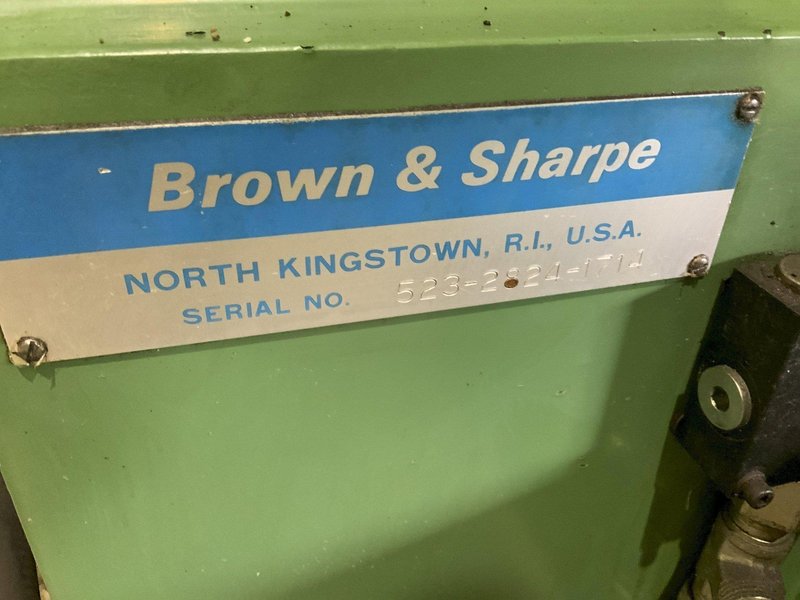

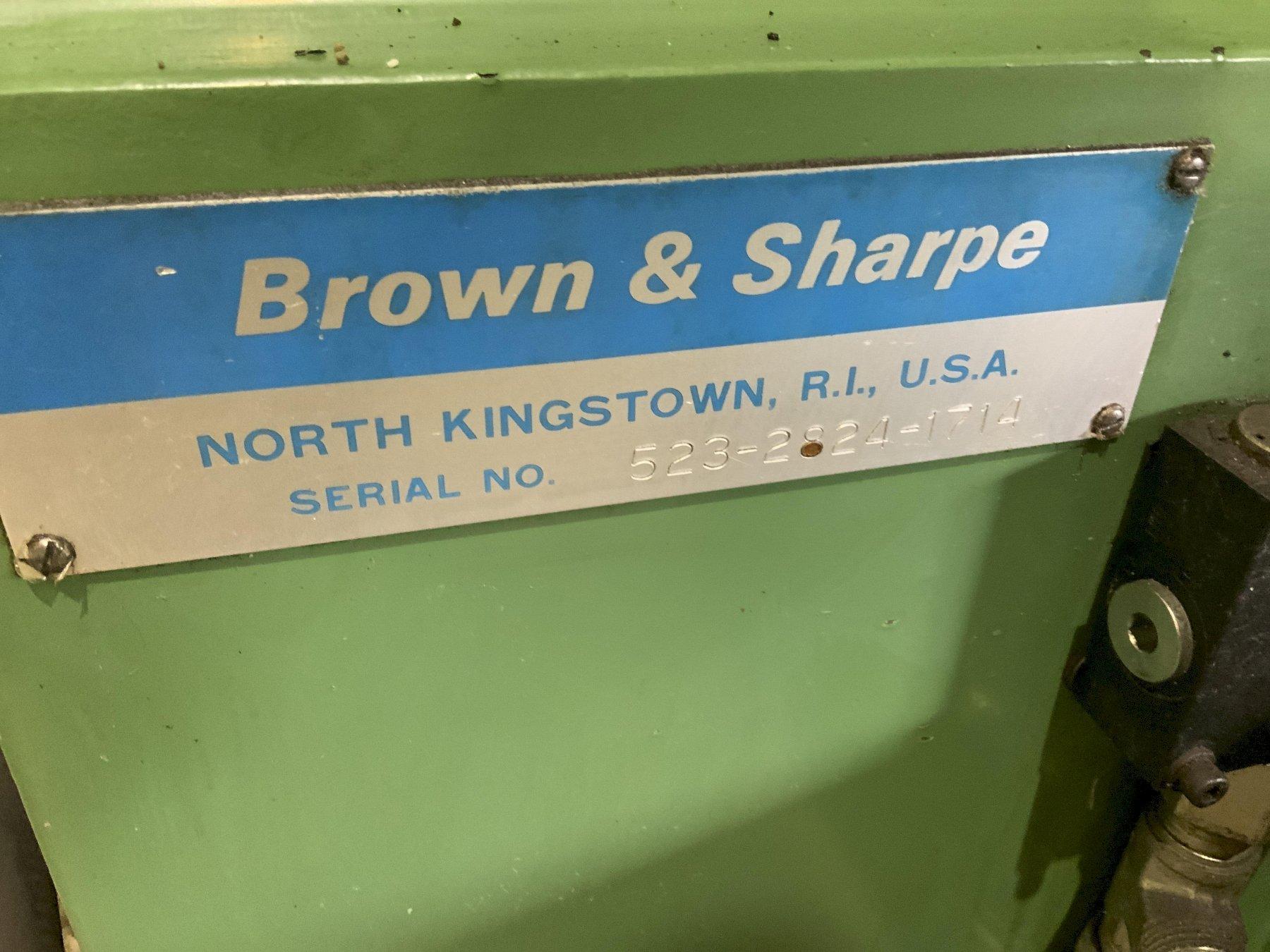

SERIAL ................................ 523-2824-1714

MODEL ................................. 824 TECHMASTER

GRINDING CAPACITY ..................... 24" x 8"

TABLE TO SPINDLE (MAXIMUM) ............ 20"

LONGITUDINAL TABLE TRAVEL ............. 29"

CROSS TRAVEL .......................... 9-1/2"

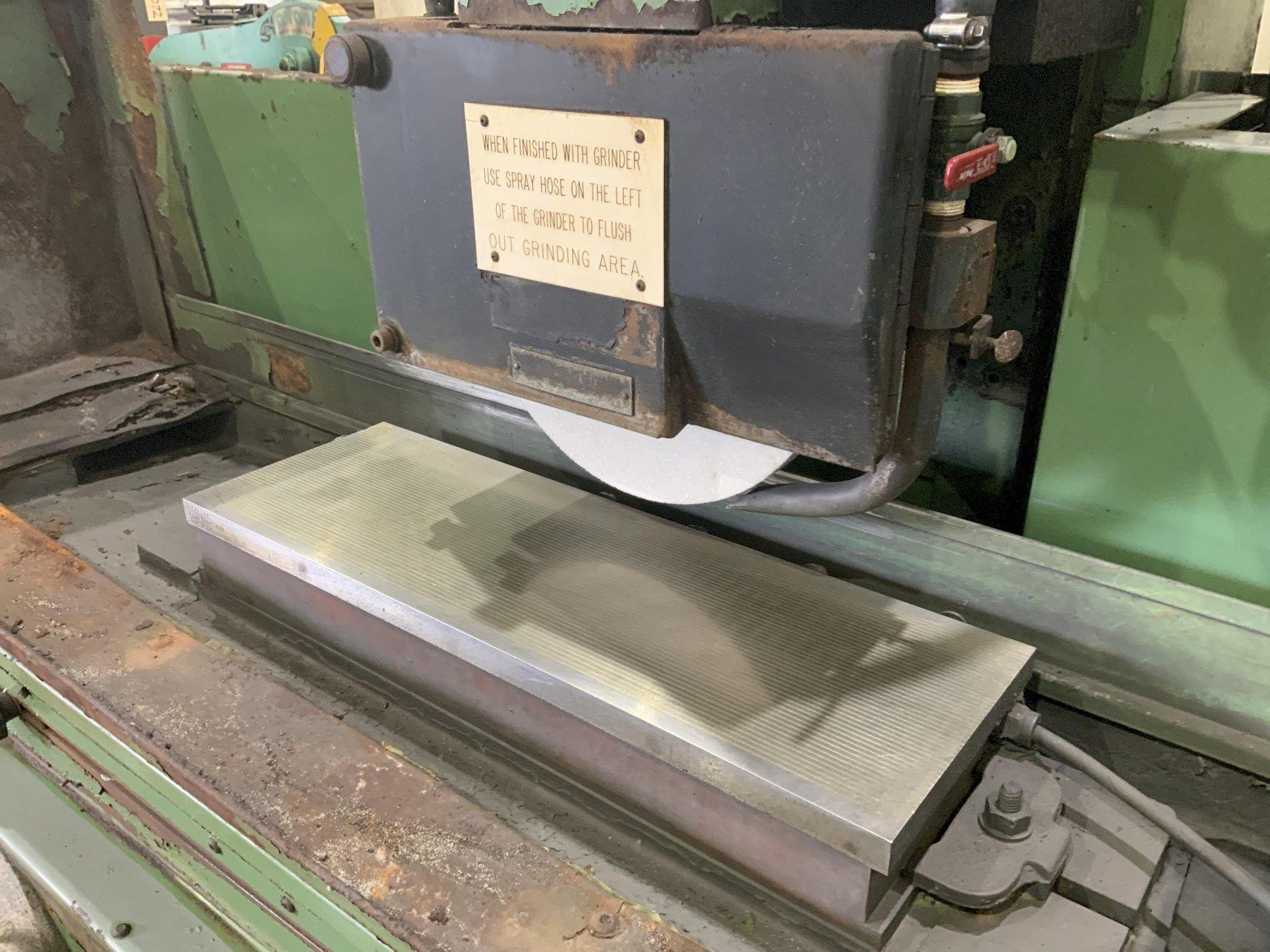

ELECTROMAGNETIC CHUCK SIZE ............ 24" x 8" x 4"H

GRINDING WHEEL SIZE ................... 14" x 3" x 5"

SPINDLE SPEED ......................... 1800 RPM

TABLE SPEEDS (VARIABLE) ............... 5 to 100 FPM

CYCLE SIZE CONTROL .................... Yes

INCREMENTAL DOWNFEED .................. Yes

HYDRAULIC LONGITUDINAL & CROSS FEEDS .. Yes

VARIABLE HOLD ELECTROMAGNETIC ......... Yes

CHUCK CONTROLLER ...................... Yes

POWER ELEVATION ....................... Yes

SPARKOUT CYCLE ........................ Yes

HYDRAULIC MOTOR, HORSEPOWER ........... 2

SPINDLE MOTOR, HORSEPOWER ............. 5
