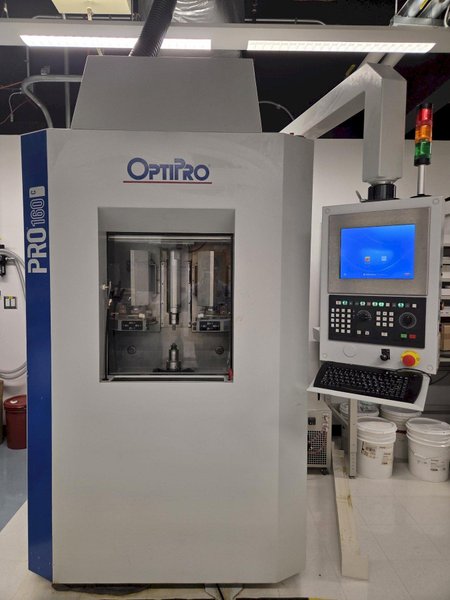

OptiPro Model PRO 160C Precision Optics Centering Machine, 7-Axis, 5-200mm Optics, Tool Spindle: 12000 RPM, Only 200 approx. hours, 11.7 HP, New 2017
Brand
Category
Type
Model
PRO 160C
Stock #
56757
Year
2017
Condition
Like New
Location
New York
| Precision Optics Centering Machine: | 5-200 MM Optics - Grind Centering Bells |
| Workpiece | Workpiece |
| Optimal Diameter Range | Up to 200 mm (7.87”) |
| Maximum Workpiece Height | Up to 70 mm (2.76”) |
| Work Spindle | Work Spindle |
| Spindle Speed | 0-200 rpm |
| Hydro-Expansion Chuck | 25 mm (Standard and Custom Bells Available) |
| C-Axis Position And Hold | Standard |
| Precise Clamping Pressure | Up to 1,000N |

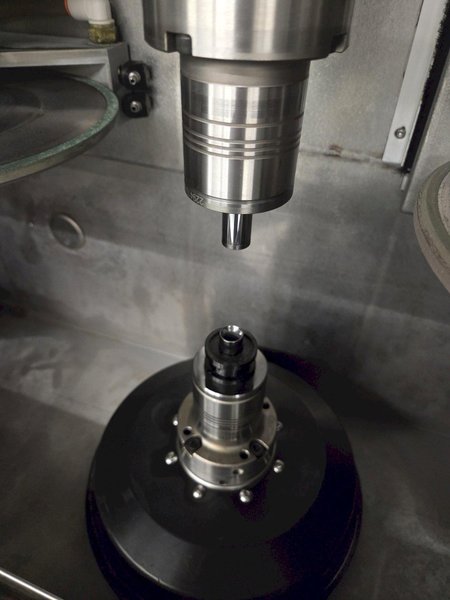

| Tool Spindle | Tool Spindle |
| Tool Holder Style | Quick Change HSK63F |
| Maximum Tool Diameter | 220 mm (8.66”) |
| Maximum Tool Weight | 6 kg (13.2” |
| Tool Spindle Speed | 1,000 - 12,000 rpm |
| Spindle Power | 7kW (9.5hp) |

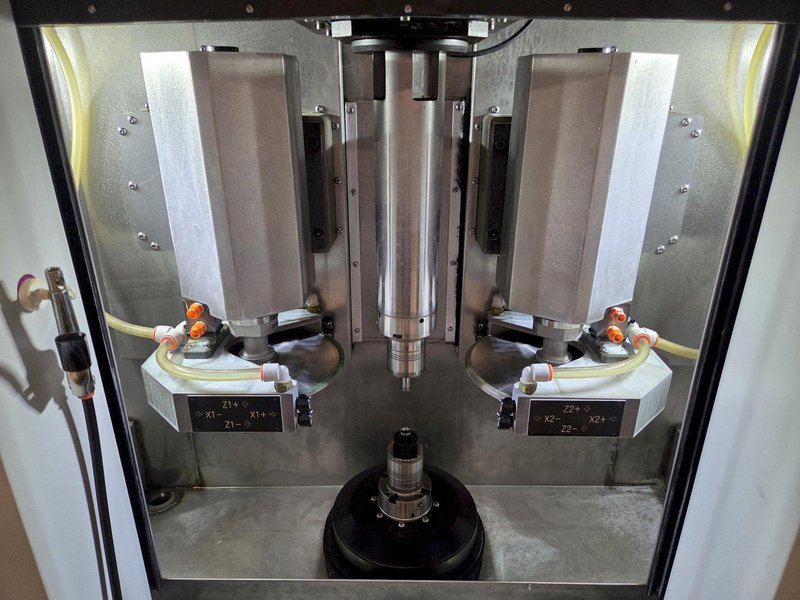

| Travels | Travels |
| X1 - AXIS TRAVEL | 68 mm (2.68”) |
| X2 - Axis Travel | 68 mm (2.68”) |
| Z1 - Axis Travel | 130 mm (5.12”) |
| Z2 - Axis Travel | 130 mm (5.12”) |
| Z3 - Axis Travel | 93 mm (3.66”) |
| C1 - Axis Travel | 360° Continuous |
| C2 - Axis Travel | 360° Continuous |
| Repeatable Positioning Accuracy - New Spec | +/- 0.001 mm |
| Communication Interface | Communication Interface |
| Ethernet | Standard |
| USB | Standard |
| Machine Dimensions - L X W X Ht. | Width: 1,278 mm (50.3”) x Depth: 2,032 mm (80”) x Height: 2,282 mm (89.8”) |
| Machine Weight | 2,494 kg (5,500 lbs.) |
| Voltage / Power Requirement | Electrical : 480V +/- 10%, 58A |
| Air Requirement | 100PSI, 5 CFM clean dry air |
|

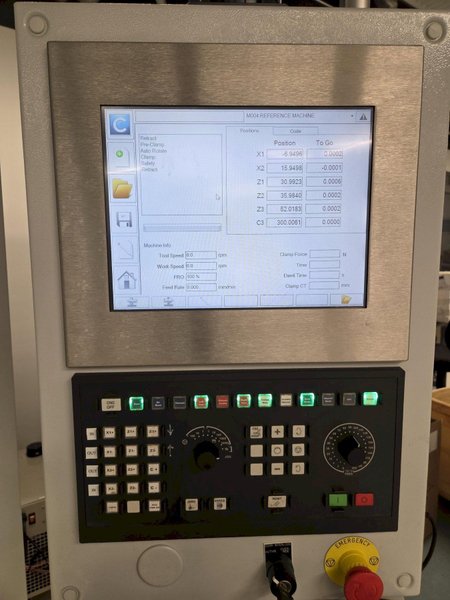

Control: PRO 160C CNC
C Series Optical Centering Software Multiple advanced features: PRO 160C CNC centering machine delivers efficient and precise processing of optical glasses, ceramics, and IR materials in a variety of shapes and sizes. Shapes to Grind: Planos, Spheres, Aspheres, Cylinders Acylinders, Prisms, Freeforms Rigid granite base Functionality: Non-circular lens shapes (truncations), facets, steps, bevels, tapers and freeform edge shaping High quality centering bells minimize any damage risk to the surface of the clamped optic. Three options to center the workpiece – laser alignment via transmission or reflection, centering with dial indicator, or self centering. Proficient bell clamping technology minimizes setup time Intuitive Edge Detection Center thickness compensation ensures accurate bevels and sag flats. |
|
