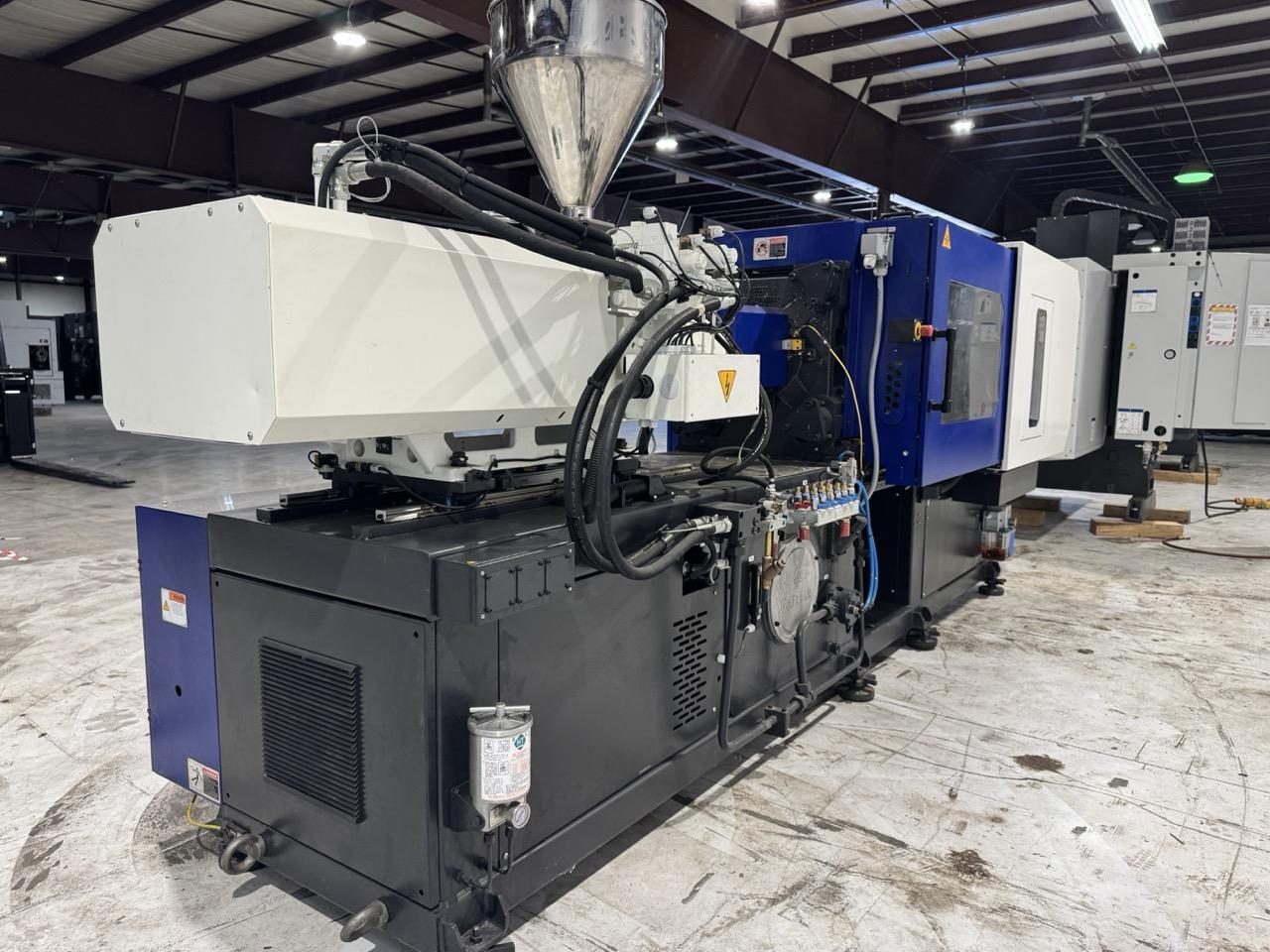

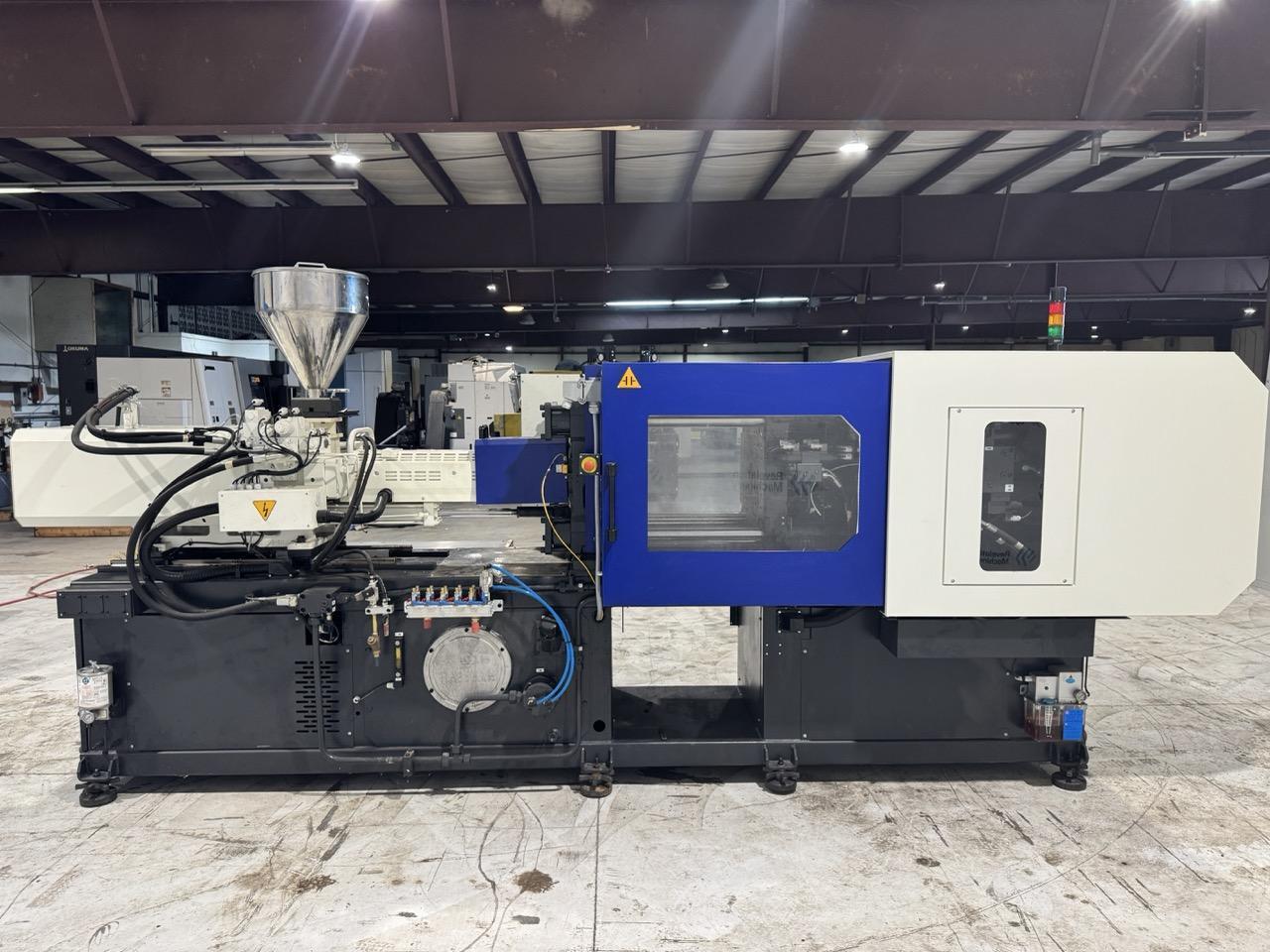

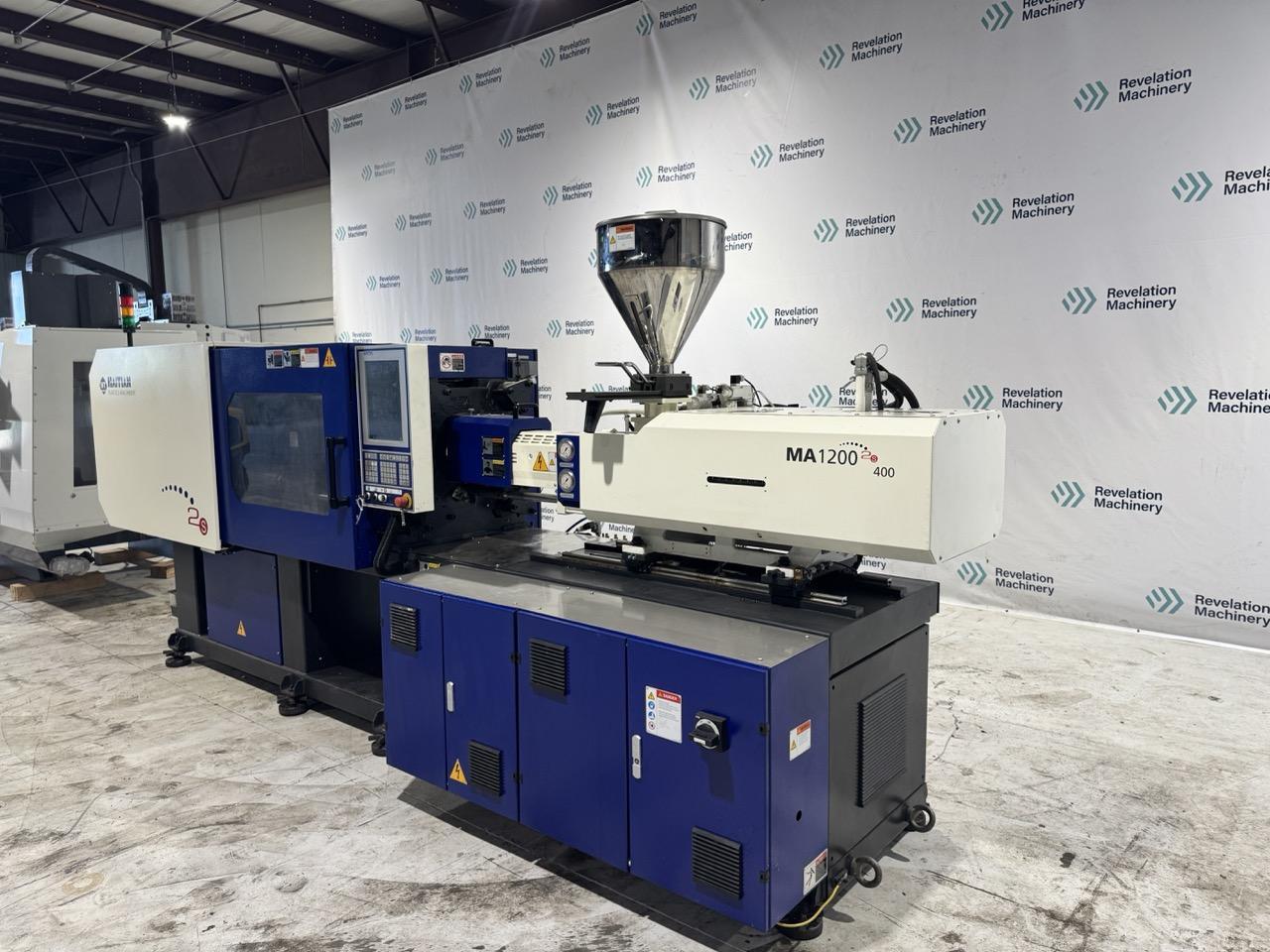

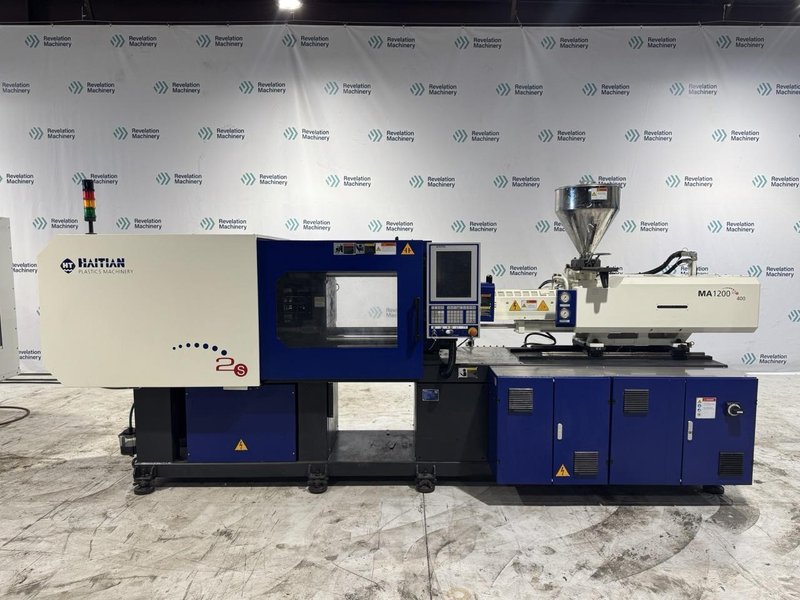

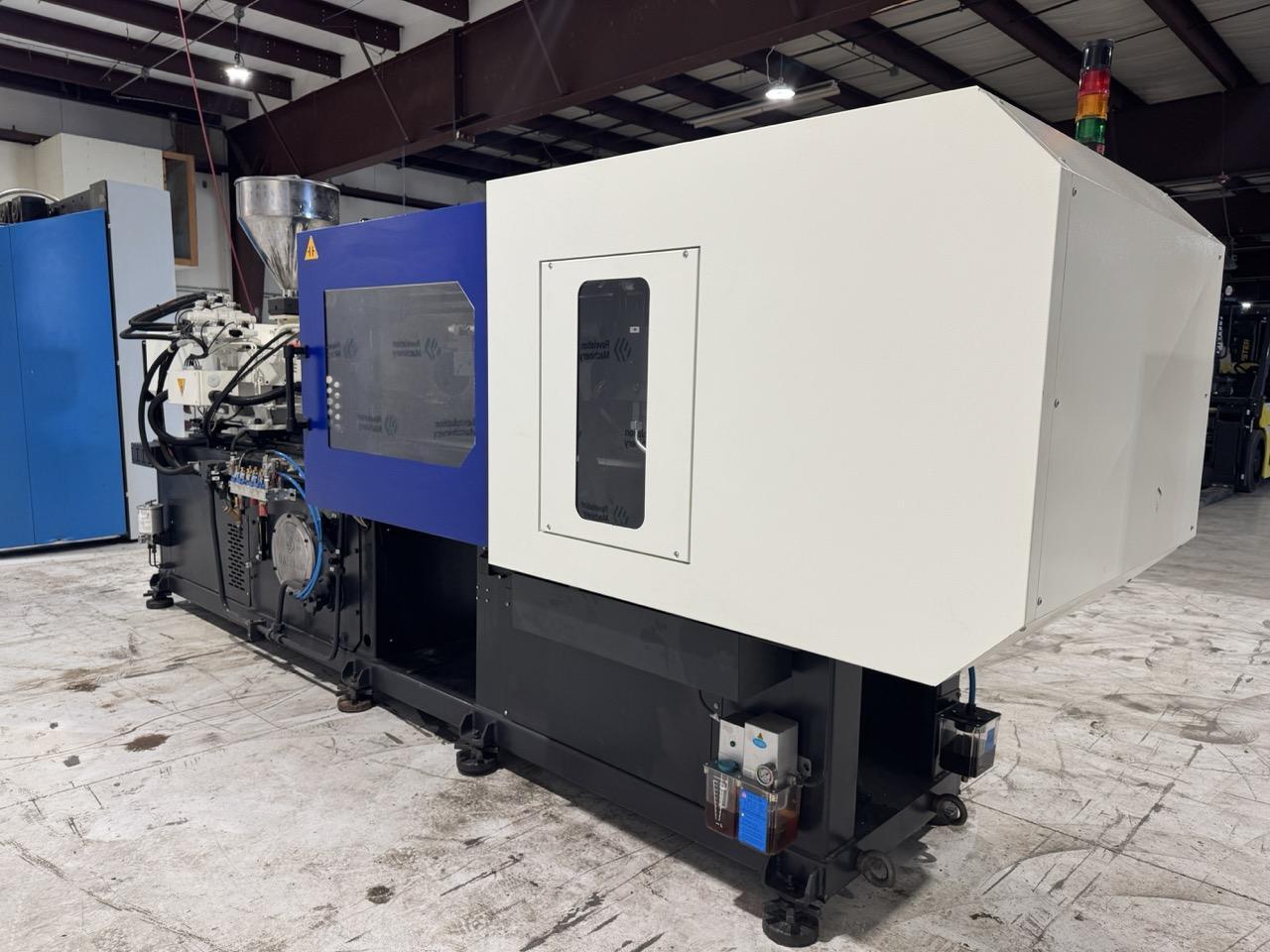

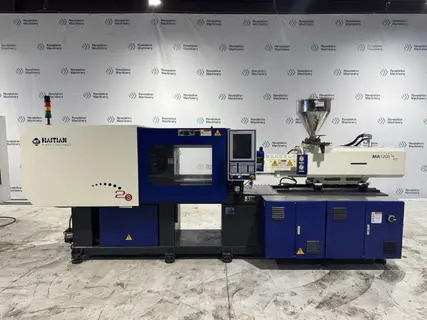

Haitian MA II S 1200/400 Injection Molding Machine, 2020 – 135 Ton Servo Hydraulic Press – Energy Efficient Plastic Molder

Clean late-model 2020 Haitian MA II S 1200/400 injection molding machine with servo-hydraulic efficiency, 135-ton clamping force, and production-ready performance for general plastic molding applications.

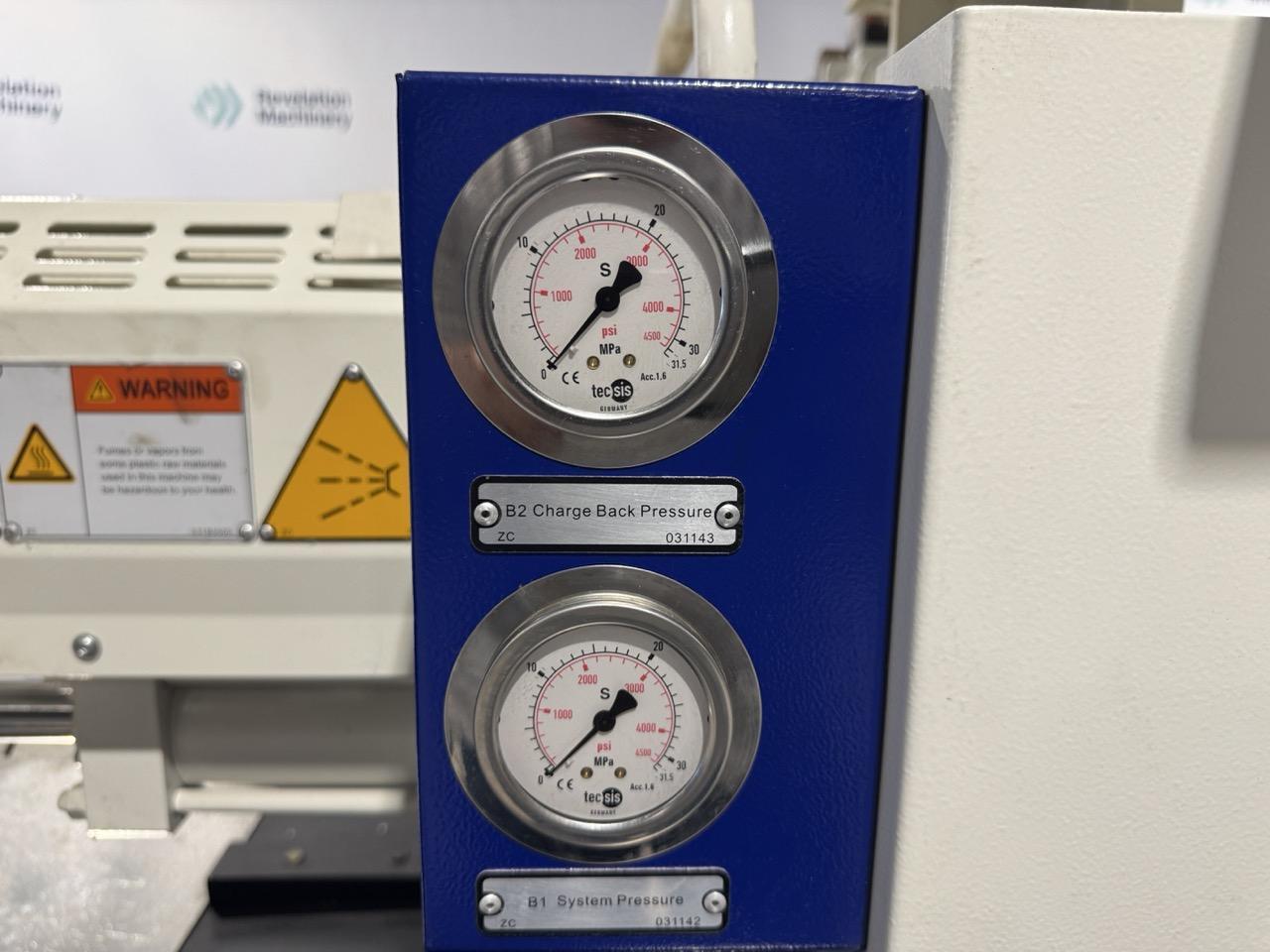

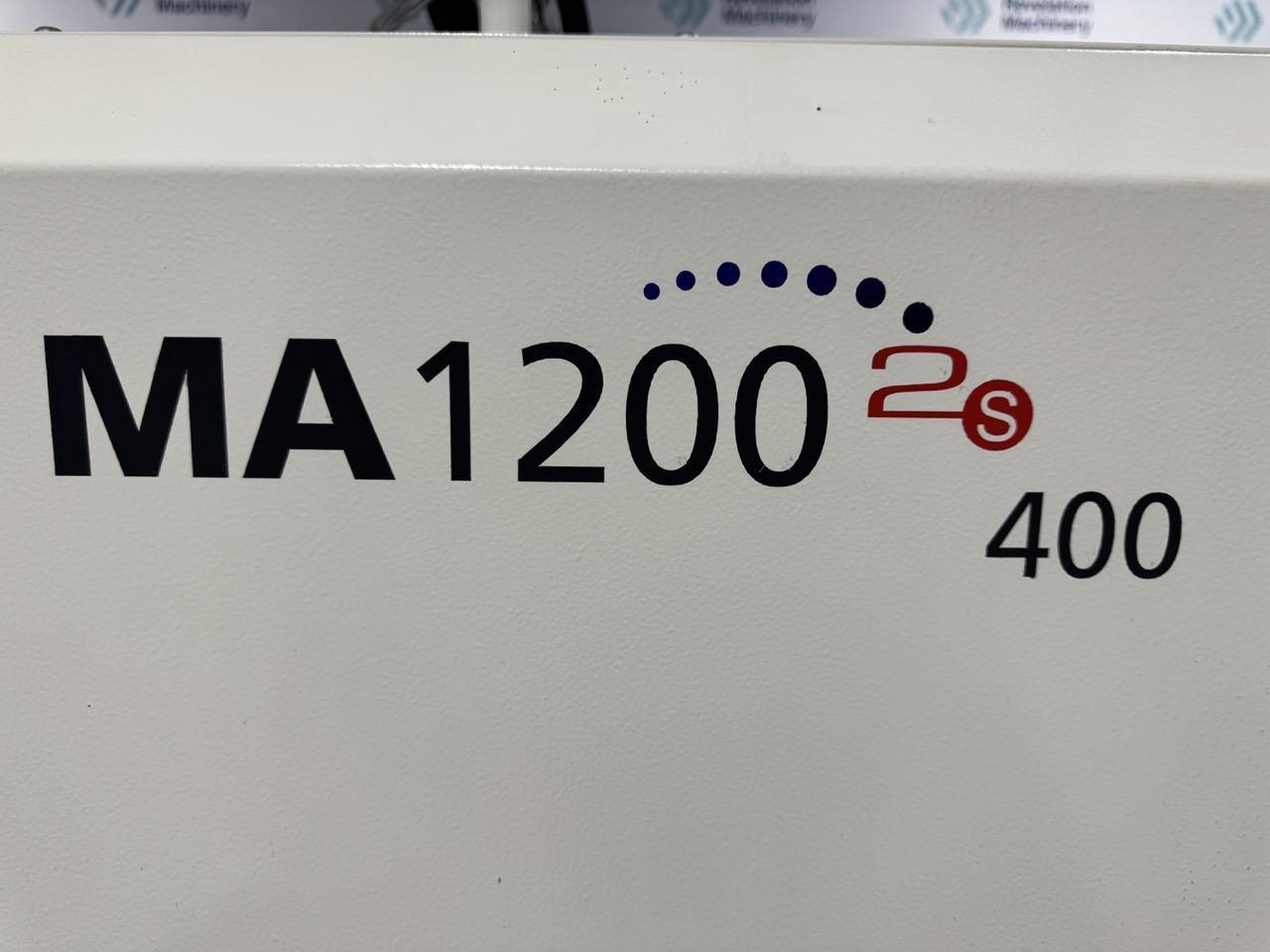

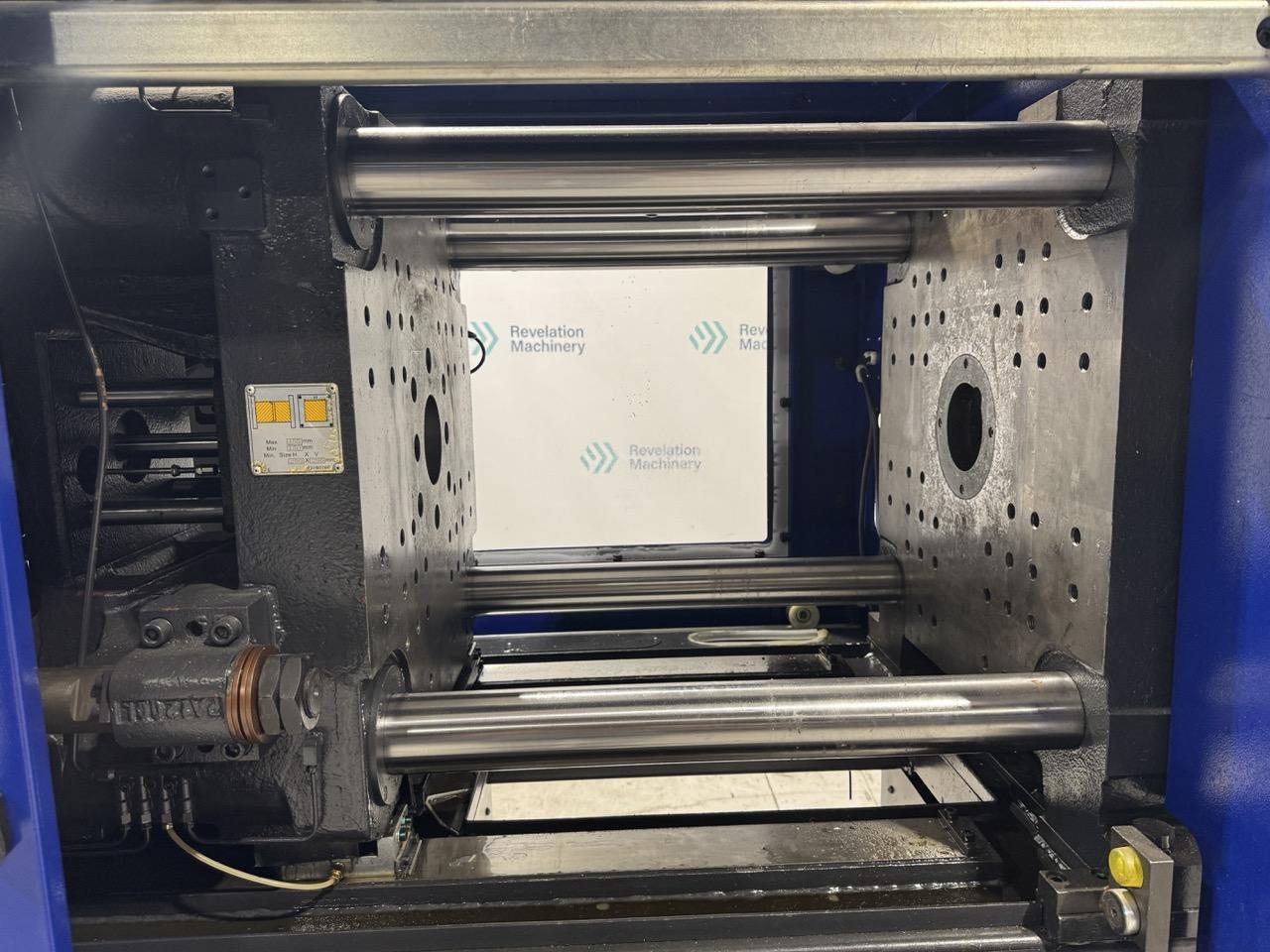

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Year: 2020 Make: Haitian Model: MA II S 1200/400 Machine Type: Horizontal servo-hydraulic injection molding machine. Clamping Force: 1200 kN / about 135 tons. Injection Unit: 400 series; an earlier Mars II spec sheet shows the closely related MA1200 II /410 platform. Screw Diameter: 36 / 40 / 45 mm depending on installed screw package. Shot Size (theoretical): 173 / 214 / 270 cm³ depending on screw diameter. Injection Weight (PS): 157 / 195 / 246 g depending on screw diameter. Injection Rate: 112 / 139 / 176 g/s depending on screw diameter. Injection Pressure: 236 / 192 / 151 MPa depending on screw diameter. Toggle Stroke: 360 mm. Space Between Tie Bars: 410 x 410 mm. Max. Mold Height: 450 mm. Min. Mold Height: 150 mm. Ejector Stroke: 120 mm. Max Pump Pressure: 33 MPa. Pump Motor Power: 15 kW. Heater Power: 9.95 kW. Machine Dimensions: 4.88 x 1.20 x 2.03 m. Machine Weight: 9,600-10,100 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
