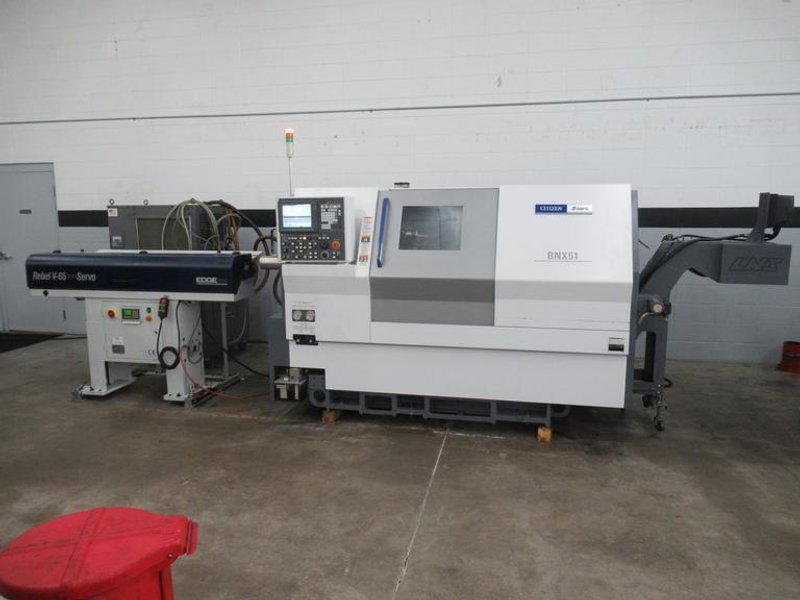

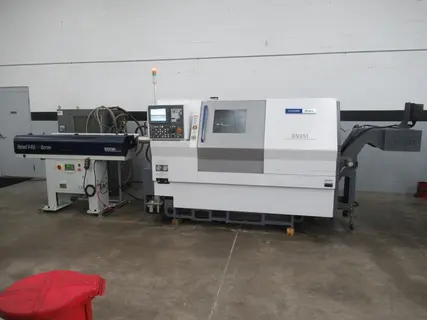

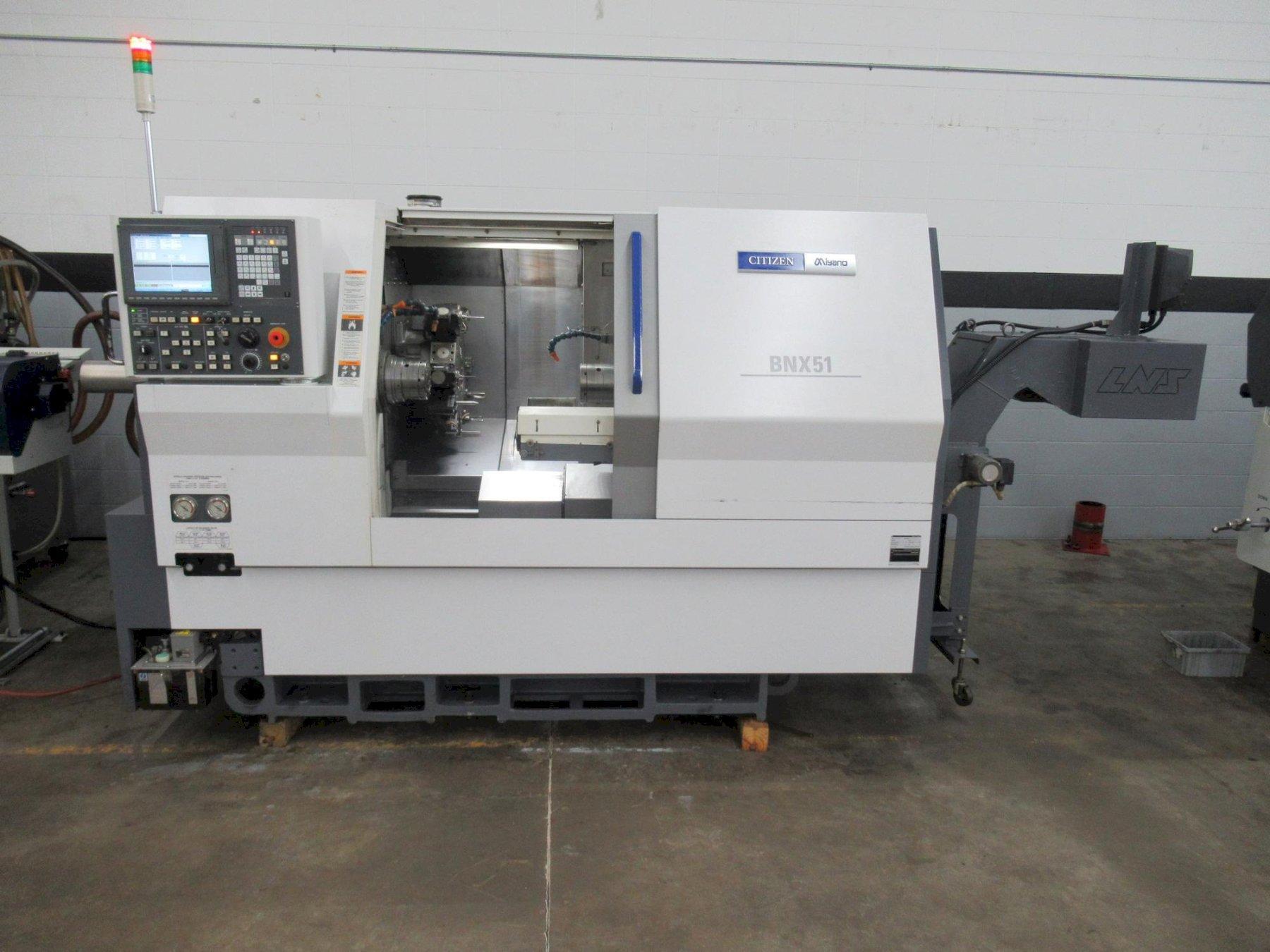

Miyano BNX-51MSY CNC Turning Center with Live Milling, Y-Axis, Sub Spindle, Bar Feed, Chip Conveyor (2017)

Miyano BNX-51MSY CNC Turning Center with Live Milling, Y-Axis, Sub Spindle, Bar Feed, Chip Conveyor (2017)

Name: Miyano BNX-51MSY CNC Turning Center with Live Milling, Y-Axis, Sub Spindle, Bar Feed, Chip Conveyor (2017)
Brand: Unknown
SKU: 7347
Availability: InStock

Brand

Not specified

Location

Minnesota

REQUEST FINANCING

Specifications
Files & Videos

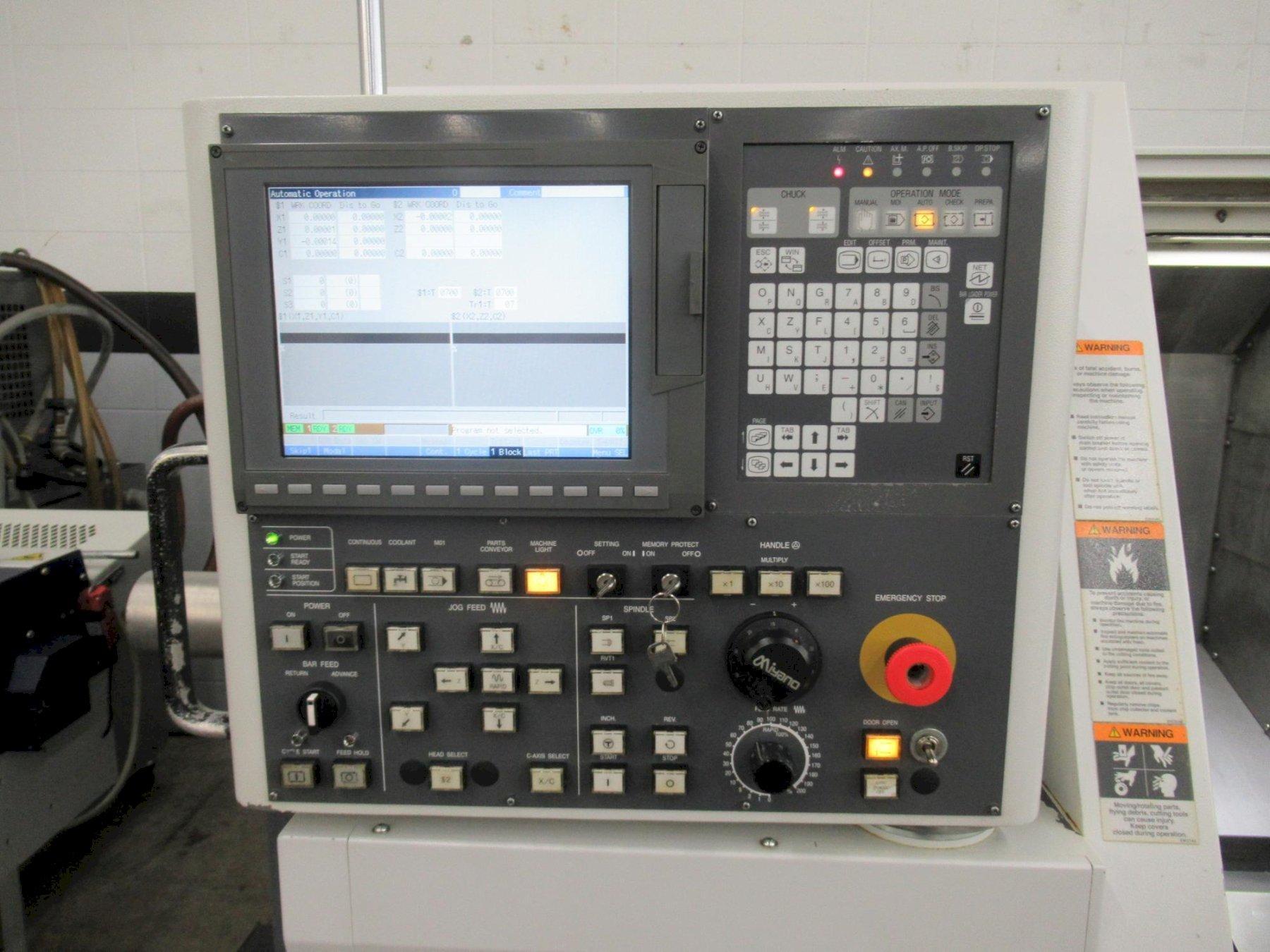

Control: Citizen Miyano Mitsubishi M70V Control

Standard Bar Capacity: 2"

Max Cutting Length: 5.91"

Turret Travels (X / Y / Z): 6.49" X +/- 1.57" x 11.81"

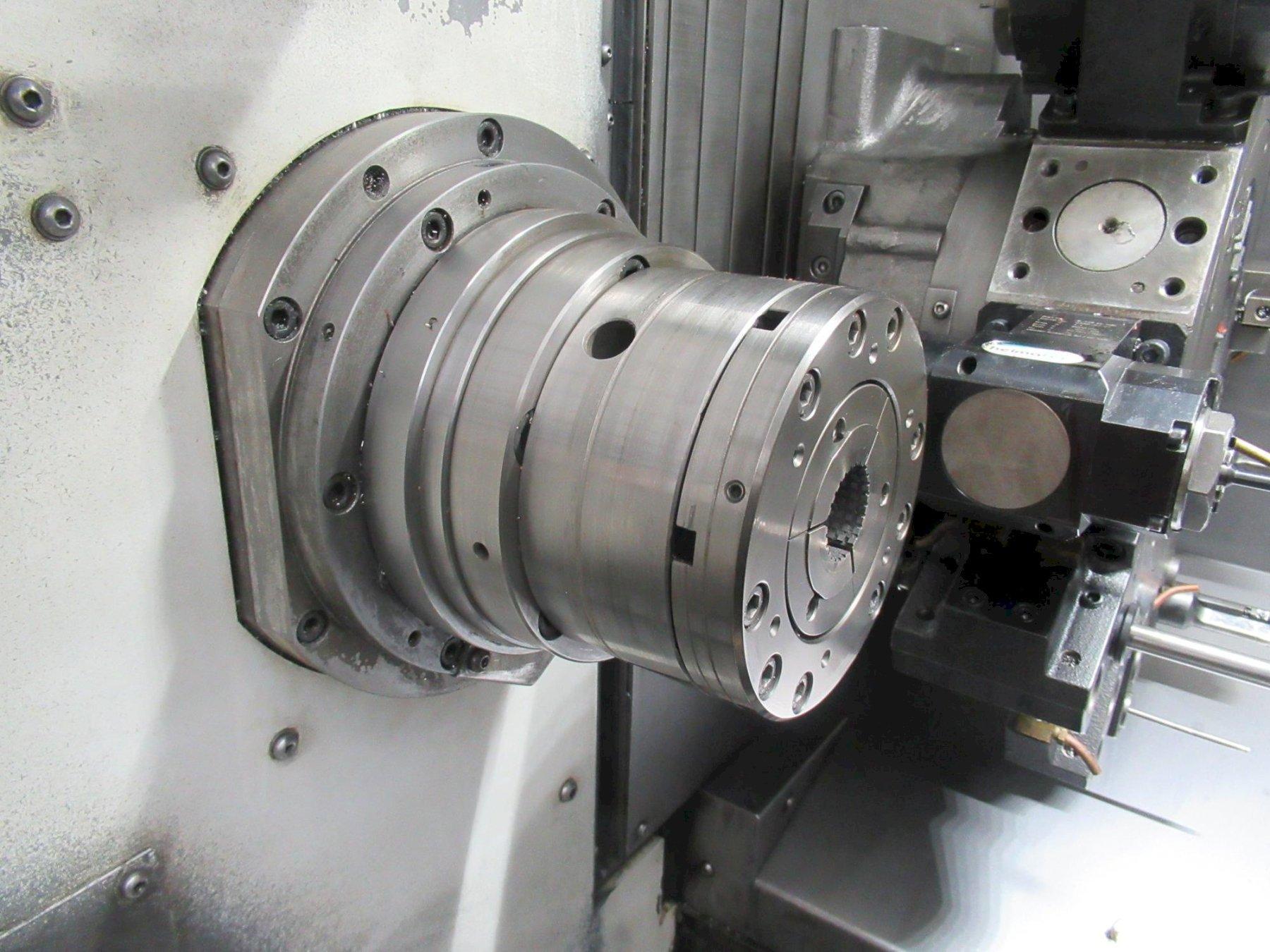

Main Spindle Chuck Size: (6" Max) Currently Equipped with H-S22 Collet Chuck

Main Spindle Speed: 50 - 5,000 RPM

Main Spindle Drive: 20HP 15/11 kW

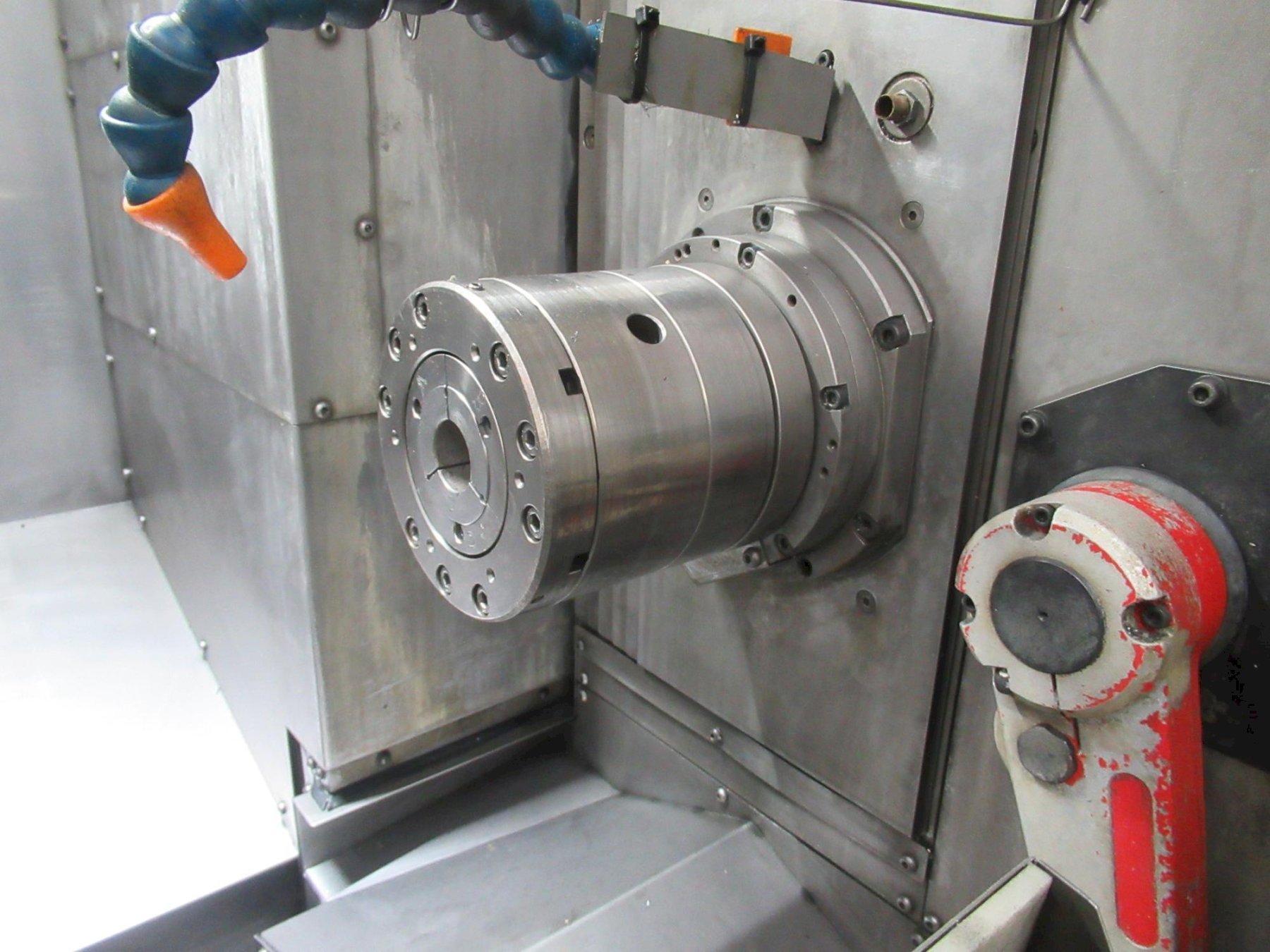

Secondary Spindle Chuck Size: (5") Currently Equipped with H-S22 Collet Chuck

Secondary Spindle Speed: 50 - 5,000 RPM

Secondary Spindle Drive: 10 HP 7.5/5.5 kw

C-Axis Capability: Full C-Axis on Left & Right Spindles (.001 Degree)

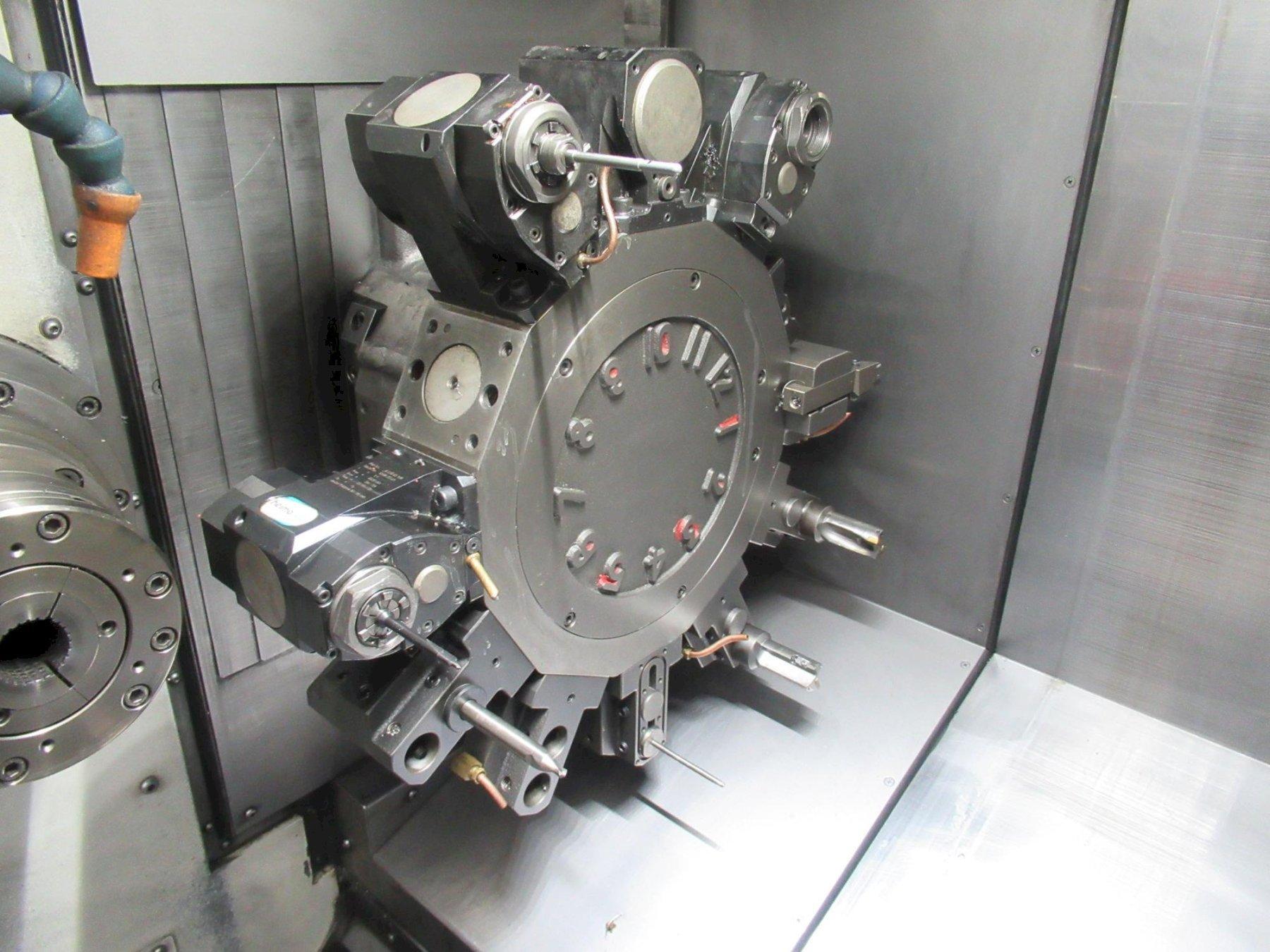

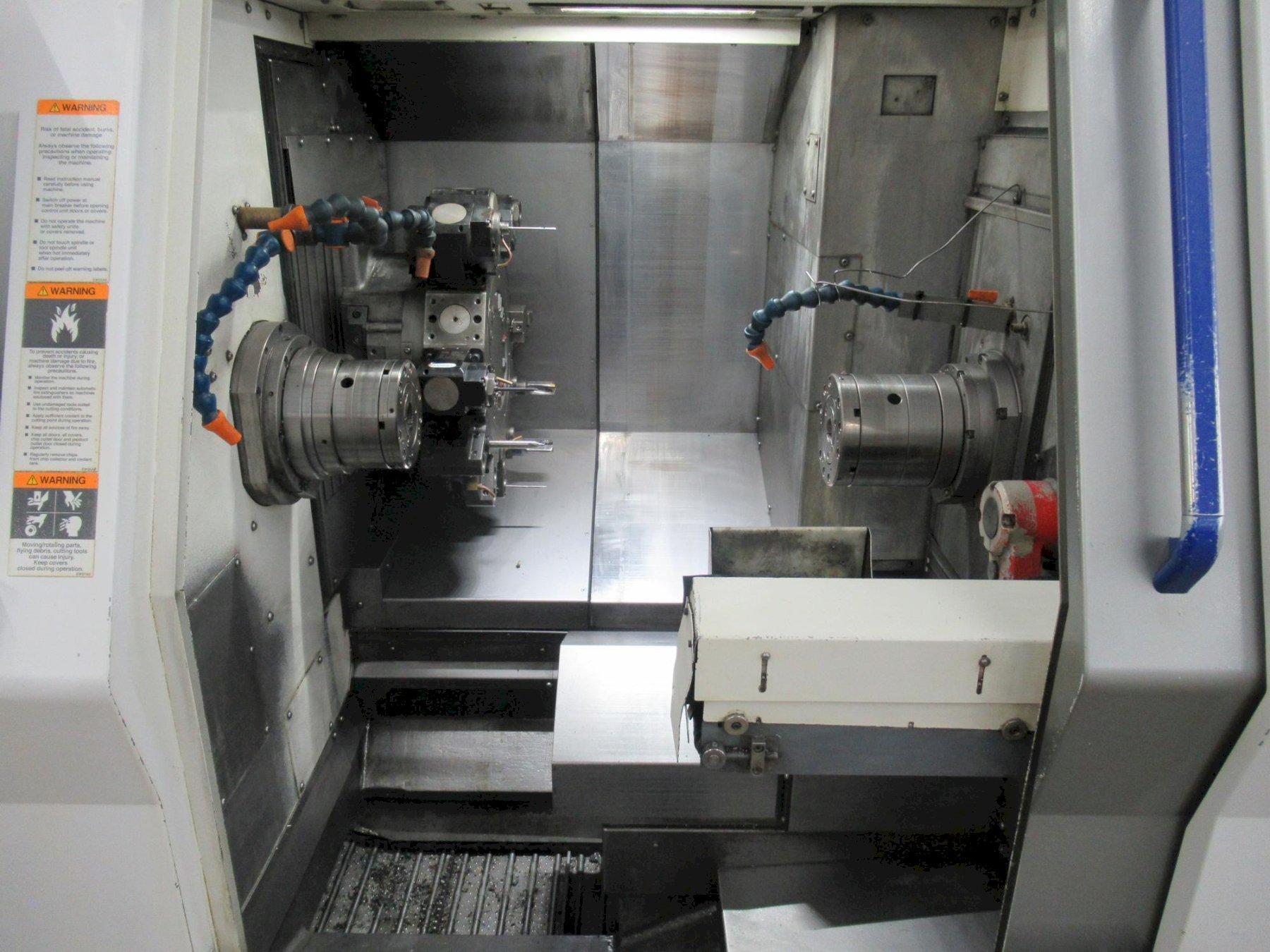

Turret Capacity: 12 Stations - All Live Capable

Rotary Tool Speed (Turret): 40 - 6,000 RPM

Rotary Tool Drive (Turret): 5.36 HP (4KW)

Spindle Slide Stroke X2 / Z2: Spindle 2 Travels: 3.38" X 21.77"

Rapid Feed Rate ( X1, Z1, X2, Z2) & (Y1): 787 IPM & 472 IPM (Y)

Description:

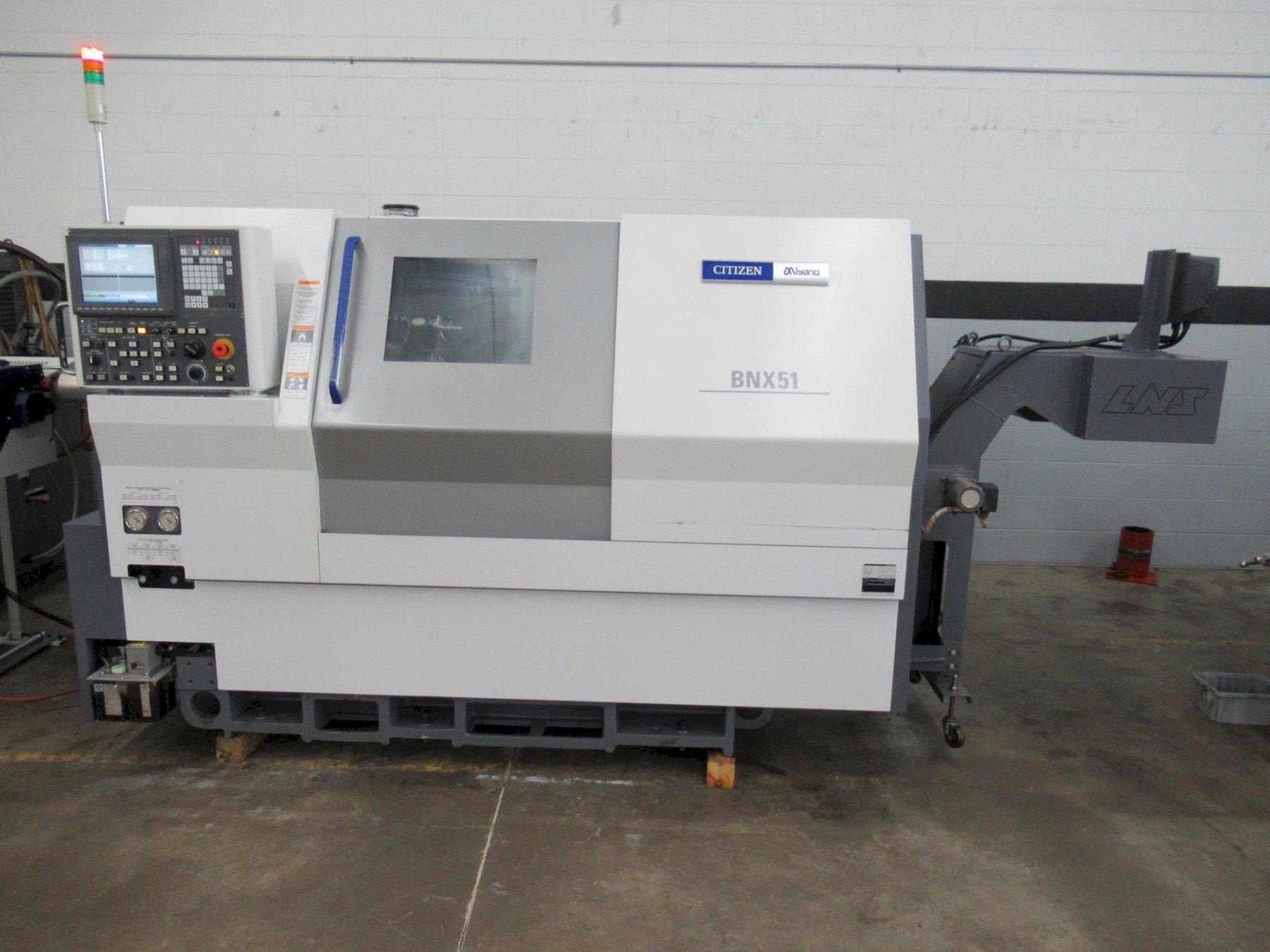

The Miyano BNX‑51MSY CNC lathe is a high-precision, twin‑spindle turning center designed for complex part production and bar-fed, high-volume manufacturing. Featuring main and sub‑spindles, Y‑axis capability, and live tooling, the BNX‑51MSY delivers exceptional flexibility and accuracy in a compact footprint. This model is widely used in demanding production environments where precision, reliability, and uninterrupted operation are critical.

Equipped With:

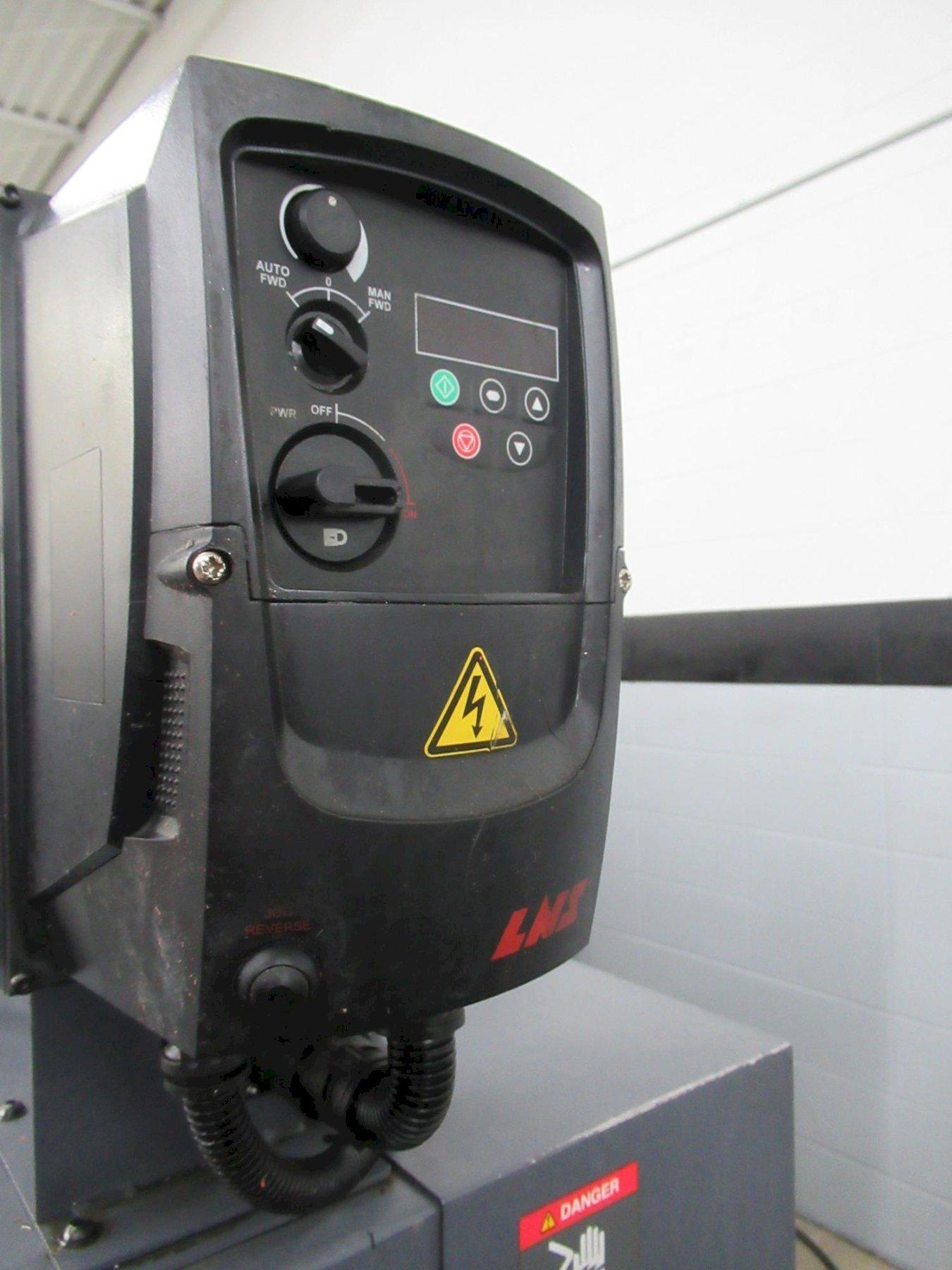

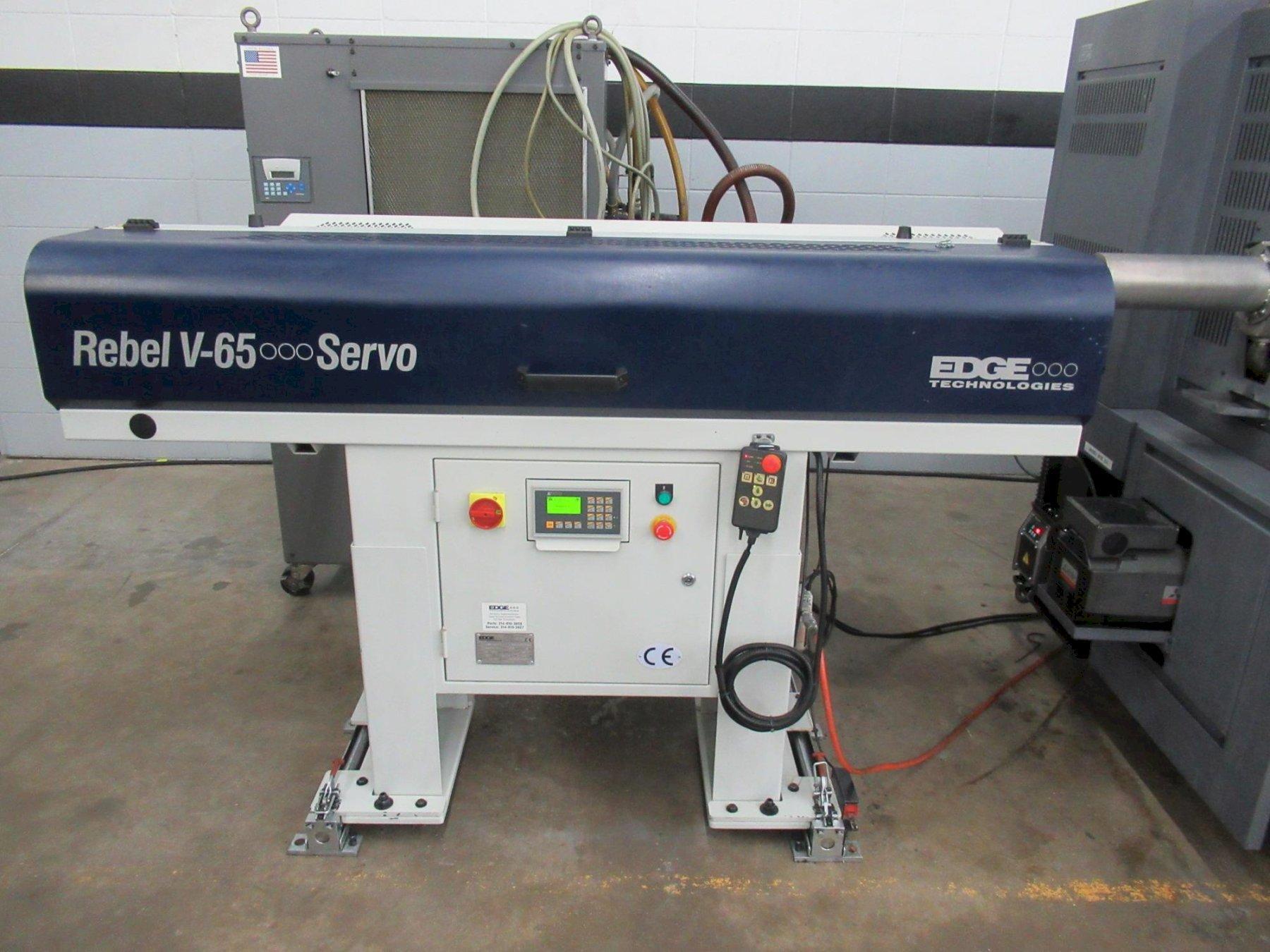

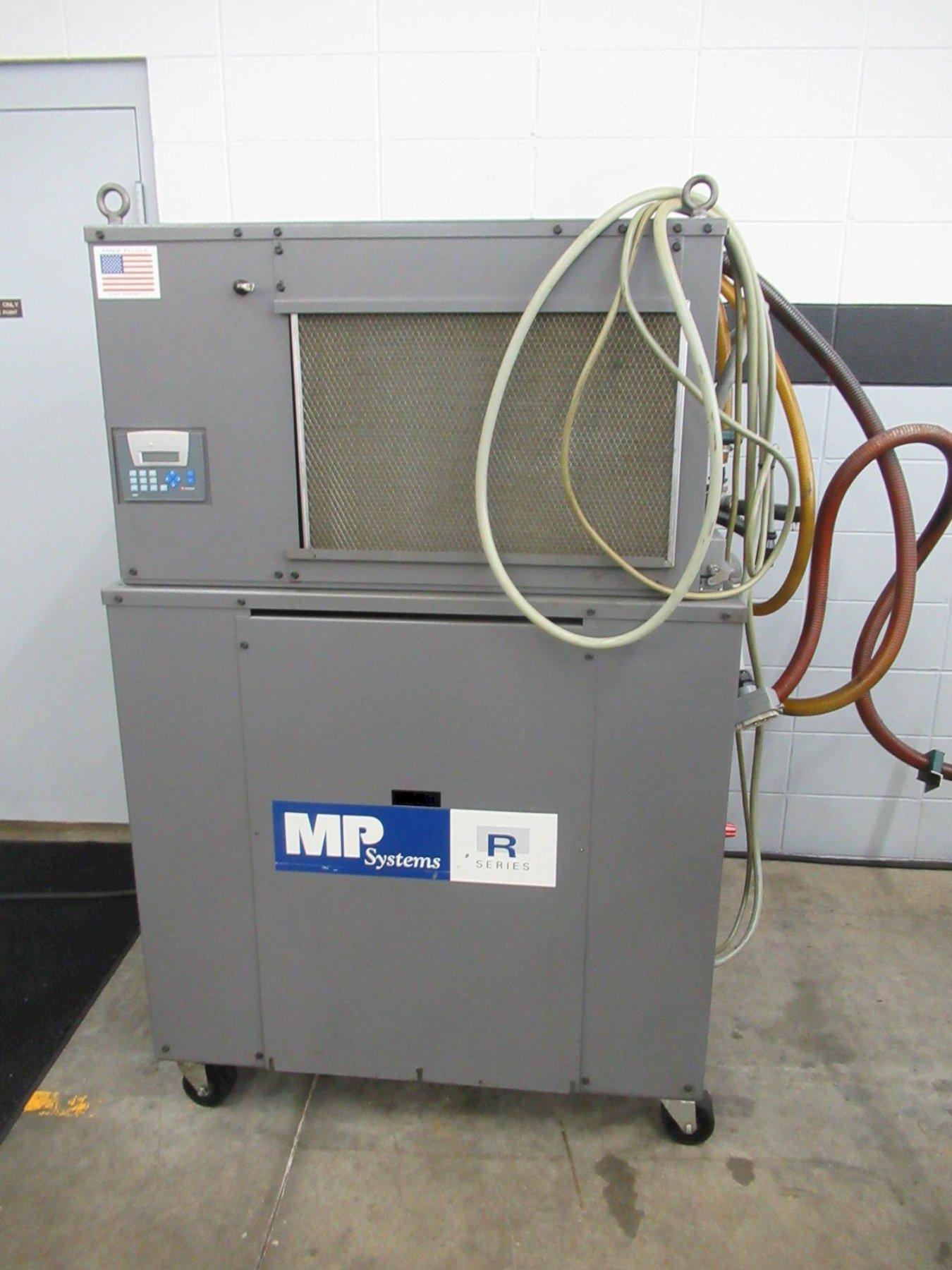

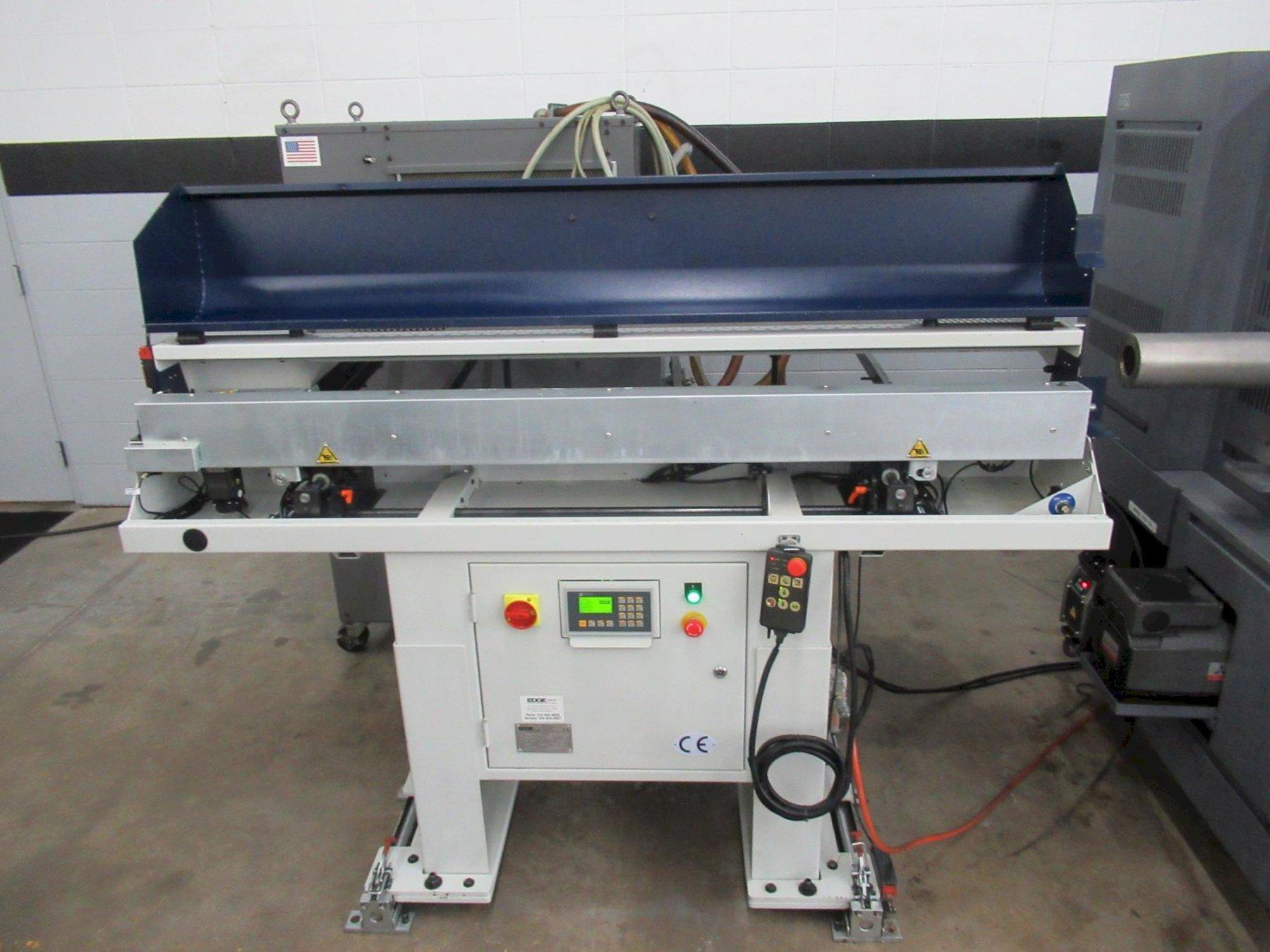

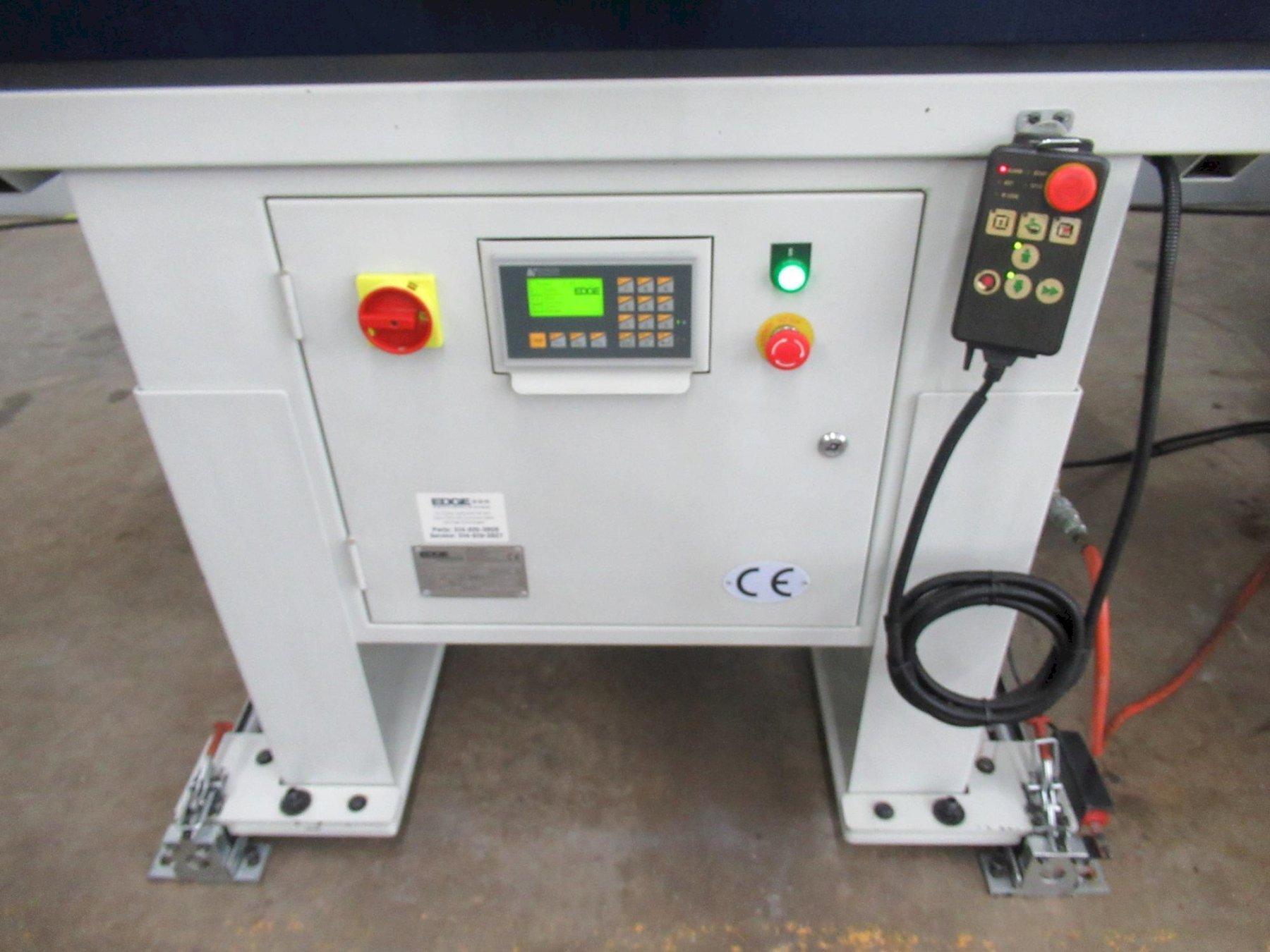

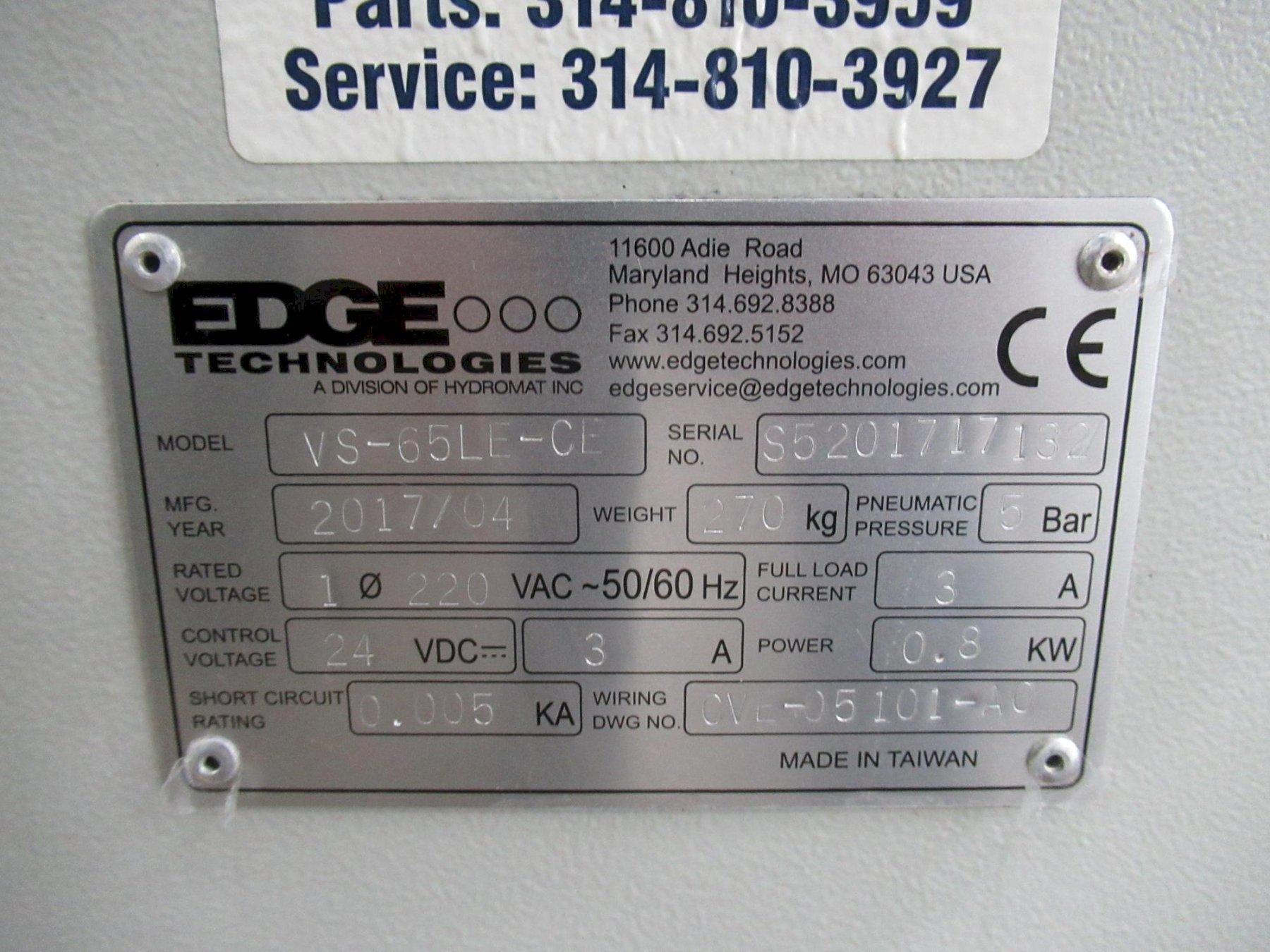

Citizen Miyano CNC Control (Mitsubishi M70V), 7-Axis Operation (X1, Z1, Y1, X2, Z2, C1, C2), 5,000 RPM 20HP Left Spindle with Full C-axis, 5,000 RPM 15 HP Right Spindle with Full C-Axis, H-S22 Collet Chucks on Main & Sub Spindles with 2" Bar Capacity, 12 Station Turret with Y-Axis and 5.3HP Live Tool Drive on All Stations, Edge Rebel V-65 Servo Magazine Bar Feed and Spindle Liner, LNS Chip Conveyor, Parts Catcher, Parts Conveyor, MP Systems 1000 PSI High Pressure Coolant W Chiller, Complete Coolant System, (4) Axis Live Tool Holders, Asssorted Static Turret Tool Holders, Transformer, Machine Manuals

Electrics:

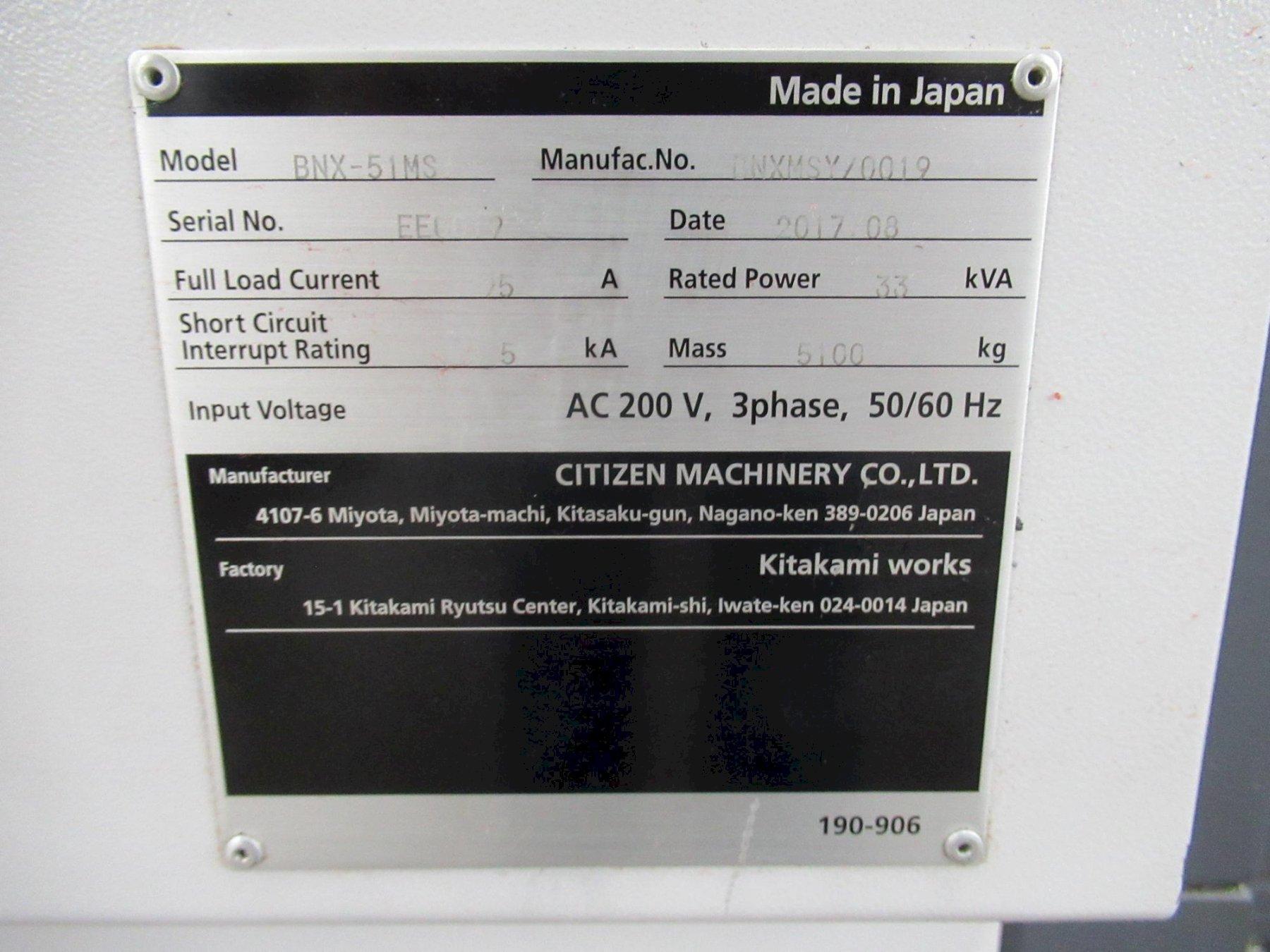

200V, 3 Phase
