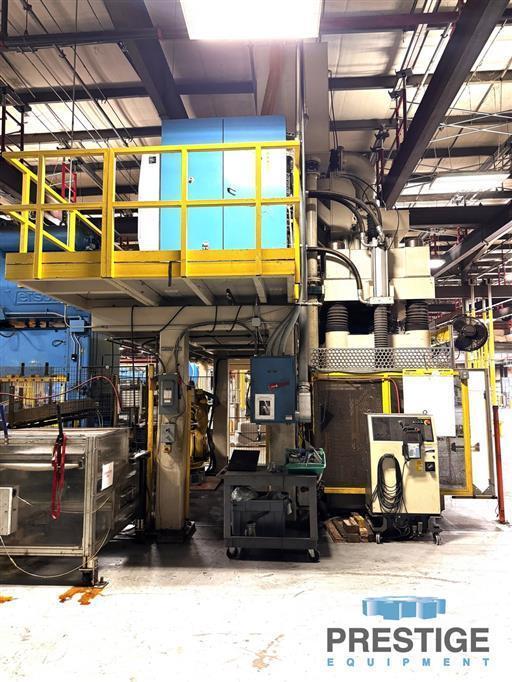

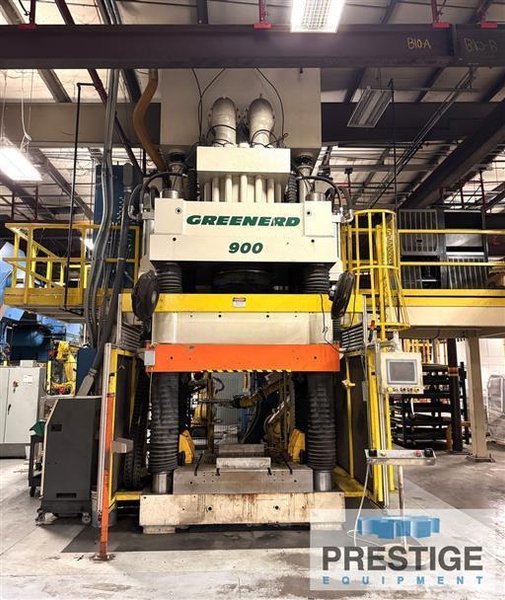

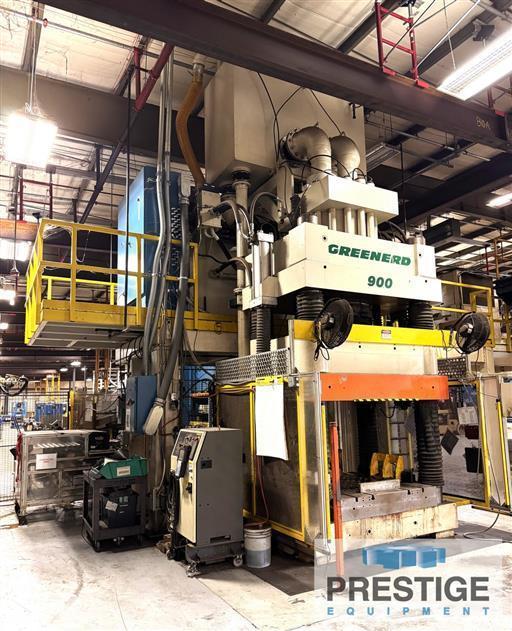

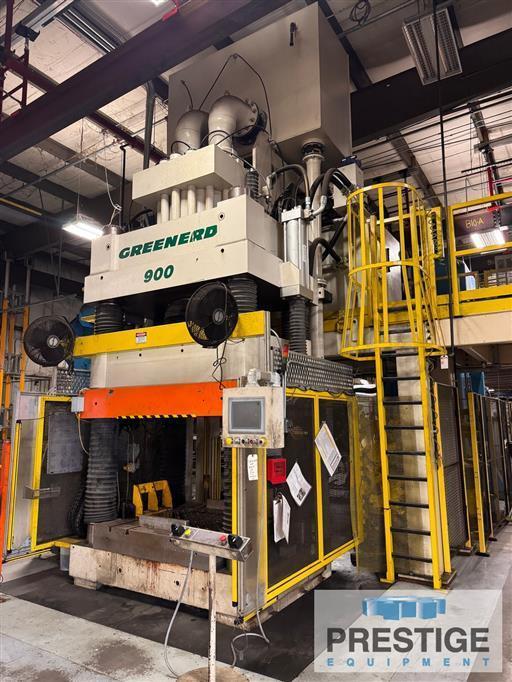

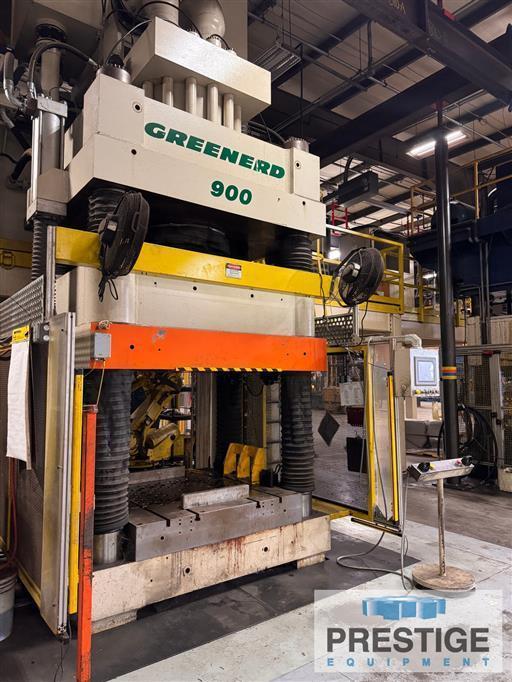

Presses Hydraulic

CAPACITIES:
Main Cylinder 180 - 900 Tons
Cushion Cylinder 140 - 700 Tons
Main Cylinder Work Area 60" x 60"
Bed Bolster 60" x 60"
Main Cylinder Open Height 51"
Main Cylinder Stroke, Adjustable 24"
Main Cylinder Shut Height 27"
Main Cylinder Ram Diameter 24"
Cushion Cylinder Platen 48" L-R x 36" F-B
Cushion Cylinder Stroke 19"
Cushion Cylinder Open Height 36"
Estimated Overall Weight 150,000 Lbs.
SPEEDS:
Main Cylinder Rapid Advance 1382 IPM
Main Cylinder Pressing 53 IPM
Main Cylinder Fast Return 1440 IPM
Cushion Cylinder Extend 607 IPM
Cushion Cylinder Retract 485 IPM



Equipped With:
Allen Bradley 10-1/2" Color Electronic Press Control
Upper Cylinder Blank Holder
Motors; 25, 50, 125 Soft Start, 1800 RPM
Water Cooled Heat Exchanger
Fanuc Loading Robot


NOTE: Inspect in Illinois Plant
Full Specifications and Drawings on Request
** New Cost in 2017 $1,130,060.00 **
