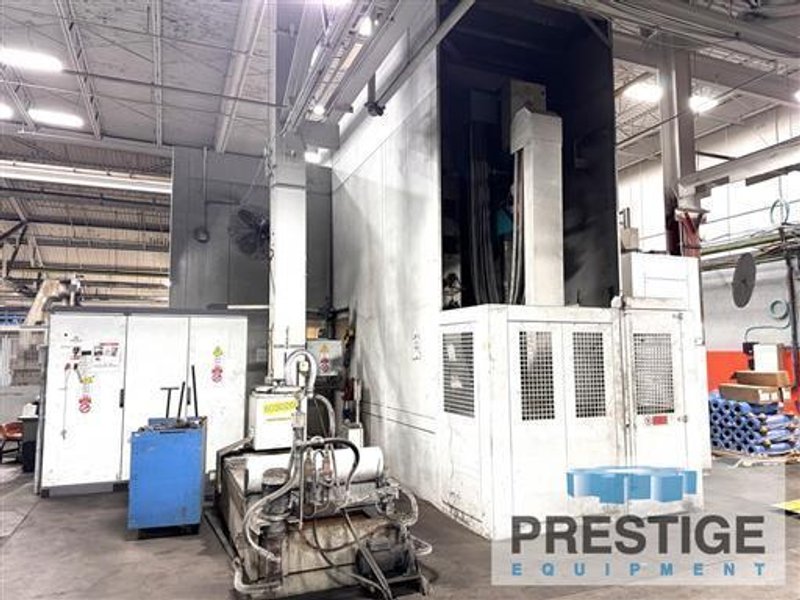

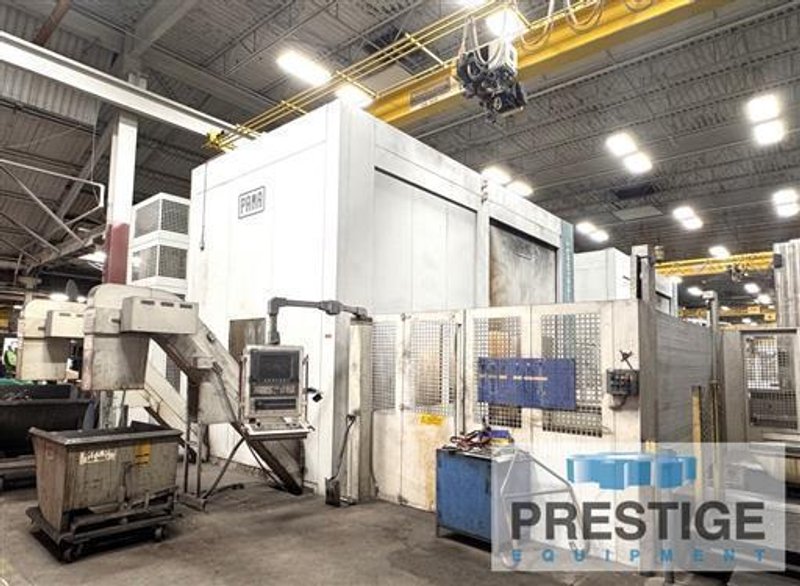

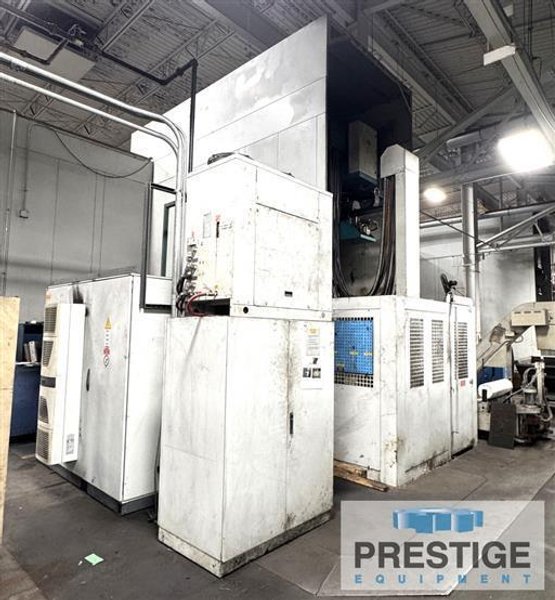

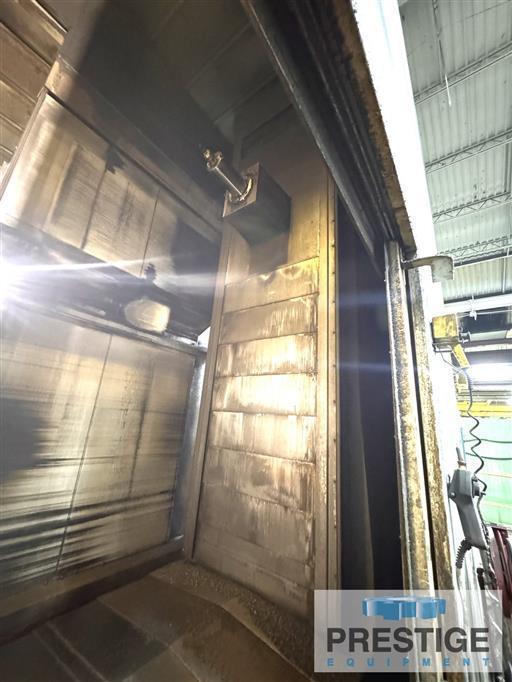

Boring Mills Horizontal Table Type CNC

SPECIFICATIONS:

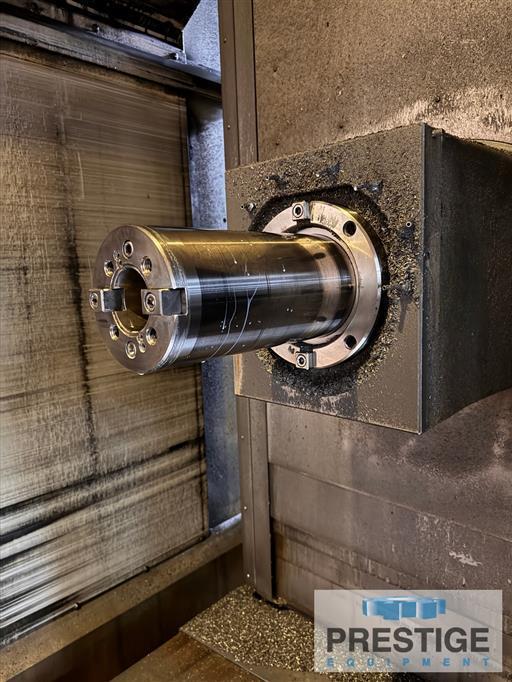

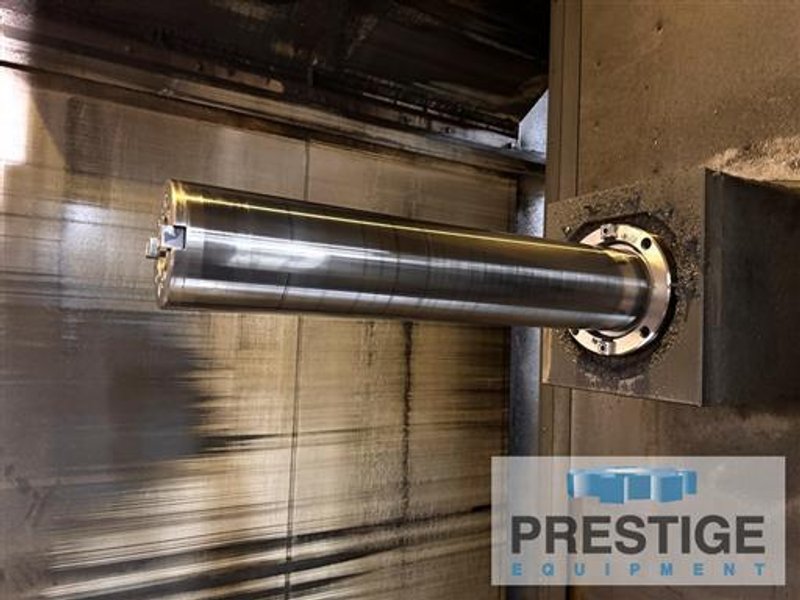

Spindle Diameter 6.3"
Vertical Travel Of Head, Y-Axis 118.11"
Cross Travel Of Table, X-Axis 78.74"
Saddle Travel, W-Axis 86.6"
Spindle Travel, Z-Axis 31.49"
Spindle Speeds, Max 3,500 RPM
Taper In Spindle #50
Spindle Motor 61 HP (46 KW)

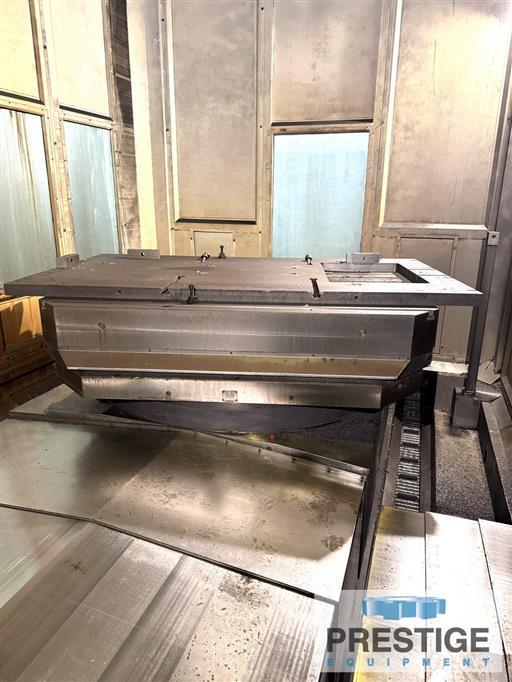

Table Size 70.86" x 78.76"
Table CapaCITY 26,400 LBS.
B-Axis, Table Rotation .001 degrees
Machine Electrics 480/60/3



Equipped With:

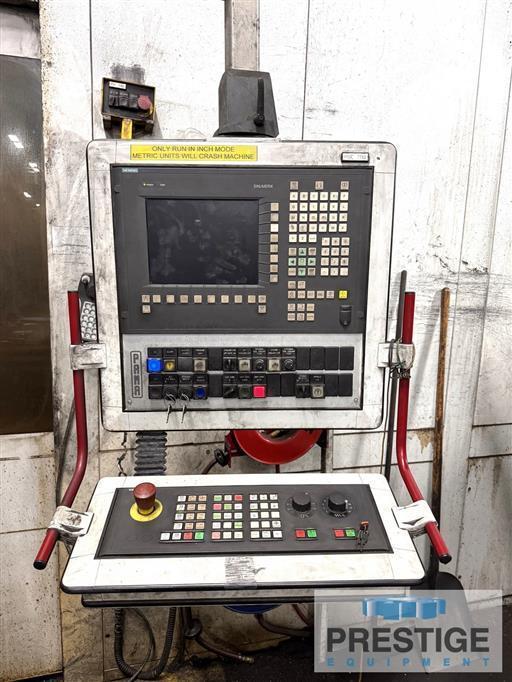

Siemens 840D Powerline CNC Control

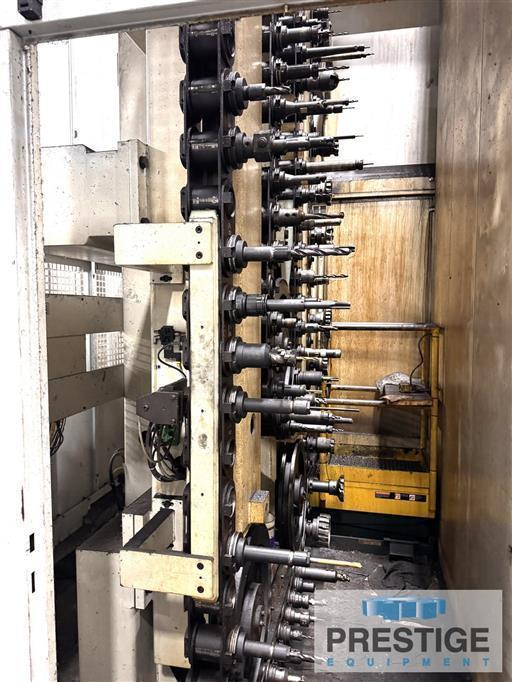

140-Station Automatic Tool Changer

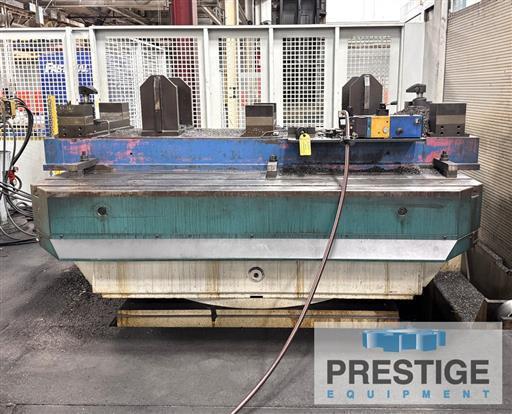

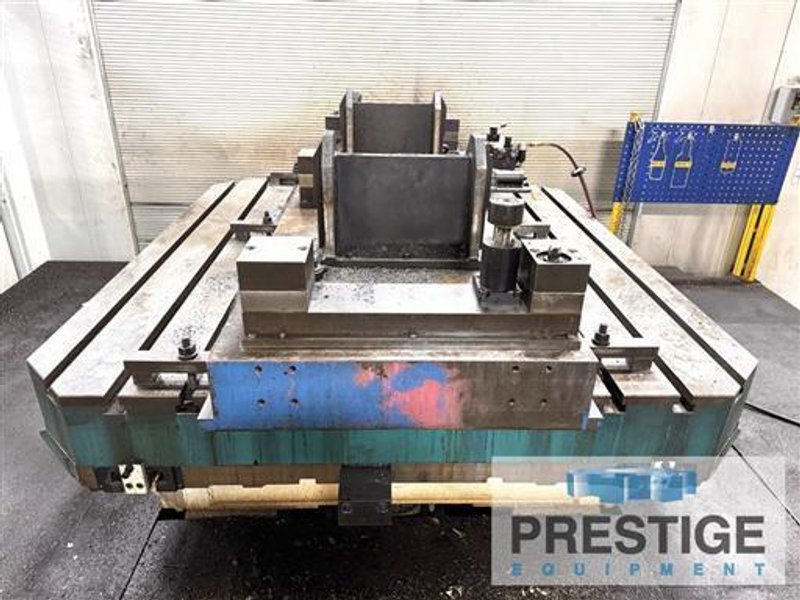

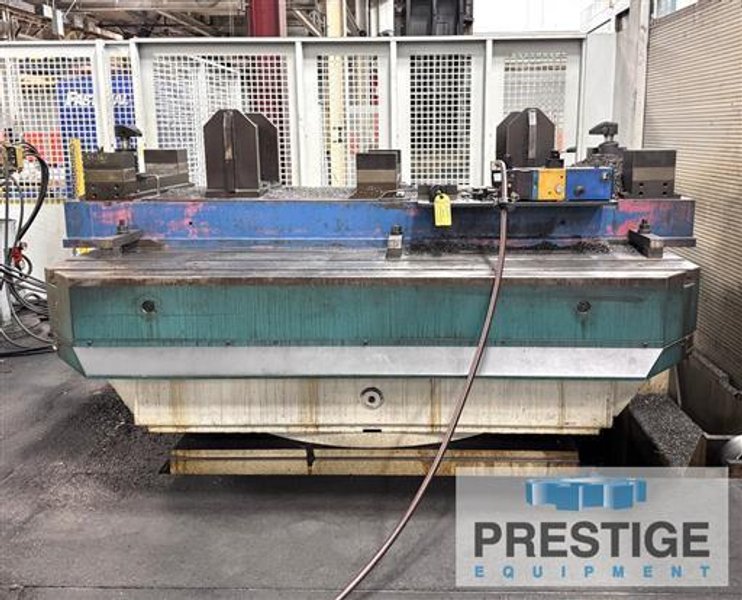

(2) 70.86" x 78.78" Pallets with Shuttle System
Ball Screw and Independent Servo Motors
Through Spindle and Flood Coolant System

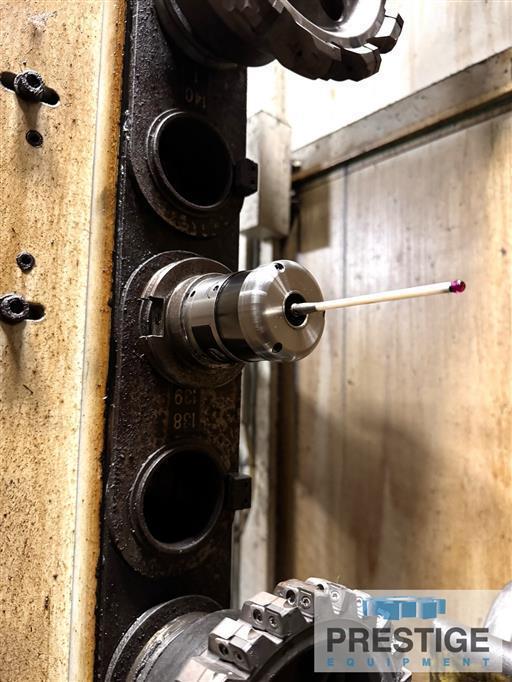

Renishaw Probe RMP-60

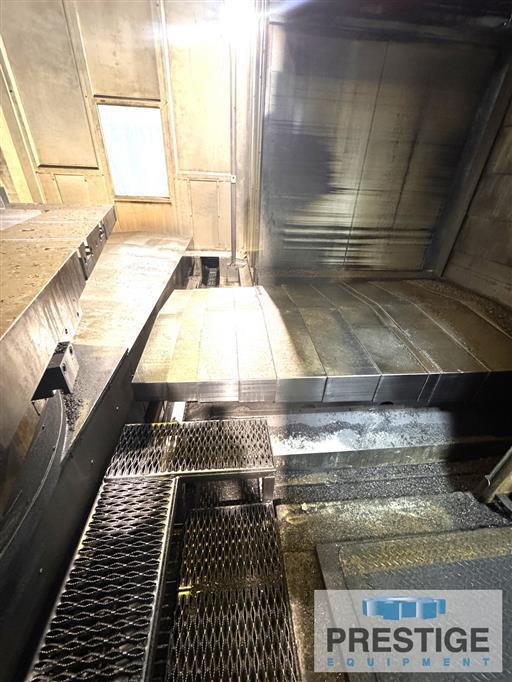

Steel Sliding Way Covers On X & W Axis

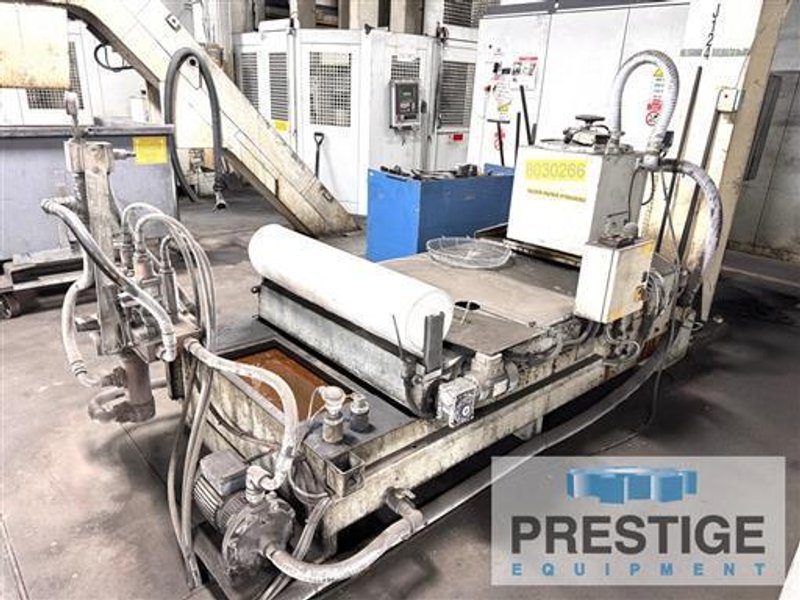

Chip Conveyor

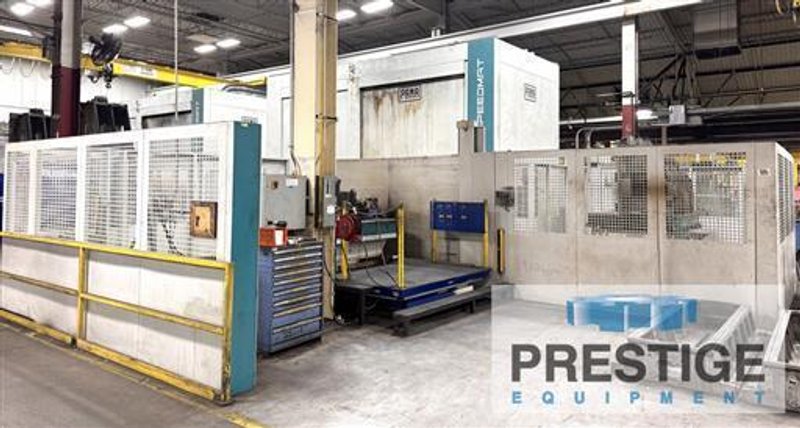

NOTE: 6-Pallet FMS System Available at Additional Cost
Inspect Under Power In Plant!
