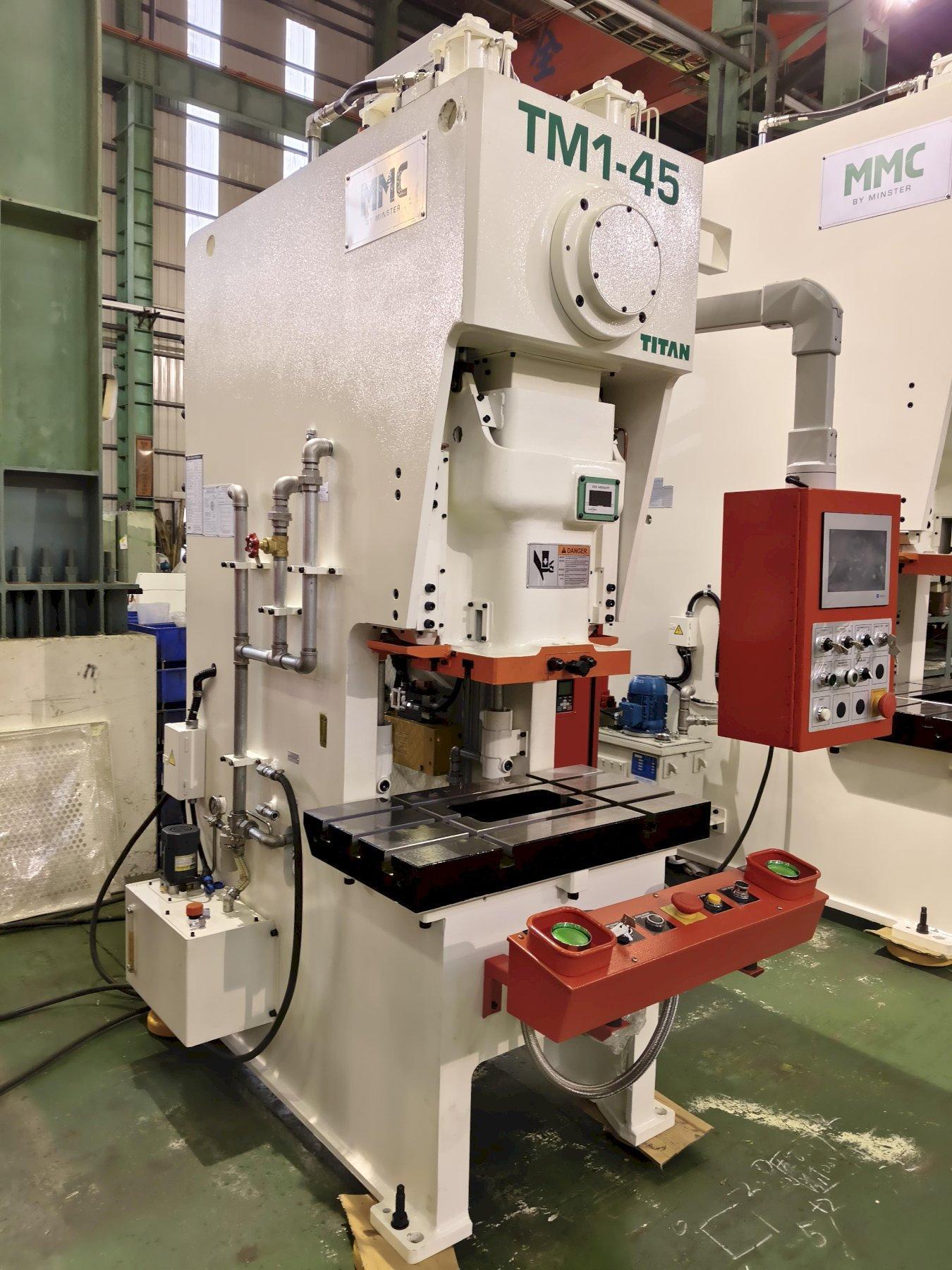

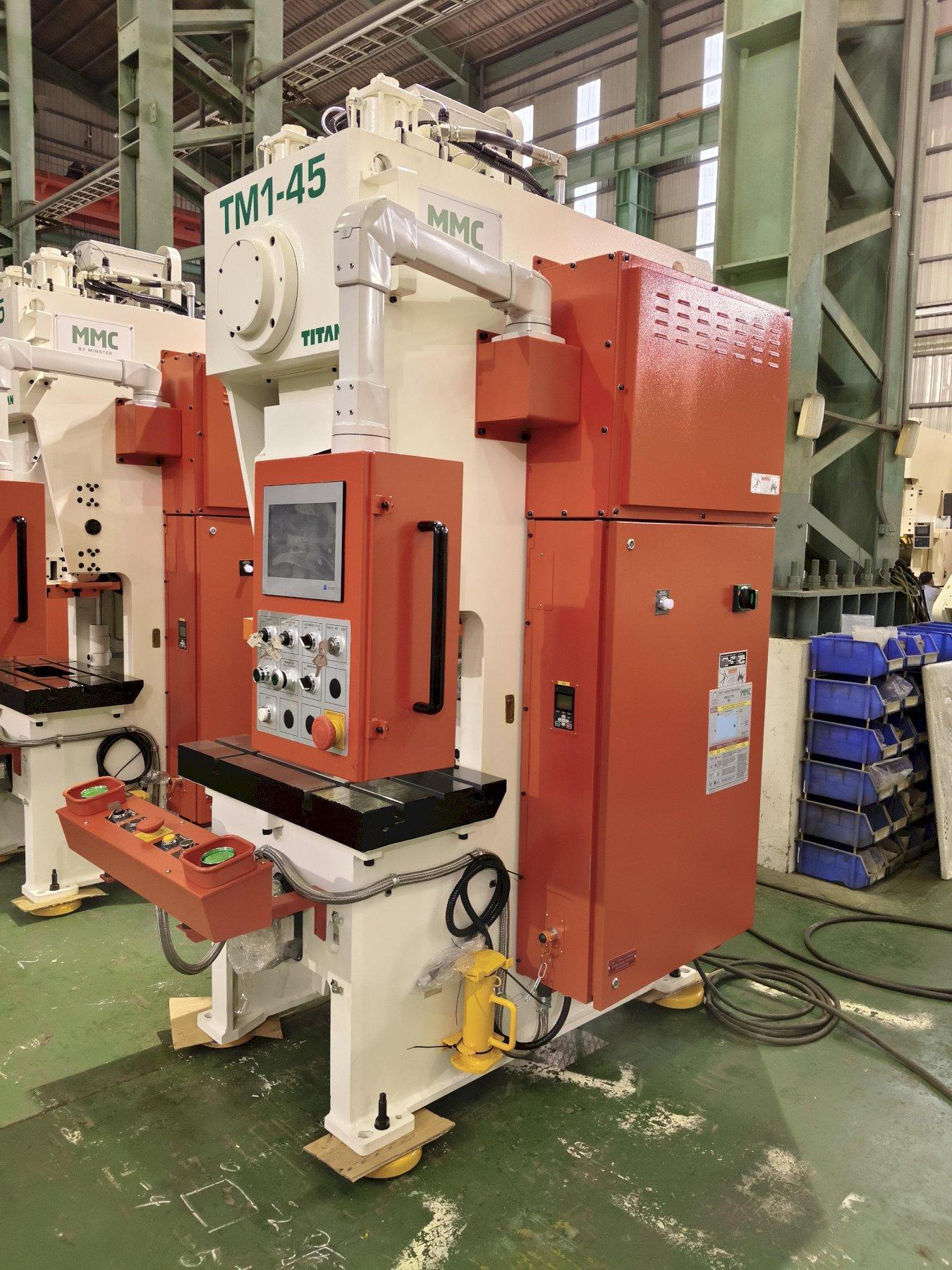

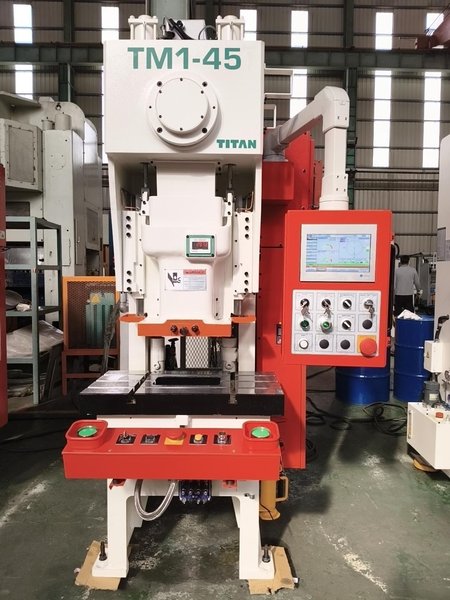

Stock Minster MMC TITAN TM1-45 Single Point Gap Press

Name: Stock Minster MMC TITAN TM1-45 Single Point Gap Press
Brand: Unknown
SKU: 1054882
Availability: InStock

Brand

Not specified

Connecticut

Tonnage / Capacity	45 Metric Tons 49.5 US Tons
Stroke Length	80 mm 3.15 in
Speed	50-100 SPM
Area Of Slide R-L X F-B	400 x 300 mm 15.75 x 11.81 in
Area Of Bolster R-L X F-B	850 x 440 mm 33.46 x 17.32 in
Shutheight, Maximum (SDAU)	250 mm over Bolster 9.84 in
Shutheight Adjustment	60 mm 2.36 in
STANDARD FEATURES · Frame o Machined for Strain Links (Tonnage Monitor) o Drilled Provision for Knock Out Mechanism o Able to Accept Air Cushions o Pre-Drilled and Tapped to Accept Light Curtain · Drive Train features a low inertia design with the gears running in a totally enclosed oil reservoir · High-Performance Wet Clutch and Brake Air Actuated Combination Clutch and Brake · Automatic Recirculating Oil Lubrication System · Powered Die Height Adjustment & Electronic Die Height Indicator · Air Counterbalance System · Automatic Oil Lubrication System for Air Counterbalance Cylinders · Hydraulic Overload Protection · Die Safety Block · Vibration Isolation Mounts · Die Area Lights (2) · PC1 Clutch/Brake & Electrical Control System o Programmable Limit Switch (8) o Die Protection (8) OPTIONAL Built-in Tonnage Monitor Light Curtains Servo Feeds Custom Bolster Machining Quick Die Change Automation Systems Automatic Shutheight Automatic Counterbalance
