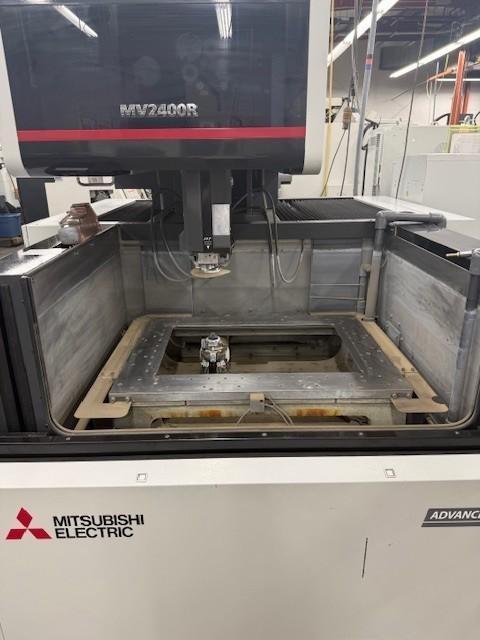

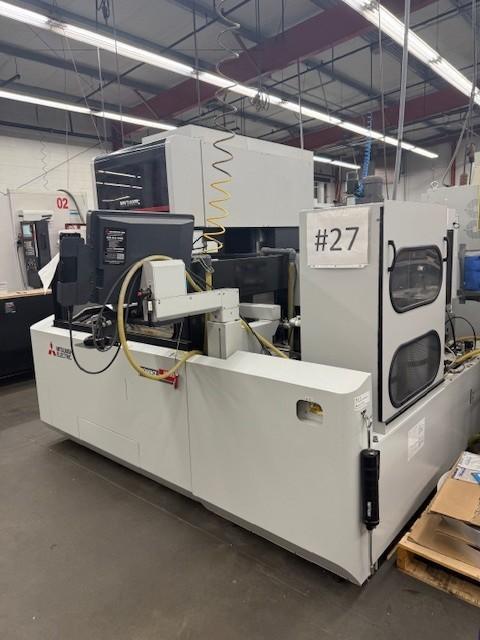

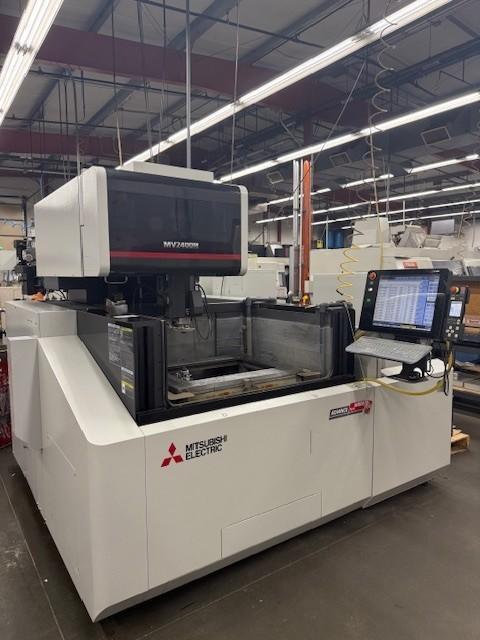

Mitsubishi MV-2400R Wire EDM, 2018 – Auto Threading, Wire Alignment Gauge

Table Dimensions: 33.0″ x 25.2″ Maximum Workpiece Dimensions: 41.3″ x 32.3″ x 12.0″ Max workpiece Weight: 3,300 LBS X Axis Travel: 23.6″ Y Axis Travel: 15.7″ Z Axis Travel: 12.2″ U/V Travels (from center): ±3.0″ x ±3.0″ Taper Angle @ Thickness: 15 deg.@ 10.2″ Table Rapid Feed Speed: 51.2″/min Wire Diameter Possible: 0.004~0.012″ Max. Wire Spool size On Machine / Cabinet STD: 22/44 LBS Machine Weight: 8,000 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

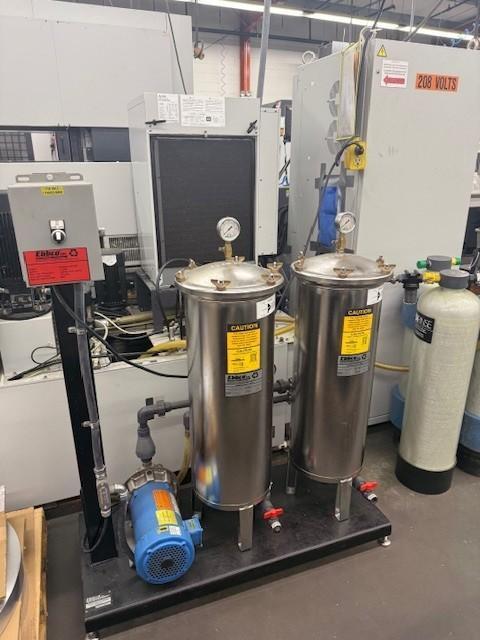

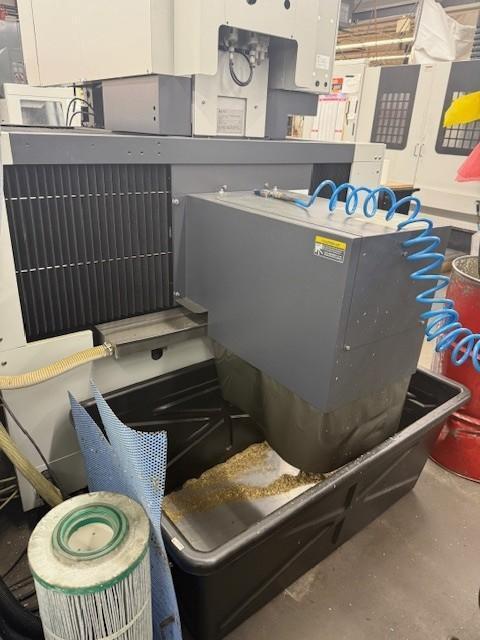

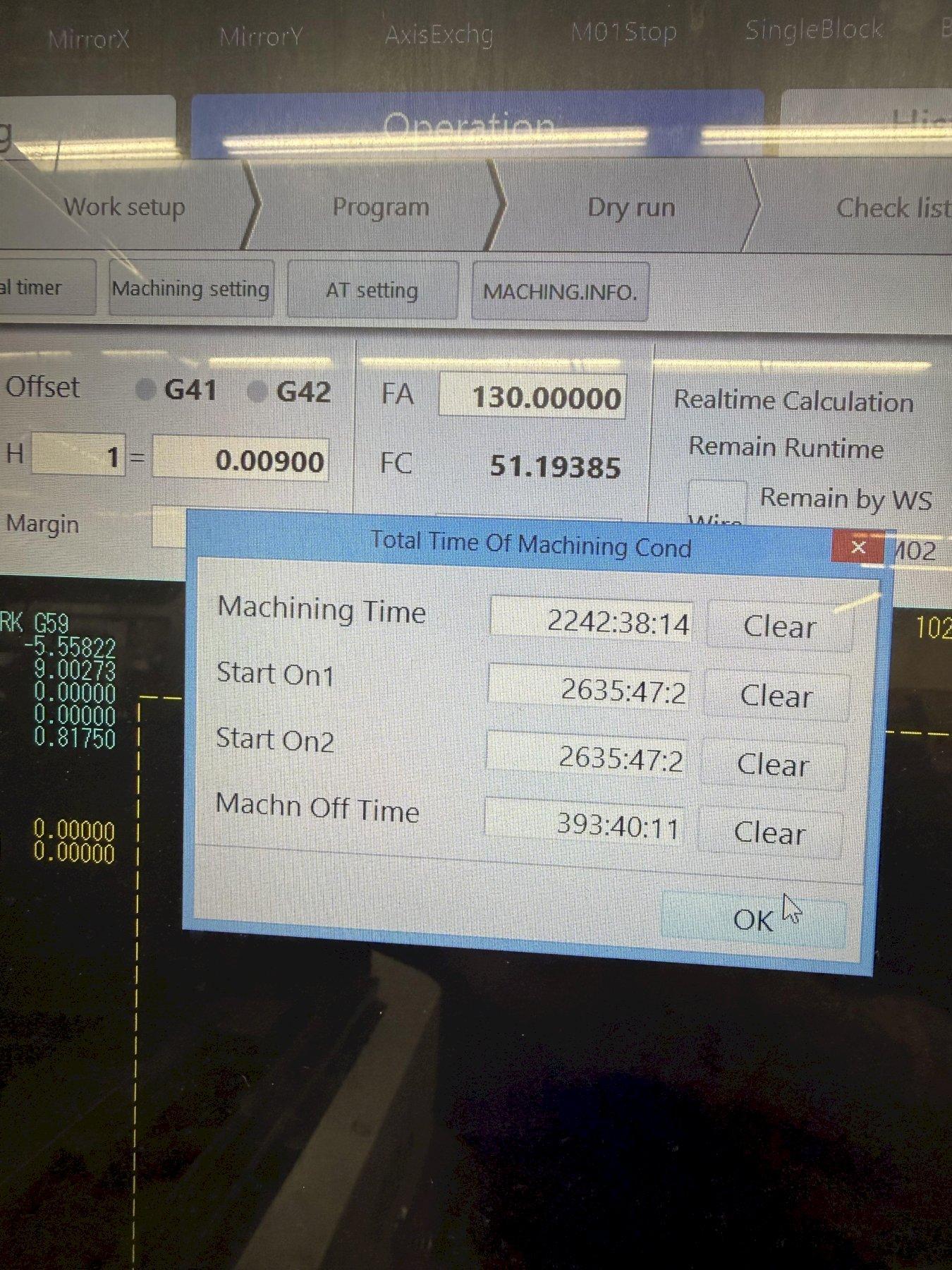

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mitsubishi CNC Control Intelligent Auto-Threader Chiller FTS 10 KG (22lb) Wire Spool Wire Alignment Gauge Auto Oiler Auto Power Recovery Advanced Hand Pendant Box (Provides extended features and LCD screen) 4-Sided Table (One-Piece Hardened Stainless) Basic Workpiece Clamping Kit (Directly clamps parts to the machine table) One set of 0.010″ Round Diamond Guides Fast Fill Pump 16-Step Programmable Flushing Control Angle Master (Guides and flush cups not included) Linear Scales X,Y,U,V (50nm) 2 millionths absolute scales Cylinderical LSM Drives (Linear Shaft Motors X,Y,U,V) Small Wire Device .004″ (Does not include guides) Wire Processor (Scrap Wire Chopper) Fine Surface Machining (PF Circuit 11~12μ” Ra possible) New HFS Fine Finish Circuit (7~8μ” Ra possible) DI Resin System (1.4 cu. ft. fiberglass cylinder 2x) 2 USB Ports DNC Hardware (Ethernet FTP) McAfee Virus Protection

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
