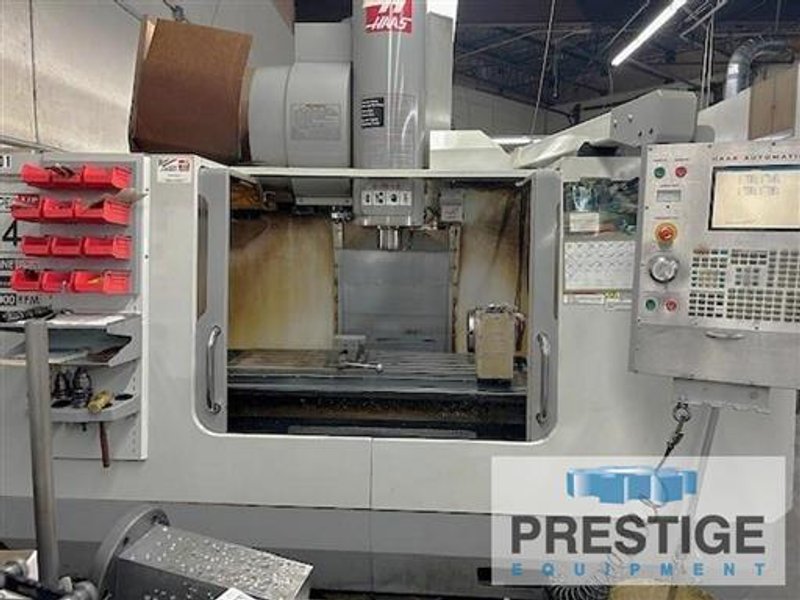

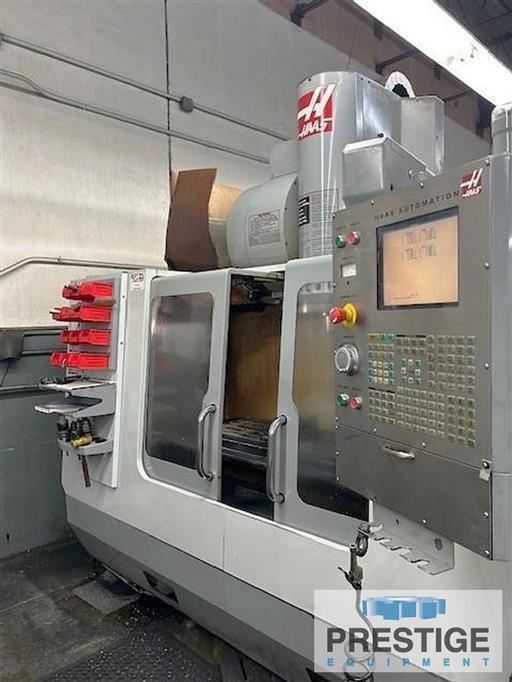

Machining Centers Vertical CNC

SPECIFICATIONS:
Table size 52" x 18"
Max table load 1,750 lbs
X axis travel 50"
Y axis travel 20"
Z axis travel 25"
Spindle taper BT #40
Spindle speed 12,000 RPM
Spindle motor 30 HP - Direct Drive
Spindle nose to table top 4.2" - 29.2"
Number of tool positions 24 + 1 Position Side Mount
Max tool weight 12 lbs.
Rapid feed rate (x,y,z 1,400 IPM
Cutting feed rate 0.1 - 833 IPM
Machine dimensions 152" x 99" x 106"
Machine weight (approximately) 13,800 lbs.



Equipped With:

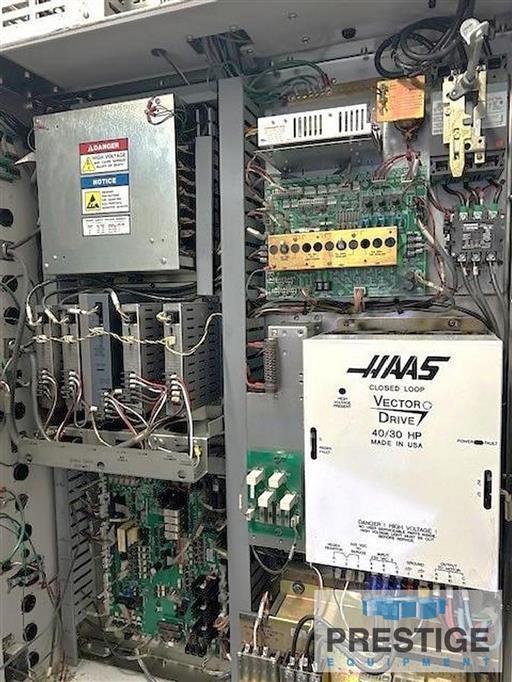

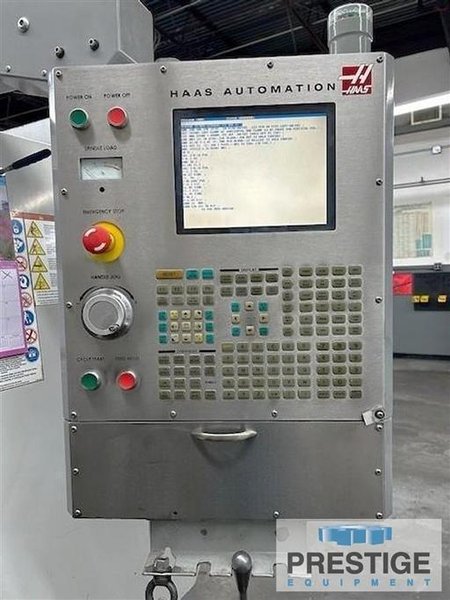

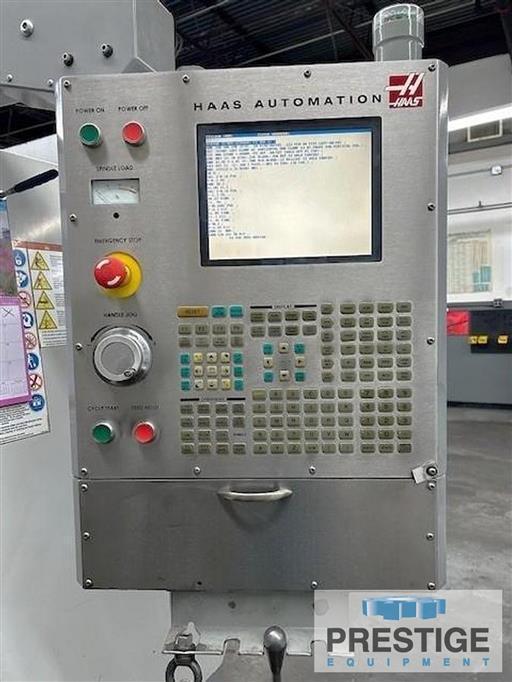

HAAS CNC Controls
24 Station Side Mounted Tool Changer
4th Axis Drive & Wiring

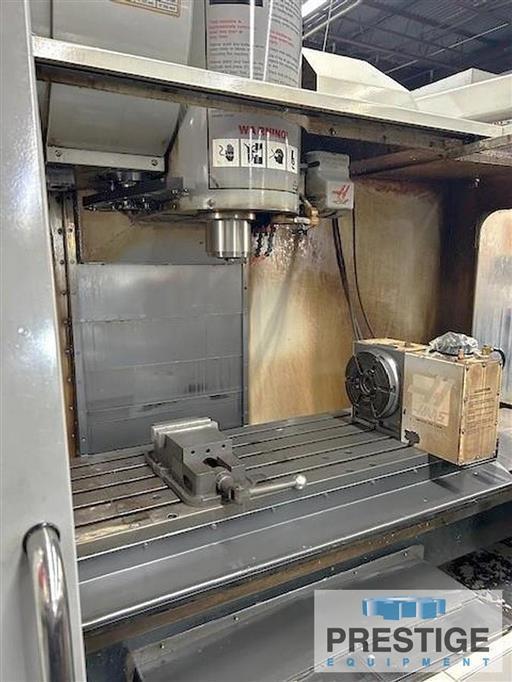

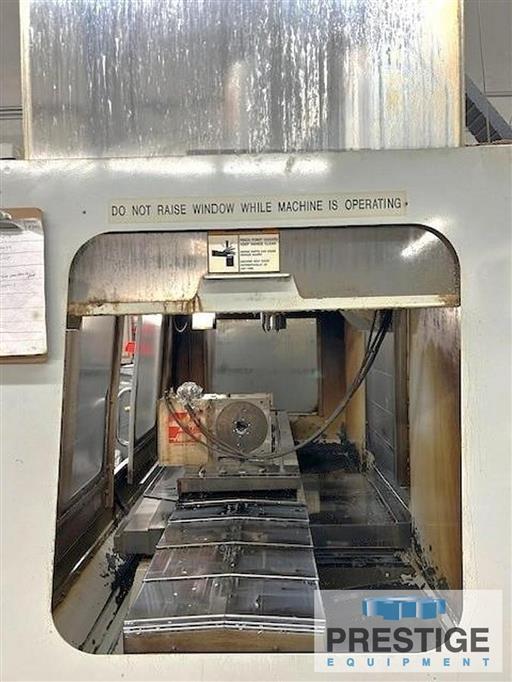

Haas HRT210 4th Axis Rotary Table
Programmable Coolant Nozzle
Rigid Tapping
Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
RS 232C Port Interface for DNC Operation
All Available Manuals

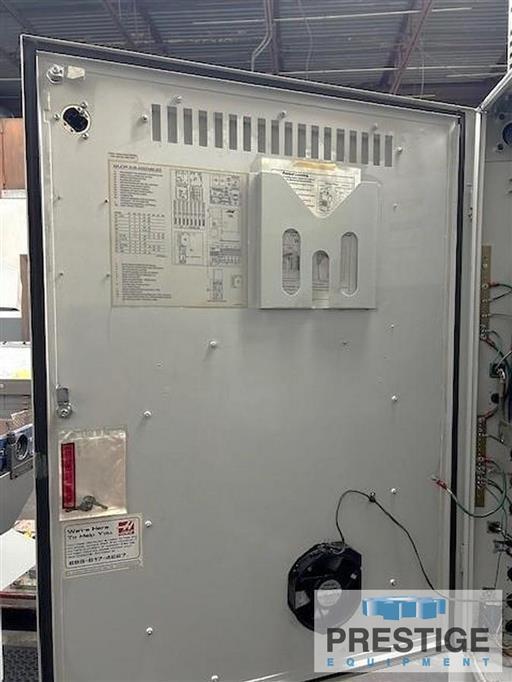

Wired 208/230V Electrics
Some BT40 Tool Holders
Machine Motion Hours: 18,951
Spindle Run Hours: 19,504
