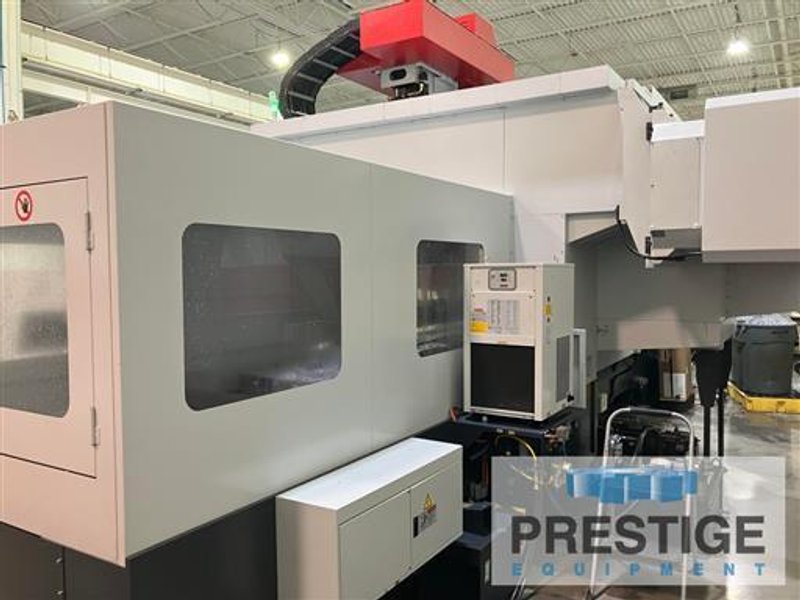

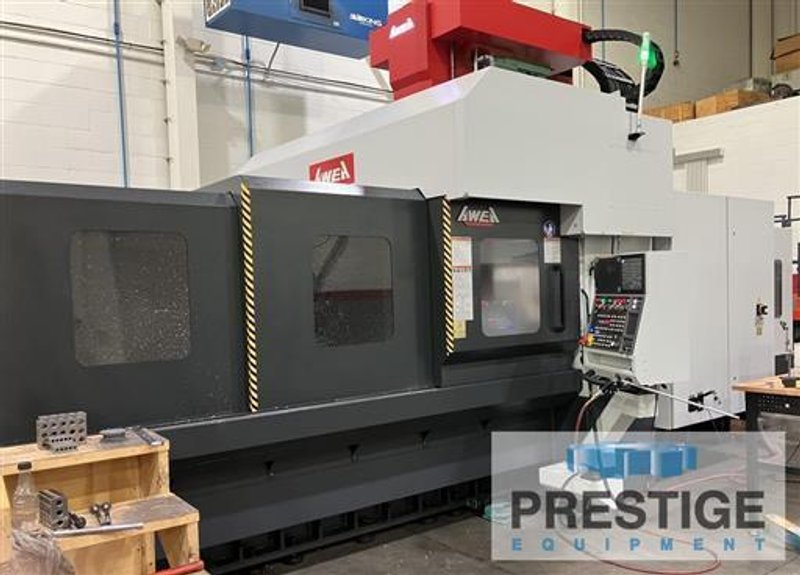

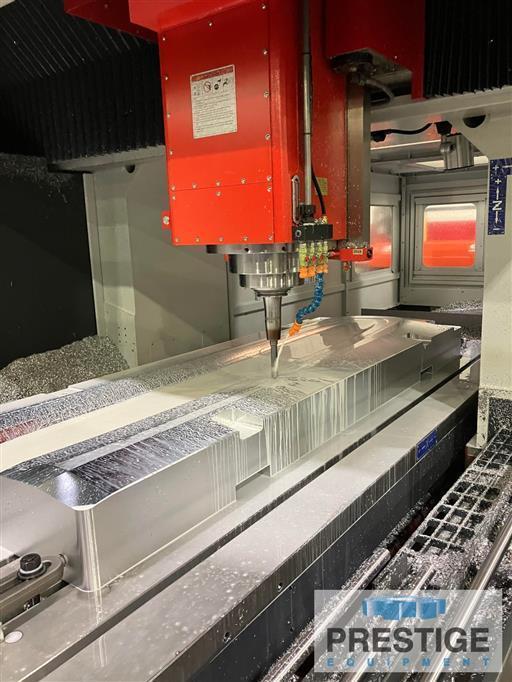

Machining Centers Vertical Bridge Type CNC
Brand
Category
Model
SP-3016
Stock #
44814
Year
2024
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

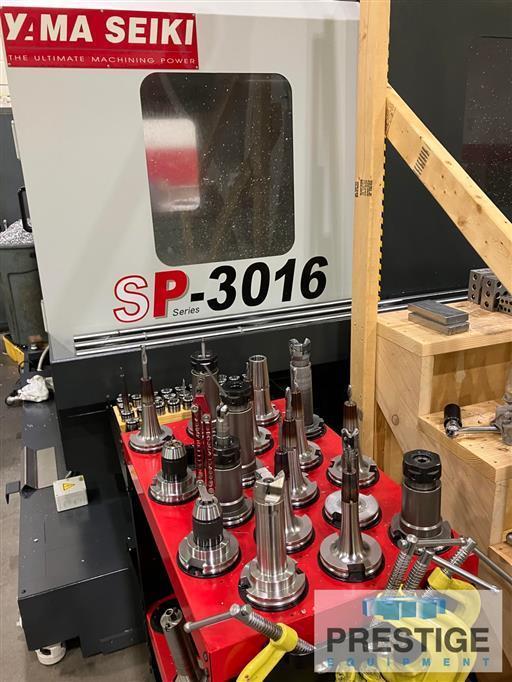

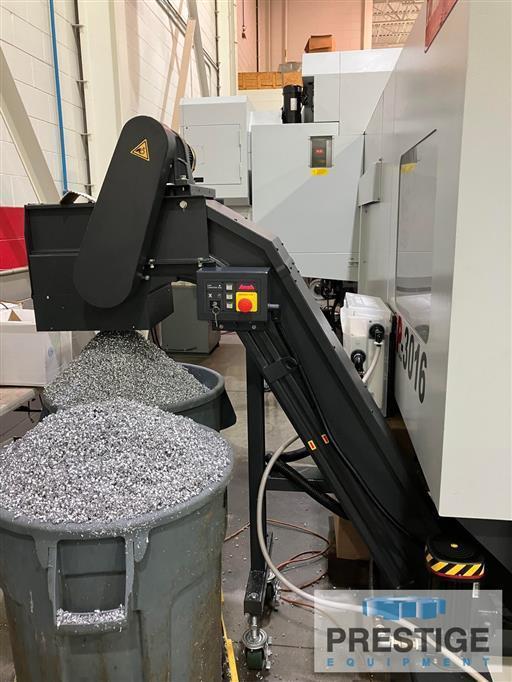

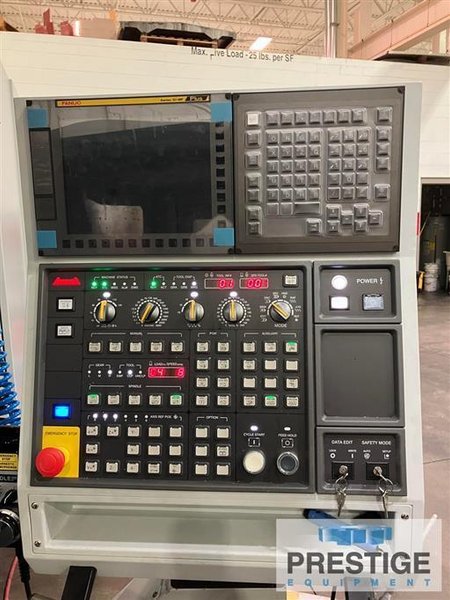

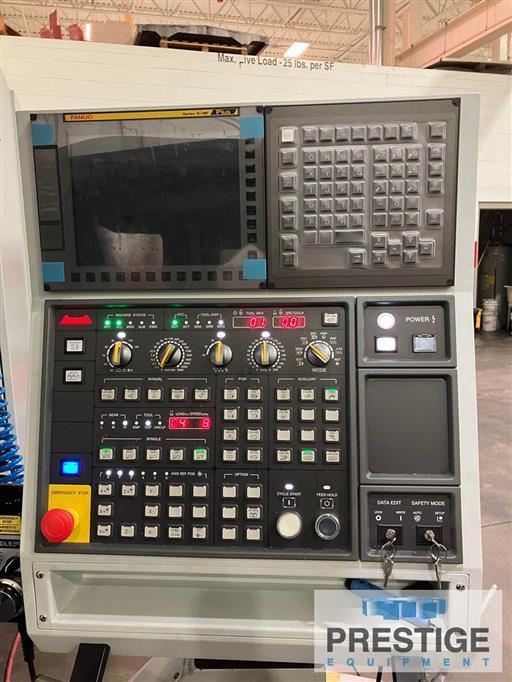

Table Size 128" x 59" Table Load Capacity 22,000 Lbs. Longitudinal Travel, X-Axis 120.5" Cross Travel, Y-Axis 63.3" Ram Stroke, Z-Axis 30" Distance Between Columns 66.9" Rapid Traverse Rate, X & Y-Axes 787 IPM Tool Storage Capacity 40 Stations Spindle Speeds, Max 6000 RPM Spindle Taper #50 CAT Spindle Horsepower, 2-Ranges 30 HP Approximate Machine Weight 52,000 LBS Equipped With: Fanuc 0iMF Plus CNC Control 40-Station Automatic Tool Changer Prepped for CTS Large Tank for Coolant Thru w/Pumps Chip conveyor |
