Machine Specifications

Serial ............................. Number 44188

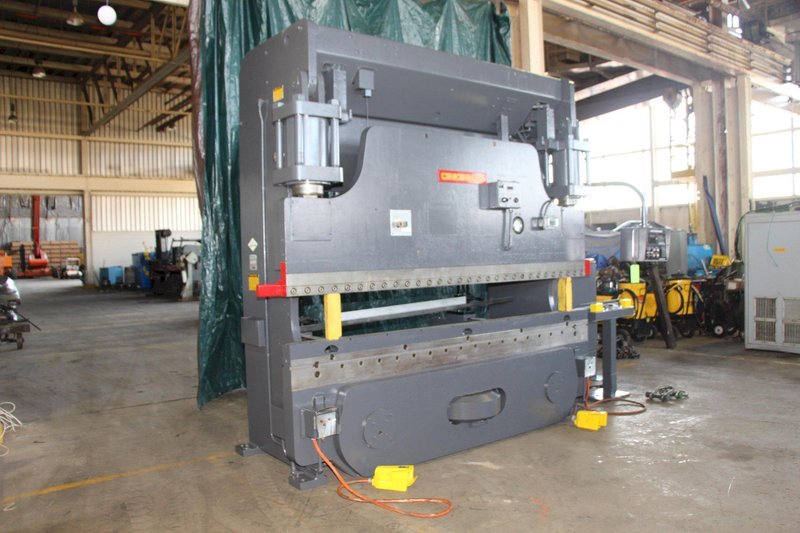

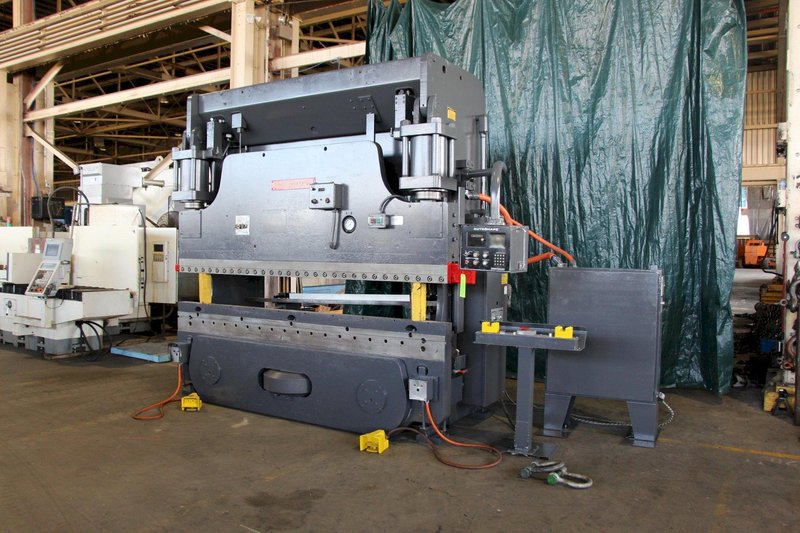

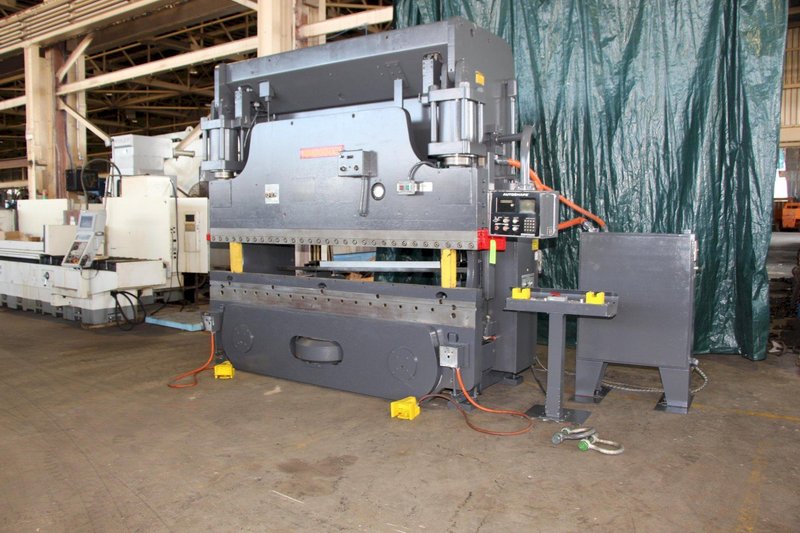

Model .............................. 175 AS Autoshape
New ................................ 1986
Capacity ........................... 175 TONS
Overall Length of Bed & Ram ........ 10’
Distance Between Housings .......... 8’6 3/4”
Stroke ............................. 10”
Open Height ........................ 17”
Closed Height ...................... 7”
Throat Clearance ................... 8”

Speeds:
Approach ........................... 235 INCH PER MINUTE
Form ............................... 60  & 20 INCH PER MINUTE
Return ............................. 79 & 248  INCH PER MINUTE
Back Gage Speeds ................... X- AXIS’, 850 INCH PER MINUTE
Main Motor Horsepower .............. 35

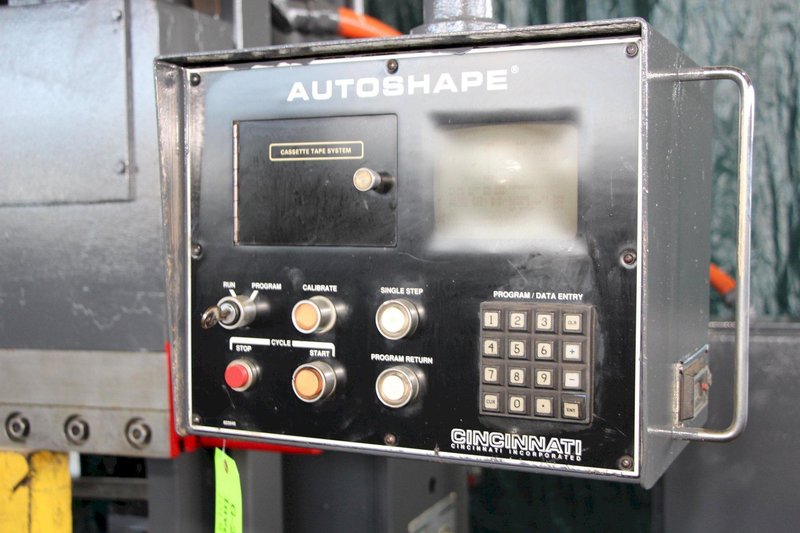

Autoshape CNC Control
24” CNC Programmable Back gage
(X) With Manual R Axis
Off Load Center Compensation
Variable Tonnage
Electric Foot Switch
Pedestal Palm Button Station
Auto Crowning
Top Die Hydraulic Clamping
