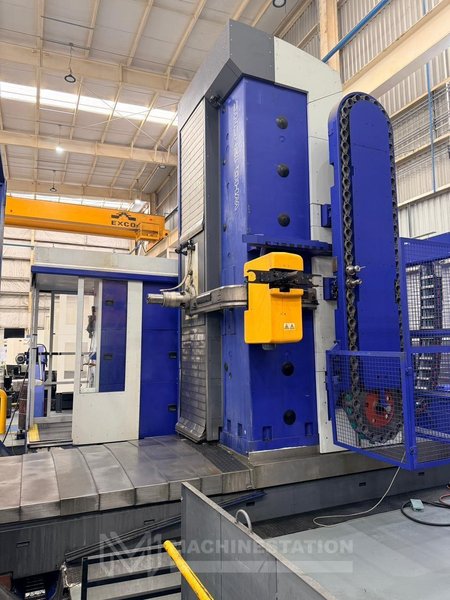

Tos Varnsdorf WHQ-13 CNC Horizontal Table Type Boring Mill – 2019 HBM

Tos Varnsdorf WHQ-13 CNC Horizontal Table Type Boring Mill – 2019 HBM

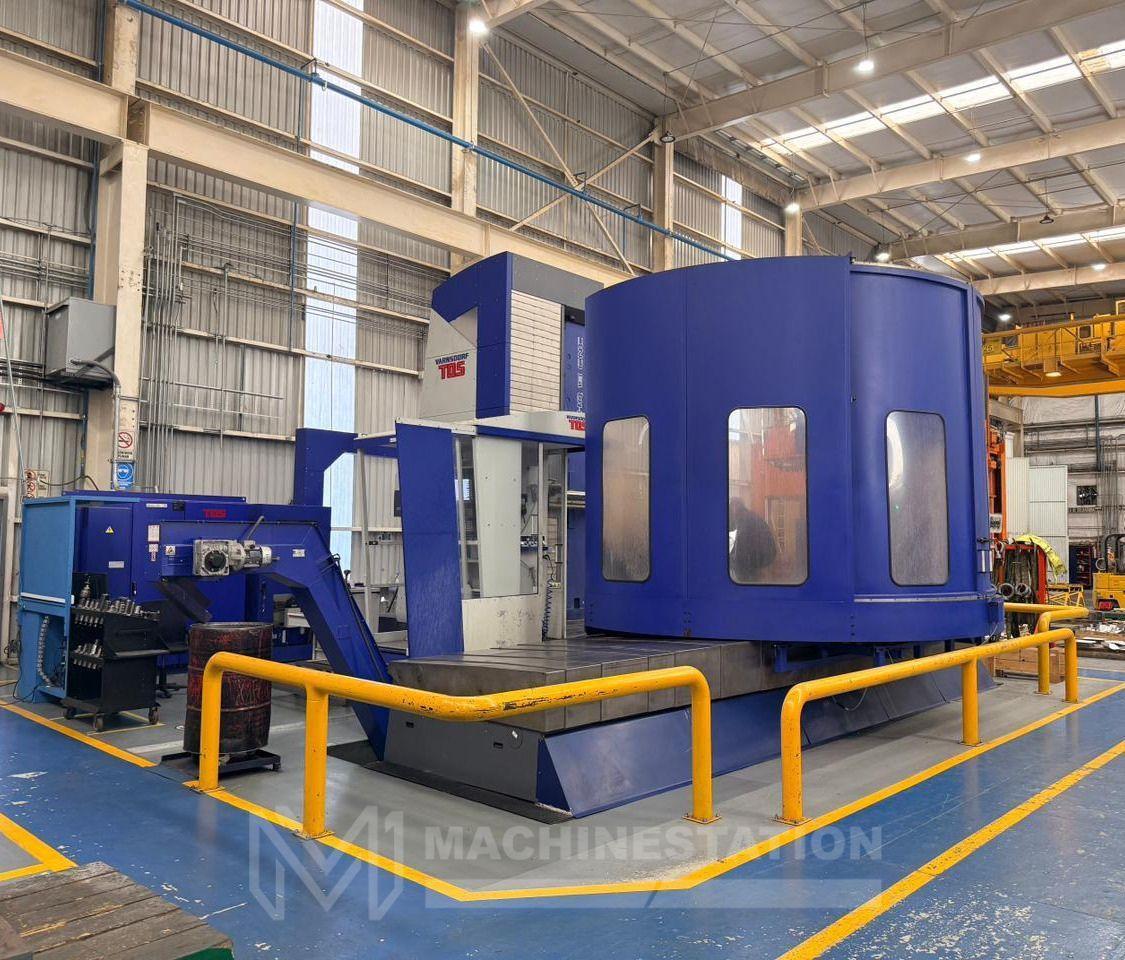

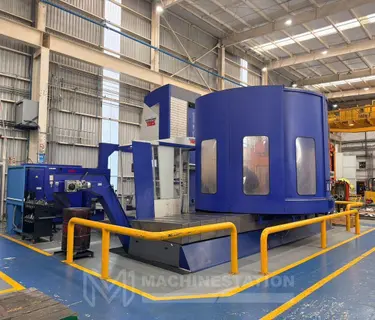

Name: Tos Varnsdorf WHQ-13 CNC Horizontal Table Type Boring Mill – 2019 HBM
Brand: TOS
SKU: 115135
Availability: InStock

Brand

TOS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Tos Varnsdorf
Model:	WHQ-13
Year:	2019
Condition:	Used – Excellent

Features:

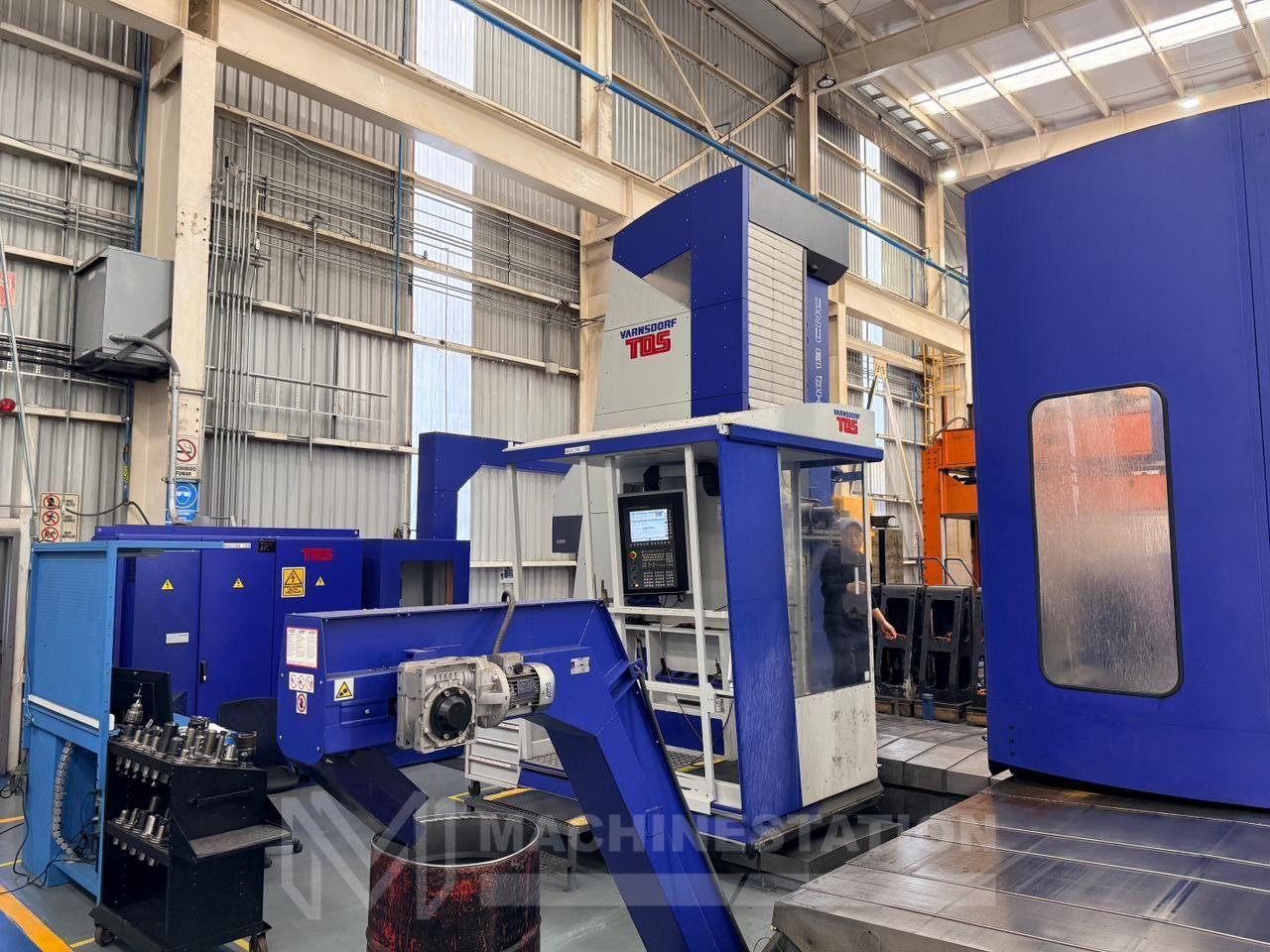

Fanuc 31i-M Series CNC Control

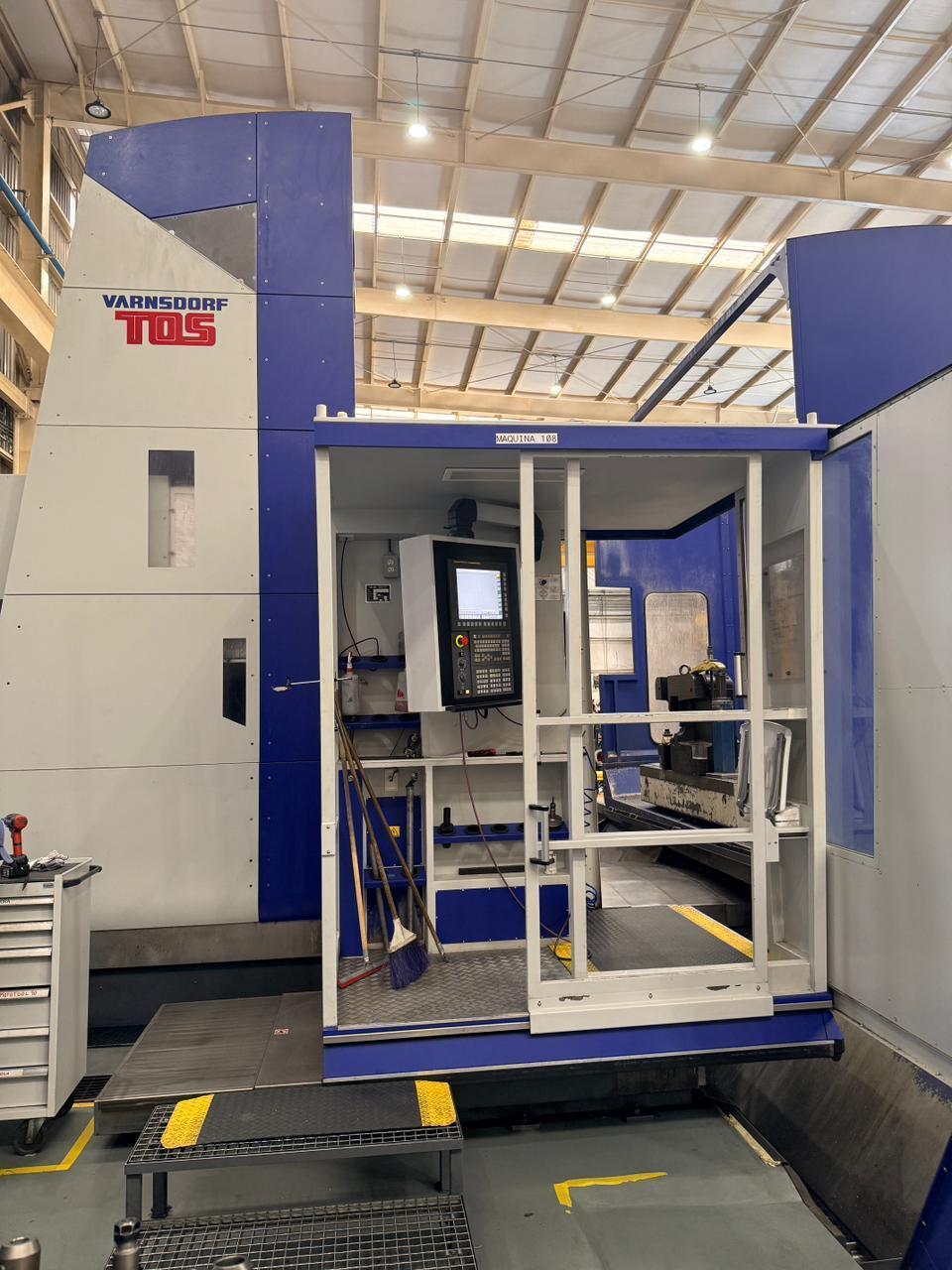

Operator’s Platform Vertically and Horizontally Adjustable
5.11″ Spindle Diameter
4th Axis Rotary Table
55,115 lbs Heavy Table Load Capacities
M16D24 FCS Hole Fixture Added on The Table
Through Spindle Coolant – 1000 psi
CAT-50 Taper, 3,000 Spindle RPM
Temperature Sensors on The Main Spindle Bearings
“HEIDENHAIN” Measuring Scales on Linear Axes X, Y, Z and R Spindle and Linear Axis W

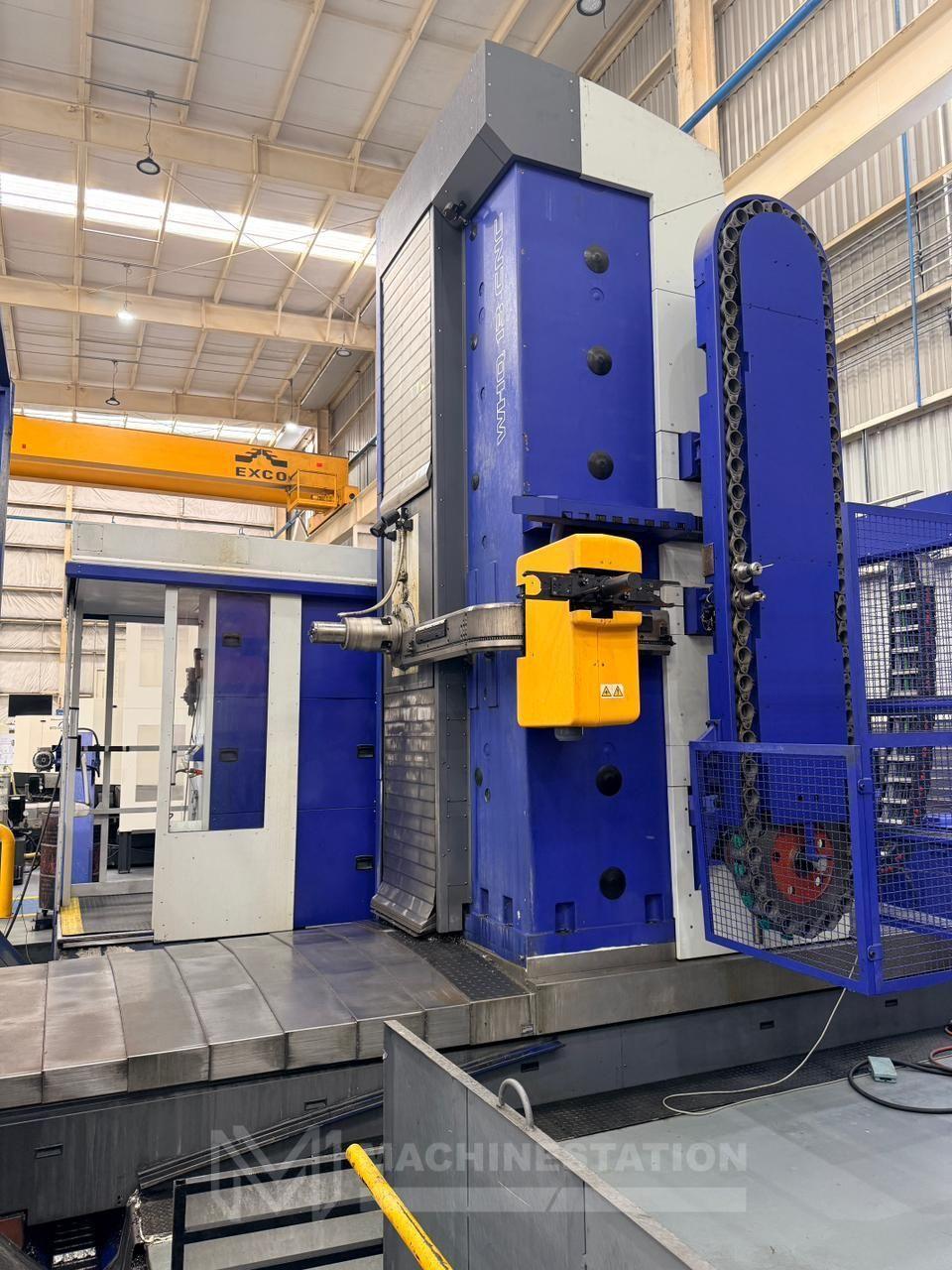

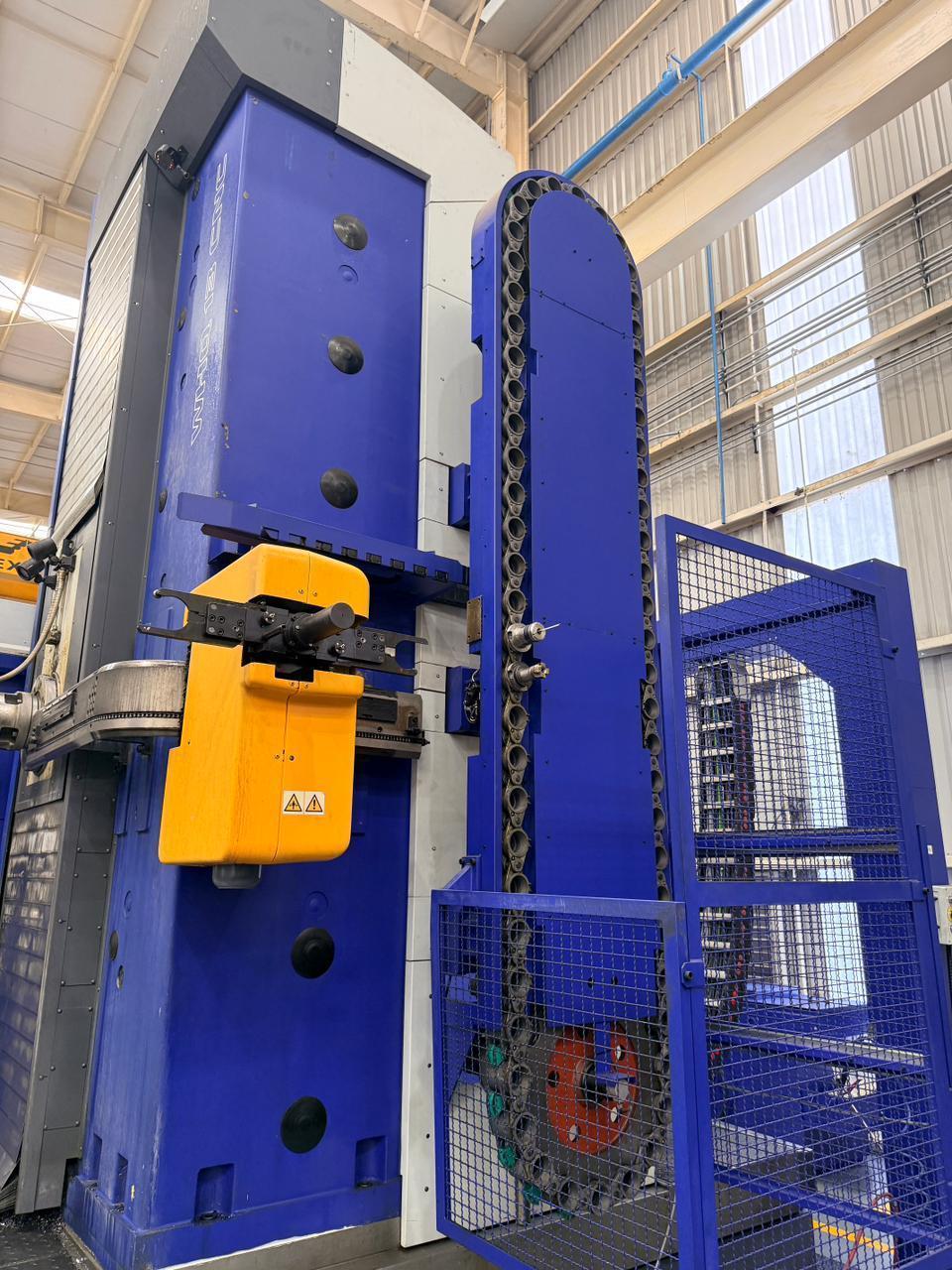

60 Station Automatic Tool Changer
Renishaw Tool Probe
Renishaw Tool Presetter

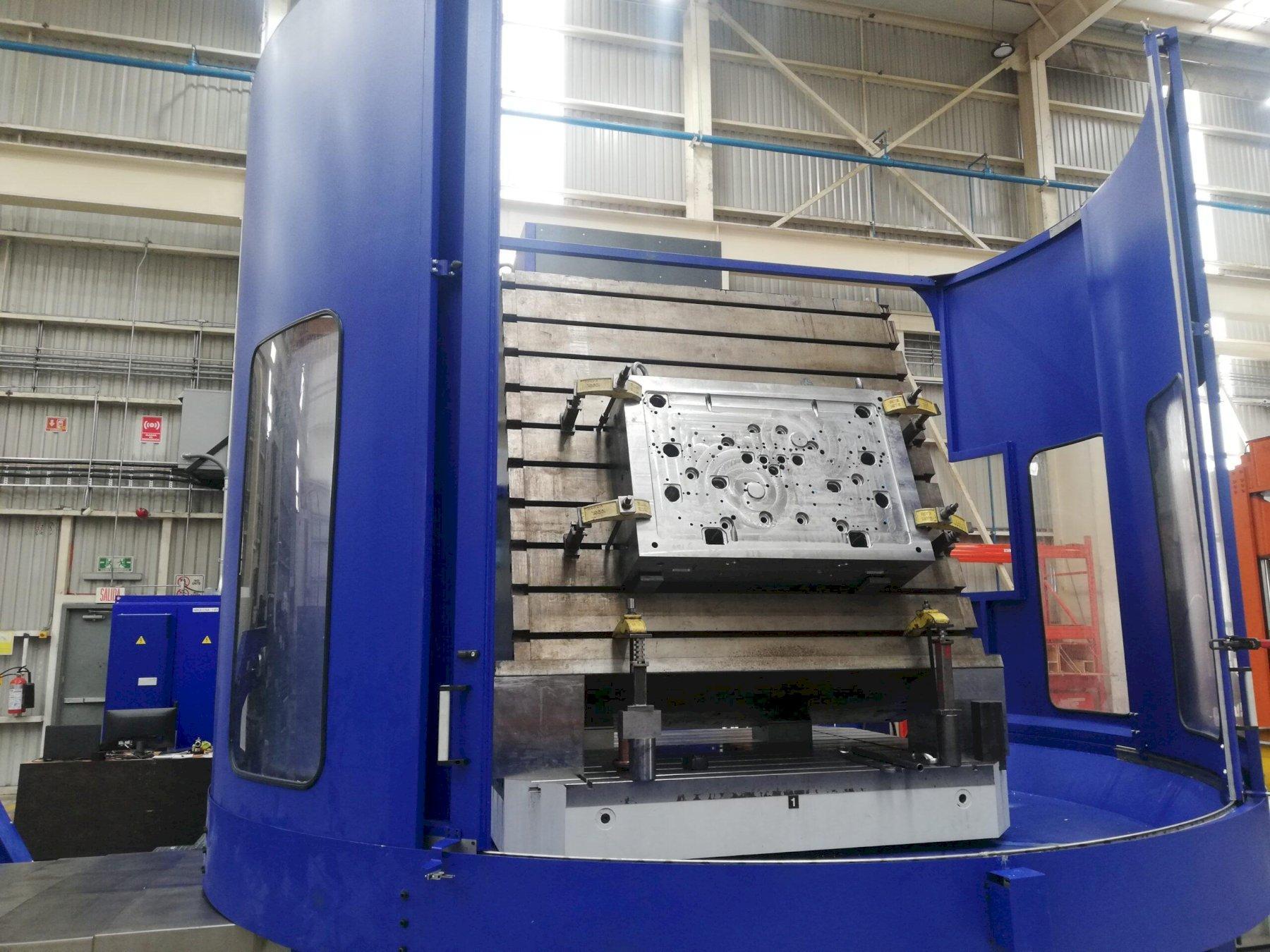

Angle Plate Set
Automatic Lubrication System
Coolant System
Chip Conveyor

Travels:
X Axis (Table Traverse Travel): 137.79″
Y Axis (Headstock Vertical Travel): 98.42″
Z Axis (Table Longitudinal Travel): 86.61″
W Axis (Spindle Stroke): 31.49″
B Axis (Rotary Table): Fully Controlled
X,Y,Z & W Axis Rapid Travers – 394 IPM

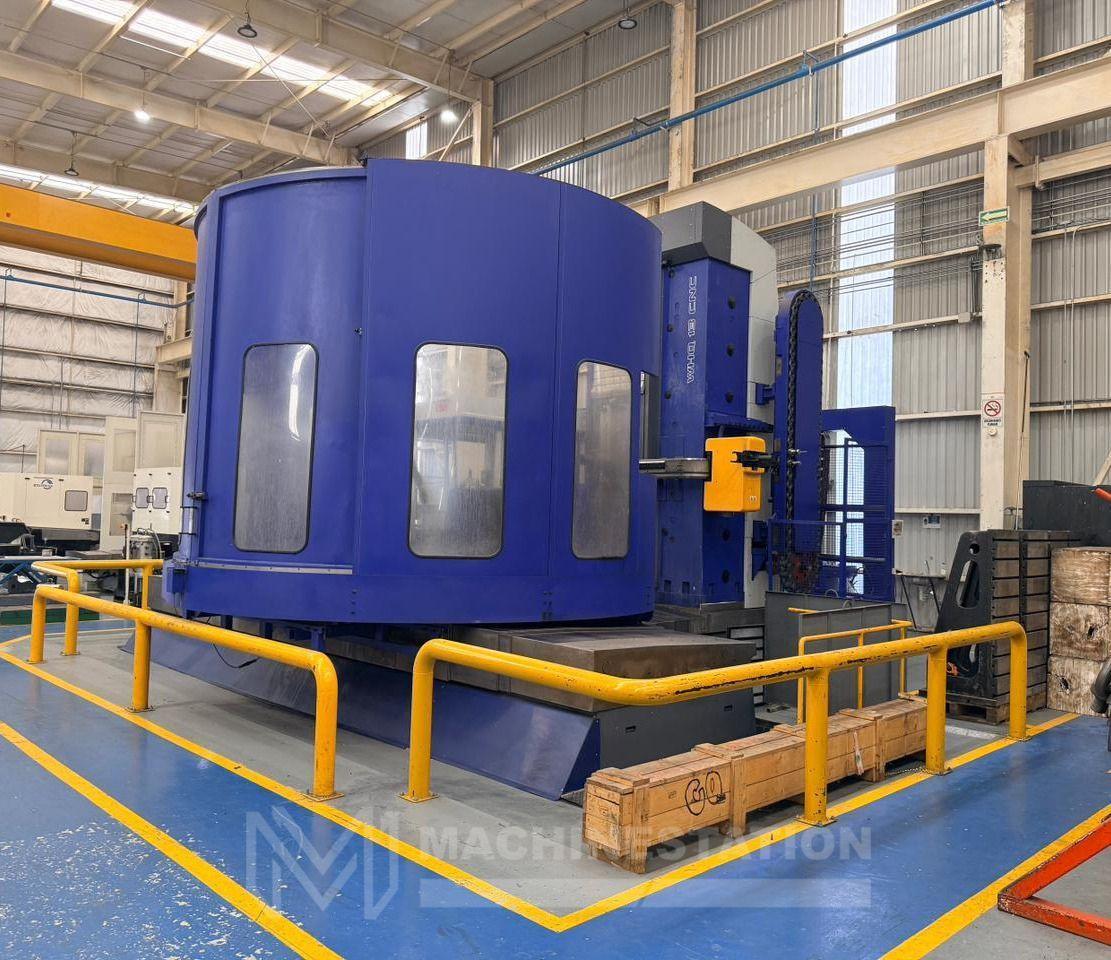

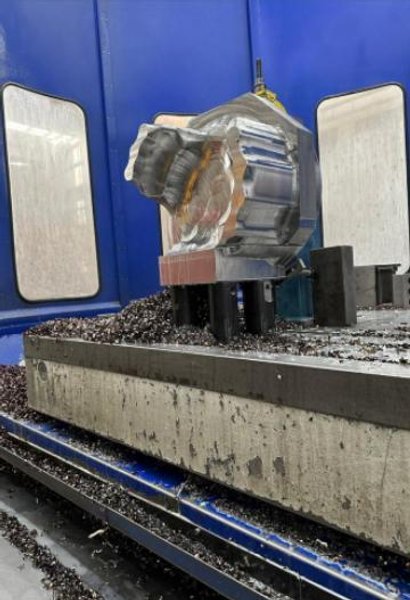

Rotary Table:
Length: 86.61″
Width: 70.86″
Max Weight on Table: 55,115 lbs
B Axis: Fully Controlled

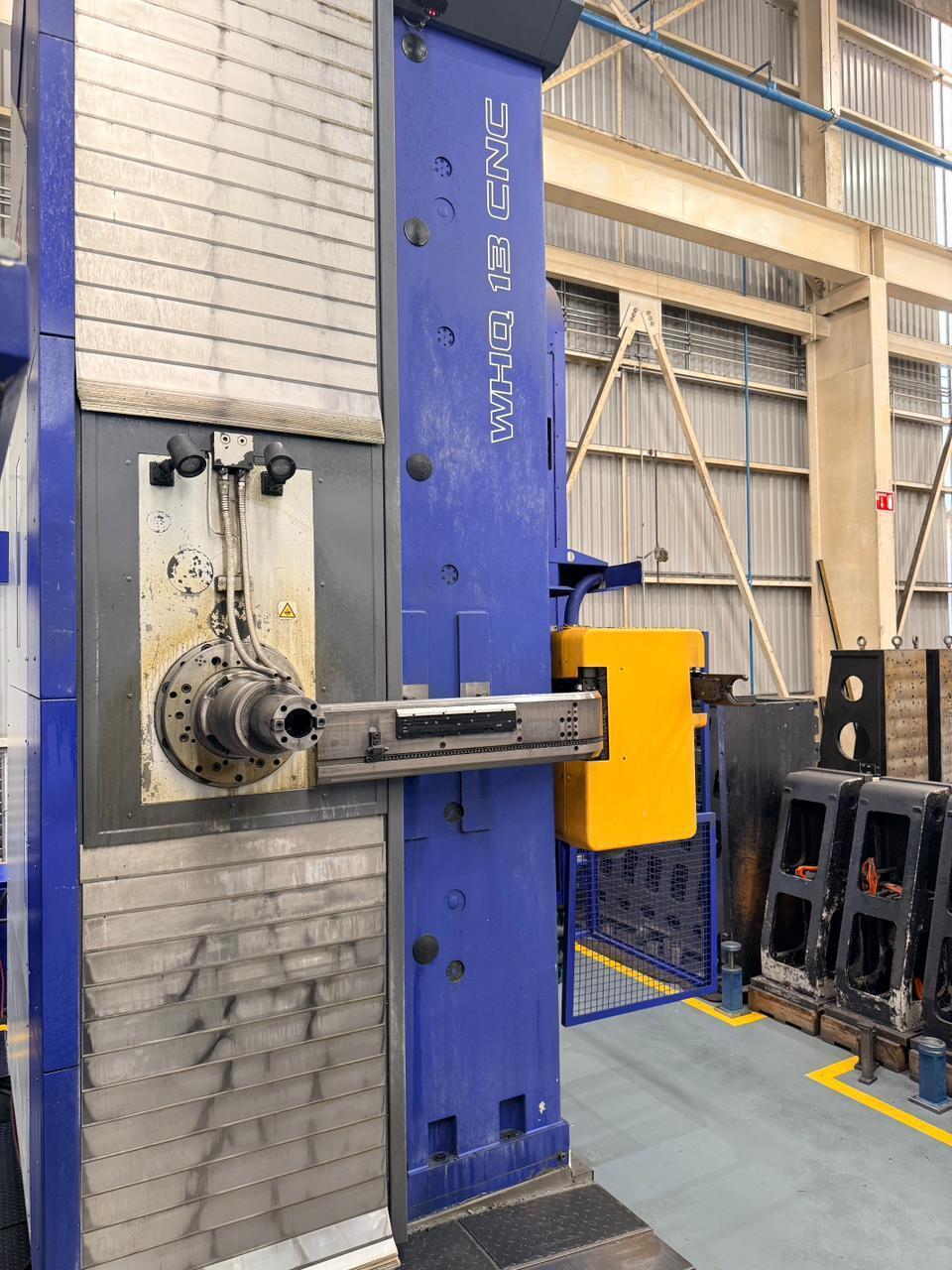

Spindle:
Spindle Diameter: 5.11″
Spindle Range: 3,000 RPM
Spindle Taper: CAT-50
Power: 50 HP

Automatic Tool Changer:
Capacity: 60 Stations
Max Tool Diameter: 4.29″ – 12.59″
Max Tool Length: 29.68″
Max Tool Weight: 55.11 lbs

General:
Power: 220v / 3-Phase / 60 Hz
Machine Dimensions: 280″ x 210″ x 197″ High
Machine Weight: 85,000 lbs. Approx.
