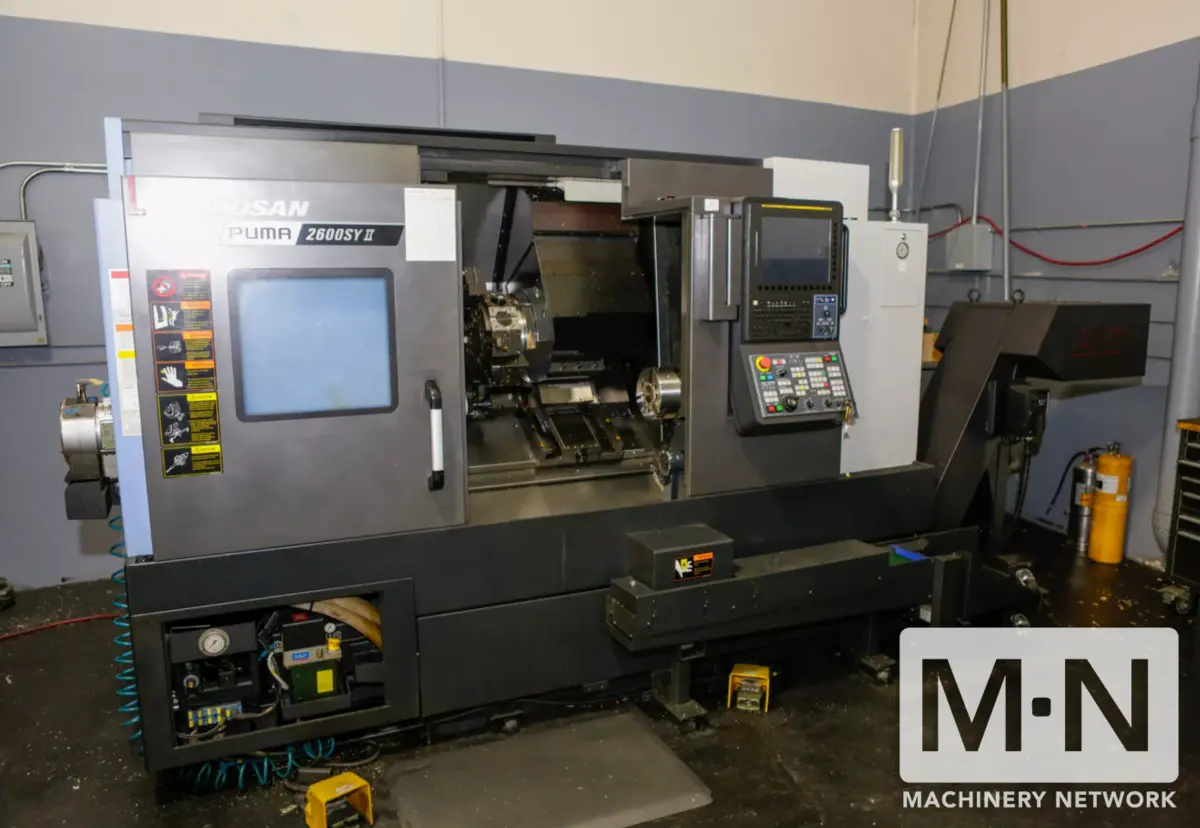

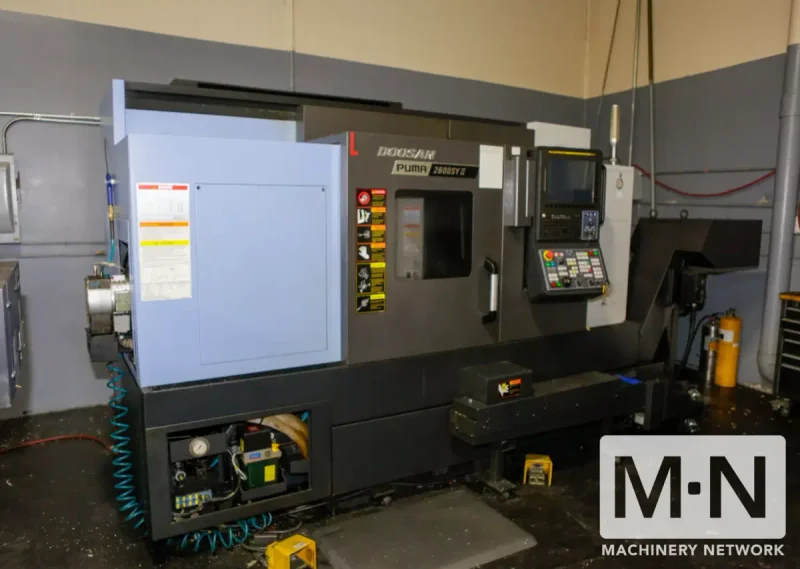

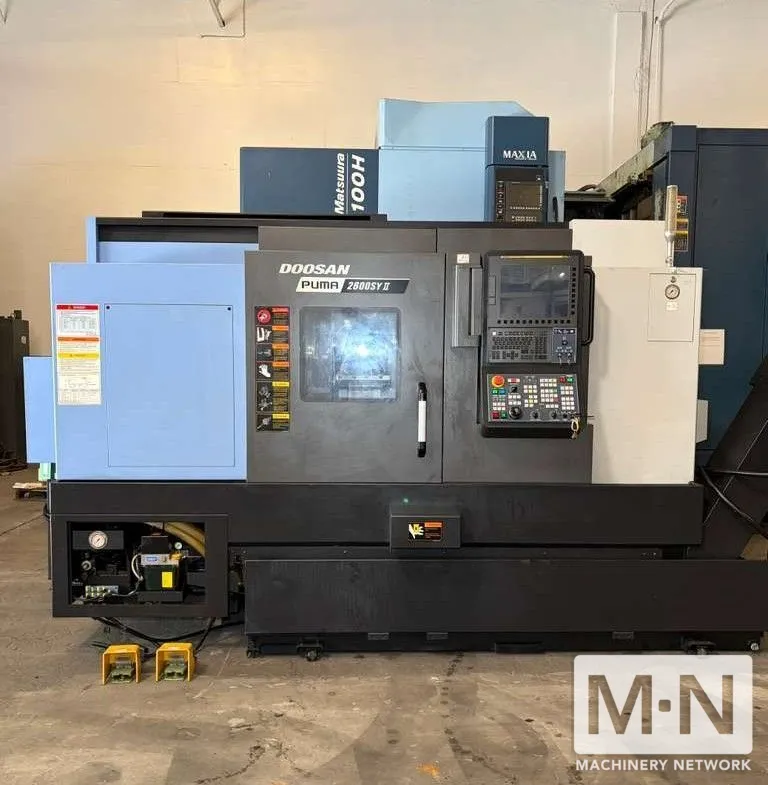

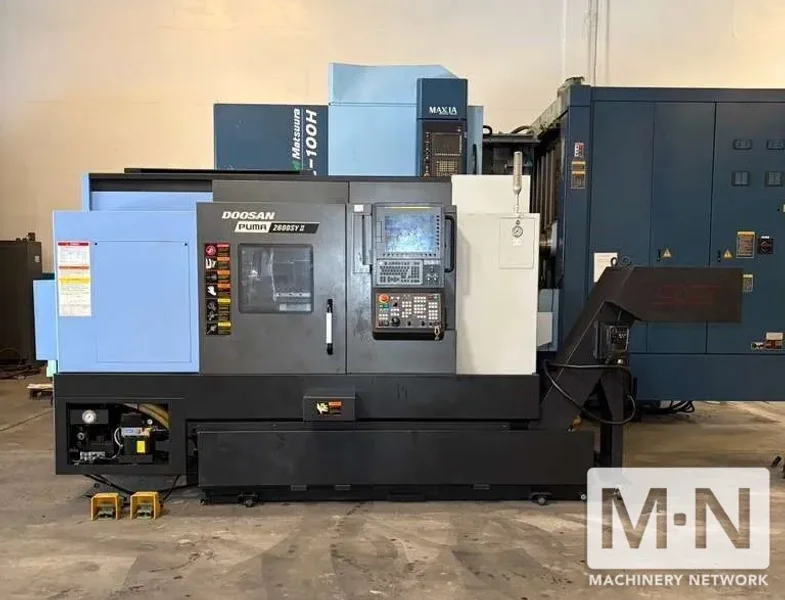

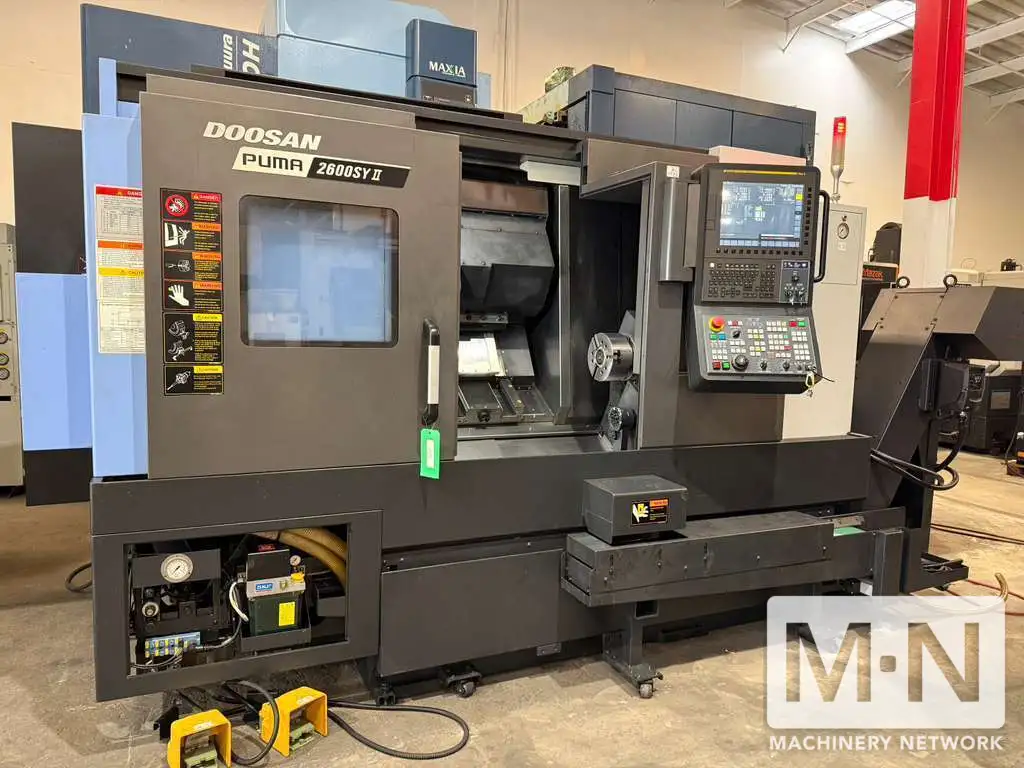

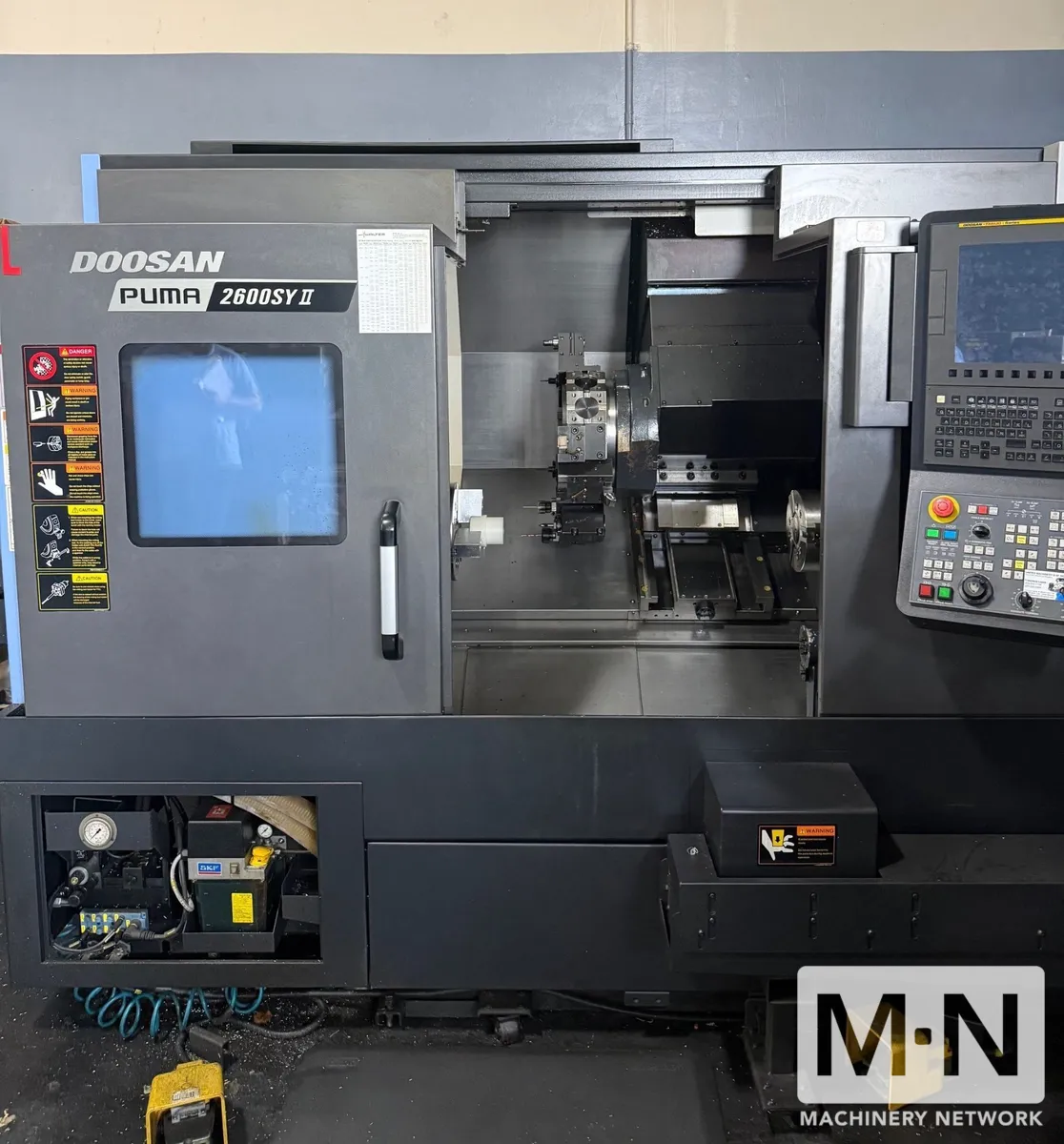

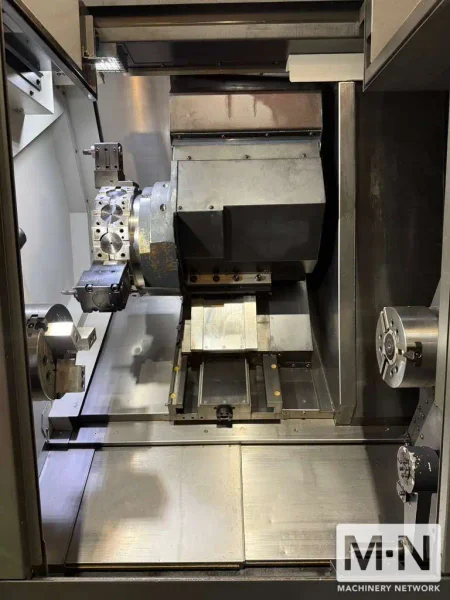

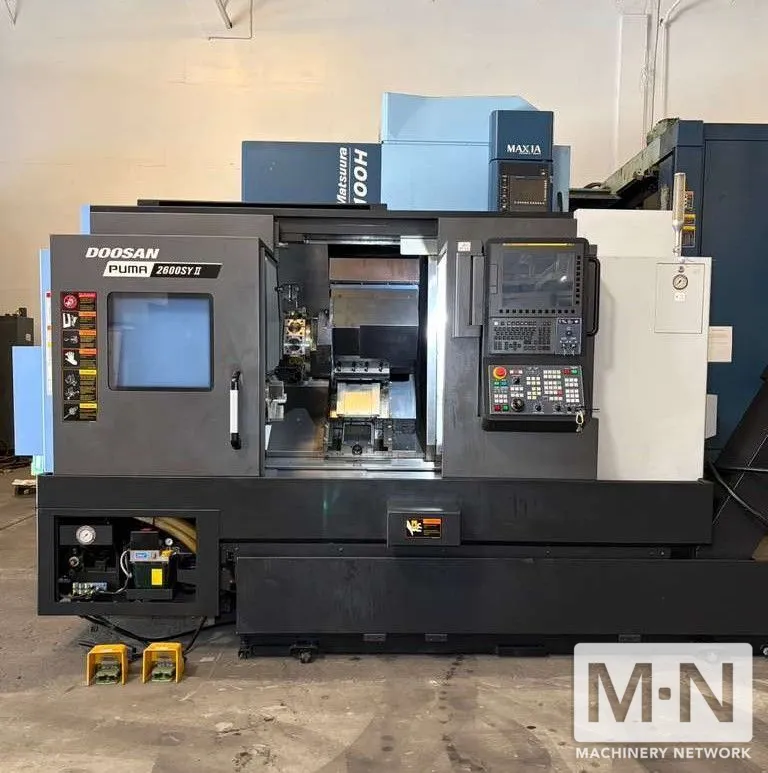

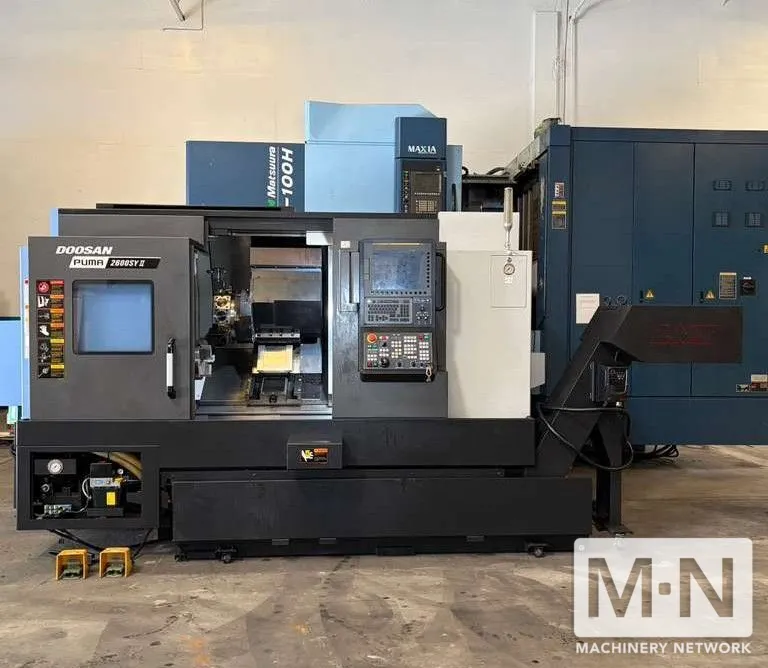

Doosan Puma 2600SYII CNC Lathe, 2021

Brand
DOOSAN
Category
Lathes & Turning Machines
Type
CNC Lathes
Model
PUMA 2600SYII
Stock #
53088
Year
2021
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Overview

Type:
CNC Lathes
Manufacturer:
DOOSAN
Model:
PUMA 2600SYII
Year:
2021
Stock #:
53088
Status:
For Sale
Swing24.8"629.92 mm
Max. Turning Length29.9"759.46 mm
Max. Turning Diameter14.8"375.92 mm
X-Axis10.2"259.08 mm
Y-Axis+2.10″ –2.10″+2.10″ –2.10″
Z-Axis32.7"830.58 mm
B-Axis32.70″32.70″
C-Axis360°360°
Rapid Traverse X-Axis1181 ipm
Rapid Traverse Y-Axis394 ipm
Rapid Traverse Z-Axis1181 ipm
Rapid Traverse B-Axis1181 ips
Rapid Traverse C-Axis200 ips
Spindle TaperBMT-65BMT-65

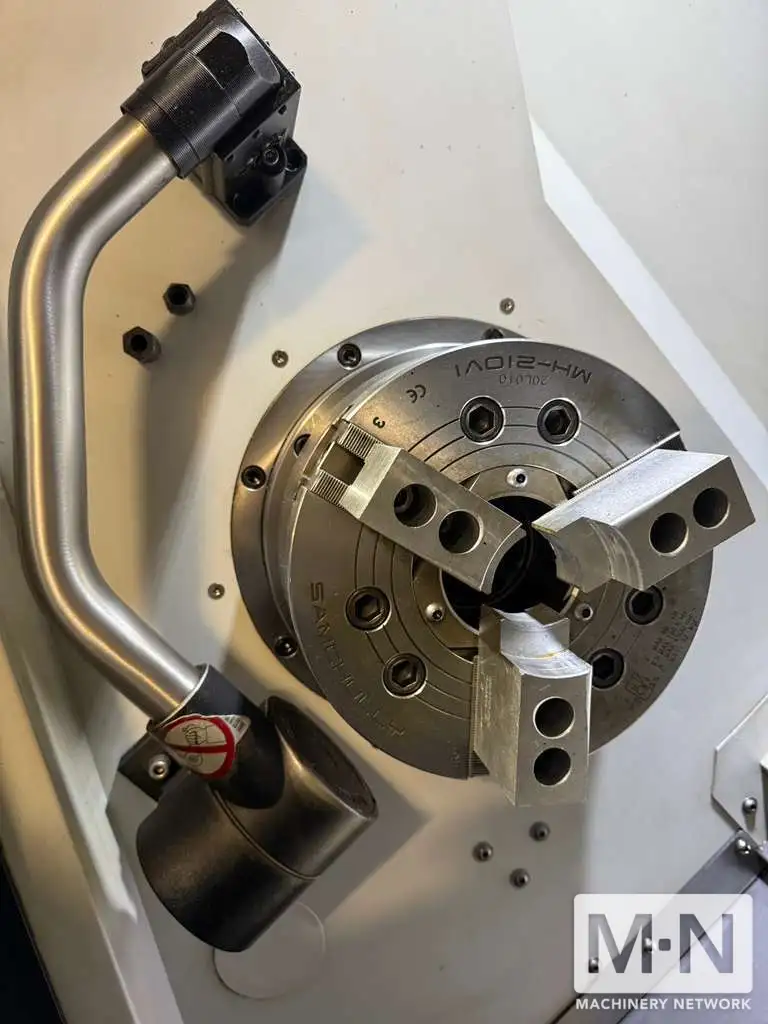

Chuck Size10"254 mm
Bar Capacity3.2"81.28 mm
Spindle Bore3.6 in
Spindle NoseA2-8A2-8
Power20 hp14.9 kW
Max RPM4,000 RPM4,000 RPM
Turret Stations12 (24 Positions)12 (24 Positions)
TailstockYesYes
Live ToolingYesYes
Live Milling Power10 hp
Live Milling Max RPM5000 rpm5,000 RPM
Sub SpindleYesYes
Sub Spindle Power20 hp
Sub Spindle Max RPM6000 rpm6,000 RPM
Sub Spindle Chuck8 in
Sub Spindle Bar Capacity1.96 in
Sub Spindle Bore2.4 in
Sub Spindle NoseA2-5A2-5

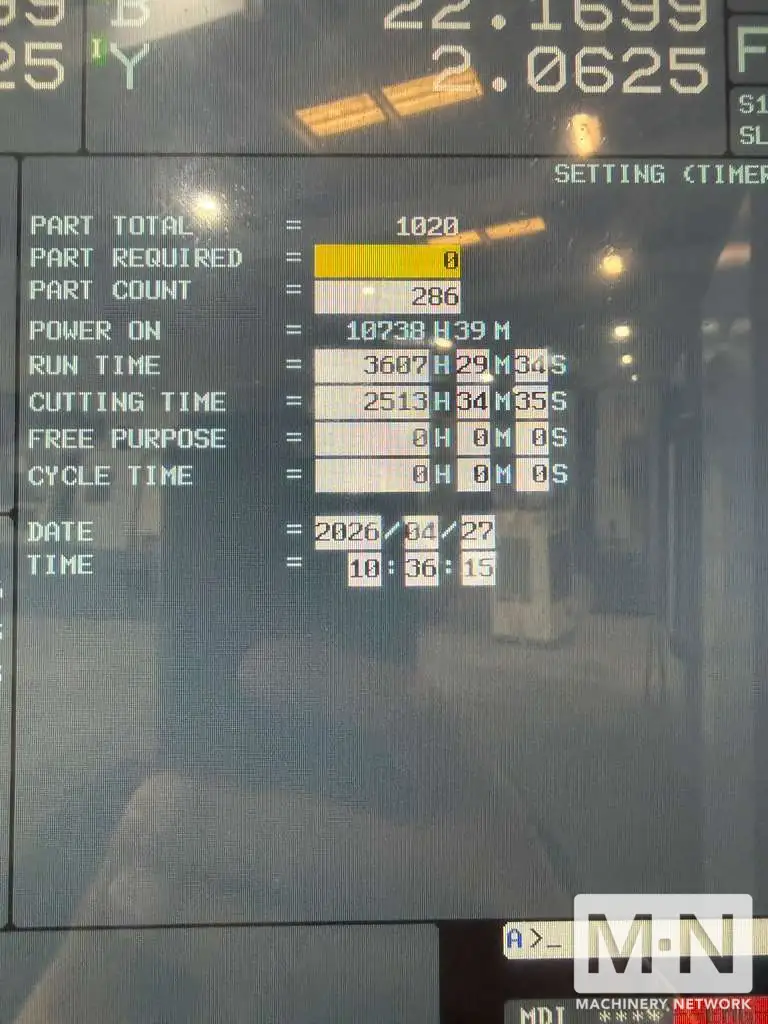

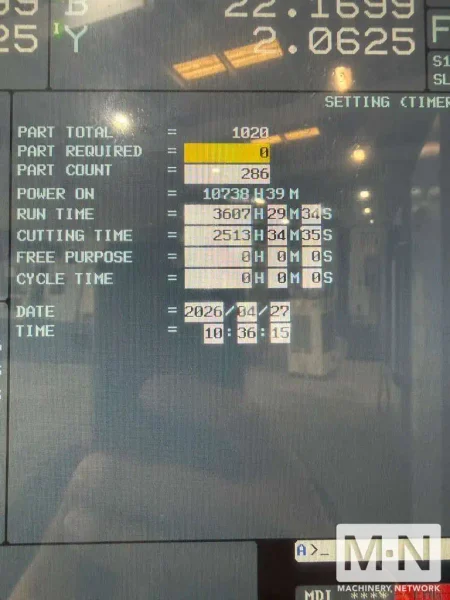

Cut Hours2,513 hr.2,513 hr.
Dimensions142″ x 75″ x 85″ High142″ x 75″ x 85″ High
Weight14,220 Lbs14,220 Lbs

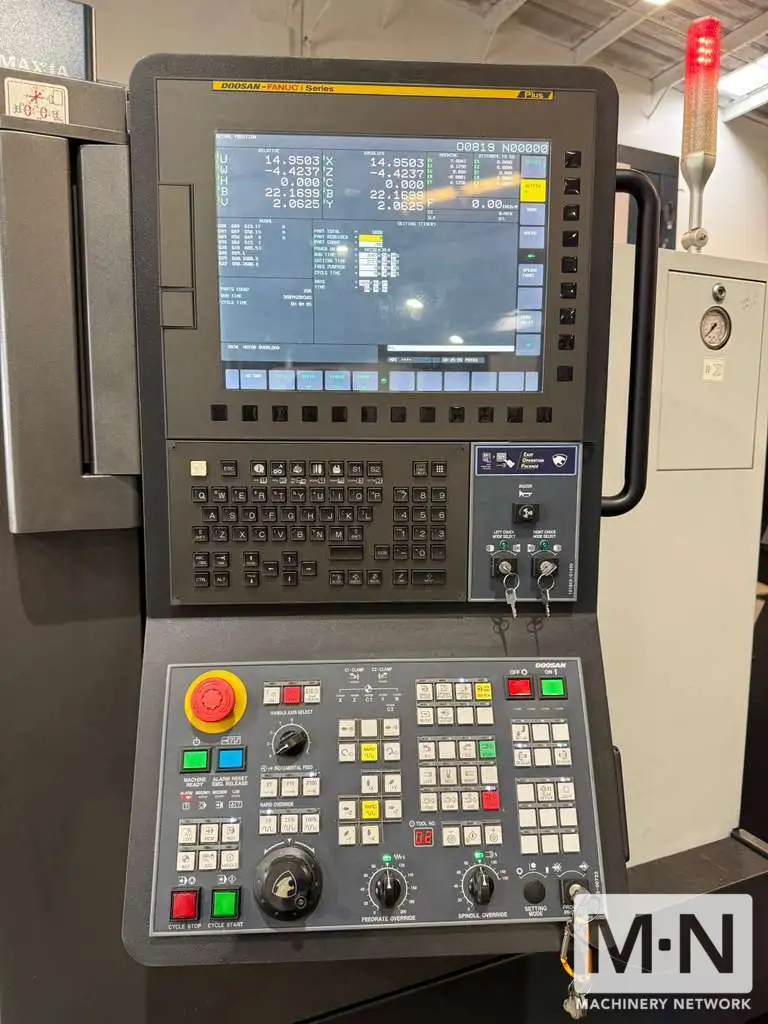

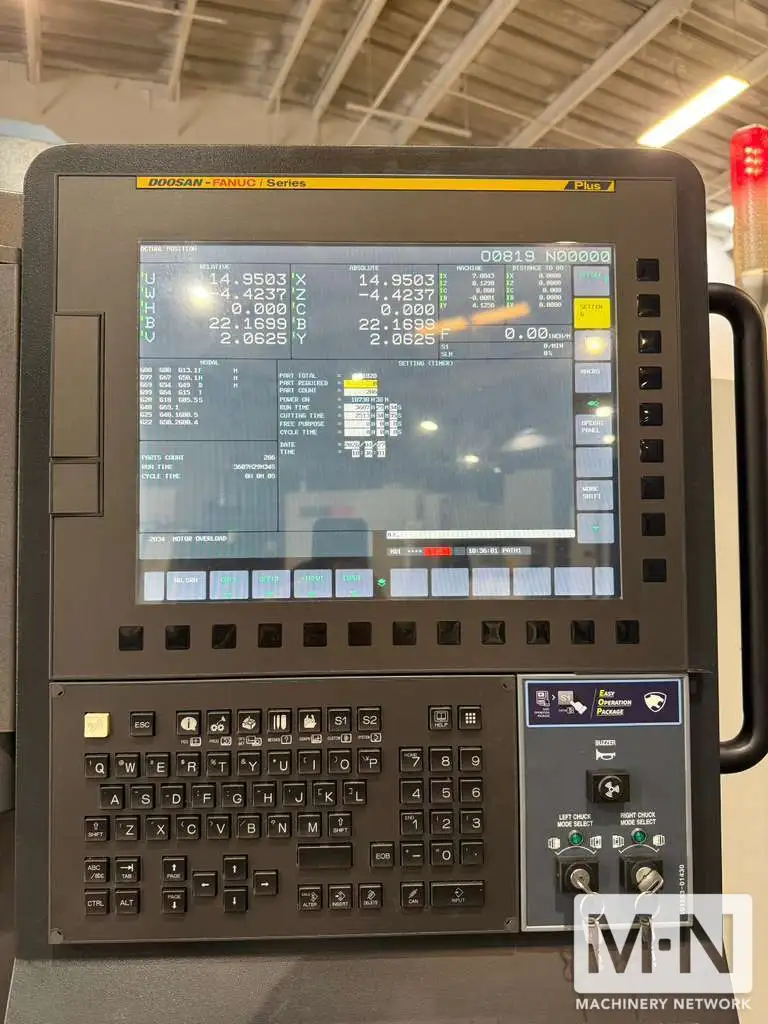

Fanuc i-Plus CNC Control

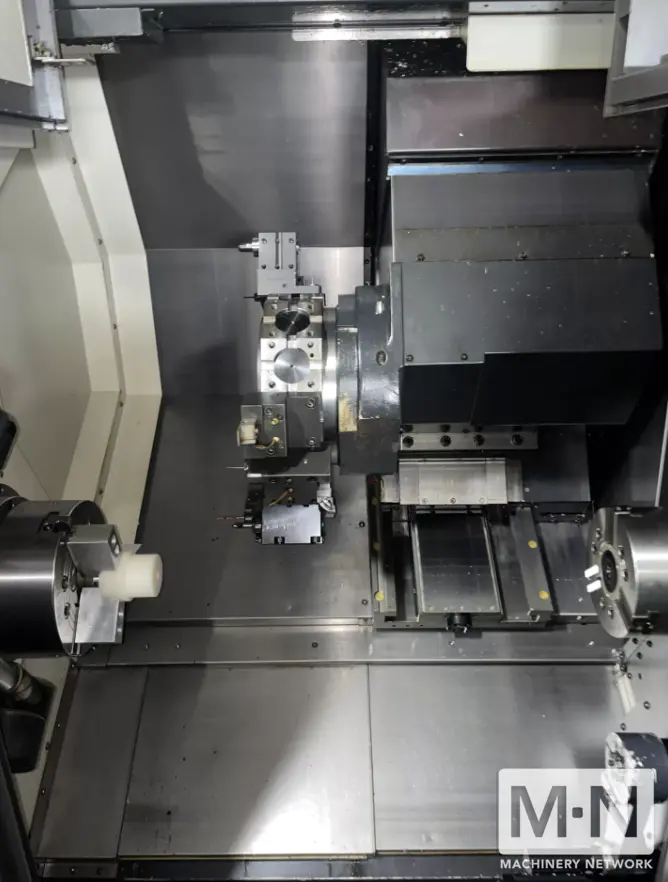

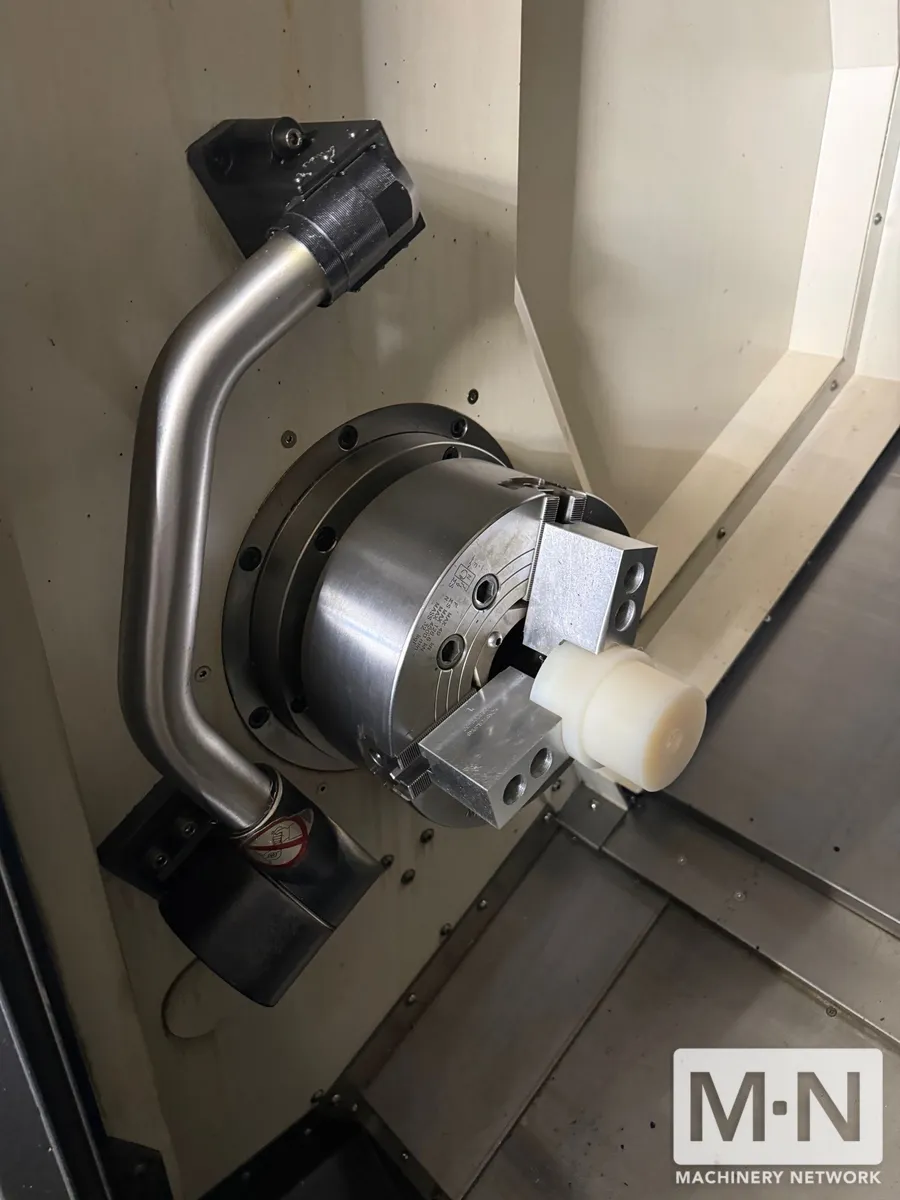

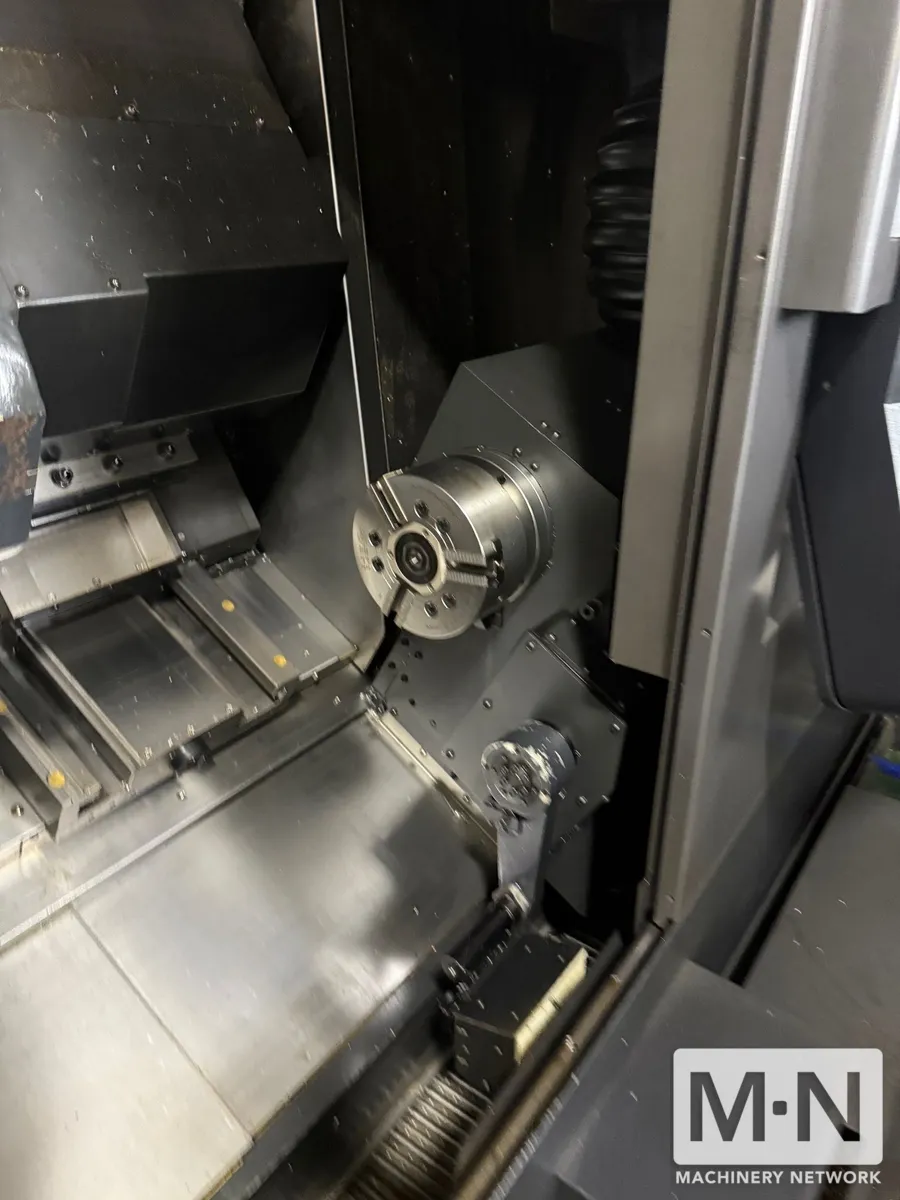

Sub Spindle
Servo Controlled Full C-Axis on Both Spindles

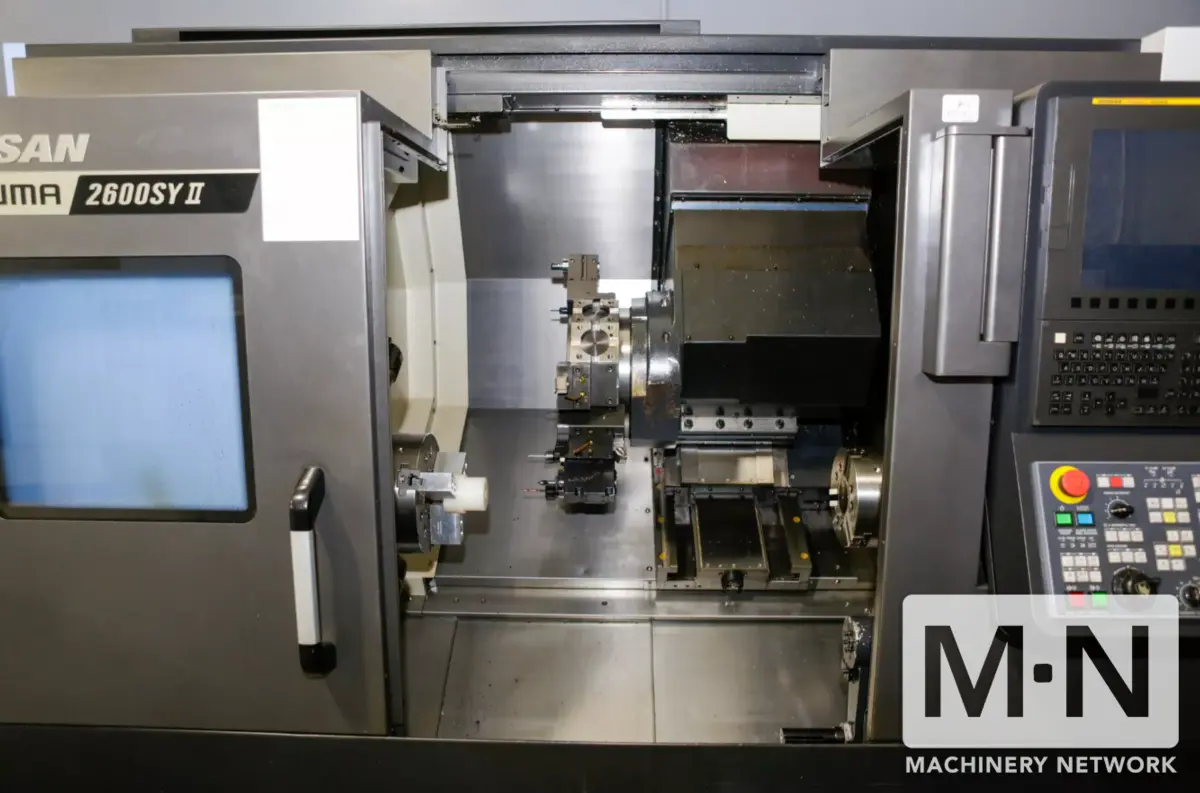

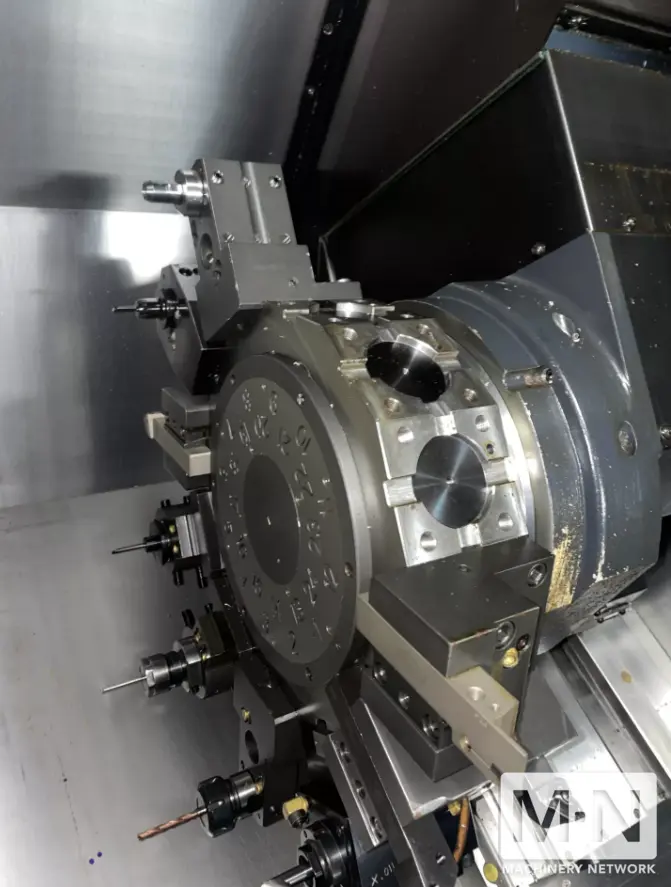

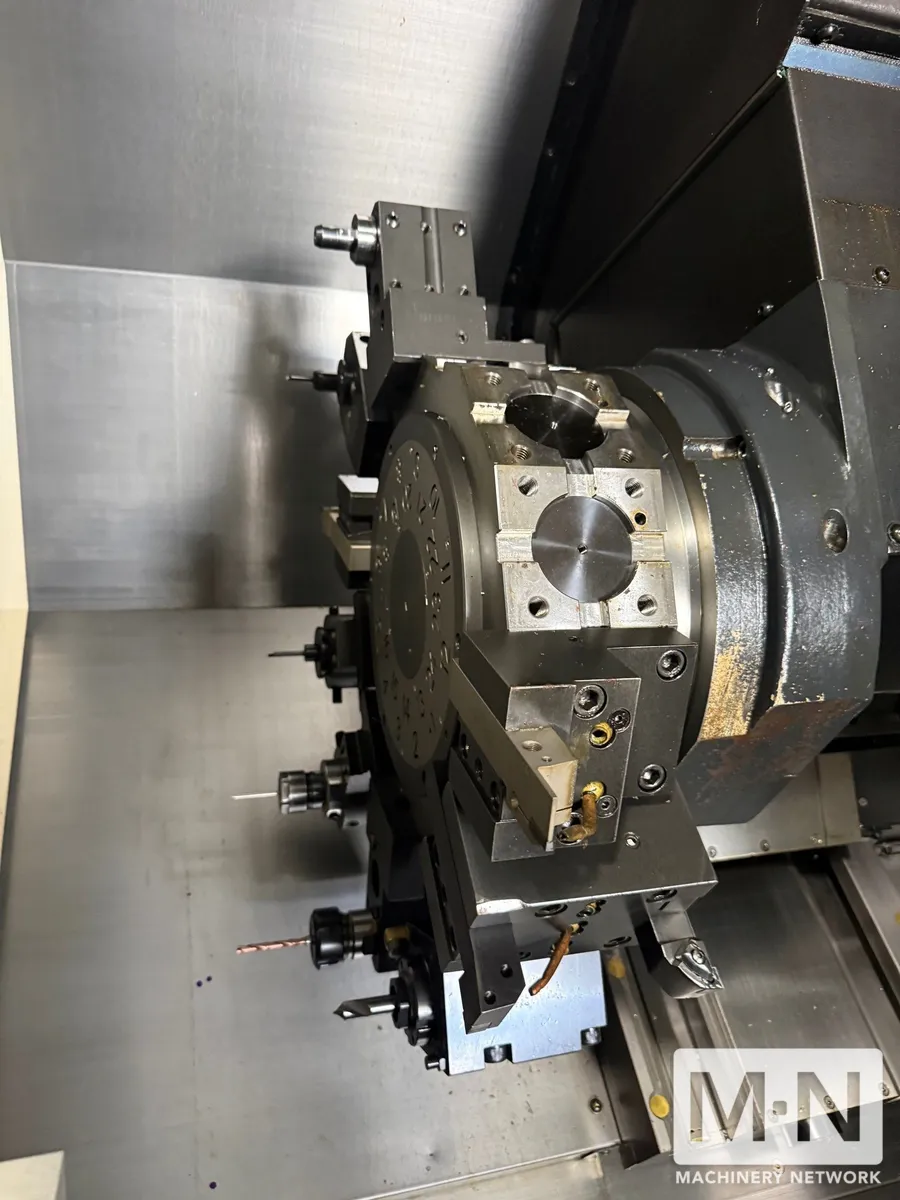

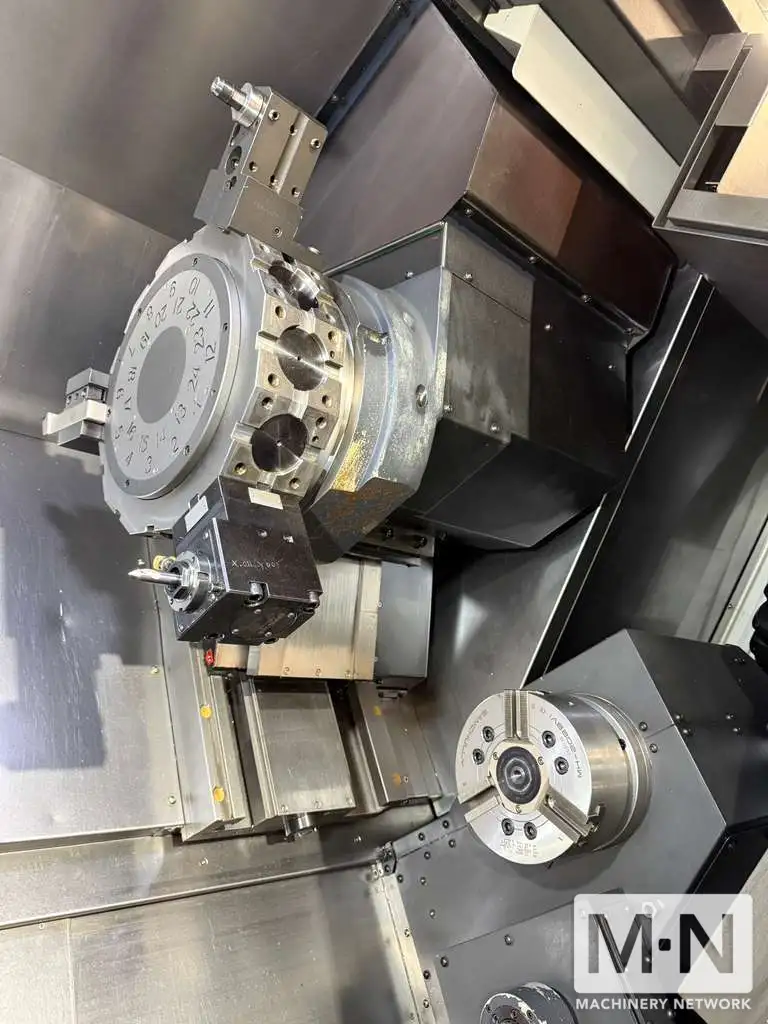

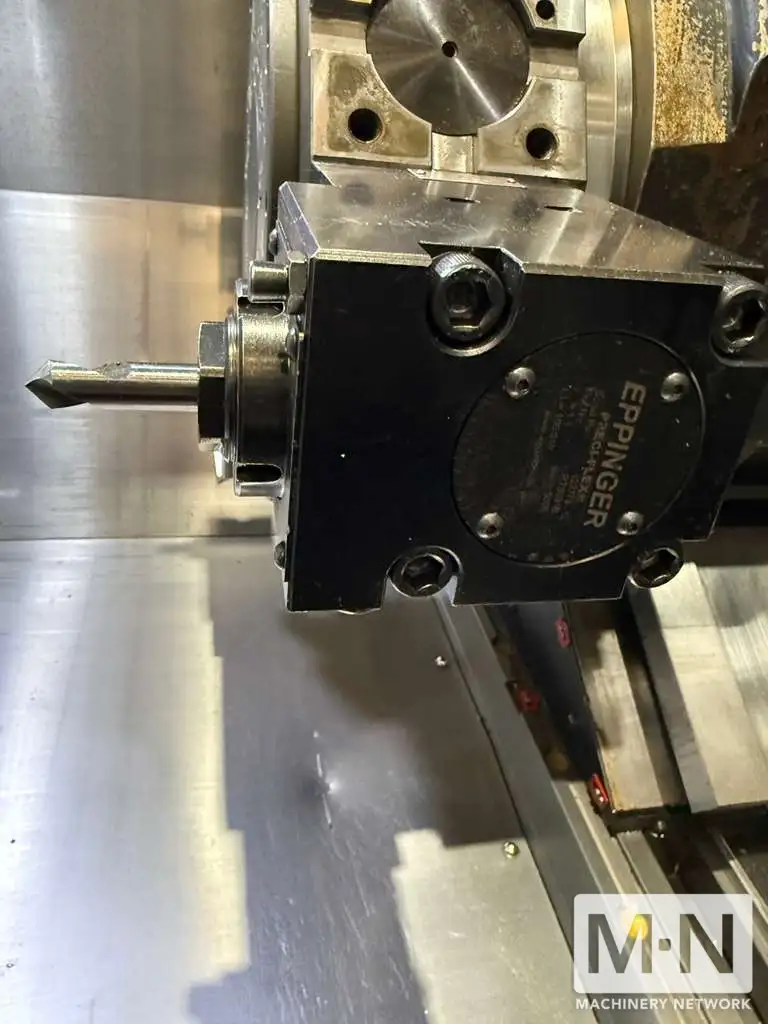

12-Station (24 Positions) Live Tool Turret
Y Axis Capable
Tool Presetter
Parts Catcher
Parts Conveyor

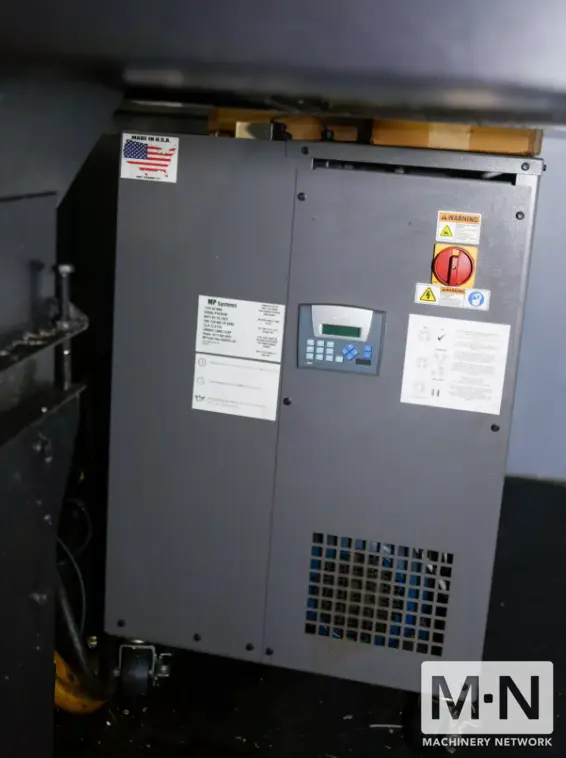

MP Systems VR8 High Pressure Coolant System
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck

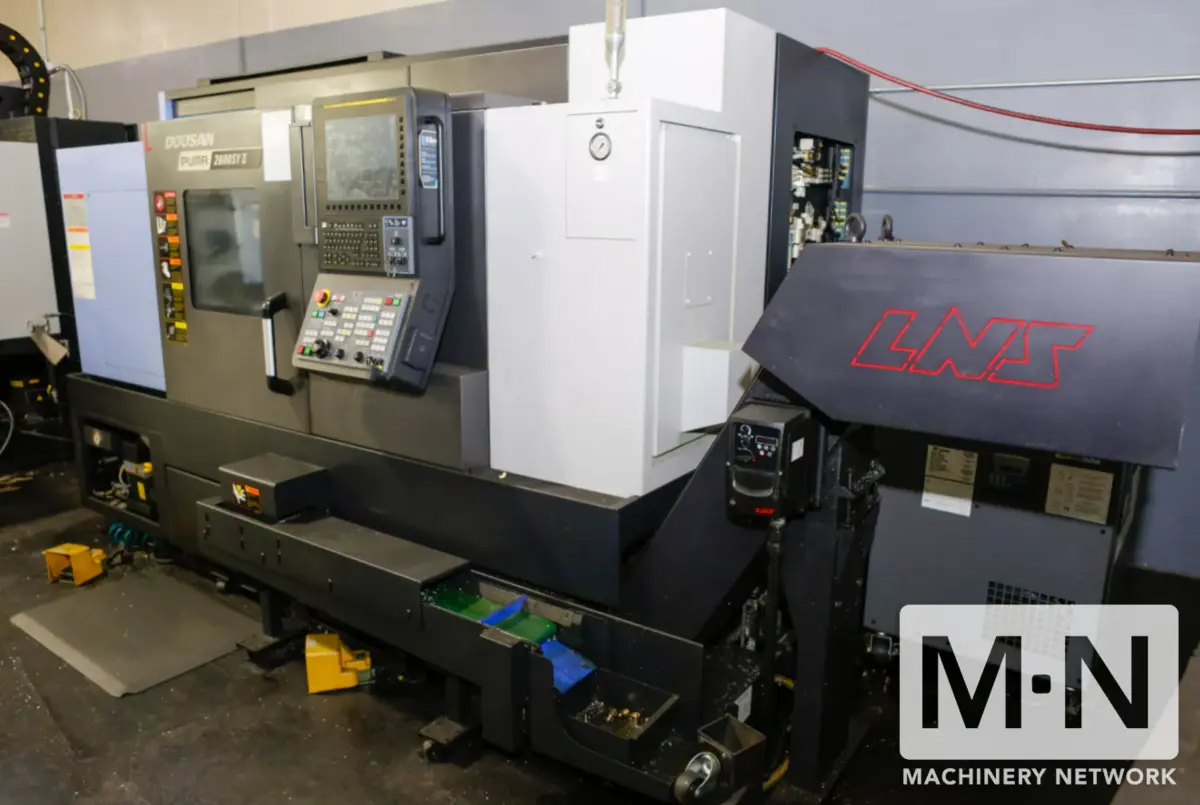

LNS Chip Conveyor

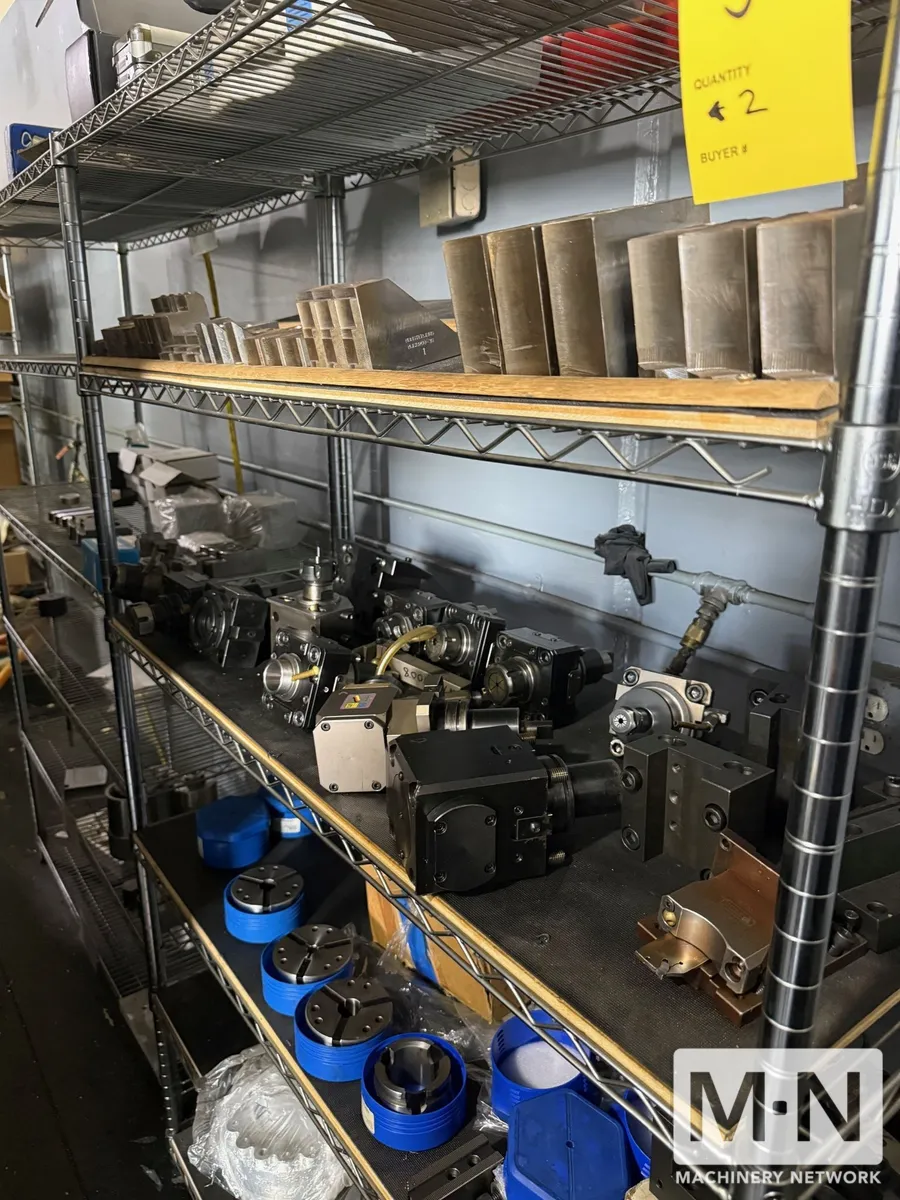

*Tooling package available for separate purchase
