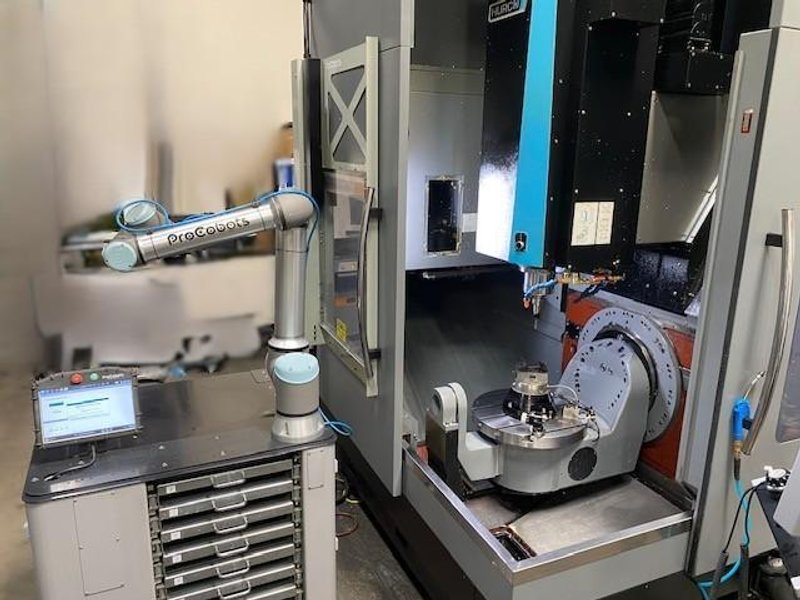

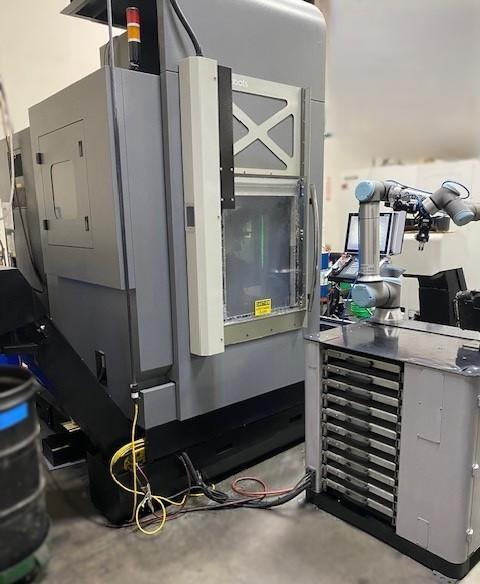

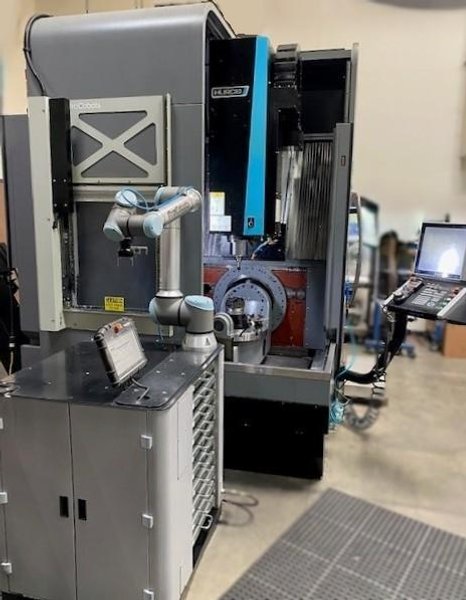

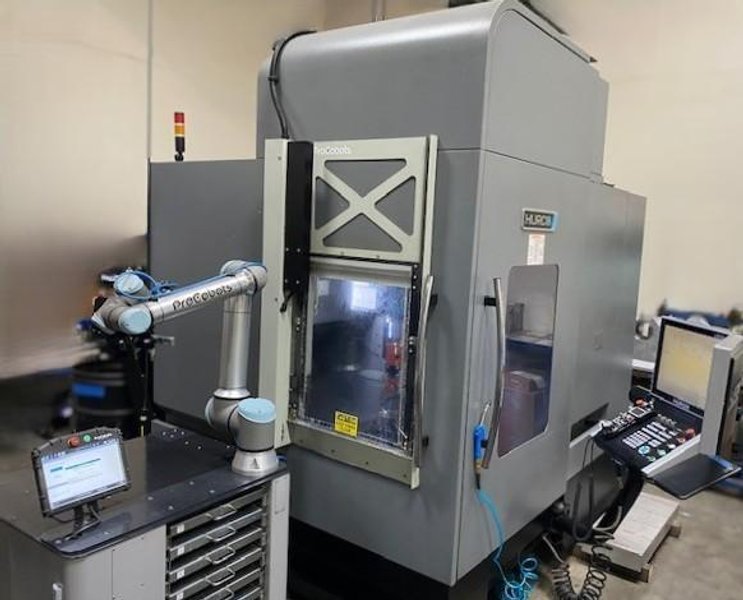

Hurco VC500i 5-Axis CNC Mill (2021) with Integrated ProCobot Robot Arm & Drawer System
Brand
Category
Type
Model
VC500i
Stock #
7109
Year
2021
Condition
Not specified
Location
California

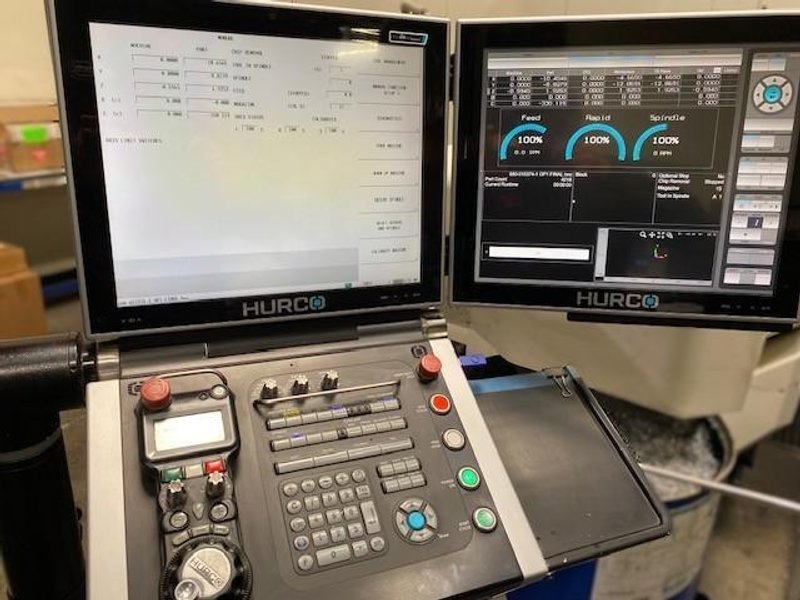

| Control | MAX 5 |
| Travel (X, Y, Z) | 20.5" x 17.7" x 15.8" |
| Table Working Surface | 19.7" diam. |
| Maximum Table Load | 550 lbs. |
| Spindle Nose To Table | 5.9" - 21.7" |
| C Axis Motion | 360 degree |
| B Axis Motion | -110/+110 degrees |
| Coolant Capacity | 84.5 gallons |
| Floor To Table Surface | 34.1" |
| Spindle | VC500i |
| Spindle Taper | CAT40 |
| Spindle Speed | 12,000 rpm |
| Spindle Motor Horsepower | 10HP @1,450 rpm (peak) |
| Spindle Torque | 35.3 ft. lbs. (peak) |
| Motion | VC500i |
| Feedrates: Rapid Traverse X-Axis / Y-Axis / Z-Axis | 945 ipm |
| Max Programmable Feedrate | 945 ipm |
| Least Command Increment | .0001" |
| B Axis Feed Rate | 25 rpm |
| C Axis Feed Rate | 25 rpm |
| Positioning Accuracy | (10 pass VDI 3441 Method) +/- .0002" |
| Repeatability | (10 pass VDI 3441 Method) +/- .0001" |
| Automatic Tool Changer | VC500i |
| Number Of Stations | 30 |
| Tool To Tool ATC Time | 2.5 Seconds |
| Maximum Tool Diameter | 3.1" |
| Maximum Tool Length | 9.8" |
| Maximum Operating Dimensions | 163" x 141.9" x 115.3" |
| Machine Weight | 18,520 lbs. (approx.) |
| Voltage | 230 VAC +/- 5% |
| Air Requirements | 3-15 CFM @ 80-100 psi |
|
