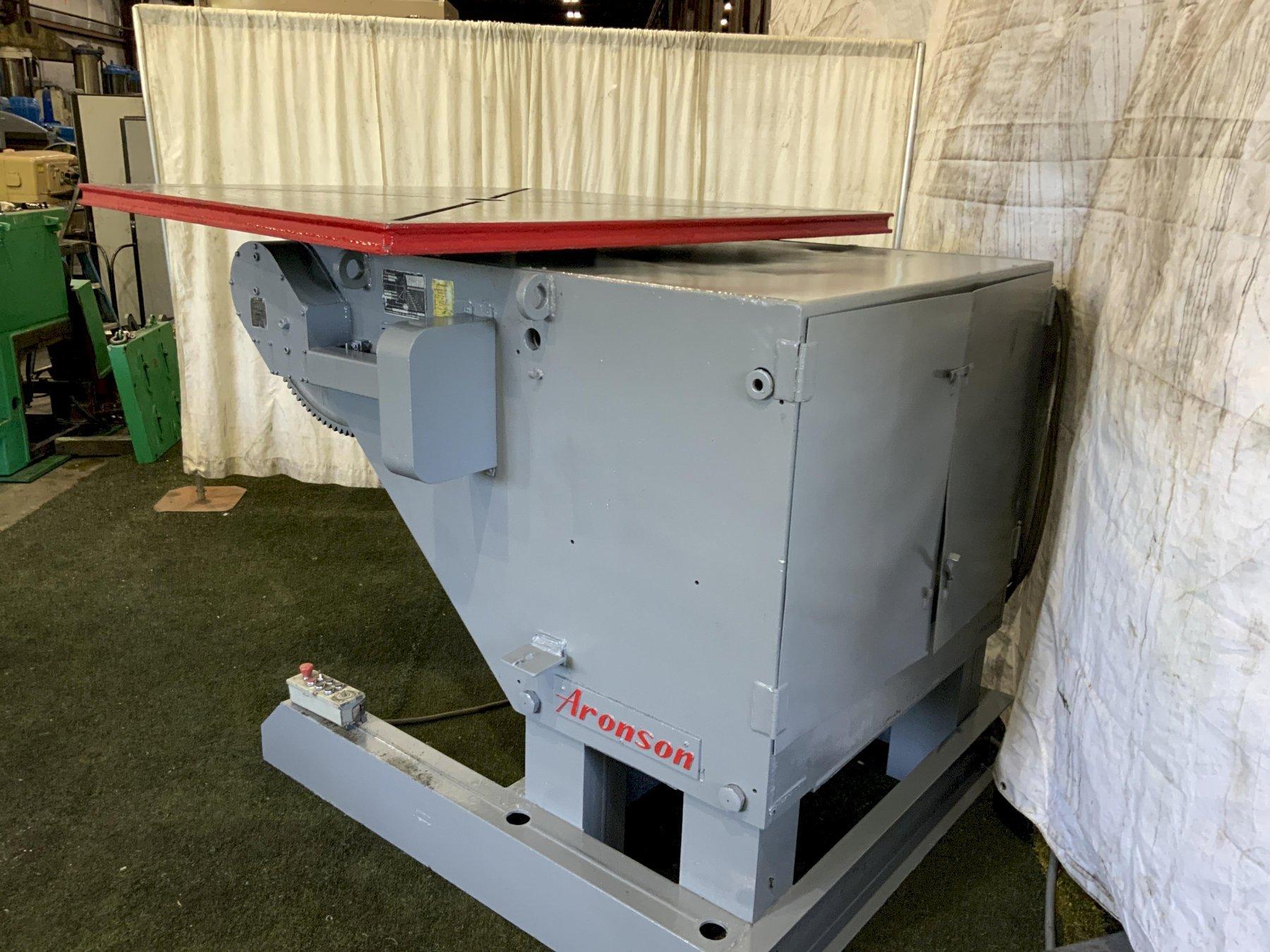

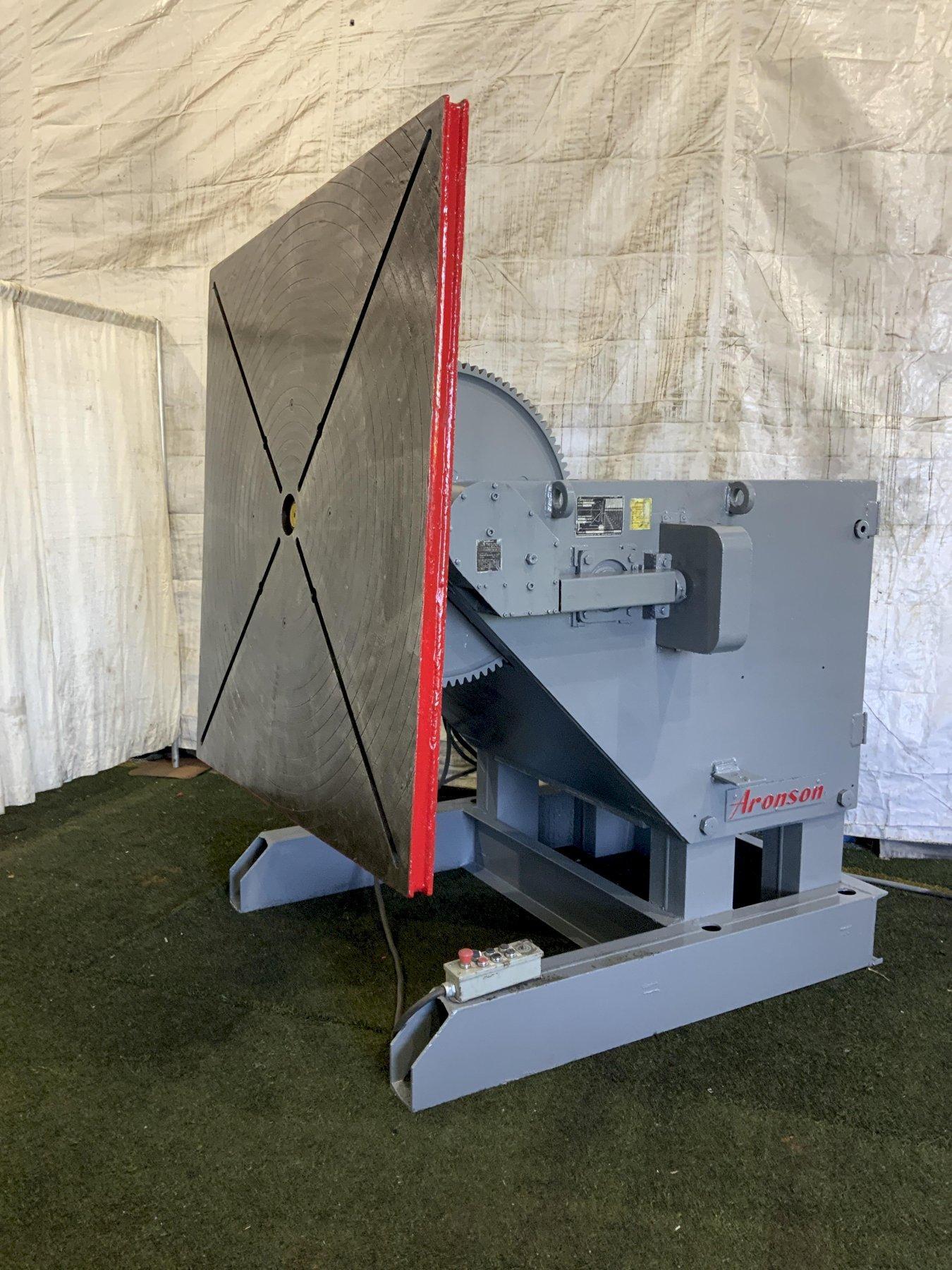

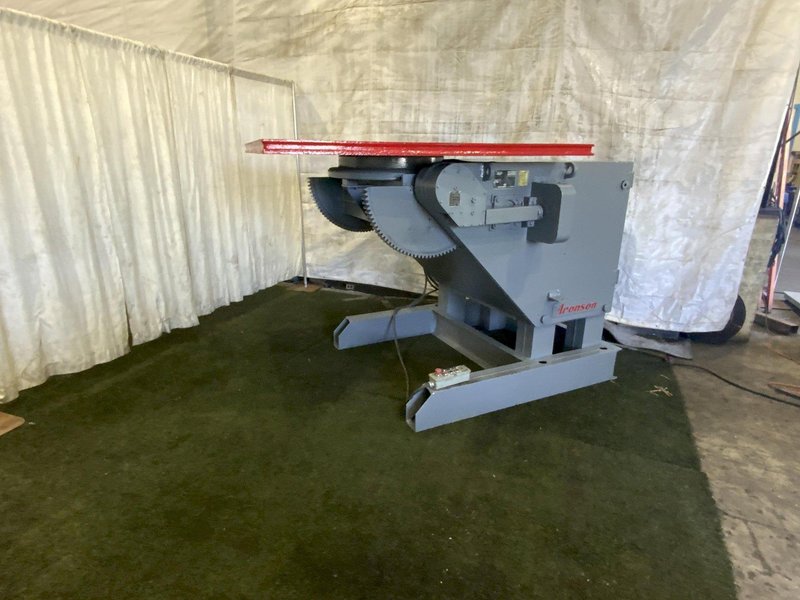

24,000 LBS ARONSON MODEL HD240B HEAVY-DUTY WELDING POSITIONER: STOCK #81048

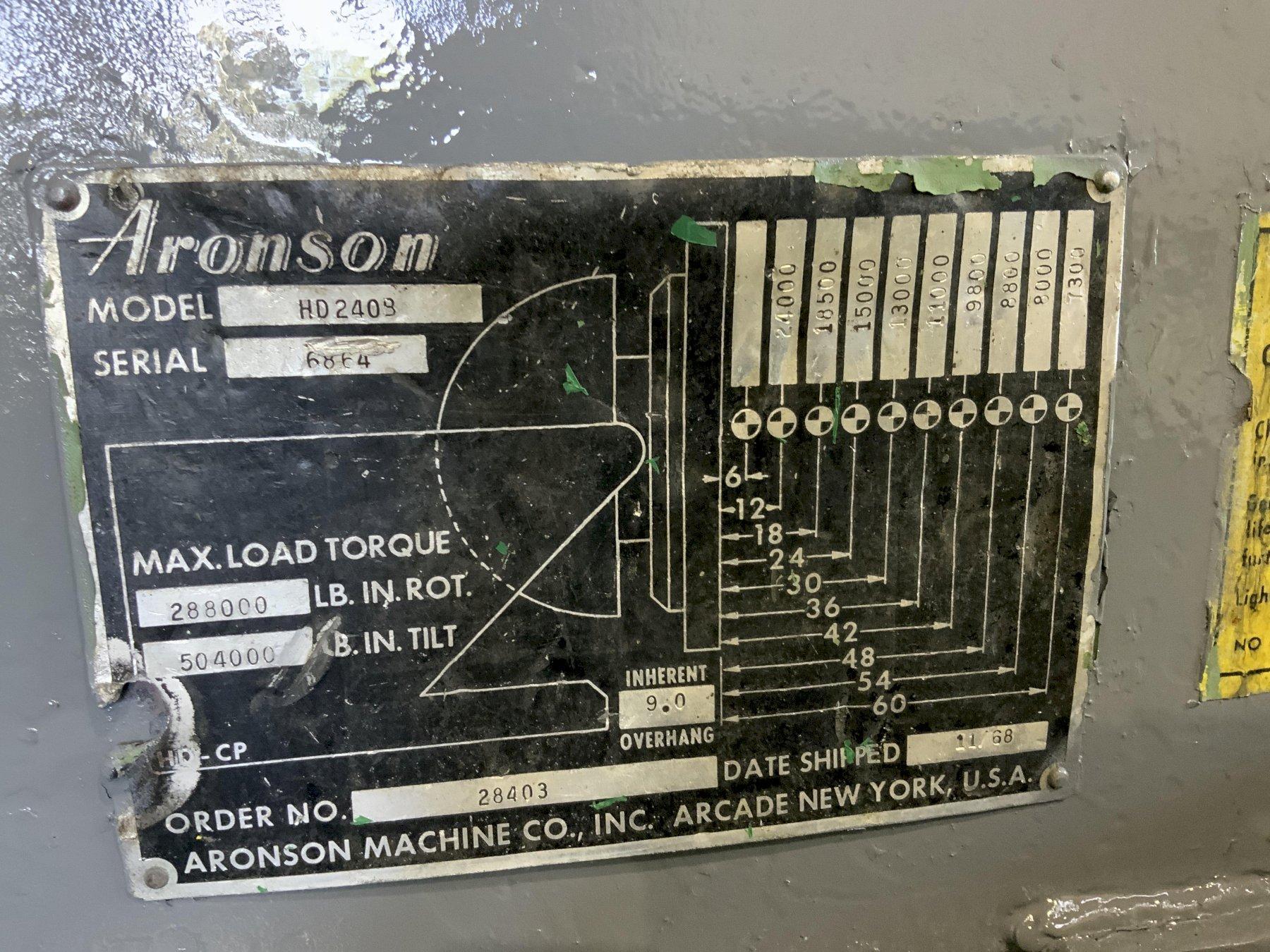

SERIAL ..................................... #6864

MODEL ...................................... #HD-240B

CAPACITY ................................... 24,000# @ 12 CG

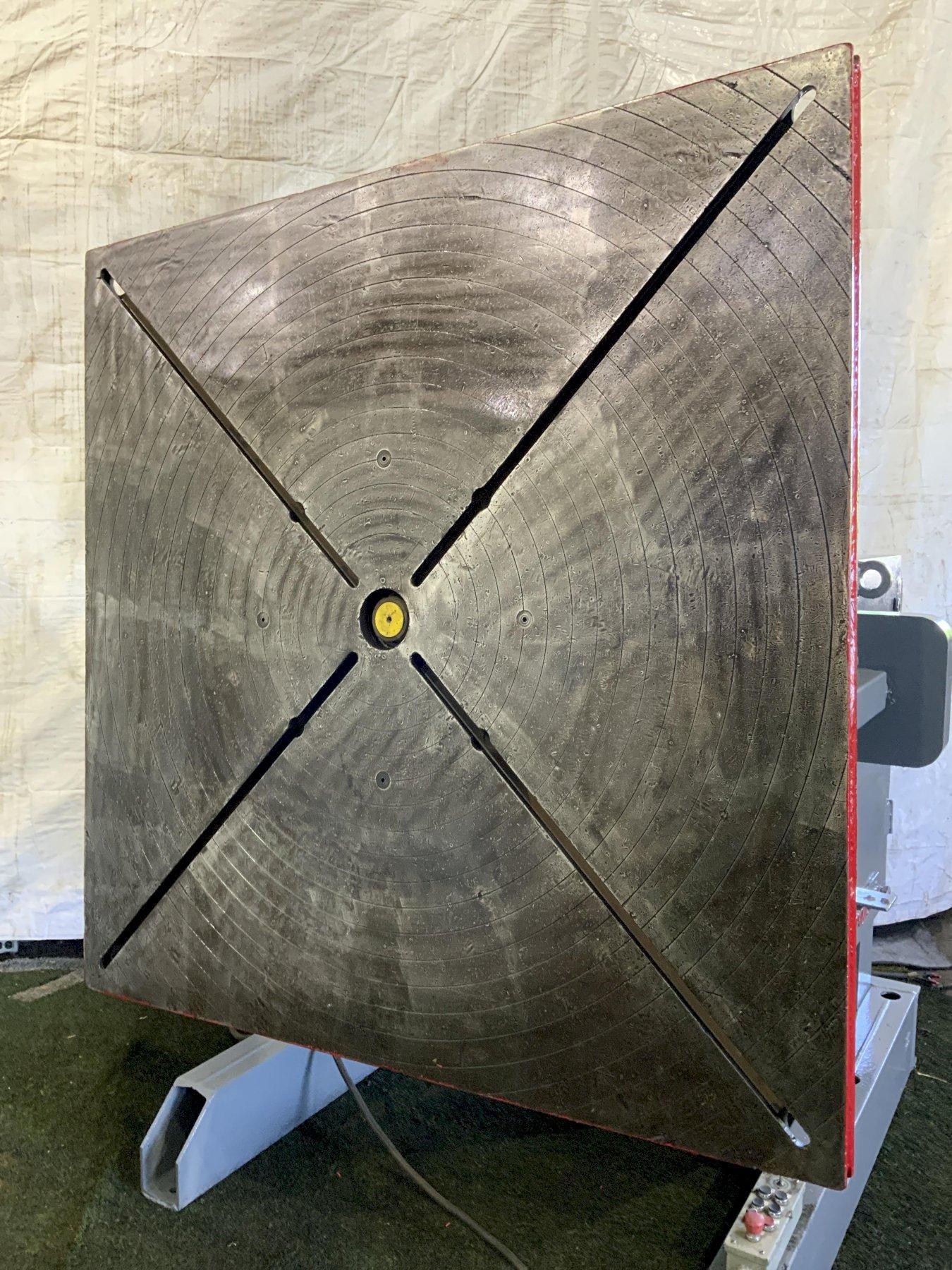

TABLE SIZE ................................. 72" X 72"

POWER SCR VARIABLE SPEED ROTATION .......... .016 TO .66 RPM

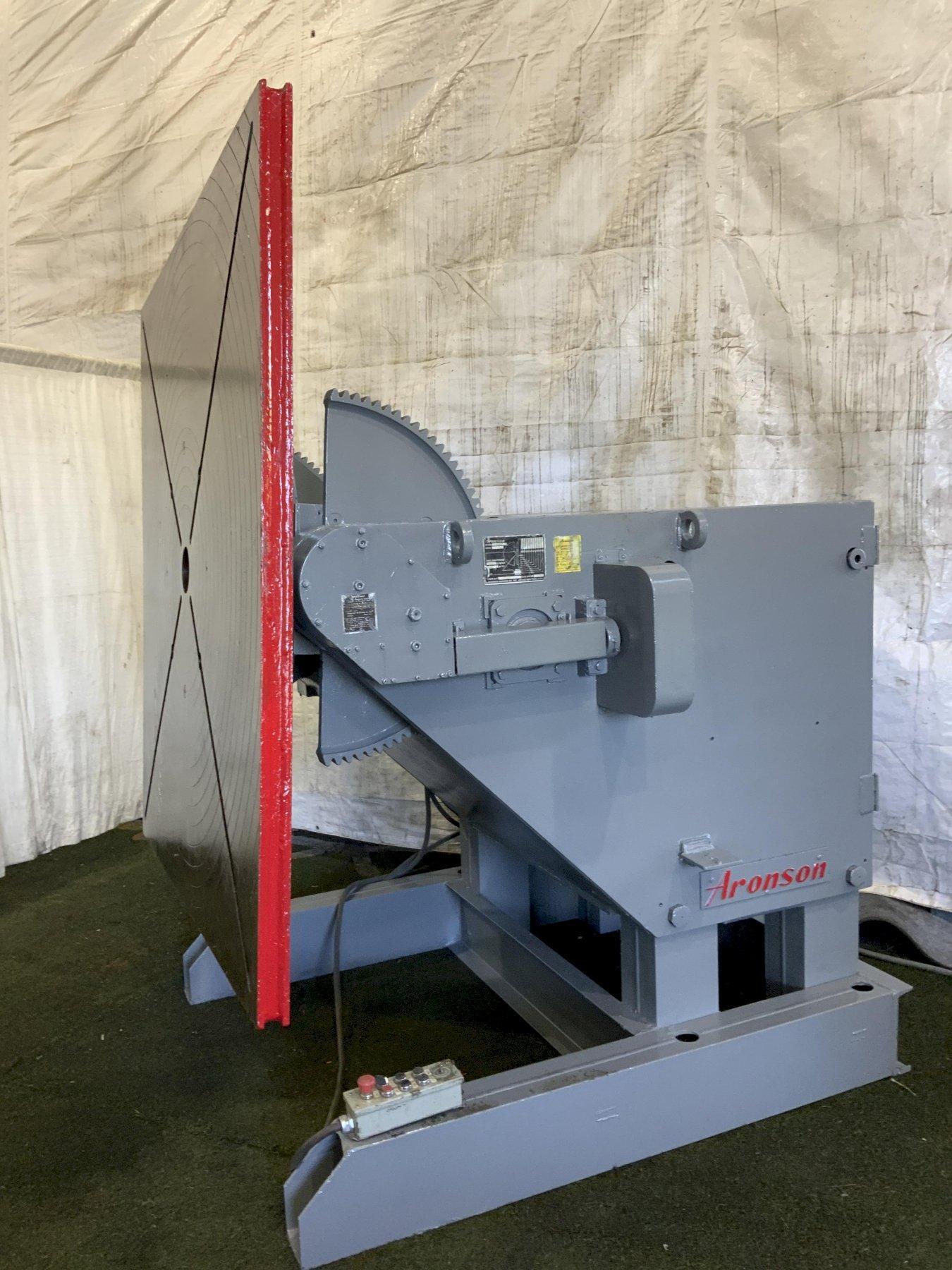

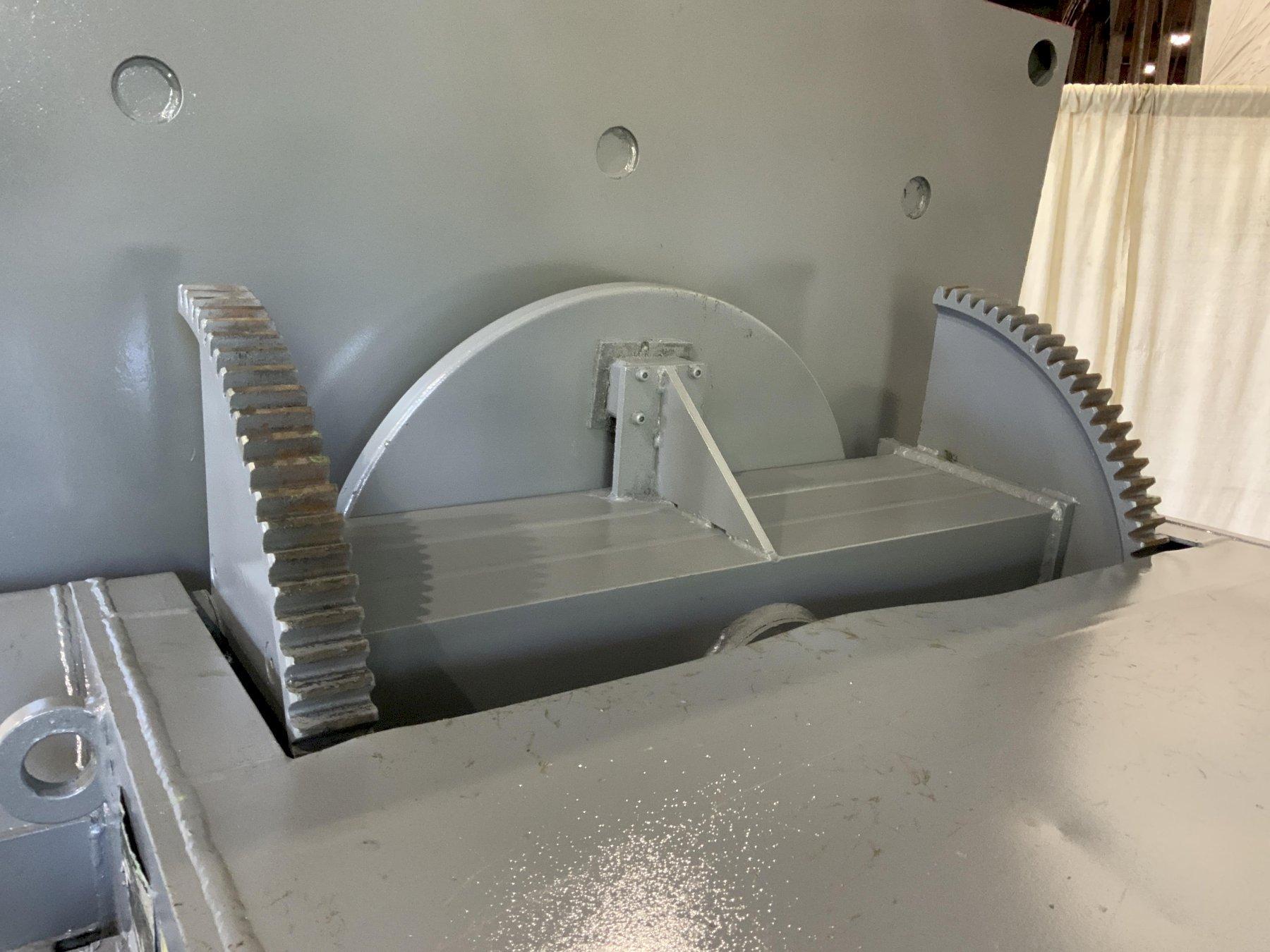

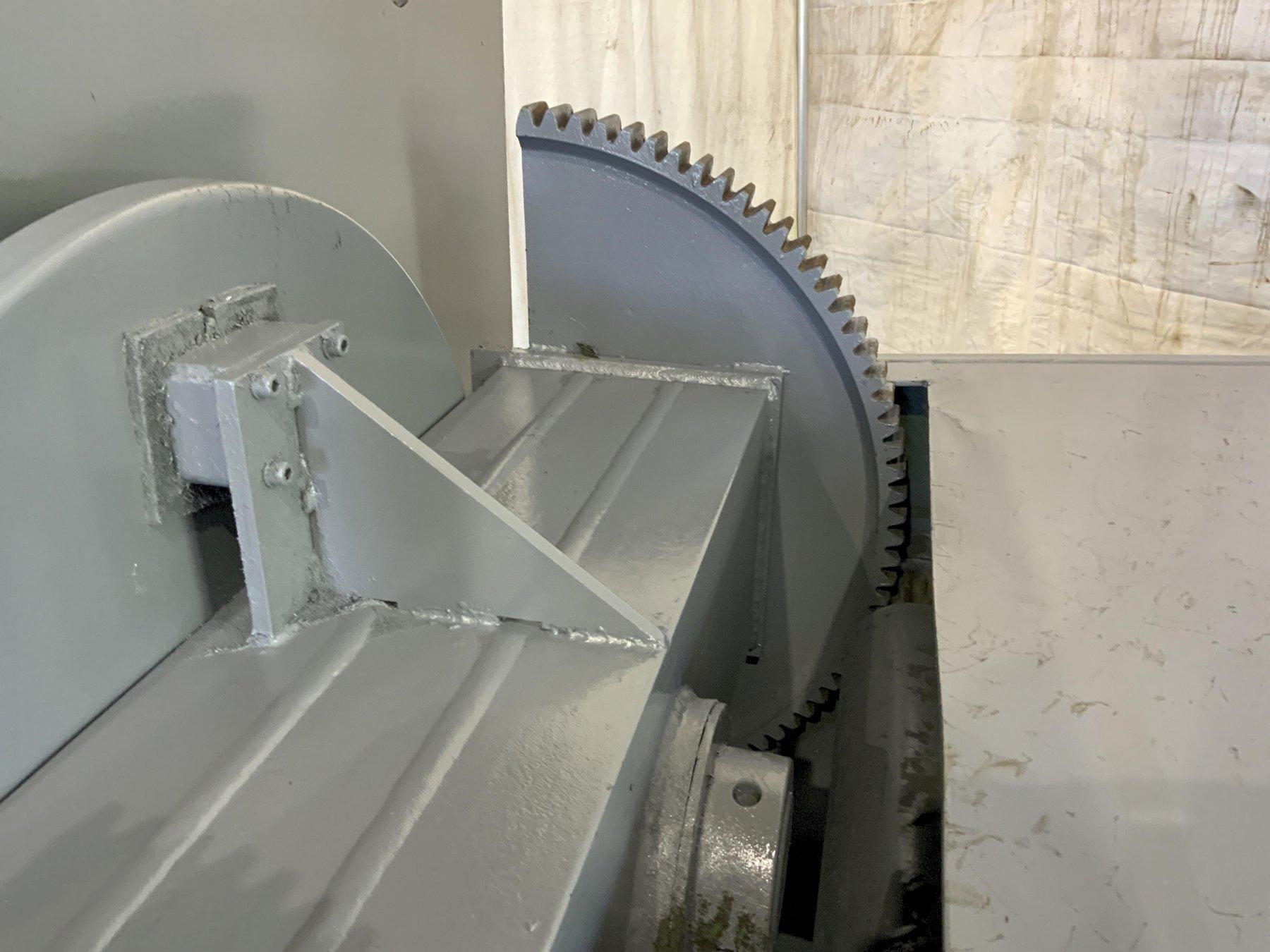

POWER TILT ................................. 135 DEGREES

ADJUSTABLE HEIGHT .......................... 6" INCREMENTS

DISTANCE FROM FLOOR TO CENTER OF TABLE ..... 59" MINIMUM TO 95" MAXIMUM

ROTATION TORQUE ............................ 288800

TILT TORQUE ................................ 54000

RAPID TRAVERSE ON TABLE .................... YES

RUN/JOG .................................... YES

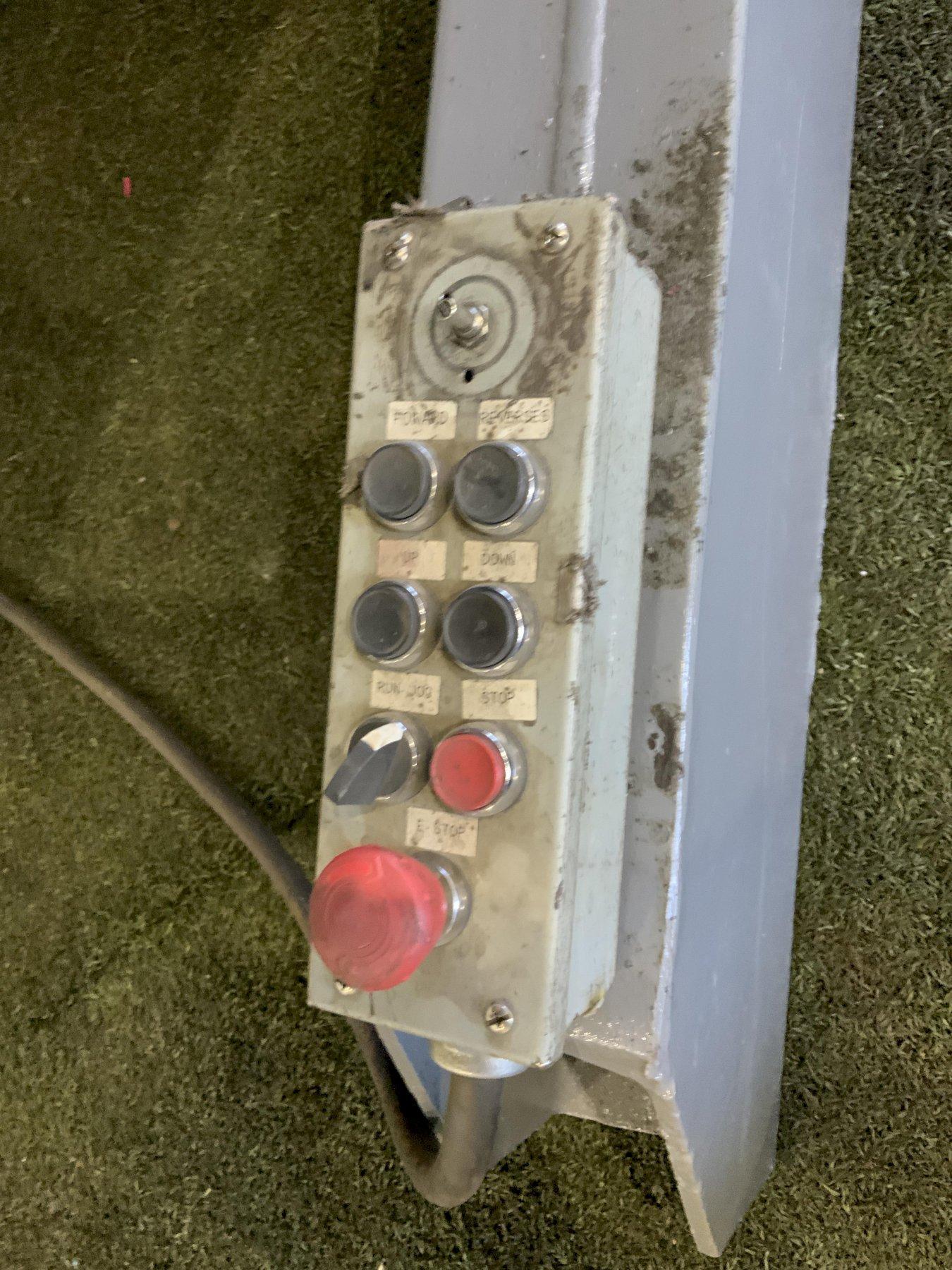

PENDANT CONTROL ............................ YES

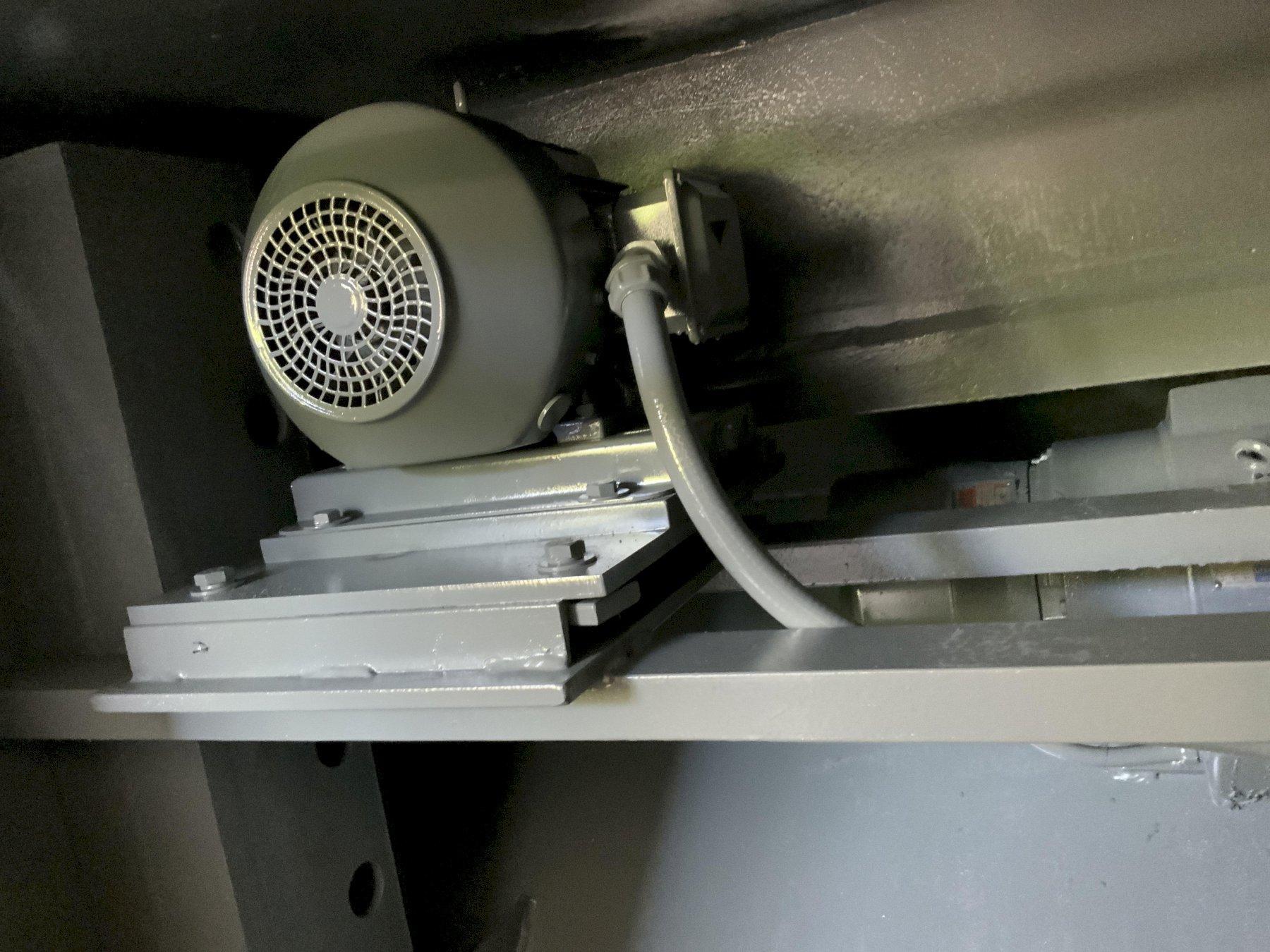

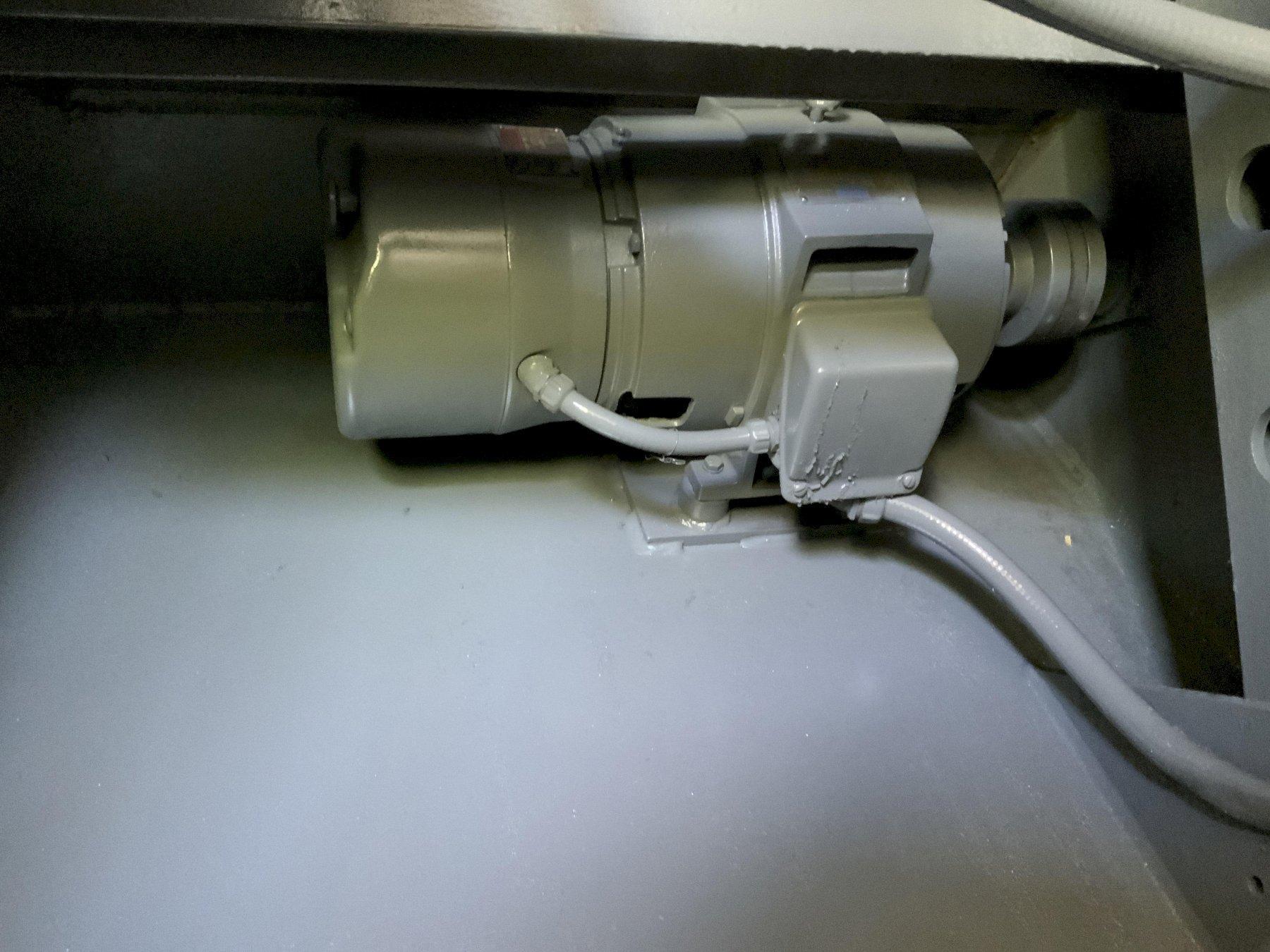

TILTING MOTOR .............................. 7-1/2 HORSEPOWER

ROTATION MOTOR ............................. 5 HORSEPOWER
