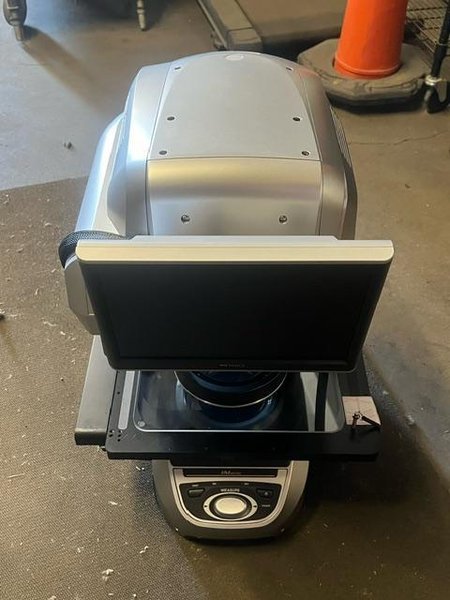

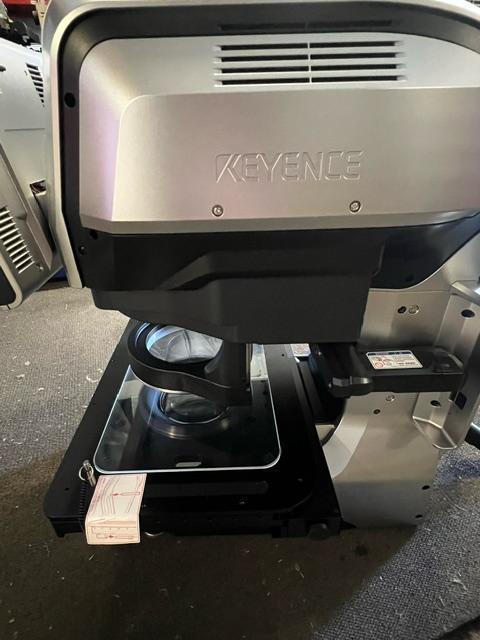

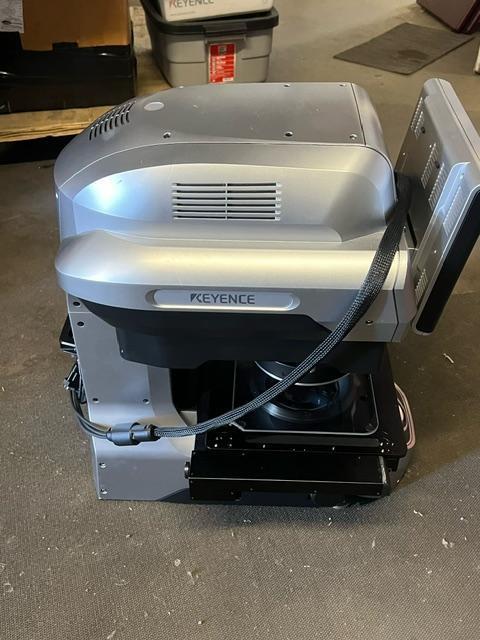

KEYENCE IM-8030T Instant Measurement System – Optical Comparator with Contact Height Measurement, 2024 – 300 x 200 mm Wide Stage

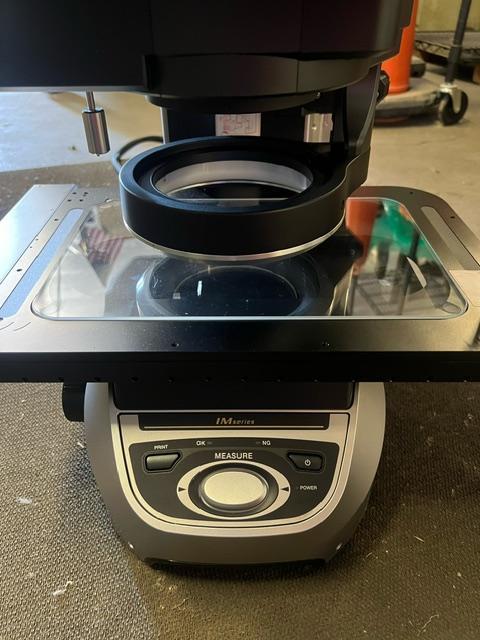

The 2024 KEYENCE IM-8030T is a high-speed instant measurement system with a 300 x 200 mm wide stage, double telecentric lens, programmable ring illumination, and integrated contact height measurement for fast, precise 2D and 3D part inspection.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer: KEYENCE Model: IM-8030T Year: 2024 Equipment Type: Instant Measurement System / Image Dimension Measurement System Stage Size: 300 x 200 mm wide stage Imaging Sensor: 1″ 20-megapixel monochrome CMOS Lens Type: Double telecentric lens Display: 12.1″ LCD monitor, WXGA (1280 x 800) Measurement Modes: Wide-field mode and high-precision mode Field of View: Wide-field mode: 300 x 200 mm High-precision mode: 225 x 125 mm Minimum Display Unit: 0.1 µm Repeatability: Wide-field mode, without stage movement: ±1 µm Wide-field mode, with stage movement: ±2 µm High-precision mode, without stage movement: ±0.5 µm High-precision mode, with stage movement: ±1.5 µm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
