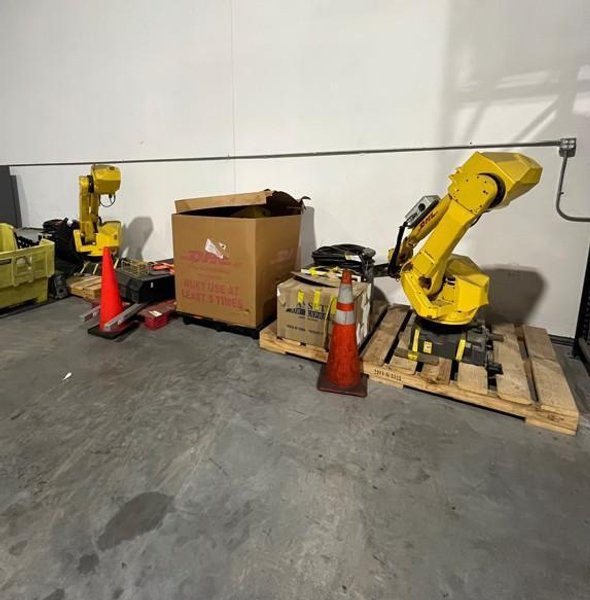

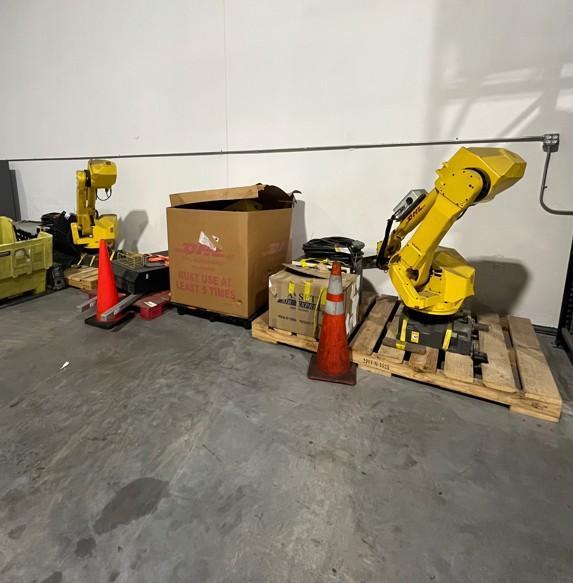

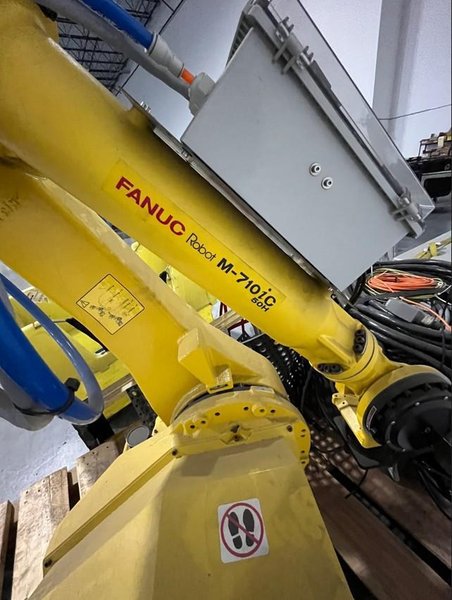

Fanuc M‑710iC/50H Palletizing Robot, 2021 – 5‑Axis, 50 Kg Payload, R‑30iB Plus Controller
Brand
Category
Type
Model
M‑710iC/50H
Stock #
897560
Year
2021
Condition
Not specified
Location
Not specified
|
Controlled Axes: 5
Max Payload: 110lbs
Max Reach: 78″
Repeatability: ± 0.0059″
Mounting Position: Floor/Celing
J1 (Base): 360°
J2 (Lower Arm): 225°
J3 (Upper Arm): 440°
J4 (Wrist Swing): 234°
J5 (Wrist Rotate): 720°
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approximate Machine Weight: 1,190lbs All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With R-30iB Plus Controller All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
