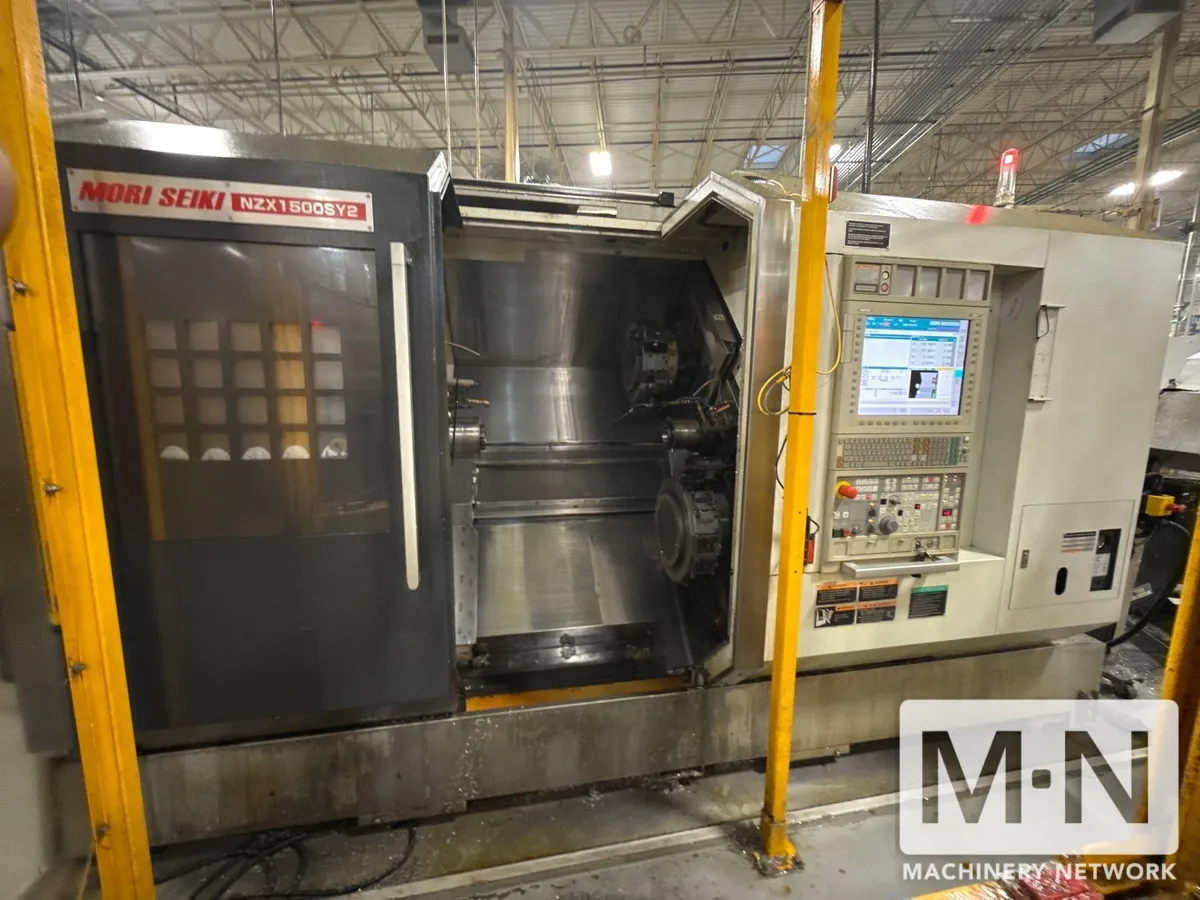

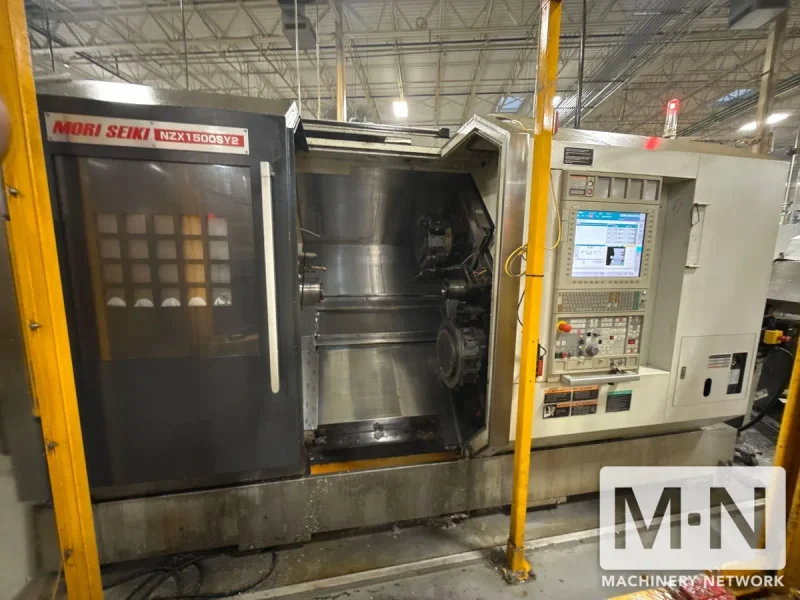

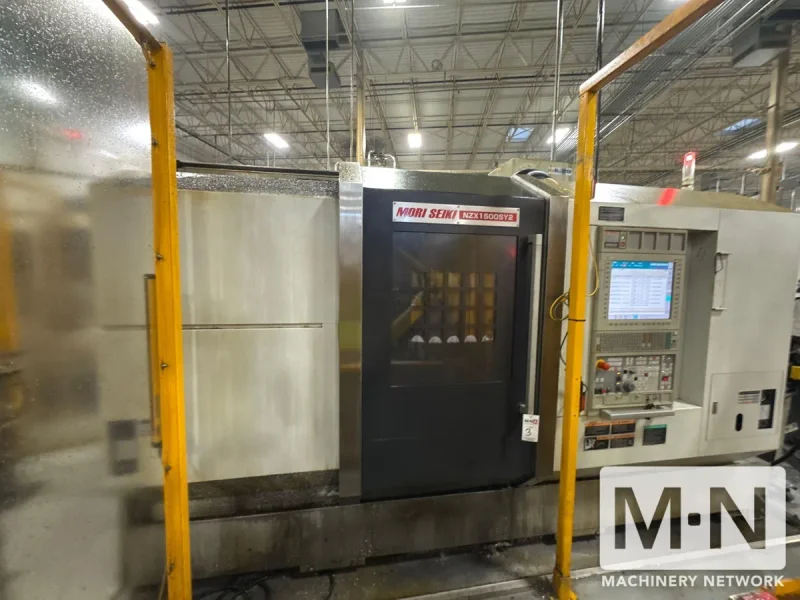

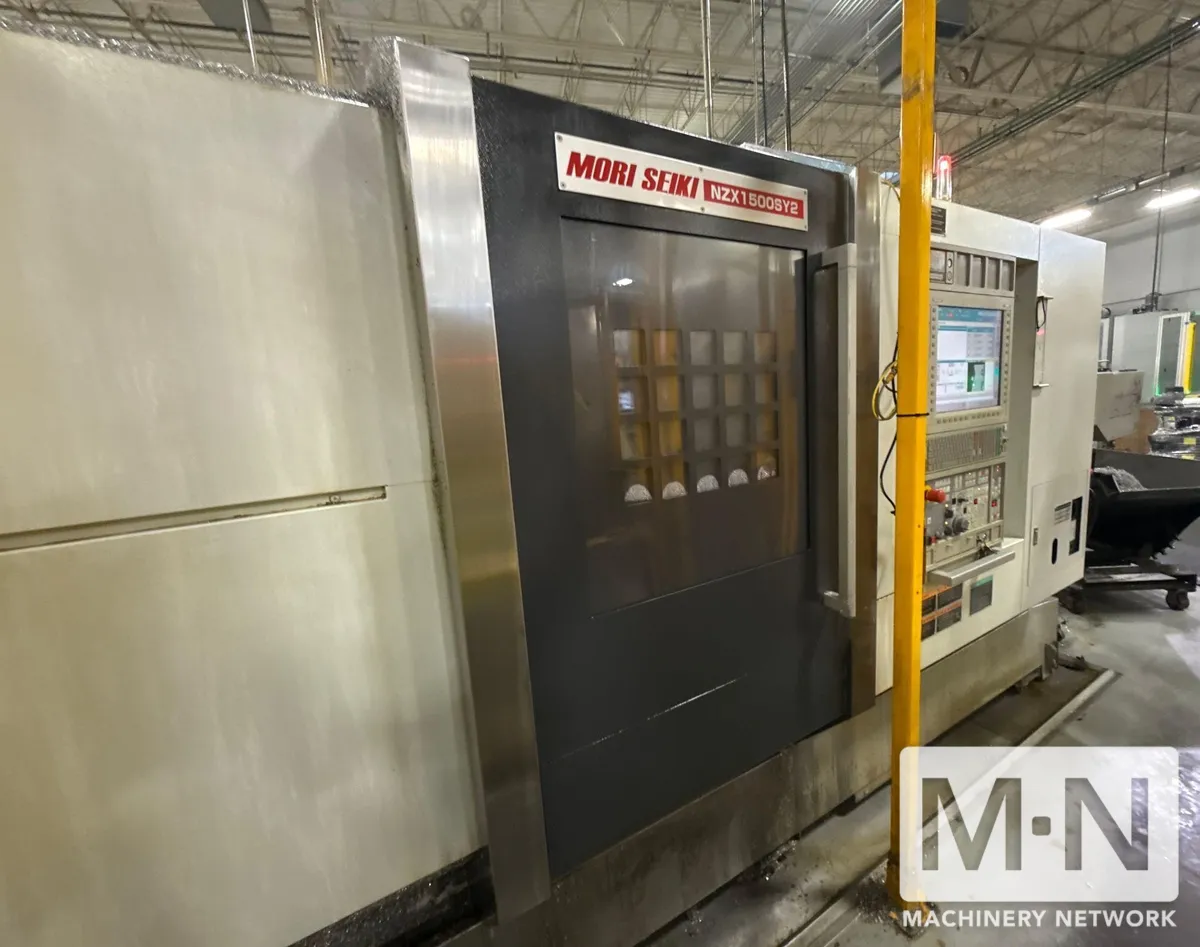

DMG Mori NZX 1500/800SY CNC Lathe, 2012

Name: DMG Mori NZX 1500/800SY CNC Lathe, 2012
Brand: DMG MORI
SKU: 52983
Availability: InStock

Brand

DMG MORI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

5-Axis or More CNC Lathes

Manufacturer:

DMG MORI

Model:

NZX 1500/800SY

Year:

2012

Stock #:

52983

Status:

For Sale

ImperialMetric

X-Axis	8.3"	210.82 mm
Y-Axis	4.3"	109.22 mm
Z-Axis	31.9"	810.26 mm
B-Axis	35.4"	35.4"
C-Axis	360°	360°
Swing	31.5"	800.1 mm
Turning Dia	11.8"	299.72 mm
Max Turning Length	31.5"	800.1 mm
Bar Capacity	2"	50.8 mm
Spindle Bore	2.4"	60.96 mm
# Axis	7	7
Power	30 hp	22.4 kW
Max RPM	6,000 RPM	6,000 RPM
Spindle Nose	A2-5	A2-5
Sub Spindle Bore	2.4"	60.96 mm
Sub Spindle Speed	6000 rpm	6,000 RPM
Sub Spindle Power	30 hp	22.4 kW
Upper Turret Stations	16	16
Upper Turret Rotary Tool Speed	6000 rpm	6,000 RPM
Upper Turret Rotary Tool Motor	10 hp
Lower Turret Stations	16	16
Lower Turret Rotary Tool Speed	6000 rpm	6,000 RPM
Lower Turret Rotary Tool Motor	10 hp
Dimensions	173″ x 111″ x 91″ High	173″ x 111″ x 91″ High
Weight	18,300 Lbs	18,300 Lbs

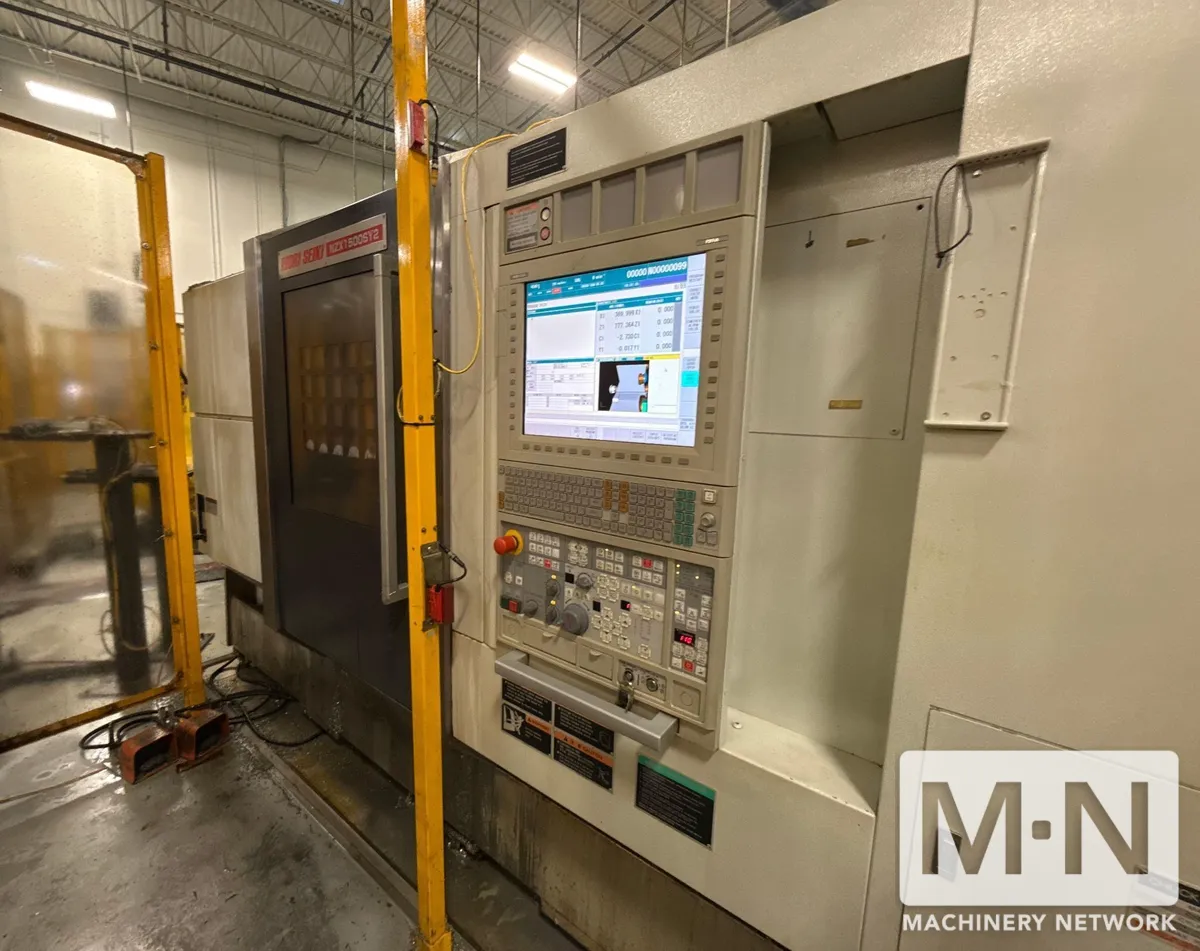

Fanuc 31i-A Series CNC Control
Collet Chuck on Main Spindle
Collet Chuck on Sub Spindle
Servo Controlled C Axis on Both Spindles

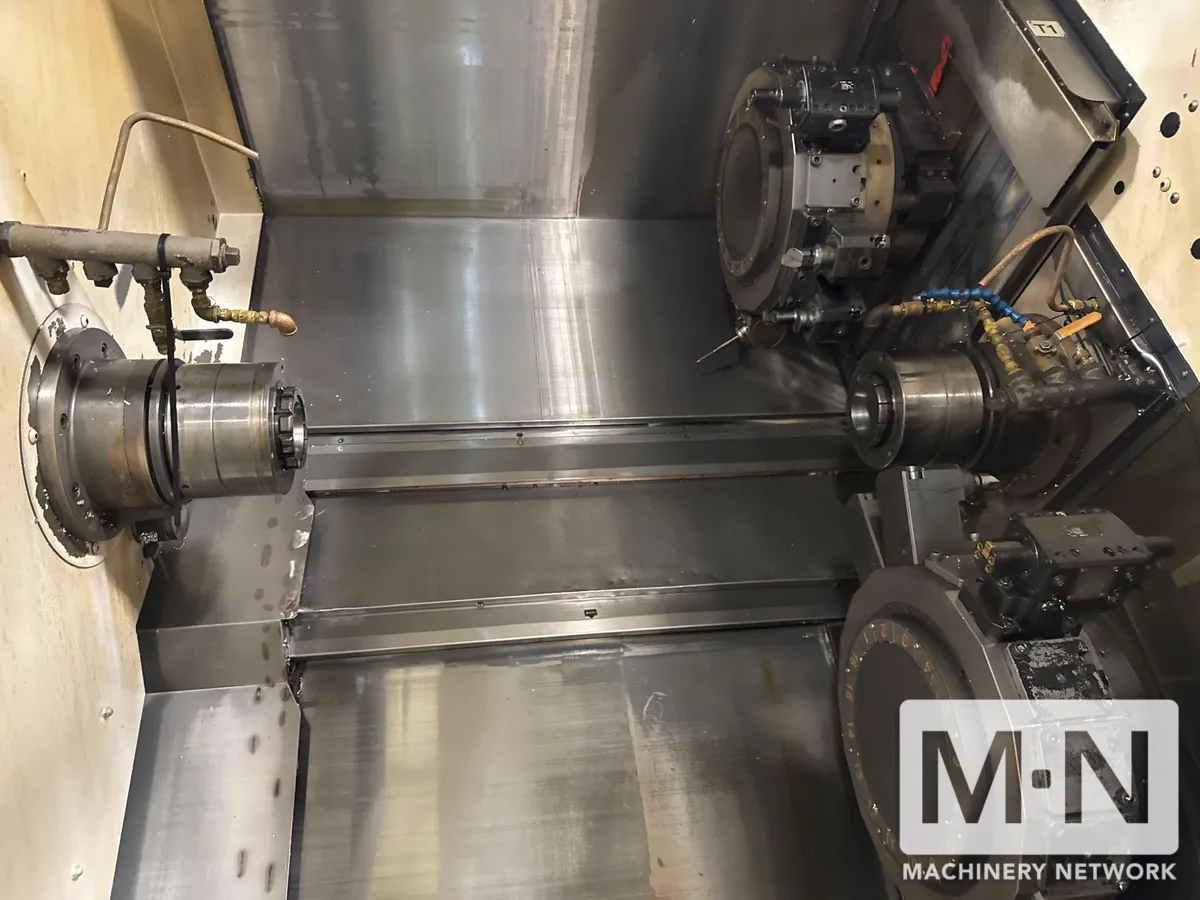

16 Station Live Tool Upper Turret
16 Station Live Tool Lower Turret
Y Axis on Both Turrets
PCMCIA Card Slot & USB Port
Chip Blaster
Mist Blaster
Spindle Chiller Unit
High Pressure Coolant System
Chip Conveyor
Foot Switches

No files or videos to display

DMG Mori NZX 1500/800SY CNC Lathe, 2012

Location

Specifications

Files & Videos

Overview

Specifications

Equipped With:
