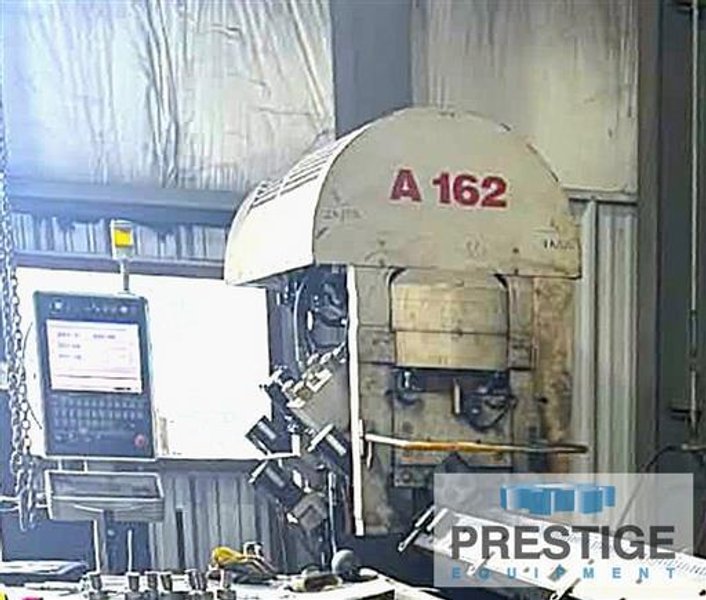

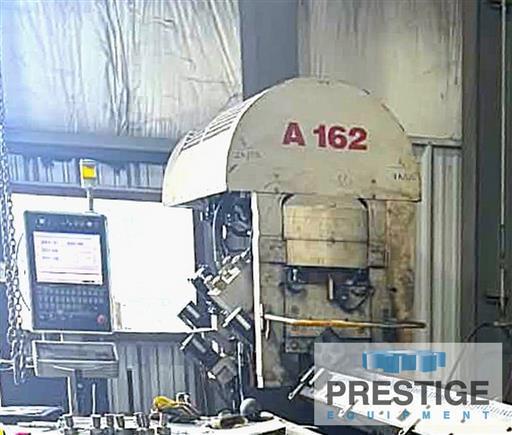

Punches Angle Lines CNC

CAPACITY:
Punch Tonnage Capacity 72 Tons
Shear Tonnage Capacity 200 Tons
Min. Angle Size, A-36 1-3/16" x 1-3/16" x 1/8"
Max. Angle Size, A-36 6-3/8" x 6-3/8" x 5/8"
Max. Angle Size, Grade 50 .... 6" x 6" x 5/8"
Max. Diameter, Standard Tooling 1-3/16"
Dia. Thru Thickness, A-36 1-3/16" - 5/8"
Dia. Thru Thickness, Grade 50 1-1/16" - 5/8"
Min. Length Of Section 33-1/2"
Max. Speed Of Angle 131 FPM
Gauge Line Positioning Speed 52 FPM



Equipped With:

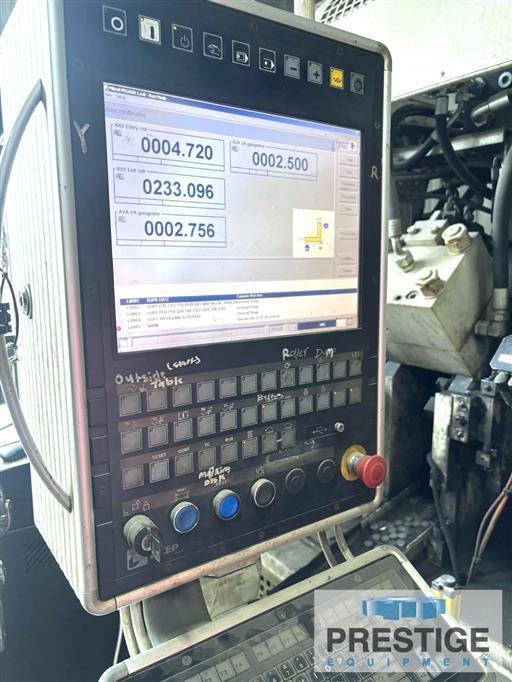

Ficep Pegaso CNC Control

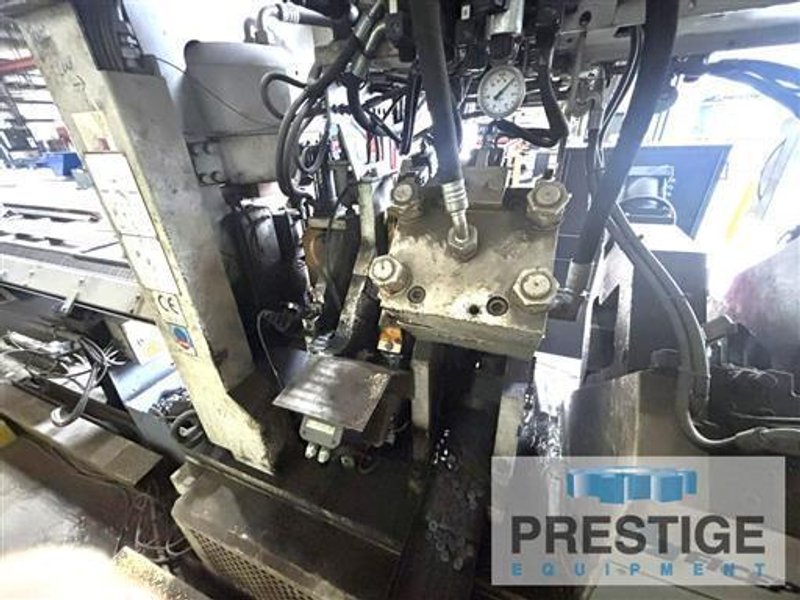

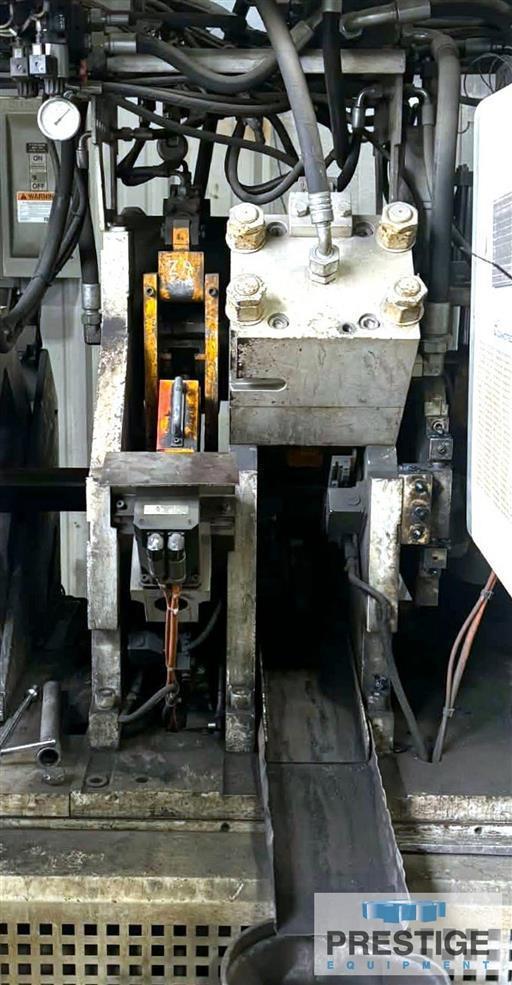

(2) Fixed Mounted Hydraulic Punching Units

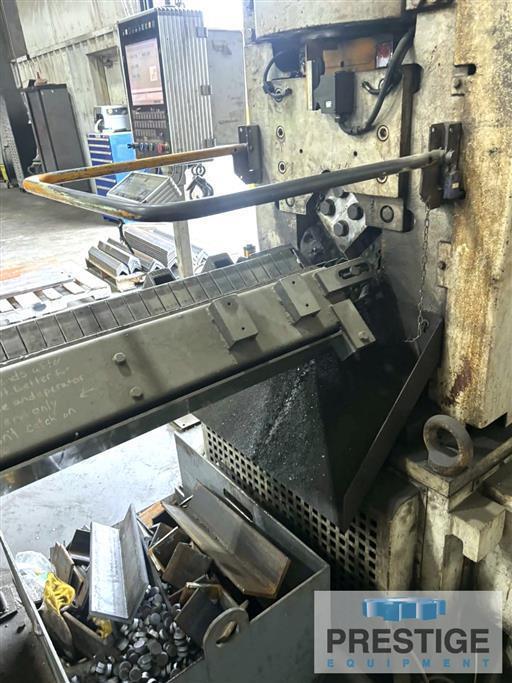

Hydraulic Shearing Unit

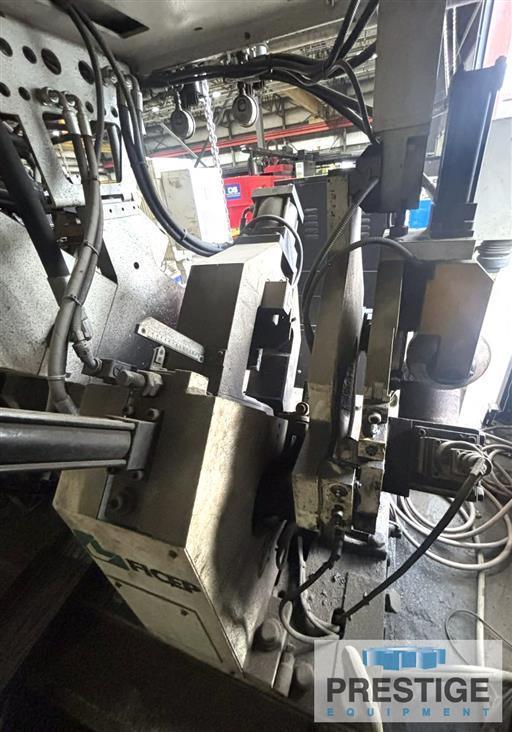

38-Station Marking Unit

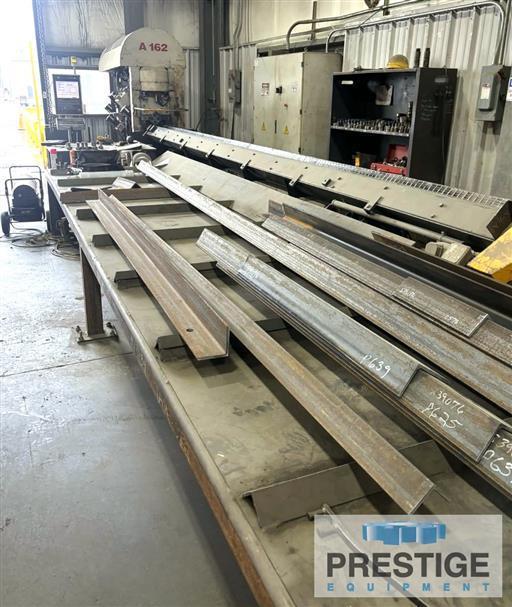

Infeed Transfer Table for 40' Material

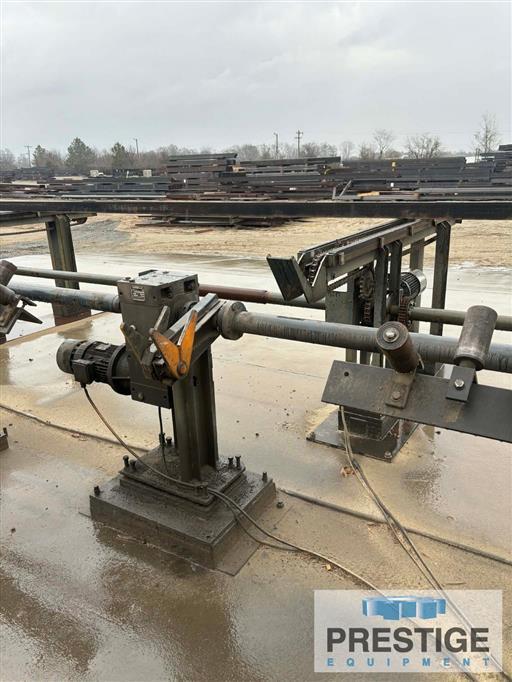

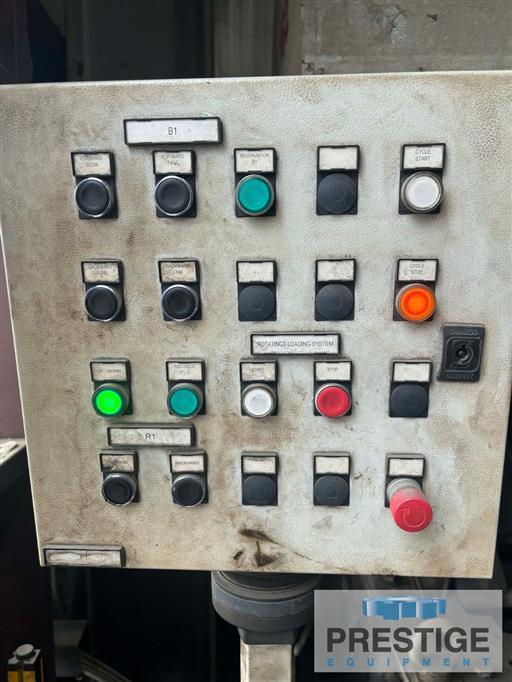

Rotary Loader

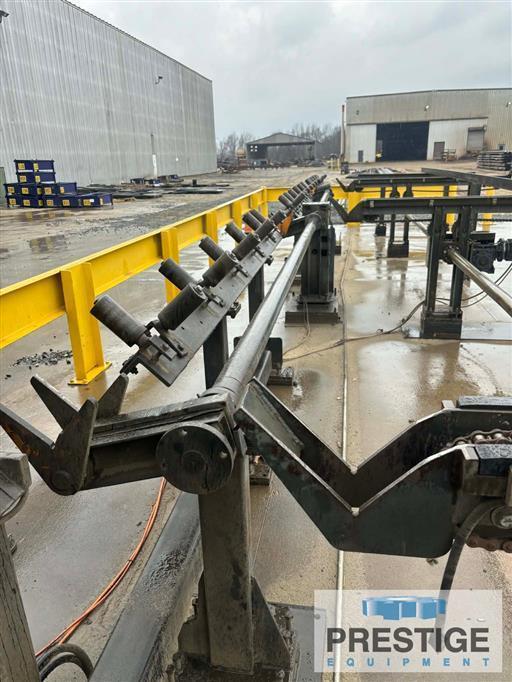

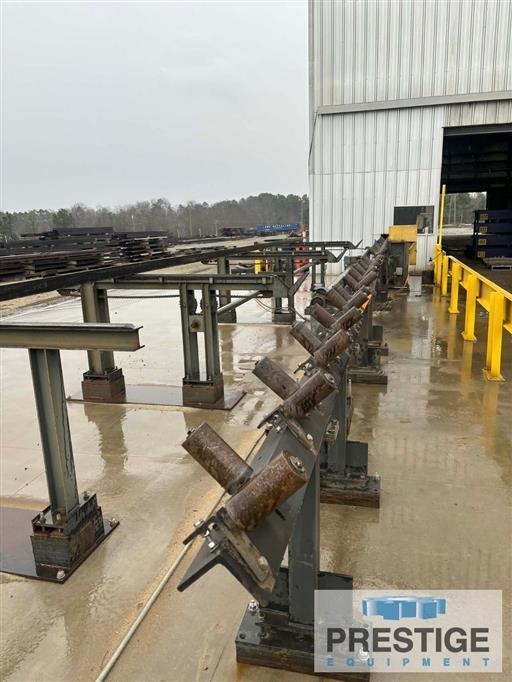

Infeed Conveyor For 60' Material (Note: Conveyor is longer than loading transfer)

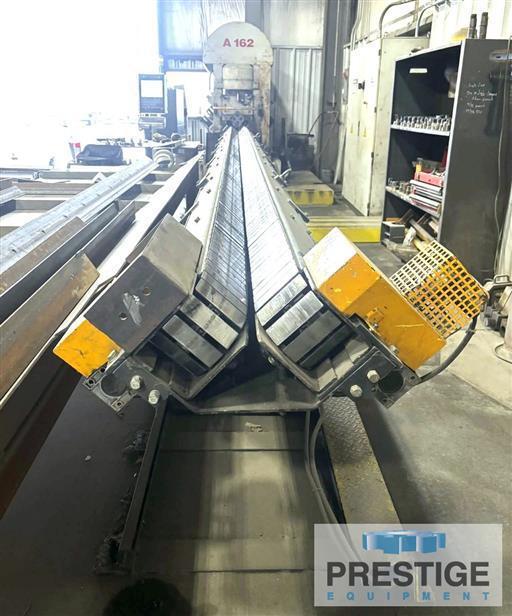

23' Special Outfeed "Shutter" Conveyor


NOTE: Inspect In Plant Under Power
