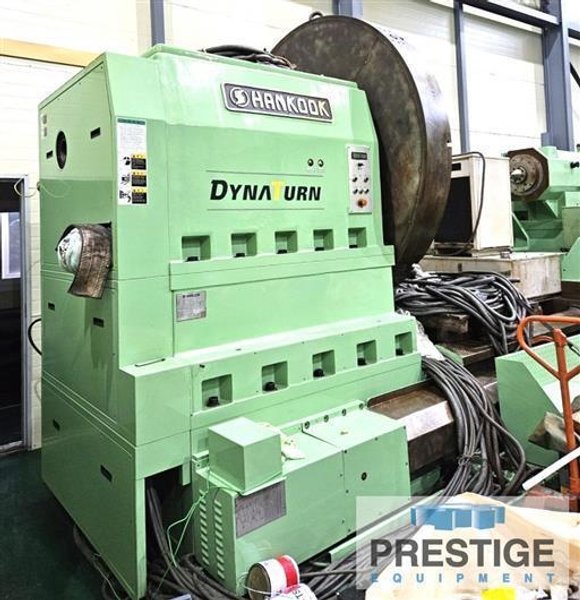

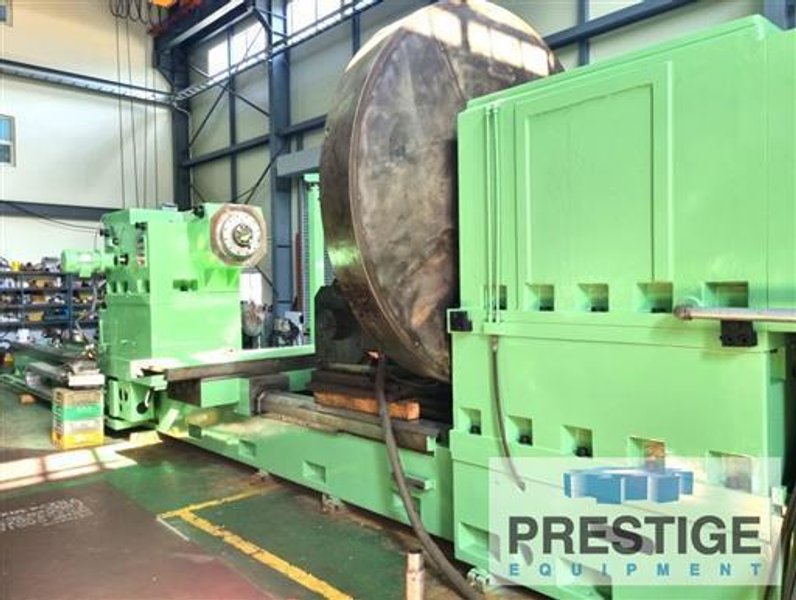

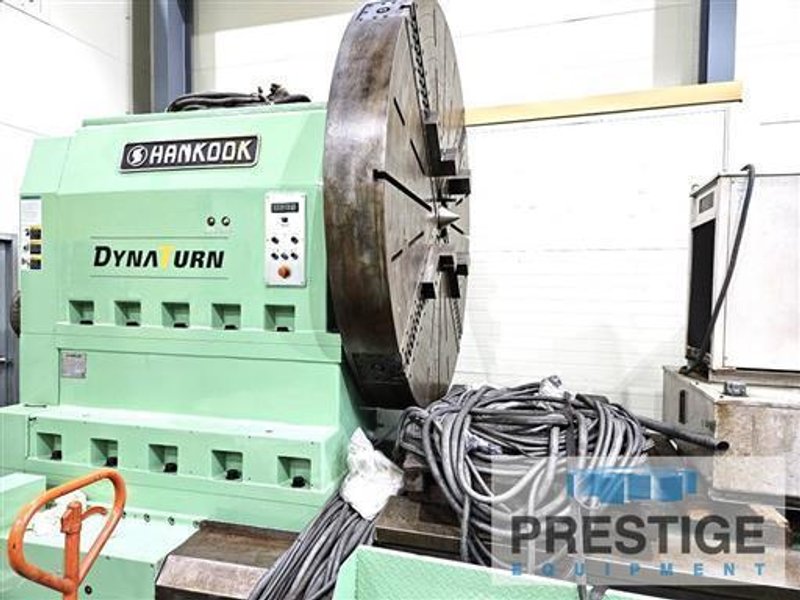

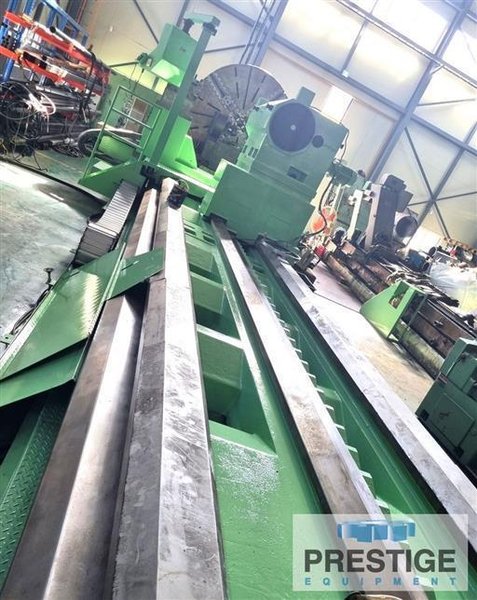

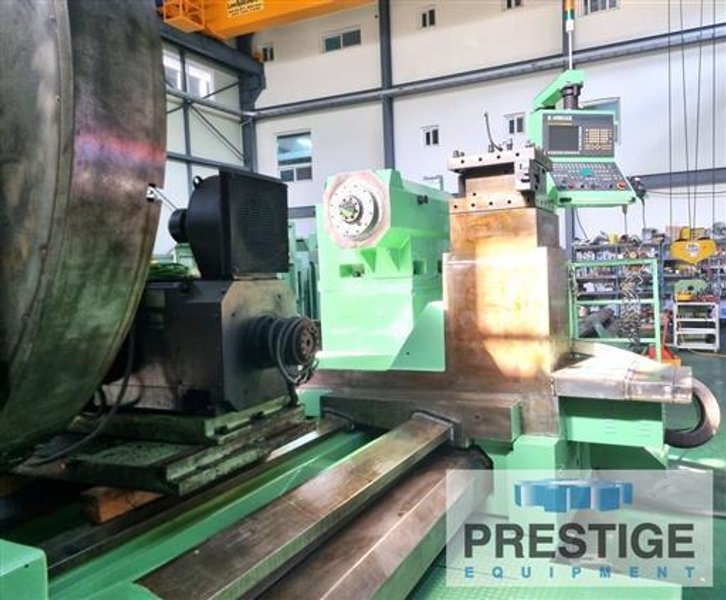

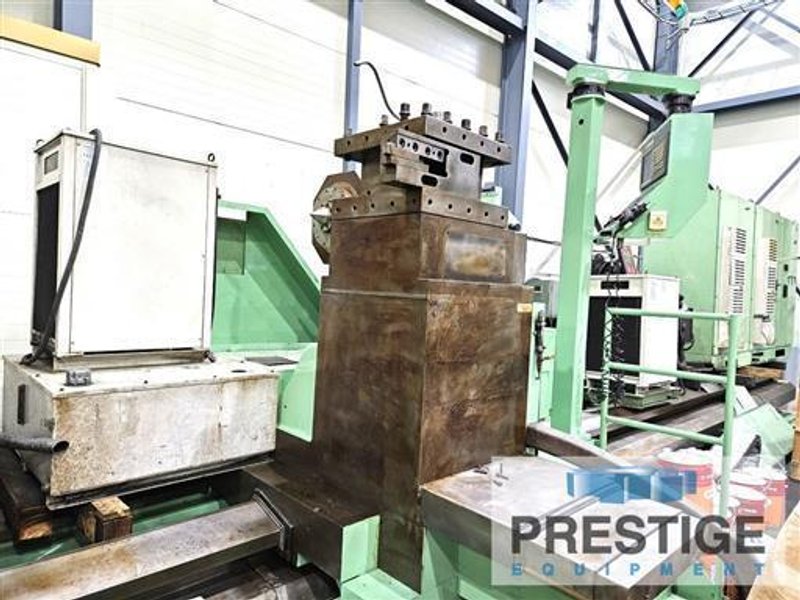

Lathes CNC
Brand
Category
Type
Model
Dynaturn 20
Stock #
44809
Year
2008
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

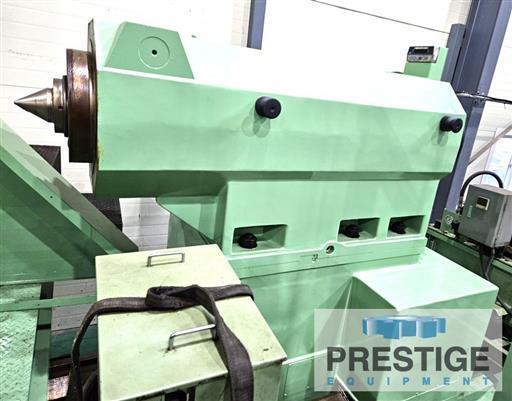

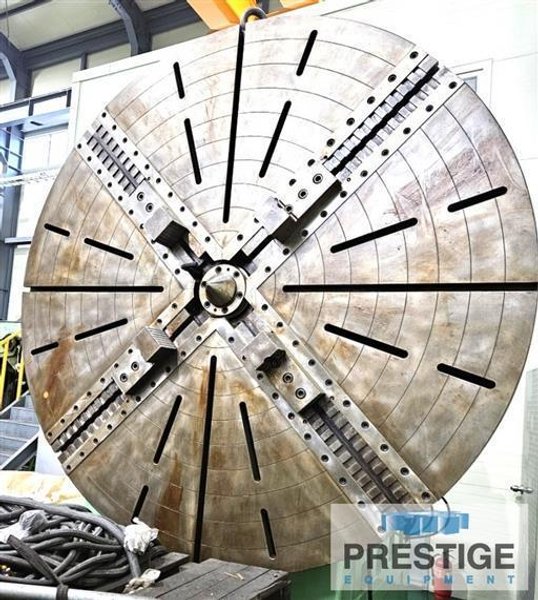

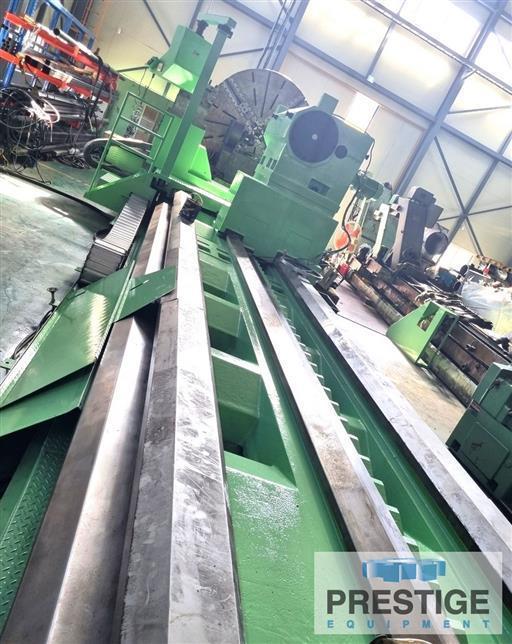

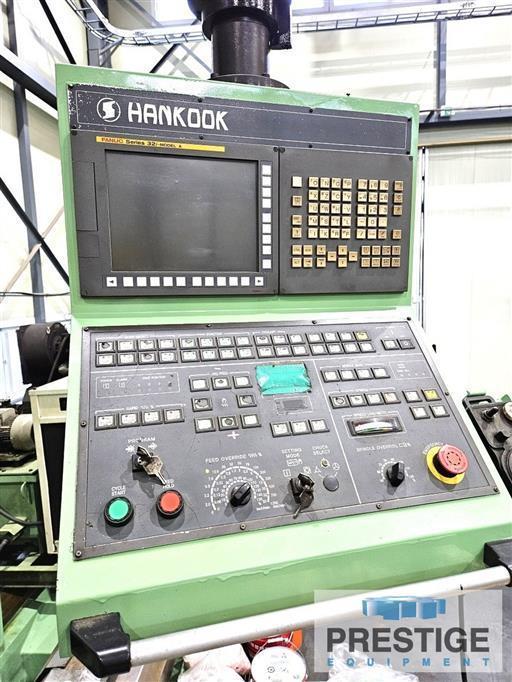

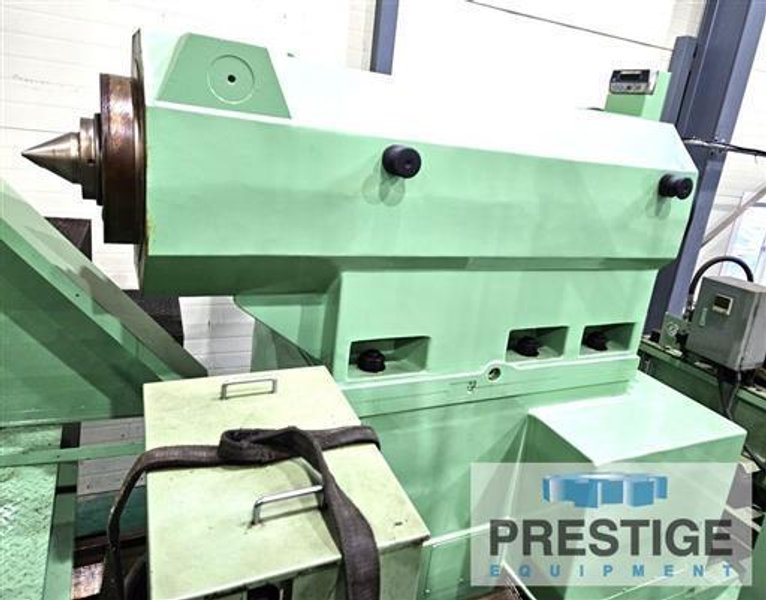

Maximum Swing Over Bedways 102.4" Maximum Swing Over Carriage 86.6" Max Turn Diameter 102.4" Distance Between Centers 314.96" Cross Travel, X-Axis 53.1" Longitudinal Travel, Z-Axis 314.96" Spindle Speeds, 4-Ranges .5-250 RPM Spindle Nose A2-15 Spindle Bore 4.1" Spindle Motor 126 HP Weight Capacity Between Centers 55,000 lbs Bed Width 61.4" Tailstock Quill Diameter 15.75" Tailstock Quill Travel 11.8" Machine Footprint 143" x 482" Equipped With: Fanuc 32iA CNC Control Heavy Duty H4 4-Position Turret 78.74" 4-Jaw Independent Manual Chuck |
