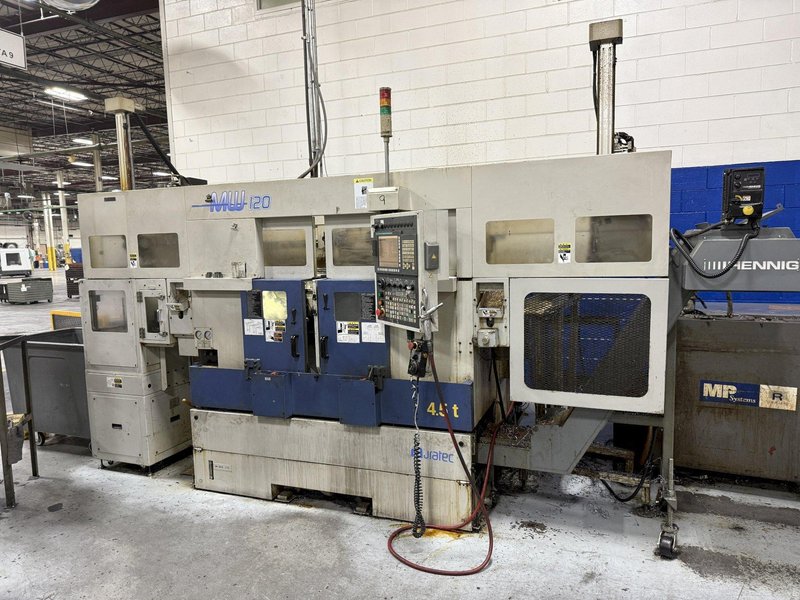

Used 2015 Murata Muratec MW120 Twin Spindle CNC Lathe w/ Dual Gantry Loader For Sale
Brand
Category
Model
MW120
Stock #
402015-2
Year
2015
Condition
Used
Location
Not specified
| CNC Control | yes |
| CNC Control | Fanuc i Series |
| # Axis | 4 |
| Swing | 11.61 inches |
| Turning Diameter | 8 inches |
| Max Turning Length | 2.95"- Machine w/Loader |
| Max Turning Length | 5.71" - Machine w/out Loader |
| Chuck Size | 8 inches |
| X Axis Travel | 5.12 inches |
| Z Axis Travel | 5.7 inches |
| Spindle Nose | A2-5 |
| Spindle Speed (RPM) | 4,500 rpm |
| Live Tooling | no |
| Tailstock | no |
| Y Axis | no |

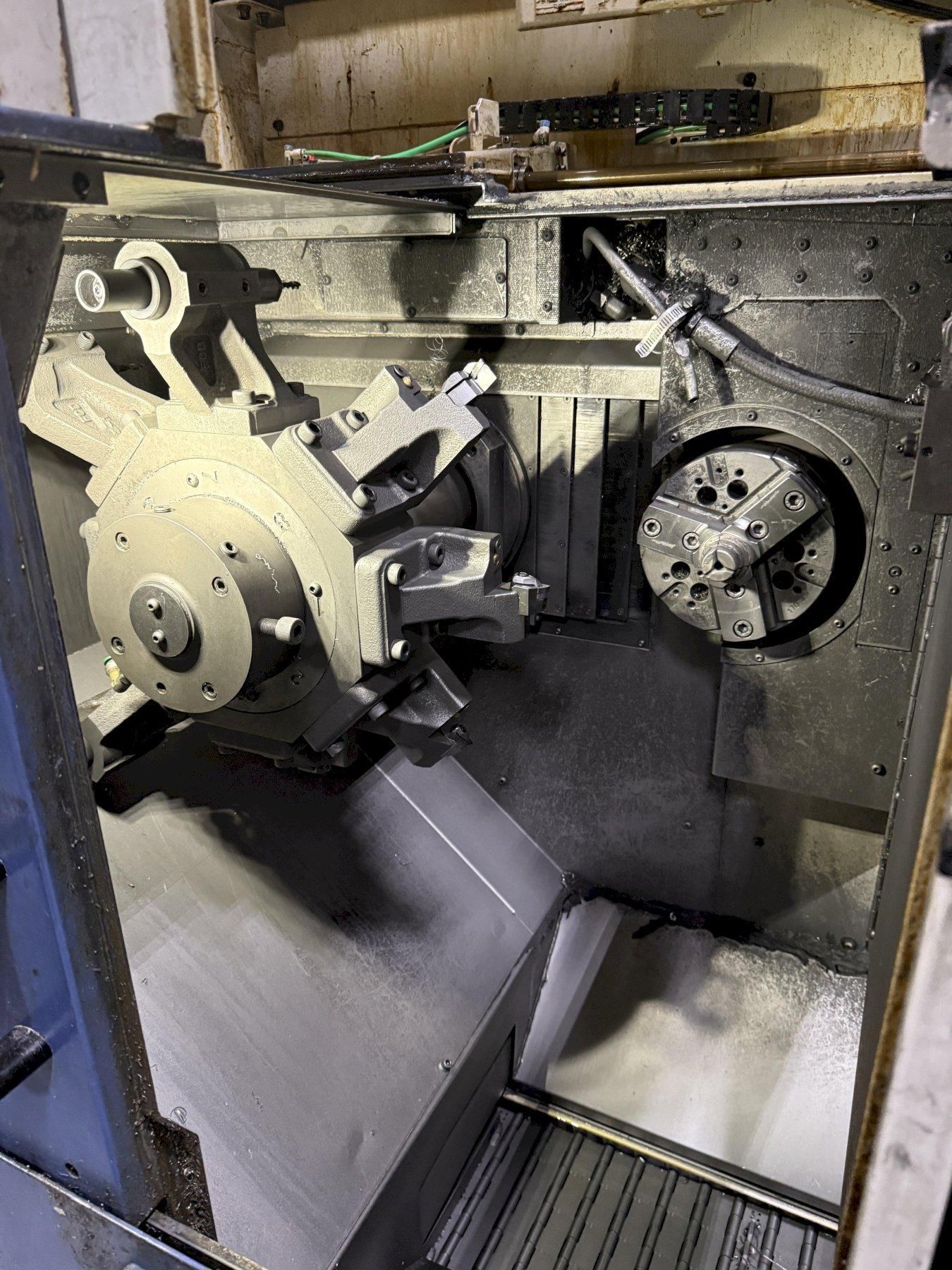

| Turret Capacity | 2 Turrets x 8 Stations |
| Machine Weight | 10000 pounds |
|

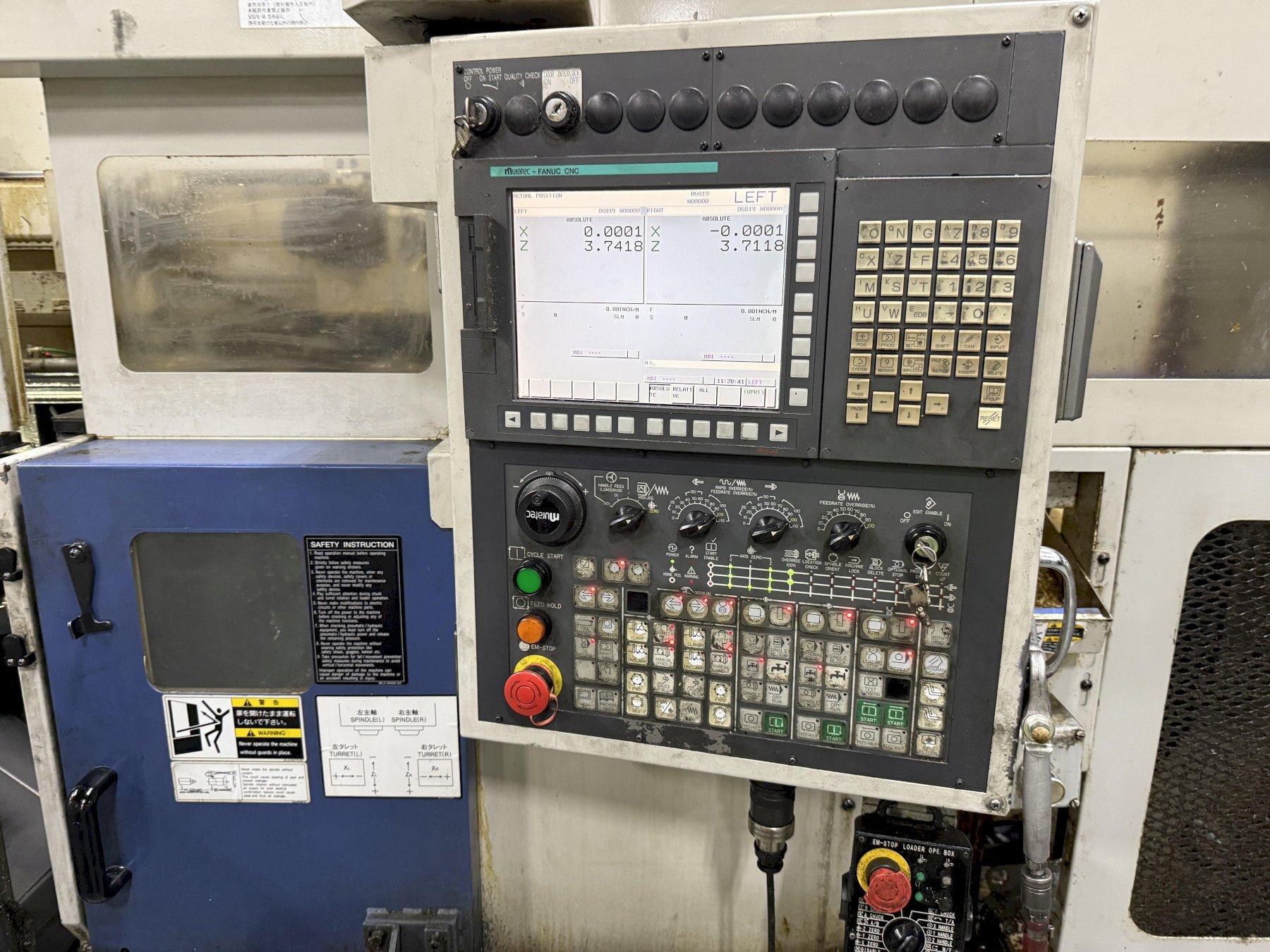

- Fanuc/Muratec CNC Control

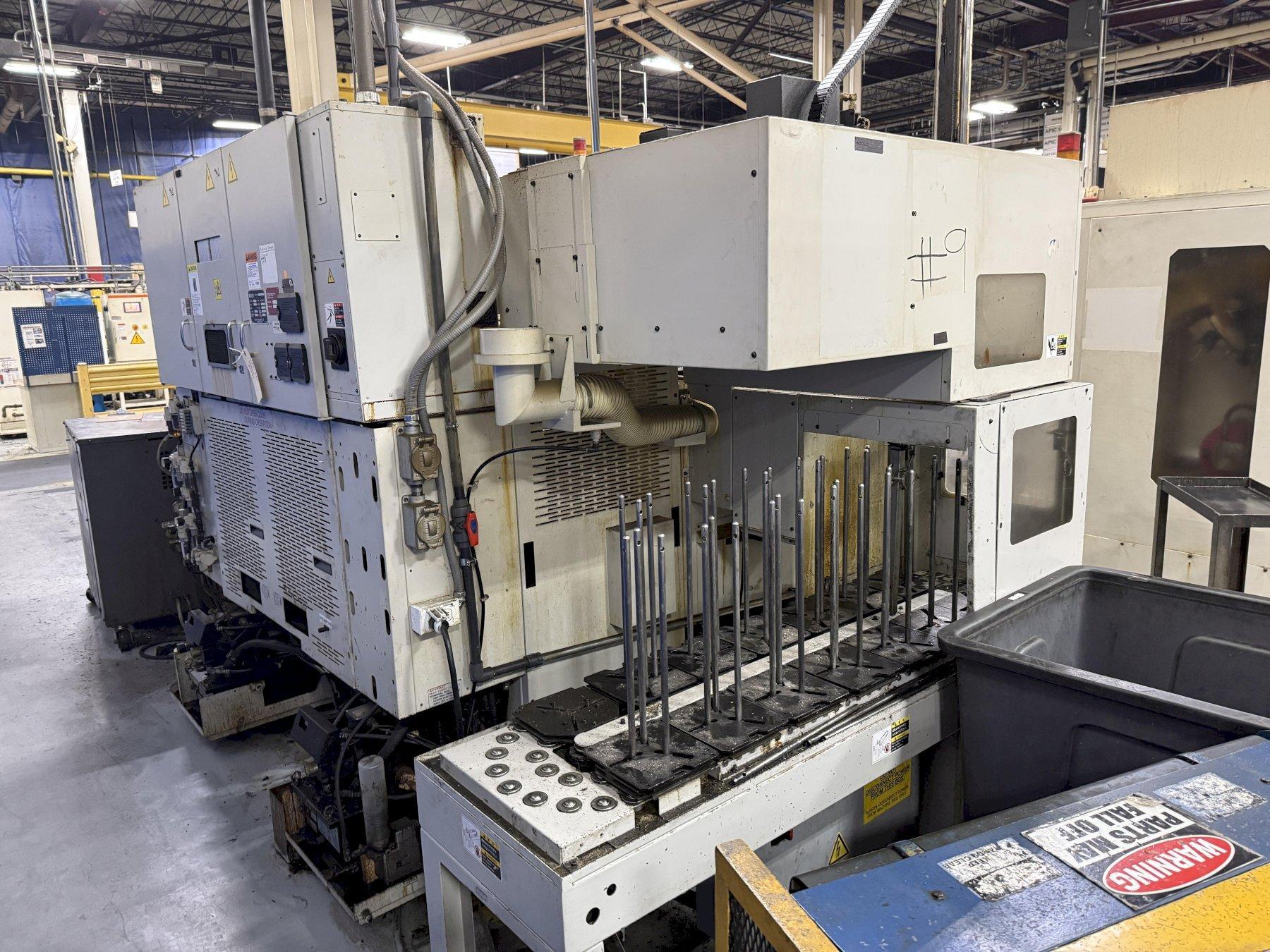

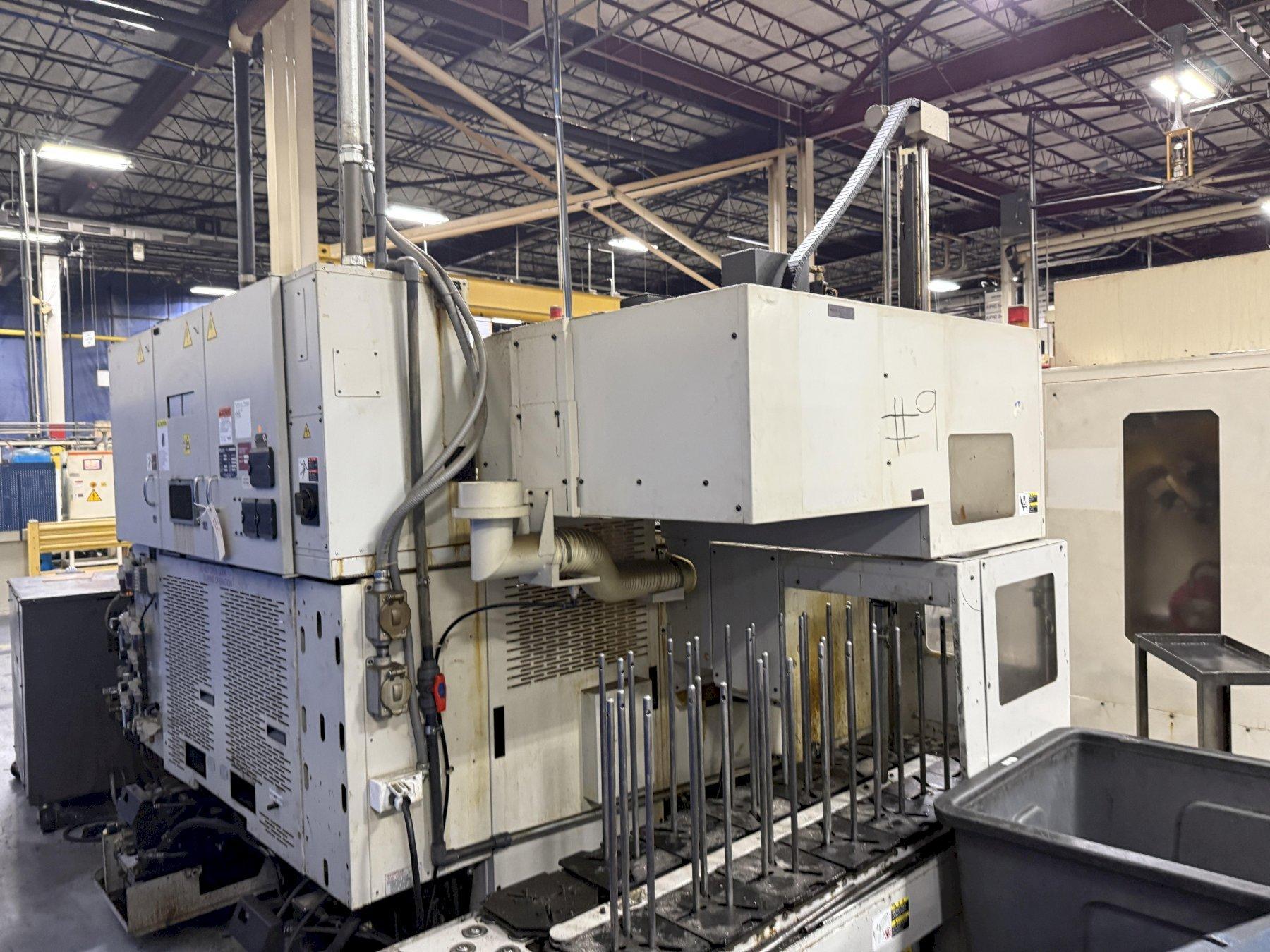

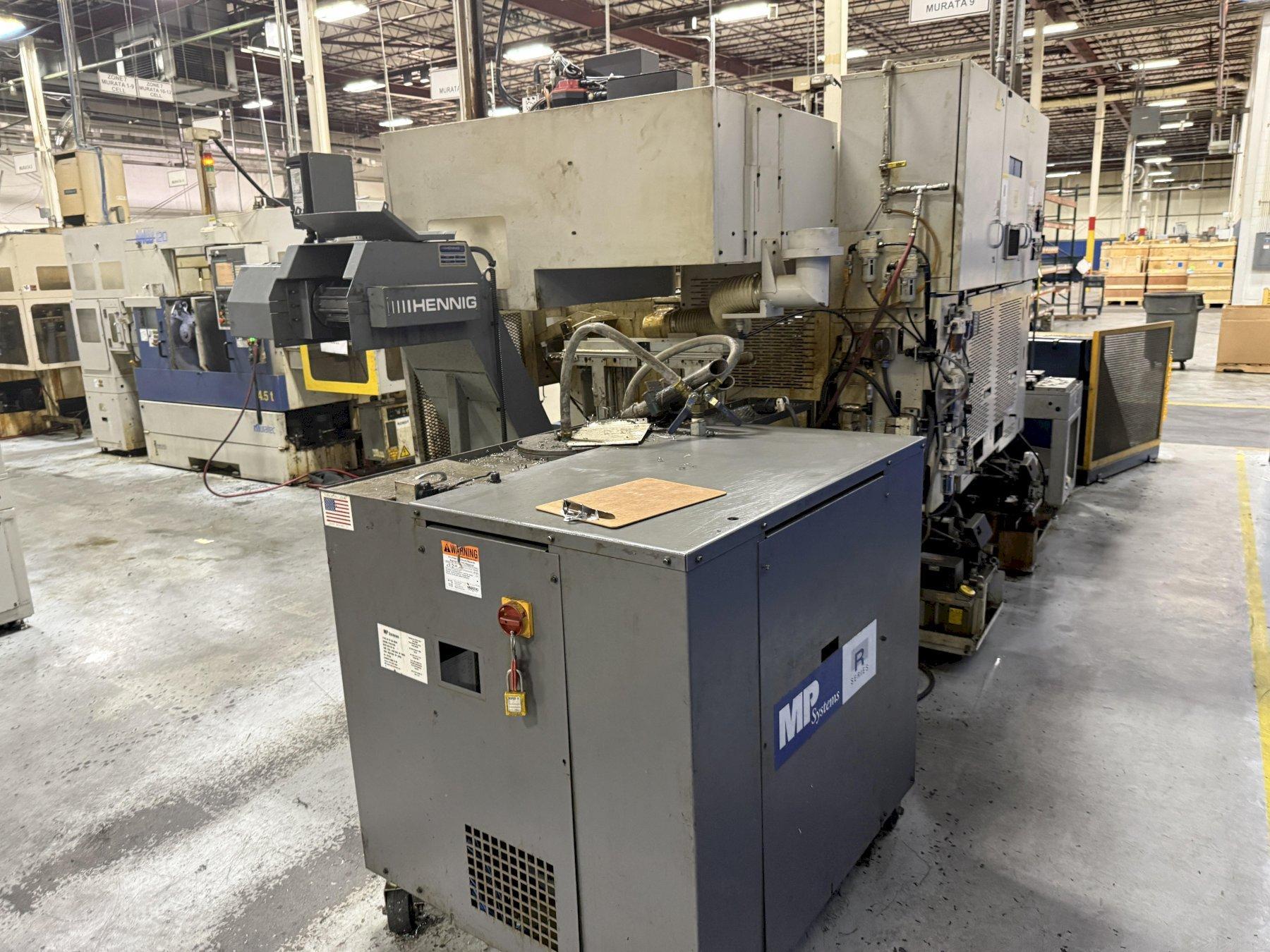

- Twin Spindle - Dual 8 Position Turrets - Dual (2x) Carbon Gantry Loading System (High Speed) - Henning Side Discharge Chip Conveyor - Max Capacity of Gantry 6.6 lbs/Part - MP Coolant System Unit |
|
