Machining Centers Horizontal CNC

SPECIFICATIONS:TRAVELS & FEEDS:
X-AXIS TRAVEL 33.5”
Y-AXIS TRAVEL 27.6”
Z-AXIS TRAVEL 29.5”
DISTANCE COLUMN TO SPINDLE CENTER 2?-29.5?
DISTANCE TABLE SURFACE TO SPINDLE 5.9?~35.4?
RAPID TRAVERSE RATE (X/Y/Z) 1,969/1,969/1,969 IPM
CUTTING FEED RATE 393 IPM

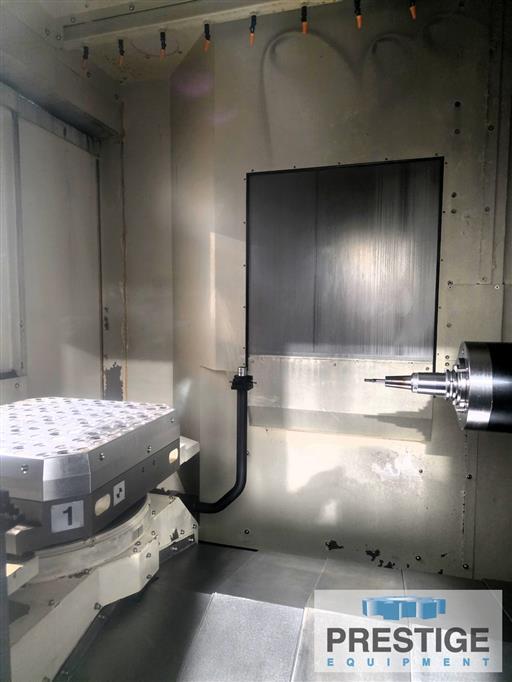

PALLETS:
PALLET SIZE 19.7? × 19.7? / 500mm
NUMBER OF PALLETS 2
MAXIMUM LOAD CAPACITY 1,102 LBS
MAXIMUM WORKING SIZE 30.7? × 38.6?H
MIN. INDEXING ANGLE 0.001°

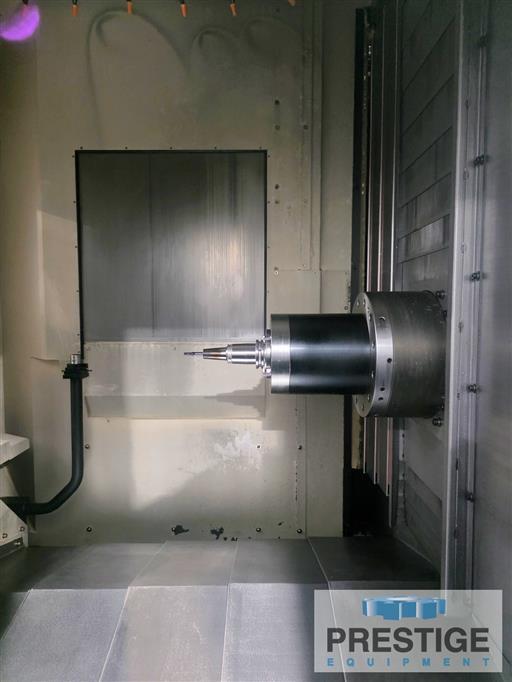

SPINDLE:
SPINDLE TAPER CAT #40 BIG PLUS
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR OUTPUT 33.5/30 HP
SPINDLE TORQUE (MAX./CONT.) 123.1/70.1) LBF-FT
SPINDLE DRIVING METHOD BUILT-IN
TOOL CHANGER:NUMBER OF TOOLS:
MAX. TOOL DIA, ADJACENT FULL/EMPTY 3?/5.5?
MAX. TOOL LENGTH 17.7?
MAX. TOOL WEIGHT 17.6 LBS
TOOL CHANGE TIME T-T SEC 1.1 / C-C SEC 3.8
FLOOR SPACE (MACHINE ONLY) 109? × 192? x 110.8”
APPROXIMATE WEIGHT 33,069 LBS



Equipped With:

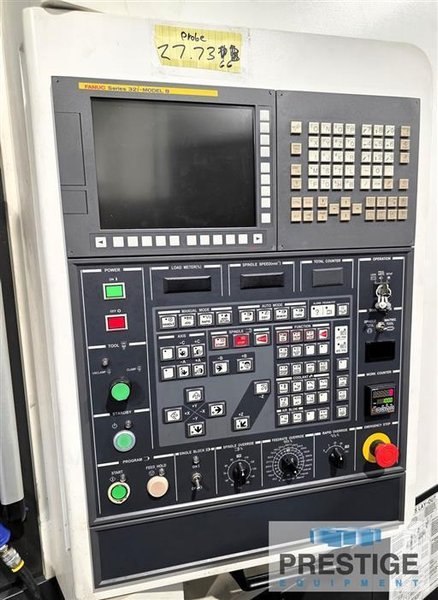

FANUC SERIES 32i MODEL B CNC CONTROL
- EXPANDED MEMORY, HIGH SPEED HRV3 FUNCTION, 64 TOOL OFFSETS
- AI CONTOUR CONTROL, HELICAL INTERPOLATION, THREAD CUT/SYNCHO FEED
- RIGID TAPPING, COORIDINATE SYSTEM ROTATION, CUSTOM-B & EXECUTOR MACROS
- SIMULTANEOUES CONTROLLED AXES EXPANSION, BACKGROUND EDIT

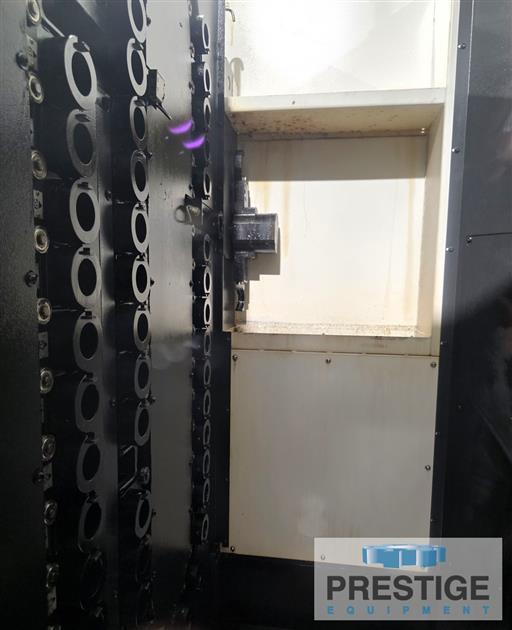

80-POSITION AUTOMATIC TOOL CHANGER
RENISHAW LASER TOOL SETTER
COOLANT THROUGH SPINDLE
HIGH PRESSURE COOLANT THROUGH SPINDLE PUMP 70BAR-1000PSI
CHIP CONVEYOR
