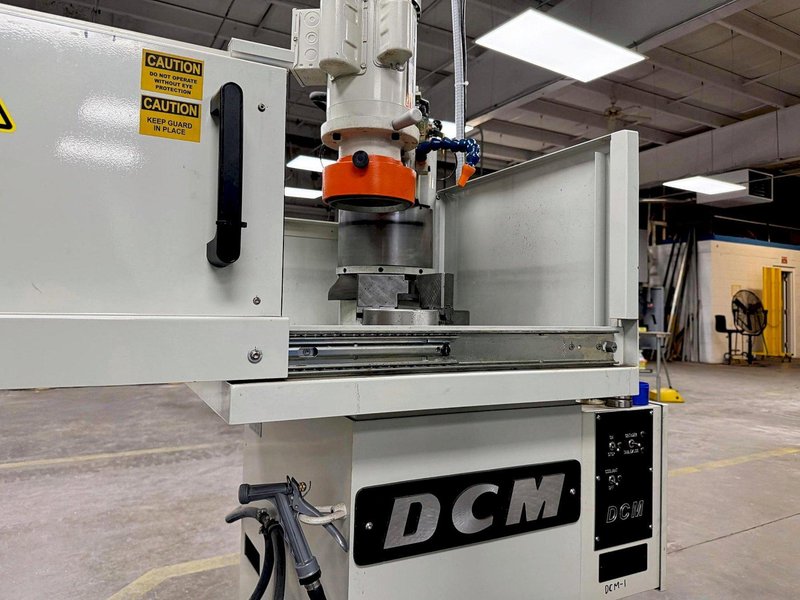

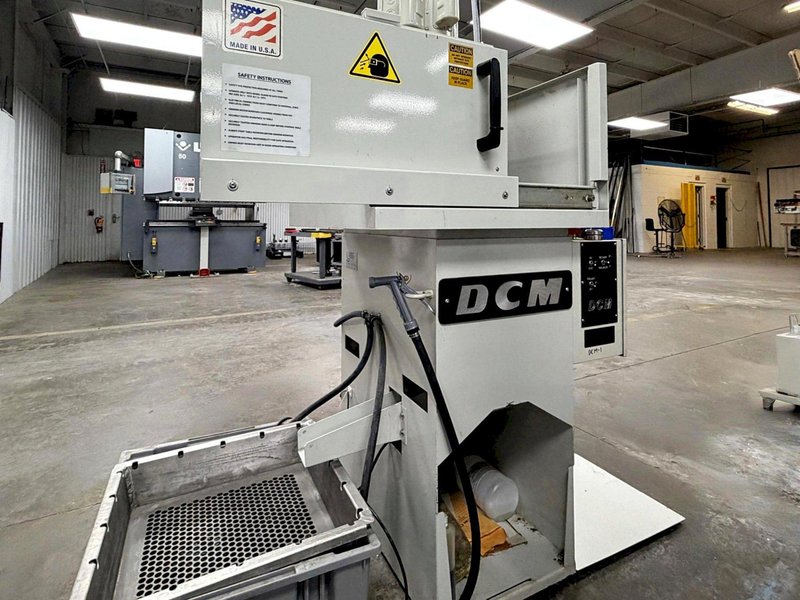

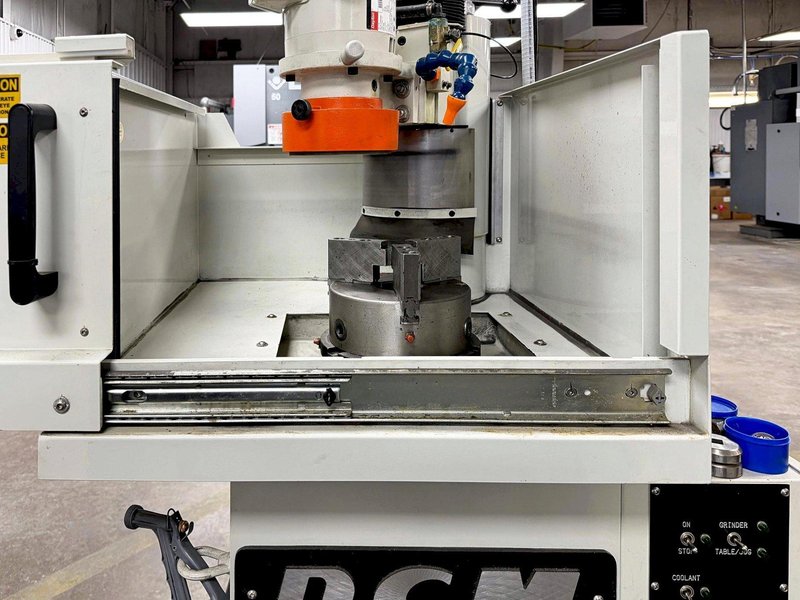

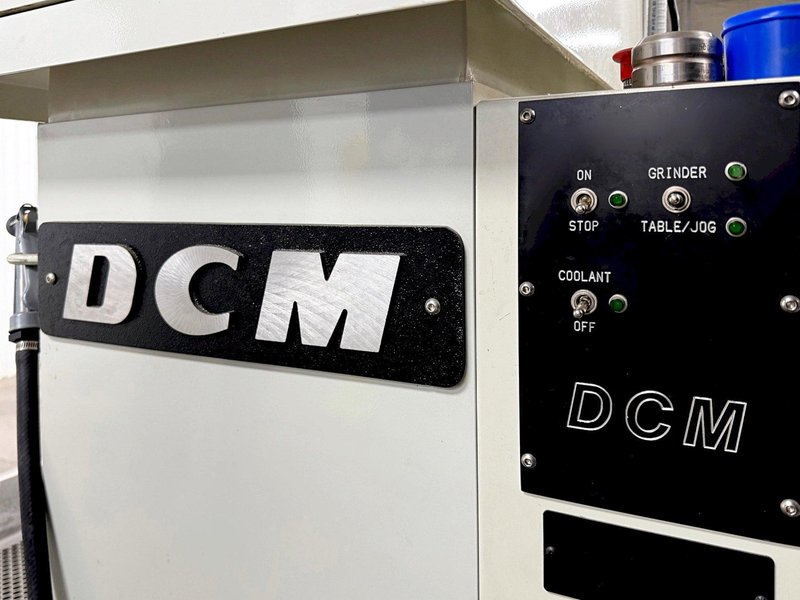

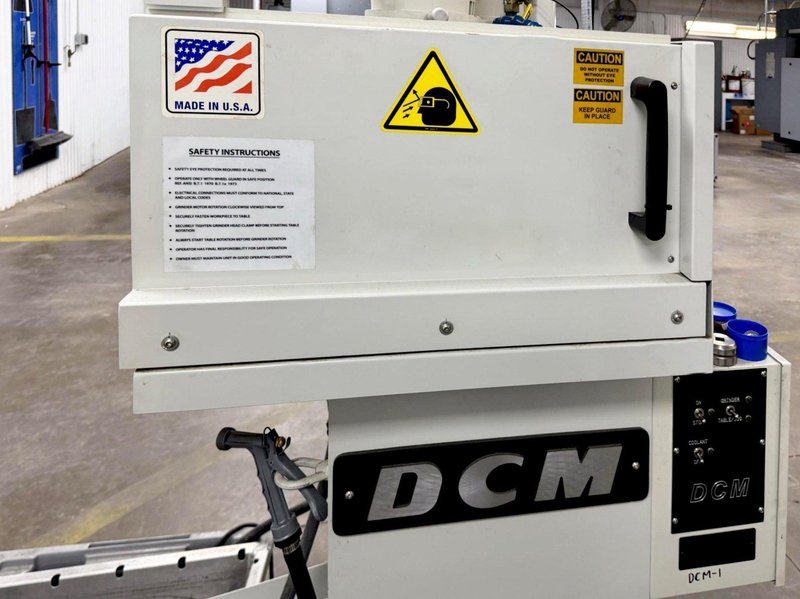

DCM Mini PDG (Punch & Die Grinder)
Brand
Category
Model
Mini PDG (Punch & Die Grinder)
Stock #
100644
Year
2019
Condition
Excellent
Location
Illinois
| Rotary Table Diameter | 10” |
| Max. Grinding Wheel Diameter | 6” |
| Max. Vertical Spindle Travel | 5” |
| Head Rotational Position | 45° |
| Coolant System Capacity | 12 Gal. |
| Sound Level During Operation | 55 db |
| Speed Power Spindle (1 Phase) | 3600 RPM/1.5 HP |
| Table (1 Phase) | 30 RPM/1/8 HP |
| Coolant Pump | 100 W |
| Electrical Standard | 230V/60 Hz/1Ph |
| Dimensions | W 33” x L 17” x H 5’ |
|

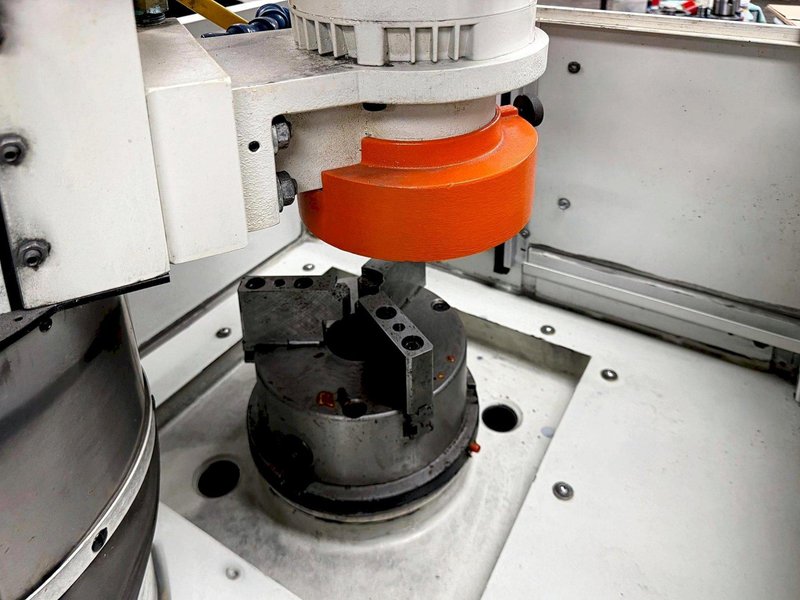

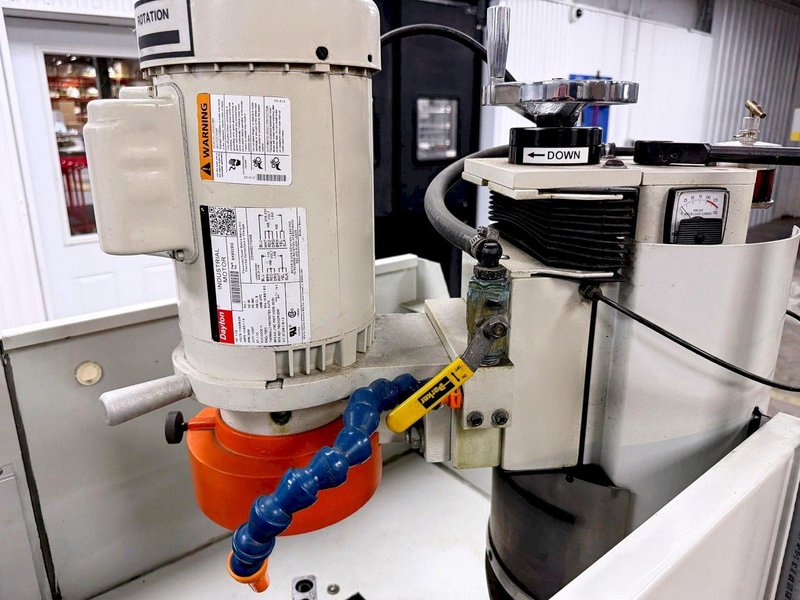

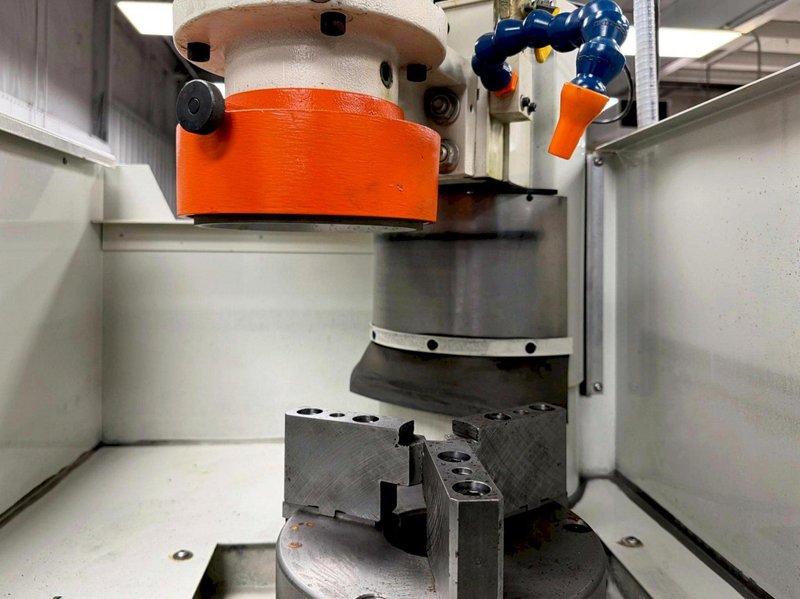

Equipped With: Cast Iron Base Rigid Z-Axis Column w/ Dovetail Ways Accepts 6" Diameter Grinding Wheel Recirculating Coolant System w/ Paper Filter Media Standard 3 Jaw Chuck Work Holding Fixture 1.5 HP 3600 RPM Grinding Spindle Motor Powered Rotary Table |
|
