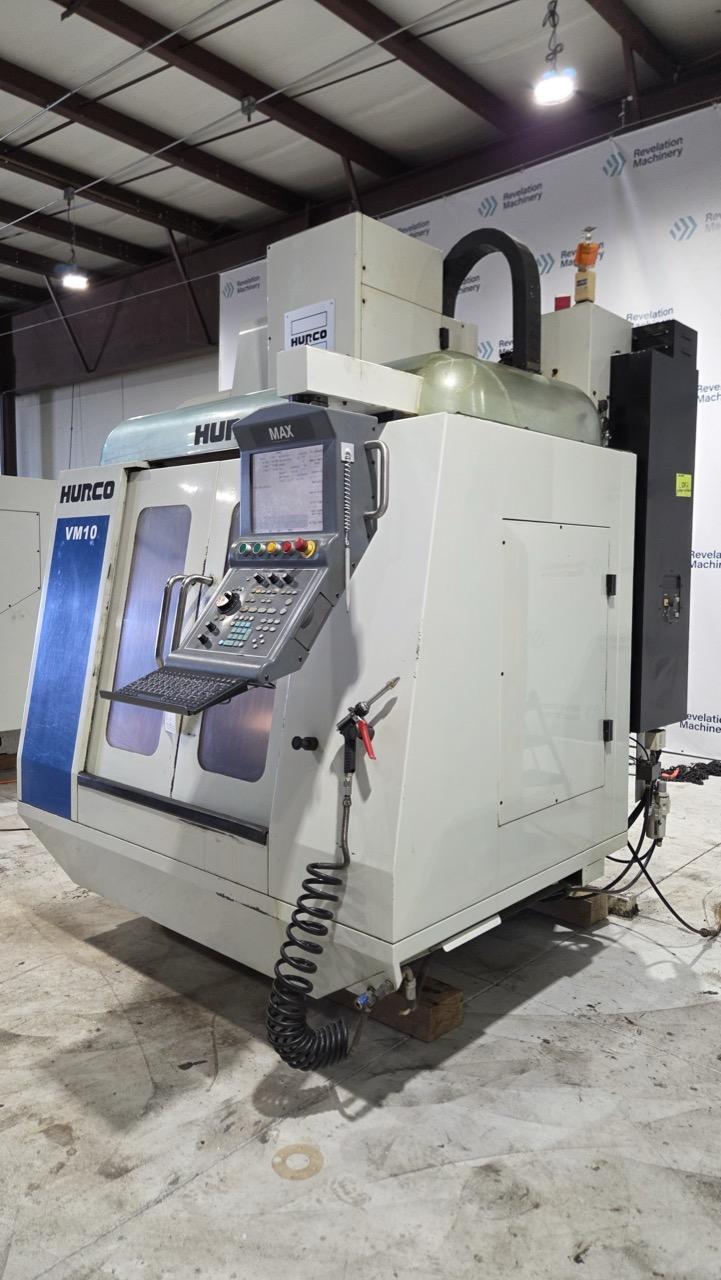

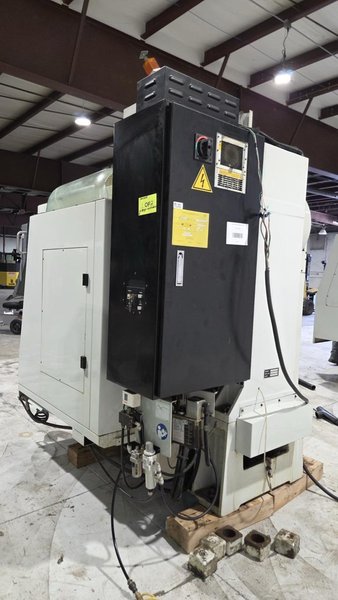

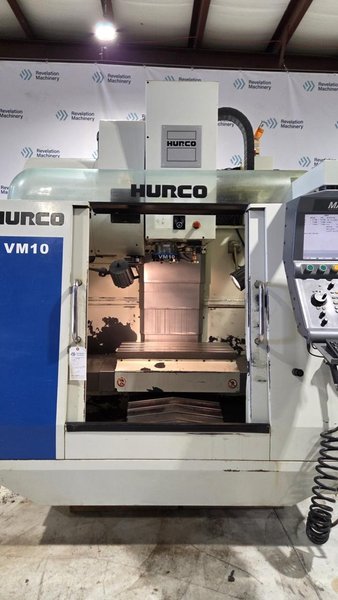

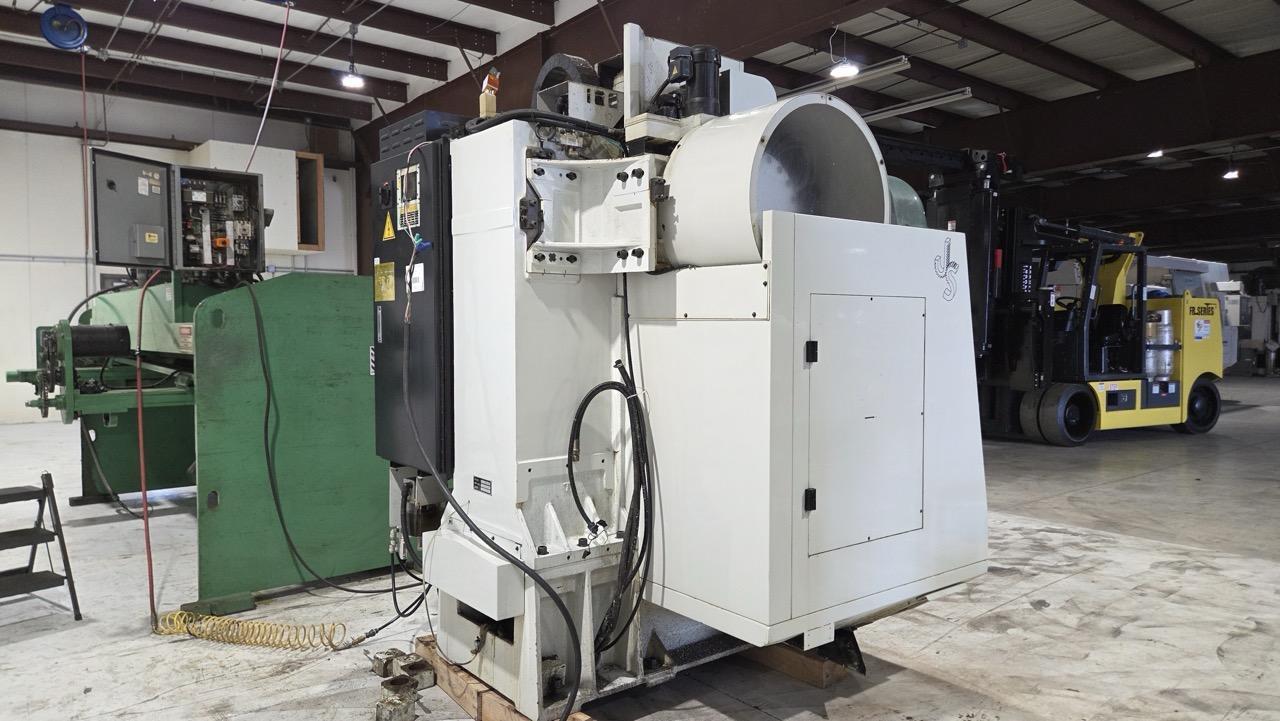

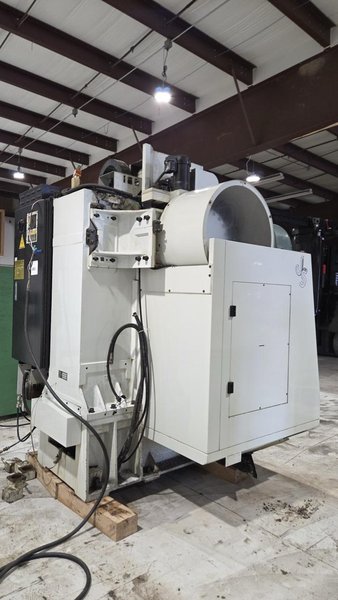

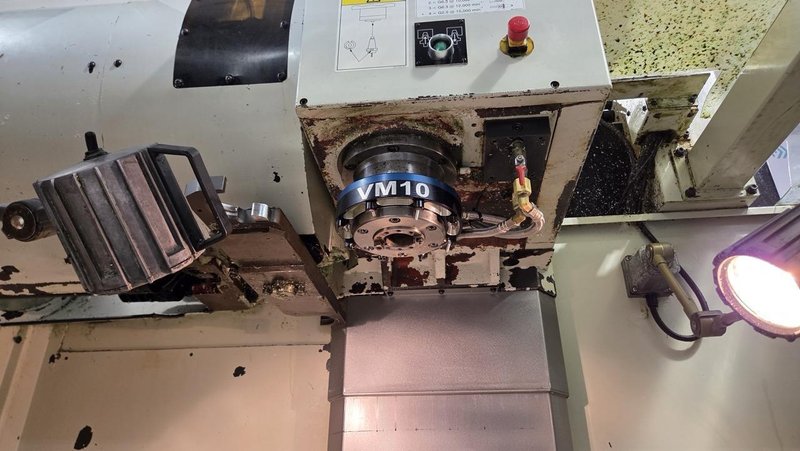

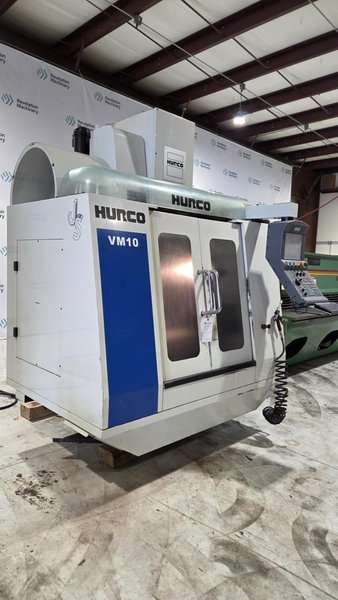

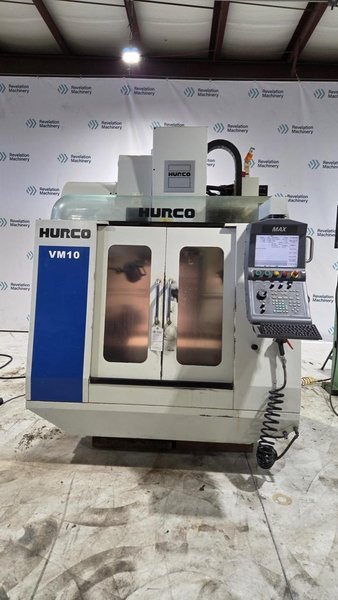

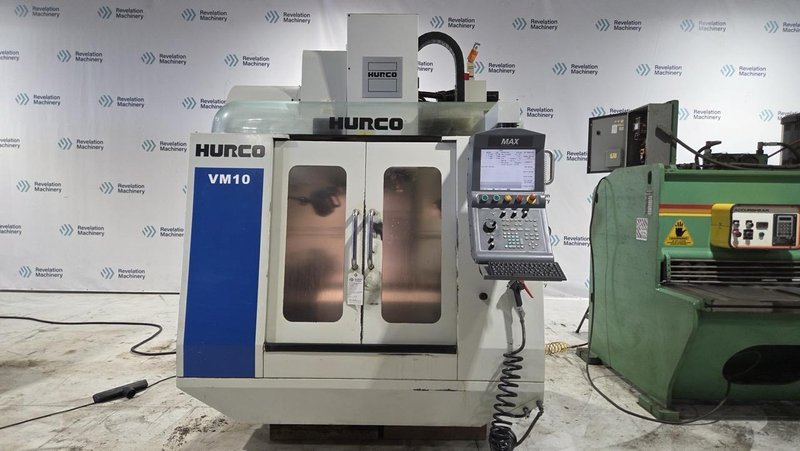

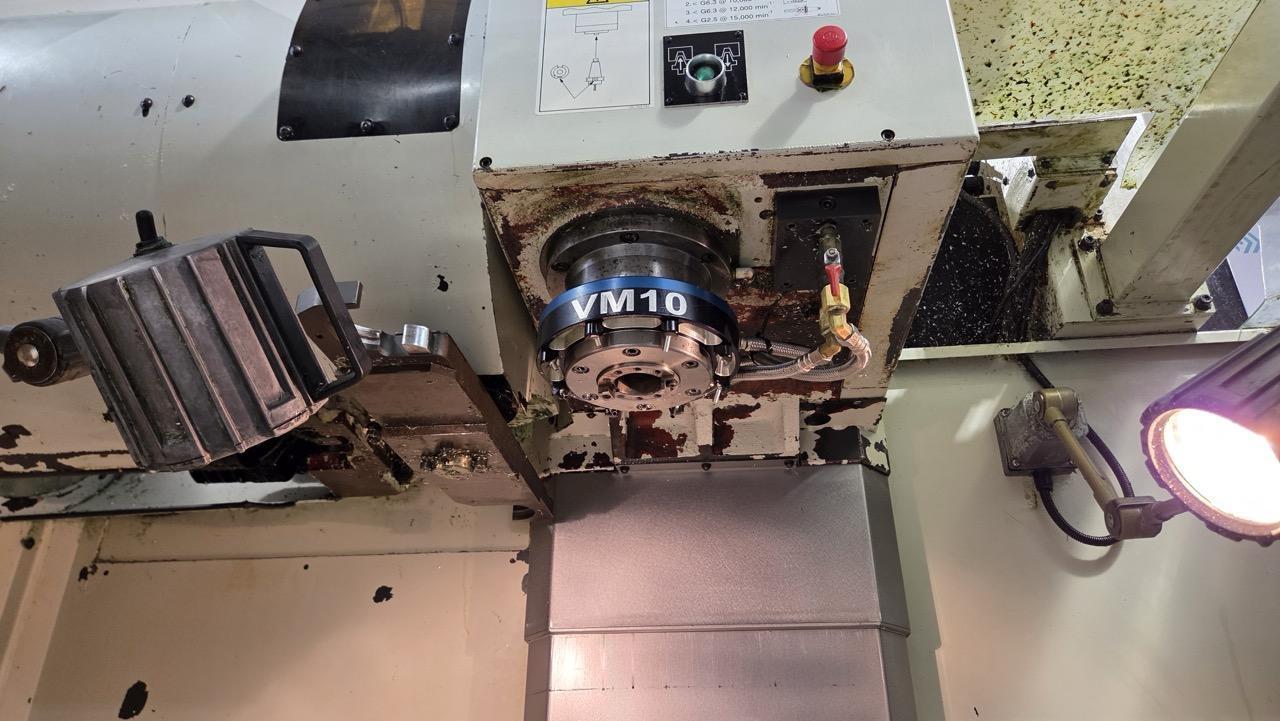

Hurco VM10 CNC Vertical Machining Center, 2008

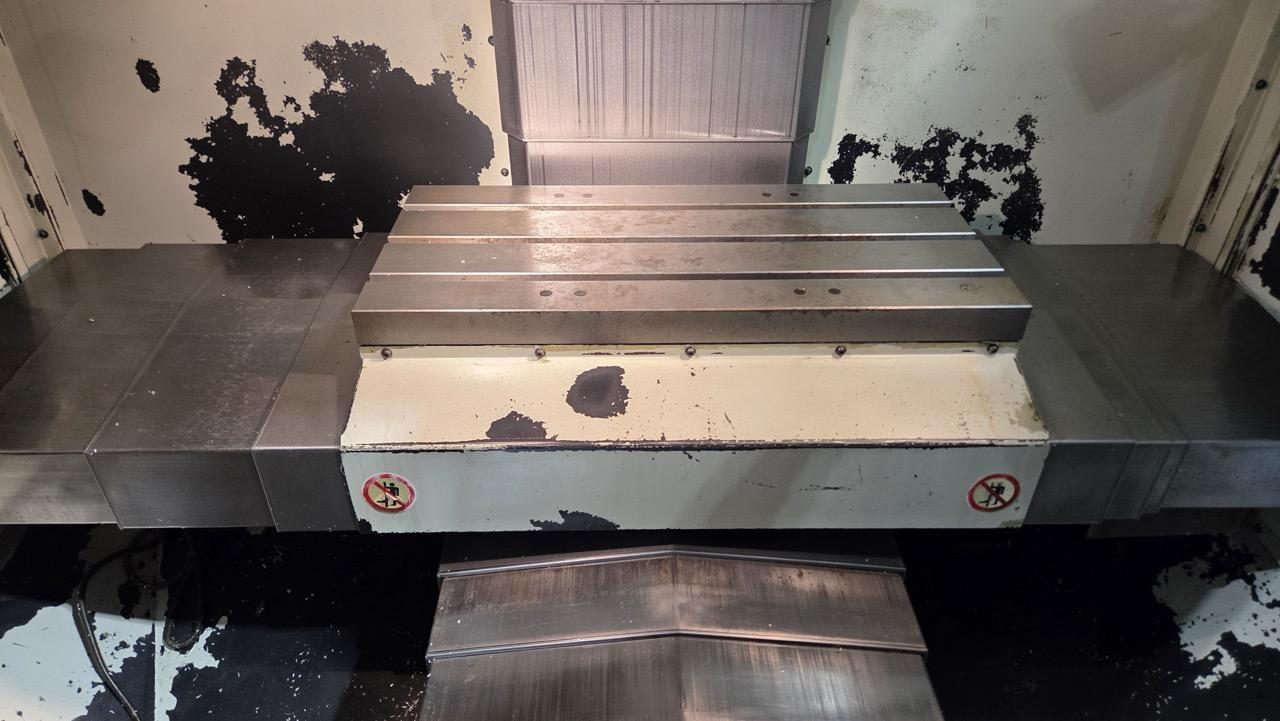

Machine Travels (X,Y,Z) 26″ x 16″ x 20″ Table Size 30″ x 16″ Max Work Load 750 lbs. Spindle Motor 15 HP Spindle Speed 10,000 RPM Tooling Type CAT 40 Number of ATC Stations 20 Max Tool Diameter 3.5″ Max Tool Length 9.8″ Max Tool Weight 15.5 lbs. Rapid Traverse Rate 945 IPM Max Programmable Feedrate 300 IPM Approx. Coolant Tray Dimensions 16″ x 48″ x 15″H Approx. Machine Dimensions 78″ x 91″ x 100″H Approx. Weight 6,400 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Advanced Verification Graphic DXF NC Productivity Package Industry Standard NC Ultipockets Insert Pockets Rigid Tap Helical Ramp 3D Mold NC Conversational Merge Swept Surface Select Surface Finish Quality UltiMotion Tool Change Optimization Ultimonitor Stream Load Job List Linear Thermal Compensation

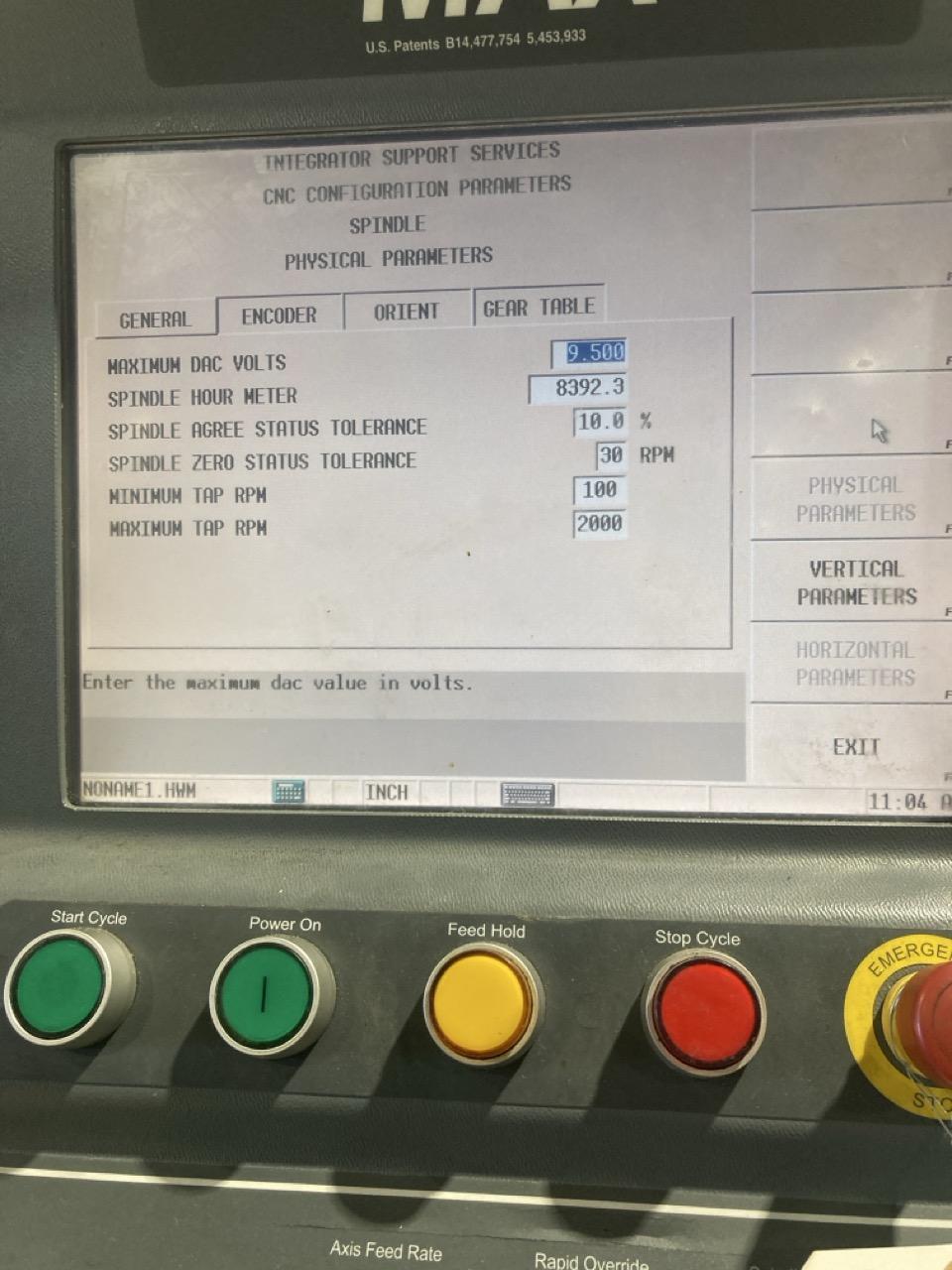

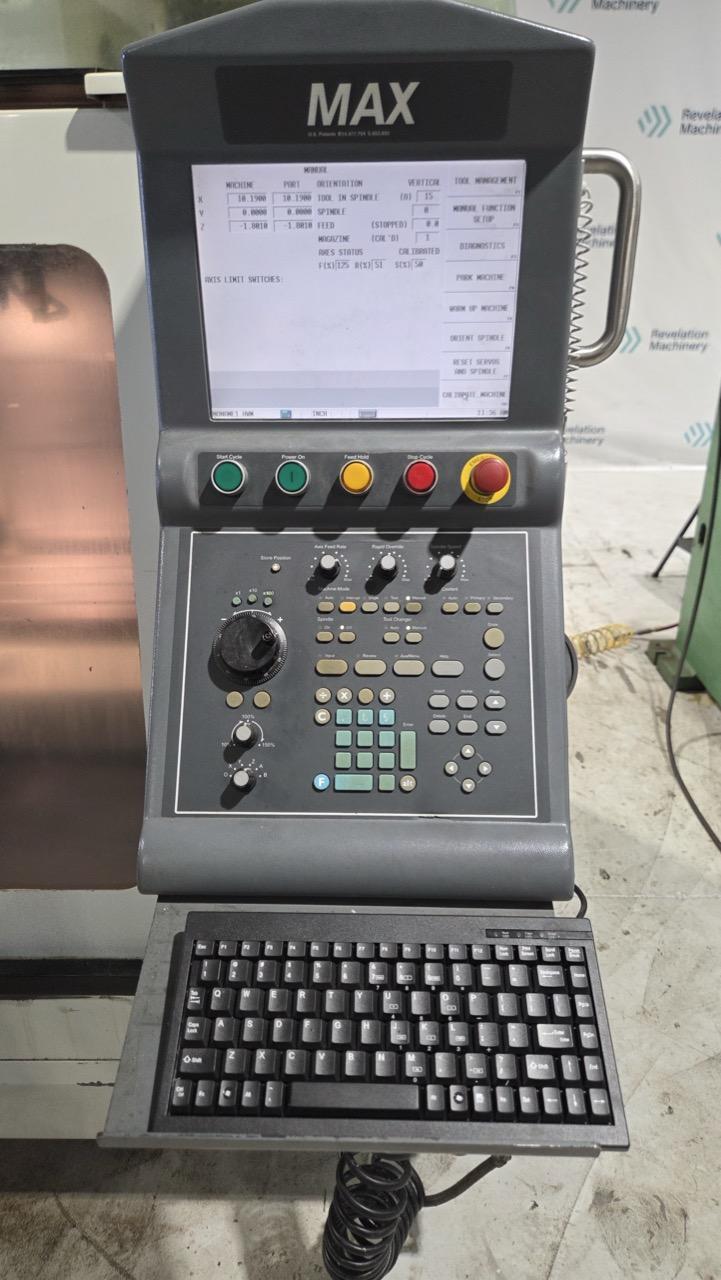

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hurco MAX CNC Control Approx. SPINDLE HOURS: 8384

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
