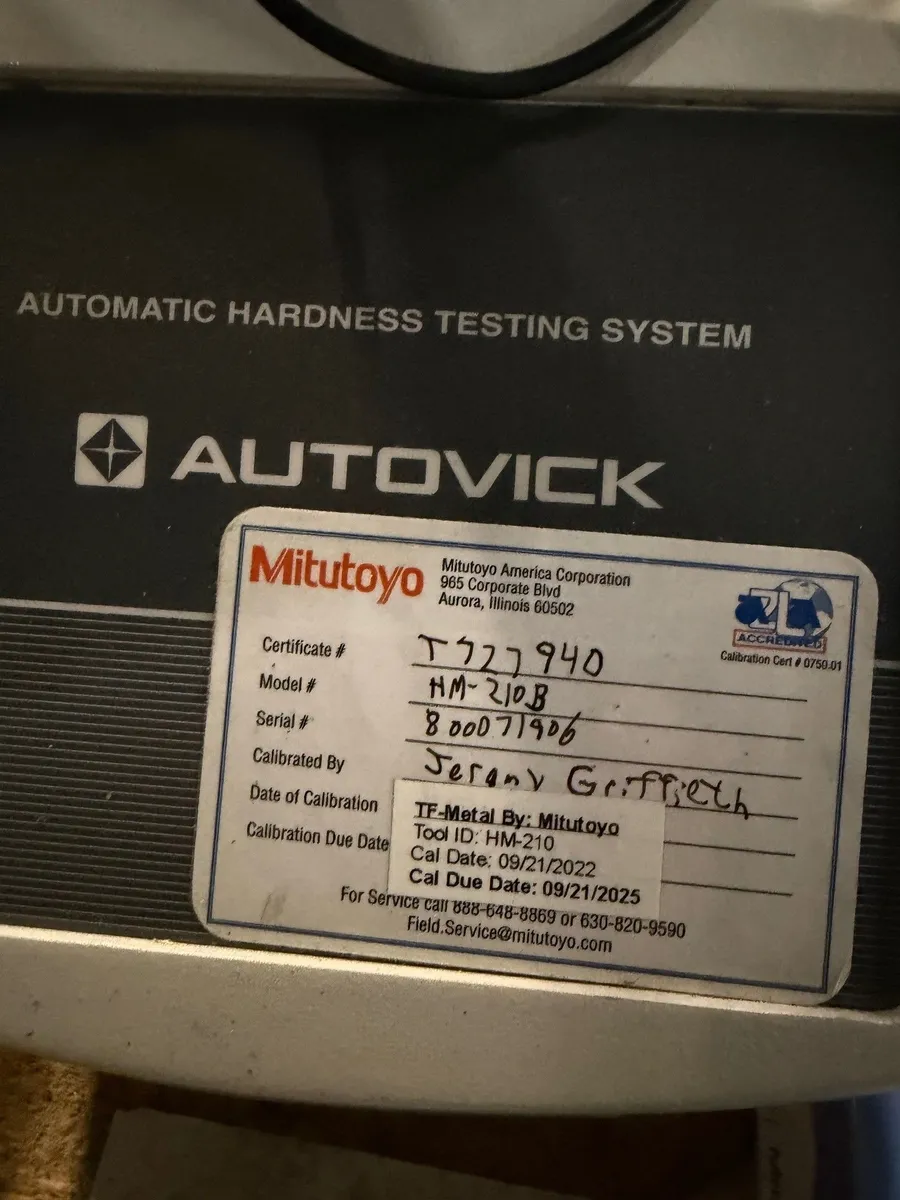

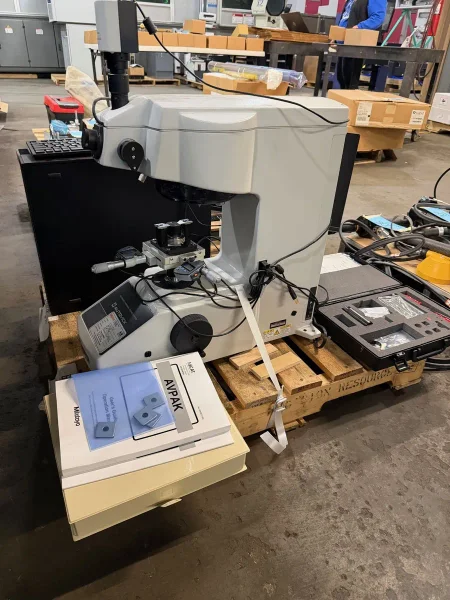

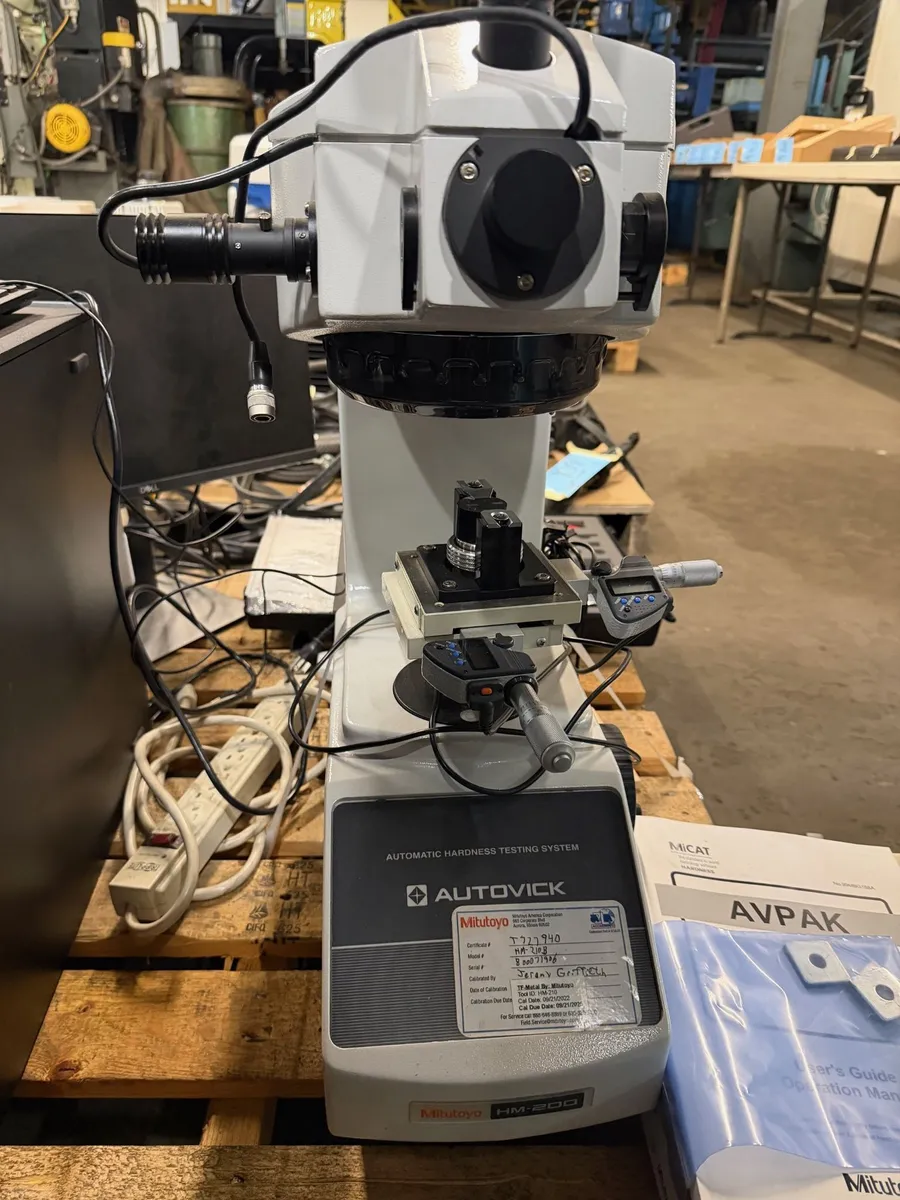

Mitutoyo model HM-210 type B micro vickers hardness tester

Brand: Mitutoyo
Model: HM-210 type B

Specifications:
Test method: Vickers hardness, Knoop hardness, Fracture toughness

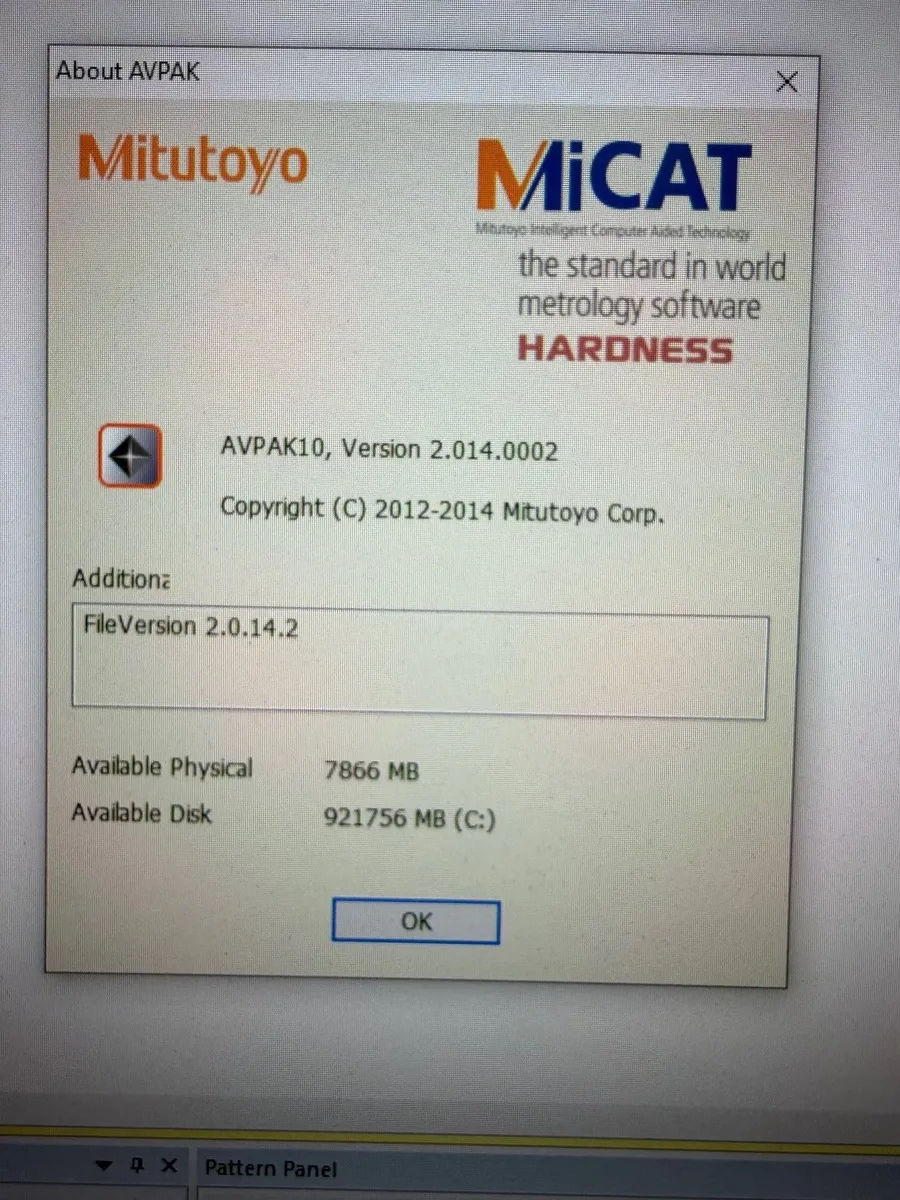

Test force switching: Selectable by AYPAK operation
Test force generation mechanism: Electromagnetic force system (voice coil)
Test force control: Automatic system (load, retain, unload)
Contact velocity: 60um/s
Test force load time: 1-99 seconds (settable in steps of 1 sec)
Duration time of test force: 0-999 seconds (settable in steps of 1 sec)
Test force unload time: 1-99 seconds (settable in steps of 1 sec)
Turret feature: For both automatic and manual use
Indenter shaft: standard 1 piece
Indenter: Vickers

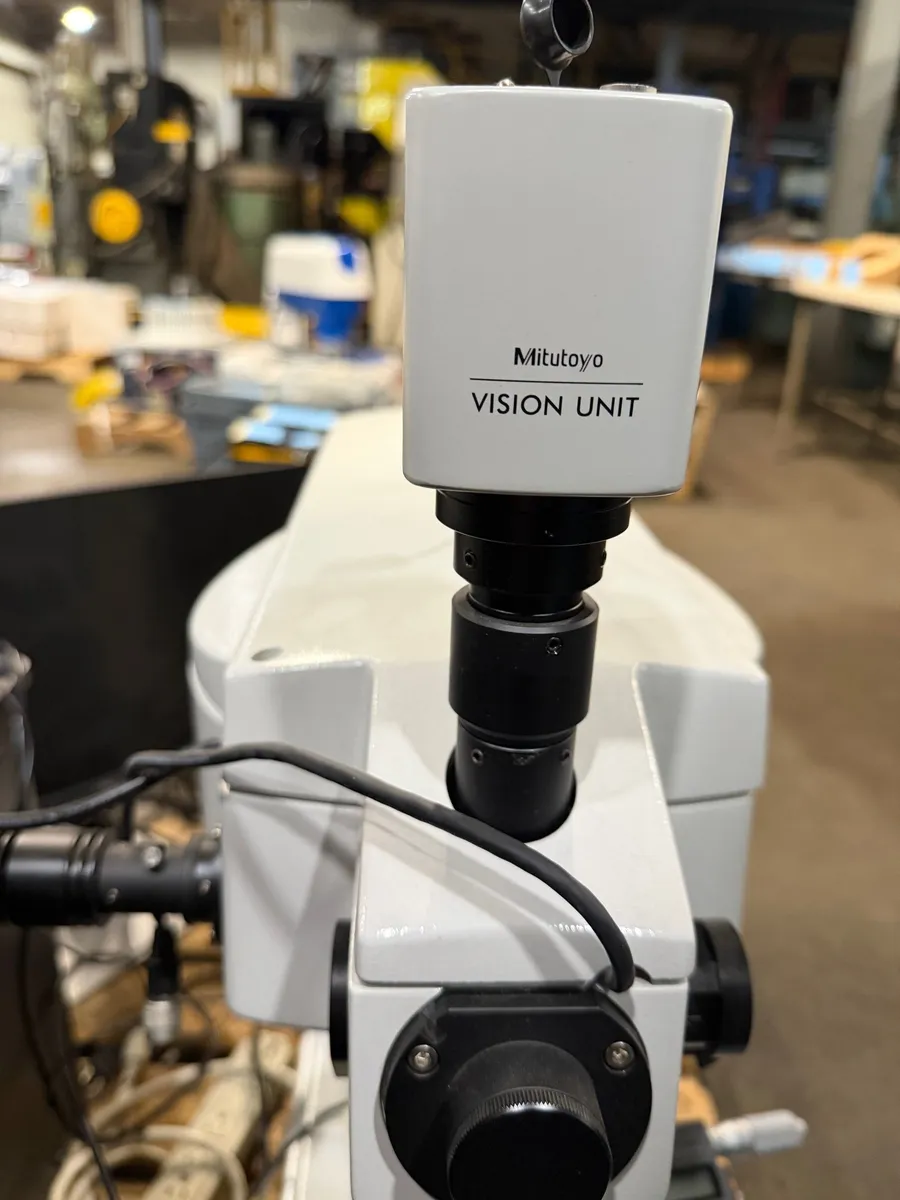

Objective lens: magnification of 50x for measurement up to 4 pieces mountable

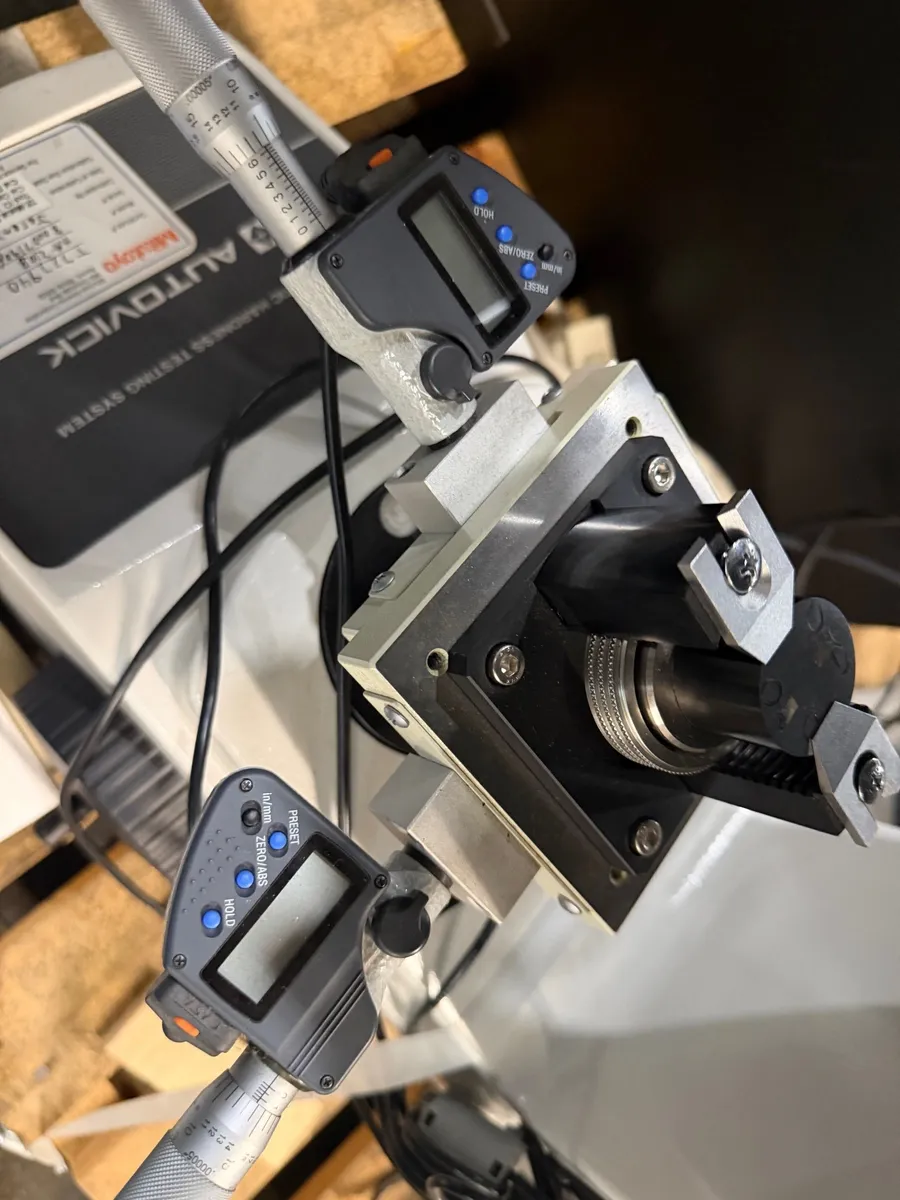

Maximum loading weight: 6.6 Lbs (3 kg.) when using manual XY stage
