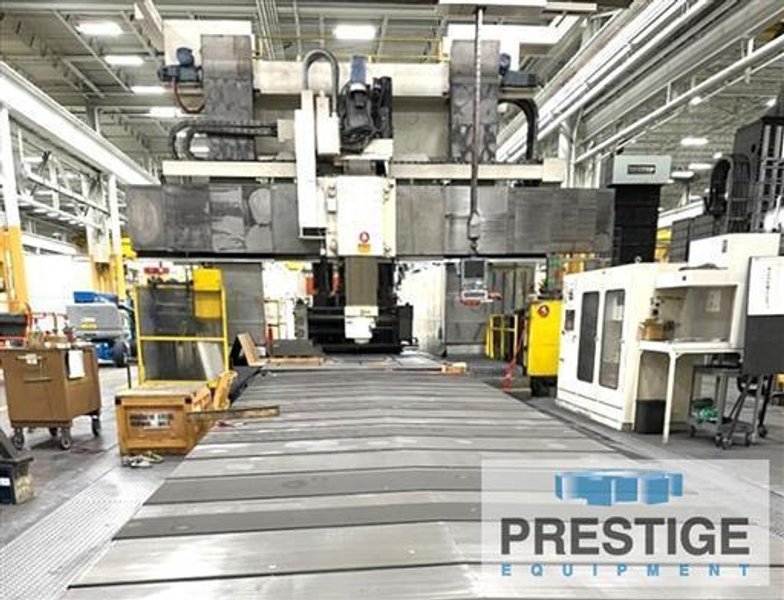

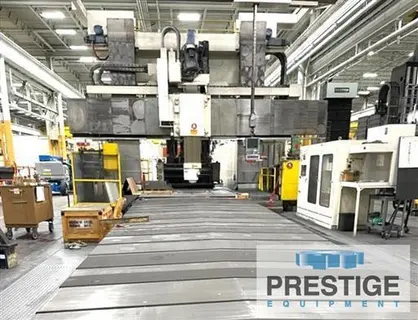

Mills Bridge & Planer Type Manual & CNC

SPECIFICATIONS:
X-Axis, Combined Tables 527.5"
Y-Axis, Horizontal Head Travel 231.29"
Z-Axis, Ram Travel 39.4"
W-Axis, Travel of Cross Rail 96.45"
A-Axis, Head Movement 360,000 Positions
B-Axis, Head Movement 360,000 Positions
SPECIFICATIONS:
Distance Between Columns 153.54"
Distance Between Columns Way Covers 147.63"
Height Under Spindle 127.93"
Table Size, #1 137.79" x 236.22"
Table Size, #2 137.79" x 236.22"
Table Size, 1 & 2 Combined 137.79" x 472.2"
Ram Cross Section 23.62" x 23.62"
Feeds: X,Y,Z Axes 0-472 IPM
Rapid Traverse, 472 IPM
Spindle Speeds 2 to 2500 RPM
Spindle Drive Motor 125 HP
Spindle Taper CAT 50
Table Weight Capacity 176 Tones



Equipped With:
Fidia C-20 5-Axis CNC Control (Retrofit 2000)

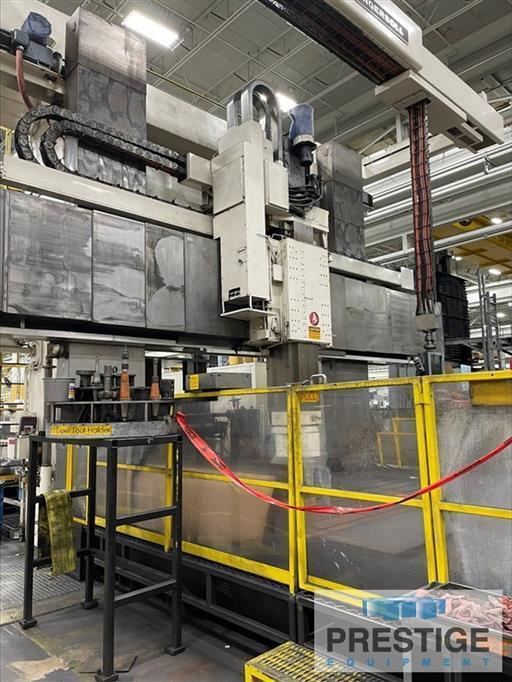

Ram Type Vertical Milling Head

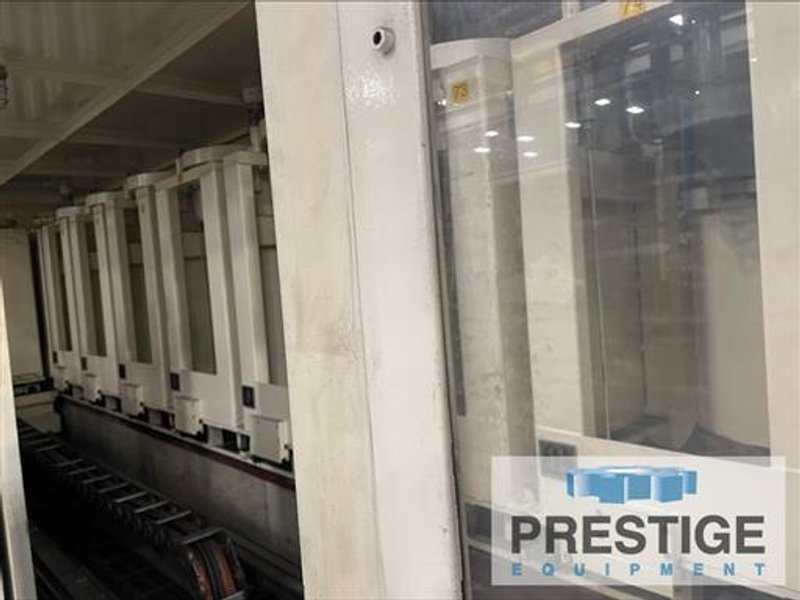

88 Station Automatic Tool Changer (ATC)
10 Station Automatic Head Changer (AAC)
2-Axis Articulating Head w/ Cat 50 Taper
Assorted Right Angle and Vertical Millng Heads
Split Table
Steel Sliding Way Covers on All Axes
Thru Spindle Coolant
Chip Conveyors
Condition: Excellent
