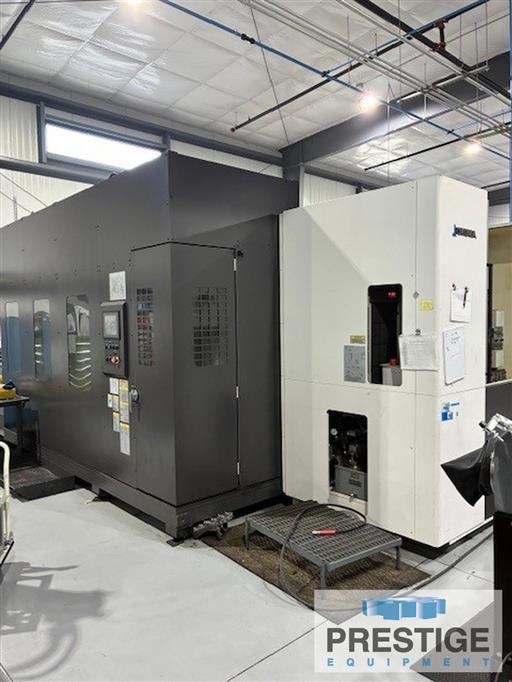

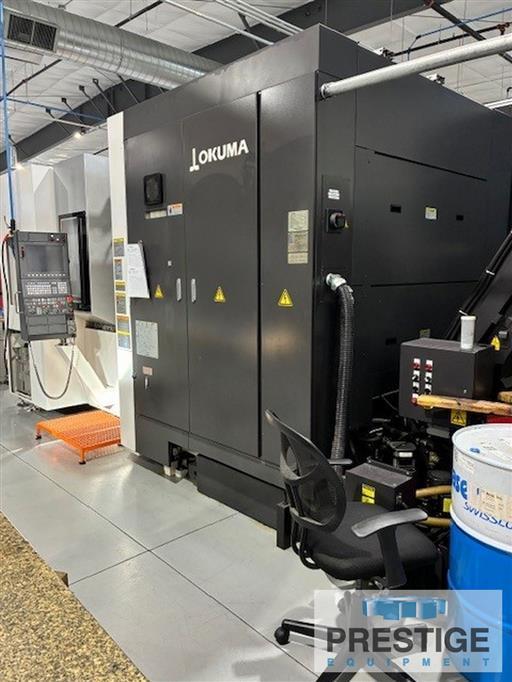

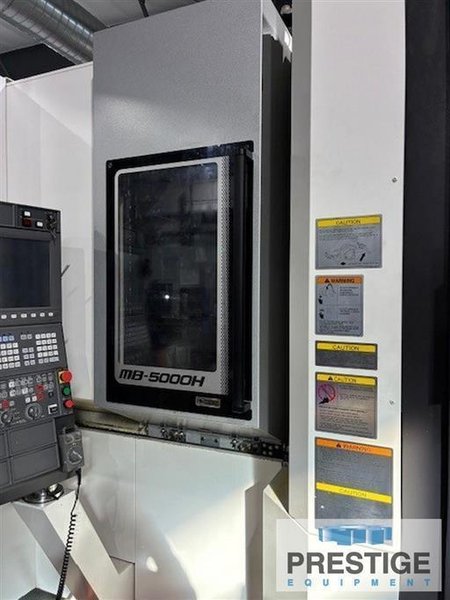

Machining Centers Horizontal CNC

SPECIFICATIONS:
X-Axis Travel 29.92"
Y-Axis Travel 29.92"
Z-Axis Travel 29.92"
Spindle Center To Pallet Top 1.97"-31.89"
Spindle Nose To Pallet Center 5.31"-35.23"

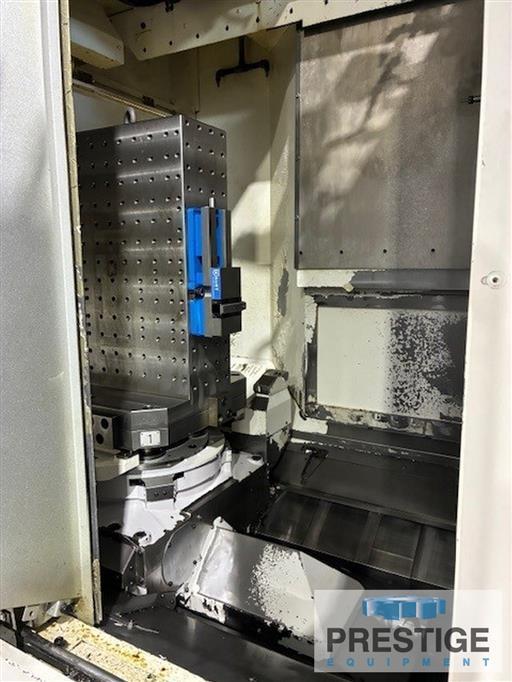

PALLETS:
Number of Pallets 2
Pallet Size 19.69" x 19.69"
Pallet Indexing (Full B-Axis) 0.001 Degree
Maximum Work Weight 1,100 Lbs.
SPINDLE:
Spindle Speeds 50-15,000 RPM
Spindle Taper CAT 40 BIG Plus
Spindle Drive Motor 35 HP / 25 HP
FEEDRATE:
Rapid Traverse, XYZ 2362 IPM
TOOL CHANGER:
Tool Changer 148 ATC
Max. Tool Dia With Adjacent Tool 2.76"
Max. Tool Dia With No Adjacent 5.91"
Max. Tool Length 11.81"
Max. Tool Weight 22 Lbs.
MACHINE SIZE:
Floor Space 103" x 206"
Height 116"
Approx. Weight 29,300 Lbs.



Equipped With:

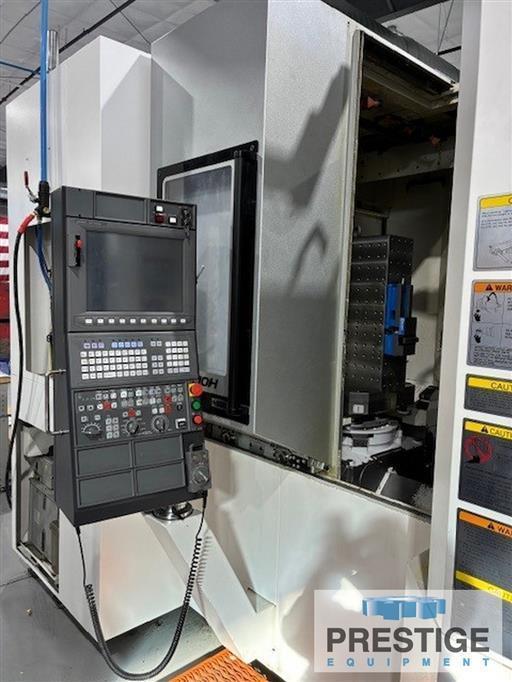

OSP-P300MA CNC Control w/ 15" Color Multi-Touch Color Display

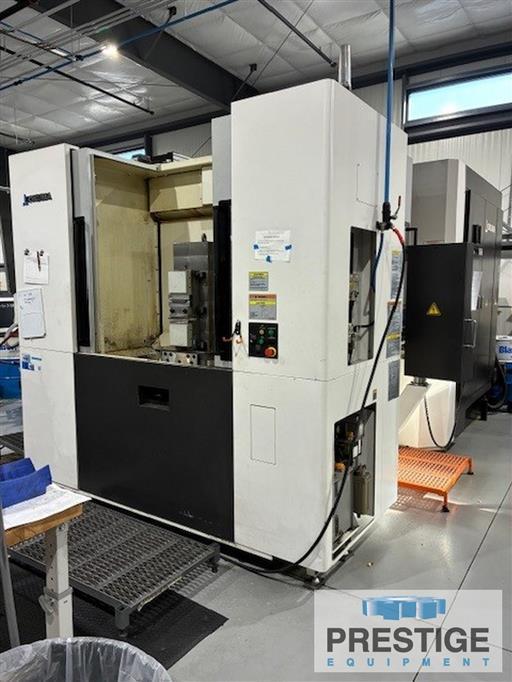

2-Station Automatic Rotary Pallet Changer
Full B-Axis Pallet Rotation
146-Position Automatic Tool Changer
Renishaw Tool Probing
Renishaw Auto Work Gauging
Coolant Thru Spindle
Thermal Active Stabilization on Casting and Spindle
Active & Passive Thermal Compensation

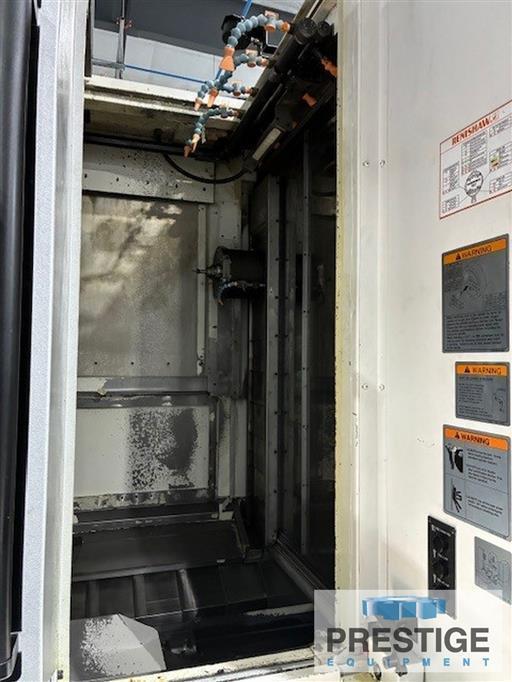

Shower Coolant
Tool Breakage Detection

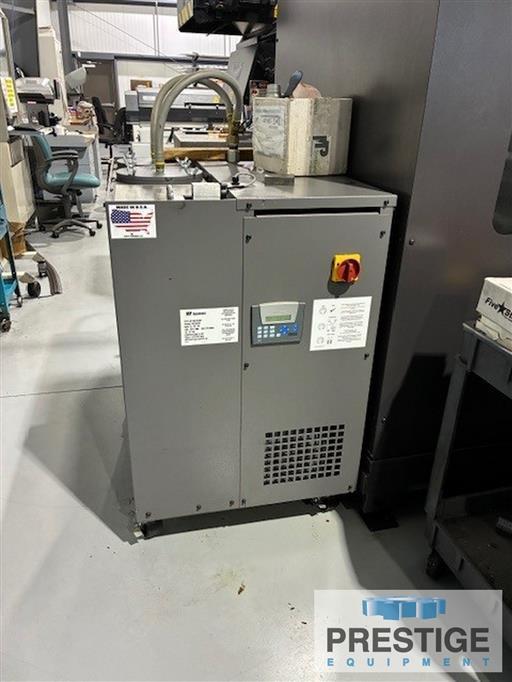

Spindle Chiller-Refrigerant Style
Air-Oil Lubrication System

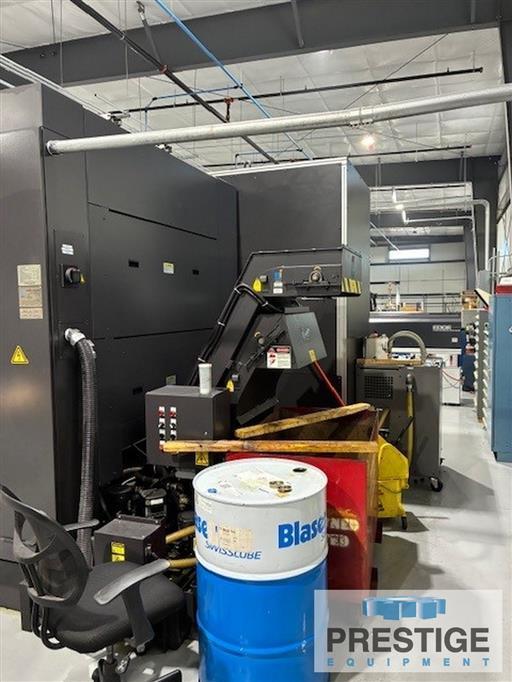

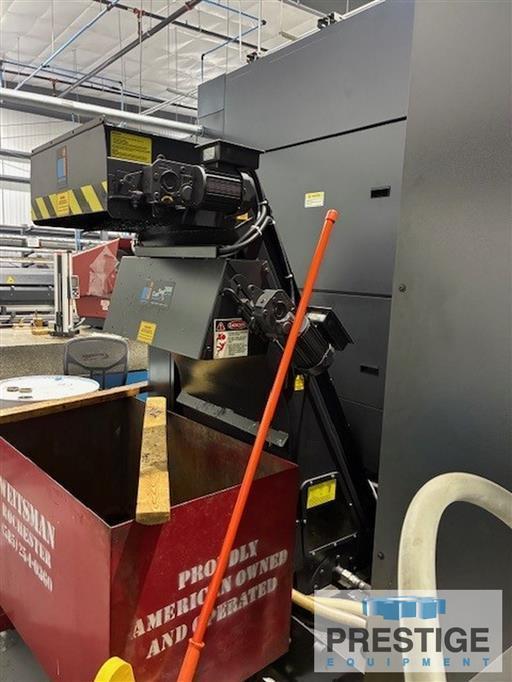

MayFran Concep 2000 Dual Belt Filtering Type Chip Conveyor
