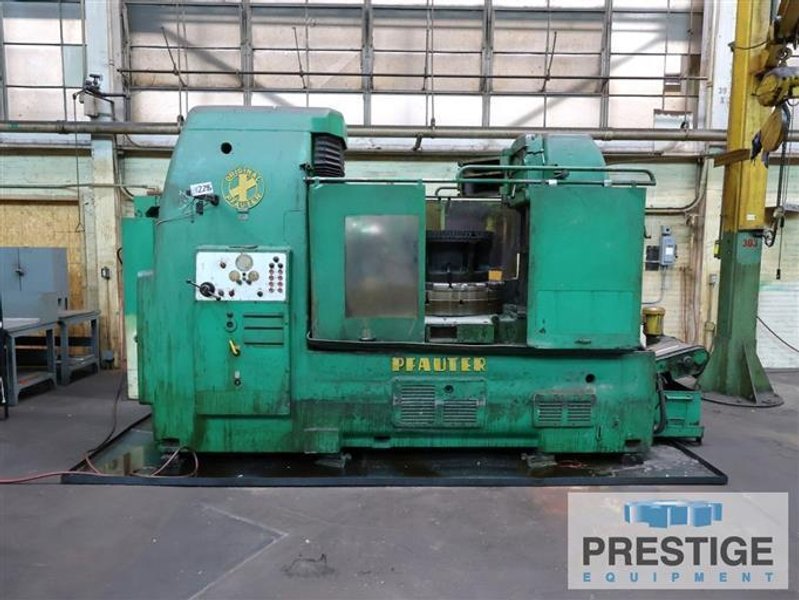

Gear Hobbers Vertical
Brand
Category
Type
Model
P1250
Stock #
44581
Year
Not specified
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

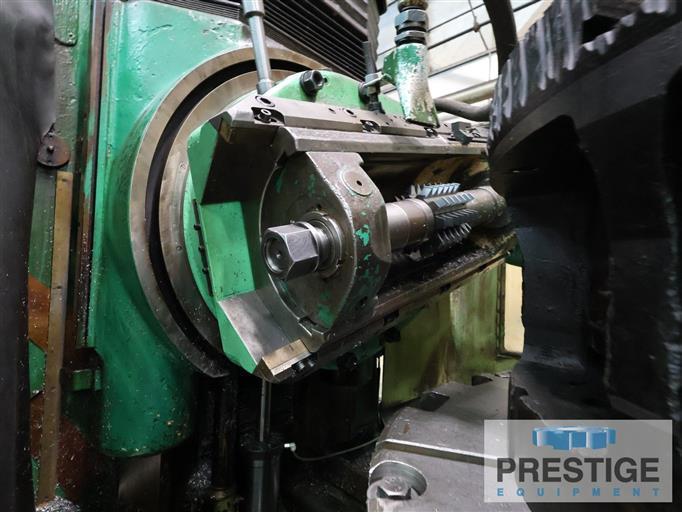

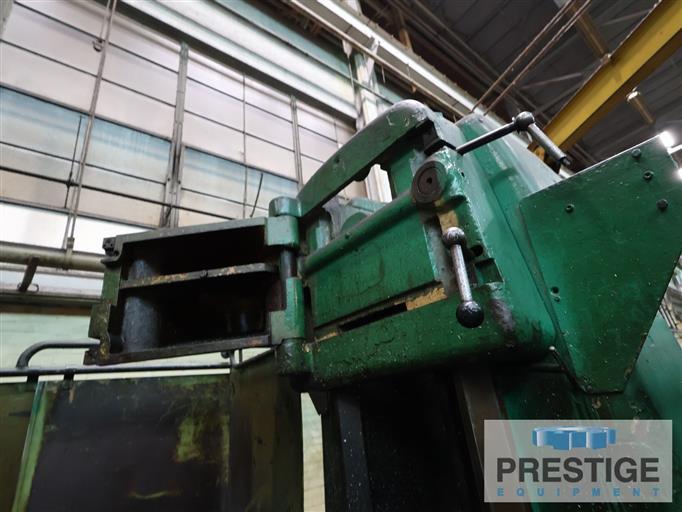

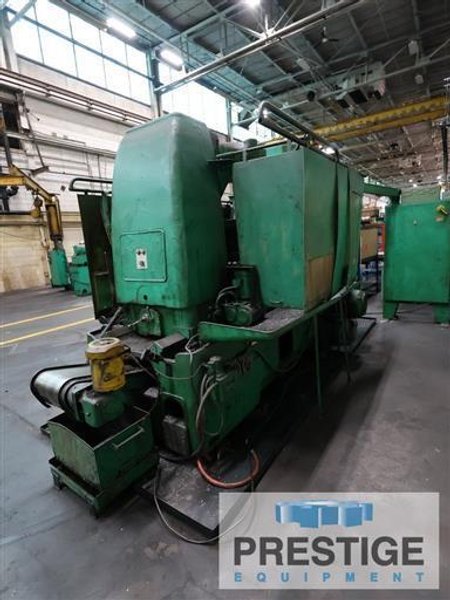

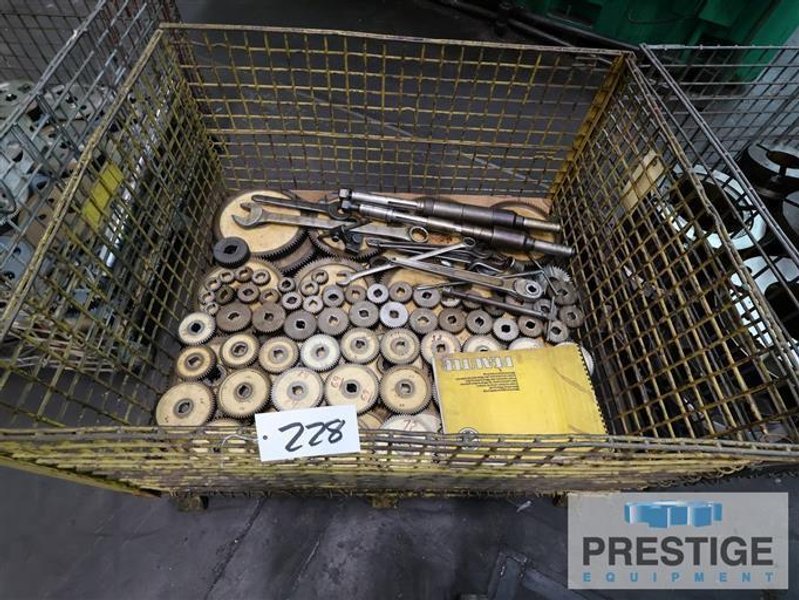

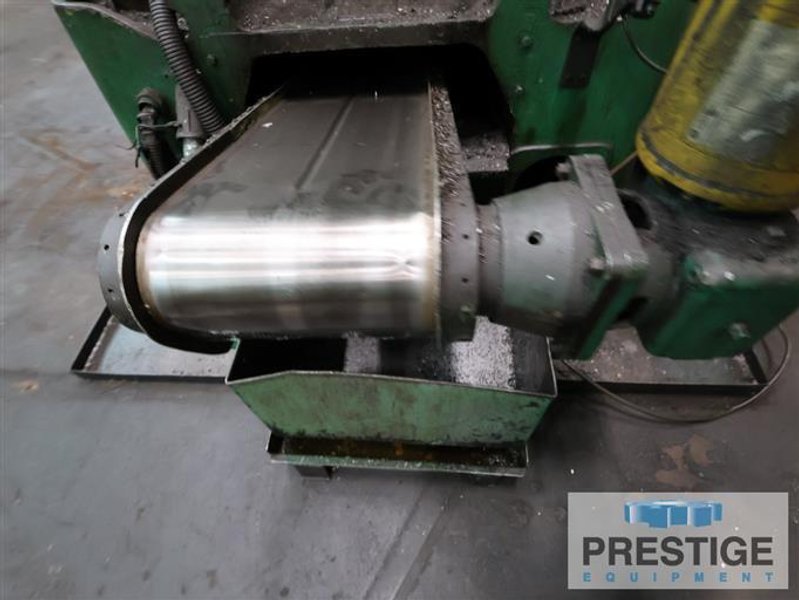

Maximum Gear Diameter 49.21" Masimum Diametral Pitch 2.0 Module 12 Max. Hob Diameter 8.67" Hob Arbor Size 2" Hob Speed 200 RPM Table Diameter 37.4" Max. Hobbing Length 23.03" Feed Range, Axial 0,30 – 6 mm/min Feed Range, Radial 0.09 – 1.8 mm/min Feed Range, Tangential 0.126 – 2.53 mm/min Hob Spindle Speeds 32-200 RPM Maximum Tool Length 10.23" Maximum Tool Diameter 8.67" Minimum Number of Milling Teeth 12 Approximate Weight 14,000 kg Equipped With: Hob Arbor Single Indexing Differential Swing Away Tailstock Chip Conveyor, Coolant Change Gears Spare Arbors LOCATION: Warren, Michigan |
