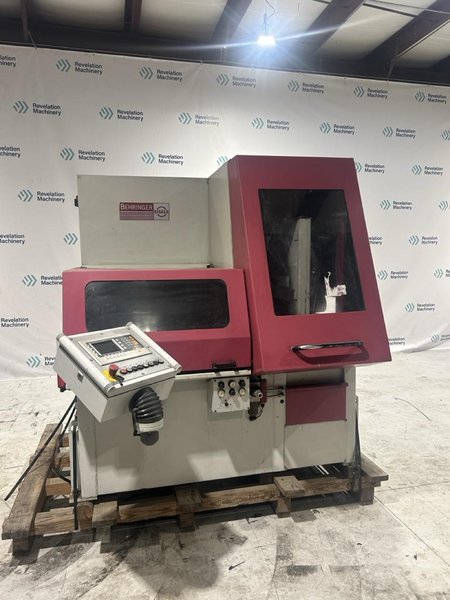

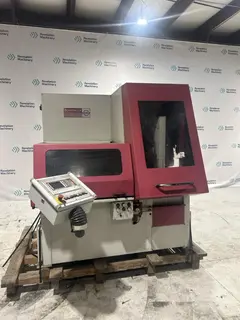

22″ Behringer VAL-560 NC1 Automatic Cold Saw, 2014 – Bar Loader, Conveyor, Dust Collector

– Blade Diameter: 22″ – Round Cutting Capacity (90°): 7.9″ – Square Cutting Capacity (90°): 6.7″ x 6.7″ – Minimum Cut Size (Round): 0.4″ – Minimum Cut Size (Flat): 0.4″ x 0.4″ – Main Drive Motor: 34.9 HP – Max Blade Speed: 3,400 RPM – Single Stroke Feed Length: 39.4″ – Max Feed Rate: 78.7 in/sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – Automatic Bar Loader – Conveyor Outfeed – Infeed Table System – Servo Feed System – Servo Clamping System – NC / PLC Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: Saw: 6’6”x6’x7’9” – 4,000lbs. Conveyor: 14′ x 2’2” x 3′ – 500lbs. Dust Collector: 3’6′ ‘x2’7” x 7’10” – 1000lbs Material rack: 12’10” x 6’7” x 3’10” – 1000lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
