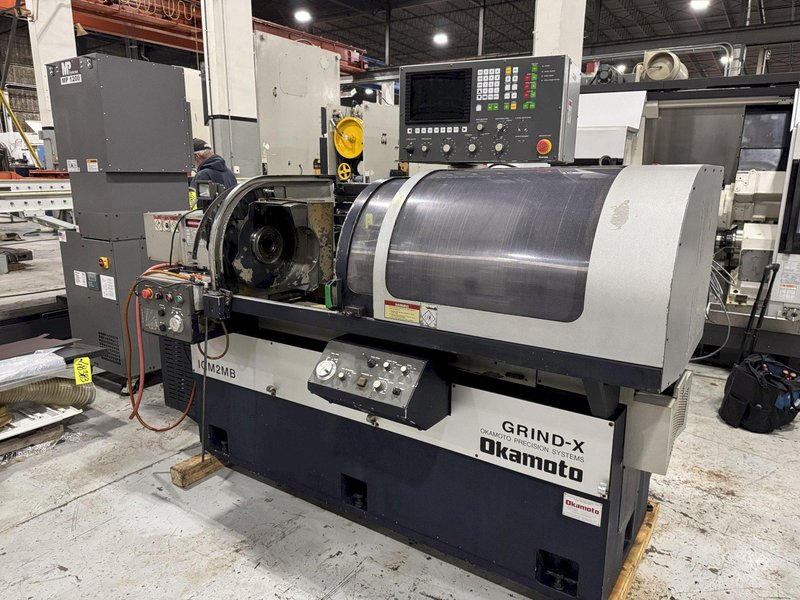

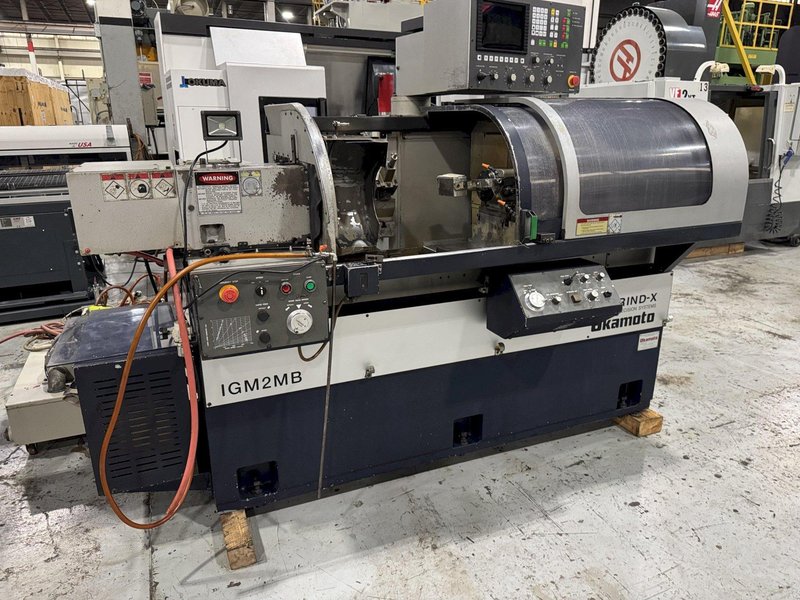

Okamoto IGM-2MB Grind-X CNC Precision Internal Grinder

Okamoto IGM-2MB Grind-X CNC Precision Internal Grinder

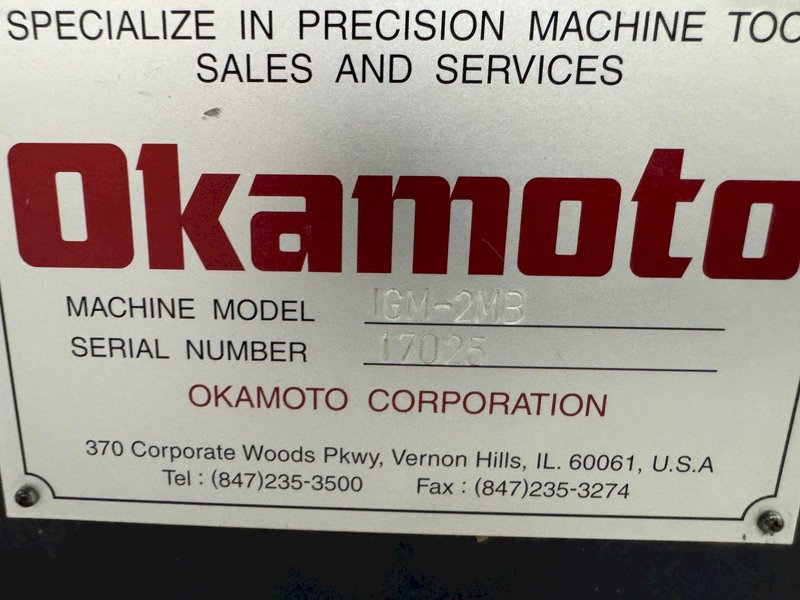

Name: Okamoto IGM-2MB Grind-X CNC Precision Internal Grinder
Brand: OKAMOTO
SKU: TM170
Availability: InStock

Brand

OKAMOTO

Location

Illinois

Specifications
Files & Videos

Swing	24 inches
Max Grinding Bore	8 inches
Stroke	8 inches
Travel-Long	20 inches
Workhead Power	2 horsepower
Dresser (Yes/No)	yes
CNC Control	yes
Type Of CNC Control	Okamoto GrindX MDI
Dimensions	96" x 54" x 69"
Weight	6500 pounds
Grinding Wheel Motor	5 HP
ID Grinding Range	0.24" - 8"
Max Swing Inside Guard	14"
Work Head Swivel Angle	-5, +15 degrees
Max Work Head Cross Feed	9.4"

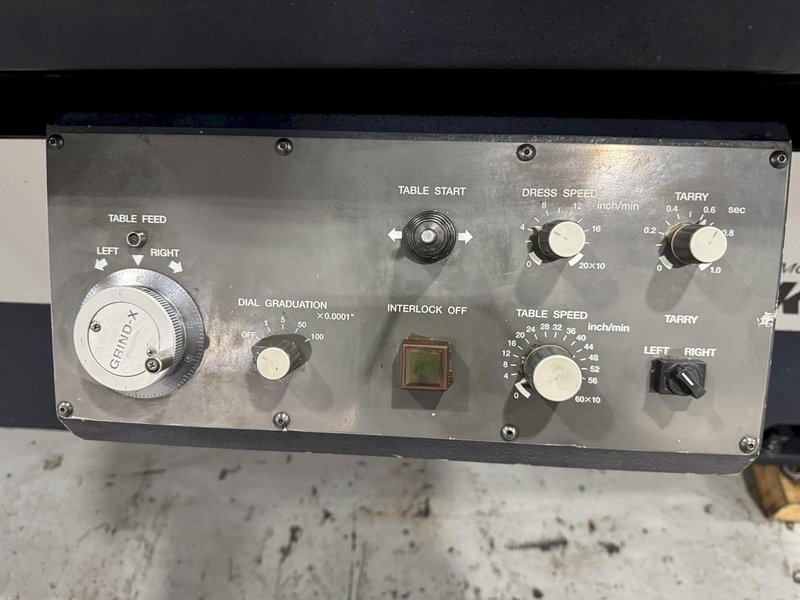

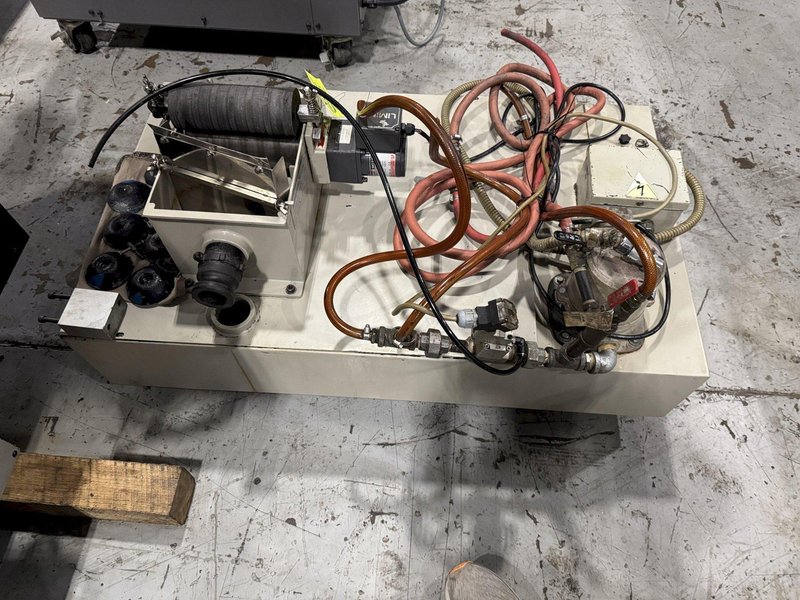

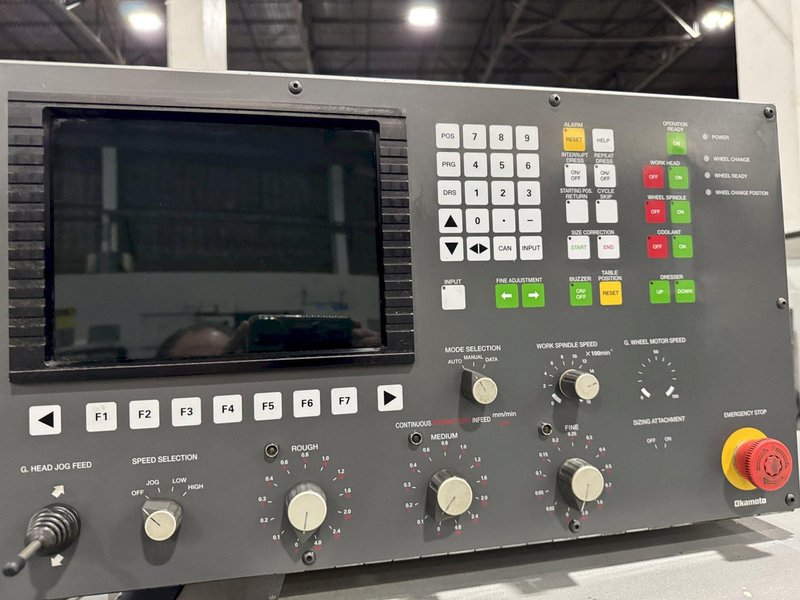

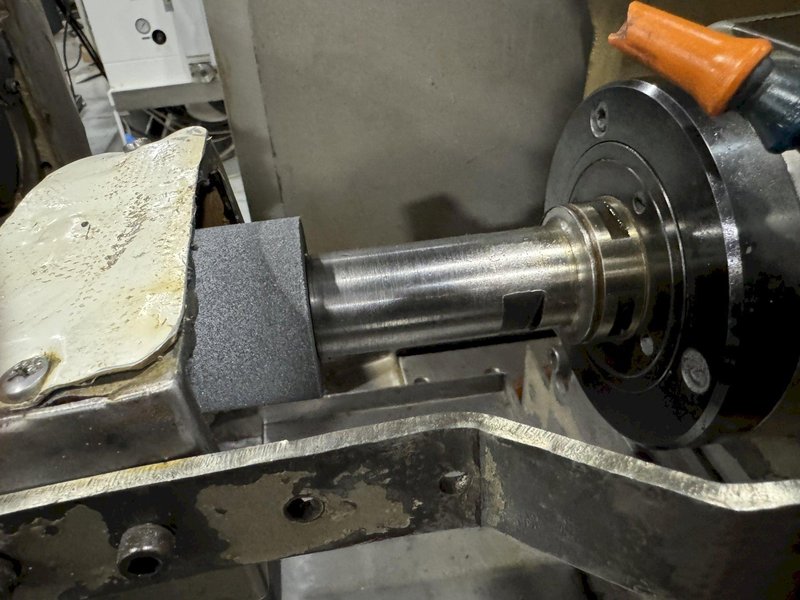

Equipped With: Okamoto Fanuc MDI Control . for Set-Up & Editing Functions, High Speed Table Shortens Positioning Cycle Time and High Speed Table Reciprocation Reduces Grinding Cycle Time. User friendly control with conversational software. Teach function allows easyset-up of grinding processes. The MDI Controller is made by Okamoto and uses a unique Micro Processor control system that promotes Fast Easy Set-Up. Rough, Medium Grind, Dress and Fine Grind in one set-up. Least Programmable Increment 0.00001" 36 program storage capacity. Programmable Auto Grinding Cycle Size Compensation Wheelhead, Table and Speed Setting Dials. Continuous/Intermittent Feed. Repeat Dress, Interrupted Dressing and Dressing Selection The linear slide and ball screw table motion delivers high-speed table movement speed up to 800 ipm. Rigid construction. Superb Accuracy. Okamoto OH 10M 10,000 RPM Variable High Speed Grinding Spindle with Mandrel. Programmable Wheel Dresser. Swing Away Chuck Guard. Swing Away Hydraulic Wheel Guard. Coolant with Magnetic Separator. Full Enclosure. Books and Manuals.
