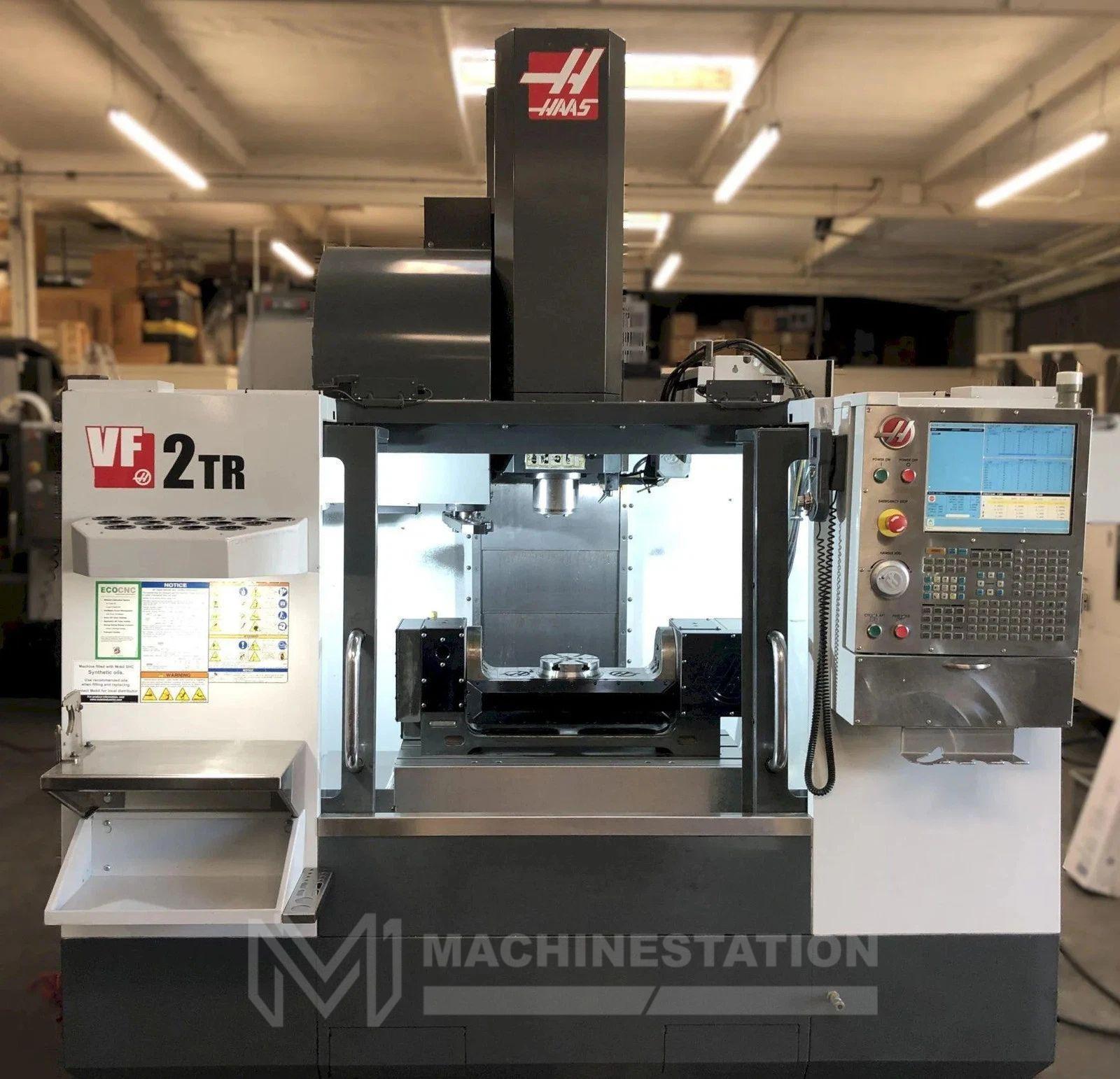

Haas VF-2TR 5-Axis CNC Vertical Machining Center – Mill

Haas VF-2TR 5-Axis CNC Vertical Machining Center – Mill

Name: Haas VF-2TR 5-Axis CNC Vertical Machining Center – Mill
Brand: HAAS
SKU: 115128
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make	Haas
Model:	VF-2TR
Year:	2011
Condition:	Used – Good

Features:

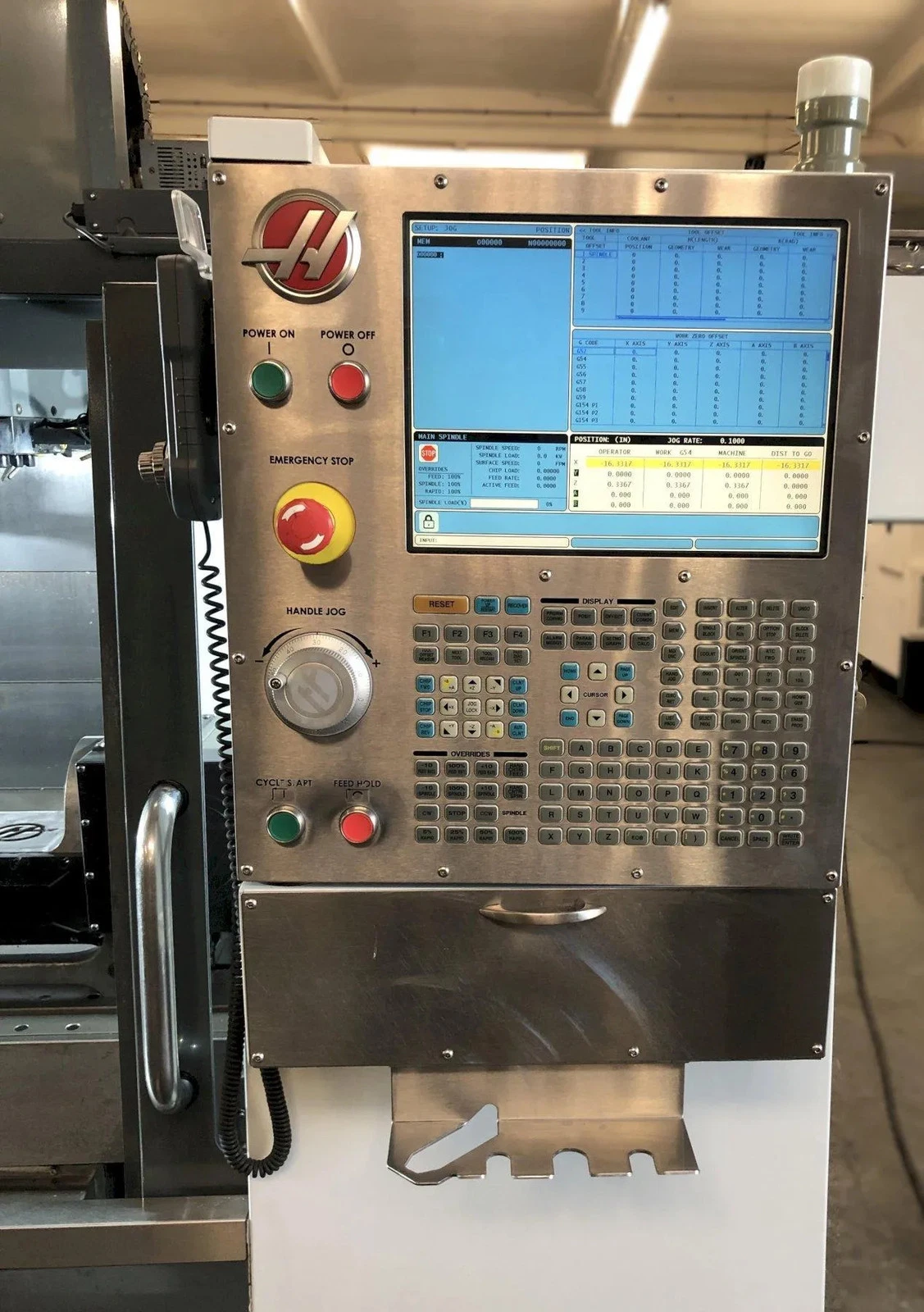

Haas CNC Control
Haas TR-160 Trunnion Table
10,000 RPM Spindle (Upgraded $7,595 value Included)
30 Station Automatic Tool changer
CAT-40 Taper Spindle
30 HP High Torque Spindle
Programmable Coolant Nozzle
MPG Handwheel Control
Automatic Lubrication System
Rigid Tapping
Coolant System
Chip Auger

Travels:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Spindle Nose to Table (Min.- Max.): 4″ – 24″
Spindle Nose to Plater (Min.- Max.): 5.4″ – 14.6″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute

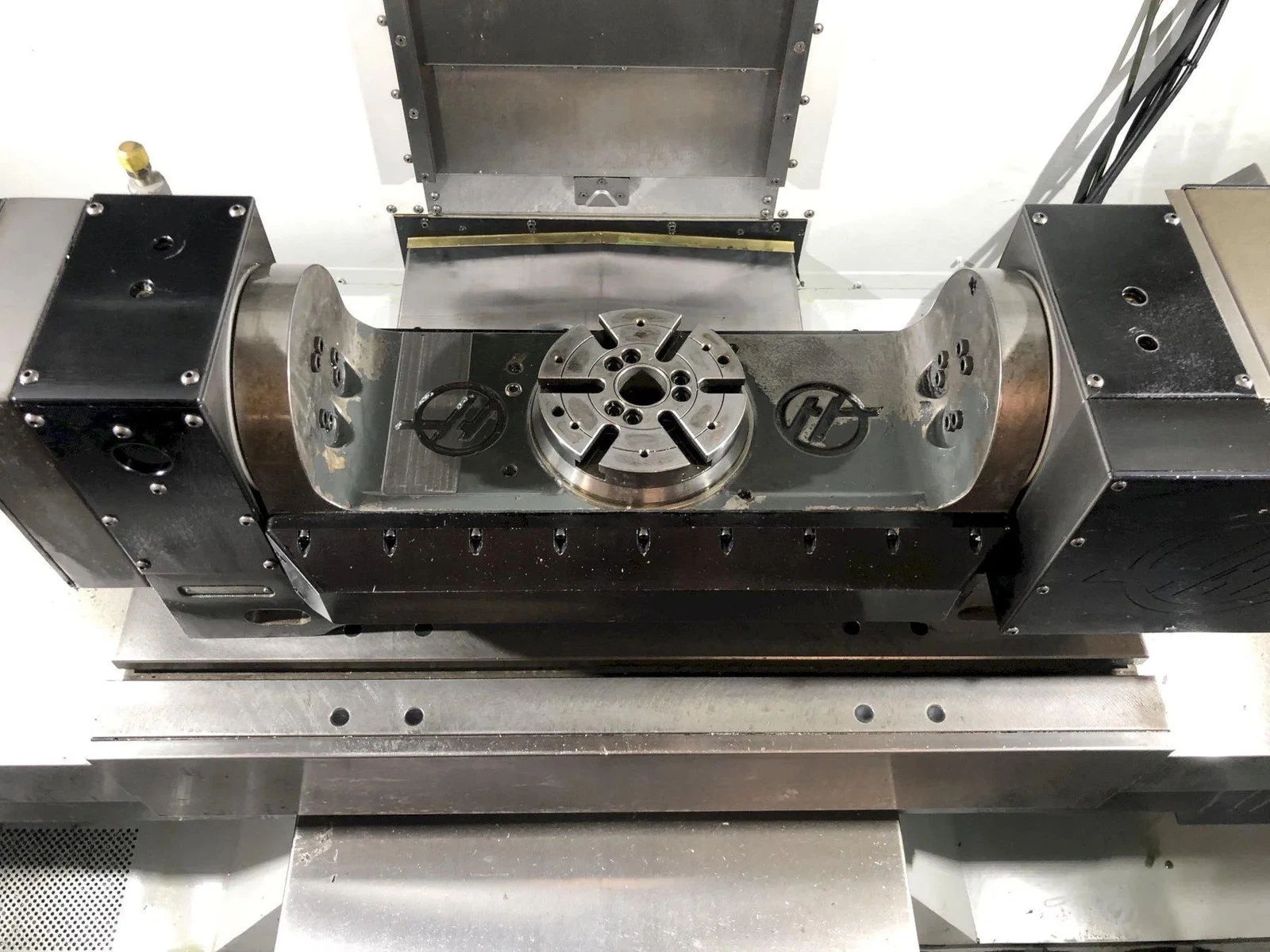

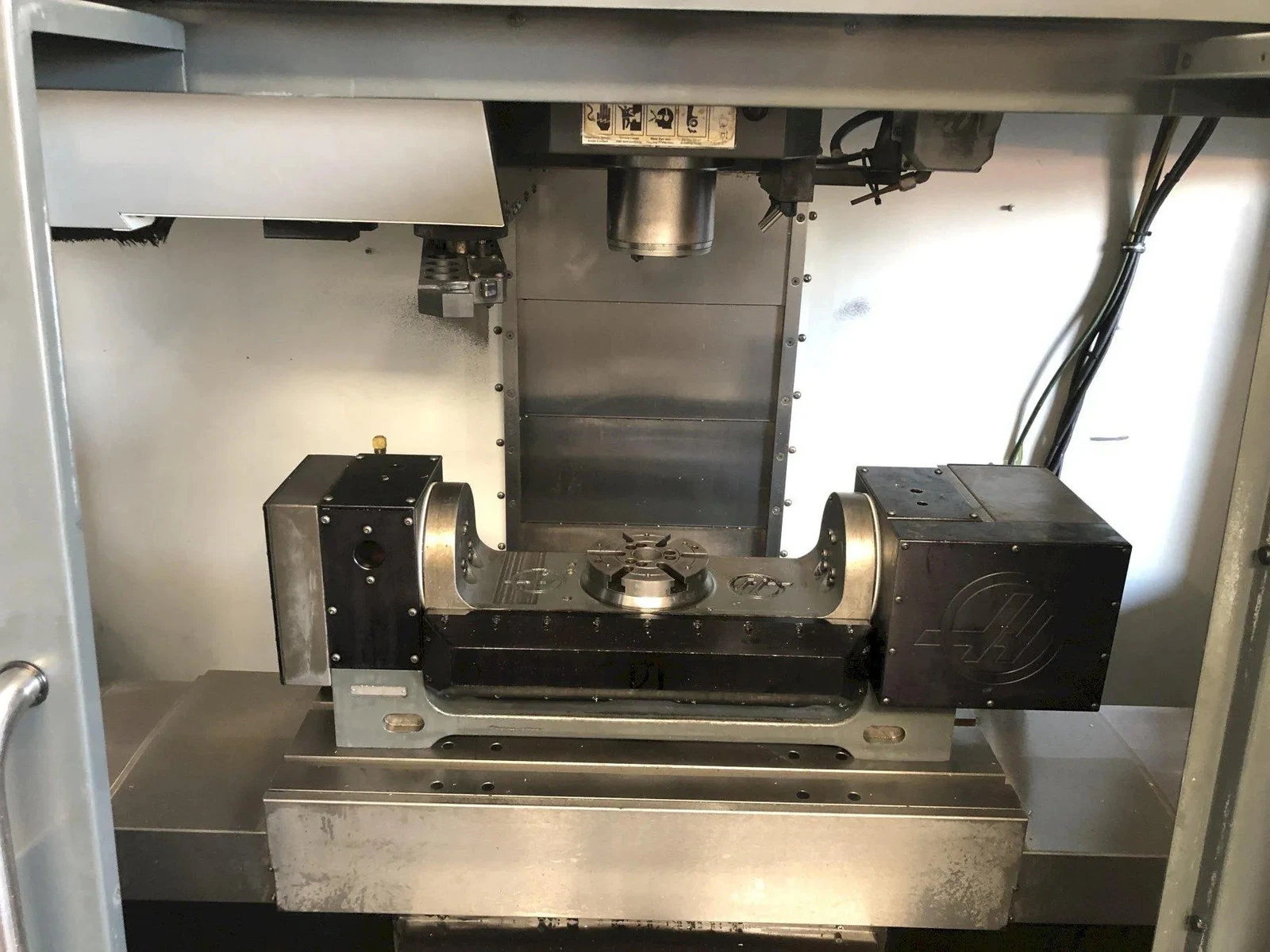

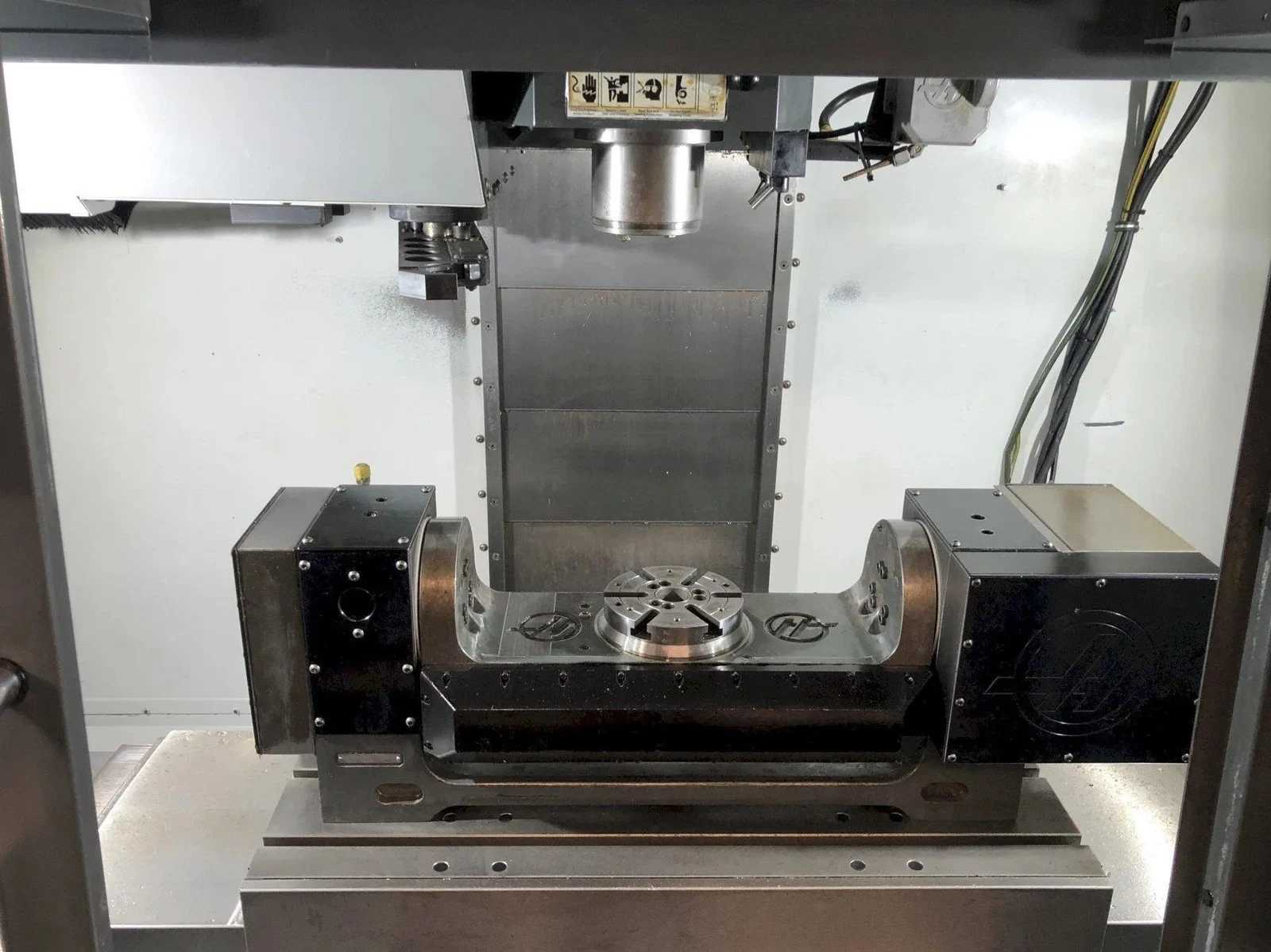

Trunnion Table:
Plater Diameter: 6.30″
Max Weight on Plater: 80 lbs
Max Part Swing (reduced at tilt angles > ± 90°): 18″
T-Slot Width: 0.625″

Table:
Length: 36.0″
Width: 14.1″
T-Slot Width: 5/8″
Number of Std T-Slots: 3
Max Weight on Table (evenly distributed): 3,000 lbs

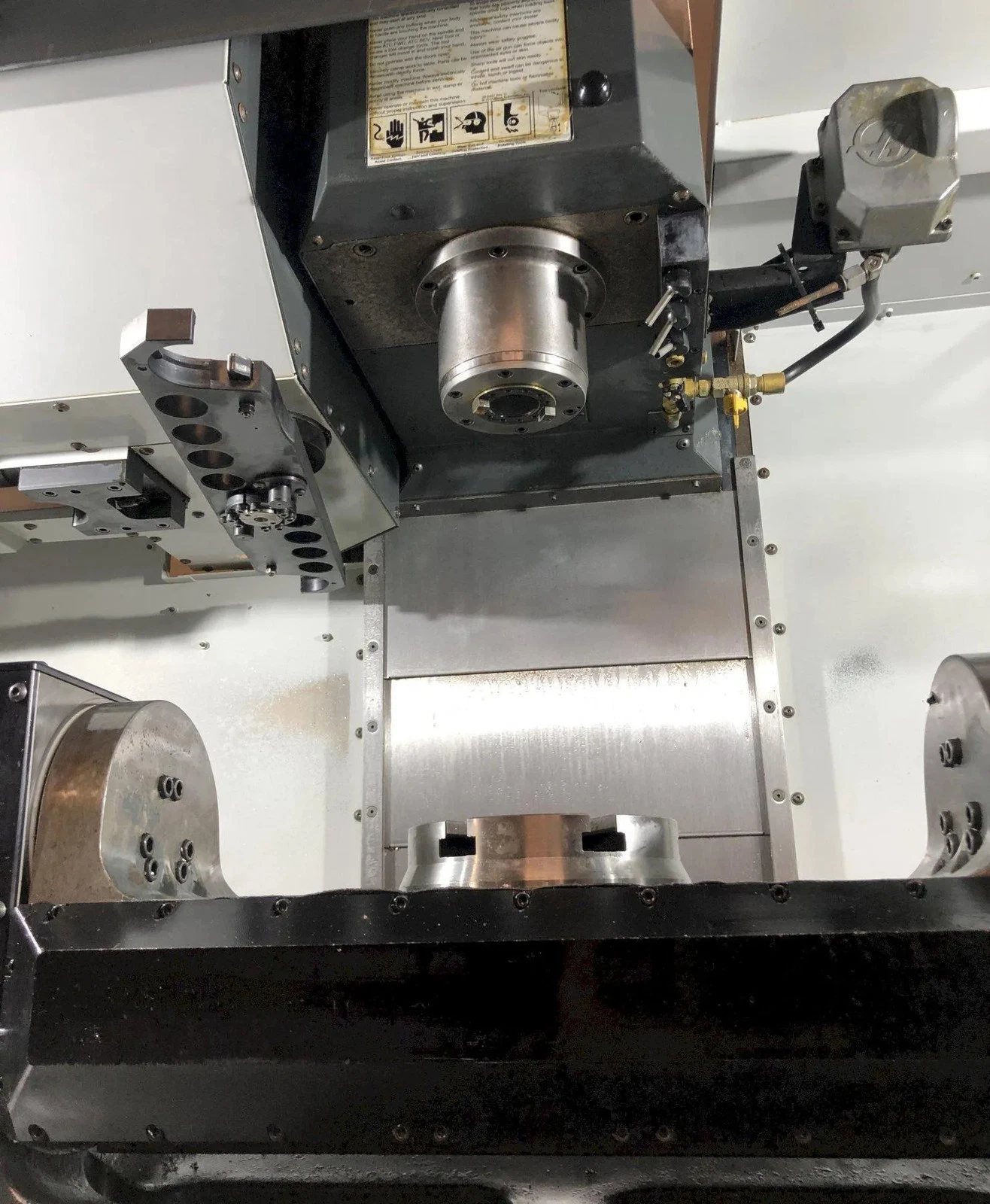

Spindle:
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90 ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 30 Station
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length (from gage line): 11.0″
Tool Changing Time: 2.2 Seconds

General:

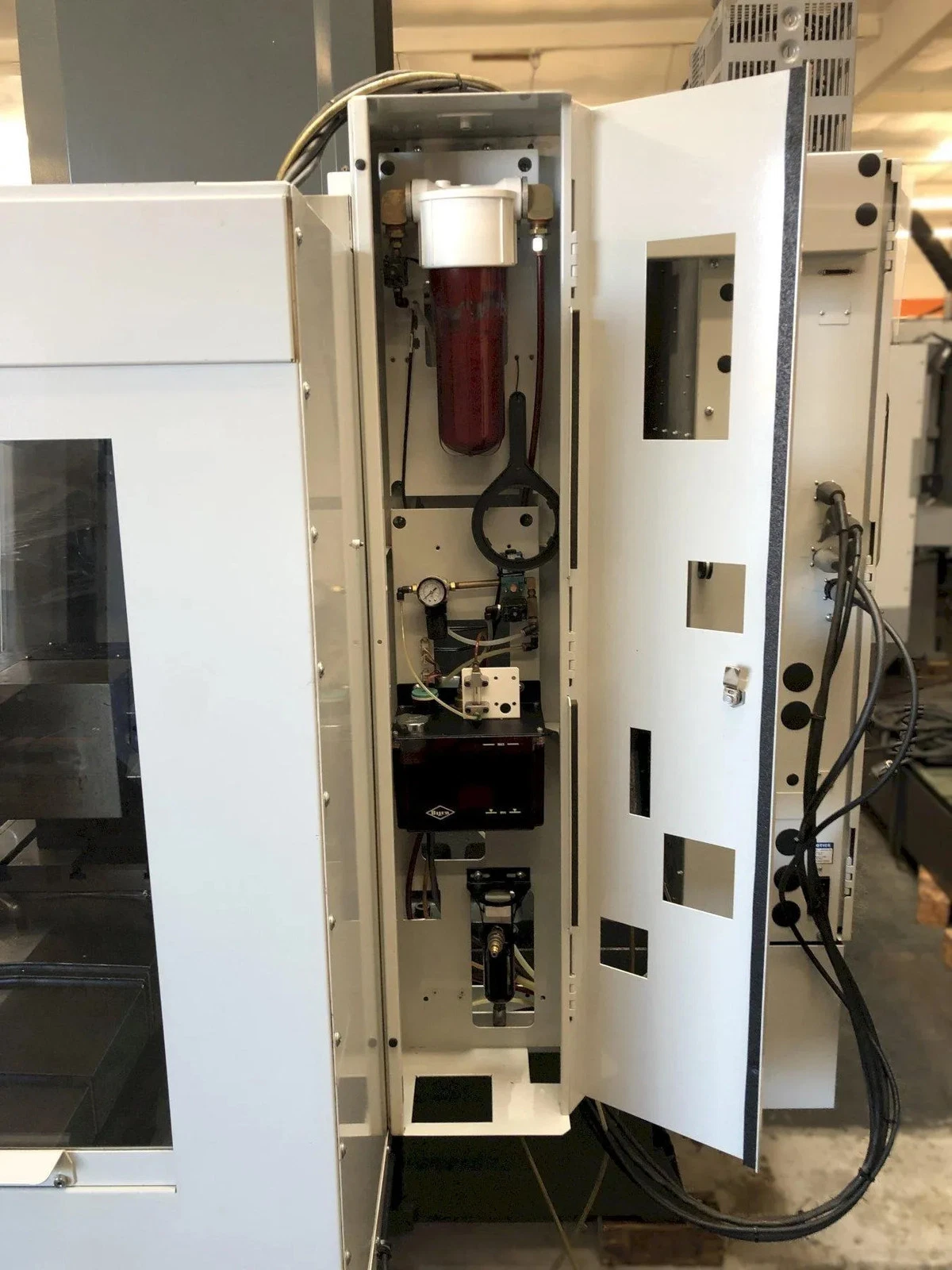

Air Required: 100 psi, 4 scfm

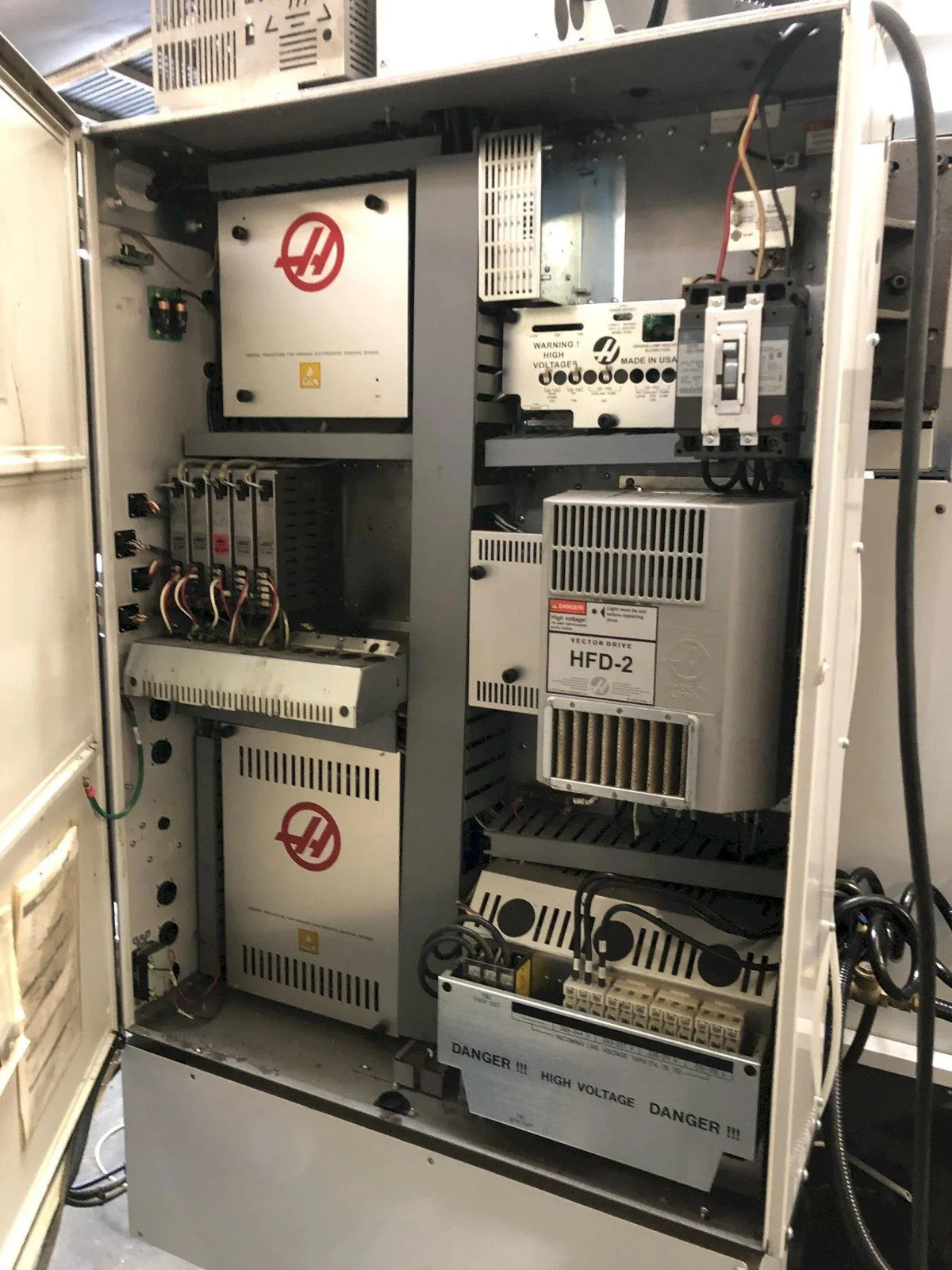

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101″ x 99″ x 101″ High
Machine Weight: 8,300 lbs
