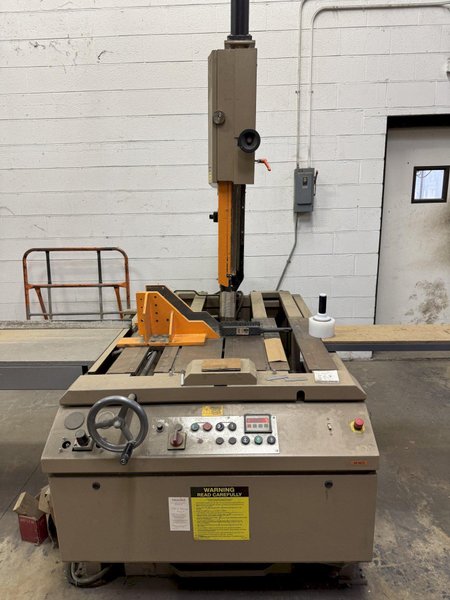

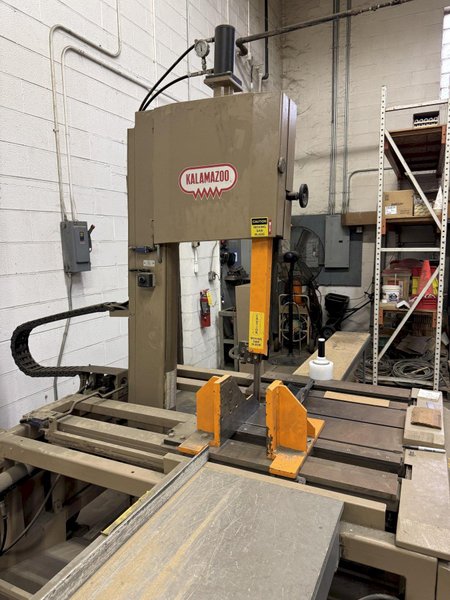

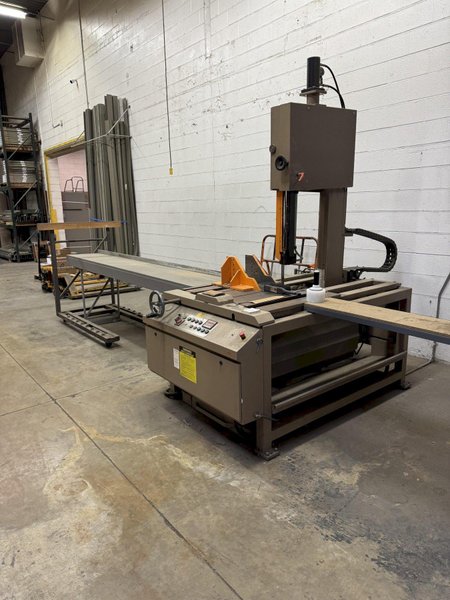

USED KALAMAZOO/BAUER MODEL VG-450L TILT FRAME AUTOMATIC VERTICAL BANDSAW

DESCRIPTION:
KALAMAZOO AUTOMATIC TILT FRAME VERTICAL BAND SAW

MODEL:

VG 450L (S/N 07-85032); NEW 2007

SPECIFICATIONS:

CAPACITY AT 90 DEGREES:

RECTANGLES:               17.7"W x 23.6"H

ROUNDS:    17.7"

CAPACITY AT 45 DEGREES:

RECTANGLES:               17.7"W x 15.3"H

CAPACITY AT 30 DEGREES:

RECTANGLES:               17.7"W x 10.2"H

TILT OF COLUMN:

LEFT     30-DEGREES

RIGHT 30-DEGREES

BLADE WHEEL DIAMETER: 17.7"

BLADE SIZE: 1.25" x .042" x 174"

BLADE SPEED:

INIFINITELY VARIABLE FROM 65 TO 400 F.P.M.

TABLE SIZE:   38" F-B x 36.75"

TABLE WORK HEIGHT (L TO R):        38"

APPROXIMATE WEIGHT:       5,800 LBS.

APPROXIMATE DIMENSIONS:          94.5" x 59" x 104"H

EQUIPPED WITH:

• POWER OPERATED TILT OF FRAME FOR MITER CUTTING
• TILTING HEAD UP TO 30 DEGREES LEFT & RIGHT
• VARIABLE BLADE SPEED
• MANUAL VISE
• T-SLOTTED TABLE
• HYDRAULIC ACTUATED & INFINITELY  VARIABLE FEED PRESSURE CONTROL
• COOLANT SYSTEM
• 3 HP MAIN MOTOR
• 1 HP HYDRAULIC PUMP MOTOR
