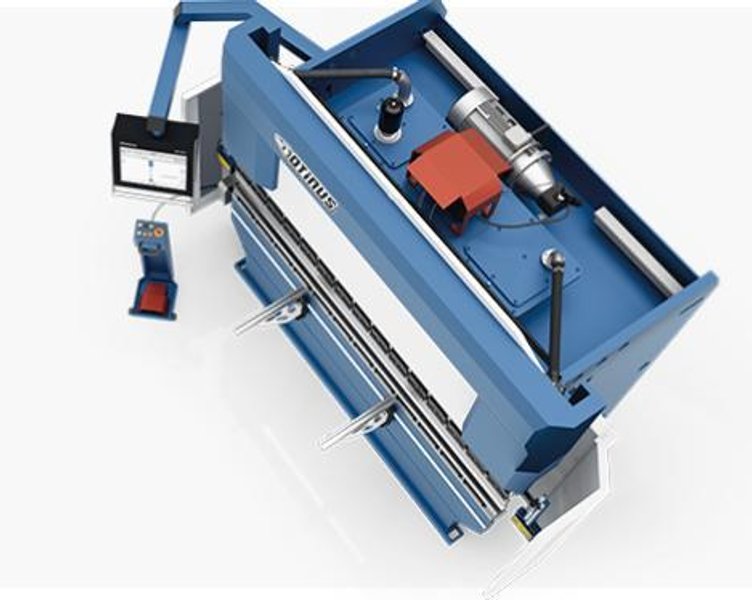

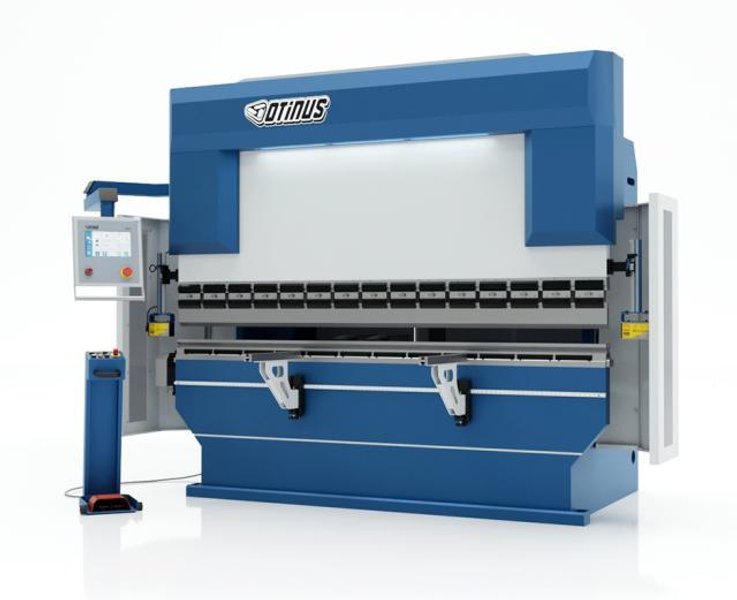

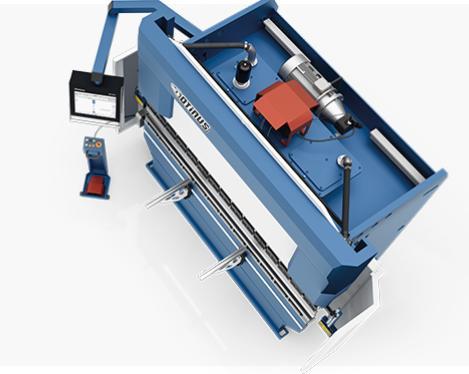

176 Tons X 10’ Hydraulic Press Brake with Delem DA-66T Controller, Tool Clamping, Optoelectronic Light Curtain, Independent Y1 & Y2 Control, Integrated LED Lighting, Front-Mounted Material Supports and Foot Pedal Control on Pedestal.

GENERAL SPECIFICATIONS
Bending Capacity:                        176 Tons
Max Working Length:                    122”
Throat Depth:                        13”
Maximum Ram Stroke:                    7”
Daylight:                            18”
Distance Between Side Frames:                102”
Backgauge Retract Distance:                24”
Nominal Motor Power:                    11 kW
Length:                            130”
Width:                                65”
Height:                            98”
Weight:                            21,400 Lbs

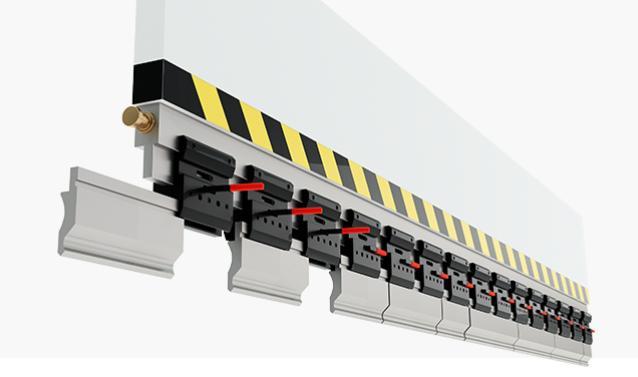

INCLUDES: Delem Da-66T CNC Control, Tool Clamping, Optoelectronic Light Curtain, Independent Y1 & Y2 Control, Integrated LED Lighting, Front-Mounted Material Supports and Foot Pedal Control on Pedestal.

***All Price, Location and Specifications Subject to Change without Notice***
