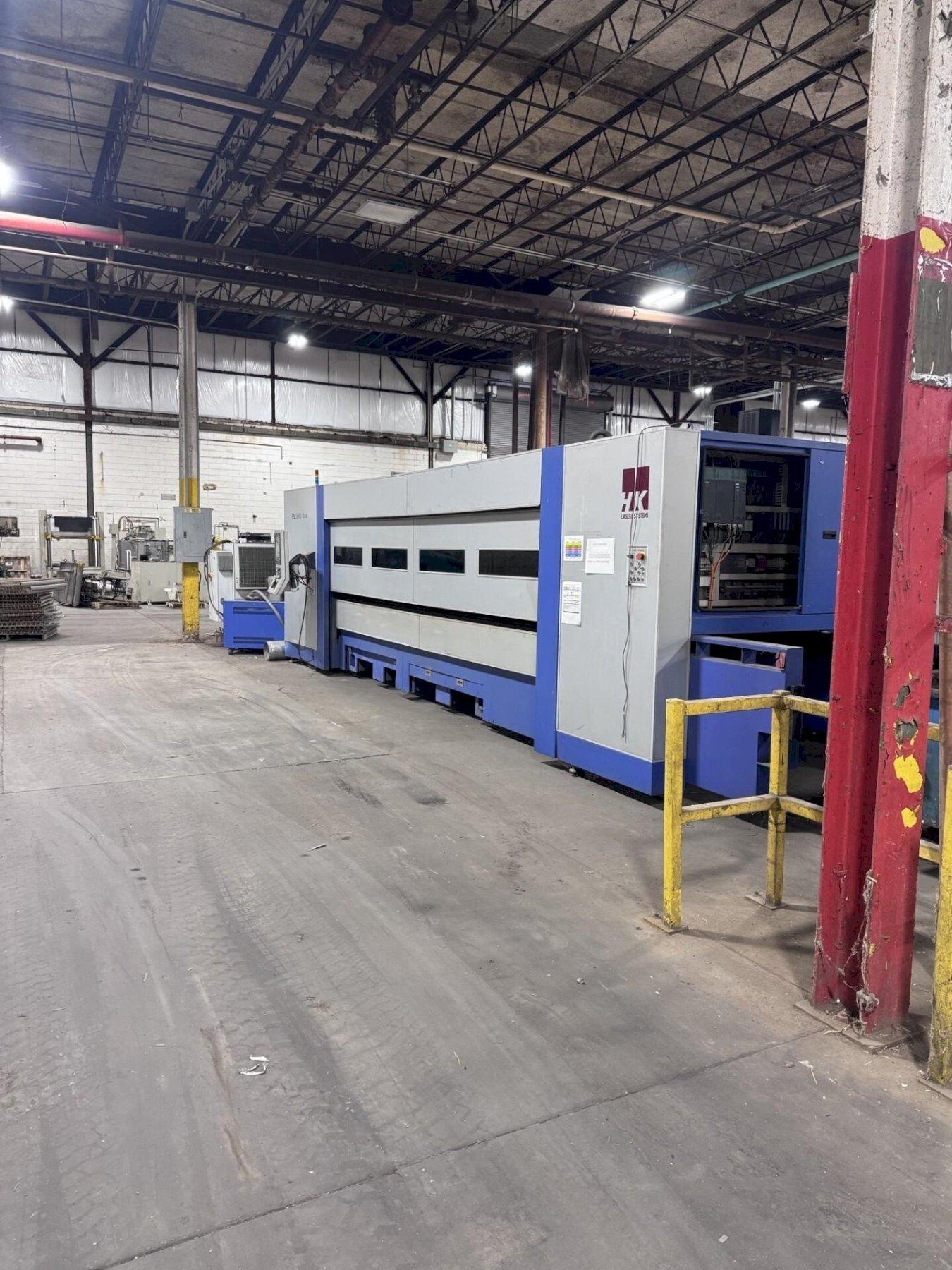

4000 Watt HK PL-3015 Fiber Laser, 2014 – 5′ x 10′ Table, Chiller Included
Brand
Category
Type
Model
PL-3015
Stock #
167863
Year
2014
Condition
Not specified
Location
Not specified
|
Table Size: 5′ x 10′
Laser Power: 4,000 Watts
Laser Source: Fiber Laser
X-Axis Travels: 122″
Y-Axis Travels: 62.2″
Z-Axis Travels: 3.9″

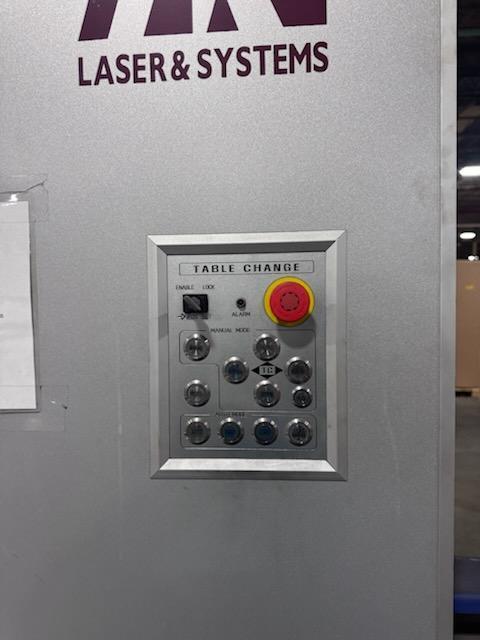

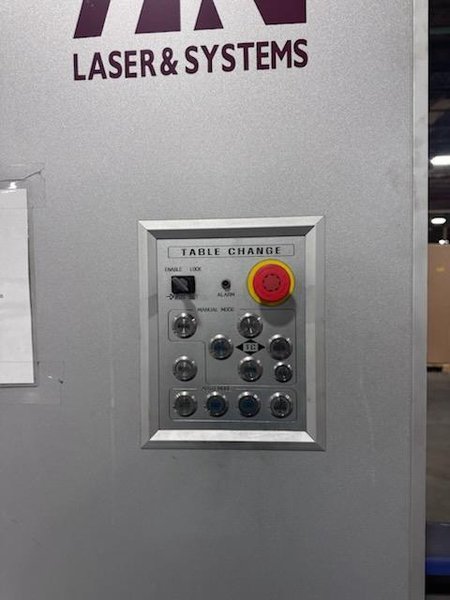

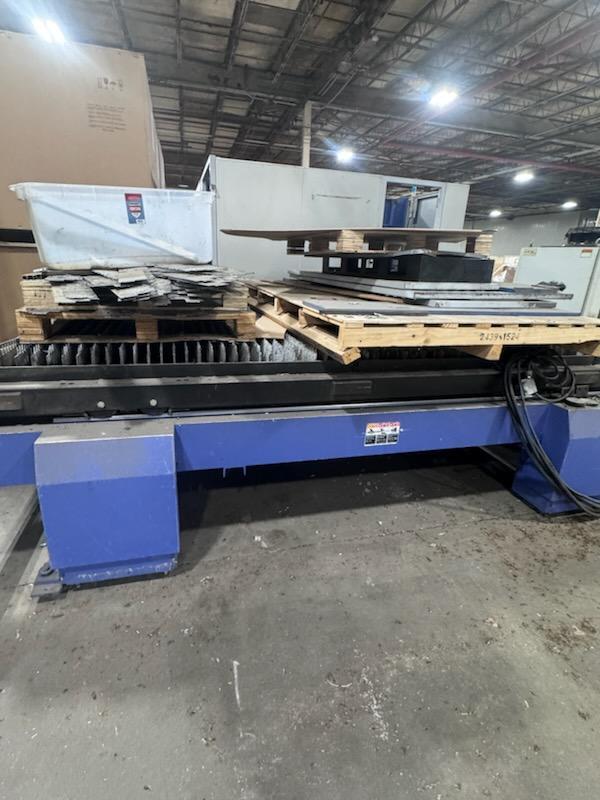

Table Configuration: Dual Shuttle Tables
Max Workpiece Weight: 1,984lbs
Max Positioning Speed: 5,511 IPM
Repeatability: ± 0.0008″
Mild Steel Cutting Capacity: 0.787″
Stainless Steel Cutting Capacity: 0.393″

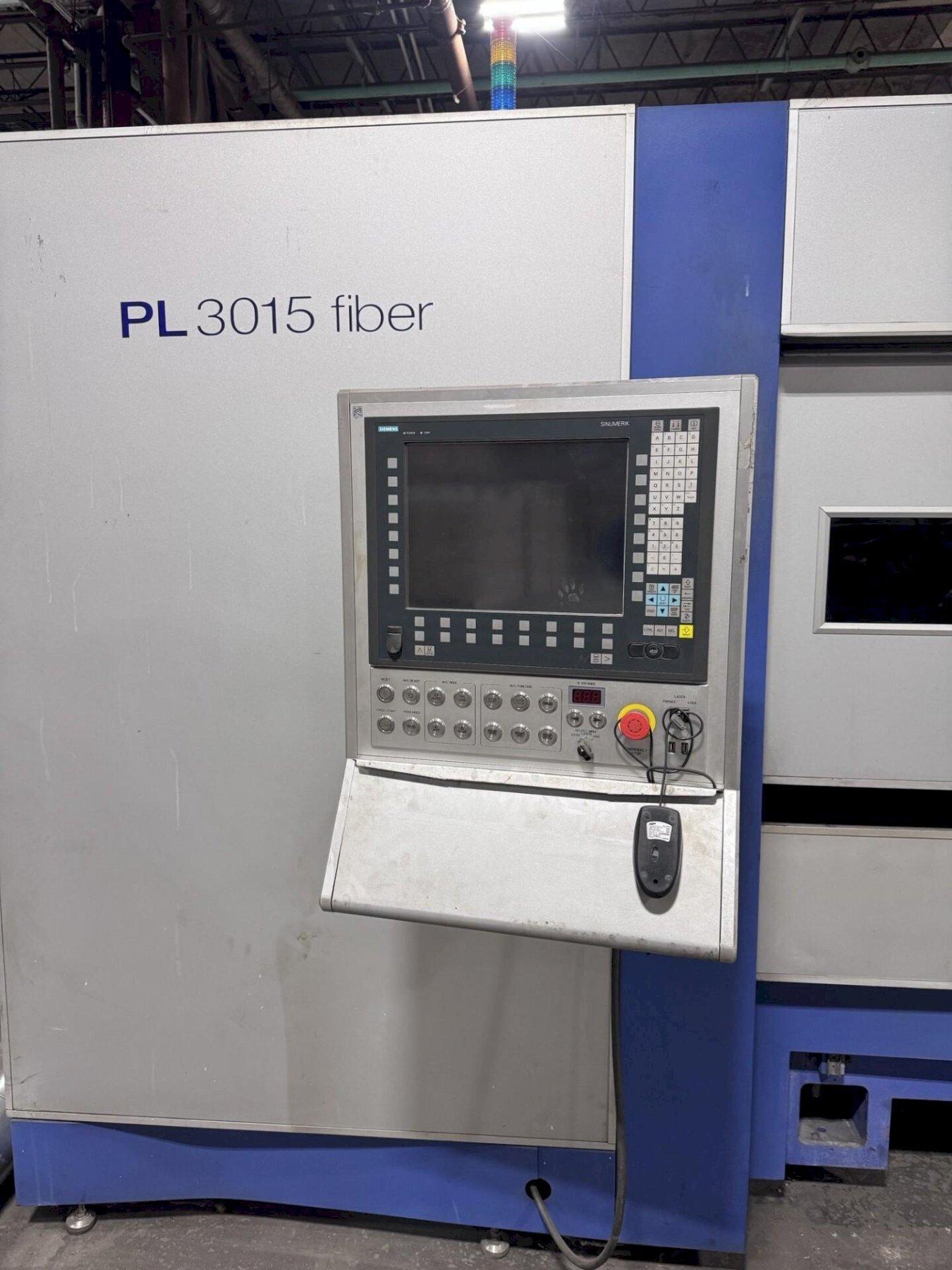

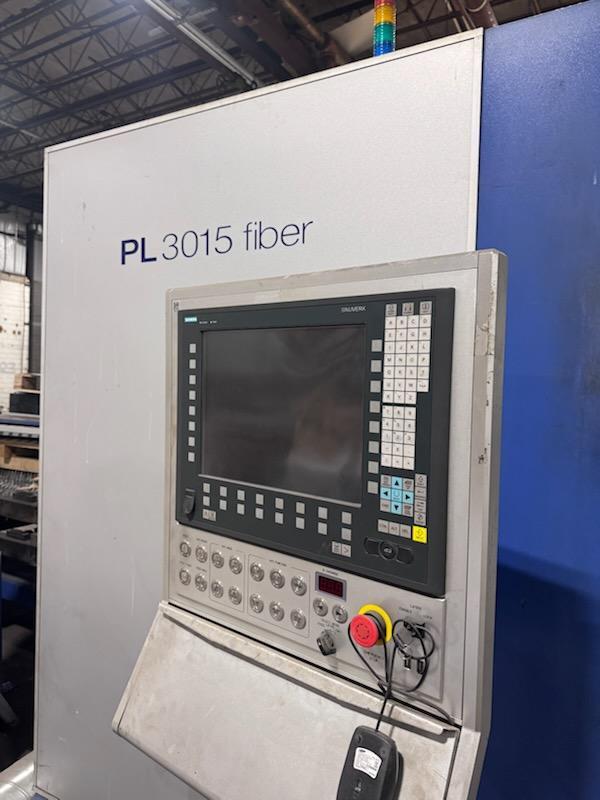

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approximate Machine Dimensions: 380″ x 120″ x 86″ Approximate Machine Weight: 26,455lbs All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Siemens SINUMERIK 840D SL Controller All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
