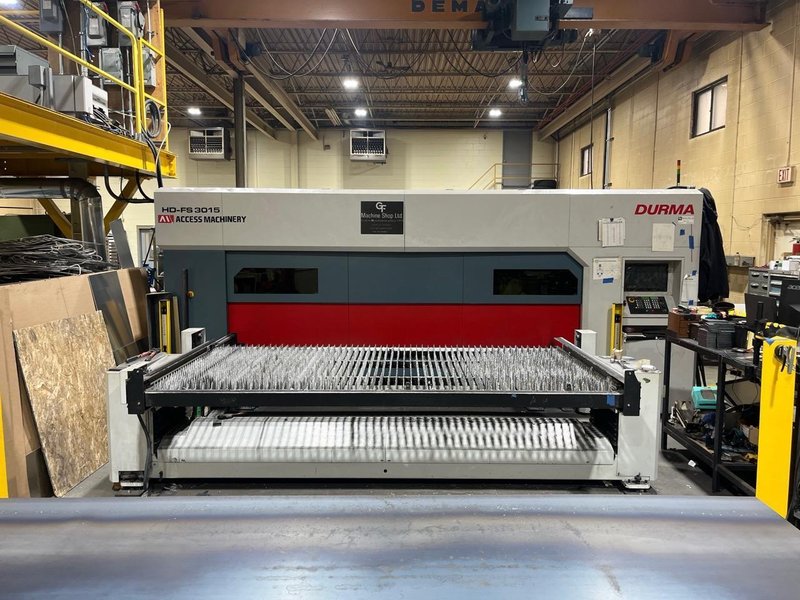

4,000 Watt Durma HDFS 3015 Fiber Laser, 2022 – 5′ x 10′ Dual Table, Dust Collector, IPG Chiller, Low Hours
Brand
Category
Type
Model
HD-FS 3015
Stock #
25742
Year
2022
Condition
Not specified
Location
Not specified
|
Laser Power: 4,000 Watts
Cutting Area: 60″ x 120″
Table Size: 5′ x 10′
X Axis: 120″
Y Axis: 60″
Z Axis: 4.7″
Maximum Positioning Speed: 5,511 IPM
Positioning Accuracy: ±0.002″
Repeatability: ±0.001″
Maximum Sheet Weight: 1,984 lbs
Electrical Requirement: 480V 3 Phase

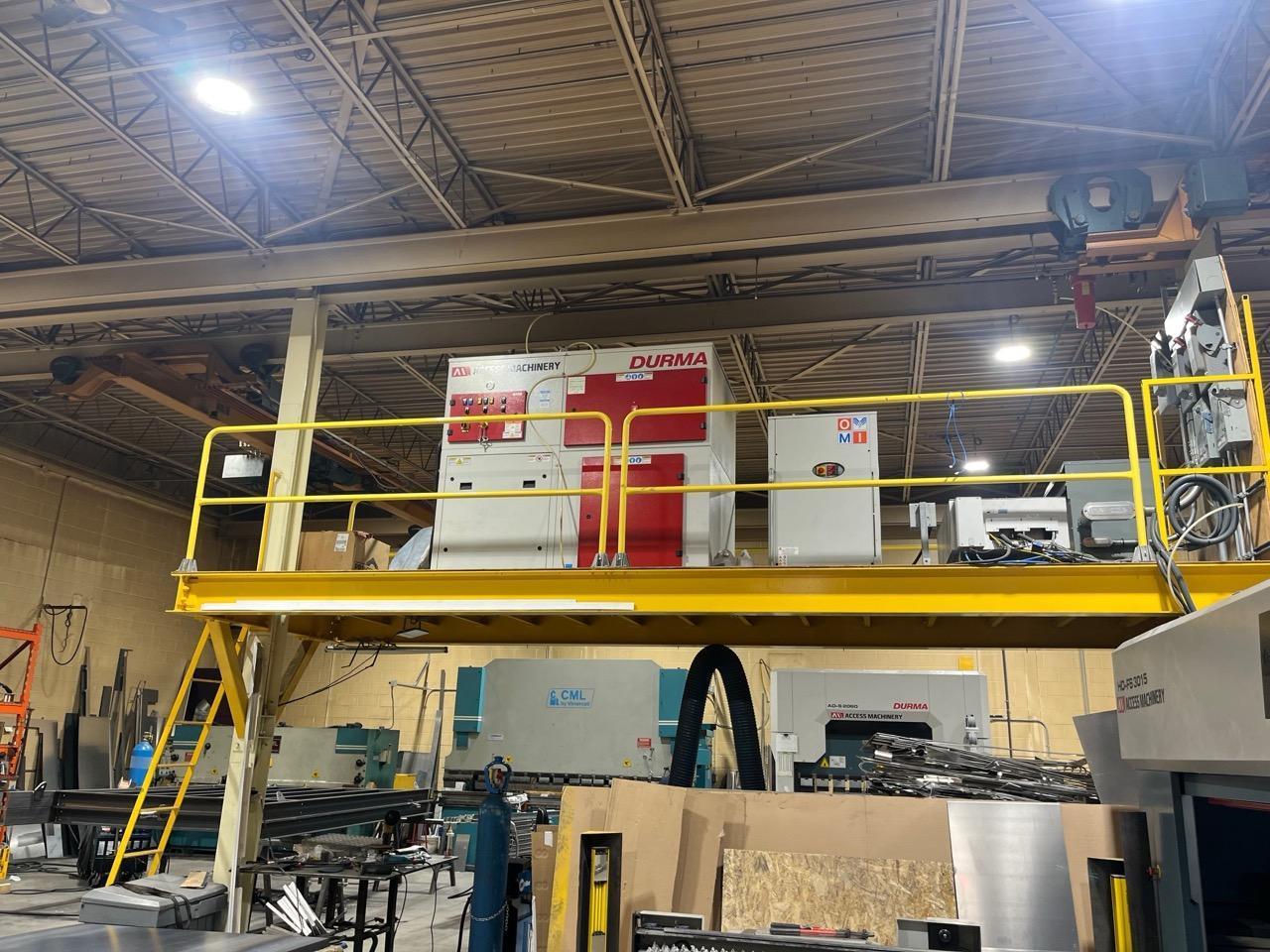

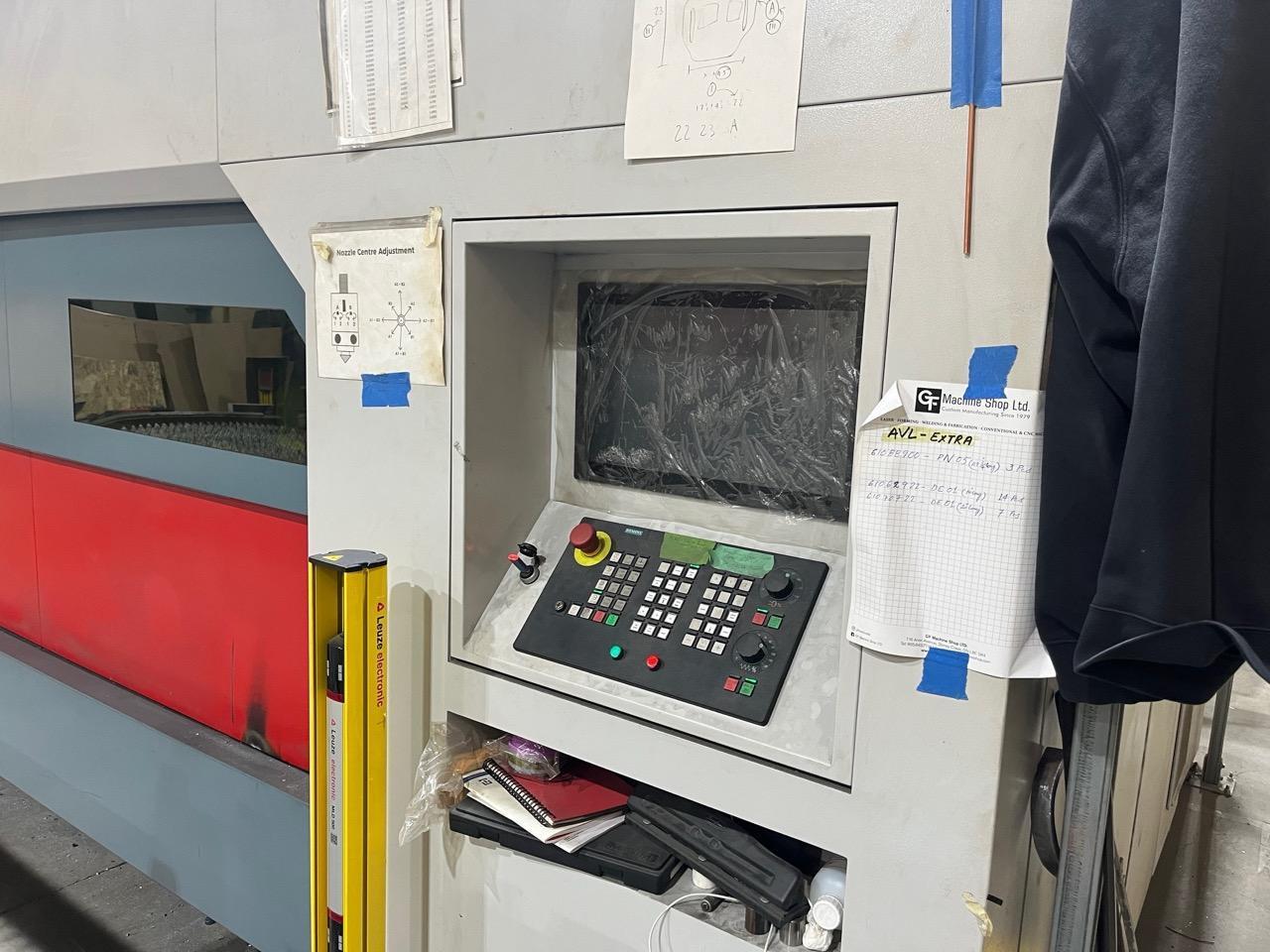

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Siemens CNC Control Dual Shuttle Table Dust Collector IPG Chiller All Available Manuals All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
No files or videos to display
